? ? ? ?STC15W系列单片机最多有21个中断请求源，每个中断请求源都有相应的控制寄存器。要记忆下来是一个比较麻烦的事情，也没有必要。使用时临时去查手册，也比较麻烦费时，一劳永逸的办法是就是写库函数。新建两个文件，分别以stcint.h, stcint.c存入C51 Template文件夹下Library文件夹中。
? ? ? ? ? ?需要说明的是：中断函数不可以像普通函数那样在头文件中声明，否则编译时会报错。请看下面例子:
/*stcint.h
Designed by Bill Liu
Version 0.0
Modified last by Bill Liu on 11/29/2021
*/
#ifndef __STCINT_H_
#define __STCINT_H_
#include "mtype.h"
#include "stc15w4k.h"
void STC_Int0(void) interrupt 0;
#endif/*stcint.c
Designed by Bill Liu
Version 0.0
Modified last by Bill Liu on 11/29/2021
*/
#include "stcint.h"
void STC_Int0(void) interrupt 0
{
}
//End of STC_Int0(void)/*main.c
Designed by Bill Liu
Version 0.0
Modified last by Bill Liu on 11/29/2021
*/
#include "main.h"
#include "stcint.h"
void main()
{
while(1)
{
}
}

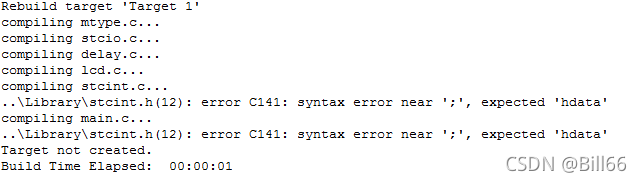

//End of main()编译结果，如下：
?编译出错，问题出在中断函数的声明。现在把中断函数的声明注释起来，再看下编译结果：
/*stcint.h
Designed by Bill Liu
Version 0.0
Modified last by Bill Liu on 11/29/2021
*/
#ifndef __STCINT_H_
#define __STCINT_H_
#include "mtype.h"
#include "stc15w4k.h"
//void STC_Int0(void) interrupt 0;
#endif

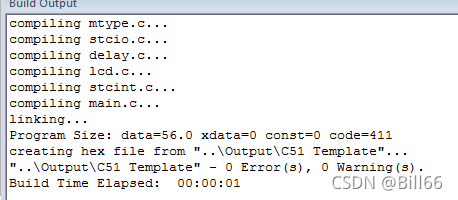

编译通过。 说明中断函数不用声明,直接在源程序中实现即可。另外需要说明的是，库函数中的中断函数没有实现代码，并被注释起来，需要用时，再去取消注释，添加实现代码，也可Copy到主程序中去实现。库函数主要是中断初始化函数，及中断标志位读写函数。
? ? ? 头文件如下：
/*stcint.h
Designed by Bill Liu
Version 0.0
Modified last by Bill Liu on 11/29/2021
*/
#ifndef __STCINT_H_
#define __STCINT_H_
#include "mtype.h"
#include "stc15w4k.h"
//External INT///
/**********************************************************************
Function: STC_Int0Init(BOOL intEnable, BOOL priority, BOOL falEdgeTrigger);
Return value: void
Discription: INT0 init
Example:
STC_Int0Init(1, 0, 0); //init to trigger interrupt at both of level rising edge & falling edge
STC_Int0Init(1, 0, 1); //init to trigger interrupt at falling edge
***********************************************************************/
void STC_Int0Init(BOOL intEnable, BOOL priority, BOOL falEgeTrigger);
/**********************************************************************
Function: STC_Int1Init(BOOL intEnable, BOOL priority, BOOL falEdgeTrigger);
Return value: void
Discription: INT1 init
Example:
STC_Int1Init(1, 0, 0); //init to trigger interrupt at both of level rising edge & falling edge
STC_Int1Init(1, 0, 1); //init to trigger interrupt at falling edge,priorrity level 0
***********************************************************************/
void STC_Int1Init(BOOL intEnable, BOOL priority, BOOL falEgeTrigger);
/**********************************************************************
Function: STC_Int2Init(BOOL intEnable);
Return value: void
Discription: init INT2
Example:
STC_Int2Init(1); //INT2 enable,trigger at falling edge
STC_Int2Init(0); //INT2 disable
***********************************************************************/
void STC_Int2Init(BOOL intEnable);
/**********************************************************************
Function: STC_Int3Init(BOOL intEnable);
Return value: void
Discription: INT3 init
Example:
STC_Int2Init(1); //INT3 enable,trigger at falling edge
STC_Int2Init(0); //INT3 disable
***********************************************************************/
void STC_Int3Init(BOOL intEnable);
/**********************************************************************
Function: STC_Int4Init(BOOL intEnable, BOOL priority);
Return value: void
Discription: INT4 init
Example:
STC_Int4Init(1, 0); //INT4 interrupt enable,priority level 0
STC_Int4Init(0, 0); //INT4 interrupt disable
***********************************************************************/
void STC_Int4Init(BOOL intEnable, BOOL priority);
/Timer/
/**********************************************************************
Function: STC_GetT0Flag();
Return value: ui8
Discription: get T0 counter overflow flag
Example:
ui8 t0flag = STC_GetT0Flag();
***********************************************************************/
ui8 STC_GetT0Flag();
/**********************************************************************
Function: STC_ClearT0Flag();
Return value: void
Discription: cleart T0 counter overflow flag
Example:
STC_ClearT0Flag();
***********************************************************************/
void STC_ClearT0Flag();
/**********************************************************************
Function: STC_IntT0Init(BOOL intEnable, BOOL priority);
Return value: void
Discription: timer0 interrupt init
Example:
STC_IntT0Init(1, 0); //T0 interrupt enable,priority level 0
STC_IntT0Init(0, 0); //T0 interrupt disable
***********************************************************************/
void STC_IntT0Init(BOOL intEnable, BOOL priority);
/**********************************************************************
Function: STC_GetT1Flag();
Return value: ui8
Discription: get T1 counter overflow flag
Example:
ui8 t1flag = STC_GetT1Flag();
***********************************************************************/
ui8 STC_GetT1Flag();
/**********************************************************************
Function: STC_ClearT1Flag();
Return value: void
Discription: cleart T1 counter overflow flag
Example:
STC_ClearT1Flag();
***********************************************************************/
void STC_ClearT1Flag();
/**********************************************************************
Function: STC_IntT1Init(BOOL intEnable, BOOL priority);
Return value: void
Discription: timer1 interrupt init
Example:
STC_IntT1Init(1, 0); //T1 interrupt enable,prioriyty level 0
STC_IntT1Init(0, 0); //T1 interrupt disable
***********************************************************************/
void STC_IntT1Init(BOOL intEnable, BOOL priority);
/**********************************************************************
Function: STC_IntT2Init(BOOL intEnable);
Return value: void
Discription: timer2 interrupt init
Example:
STC_IntT2Init(1); //T2 interrupt enable
STC_IntT2Init(0); //T2 interrupt disable
***********************************************************************/
void STC_IntT2Init(BOOL intEnable);
/**********************************************************************
Function: STC_IntT3Init(BOOL intEnable);
Return value: void
Discription: timer3 interrupt init
Example:
STC_IntT3Init(1); //T3 interrupt enable
STC_IntT3Init(0); //T3 interrupt disable
***********************************************************************/
void STC_IntT3Init(BOOL intEnable);
/**********************************************************************
Function: STC_IntT4Init(BOOL intEnable);
Return value: void
Discription: timer4 interrupt init
Example:
STC_IntT4Init(1); //T4 interrupt enable
STC_IntT4Init(0); //T4 interrupt disable
***********************************************************************/
void STC_IntT4Init(BOOL intEnable);
///Serial port
/**********************************************************************
Function: STC_GetS1RiFlag();
Return value: ui8
Discription: get serial port1 receiving interrupt flag
Example:
ui8 tem = STC_GetS1RiFlag();
***********************************************************************/
ui8 STC_GetS1RiFlag();
/**********************************************************************
Function: STC_ClearS1RiFlag();
Return value: void
Discription: clear serial port1 receiving interrupt flag
Example:
STC_ClearS1RiFlag();
***********************************************************************/
void STC_ClearS1RiFlag();
/**********************************************************************
Function: STC_GetS1TiFlag();
Return value: ui8
Discription: get serial port1 transmitting interrupt flag
Example:
ui8 tem = STC_GetS1TiFlag();
***********************************************************************/
ui8 STC_GetS1TiFlag();
/**********************************************************************
Function: STC_ClearS1TiFlag();
Return value: void
Discription: clear serial port1 trnsmitting interrupt flag
Example:
STC_ClearS1TiFlag();
***********************************************************************/
void STC_ClearS1TiFlag();
/**********************************************************************
Function: STC_IntS1Init(BOOL intEnable, BOOL priority);
Return value: void
Discription: serial port1 interrupt init
Example:
STC_IntS1Init(1,0); //serial port1 interrupt enable,priority level 0
STC_IntS1Init(0,0); //serial port1 interrupt disable
***********************************************************************/
void STC_IntS1Init(BOOL intEnable, BOOL priority);
/**********************************************************************
Function: STC_GetS2RiFlag();
Return value: ui8
Discription: get serial port2 receiving interrupt flag
Example:
ui8 tem = STC_GetS2RiFlag();
***********************************************************************/
ui8 STC_GetS2RiFlag();
/**********************************************************************
Function: STC_ClearS2RiFlag();
Return value: void
Discription: clear serial port2 receiving interrupt flag
Example:
STC_ClearS2RiFlag();
***********************************************************************/
void STC_ClearS2RiFlag();
/**********************************************************************
Function: STC_GetS2TiFlag();
Return value: ui8
Discription: get serial port2 transmitting interrupt flag
Example:
ui8 tem = STC_GetS2TiFlag();
***********************************************************************/
ui8 STC_GetS2TiFlag();
/**********************************************************************
Function: STC_ClearS2TiFlag();
Return value: void
Discription: clear serial port2 trnsmitting interrupt flag
Example:
STC_ClearS2TiFlag();
***********************************************************************/
void STC_ClearS2TiFlag();
/**********************************************************************
Function: STC_IntS2Init(BOOL intEnable, BOOL priority);
Return value: void
Discription: serial port2 interrupt init
Example:
STC_IntS2Init(1,0); //serial port2 interrupt enable,priority level 0
STC_IntS2Init(0,0); //serial port2 interrupt disable
***********************************************************************/
void STC_IntS2Init(BOOL intEnable, BOOL priority);
/**********************************************************************
Function: STC_GetS3RiFlag();
Return value: ui8
Discription: get serial port3 receiving interrupt flag
Example:
ui8 tem = STC_GetS3RiFlag();
***********************************************************************/
ui8 STC_GetS3RiFlag();
/**********************************************************************
Function: STC_ClearS3RiFlag();
Return value: void
Discription: clear serial port3 receiving interrupt flag
Example:
STC_ClearS3RiFlag();
***********************************************************************/
void STC_ClearS3RiFlag();
/**********************************************************************
Function: STC_GetS3TiFlag();
Return value: ui8
Discription: get serial port3 transmitting interrupt flag
Example:
ui8 tem = STC_GetS3TiFlag();
***********************************************************************/
ui8 STC_GetS3TiFlag();
/**********************************************************************
Function: STC_ClearS3TiFlag();
Return value: void
Discription: clear serial port3 trnsmitting interrupt flag
Example:
STC_ClearS3TiFlag();
***********************************************************************/
void STC_ClearS3TiFlag();
/**********************************************************************
Function: STC_IntS3Init(BOOL intEnable);
Return value: void
Discription: serial port3 interrupt init
Example:
STC_IntS3Init(1); //serial port3 interrupt enable
STC_IntS3Init(0); //serial port3 interrupt disable
***********************************************************************/
void STC_IntS3Init(BOOL intEnable);
/**********************************************************************
Function: STC_GetS4RiFlag();
Return value: ui8
Discription: get serial port4 receiving interrupt flag
Example:
ui8 tem = STC_GetS4RiFlag();
***********************************************************************/
ui8 STC_GetS4RiFlag();
/**********************************************************************
Function: STC_ClearS4RiFlag();
Return value: void
Discription: clear serial port4 receiving interrupt flag
Example:
STC_ClearS4RiFlag();
***********************************************************************/
void STC_ClearS4RiFlag();
/**********************************************************************
Function: STC_GetS4TiFlag();
Return value: ui8
Discription: get serial port4 transmitting interrupt flag
Example:
ui8 tem = STC_GetS4TiFlag();
***********************************************************************/
ui8 STC_GetS4TiFlag();
/**********************************************************************
Function: STC_ClearS4TiFlag();
Return value: void
Discription: clear serial port4 trnsmitting interrupt flag
Example:
STC_ClearS4TiFlag();
***********************************************************************/
void STC_ClearS4TiFlag();
/**********************************************************************
Function: STC_IntS4Init(BOOL intEnable);
Return value: void
Discription: serial port4 interrupt init
Example:
STC_IntS4Init(1); //serial port4 interrupt enable
STC_IntS4Init(0); //serial port4 interrupt disable
***********************************************************************/
void STC_IntS4Init(BOOL intEnable);
//ADC
/**********************************************************************
Function: STC_GetAdcFlag();
Return value: ui8
Discription: get ADC interrupt flag
Example:
ui8 tem = STC_GetAdcFlag();
***********************************************************************/
ui8 STC_GetAdcFlag();
/**********************************************************************
Function: STC_ClearAdcFlag();
Return value: void
Discription: clear ADC interrupt flag
Example:
STC_ClearAdcFlag();
***********************************************************************/
void STC_ClearAdcFlag();
/**********************************************************************
Function: STC_IntAdcInit(BOOL intEnable, BOOL proirity);
Return value: void
Discription: ADC interrupt init
Example:
STC_IntAdcInit(1,0); //ADC interrupt enable, priority level 0
STC_IntAdcInit(0,0); //ADC interrupt disable
***********************************************************************/
void STC_IntAdcInit(BOOL intEnable, BOOL proirity);
///LVD/
/**********************************************************************
Function: STC_GetLvdFlag();
Return value: ui8
Discription: get low voltage detected flag
Example:
ui8 tem = STC_GetLvdFlag();
***********************************************************************/
ui8 STC_GetLvdFlag();
/**********************************************************************
Function: STC_ClearLvdFlag();
Return value: void
Discription: clear low voltage detected flag
Example:
STC_ClearLvdFlag();
***********************************************************************/
void STC_ClearLvdFlag();
/**********************************************************************
Function: STC_IntLvdInit(BOOL intEnable, BOOL proirity);
Return value: void
Discription: LVD interrupt init
Example:
STC_IntLvdInit(1,0); //LVD interrupt enable, priority level 0
STC_IntLvdInit(0,0); //LVD interrupt disable
***********************************************************************/
void STC_IntLvdInit(BOOL intEnable, BOOL proirity);
///SPI///
/**********************************************************************
Function: STC_GetSPIFlag();
Return value: ui8
Discription: get SPI sinish flag
Example:
ui8 tem = STC_GetSPIFlag();
***********************************************************************/
ui8 STC_GetSPIFlag();
/**********************************************************************
Function: STC_ClearSPIFlag();
Return value: void
Discription: clear SPI finish flag
Example:
STC_ClearSPIFlag();
***********************************************************************/
void STC_ClearSPIFlag();
/**********************************************************************
Function: STC_IntSpiInit(BOOL intEnable, BOOL proirity);
Return value: void
Discription: SPI interrupt init
Example:
STC_IntSpiInit(1,0); //SPI interrupt enable, priority level 0
STC_IntSpiInit(0,0); //SPI interrupt disable
***********************************************************************/
void STC_IntSpiInit(BOOL intEnable, BOOL proirity);
/PCA///
typedef enum
{
SCCF0 = 0x01,
SCCF1 = 0x02,
SCCF2 = 0x04,
SCF = 0x80
}PCA_INTSOURCE;
/**********************************************************************
Function: STC_GetPcaFlag();
Return value: ui8
Discription: get PCA counter overflow flag
Example:
ui8 tem = STC_GetPcaFlag();
***********************************************************************/
ui8 STC_GetPcaFlag();
/**********************************************************************
Function: STC_GetPCA0Flag();
Return value: ui8
Discription: get PCA0 interrupt flag
Example:
ui8 tem = STC_GetPCA0Flag();
***********************************************************************/
ui8 STC_GetPCA0Flag();
/**********************************************************************
Function: STC_GetPCA1Flag();
Return value: ui8
Discription: getPCA1 interrupt flag
Example:
ui8 tem = STC_GetPCA1Flag();
***********************************************************************/
ui8 STC_GetPCA1Flag();
/**********************************************************************
Function: STC_GetPCA2Flag();
Return value: ui8
Discription: get PCA2 interrupt flag
Example:
ui8 tem = STC_GetPCA2Flag();
***********************************************************************/
ui8 STC_STC_GetPCA2Flag();
/**********************************************************************
Function: STC_ClearPcaFlag();
Return value: void
Discription: clear PCA interrupt flag
Example:
STC_ClearPcaFlag();
***********************************************************************/
void STC_ClearPcaFlag();
/**********************************************************************
Function: STC_IntPcaInit(BOOL intEnable, PCA_INTSOURCE msource, BOOL priority);
Return value: void
Discription: PCA interrupt init
Example:
STC_IntSpiInit(1,1,0); //PCA CF interrupt enable, priority level 0
STC_IntSpiInit(0,1,0); //PCA interrupt disable
***********************************************************************/
void STC_IntPcaInit(BOOL intEnable, PCA_INTSOURCE msource, BOOL priority);
///Comparator
/**********************************************************************
Function: STC_ClearCmpFlag();
Return value: void
Discription: clear comparator interrupt flag
Example:
STC_ClearCmpFlag();
***********************************************************************/
void STC_ClearCmpFlag();
/**********************************************************************
Function: STC_IntCmpInit(BOOL nEnable, BOOL pEnable);
Return value: void
Discription: comparator interrupt init
Example:
STC_IntCmpInit(1,0); //comparator negtive edge INT enable,
positive edge INT disable
***********************************************************************/
void STC_IntCmpInit(BOOL nEnable, BOOL pEnable);
///PWM FD
/**********************************************************************
Function: STC_PwmFdClearFlag();
Return value: void
Discription: clear PWM found exception interrupt flag
Example:
STC_PwmFdClearFlag();
***********************************************************************/
void STC_PwmFdClearFlag();
/**********************************************************************
Function: STC_IntPwmFdInit(BOOL intEnable, BOOL priority);
Return value: void
Discription: PWM found exception interrupt init
Example:
STC_IntPwmFdInit(1,0); //PWM found exception interrupt INT enable,
priority level 0
***********************************************************************/
void STC_IntPwmFdInit(BOOL intEnable, BOOL priority);
//PWM
/**********************************************************************
Function: STC_PwmClearFlag();
Return value: void
Discription: clear PWM interrupt flag
Example:
STC_PwmClearFlag();
***********************************************************************/
void STC_PwmClearFlag();
/**********************************************************************
Function: STC_IntPwmInit(BOOL cResetIntEnable, BOOL priority);
Return value: void
Discription: PWM counter reset interrupt init
Example:
STC_IntPwmInit(1,0);
***********************************************************************/
void STC_IntPwmInit(BOOL cResetIntEnable, BOOL priority);
/**********************************************************************
Function: STC_IntPWM2Init(BOOL intT1, BOOL intT2, BOOL priority);
Return value: void
Discription: PWM2 interrupt init
Example:
STC_IntPWM2Init(1,0,0);
***********************************************************************/
void STC_IntPWM2Init(BOOL intT1, BOOL intT2, BOOL priority);
/**********************************************************************
Function: STC_IntPWM3Init(BOOL intT1, BOOL intT2, BOOL priority);
Return value: void
Discription: PWM3 interrupt init
Example:
STC_IntPWM3Init(1,0,0);
***********************************************************************/
void STC_IntPWM3Init(BOOL intT1, BOOL intT2, BOOL priority);
/**********************************************************************
Function: STC_IntPWM4Init(BOOL intT1, BOOL intT2, BOOL priority);
Return value: void
Discription: PWM4 interrupt init
Example:
STC_IntPWM4Init(1,0,0);
***********************************************************************/
void STC_IntPWM4Init(BOOL intT1, BOOL intT2, BOOL priority);
/**********************************************************************
Function: STC_IntPWM5Init(BOOL intT1, BOOL intT2, BOOL priority);
Return value: void
Discription: PWM5 interrupt init
Example:
STC_IntPWM5Init(1,0,0);
***********************************************************************/
void STC_IntPWM5Init(BOOL intT1, BOOL intT2, BOOL priority);
/**********************************************************************
Function: STC_IntPWM6Init(BOOL intT1, BOOL intT2, BOOL priority);
Return value: void
Discription: PWM6 interrupt init
Example:
STC_IntPWM6Init(1,0,0);
***********************************************************************/
void STC_IntPWM6Init(BOOL intT1, BOOL intT2, BOOL priority);
/**********************************************************************
Function: STC_IntPWM7Init(BOOL intT1, BOOL intT2, BOOL priority);
Return value: void
Discription: PWM7 interrupt init
Example:
STC_IntPWM7Init(1,0,0);
***********************************************************************/
void STC_IntPWM7Init(BOOL intT1, BOOL intT2, BOOL priority);
#endif源程序如下：
/*stcint.c
Designed by Bill Liu
Version 0.0
Modified last by Bill Liu on 11/29/2021
*/
#include "stcint.h"
/*
///
void STC_Int0(void) interrupt 0
{
}
//End of STC_Int0(void)
///
void STC_Int1(void) interrupt 2
{
}
//End of STC_Int1(void)
///
void STC_Int2(void) interrupt 10
{
}
//End of STC_Int2(void)
///
void STC_Int3(void) interrupt 11
{
}
//End of STC_Int3(void)
///
void STC_Int4(void) interrupt 16
{
}
//End of STC_Int4(void)
///
void STC_T0Int(void) interrupt 1
{
}
//End of STC_T0Int(void)
///
void STC_T1Int(void) interrupt 3
{
}
//End of STC_T1Int(void)
///
void STC_T2Int(void) interrupt 12
{
}
//End of STC_T2Int(void)
///
void STC_T3Int(void) interrupt 19
{
}
//End of STC_T3Int(void)
///
void STC_T4Int(void) interrupt 20
{
}
//End of STC_T4Int(void)
///
void STC_S1Int(void) interrupt 4
{
}
//End of STC_S1Int(void)
///
void STC_S2Int(void) interrupt 8
{
}
//End of STC_S2Int(void)
///
void STC_S3Int(void) interrupt 17
{
}
//End of STC_S3Int(void)
///
void STC_S4Int(void) interrupt 18
{
}
//End of STC_S4Int(void)
///
void STC_ADCInt(void) interrupt 5
{
}
//End of STC_ADCInt(void)
///
void STC_LvdInt(void) interrupt 6
{
}
//End of STC_LvdInt(void)
///
void STC_SpiInt(void) interrupt 9
{
}
//End of STC_SpiInt(void)
///
void STC_PCAInt(void) interrupt 7
{
}
//End of STC_PCAInt(void)
///
void STC_CmpInt(void) interrupt 21 //comparator interrupt function
{
}
//End of STC_CmpInt(void)
///
void STC_PwmInt(void) interrupt 22
{
}
//End of STC_PwmInt(void)
///
void STC_PwmFdInt(void) interrupt 23
{
}
//End of STC_PCAInt(void)
*/
///External INT/
//********************************************************************
void STC_Int0Init(BOOL intEnable, BOOL priority, BOOL falEgeTrigger)
{
if(intEnable)
{
EA = 1;
EX0 = 1;
}
else
EX0 = 0;
if(falEgeTrigger)
IT0 = 1;
else
IT0 = 0;
if(priority)
PX0 = 1;
else
PX0 = 0;
}
//End of STC_Int0Init(BOOL intEnable, BOOL priority, BOOL dnEgeTrigger)
//**********************************************************************
void STC_Int1Init(BOOL intEnable, BOOL priority, BOOL falEdgeTrigger)
{
if(intEnable)
{
EA = 1;
EX1 = 1;
}
else
EX1 = 0;
if(falEdgeTrigger)
IT1 = 1;
else
IT1 = 0;
if(priority)
PX1 = 1;
else
PX1 = 0;
}
//End of STC_Int1Init(BOOL intEnable, BOOL priority, BOOL falEdgeTrigger)
//**********************************************************************
void STC_Int2Init(BOOL intEnable)
{
ui8 tem = INT_CLKO;
if(intEnable)
{
EA = 1;
SetBit(&tem, 4);
}
else
ResetBit(&tem, 4);
INT_CLKO = tem;
}
//End of STC_Int2Init(BOOL intEnable)
//**********************************************************************
void STC_Int3Init(BOOL intEnable)
{
ui8 tem = INT_CLKO;
if(intEnable)
{
EA = 1;
SetBit(&tem, 5);
}
else
ResetBit(&tem, 5);
INT_CLKO = tem;
}
//End of STC_Int3Init(BOOL intEnable)
//**********************************************************************
void STC_Int4Init(BOOL intEnable, BOOL priority)
{
ui8 tem = INT_CLKO;
if(intEnable)
{
EA = 1;
SetBit(&tem, 6);
}
else
ResetBit(&tem, 6);
INT_CLKO = tem;
if(priority)
{
ui8 tem1 = IP2;
SetBit(&tem1, 4);
IP2 = tem1;
}
else
{
ui8 tem1 = IP2;
ResetBit(&tem1, 4);
IP2 = tem1;
}
}
//End of STC_Int4Init(BOOL intEnable, BOOL priority)
//Timer/
//**********************************************************************
ui8 STC_GetT0Flag()
{
return TF0;
}
//End of STC_GetT0Flag()
//**********************************************************************
void STC_ClearT0Flag()
{
TF0 = 0;
}
//End of STC_ClearT0Flag()
//**********************************************************************
void STC_IntT0Init(BOOL intEnable, BOOL priority)
{
TF0 = 0;
if(intEnable)
{
EA = 1;
ET0 = 1; //T0 INT enable
}
else
ET0 = 0; //T0 INT disable
if(priority)
PT0 = 1;
else
PT0 = 0;
}
//End of STC_IntT0Init(BOOL intEnable, BOOL priority)
//**********************************************************************
ui8 STC_GetT1Flag()
{
return TF1;
}
//End of STC_GetT1Flag()
//**********************************************************************
void STC_ClearT1Flag()
{
TF1 = 0;
}
//End of STC_ClearT1Flag()
//**********************************************************************
void STC_IntT1Init(BOOL intEnable, BOOL priority)
{
TF1 = 0;
if(intEnable)
{
EA = 1;
ET1 = 1; //T1 INT enable
}
else
ET1 = 0; //T1 INT disable
if(priority)
PT1 = 1;
else
PT1 = 0;
}
//End of STC_IntT1Init(BOOL intEnable, BOOL priority)
//**********************************************************************
void STC_IntT2Init(BOOL intEnable)
{
ui8 tem = IE2;
if(intEnable)
{
EA = 1;
SetBit(&tem, 2);
}
else
ResetBit(&tem, 2);
IE2 = tem;
}
//End of STC_IntT2Init(BOOL intEnable)
//**********************************************************************
void STC_IntT3Init(BOOL intEnable)
{
ui8 tem = IE2;
if(intEnable)
{
EA = 1;
SetBit(&tem, 5);
}
else
ResetBit(&tem, 5);
IE2 = tem;
}
//End of STC_IntT3Init(BOOL intEnable)
//**********************************************************************
void STC_IntT4Init(BOOL intEnable)
{
ui8 tem = IE2;
if(intEnable)
{
EA = 1;
SetBit(&tem, 6);
}
else
ResetBit(&tem, 6);
IE2 = tem;
}
//End of STC_IntT3Init(BOOL intEnable)
//Serial port///
//**********************************************************************
ui8 STC_GetS1RiFlag()
{
return RI;
}
//End of STC_GetS1RiFlag()
//**********************************************************************
void STC_ClearS1RiFlag()
{
RI = 0;
}
//End of STC_ClearS1RiFlag()
//**********************************************************************
ui8 STC_GetS1TiFlag()
{
return TI;
}
//End of STC_GetS1TiFlag()
//**********************************************************************
void STC_ClearS1TiFlag()
{
TI = 0;
}
//End of STC_ClearS1TiFlag()
//**********************************************************************
void STC_IntS1Init(BOOL intEnable, BOOL priority)
{
RI = 0;
TI = 0;
if(intEnable)
{
EA = 1;
ES = 1;
}
else
ES = 0;
if(priority)
PS = 1;
else
PS = 0;
}
//End of STC_IntS1Init(BOOL intEnable, BOOL priority)
//**********************************************************************
ui8 STC_GetS2RiFlag()
{
return GetBit(S2CON,0);
}
//End of STC_GetS2RiFlag()
//**********************************************************************
void STC_ClearS2RiFlag()
{
S2CON &= ~0x01;
}
//End of STC_ClearS2RiFlag()
//**********************************************************************
ui8 STC_GetS2TiFlag()
{
return GetBit(S2CON,1);
}
//End of STC_GetS2TiFlag()
//**********************************************************************
void STC_ClearS2TiFlag()
{
S2CON &= ~(0x01 << 1);
}
//End of STC_ClearS2TiFlag()
//**********************************************************************
void STC_IntS2Init(BOOL intEnable, BOOL priority)
{
STC_ClearS2RiFlag();
STC_ClearS2TiFlag();
if(intEnable)
{
EA = 1;
IE2 |= 0x01; //S2 INT enable
}
else
IE2 &= ~0x01; //S2 INT enable
if(priority)
IP2 |= 0x01;
else
IP2 &= ~0x01;
}
//End of STC_IntS2Init(BOOL intEnable, BOOL priority)
//**********************************************************************
ui8 STC_GetS3RiFlag()
{
return (S3CON & 0x01);
}
//End of STC_GetS3RiFlag()
//**********************************************************************
void STC_ClearS3RiFlag()
{
S3CON &= 0xFE;
}
//End of STC_ClearS3RiFlag()
//**********************************************************************
ui8 STC_GetS3TiFlag()
{
return GetBit(S3CON,1);
}
//End of STC_GetS3TiFlag()
//**********************************************************************
void STC_ClearS3TiFlag()
{
S3CON &= ~(0x01 << 1);
}
//End of STC_ClearS3TiFlag()
//**********************************************************************
void STC_IntS3Init(BOOL intEnable)
{
ui8 tem = IE2;
STC_ClearS3RiFlag();
STC_ClearS3TiFlag();
if(intEnable)
{
EA = 1;
SetBit(&tem, 3);
}
else
ResetBit(&tem, 3);
IE2 = tem;
}
//End of STC_IntS3Init(BOOL intEnable)
//**********************************************************************
ui8 STC_GetS4RiFlag()
{
return (S4CON & 0x01);
}
//End of STC_GetS4RiFlag()
//**********************************************************************
void STC_ClearS4RiFlag()
{
S4CON &= 0xFE;
}
//End of STC_ClearS4RiFlag()
//**********************************************************************
ui8 STC_GetS4TiFlag()
{
return GetBit(S4CON,1);
}
//End of GetBit(S4CON,1)
//**********************************************************************
void STC_ClearS4TiFlag()
{
S4CON &= ~0x02;
}
//End of STC_ClearS4TiFlag()
//**********************************************************************
void STC_IntS4Init(BOOL intEnable)
{
ui8 tem = IE2;
STC_ClearS4RiFlag();
STC_ClearS4TiFlag();
if(intEnable)
{
EA = 1;
SetBit(&tem, 4);
}
else
ResetBit(&tem, 4);
IE2 = tem;
}
//End of STC_IntS4Init(BOOL intEnable)
/ADC///
//**********************************************************************
ui8 STC_GetAdcFlag()
{
return GetBit(ADC_CONTR,4);
}
//End of GetBit(ADC_CONTR,4)
//**********************************************************************
void STC_ClearAdcFlag()
{
ADC_CONTR &= ~(0x01 << 4);
}
//End of STC_ClearAdcFlag()
//**********************************************************************
void STC_IntAdcInit(BOOL intEnable, BOOL proirity)
{
STC_ClearAdcFlag();
if(intEnable)
{
EA = 1;
EADC = 1;
}
else
EADC = 0;
if(proirity)
PADC = 1;
else
PADC = 0;
}
//End of STC_IntAdcInit(BOOL intEnable, BOOL proirity)
///LVD/
//**********************************************************************
ui8 STC_GetLvdFlag()
{
return GetBit(PCON,5);
}
//End of STC_GetLvdFlag()
//**********************************************************************
void STC_ClearLvdFlag()
{
PCON &= ~(0X01 << 5);
}
//End of STC_ClearLvdFlag()
//**********************************************************************
void STC_IntLvdInit(BOOL intEnable, BOOL proirity)
{
STC_ClearLvdFlag();
if(intEnable)
{
EA = 1;
ELVD = 1;
}
else
ELVD = 0;
if(proirity)
PLVD = 1;
else
PLVD = 0;
}
//End of STC_IntLvdInit(BOOL intEnable, BOOL proirity)
///SPI///
//**********************************************************************
ui8 STC_GetSPIFlag()
{
return GetBit(SPSTAT,7);
}
//End of STC_GetSPIFlag()
//**********************************************************************
void STC_ClearSPIFlag()
{
SPSTAT &= ~0x80;
}
//End of STC_ClearSPIFlag()
//***********************************************************************
void STC_IntSPIInit(BOOL intEnable, BOOL proirity)
{
ui8 tem = IE2;
STC_ClearSPIFlag();
if(intEnable)
{
EA = 1;
SetBit(&tem, 1);
}
else
ResetBit(&tem, 1);
IE2 = tem;
tem = IP2;
if(proirity)
SetBit(&tem, 1);
else
ResetBit(&tem, 1);
IP2 = tem;
}
//End of STC_IntSPIInit(BOOL intEnable, BOOL proirity)
PCA
//**********************************************************************
ui8 STC_GetPcaFlag()
{
return CF;
}
//End of STC_GetPcaFlag()
//**********************************************************************
ui8 STC_GetPCA0Flag()
{
return CCF0;
}
//End of STC_GetPCA0Flag()
//**********************************************************************
ui8 STC_GetPCA1Flag()
{
return CCF1;
}
//End of STC_GetPCA1Flag()
//**********************************************************************
ui8 STC_GetPCA2Flag()
{
return CCF2;
}
//End of STC_GetPCA2Flag()
//**********************************************************************
void STC_ClearPcaFlag()
{
CCON &= (0x01 << 6);
}
//End of STC_ClearPcaFlag()
//**********************************************************************
void STC_IntPcaInit(BOOL intEnable, PCA_INTSOURCE msource, BOOL priority)
{
switch(msource)
{
case 0x80:
if(intEnable)
{
EA = 1;
CMOD |= 0x01;
}
else
CMOD &= 0xFE;
break;
case 0x04:
if(intEnable)
{
EA = 1;
CCAPM2 |= 0x01;
}
else
CCAPM2 &= 0xFE;
break;
case 0x02:
if(intEnable)
{
EA = 1;
CCAPM1 |= 0x01;
}
else
CCAPM1 &= 0xFE;
break;
case 0x01:
if(intEnable)
{
EA = 1;
CCAPM0 |= 0x01;
}
else
CCAPM0 &= 0xFE;
break;
}
if(priority)
PPCA = 1;
else
PPCA = 0;
}
//End of STC_IntPcaInit(BOOL intEnable, PCA_INTSOURCE msource, BOOL priority)
/Comprator/
//**********************************************************************
void STC_ClearCmpFlag()
{
CMPCR1 &= ~(0x01 << 6);
}
//End of STC_ClearCmpFlag()
//**********************************************************************
void STC_IntCmpInit(BOOL nEnable, BOOL pEnable)
{
STC_ClearCmpFlag();
if(nEnable)
CMPCR1 |= 0x01 << 4;
else
CMPCR1 |= ~(0x01 << 4);
if(pEnable)
CMPCR1 |= 0x01 << 5;
else
CMPCR1 |= ~(0x01 << 5);
}
//End of STC_IntCmpInit(BOOL nEnable, BOOL pEnable)
///PWM FD
//**********************************************************************
void STC_PwmFdClearFlag()
{
PWMFDCR &= 0xFE;
}
//End of STC_PwmFdClearFlag()
//**********************************************************************
void STC_IntPwmFdInit(BOOL intEnable, BOOL priority)
{
if(intEnable)
{
EA = 1;
PWMFDCR |= 0x01 << 3;
}
else
PWMFDCR &= ~(0x01 << 3);
if(priority)
IP2 |= 0x01 << 3;
else
IP2 &= ~(0x01 << 3);
}
//End of STC_IntPwmFdInit(BOOL intEnable, BOOL priority)
//PWM
//**********************************************************************
void STC_PwmClearFlag()
{
PWMIF = 0x00;
}
//End of STC_PwmClearFlag()
//**********************************************************************
void STC_IntPwmInit(BOOL cResetIntEnable, BOOL priority)
{
PWMIF = 0x00;
if(cResetIntEnable) //PWM counter reset INT enable
{
EA = 1;
PWMCR |= 0x01 << 6;
}
else
PWMCR &= ~(0x01 << 6);
if(priority)
IP2 |= 0x01 << 2;
else
IP2 &= ~(0x01 << 2);
}
//End of STC_IntPwmInit(BOOL cResetIntEnable, BOOL priority)
//**********************************************************************
void STC_IntPWM2Init(BOOL intT1, BOOL intT2, BOOL priority)
{
P_SW2 |= 0x80;
if(intT1&&intT2)
{
EA = 1;
PWM2CR |= 0x01 << 2;
}
if(intT1)
PWM2CR |= 0x01;
else
PWM2CR &= 0xFE;
if(intT2)
PWM2CR |= 0x02;
else
PWM2CR &= ~0x02;
P_SW2 &= ~0x80;
if(priority)
IP2 |= 0x01 << 2;
else
IP2 &= ~(0x01 << 2);
}
//End of STC_IntPWM2Init(BOOL intT1, BOOL intT2, BOOL priority)
//**********************************************************************
void STC_IntPWM3Init(BOOL intT1, BOOL intT2, BOOL priority)
{
P_SW2 |= 0x80;
if(intT1&&intT2)
{
EA = 1;
PWM3CR |= 0x01 << 2;
}
if(intT1)
PWM3CR |= 0x01;
else
PWM3CR &= 0xFE;
if(intT2)
PWM3CR |= 0x02;
else
PWM3CR &= ~0x02;
P_SW2 &= ~0x80;
if(priority)
IP2 |= 0x01 << 2;
else
IP2 &= ~(0x01 << 2);
}
//End of STC_IntPWM3Init(BOOL intT1, BOOL intT2, BOOL priority)
//**********************************************************************
void STC_IntPWM4Init(BOOL intT1, BOOL intT2, BOOL priority)
{
P_SW2 |= 0x80;
if(intT1&&intT2)
{
EA = 1;
PWM4CR |= 0x01 << 2;
}
if(intT1)
PWM4CR |= 0x01;
else
PWM4CR &= 0xFE;
if(intT2)
PWM4CR |= 0x02;
else
PWM4CR &= ~0x02;
P_SW2 &= ~0x80;
if(priority)
IP2 |= 0x01 << 2;
else
IP2 &= ~(0x01 << 2);
}
//End of STC_IntPWM4Init(BOOL intT1, BOOL intT2, BOOL priority)
//**********************************************************************
void STC_IntPWM5Init(BOOL intT1, BOOL intT2, BOOL priority)
{
P_SW2 |= 0x80;
if(intT1&&intT2)
{
EA = 1;
PWM5CR |= 0x01 << 2;
}
if(intT1)
PWM5CR |= 0x01;
else
PWM5CR &= 0xFE;
if(intT2)
PWM5CR |= 0x02;
else
PWM5CR &= ~0x02;
P_SW2 &= ~0x80;
if(priority)
IP2 |= 0x01 << 2;
else
IP2 &= ~(0x01 << 2);
}
//End of STC_IntPWM5Init(BOOL intT1, BOOL intT2, BOOL priority)
//**********************************************************************
void STC_IntPWM6Init(BOOL intT1, BOOL intT2, BOOL priority)
{
P_SW2 |= 0x80;
if(intT1&&intT2)
{
EA = 1;
PWM6CR |= 0x01 << 2;
}
if(intT1)
PWM6CR |= 0x01;
else
PWM6CR &= 0xFE;
if(intT2)
PWM6CR |= 0x02;
else
PWM6CR &= ~0x02;
P_SW2 &= ~0x80;
if(priority)
IP2 |= 0x01 << 2;
else
IP2 &= ~(0x01 << 2);
}
//End of STC_IntPWM6Init(BOOL intT1, BOOL intT2, BOOL priority)
//**********************************************************************
void STC_IntPWM7Init(BOOL intT1, BOOL intT2, BOOL priority)
{
P_SW2 |= 0x80;
if(intT1&&intT2)
{
EA = 1;
PWM7CR |= 0x01 << 2;
}
if(intT1)
PWM7CR |= 0x01;
else
PWM7CR &= 0xFE;
if(intT2)
PWM7CR |= 0x02;
else
PWM7CR &= ~0x02;
P_SW2 &= ~0x80;
if(priority)
IP2 |= 0x01 << 2;
else
IP2 &= ~(0x01 << 2);
}
//End of STC_IntPWM7Init(BOOL intT1, BOOL intT2, BOOL priority)该函数库源码已上传到CSDN，文件名为STC15W INT Library Code.rar。如可需要线下查看，可搜索下载。
