将以下代码下载至ESP8266 NodeMCU，即可完成硬件端的udp通信。
代码大致过程：初始化串口通信，将开发板配入有网的WIFI或热点，开始监听udp端口8888，将连接DHT11温湿度传感器的那个引脚设为输出模式。后无限循环采集温湿度湿度，与监听端口是否有收到请求信息的命令，若收到请求信息，则返回温湿度信息给发送请求信息命令端。

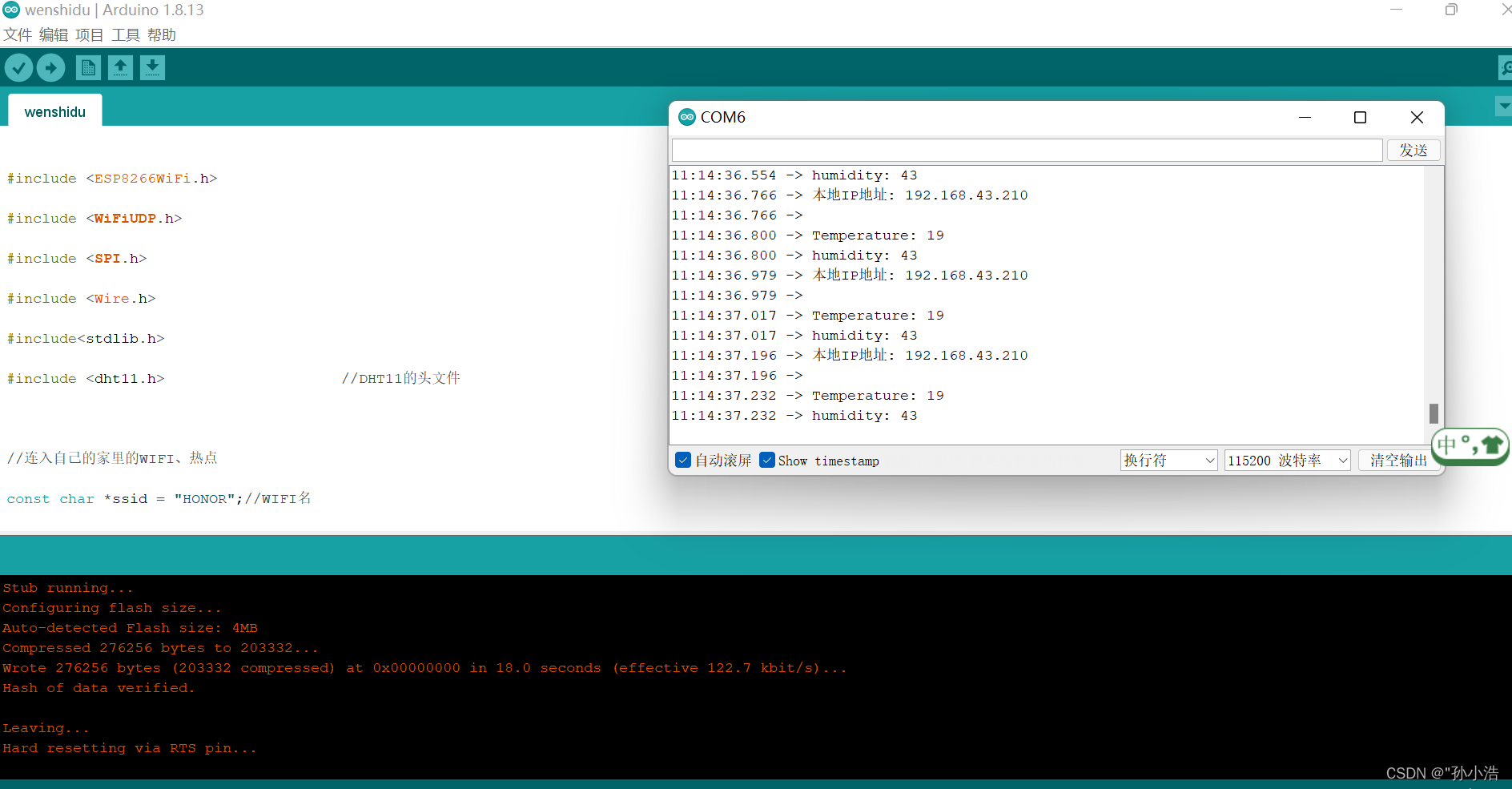

烧录过程：

开发板那选择开发板为NodeMCU，型号根据自己的开发板选择，后选择端口，烧入程序。具体过程可以CSDN搜一下，此处略过。



#include <ESP8266WiFi.h>

#include <WiFiUDP.h>

#include <SPI.h>

#include <Wire.h>

#include<stdlib.h>

#include <dht11.h>                    //DHT11的头文件



//连入自己的家里的WIFI、热点

const char *ssid = "HONOR";//WIFI名

const char *password ="19990815";//密码



unsigned int UDPPort = 8888;      //本地端口号



char packetBuffer1[255]; //buffer to hold incoming packet

char packetBuffer2[255];

char ReplyBuffer1[255] ;
// a string to send back

char ReplyBuffer2[] = "";

WiFiUDP Udp;



 //温度传感器加载

dht11 DHT11;

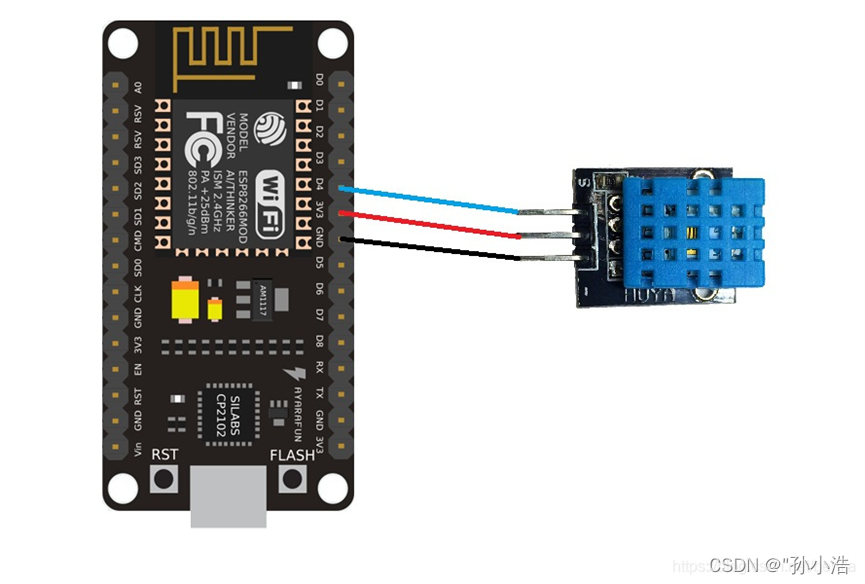

#define DHT11_PIN 2    //DHT11引脚，实际接线接入开发板的D4



int tempera=0;  //存放温度的变量

int humidity=0;  //存放湿度的变量



// 复位或上电后运行一次:

void setup() {


//在这里加入初始化相关代码，只运行一次:


Serial.begin(115200);  //初始化串口通信，并将波特率设置为115200


WiFi.mode ( WIFI_AP );//WIFI设为AP模式


WiFi.begin ( ssid, password );//连接WIFI热点

  //Wait for connection


while ( WiFi.status() != WL_CONNECTED ) { //WIFI的连接状态


delay ( 500 );

    Serial.print ( "." );//如果没有连通向串口发送.....

  }




Serial.println ( "" );


Serial.print ( "Connected to " );


Serial.println ( ssid );


Serial.print ( "IP address: " );


Serial.println ( WiFi.localIP() );//返回获得的本机ip地址


Udp.begin(UDPPort);// 开始UDP端口侦听


pinMode(DHT11_PIN,OUTPUT);



Serial.println();


Serial.println("本地IP地址: " + WiFi.localIP().toString());//串口打印本地IP地址

}



//一直循环执行:

void loop() {


// 在这里加入主要程序代码，重复执行:


int packetSize = Udp.parsePacket();



/**获取温湿度，后在串口打印出数据**/

 /**一定要有chk,不然不显示内容**/

int chk1 = DHT11.read(DHT11_PIN);       //将读取到的值赋给chk

tempera=DHT11.temperature;
humidity=DHT11.humidity;


Serial.print("Temperature: ");


Serial.println(tempera);//串口打印温度


Serial.print("humidity: ");


Serial.println(humidity); //串口打印湿度


itoa(tempera, ReplyBuffer1, 10);


itoa(humidity, ReplyBuffer2, 10);


delay(500);


Serial.println("本地IP地址: " + WiFi.localIP().toString());    //串口打印本地IP地址


Serial.println("端口号: " + UDPPort);    //串口打印端口号


/**如果接收到上位机发来的信息，就返回采集到温湿度数据给上位机**/

   //UDP广播数据到达处理


if (packetSize) {

                Serial.print("Receivedpacket of size ");

                Serial.println(packetSize);

                Serial.print("From");

                IPAddress remoteIp =Udp.remoteIP();//获取远程广播包发送IP

                Serial.print(remoteIp);

                Serial.print(", port");


Serial.println(Udp.remotePort());





// 将到达的数据包读入packetBufffer1，packetBufffer2

                int len1 =Udp.read(packetBuffer1, 255);


int len2 = Udp.read(packetBuffer2, 255);

                if (len1 > 0) {

                        packetBuffer1[len1] =0;

                }

                if (len2 > 0) {

                        packetBuffer2[len2] =0;

                }




Serial.println("Contents:");

              Serial.println(packetBuffer1);

               Serial.println(packetBuffer2);




// 回复信息给广播发送IP

                Udp.beginPacket(Udp.remoteIP(),Udp.remotePort());
               // strcat(ReplyBuffer2,ReplyBuffer1);
                Udp.write(ReplyBuffer1);
               Udp.write(ReplyBuffer2);
                Udp.endPacket();





}




}

服务器端?

环境：IDEA,mysql,linux

开发语言：java

项目结构：

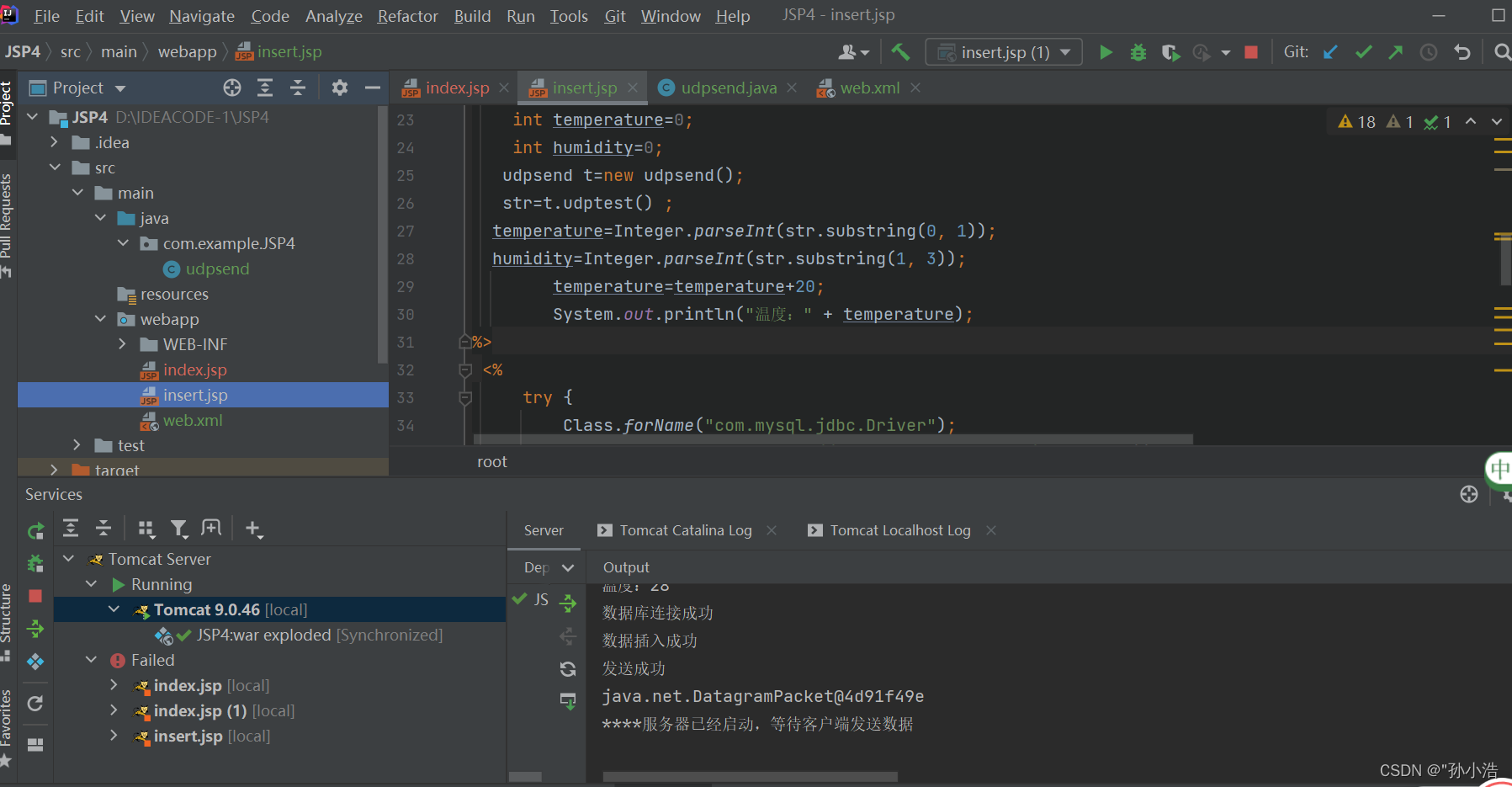

在IDEA新建中新建一个JSP项目，具体过程可以CSDN搜一下，此处略过?，完成后启动insert.jsp文件，即可

insert.jsp

<%@ page language="java" contentType="text/html; charset=utf-8"
    pageEncoding="UTF-8" %>
<%@ page import="java.sql.*"%>
<%@ page import="java.io.*,java.util.List,java.util.ArrayList" %>
<%@ page import="com.example.JSP4.*" %>
<%@page import="java.util.Date"%>
 <%@page import="java.text.SimpleDateFormat"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>IOT</title>
</head>
<body >

 <%/** 获取当前时间 **/
		Date d = new Date();
		SimpleDateFormat df = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss");
		String now = df.format(d);%>

	<%/** 获取温湿度 **/
	String str;
	int temperature=0;
	int humidity=0;
   udpsend t=new udpsend();
   str=t.udptest() ;
  temperature=Integer.parseInt(str.substring(0, 1));
  humidity=Integer.parseInt(str.substring(1, 3));
        temperature=temperature+20;
        System.out.println("温度：" + temperature);
%>
 <%
     try {
         Class.forName("com.mysql.jdbc.Driver");
         String url = "jdbc:mysql://192.168.43.100:3306/mysql1"; //数据库名
         String username = "root";  //数据库用户名
         String password = "123456";  //数据库用户密码
         System.out.println("数据库连接成功" );
         Connection conn = DriverManager.getConnection(url, username, password);  //连接状态
         Statement stmt = conn.createStatement(ResultSet.TYPE_SCROLL_SENSITIVE, ResultSet.CONCUR_UPDATABLE);
         //sql插入数据的语句
         String sql_insert = "insert into iot(temperature, humidity, date) values ('" + temperature + "','" + humidity + "','" + now + "')";
         PreparedStatement pst = conn.prepareStatement(sql_insert);
         System.out.println("数据插入成功" );
         int rs = pst.executeUpdate();
     } catch (SQLException throwables) {
         throwables.printStackTrace();
     } catch (ClassNotFoundException e) {
         e.printStackTrace();
     }
 %>
         if(rs!=0){
              /** 跳转index.jsp **/
                  <jsp:forward page="index.jsp"></jsp:forward>
                  }


catch(Exception e){
	/** 出现异常时，输出异常 **/
 out.println(e);
}


</body>
</html>

网页端

环境：pycharm,mysql,echarts

开发语言：python,html

项目结构：

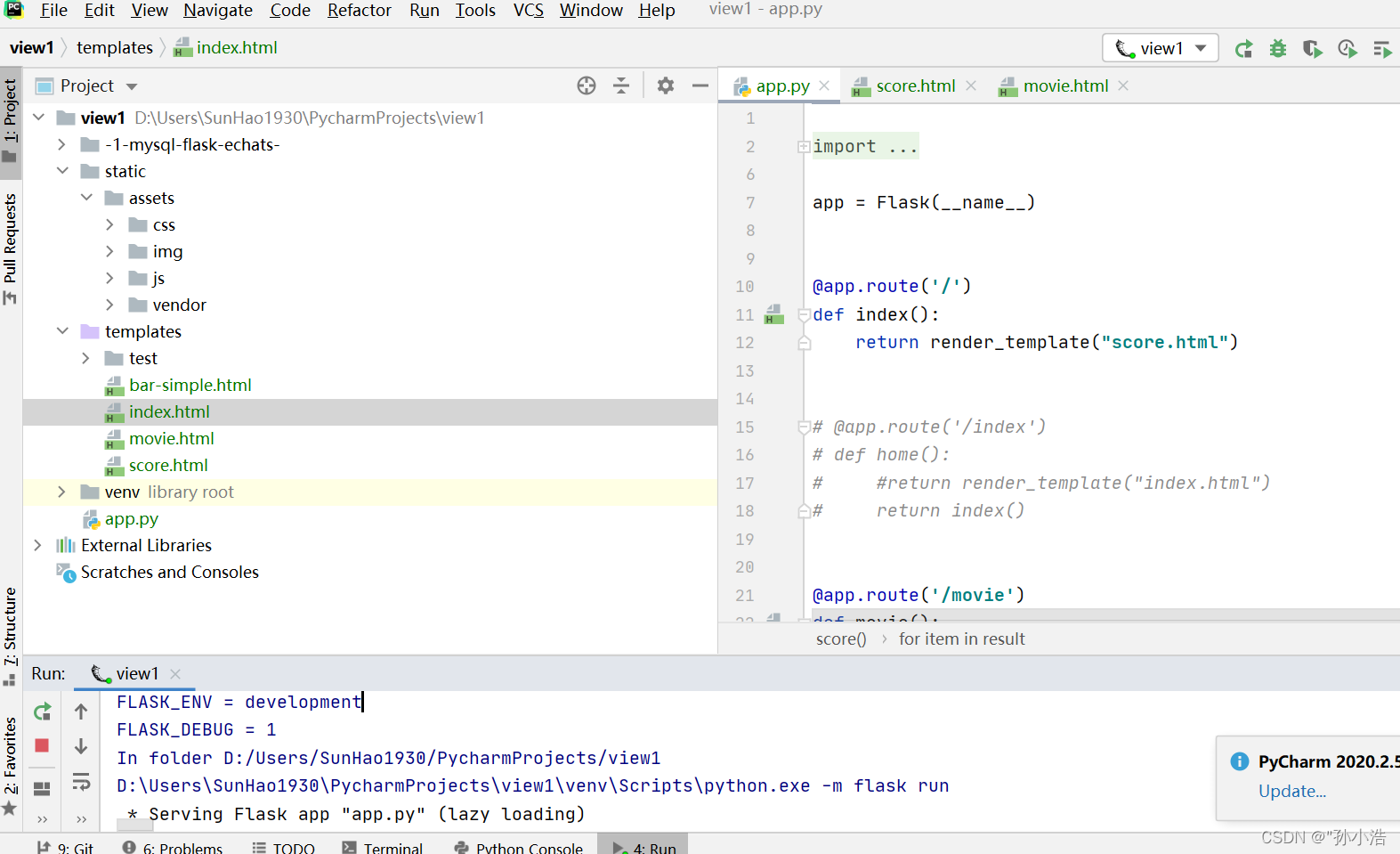

新建一个flask项目,项目主要包括三个文件:app.py,score.html.movie.html

?运行app.py

app.py

import json
import time
from flask import Flask, render_template
import pymysql

app = Flask(__name__)


@app.route('/')
def index():
    return render_template("score.html")


# @app.route('/index')
# def home():
#     #return render_template("index.html")
#     return index()

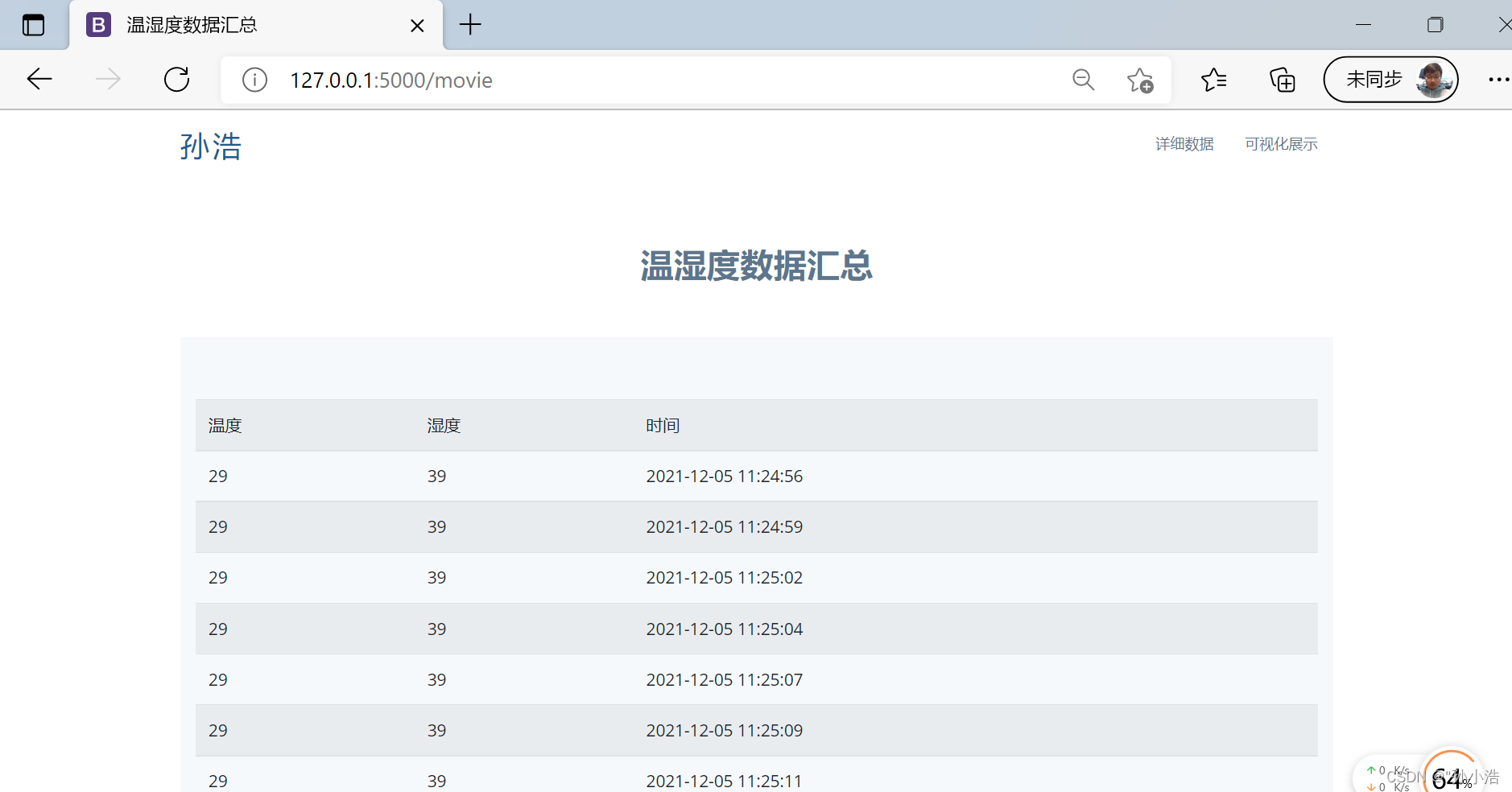

@app.route('/movie')
def movie():
    datalist = []
    con = pymysql.connect(
        host='192.168.43.100',
        port=3306,
        user='root',
        passwd='123456',
        db='mysql1',
        charset='utf8'
    )
    cur = con.cursor()
    sql = "select * from iot"
    data = cur.execute(sql)
    result = cur.fetchall()
    for item in result:
        datalist.append(item)
    cur.close()
    cur.close()
    print(datalist)
    return render_template("movie.html", movies=datalist)


@app.route('/score', methods=['GET', 'POST'])
def score():
    score = []  # 评分
    num = []  # 每个评分所统计出的电影数量
    num1 = []
    # 转换成JSON数据格式
    jsonData = {}
    xdays = []
    yvalues = []
    tvalues = []
    conn = pymysql.Connect(
        host='192.168.43.100',
        port=3306,
        user='root',
        passwd='123456',
        db='mysql1',
        charset='utf8'
    )
    cur = conn.cursor()
    sql = "select * from iot"
    data = cur.execute(sql)
    result = cur.fetchall()
    for data in result:
        # xdays.append(str(data[0]))
        xdays.append(data[0])
        yvalues.append(data[1])
        tvalues.append(str(data[2]))
    print(xdays)
    print(yvalues)
    print(tvalues)

    jsonData['xdays'] = xdays
    jsonData['yvalues'] = yvalues
    jsonData['tvalues'] = tvalues

    for item in result:
        score.append(item[0])
        num.append(item[1])
        num1.append(str(item[2]))

    # json.dumps()用于将dict类型的数据转成str，因为如果直接将dict类型的数据写入json会发生报错，因此将数据写入时需要用到该函数。
    j = json.dumps(jsonData)
    cur.close()
    conn.close()
    return render_template("score.html",score= score,num=num,num1=num1,)

score.html

<!DOCTYPE html>
<html lang="en">

<head>
  <meta charset="utf-8">
  <meta content="width=device-width, initial-scale=1.0" name="viewport">
    <script src="static/assets/js/echarts.min.js"></script>
    <script src="/static/assets/vendor/jquery/jquery.min.js"></script>

  <title>温湿度数据动态展示</title>
  <meta content="" name="descriptison">
  <meta content="" name="keywords">

  <!-- Favicons -->
  <link href="static/assets/img/favicon.png" rel="icon">
  <link href="static/assets/img/apple-touch-icon.png" rel="apple-touch-icon">

  <!-- Google Fonts -->
  <link href="https://fonts.googleapis.com/css?family=Open+Sans:300,300i,400,400i,600,600i,700,700i|Raleway:300,300i,400,400i,600,600i,700,700i,900" rel="stylesheet">

  <!-- Vendor CSS Files -->
  <link href="static/assets/vendor/bootstrap/css/bootstrap.min.css" rel="stylesheet">
  <link href="static/assets/vendor/icofont/icofont.min.css" rel="stylesheet">
  <link href="static/assets/vendor/boxicons/css/boxicons.min.css" rel="stylesheet">
  <link href="static/assets/vendor/animate.css/animate.min.css" rel="stylesheet">
  <link href="static/assets/vendor/venobox/venobox.css" rel="stylesheet">
  <link href="static/assets/vendor/aos/aos.css" rel="stylesheet">

  <!-- Template Main CSS File -->
  <link href="static/assets/css/style.css" rel="stylesheet">

</head>

<body>



  <!-- ======= Header ======= -->
  <header id="header">
    <div class="container">

      <div class="logo float-left">
        <h1 class="text-light"><a href="temp.html"><span>孙浩</span></a></h1>
        <!-- Uncomment below if you prefer to use an image logo -->
        <!-- <a href="temp.html"><img src="static/assets/img/logo.png" alt="" class="img-fluid"></a>-->
      </div>

      <nav class="nav-menu float-right d-none d-lg-block">
        <ul>
{#          <li class="active"><a href="/index">首页<i class="la la-angle-down"></i></a></li>#}
          <li><a href="/movie">详细数据</a></li>

{#          <li><a href="/country">国家</a></li>#}
          <li><a href="/score">可视化展示</a></li>
{#          <li><a href="/peopletop10">评论人数top10</a></li>#}
{#          <li><a href="/presstime">出版年份</a></li>#}
{#          <li><a href="/publisher">出版社</a></li>#}
{#          <li><a href="/word">词云</a></li>#}
{#          <li><a href="/team">团队</a></li>#}

        </ul>
      </nav><!-- .nav-menu -->

    </div>
  </header><!-- End Header -->

  <!-- ======= Our Team Section ======= -->
    <section id="team" class="team">
      <div class="container">

        <div class="section-title">

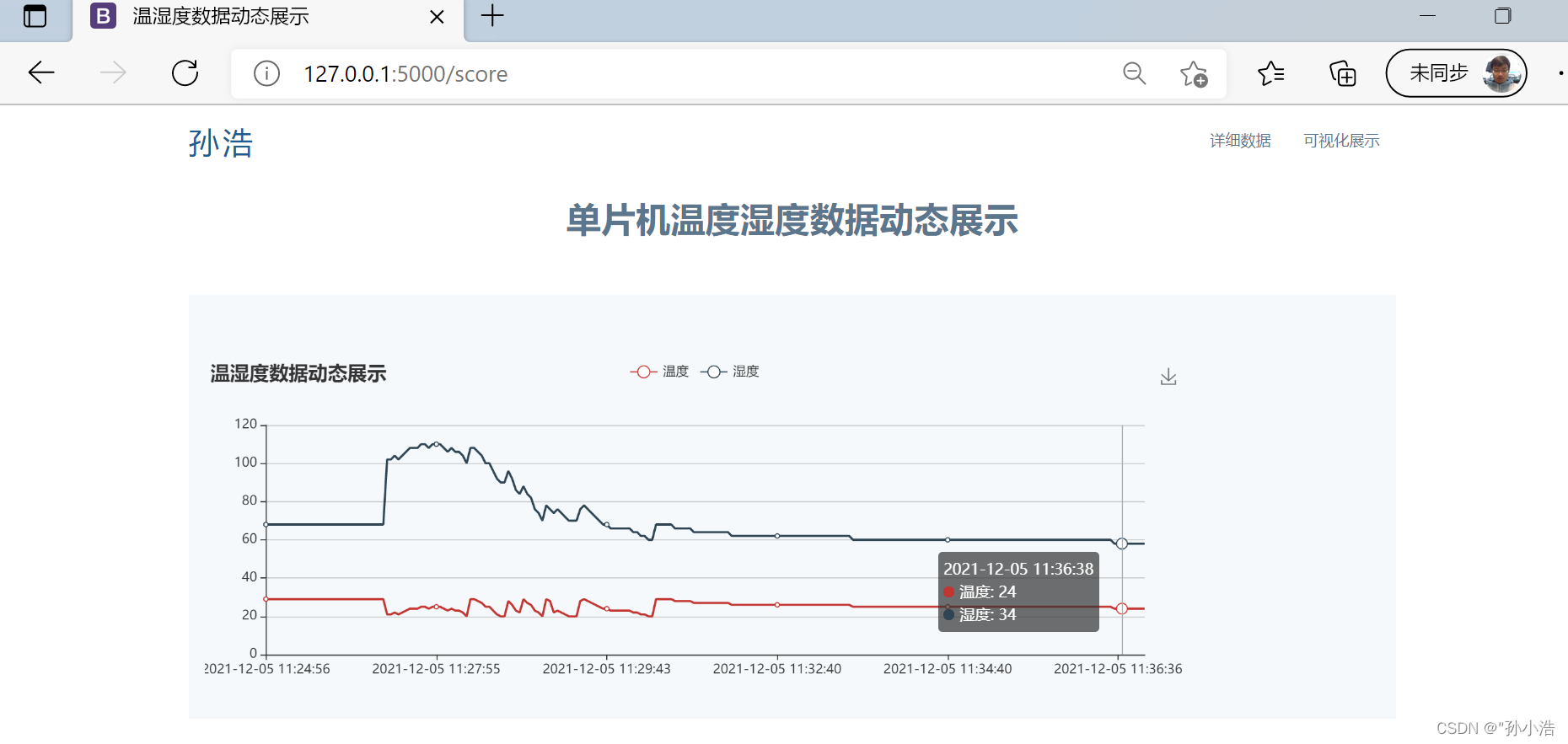

          <h2>单片机温度湿度数据动态展示</h2>
        </div>

        <!-- ======= Counts Section ======= -->
    <section class="counts section-bg">
      <div class="container">

            <!-- 为 ECharts 准备一个具备大小（宽高）的 DOM -->
            <div id="main" style="width: 100%;height:300px"></div>


      </div>
    </section><!-- End Counts Section -->

      </div>
    </section><!-- End Our Team Section -->

 <script type="text/javascript">
var dom = document.getElementById("main");
var myChart = echarts.init(dom);
option=null
    var option = {
        title: {
            text: '温湿度数据动态展示'
        },
        tooltip: {
            trigger: 'axis'
        },
        legend: {
            data: ['温度', '湿度']
        },
        grid: {
            left: '3%',
            right: '4%',
            bottom: '3%',
            containLabel: true
        },
        toolbox: {
            feature: {
                saveAsImage: {}
            }
        },
        xAxis: {
            type: 'category',
            boundaryGap: false,
            data: {{num1|tojson}}
            //         data: ['温度', '湿度']
        },
        yAxis: {
            type: 'value'
        },
        series: [
            {
                name: '温度',
                type: 'line',
                stack: 'Total',
                data: {{ score }}
            },
            {
                name: '湿度',
                type: 'line',
                stack: 'Total',
                data: {{num}}
            }
        ]
    }

            if (option && typeof option === "object") {
    myChart.setOption(option, true);
            }




       </script>


  <!-- ======= Footer ======= -->
  <footer id="footer">


    <div class="container">
      <div class="copyright">
        &copy; Copyright <strong><span>孙浩</span></strong>. All Rights Reserved
      </div>

    </div>
  </footer><!-- End Footer -->

  <a href="#" class="back-to-top"><i class="icofont-simple-up"></i></a>

  <!-- Vendor JS Files -->
  <script src="static/assets/vendor/jquery/jquery.min.js"></script>
  <script src="static/assets/vendor/bootstrap/js/bootstrap.bundle.min.js"></script>
  <script src="static/assets/vendor/jquery.easing/jquery.easing.min.js"></script>
  <script src="static/assets/vendor/php-email-form/validate.js"></script>
  <script src="static/assets/vendor/jquery-sticky/jquery.sticky.js"></script>
  <script src="static/assets/vendor/venobox/venobox.min.js"></script>
  <script src="static/assets/vendor/waypoints/jquery.waypoints.min.js"></script>
  <script src="static/assets/vendor/counterup/counterup.min.js"></script>
  <script src="static/assets/vendor/isotope-layout/isotope.pkgd.min.js"></script>
  <script src="static/assets/vendor/aos/aos.js"></script>

  <!-- Template Main JS File -->
  <script src="static/assets/js/main.js"></script>

</body>

</html>
