[嵌入式]STM32F103C8T6移植uCOS系统基于HAL库

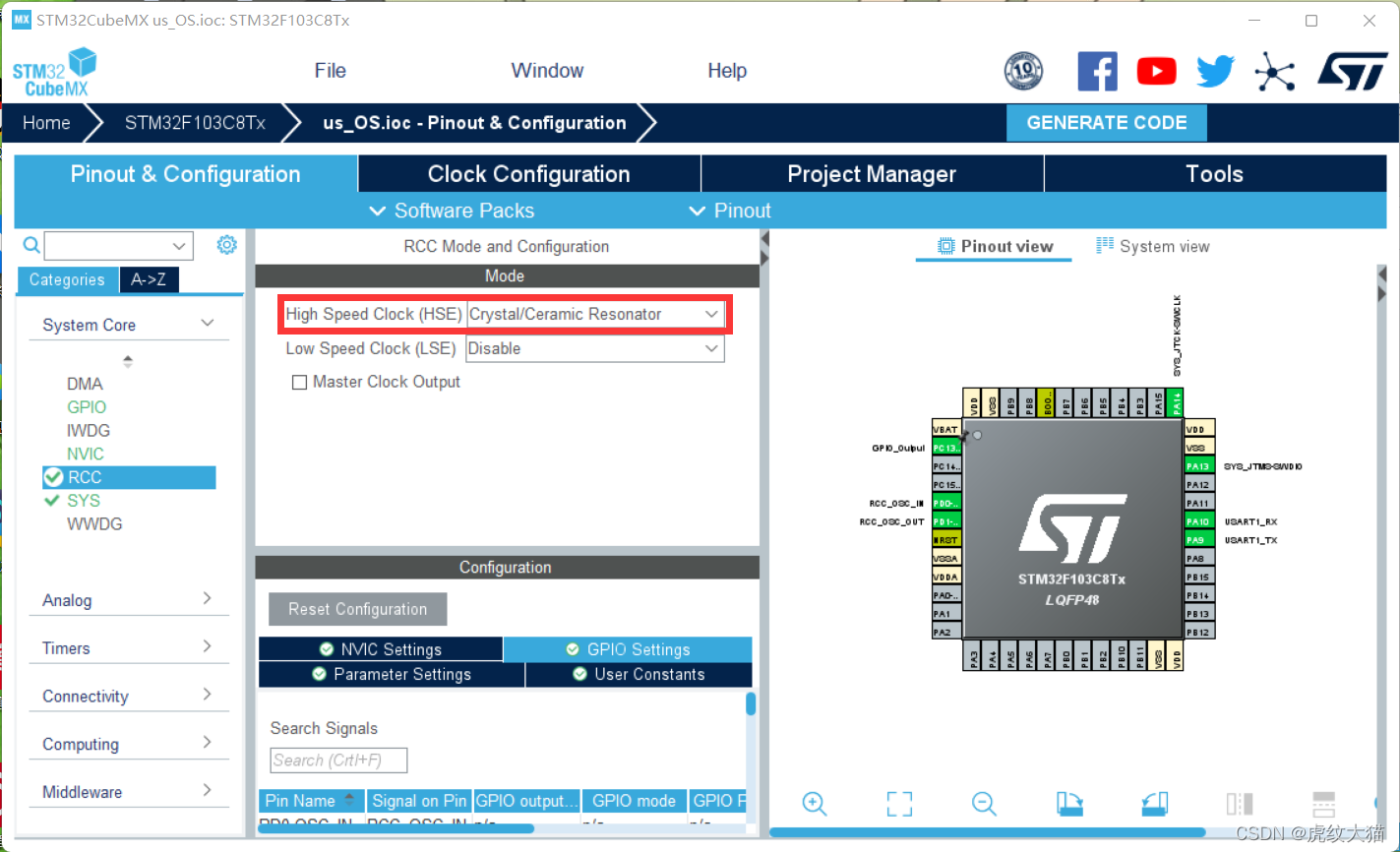

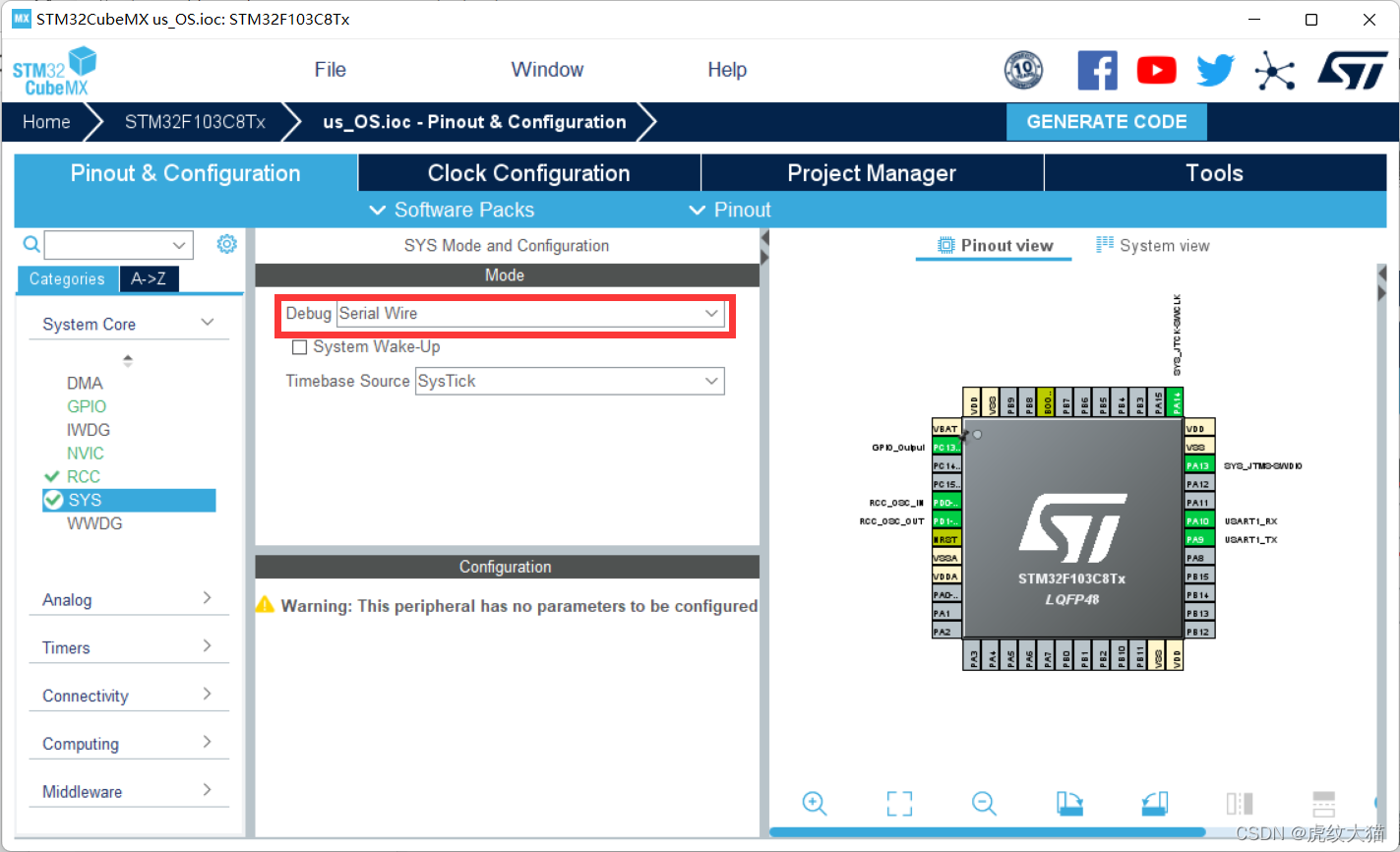

一、用CubeMX建立HAL库

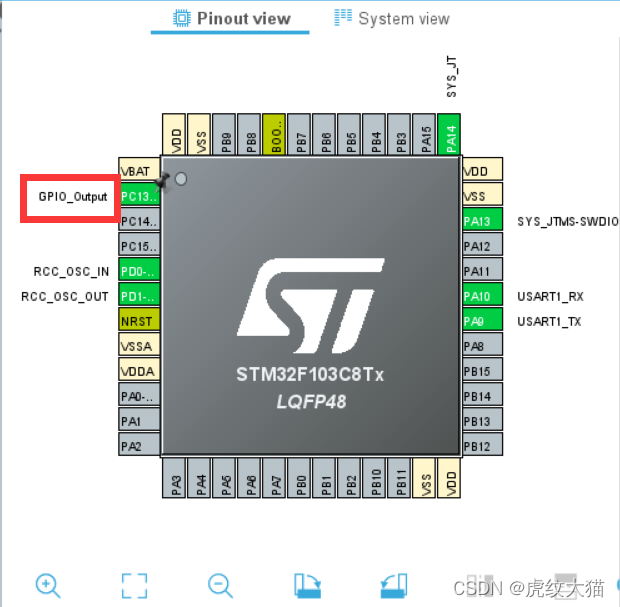

设置PC13作为GPIO_Output口来点亮LED灯。

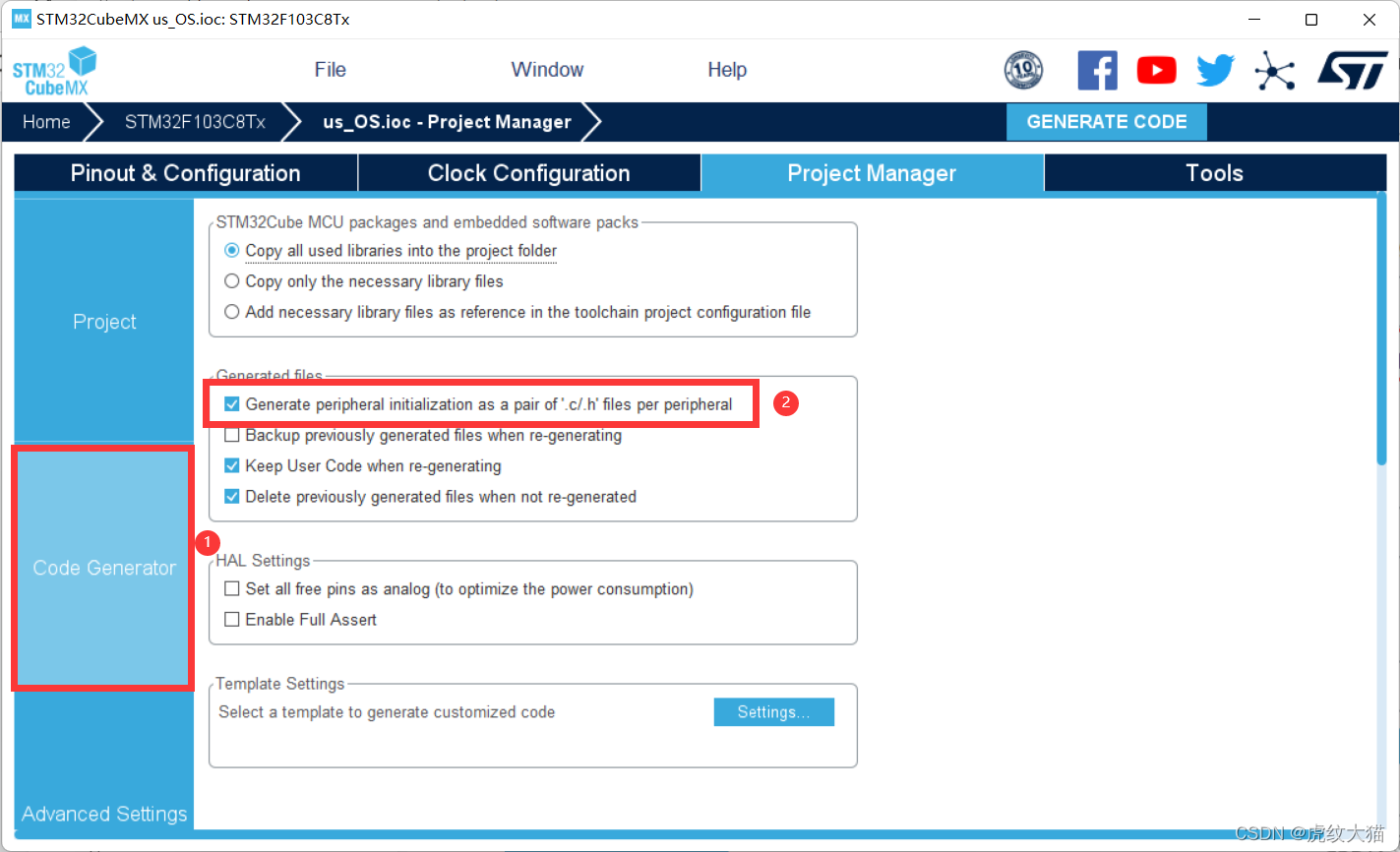

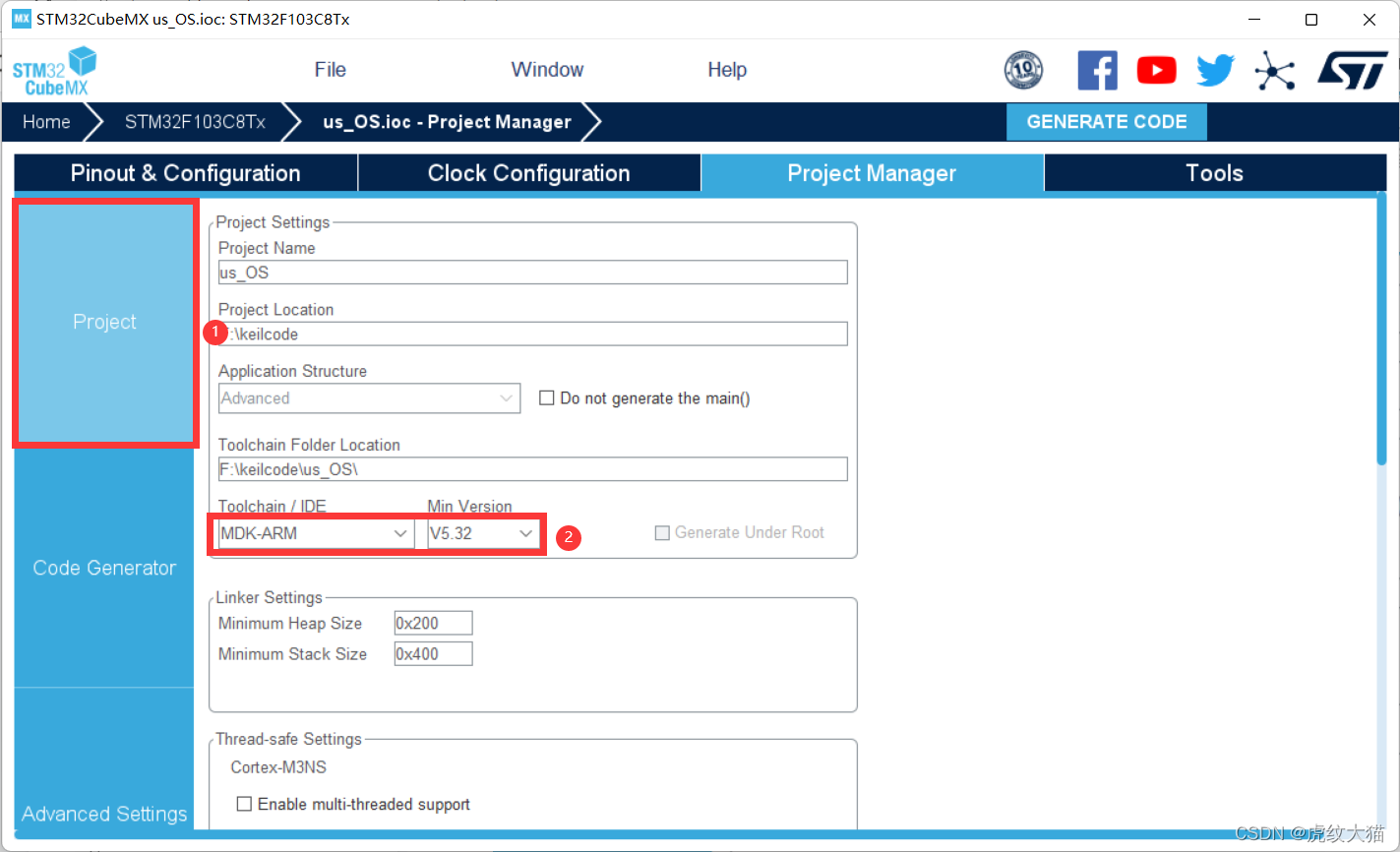

点击GENERATE CODE来生成工程并打开。
在main.c里面添加代码：

while (1)
  {
    /* USER CODE END WHILE */

    /* USER CODE BEGIN 3 */
		HAL_GPIO_WritePin(GPIOC, GPIO_PIN_13, GPIO_PIN_SET);
		HAL_Delay(500);
		HAL_GPIO_WritePin(GPIOC, GPIO_PIN_13, GPIO_PIN_RESET);
		HAL_Delay(500);
  }
  /* USER CODE END 3 */

编译烧录，可以成功点亮LED灯，完全没有问题。

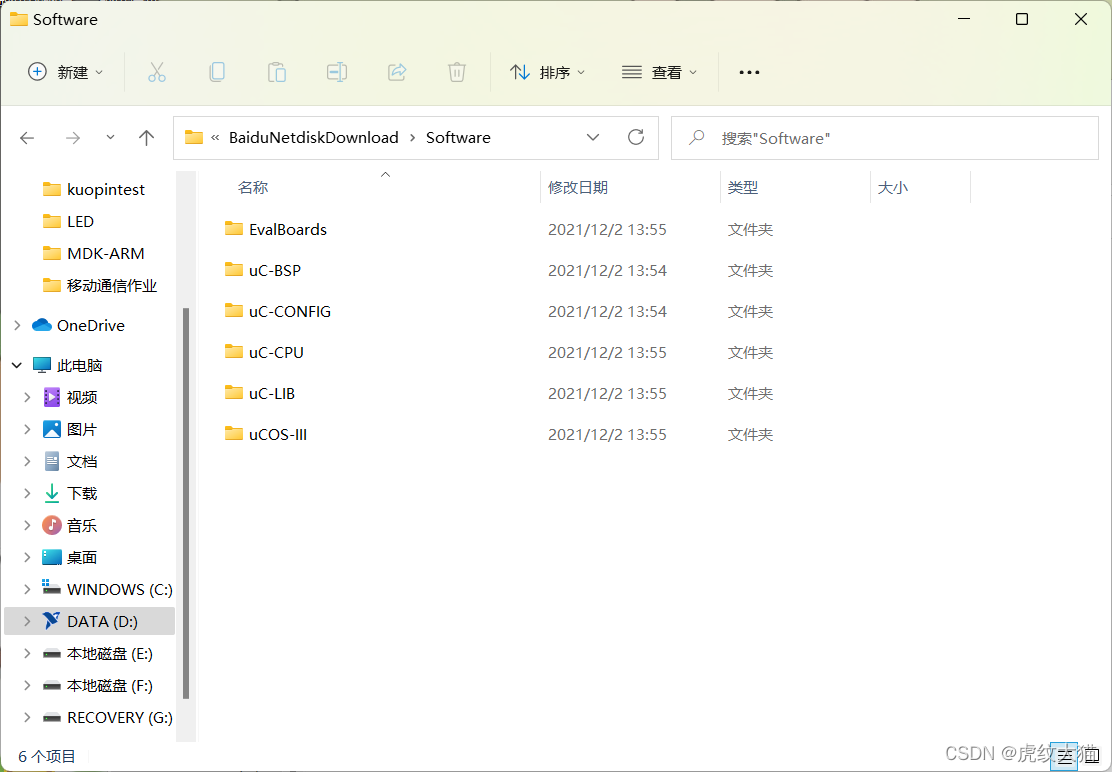

二、准备uCOSIII源码

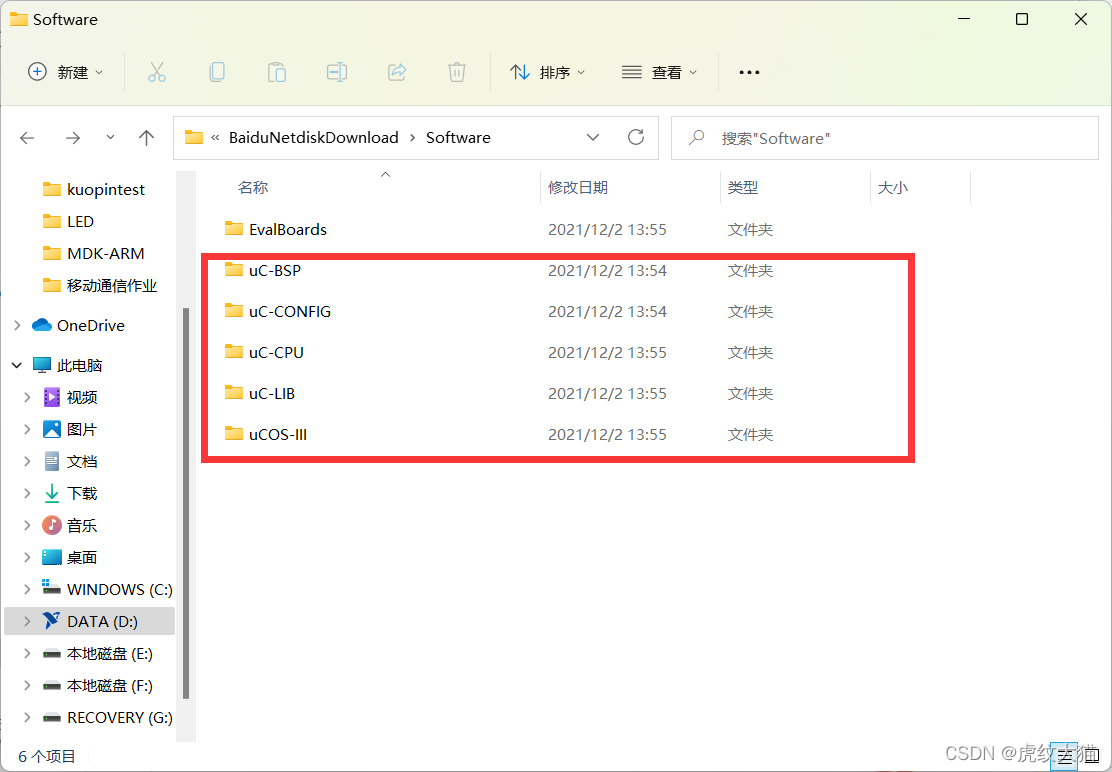

学长提供的下载链接：源码下载
密码：1234

三、准备移植

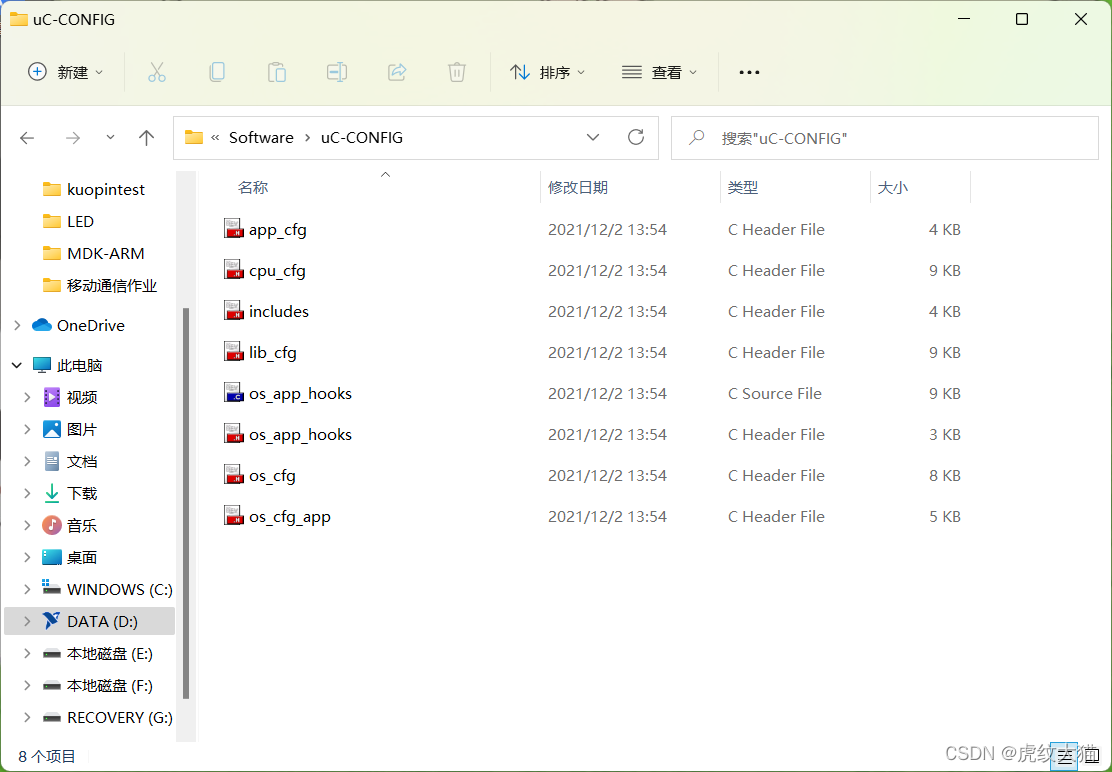

1.在uC-CONGFIG添加文件

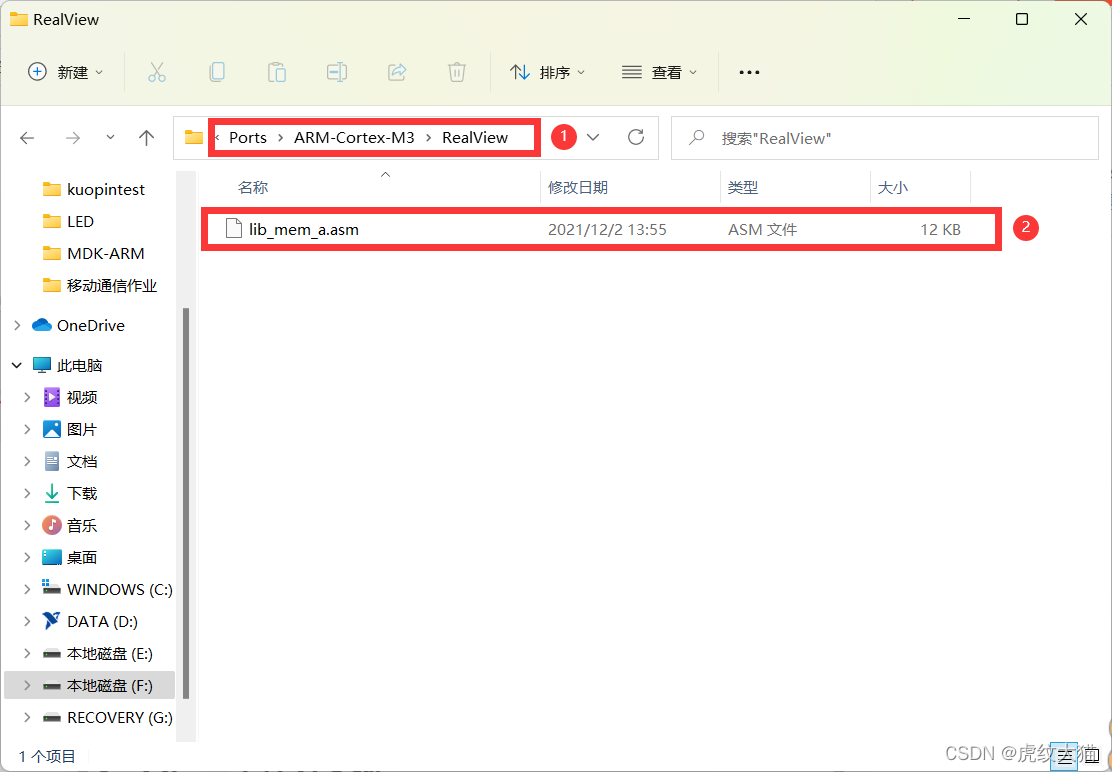

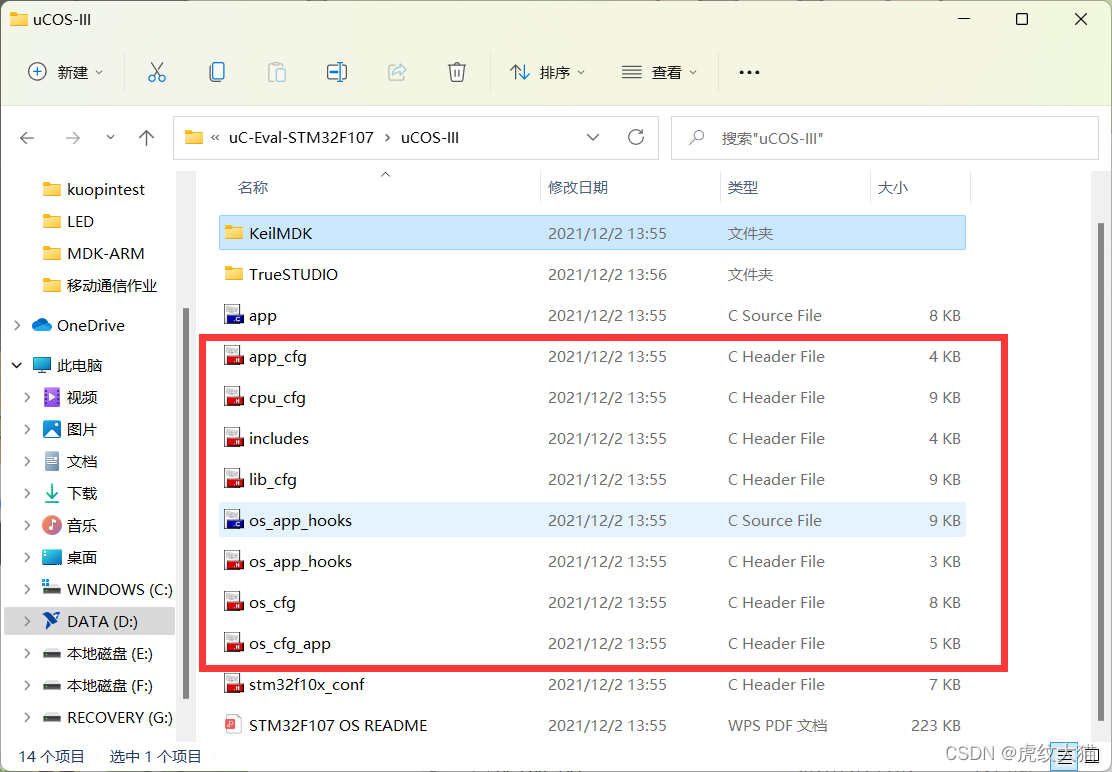

现在这个目录下找到这些文件。

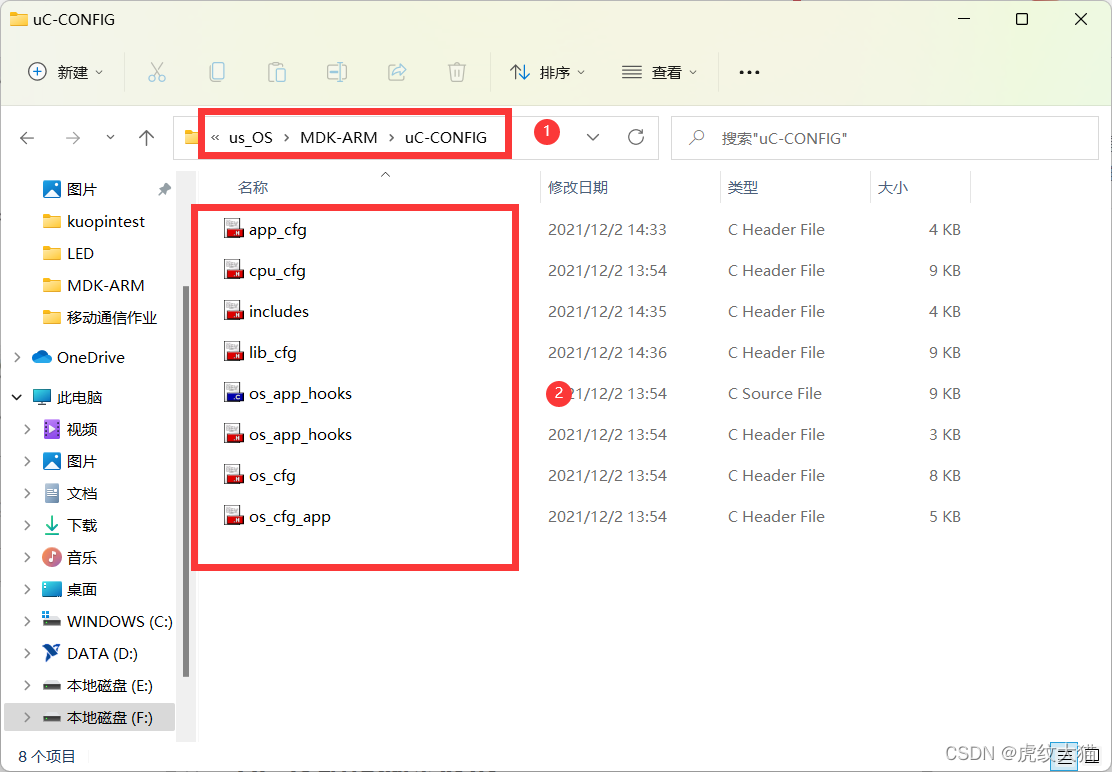

复制完成后结果。

2.复制文件到MDK-ARM文件夹下

复制这五个文件。

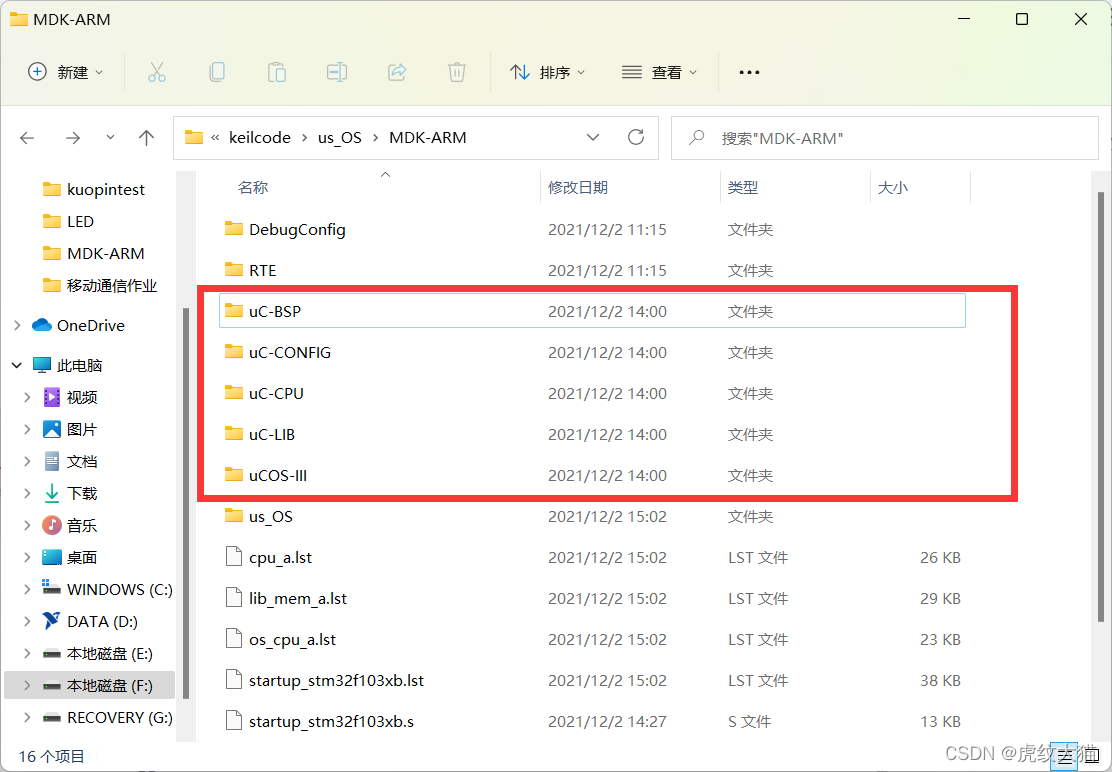

复制完成后的结果。

四、开始移植

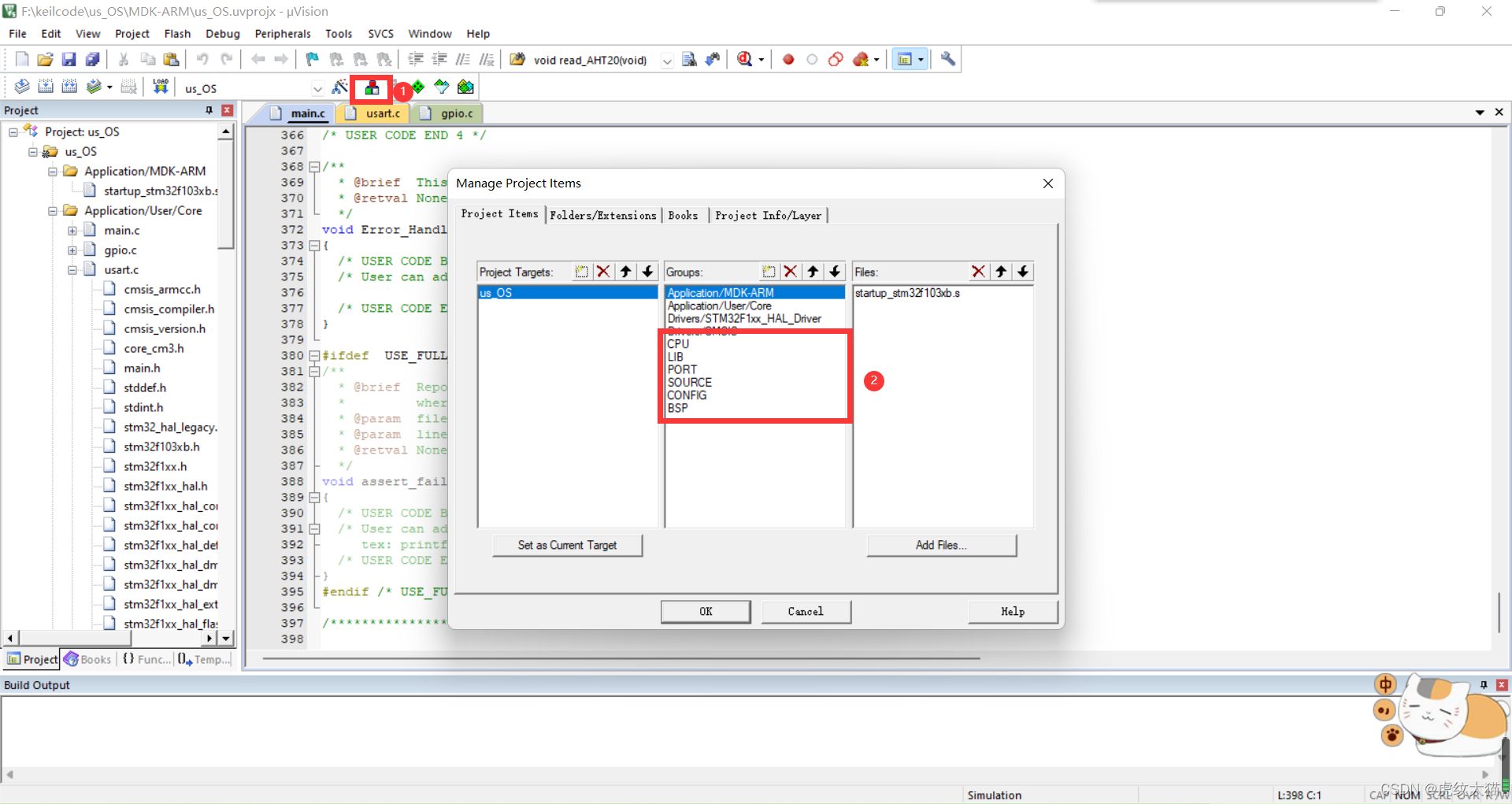

1.新建六个文件夹

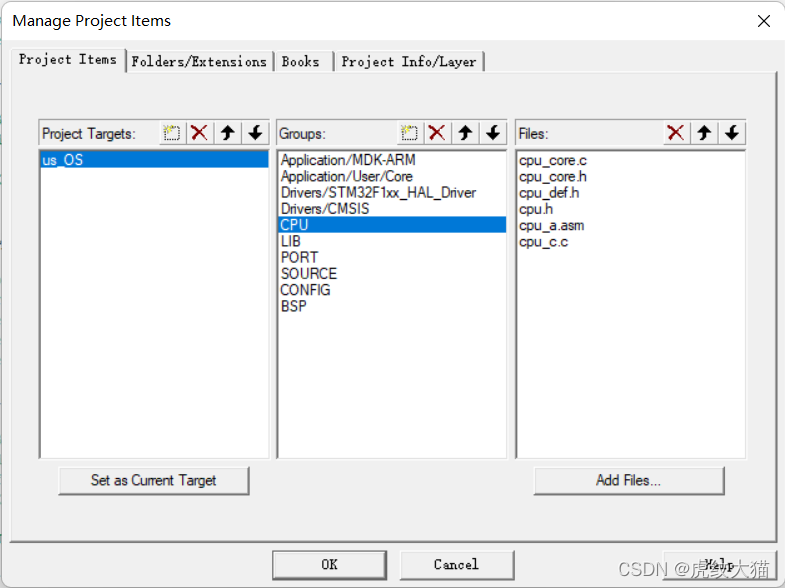

2.开始给每个文件夹分别添加文件

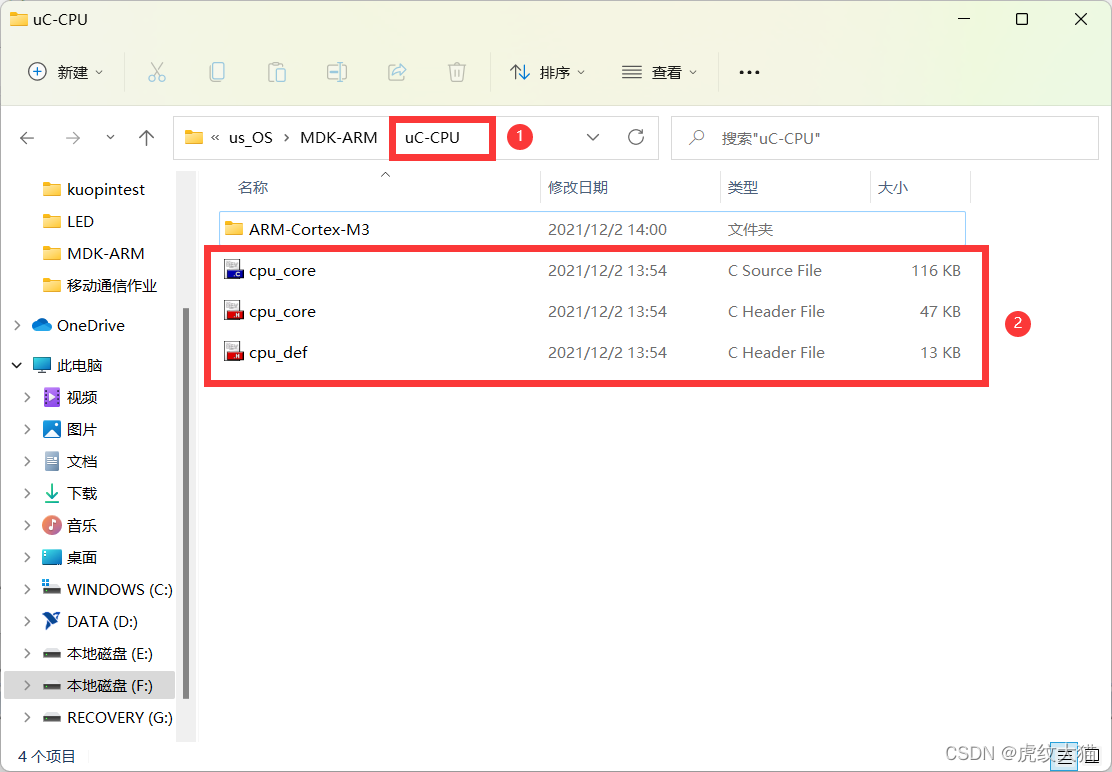

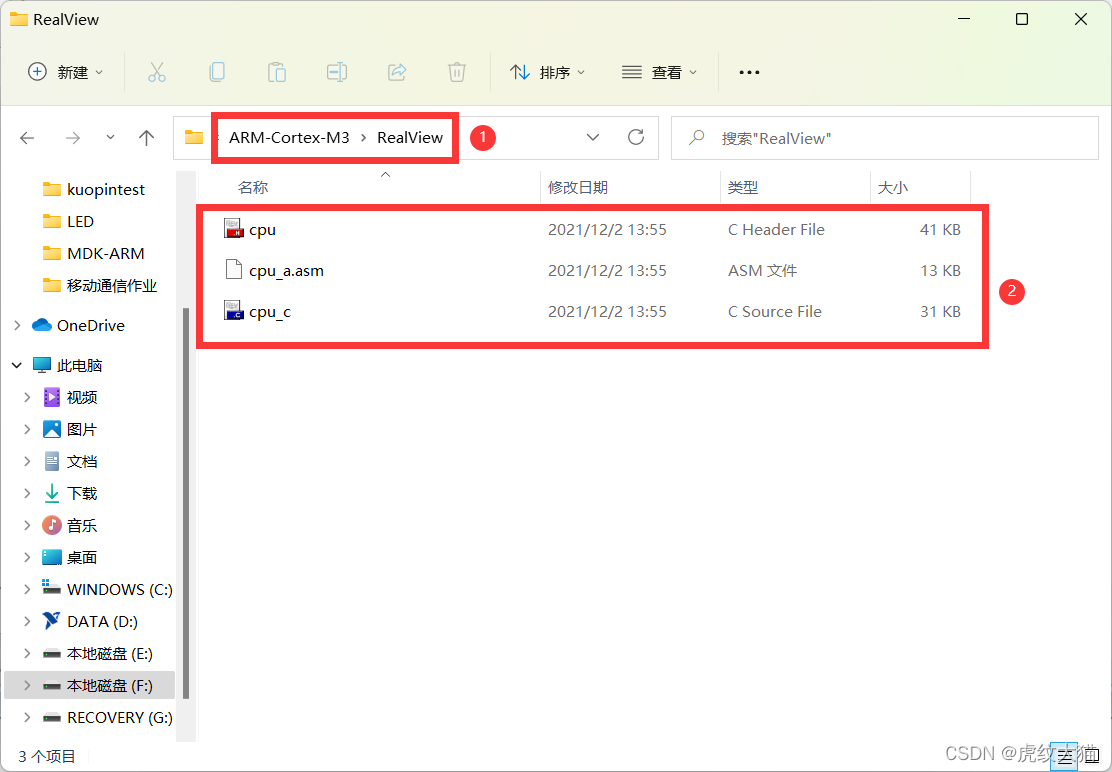

CPU文件夹：

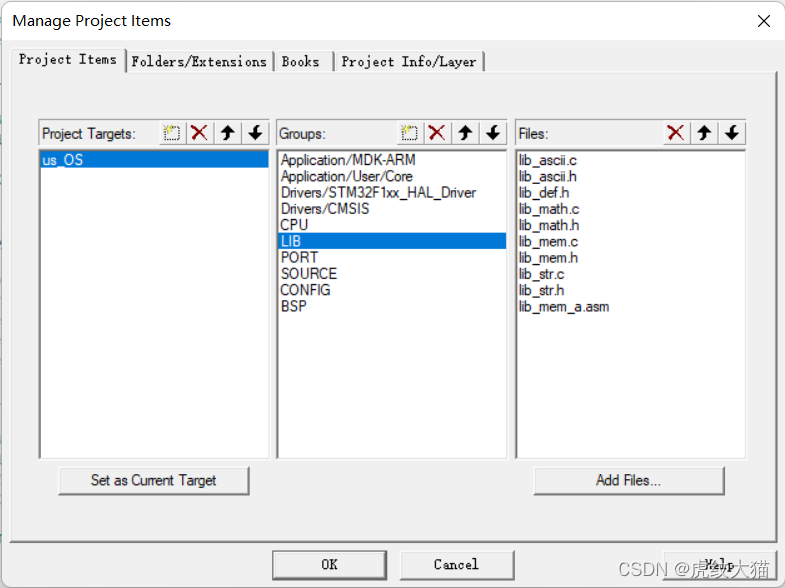

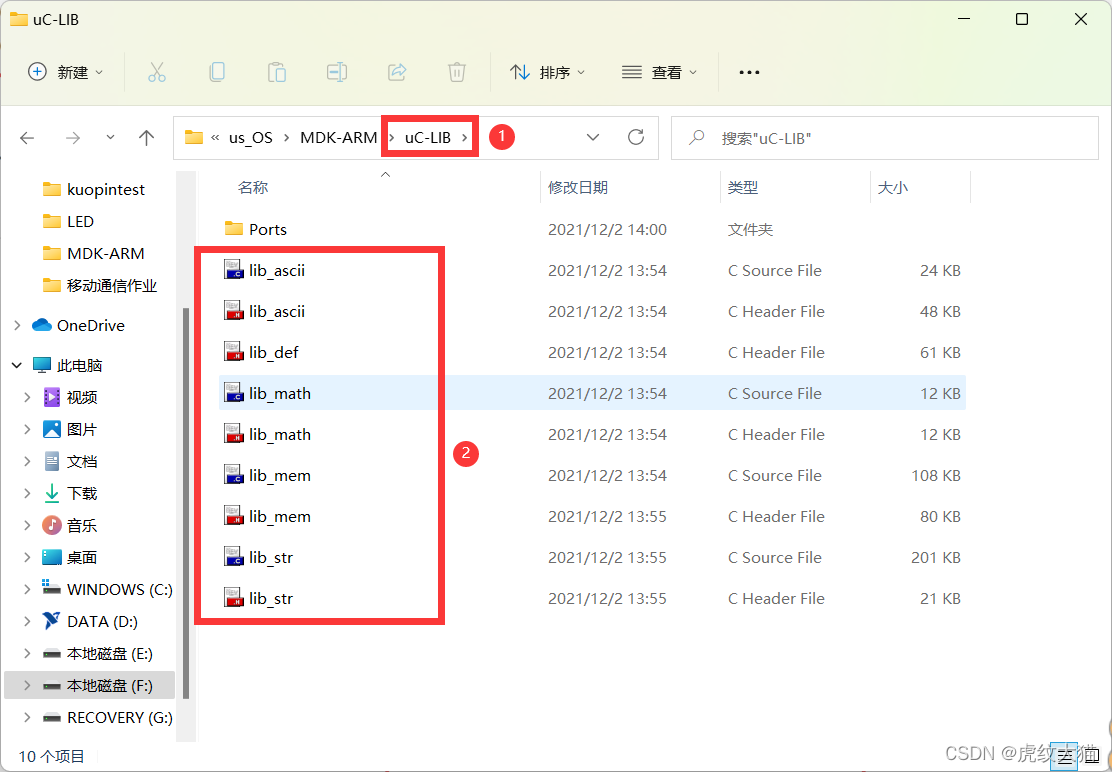

LIB文件夹：

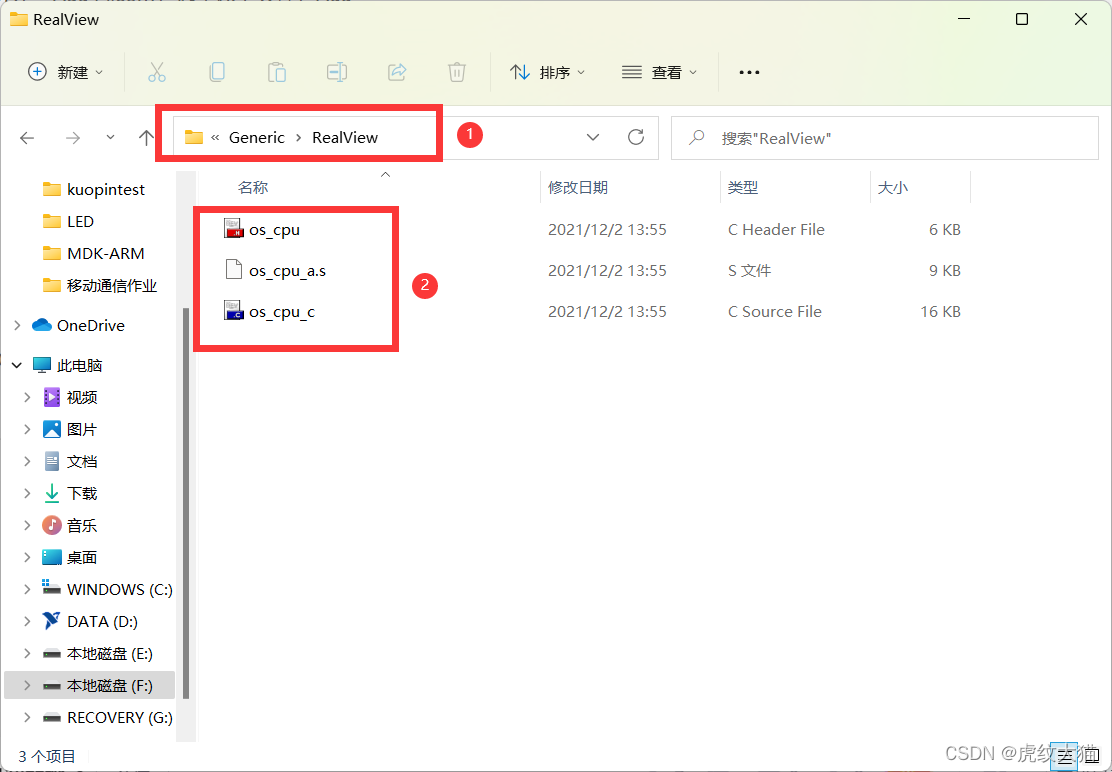

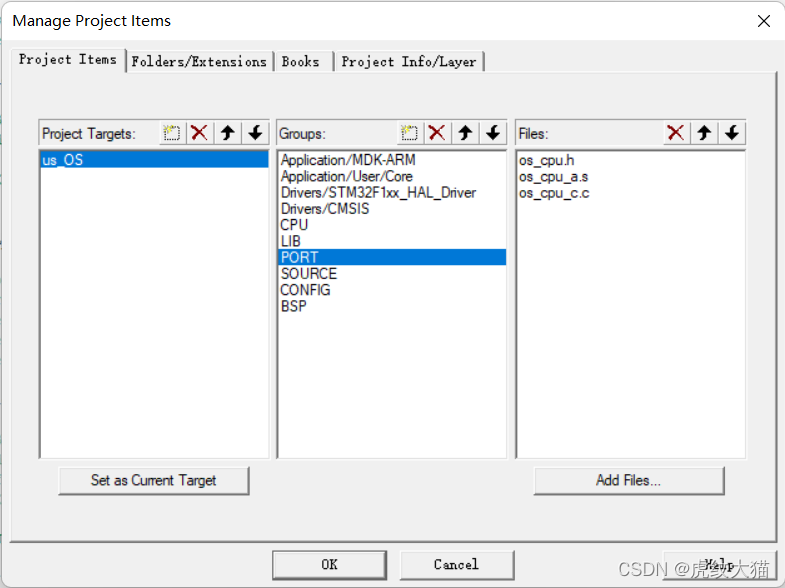

PORT文件夹：

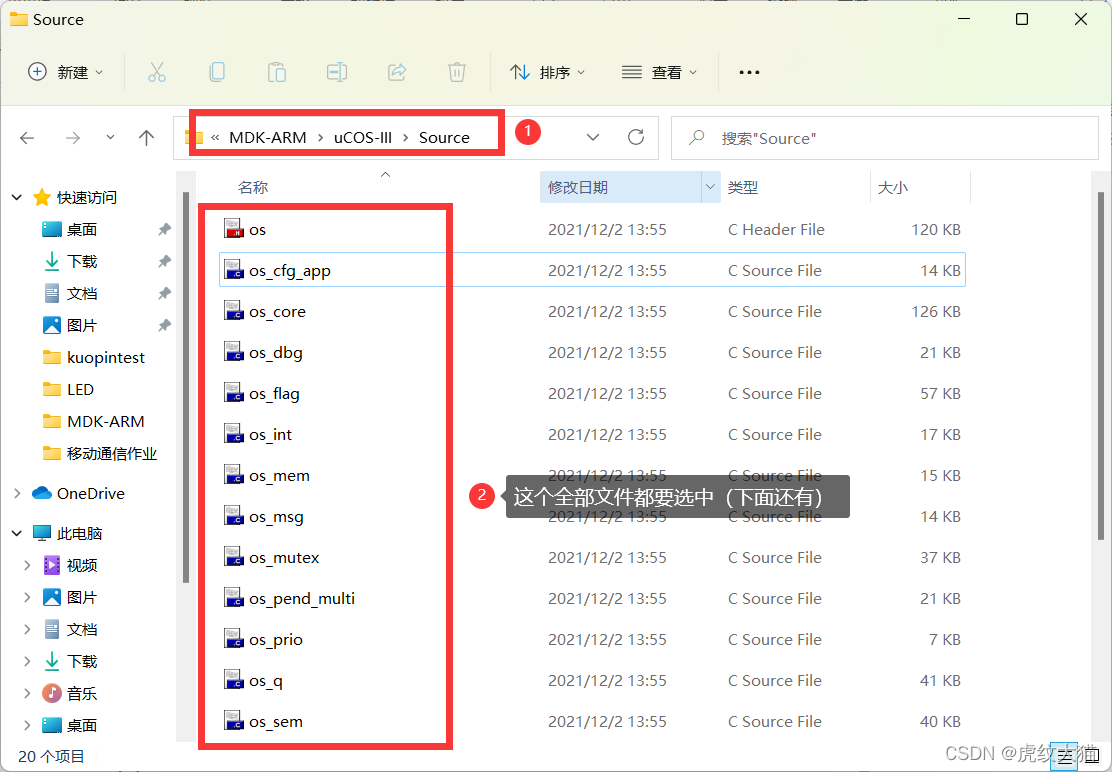

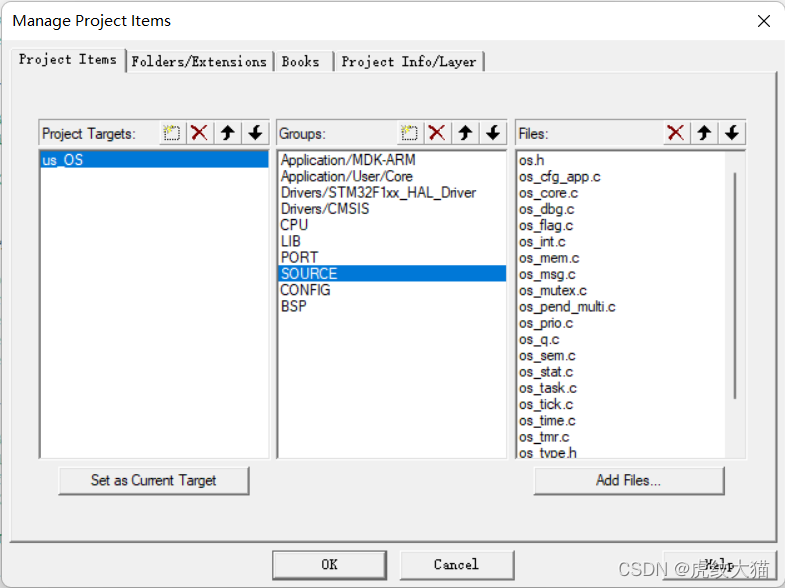

SOURCE文件夹：

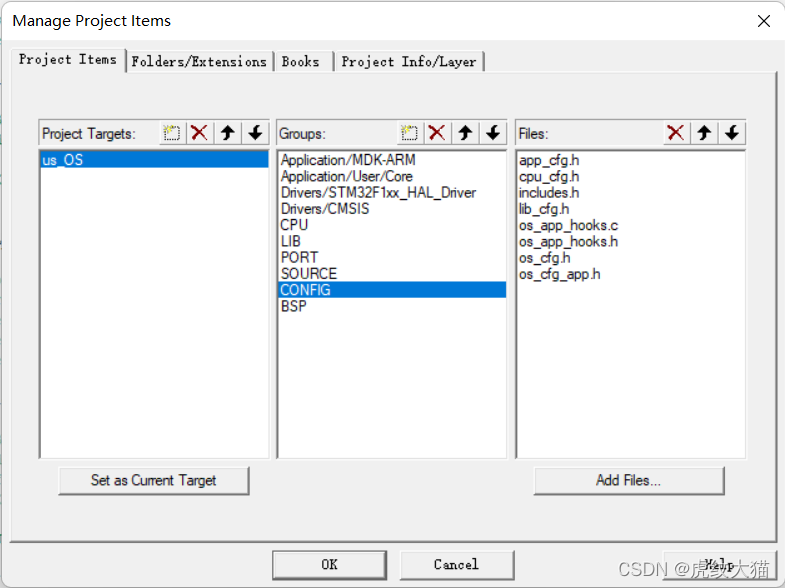

CONFIG文件夹：

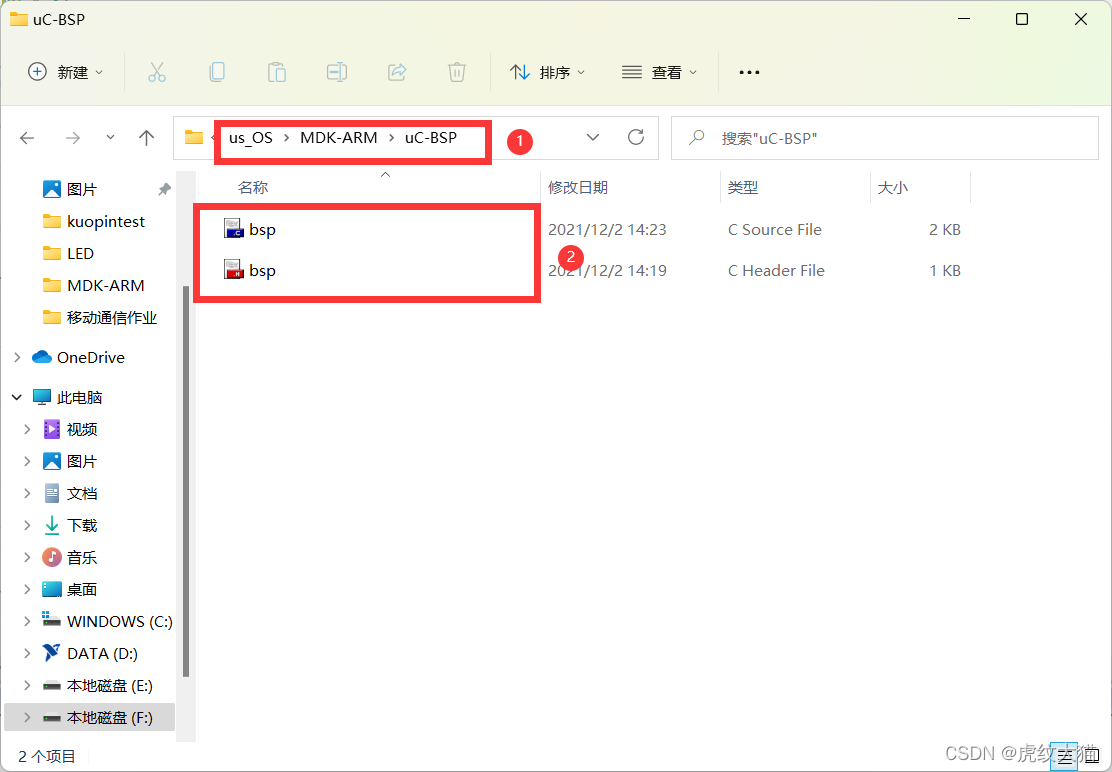

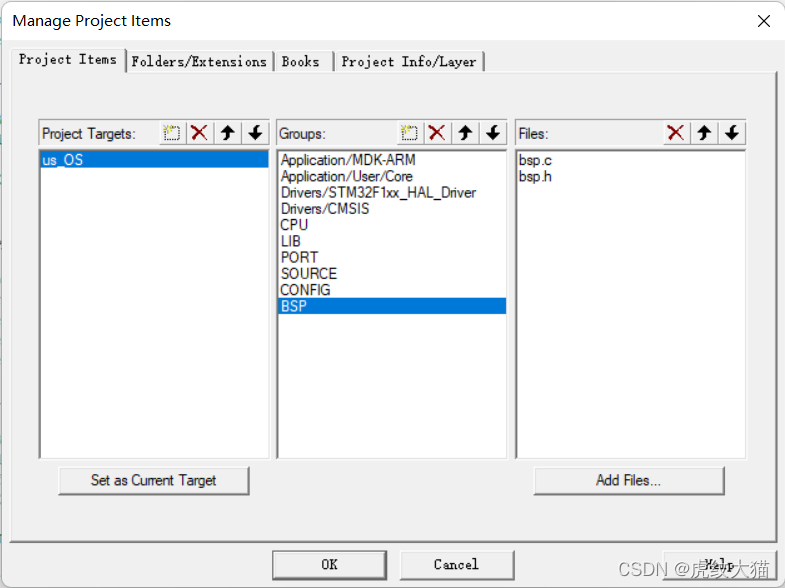

BSP文件夹：


点击OK进行保存（切记）。

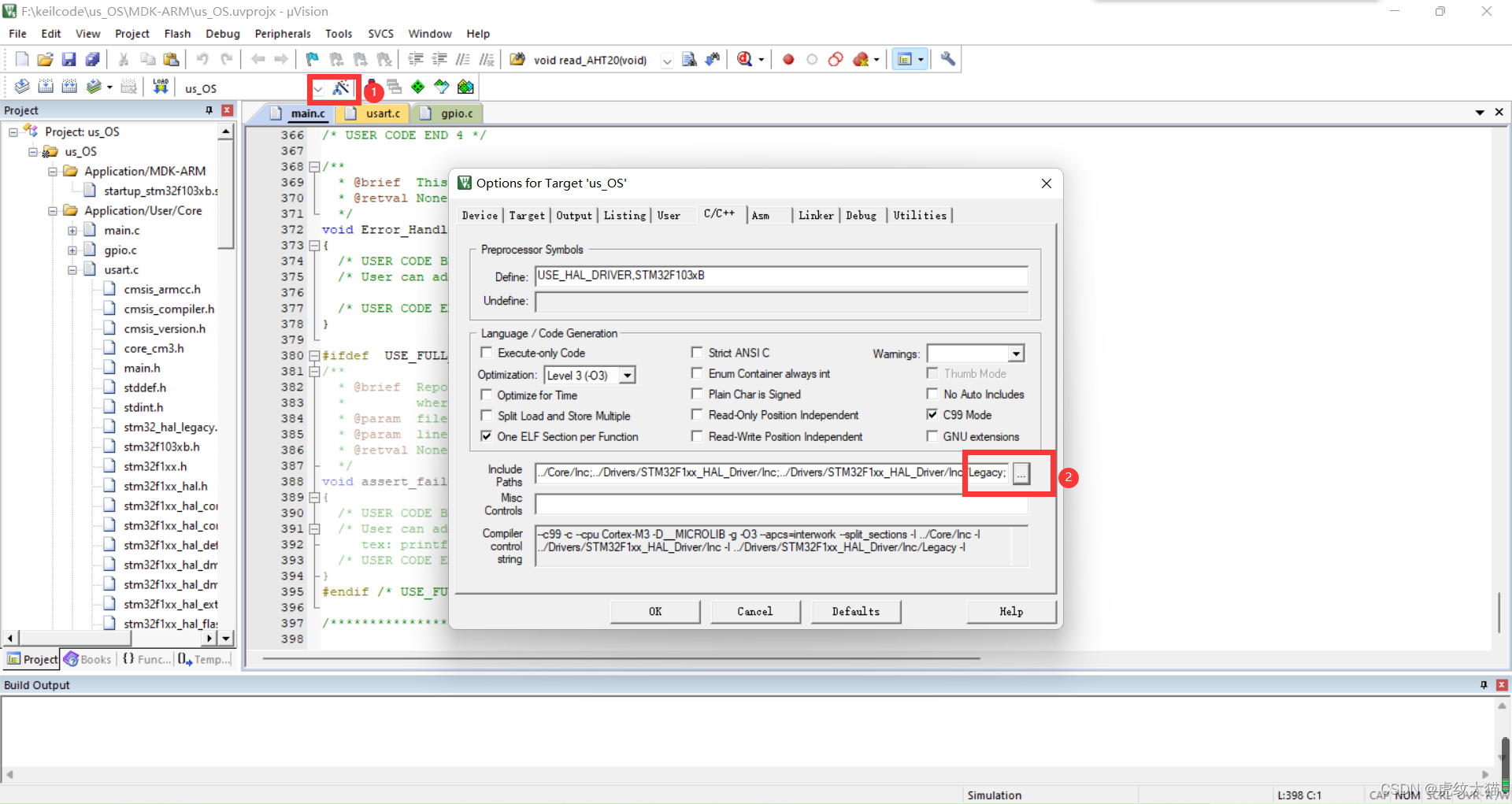

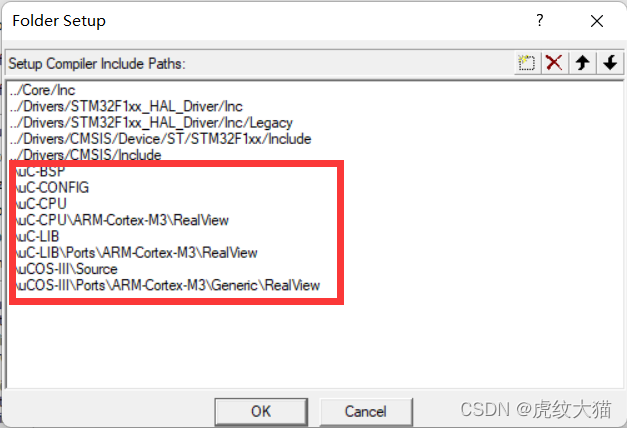

3.导入文件路径

点击OK完成保存（里外都要）。

4.为bsp.c和bsp.h添加代码

①bsp.h

// bsp.h
#ifndef  __BSP_H__
#define  __BSP_H__

#include "stm32f1xx_hal.h"

void BSP_Init(void);

#endif

②bsp.c

// bsp.c
#include "includes.h"

#define  DWT_CR      *(CPU_REG32 *)0xE0001000
#define  DWT_CYCCNT  *(CPU_REG32 *)0xE0001004
#define  DEM_CR      *(CPU_REG32 *)0xE000EDFC
#define  DBGMCU_CR   *(CPU_REG32 *)0xE0042004

#define  DEM_CR_TRCENA                   (1 << 24)
#define  DWT_CR_CYCCNTENA                (1 <<  0)

CPU_INT32U  BSP_CPU_ClkFreq (void)
{
    return HAL_RCC_GetHCLKFreq();
}

void BSP_Tick_Init(void)
{
	CPU_INT32U cpu_clk_freq;
	CPU_INT32U cnts;
	cpu_clk_freq = BSP_CPU_ClkFreq();

	#if(OS_VERSION>=3000u)
		cnts = cpu_clk_freq/(CPU_INT32U)OSCfg_TickRate_Hz;
	#else
		cnts = cpu_clk_freq/(CPU_INT32U)OS_TICKS_PER_SEC;
	#endif
	OS_CPU_SysTickInit(cnts);
}



void BSP_Init(void)
{
	BSP_Tick_Init();
	MX_GPIO_Init();
}


#if (CPU_CFG_TS_TMR_EN == DEF_ENABLED)
void  CPU_TS_TmrInit (void)
{
    CPU_INT32U  cpu_clk_freq_hz;


    DEM_CR         |= (CPU_INT32U)DEM_CR_TRCENA;                /* Enable Cortex-M3's DWT CYCCNT reg.                   */
    DWT_CYCCNT      = (CPU_INT32U)0u;
    DWT_CR         |= (CPU_INT32U)DWT_CR_CYCCNTENA;

    cpu_clk_freq_hz = BSP_CPU_ClkFreq();
    CPU_TS_TmrFreqSet(cpu_clk_freq_hz);
}
#endif


#if (CPU_CFG_TS_TMR_EN == DEF_ENABLED)
CPU_TS_TMR  CPU_TS_TmrRd (void)
{
    return ((CPU_TS_TMR)DWT_CYCCNT);
}
#endif


#if (CPU_CFG_TS_32_EN == DEF_ENABLED)
CPU_INT64U  CPU_TS32_to_uSec (CPU_TS32  ts_cnts)
{
	CPU_INT64U  ts_us;
  CPU_INT64U  fclk_freq;


  fclk_freq = BSP_CPU_ClkFreq();
  ts_us     = ts_cnts / (fclk_freq / DEF_TIME_NBR_uS_PER_SEC);

  return (ts_us);
}
#endif


#if (CPU_CFG_TS_64_EN == DEF_ENABLED)
CPU_INT64U  CPU_TS64_to_uSec (CPU_TS64  ts_cnts)
{
	CPU_INT64U  ts_us;
	CPU_INT64U  fclk_freq;


  fclk_freq = BSP_CPU_ClkFreq();
  ts_us     = ts_cnts / (fclk_freq / DEF_TIME_NBR_uS_PER_SEC);

  return (ts_us);
}
#endif

5.修改main.c文件代码

/* USER CODE END Header */
/* Includes ------------------------------------------------------------------*/
#include "main.h"
#include "gpio.h"
#include "usart.h"
/* Private includes ----------------------------------------------------------*/
/* USER CODE BEGIN Includes */
#include <includes.h>
#include "stm32f1xx_hal.h"
/* USER CODE END Includes */

/* Private typedef -----------------------------------------------------------*/
/* USER CODE BEGIN PTD */

/* USER CODE END PTD */

/* Private define ------------------------------------------------------------*/
/* USER CODE BEGIN PD */
/* 任务优先级 */
#define START_TASK_PRIO		3
#define LED0_TASK_PRIO		4
#define MSG_TASK_PRIO		5

/* 任务堆栈大小	*/
#define START_STK_SIZE 		64
#define LED0_STK_SIZE 		64
#define MSG_STK_SIZE 		64//任务堆大小过大会报错，可以试着改小一点

/* 任务栈 */
CPU_STK START_TASK_STK[START_STK_SIZE];
CPU_STK LED0_TASK_STK[LED0_STK_SIZE];
CPU_STK MSG_TASK_STK[MSG_STK_SIZE];
/* 任务控制块 */
OS_TCB StartTaskTCB;
OS_TCB Led0TaskTCB;
OS_TCB MsgTaskTCB;
/* USER CODE END PD */

/* Private macro -------------------------------------------------------------*/
/* USER CODE BEGIN PM */

/* USER CODE END PM */

/* Private variables ---------------------------------------------------------*/

/* USER CODE BEGIN PV */

/* 任务函数定义 */
void start_task(void *p_arg);
static  void  AppTaskCreate(void);
static  void  AppObjCreate(void);
static  void  led_pc13(void *p_arg);
static  void  send_msg(void *p_arg);
/* USER CODE END PV */

/* Private function prototypes -----------------------------------------------*/
void SystemClock_Config(void);
/* USER CODE BEGIN PFP */

/* USER CODE END PFP */

/* Private user code ---------------------------------------------------------*/
/* USER CODE BEGIN 0 */
/**
  * @brief System Clock Configuration
  * @retval None
  */
void SystemClock_Config(void)
{
  RCC_OscInitTypeDef RCC_OscInitStruct = {0};
  RCC_ClkInitTypeDef RCC_ClkInitStruct = {0};

  /**Initializes the CPU, AHB and APB busses clocks
  */
  RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSE;
  RCC_OscInitStruct.HSEState = RCC_HSE_ON;
  RCC_OscInitStruct.HSEPredivValue = RCC_HSE_PREDIV_DIV1;
  RCC_OscInitStruct.HSIState = RCC_HSI_ON;
  RCC_OscInitStruct.PLL.PLLState = RCC_PLL_ON;
  RCC_OscInitStruct.PLL.PLLSource = RCC_PLLSOURCE_HSE;
  RCC_OscInitStruct.PLL.PLLMUL = RCC_PLL_MUL9;
  if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK)
  {
    Error_Handler();
  }
  /**Initializes the CPU, AHB and APB busses clocks
  */
  RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK
                              |RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2;
  RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_PLLCLK;
  RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;
  RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV2;
  RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV1;

  if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_2) != HAL_OK)
  {
    Error_Handler();
  }
}

/* USER CODE END 0 */

/**
  * @brief  The application entry point.
  * @retval int
  */
int main(void)
{
	OS_ERR  err;
	OSInit(&err);
  HAL_Init();
	SystemClock_Config();
	//MX_GPIO_Init(); 这个在BSP的初始化里也会初始化
  MX_USART1_UART_Init();
	/* 创建任务 */
	OSTaskCreate((OS_TCB     *)&StartTaskTCB,                /* Create the start task                                */
				 (CPU_CHAR   *)"start task",
				 (OS_TASK_PTR ) start_task,
				 (void       *) 0,
				 (OS_PRIO     ) START_TASK_PRIO,
				 (CPU_STK    *)&START_TASK_STK[0],
				 (CPU_STK_SIZE) START_STK_SIZE/10,
				 (CPU_STK_SIZE) START_STK_SIZE,
				 (OS_MSG_QTY  ) 0,
				 (OS_TICK     ) 0,
				 (void       *) 0,
				 (OS_OPT      )(OS_OPT_TASK_STK_CHK | OS_OPT_TASK_STK_CLR),
				 (OS_ERR     *)&err);
	/* 启动多任务系统，控制权交给uC/OS-III */
	OSStart(&err);            /* Start multitasking (i.e. give control to uC/OS-III). */

}


void start_task(void *p_arg)
{
	OS_ERR err;
	CPU_SR_ALLOC();
	p_arg = p_arg;

	/* YangJie add 2021.05.20*/
  BSP_Init();                                                   /* Initialize BSP functions */
  //CPU_Init();
  //Mem_Init();                                                 /* Initialize Memory Management Module */

#if OS_CFG_STAT_TASK_EN > 0u
   OSStatTaskCPUUsageInit(&err);  		//统计任务
#endif

#ifdef CPU_CFG_INT_DIS_MEAS_EN			//如果使能了测量中断关闭时间
    CPU_IntDisMeasMaxCurReset();
#endif

#if	OS_CFG_SCHED_ROUND_ROBIN_EN  		//当使用时间片轮转的时候
	 //使能时间片轮转调度功能,时间片长度为1个系统时钟节拍，既1*5=5ms
	OSSchedRoundRobinCfg(DEF_ENABLED,1,&err);
#endif

	OS_CRITICAL_ENTER();	//进入临界区
	/* 创建LED0任务 */
	OSTaskCreate((OS_TCB 	* )&Led0TaskTCB,
				 (CPU_CHAR	* )"led_pc13",
                 (OS_TASK_PTR )led_pc13,
                 (void		* )0,
                 (OS_PRIO	  )LED0_TASK_PRIO,
                 (CPU_STK   * )&LED0_TASK_STK[0],
                 (CPU_STK_SIZE)LED0_STK_SIZE/10,
                 (CPU_STK_SIZE)LED0_STK_SIZE,
                 (OS_MSG_QTY  )0,
                 (OS_TICK	  )0,
                 (void   	* )0,
                 (OS_OPT      )OS_OPT_TASK_STK_CHK|OS_OPT_TASK_STK_CLR,
                 (OS_ERR 	* )&err);

	/* 创建LED1任务 */
	OSTaskCreate((OS_TCB 	* )&MsgTaskTCB,
				 (CPU_CHAR	* )"send_msg",
                 (OS_TASK_PTR )send_msg,
                 (void		* )0,
                 (OS_PRIO	  )MSG_TASK_PRIO,
                 (CPU_STK   * )&MSG_TASK_STK[0],
                 (CPU_STK_SIZE)MSG_STK_SIZE/10,
                 (CPU_STK_SIZE)MSG_STK_SIZE,
                 (OS_MSG_QTY  )0,
                 (OS_TICK	  )0,
                 (void   	* )0,
                 (OS_OPT      )OS_OPT_TASK_STK_CHK|OS_OPT_TASK_STK_CLR,
                 (OS_ERR 	* )&err);

	OS_TaskSuspend((OS_TCB*)&StartTaskTCB,&err);		//挂起开始任务
	OS_CRITICAL_EXIT();	//进入临界区
}
/**
  * 函数功能: 启动任务函数体。
  * 输入参数: p_arg 是在创建该任务时传递的形参
  * 返 回 值: 无
  * 说    明：无
  */
static  void  led_pc13 (void *p_arg)
{
  OS_ERR      err;

  (void)p_arg;

  BSP_Init();                                                 /* Initialize BSP functions                             */
  CPU_Init();

  Mem_Init();                                                 /* Initialize Memory Management Module                  */

#if OS_CFG_STAT_TASK_EN > 0u
  OSStatTaskCPUUsageInit(&err);                               /* Compute CPU capacity with no task running            */
#endif

  CPU_IntDisMeasMaxCurReset();

  AppTaskCreate();                                            /* Create Application Tasks                             */

  AppObjCreate();                                             /* Create Application Objects                           */

  while (DEF_TRUE)
  {
		HAL_GPIO_WritePin(GPIOC,GPIO_PIN_13,GPIO_PIN_RESET);
		OSTimeDlyHMSM(0, 0, 0, 500,OS_OPT_TIME_HMSM_STRICT,&err);
		HAL_GPIO_WritePin(GPIOC,GPIO_PIN_13,GPIO_PIN_SET);
		OSTimeDlyHMSM(0, 0, 0, 500,OS_OPT_TIME_HMSM_STRICT,&err);
    /* USER CODE END WHILE */

    /* USER CODE BEGIN 3 */
  }
  /* USER CODE END 3 */
}
static  void  send_msg (void *p_arg)
{
  OS_ERR      err;

  (void)p_arg;

  BSP_Init();                                                 /* Initialize BSP functions                             */
  CPU_Init();

  Mem_Init();                                                 /* Initialize Memory Management Module                  */

#if OS_CFG_STAT_TASK_EN > 0u
  OSStatTaskCPUUsageInit(&err);                               /* Compute CPU capacity with no task running            */
#endif

  CPU_IntDisMeasMaxCurReset();

  AppTaskCreate();                                            /* Create Application Tasks                             */

  AppObjCreate();                                             /* Create Application Objects                           */

  while (DEF_TRUE)
  {
			printf("hello world \r\n");
		OSTimeDlyHMSM(0, 0, 0, 500,OS_OPT_TIME_HMSM_STRICT,&err);
    /* USER CODE END WHILE */

    /* USER CODE BEGIN 3 */
  }
  /* USER CODE END 3 */
}


/* USER CODE BEGIN 4 */
/**
  * 函数功能: 创建应用任务
  * 输入参数: p_arg 是在创建该任务时传递的形参
  * 返 回 值: 无
  * 说    明：无
  */
static  void  AppTaskCreate (void)
{

}


/**
  * 函数功能: uCOSIII内核对象创建
  * 输入参数: 无
  * 返 回 值: 无
  * 说    明：无
  */
static  void  AppObjCreate (void)
{

}

/* USER CODE END 4 */

/**
  * @brief  This function is executed in case of error occurrence.
  * @retval None
  */
void Error_Handler(void)
{
  /* USER CODE BEGIN Error_Handler_Debug */
  /* User can add his own implementation to report the HAL error return state */

  /* USER CODE END Error_Handler_Debug */
}

#ifdef  USE_FULL_ASSERT
/**
  * @brief  Reports the name of the source file and the source line number
  *         where the assert_param error has occurred.
  * @param  file: pointer to the source file name
  * @param  line: assert_param error line source number
  * @retval None
  */
void assert_failed(uint8_t *file, uint32_t line)
{
  /* USER CODE BEGIN 6 */
  /* User can add his own implementation to report the file name and line number,
     tex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */
  /* USER CODE END 6 */
}
#endif /* USE_FULL_ASSERT */

/************************ (C) COPYRIGHT STMicroelectronics *****END OF FILE****/

6.修改其他的代码

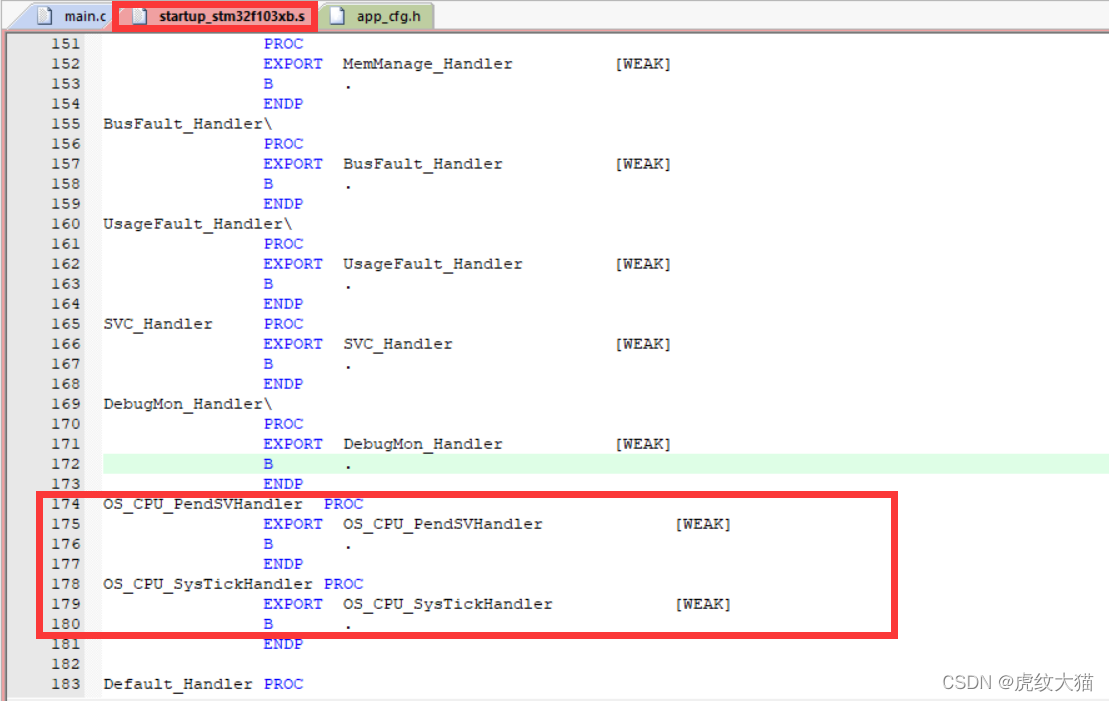

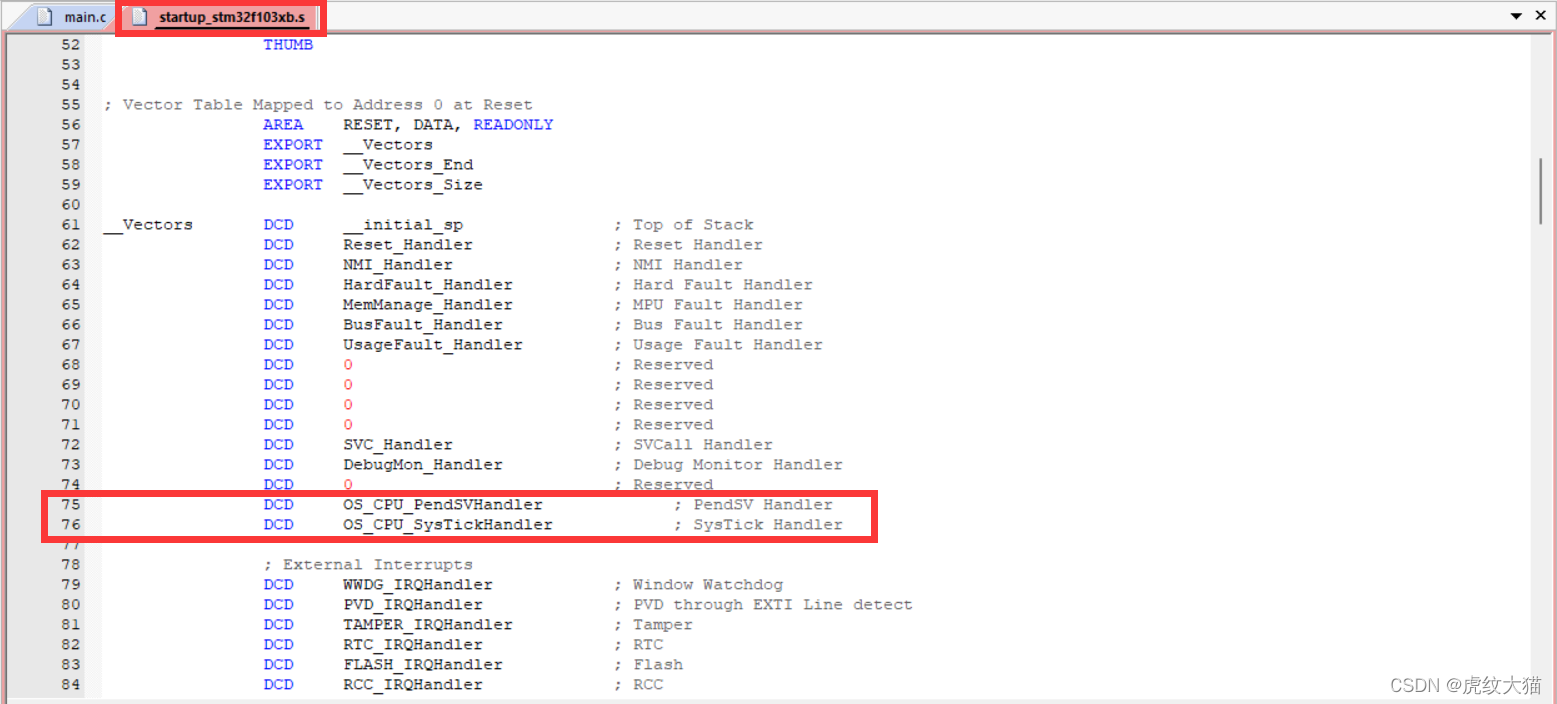

startup_stm32f103xb.s：

                DCD     OS_CPU_PendSVHandler             ; PendSV Handler
                DCD     OS_CPU_SysTickHandler            ; SysTick Handler

OS_CPU_PendSVHandler  PROC
                EXPORT  OS_CPU_PendSVHandler             [WEAK]
                B       .
                ENDP
OS_CPU_SysTickHandler PROC
                EXPORT  OS_CPU_SysTickHandler            [WEAK]
                B       .

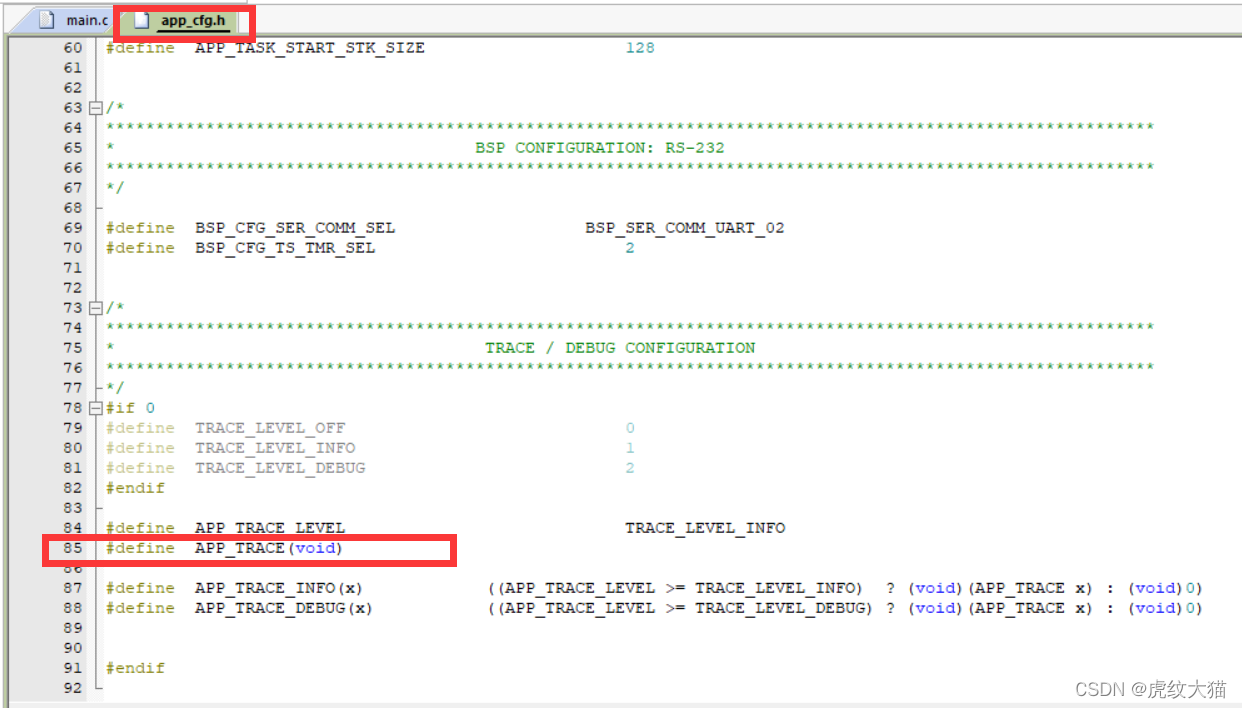

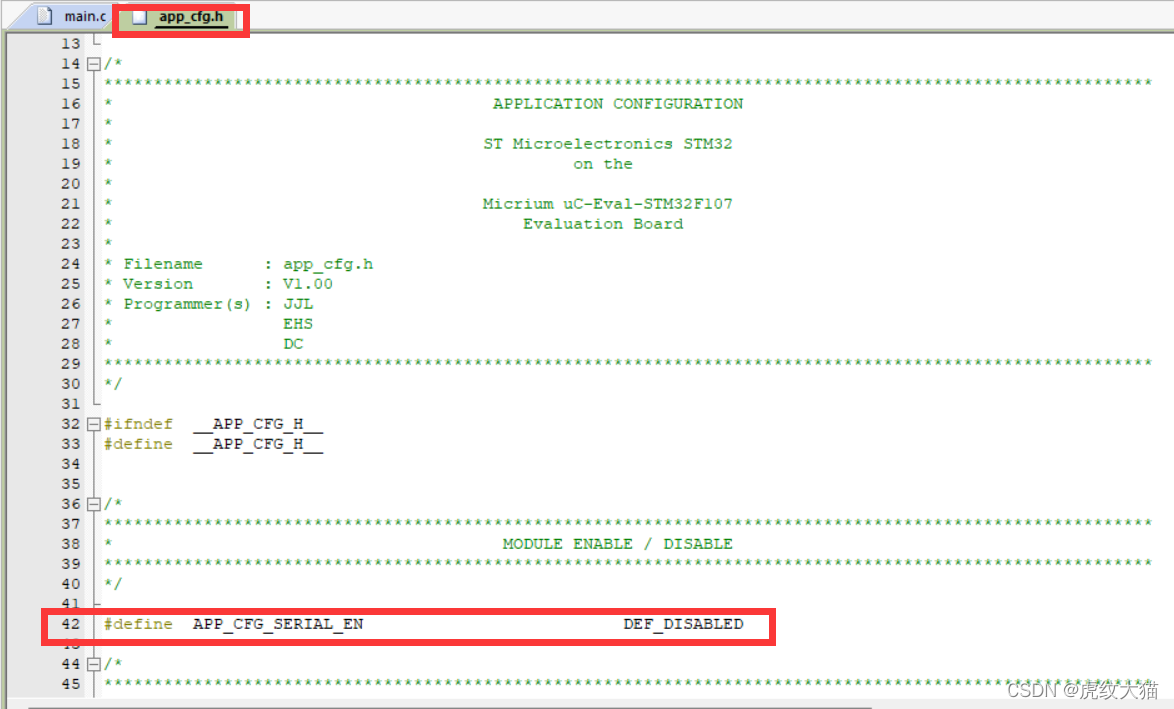

app_cfg.h：

#define  APP_CFG_SERIAL_EN                          DEF_DISABLED

#define  APP_TRACE(void)

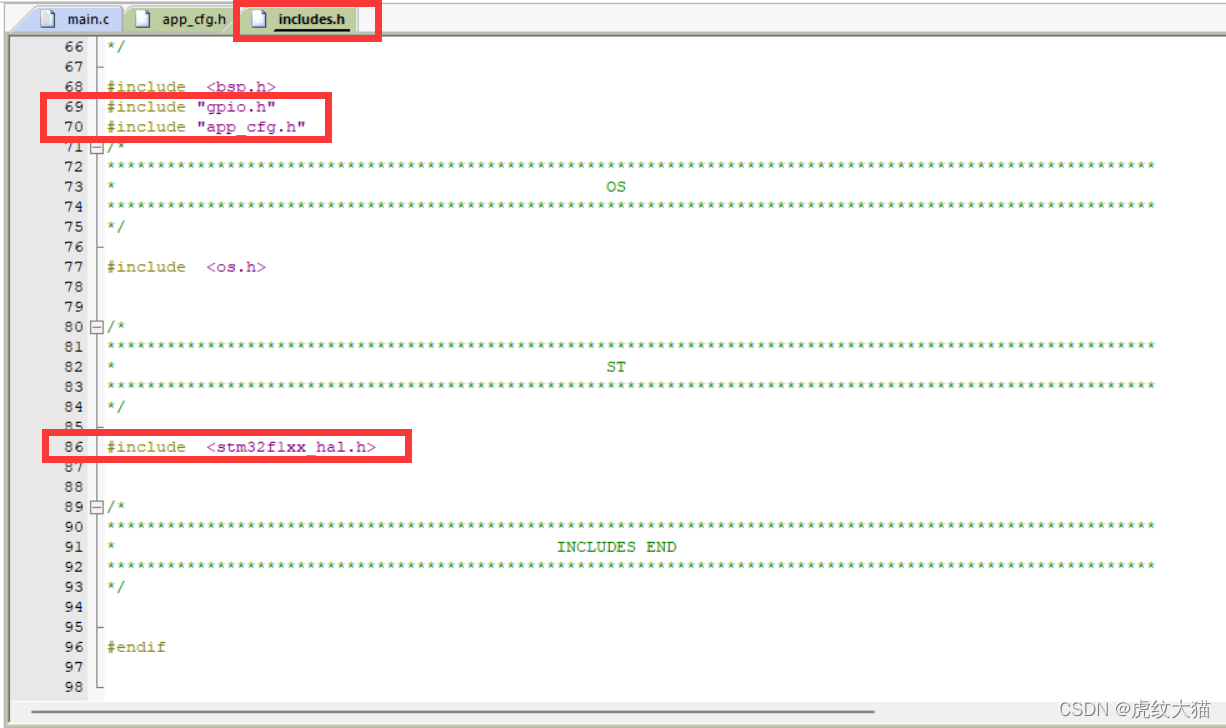

includes.h：

#include "gpio.h"
#include "app_cfg.h"

#include  <stm32f1xx_hal.h>

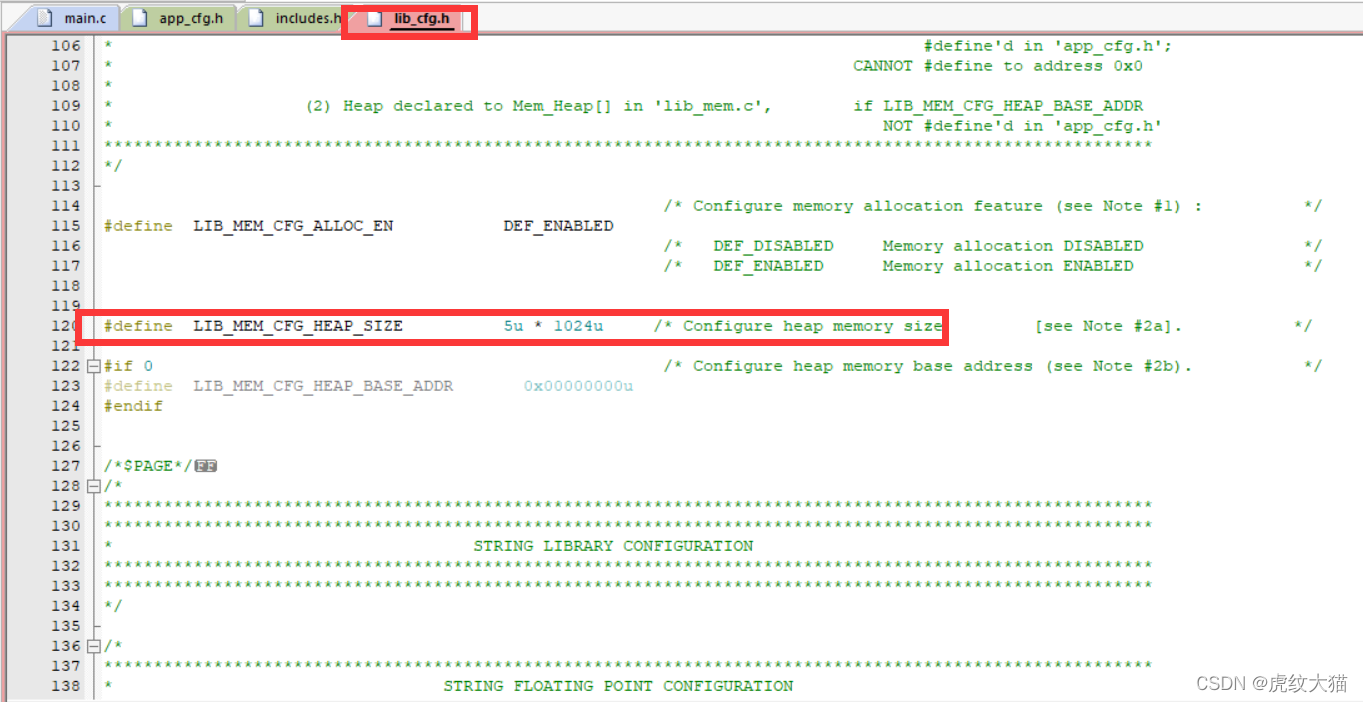

lib_cfg.h：

将这一行的20改成5。

usart.c：

/* USER CODE BEGIN 1 */
int fputc(int ch,FILE *f){
	HAL_UART_Transmit(&huart1,(uint8_t *)&ch,1,0xffff);
	return ch;
}
/* USER CODE END 1 */

特别提醒需要在usart.c里对FILE重新定义否则会报错：

typedef struct __FILE FILE;

将这行代码添加到usart.c。

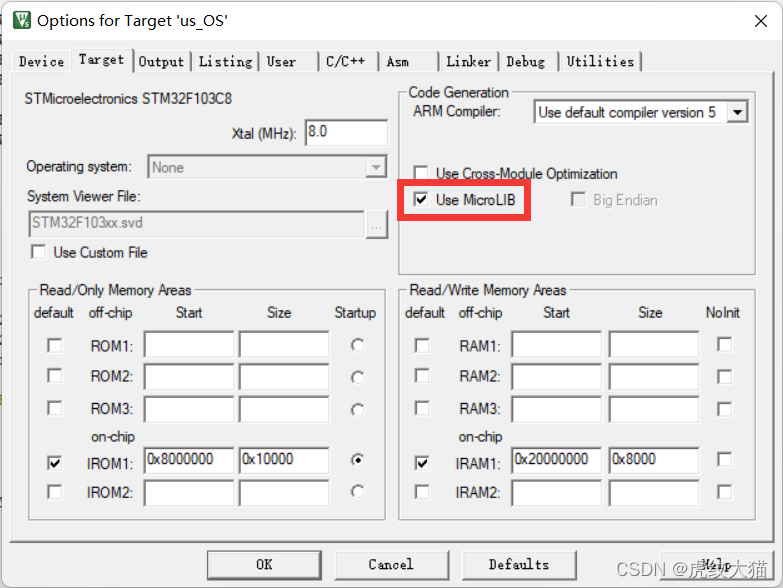

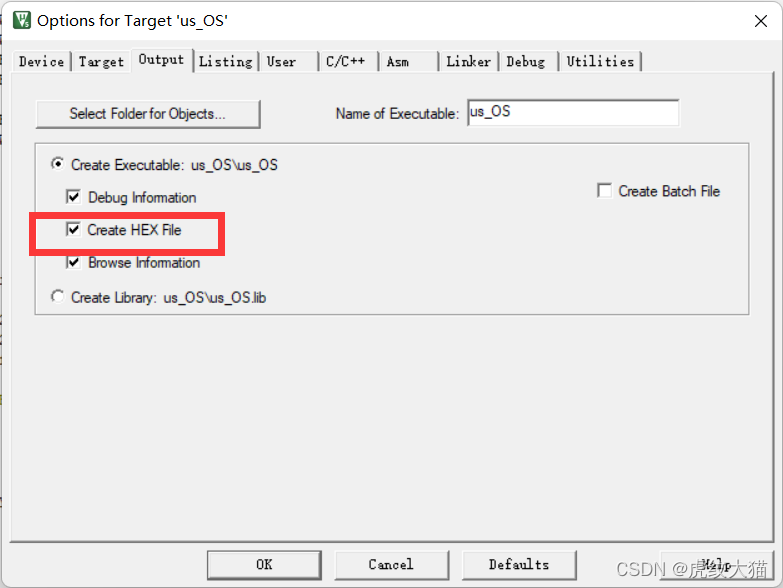

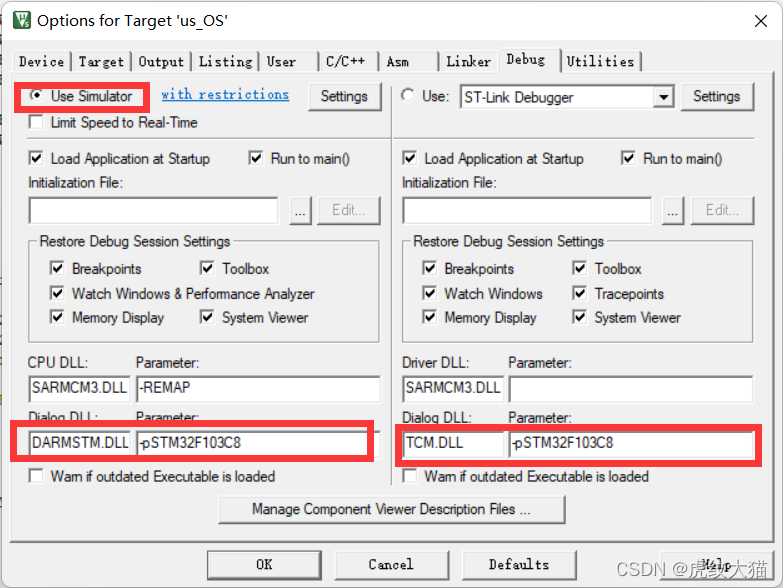

7.配置参数

编译无错后就可以直接烧录进去，查看运行效果。会看到PC13一直亮说明在传输数据。

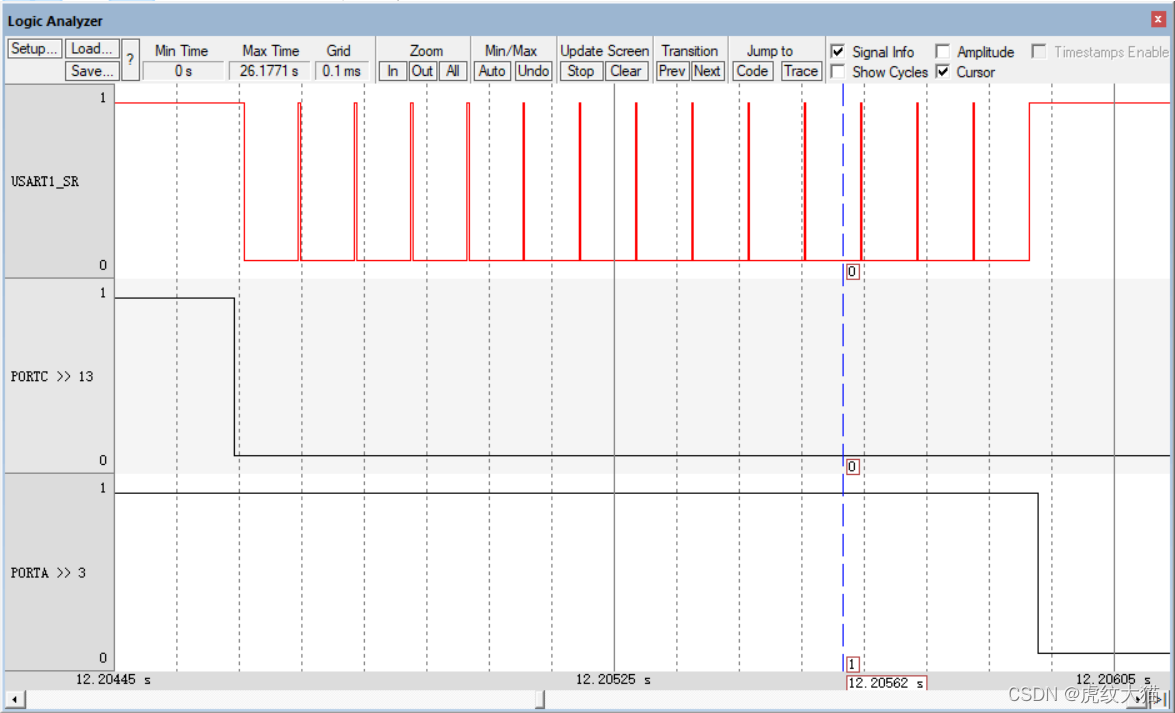

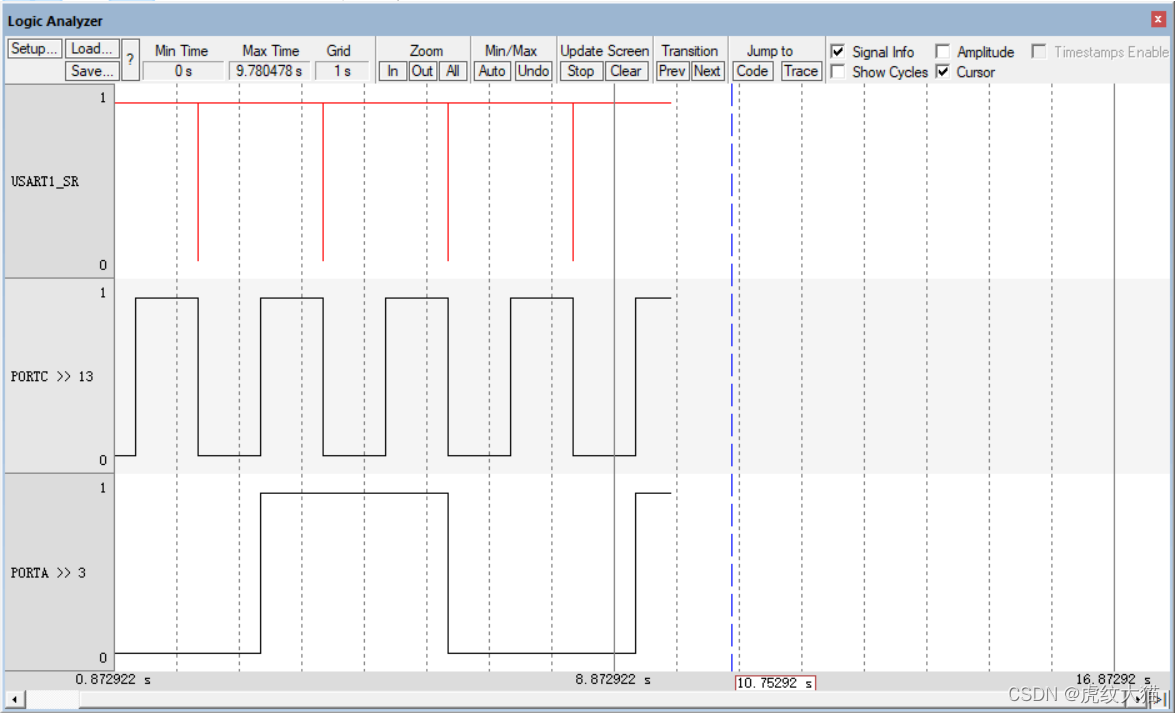

8.运行结果

五、三个任务实现

1.代码修改

gpio.c中修改代码（添加初始化PA3）：

void MX_GPIO_Init(void)
{

  GPIO_InitTypeDef GPIO_InitStruct = {0};

  /* GPIO Ports Clock Enable */
  __HAL_RCC_GPIOC_CLK_ENABLE();
  __HAL_RCC_GPIOD_CLK_ENABLE();
  __HAL_RCC_GPIOA_CLK_ENABLE();

  /*Configure GPIO pin Output Level */
  HAL_GPIO_WritePin(GPIOC, GPIO_PIN_13, GPIO_PIN_RESET);
	HAL_GPIO_WritePin(GPIOA, GPIO_PIN_3, GPIO_PIN_RESET);


  /*Configure GPIO pin : PC13|PA3 */
  GPIO_InitStruct.Pin = GPIO_PIN_13|GPIO_PIN_3;
  GPIO_InitStruct.Mode = GPIO_MODE_OUTPUT_PP;
  GPIO_InitStruct.Pull = GPIO_NOPULL;
  GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_LOW;
  HAL_GPIO_Init(GPIOC, &GPIO_InitStruct);
	HAL_GPIO_Init(GPIOA, &GPIO_InitStruct);

}

main.c：

/* Private define ------------------------------------------------------------*/
/* USER CODE BEGIN PD */
/* 任务优先级 */
#define START_TASK_PRIO		3
#define LED0_TASK_PRIO		4
#define MSG_TASK_PRIO		5
#define LED1_TASK_PRIO		6

/* 任务堆栈大小	*/
#define START_STK_SIZE 		96
#define LED0_STK_SIZE 		64
#define MSG_STK_SIZE 		64
#define LED1_STK_SIZE 		64

/* 任务栈 */
CPU_STK START_TASK_STK[START_STK_SIZE];
CPU_STK LED0_TASK_STK[LED0_STK_SIZE];
CPU_STK MSG_TASK_STK[MSG_STK_SIZE];
CPU_STK LED1_TASK_STK[LED1_STK_SIZE];

/* 任务控制块 */
OS_TCB StartTaskTCB;
OS_TCB Led0TaskTCB;
OS_TCB MsgTaskTCB;
OS_TCB Led1TaskTCB;

/* USER CODE END PD */

/* Private macro -------------------------------------------------------------*/
/* USER CODE BEGIN PM */

/* USER CODE END PM */

/* Private variables ---------------------------------------------------------*/

/* USER CODE BEGIN PV */

/* 任务函数定义 */
void start_task(void *p_arg);
static  void  AppTaskCreate(void);
static  void  AppObjCreate(void);
static  void  led_pc13(void *p_arg);
static  void  send_msg(void *p_arg);
static  void  led_pa3(void *p_arg);
/* USER CODE END PV */

/* Private function prototypes -----------------------------------------------*/
void SystemClock_Config(void);
/* USER CODE BEGIN PFP */

/* USER CODE END PFP */

/* Private user code ---------------------------------------------------------*/
/* USER CODE BEGIN 0 */
/**
  * @brief System Clock Configuration
  * @retval None
  */
void SystemClock_Config(void)
{
  RCC_OscInitTypeDef RCC_OscInitStruct = {0};
  RCC_ClkInitTypeDef RCC_ClkInitStruct = {0};

  /**Initializes the CPU, AHB and APB busses clocks
  */
  RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSE;
  RCC_OscInitStruct.HSEState = RCC_HSE_ON;
  RCC_OscInitStruct.HSEPredivValue = RCC_HSE_PREDIV_DIV1;
  RCC_OscInitStruct.HSIState = RCC_HSI_ON;
  RCC_OscInitStruct.PLL.PLLState = RCC_PLL_ON;
  RCC_OscInitStruct.PLL.PLLSource = RCC_PLLSOURCE_HSE;
  RCC_OscInitStruct.PLL.PLLMUL = RCC_PLL_MUL9;
  if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK)
  {
    Error_Handler();
  }
  /**Initializes the CPU, AHB and APB busses clocks
  */
  RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK
                              |RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2;
  RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_PLLCLK;
  RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;
  RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV2;
  RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV1;

  if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_2) != HAL_OK)
  {
    Error_Handler();
  }
}

/* USER CODE END 0 */

/**
  * @brief  The application entry point.
  * @retval int
  */
int main(void)
{
	OS_ERR  err;
	OSInit(&err);
  HAL_Init();
	SystemClock_Config();
	//MX_GPIO_Init(); 这个在BSP的初始化里也会初始化
  MX_USART1_UART_Init();
	/* 创建任务 */
	OSTaskCreate((OS_TCB     *)&StartTaskTCB,                /* Create the start task                                */
				 (CPU_CHAR   *)"start task",
				 (OS_TASK_PTR ) start_task,
				 (void       *) 0,
				 (OS_PRIO     ) START_TASK_PRIO,
				 (CPU_STK    *)&START_TASK_STK[0],
				 (CPU_STK_SIZE) START_STK_SIZE/10,
				 (CPU_STK_SIZE) START_STK_SIZE,
				 (OS_MSG_QTY  ) 0,
				 (OS_TICK     ) 0,
				 (void       *) 0,
				 (OS_OPT      )(OS_OPT_TASK_STK_CHK | OS_OPT_TASK_STK_CLR),
				 (OS_ERR     *)&err);
	/* 启动多任务系统，控制权交给uC/OS-III */
	OSStart(&err);            /* Start multitasking (i.e. give control to uC/OS-III). */

}


void start_task(void *p_arg)
{
	OS_ERR err;
	CPU_SR_ALLOC();
	p_arg = p_arg;

	/* YangJie add 2021.05.20*/
  BSP_Init();                                                   /* Initialize BSP functions */
  //CPU_Init();
  //Mem_Init();                                                 /* Initialize Memory Management Module */

#if OS_CFG_STAT_TASK_EN > 0u
   OSStatTaskCPUUsageInit(&err);  		//统计任务
#endif

#ifdef CPU_CFG_INT_DIS_MEAS_EN			//如果使能了测量中断关闭时间
    CPU_IntDisMeasMaxCurReset();
#endif

#if	OS_CFG_SCHED_ROUND_ROBIN_EN  		//当使用时间片轮转的时候
	 //使能时间片轮转调度功能,时间片长度为1个系统时钟节拍，既1*5=5ms
	OSSchedRoundRobinCfg(DEF_ENABLED,1,&err);
#endif

	OS_CRITICAL_ENTER();	//进入临界区
	/* 创建LED0任务 */
	OSTaskCreate((OS_TCB 	* )&Led0TaskTCB,
				 (CPU_CHAR	* )"led_pc13",
                 (OS_TASK_PTR )led_pc13,
                 (void		* )0,
                 (OS_PRIO	  )LED0_TASK_PRIO,
                 (CPU_STK   * )&LED0_TASK_STK[0],
                 (CPU_STK_SIZE)LED0_STK_SIZE/10,
                 (CPU_STK_SIZE)LED0_STK_SIZE,
                 (OS_MSG_QTY  )0,
                 (OS_TICK	  )0,
                 (void   	* )0,
                 (OS_OPT      )OS_OPT_TASK_STK_CHK|OS_OPT_TASK_STK_CLR,
                 (OS_ERR 	* )&err);

/* 创建LED1任务 */
	OSTaskCreate((OS_TCB 	* )&Led1TaskTCB,
				 (CPU_CHAR	* )"led_pa3",
                 (OS_TASK_PTR )led_pa3,
                 (void		* )0,
                 (OS_PRIO	  )LED1_TASK_PRIO,
                 (CPU_STK   * )&LED1_TASK_STK[0],
                 (CPU_STK_SIZE)LED1_STK_SIZE/10,
                 (CPU_STK_SIZE)LED1_STK_SIZE,
                 (OS_MSG_QTY  )0,
                 (OS_TICK	  )0,
                 (void   	* )0,
                 (OS_OPT      )OS_OPT_TASK_STK_CHK|OS_OPT_TASK_STK_CLR,
                 (OS_ERR 	* )&err);

	/* 创建MSG任务 */
	OSTaskCreate((OS_TCB 	* )&MsgTaskTCB,
				 (CPU_CHAR	* )"send_msg",
                 (OS_TASK_PTR )send_msg,
                 (void		* )0,
                 (OS_PRIO	  )MSG_TASK_PRIO,
                 (CPU_STK   * )&MSG_TASK_STK[0],
                 (CPU_STK_SIZE)MSG_STK_SIZE/10,
                 (CPU_STK_SIZE)MSG_STK_SIZE,
                 (OS_MSG_QTY  )0,
                 (OS_TICK	  )0,
                 (void   	* )0,
                 (OS_OPT      )OS_OPT_TASK_STK_CHK|OS_OPT_TASK_STK_CLR,
                 (OS_ERR 	* )&err);

	OS_TaskSuspend((OS_TCB*)&StartTaskTCB,&err);		//挂起开始任务
	OS_CRITICAL_EXIT();	//进入临界区
}
/**
  * 函数功能: 启动任务函数体。
  * 输入参数: p_arg 是在创建该任务时传递的形参
  * 返 回 值: 无
  * 说    明：无
  */
static  void  led_pc13 (void *p_arg)
{
  OS_ERR      err;

  (void)p_arg;

  BSP_Init();                                                 /* Initialize BSP functions                             */
  CPU_Init();

  Mem_Init();                                                 /* Initialize Memory Management Module                  */

#if OS_CFG_STAT_TASK_EN > 0u
  OSStatTaskCPUUsageInit(&err);                               /* Compute CPU capacity with no task running            */
#endif

  CPU_IntDisMeasMaxCurReset();

  AppTaskCreate();                                            /* Create Application Tasks                             */

  AppObjCreate();                                             /* Create Application Objects                           */

  while (DEF_TRUE)
  {
		HAL_GPIO_WritePin(GPIOC,GPIO_PIN_13,GPIO_PIN_RESET);
		OSTimeDlyHMSM(0, 0, 1, 0,OS_OPT_TIME_HMSM_STRICT,&err);
		HAL_GPIO_WritePin(GPIOC,GPIO_PIN_13,GPIO_PIN_SET);
		OSTimeDlyHMSM(0, 0, 1, 0,OS_OPT_TIME_HMSM_STRICT,&err);
    /* USER CODE END WHILE */

    /* USER CODE BEGIN 3 */
  }
  /* USER CODE END 3 */
}

static  void  led_pa3 (void *p_arg)
{
  OS_ERR      err;

  (void)p_arg;

  BSP_Init();                                                 /* Initialize BSP functions                             */
  CPU_Init();

  Mem_Init();                                                 /* Initialize Memory Management Module                  */

#if OS_CFG_STAT_TASK_EN > 0u
  OSStatTaskCPUUsageInit(&err);                               /* Compute CPU capacity with no task running            */
#endif

  CPU_IntDisMeasMaxCurReset();

  AppTaskCreate();                                            /* Create Application Tasks                             */

  AppObjCreate();                                             /* Create Application Objects                           */

  while (DEF_TRUE)
  {
		HAL_GPIO_WritePin(GPIOA,GPIO_PIN_3,GPIO_PIN_RESET);
		OSTimeDlyHMSM(0, 0, 3, 0,OS_OPT_TIME_HMSM_STRICT,&err);
		HAL_GPIO_WritePin(GPIOA,GPIO_PIN_3,GPIO_PIN_SET);
		OSTimeDlyHMSM(0, 0, 3, 0,OS_OPT_TIME_HMSM_STRICT,&err);
    /* USER CODE END WHILE */

    /* USER CODE BEGIN 3 */
  }
  /* USER CODE END 3 */
}

static  void  send_msg (void *p_arg)
{
  OS_ERR      err;

  (void)p_arg;

  BSP_Init();                                                 /* Initialize BSP functions                             */
  CPU_Init();

  Mem_Init();                                                 /* Initialize Memory Management Module                  */

#if OS_CFG_STAT_TASK_EN > 0u
  OSStatTaskCPUUsageInit(&err);                               /* Compute CPU capacity with no task running            */
#endif

  CPU_IntDisMeasMaxCurReset();

  AppTaskCreate();                                            /* Create Application Tasks                             */

  AppObjCreate();                                             /* Create Application Objects                           */

  while (DEF_TRUE)
  {
			printf("hello uc/OS \r\n");
		OSTimeDlyHMSM(0, 0, 2, 0,OS_OPT_TIME_HMSM_STRICT,&err);
    /* USER CODE END WHILE */

    /* USER CODE BEGIN 3 */
  }
  /* USER CODE END 3 */
}


/* USER CODE BEGIN 4 */
/**
  * 函数功能: 创建应用任务
  * 输入参数: p_arg 是在创建该任务时传递的形参
  * 返 回 值: 无
  * 说    明：无
  */
static  void  AppTaskCreate (void)
{

}


/**
  * 函数功能: uCOSIII内核对象创建
  * 输入参数: 无
  * 返 回 值: 无
  * 说    明：无
  */
static  void  AppObjCreate (void)
{

}

/* USER CODE END 4 */

/**
  * @brief  This function is executed in case of error occurrence.
  * @retval None
  */
void Error_Handler(void)
{
  /* USER CODE BEGIN Error_Handler_Debug */
  /* User can add his own implementation to report the HAL error return state */

  /* USER CODE END Error_Handler_Debug */
}

#ifdef  USE_FULL_ASSERT
/**
  * @brief  Reports the name of the source file and the source line number
  *         where the assert_param error has occurred.
  * @param  file: pointer to the source file name
  * @param  line: assert_param error line source number
  * @retval None
  */
void assert_failed(uint8_t *file, uint32_t line)
{
  /* USER CODE BEGIN 6 */
  /* User can add his own implementation to report the file name and line number,
     tex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */
  /* USER CODE END 6 */
}
#endif /* USE_FULL_ASSERT */

/************************ (C) COPYRIGHT STMicroelectronics *****END OF FILE****/

2.运行结果

六、逻辑仪观察波形

可以看到PC13是1s亮一次，然后PA3是3s亮一次。

七、总结

本次实验通过参考学长学姐的博客，比较快速的完成了实验的操作，但是对于代码的理解比较一般，另外也没有在课堂的时间内用逻辑分析仪分析波形，只能通过仿真来观察。

八、参考资料

STM32F103C8T6移植uCOS基于HAL库
STM32F103C8移植uCOSIII（HAL库）
