一、MODBUS 通讯协议
MODBUS 通讯协议,是1979年由美国Modicon 公司提出的,就是被称为PLC 之父的迪克·莫利先生创造的品牌。 MODBUS 是世界上第一个用于工业现场的总线协议,可以说,它的出现标志着工业现场从模拟量时代向通讯时代迈进。
下载链接：https://github.com/cwalter-at/freemodbus
二、移植准备

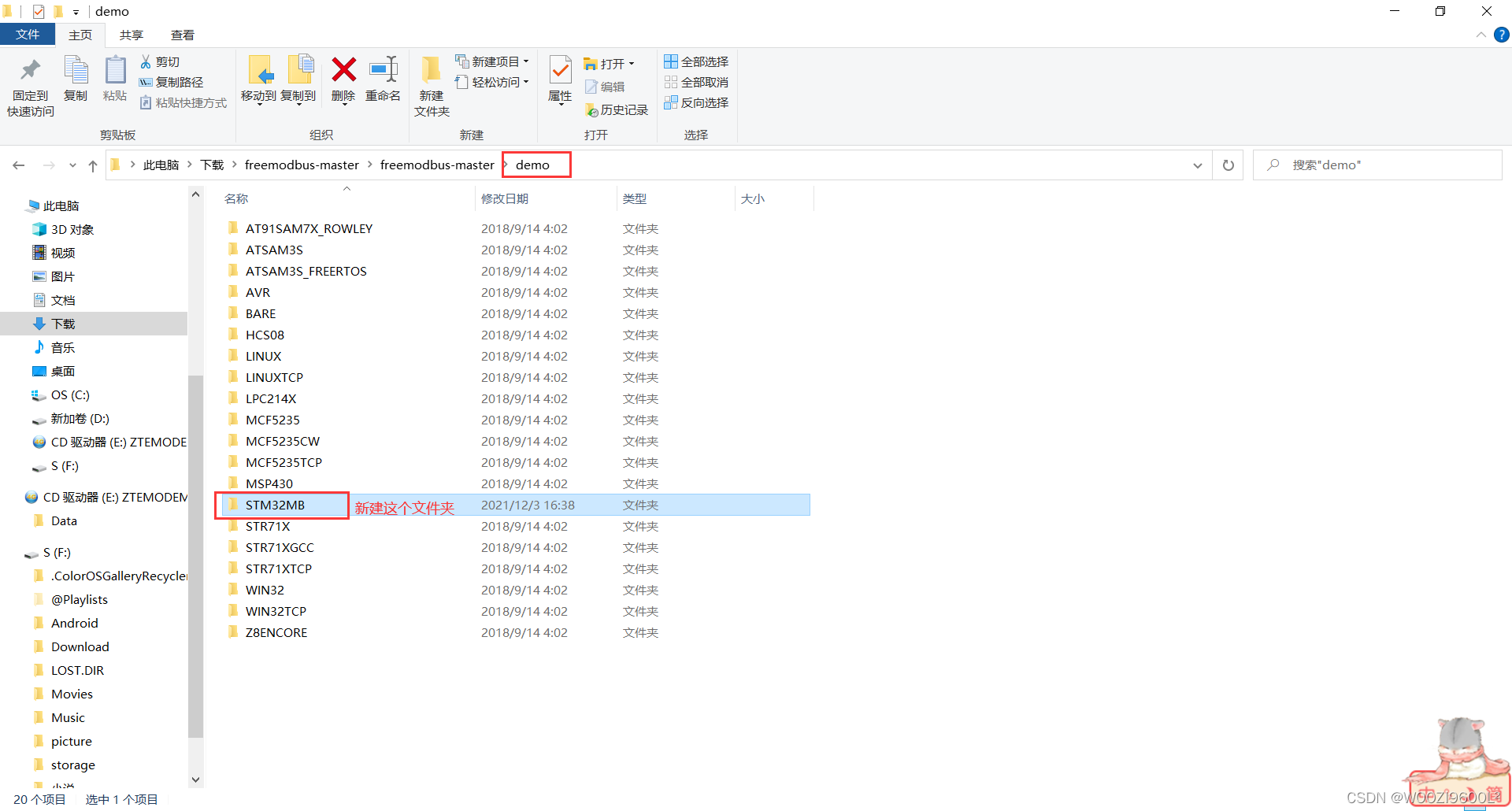

解压并打开刚刚下载的文件，点进demo里，新建一个STM32MB文件夹
将BARE文件夹里的文件全部复制到刚刚建立的STM32MB文件夹里

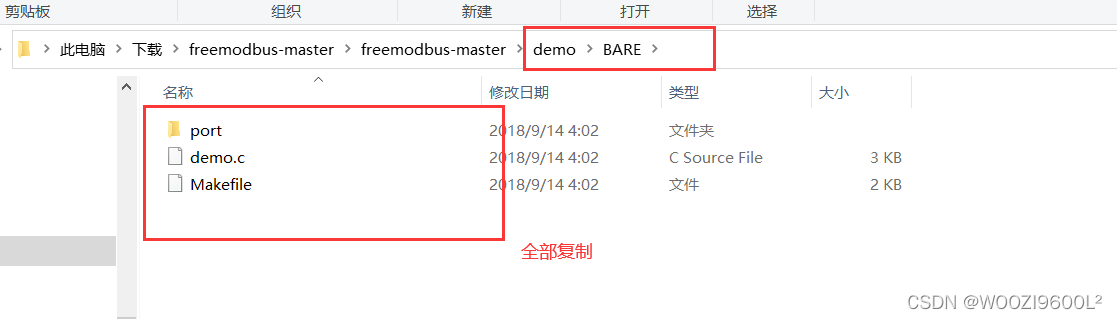

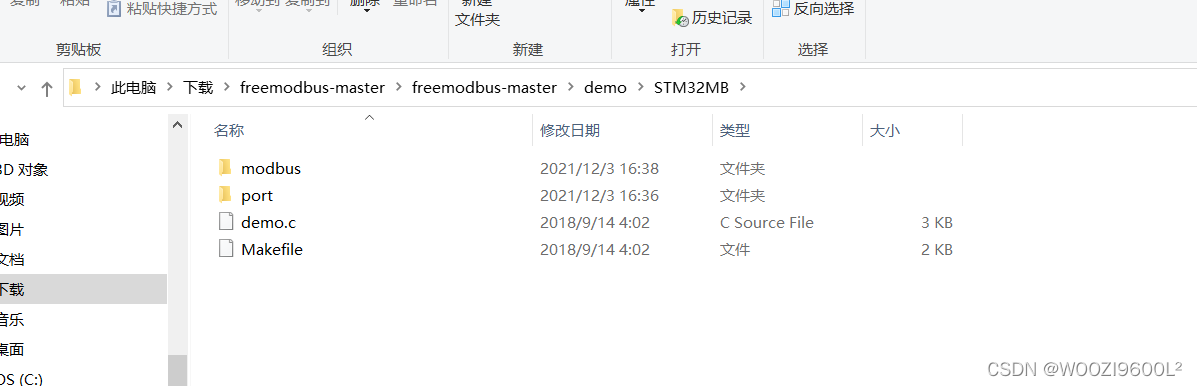

再把modbus文件夹全部复制到刚刚新建的STM32MB文件夹，到最后的结果如下图：
三、使用cubeMX建立项目

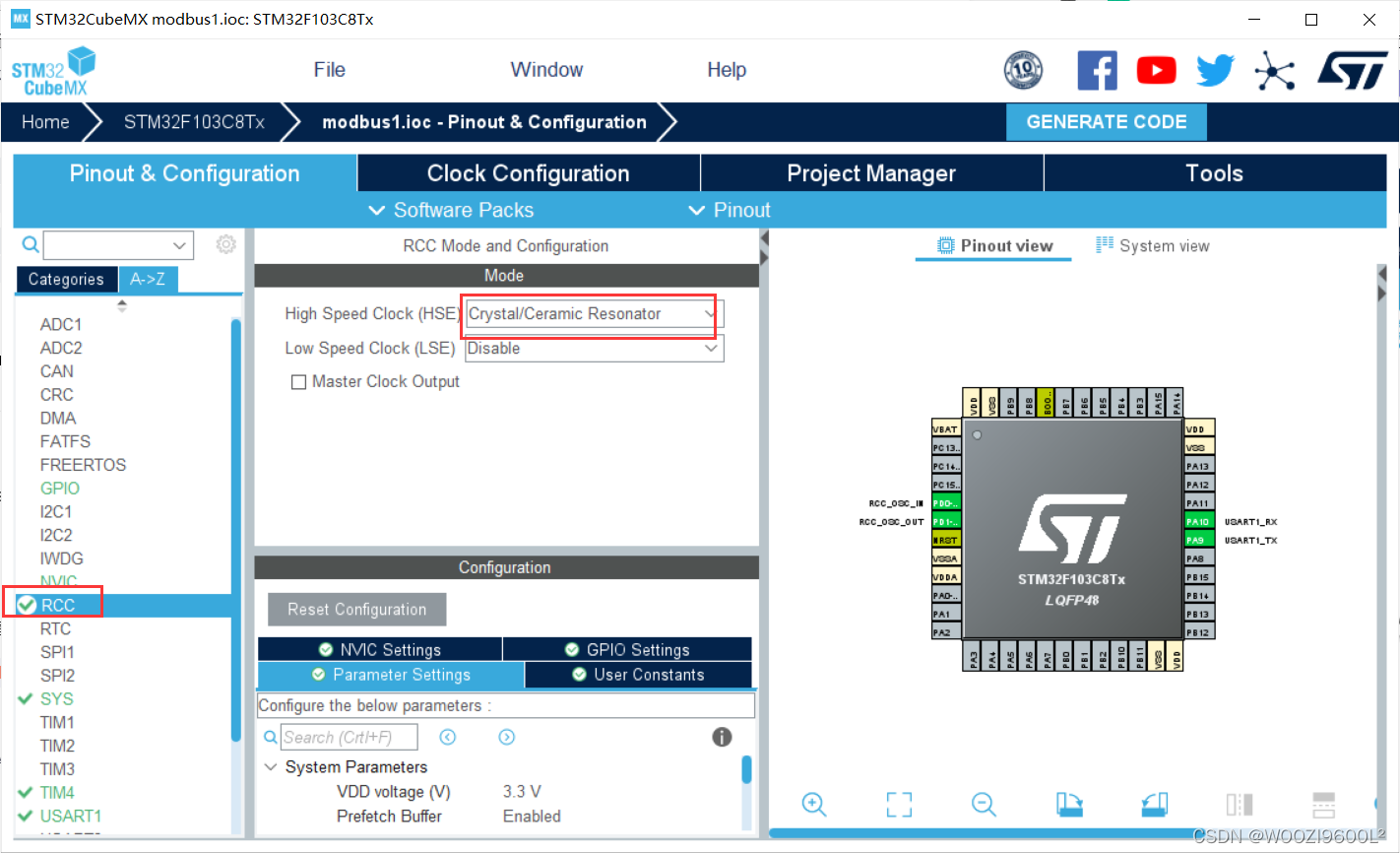

选择自己的芯片后，设置外部时钟：

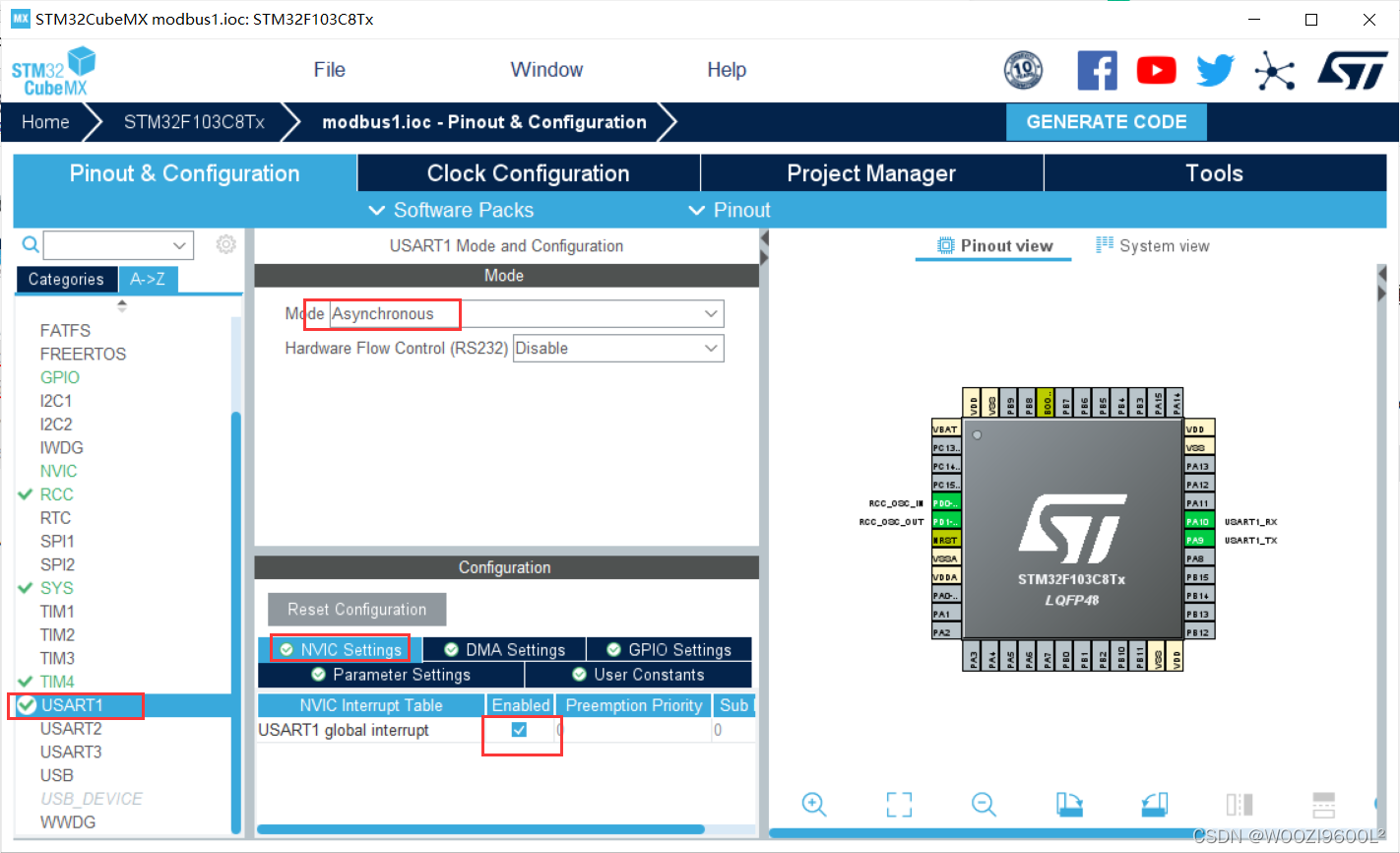

使能一个USART为异步通信，并且加上中断：

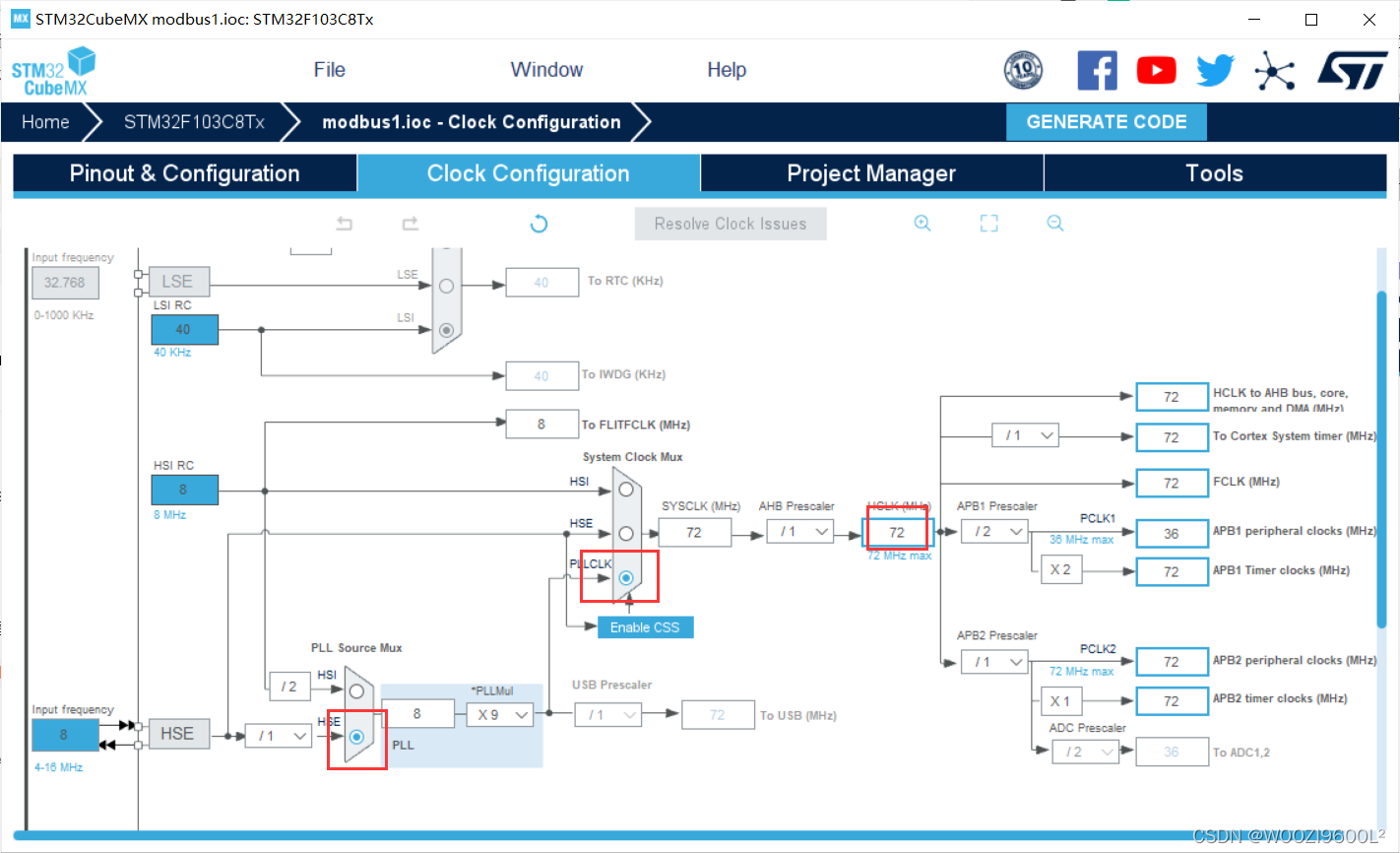

进入时钟设置，将HCLK改为72，然后外部时钟频率为8(不同板子不一样，如果不一样建议上网查一下，如果不和你所用的一致，后面用ModbusPoll会报超时)：

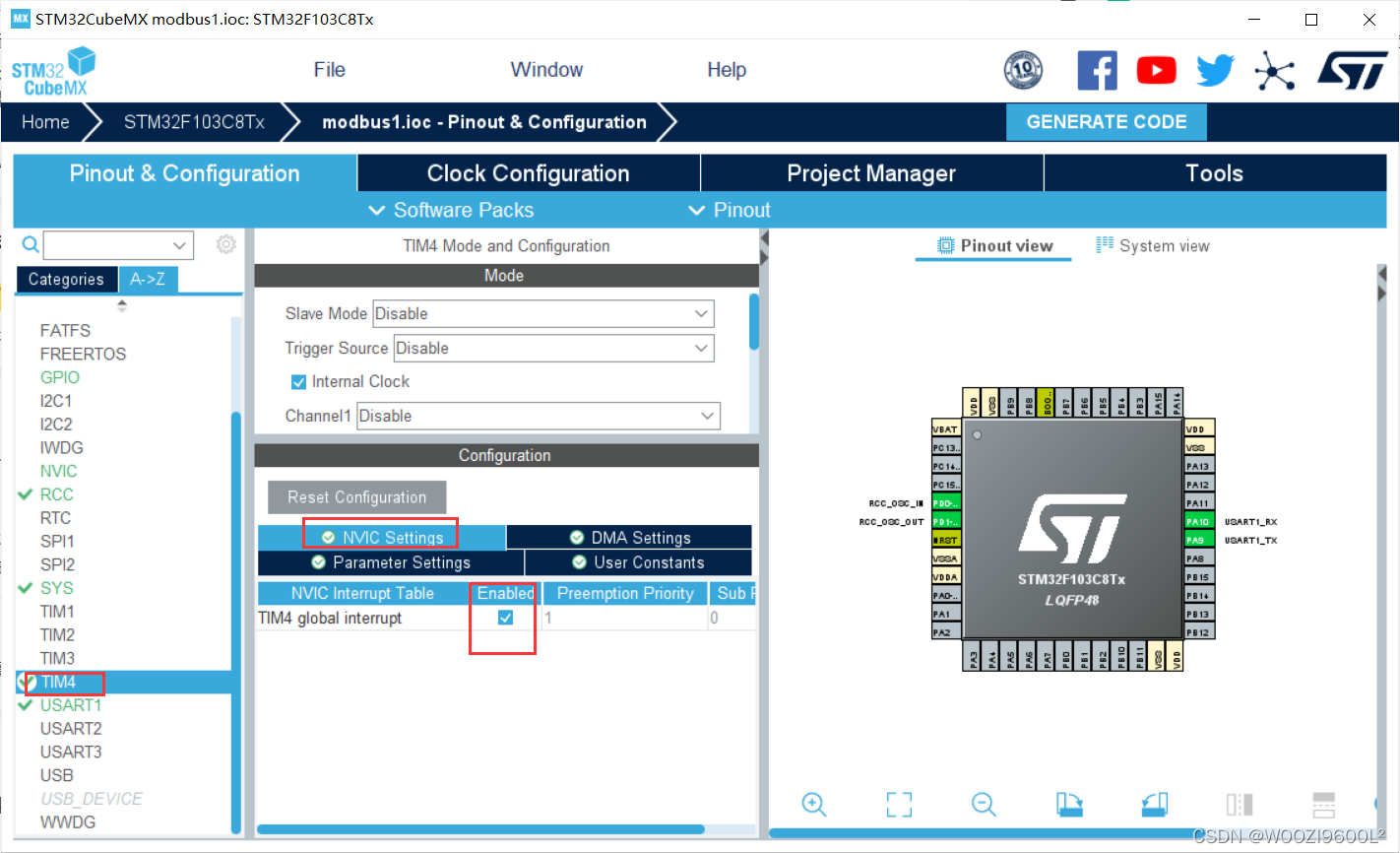

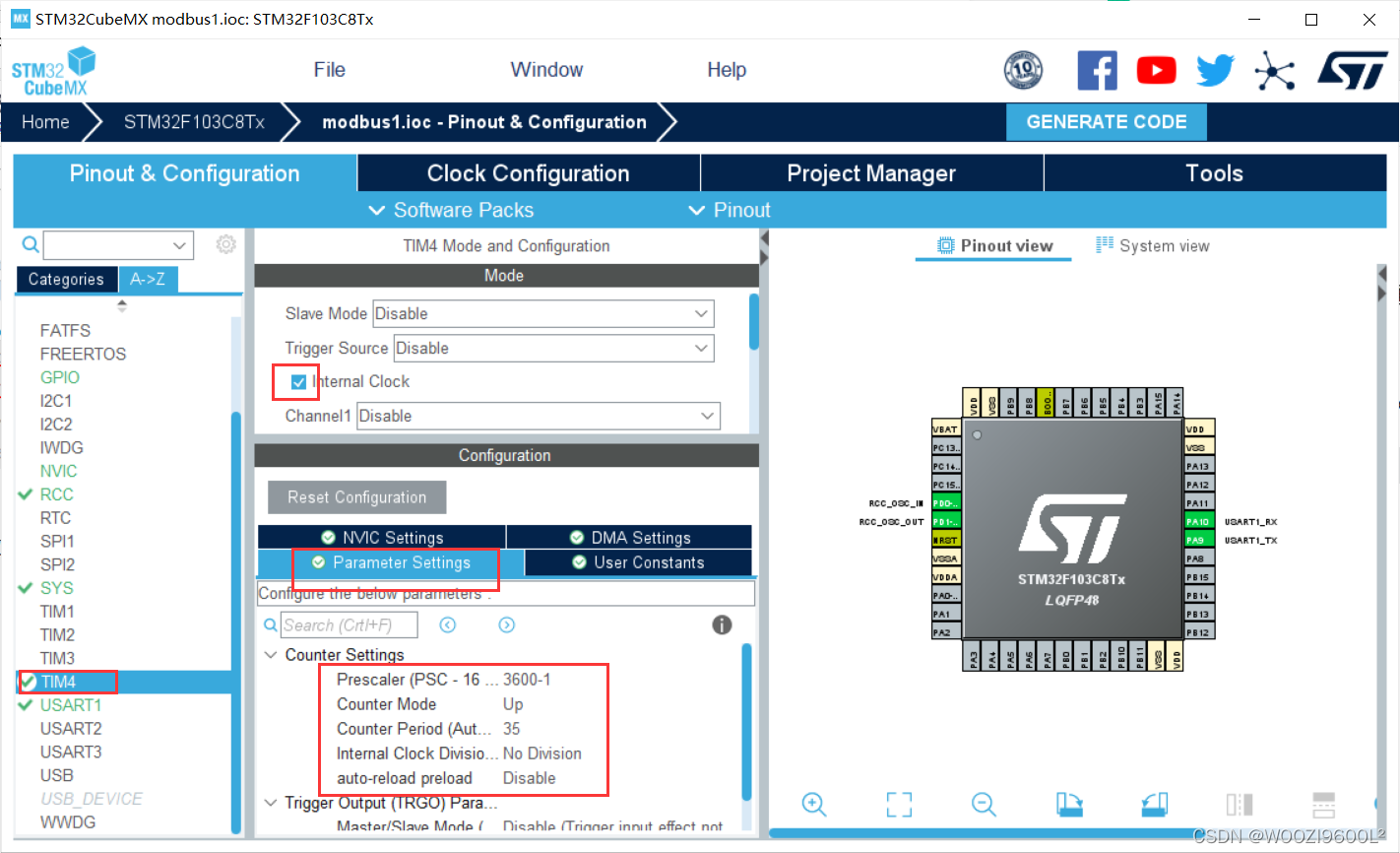

使能定时器4，预分频系数为3600-1，对应的分频频率为20KHz，自动重载值设置为35，得到超时时间1750us，并设置中断：

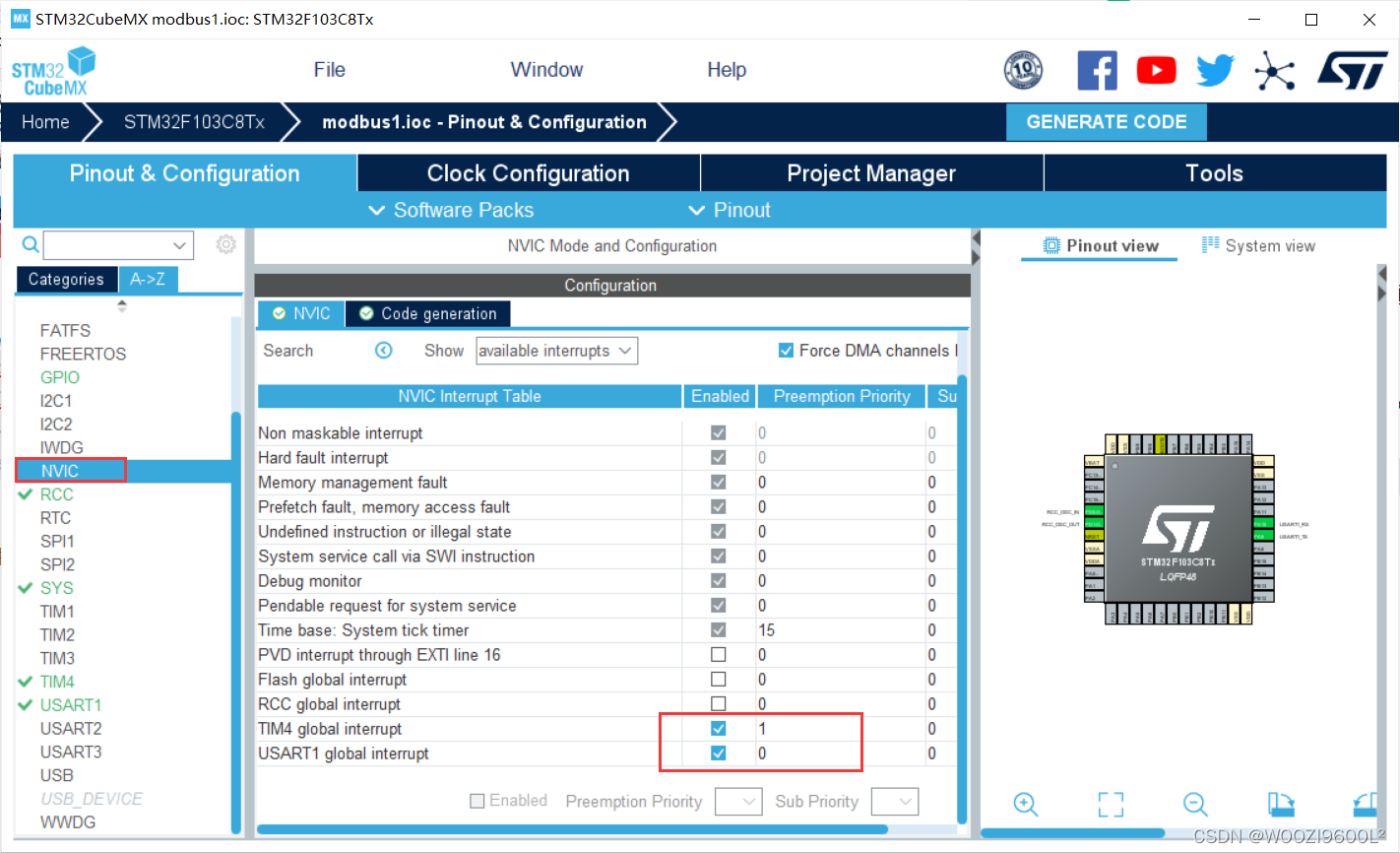

配置中断优先级，定时器中断优先级低于串口中断即可：

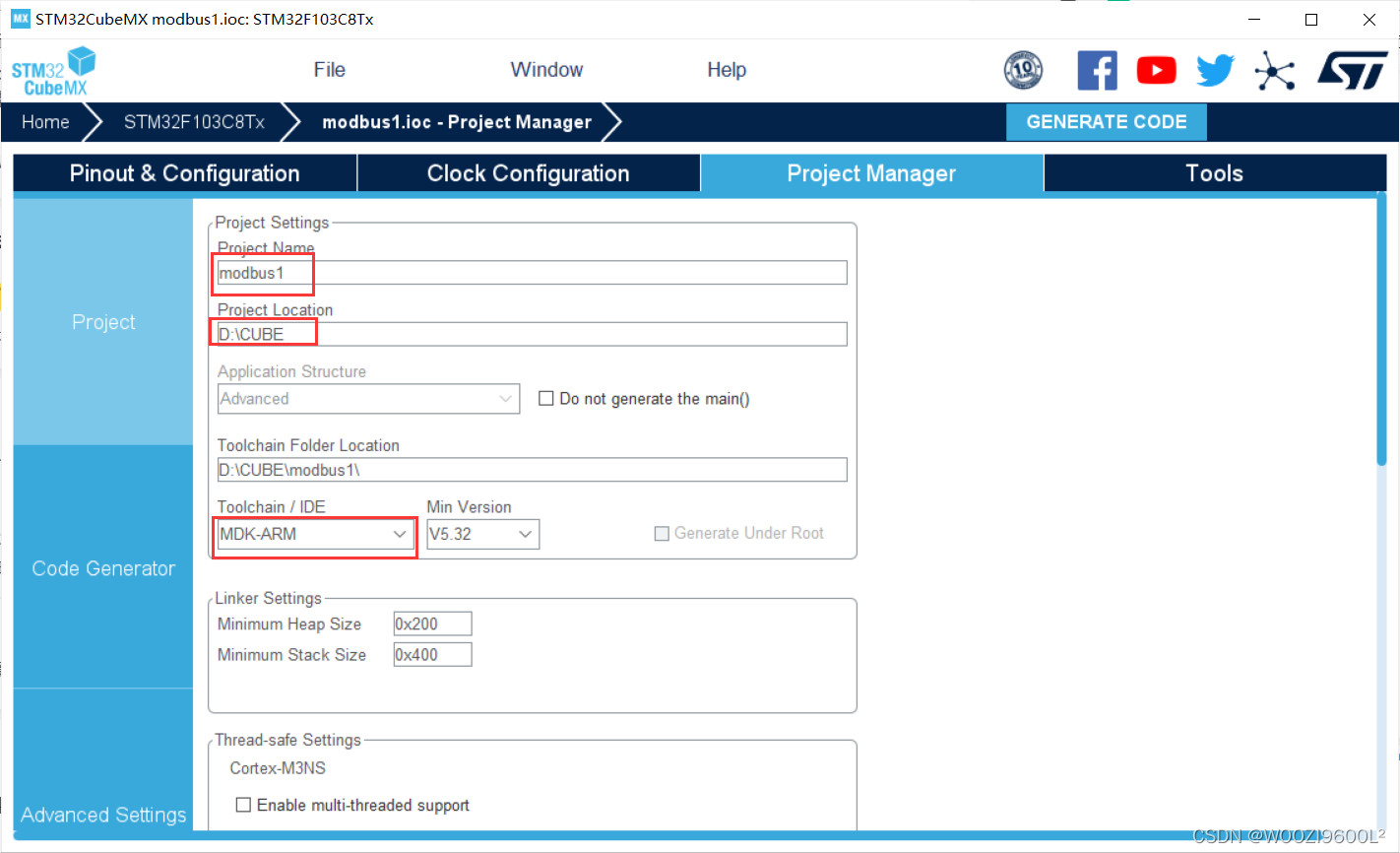

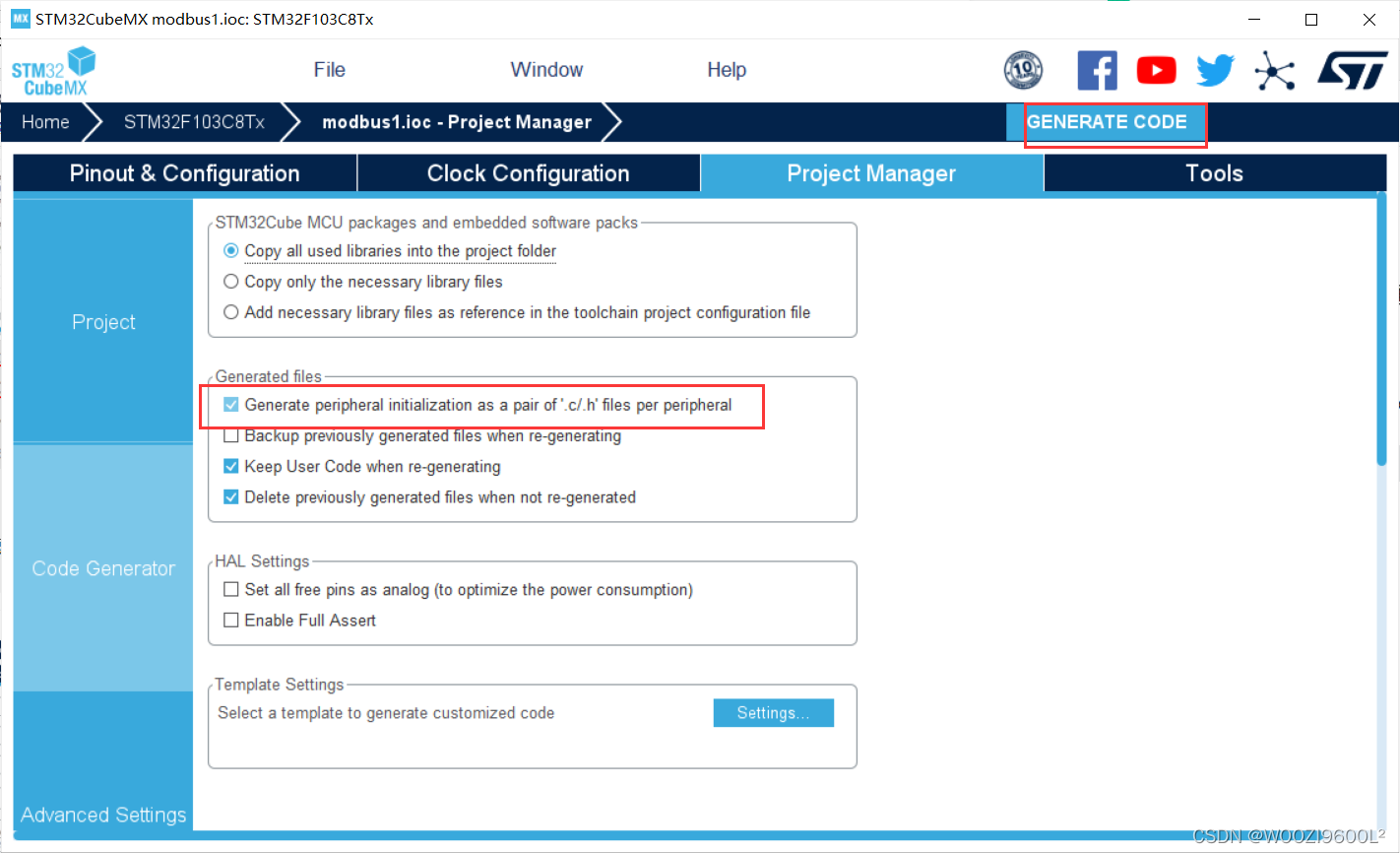

项目管理，然后生成项目就行了：
四、移植

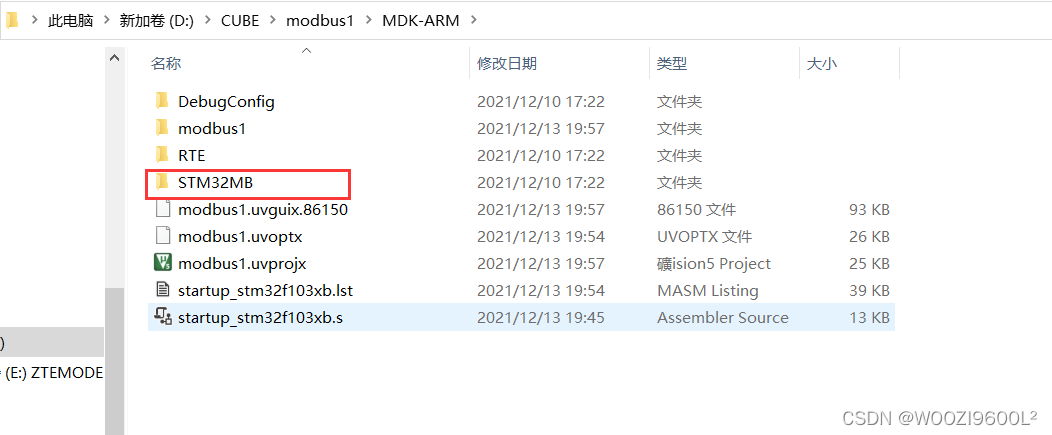

在文件夹里打开项目里的MDK-ARM文件，将开始新建的STM32MB文件复制到这里

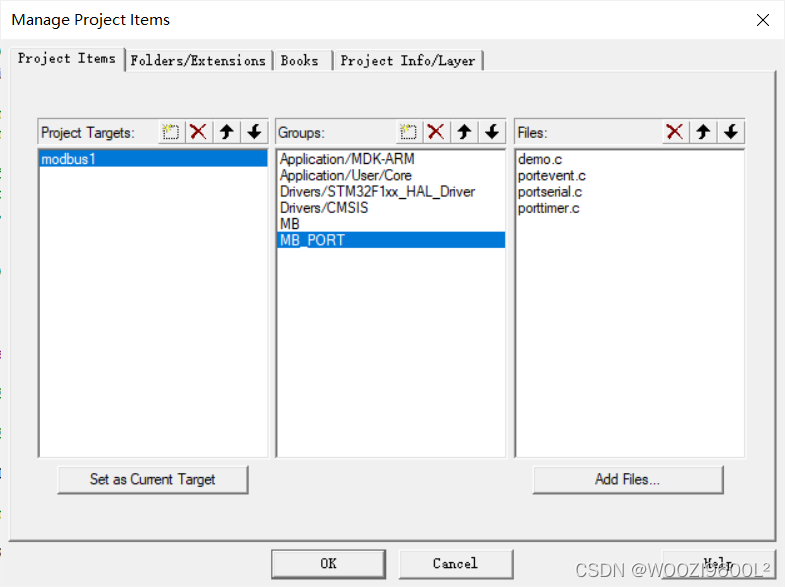

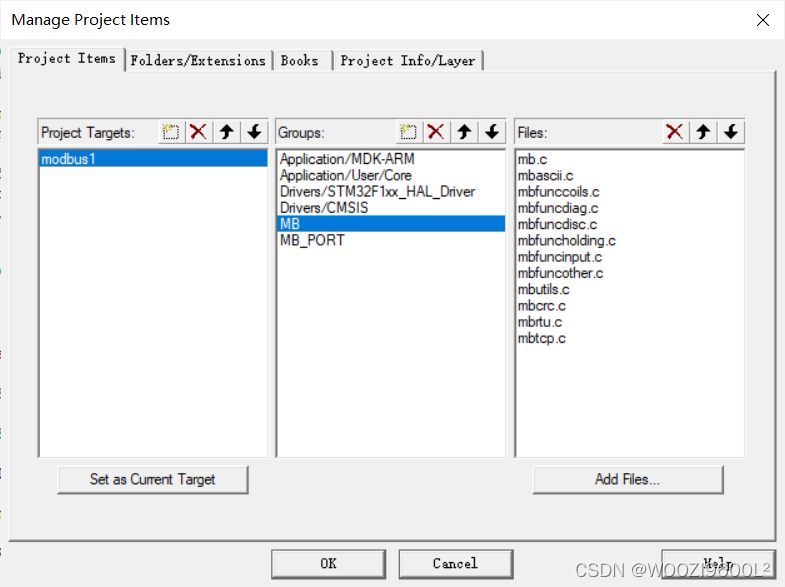

新建名为MB和MB_Port的组，MB内添加STM32MB文件夹下modbus文件夹内所有.c文件，MB_Port内添加STM32MB文件夹下port文件夹内所有.c文件以及根目录的demo.c文件：

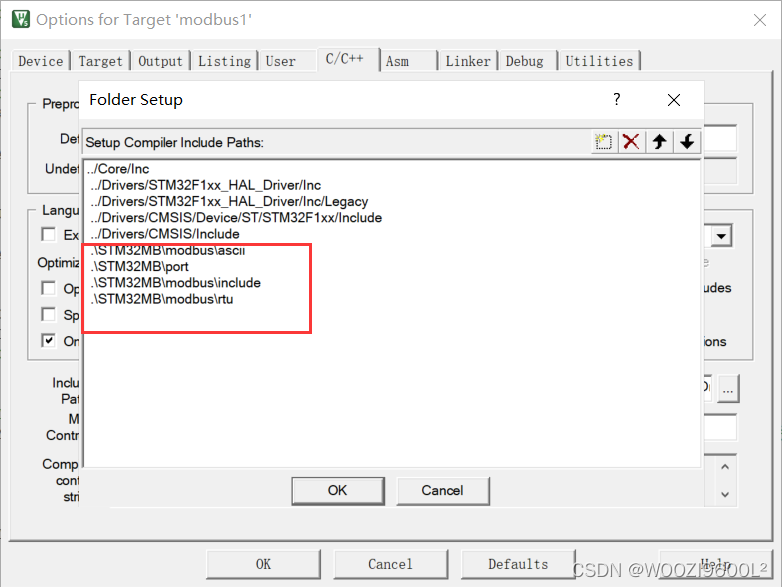

添加头文件路径：
portserial.c文件更改:
vMBPortSerialEnable函数改为
void
vMBPortSerialEnable( BOOL xRxEnable, BOOL xTxEnable )
{
if (xRxEnable) //将串口收发中断和modbus联系起来，下面的串口改为自己使能的串口
{
__HAL_UART_ENABLE_IT(&huart1,UART_IT_RXNE); //我用的是串口1，故为&huart1
}
else
{
__HAL_UART_DISABLE_IT(&huart1,UART_IT_RXNE);
}
if (xTxEnable)
{
__HAL_UART_ENABLE_IT(&huart1,UART_IT_TXE);
}
else
{
__HAL_UART_DISABLE_IT(&huart1,UART_IT_TXE);
}
}
xMBPortSerialInit函数的返回值改为true:
BOOL
xMBPortSerialInit( UCHAR ucPORT, ULONG ulBaudRate, UCHAR ucDataBits, eMBParity eParity )
{
return TRUE;//改为TURE，串口初始化在usart.c定义，mian函数已完成
}
xMBPortSerialPutByte和xMBPortSerialGetByte更改为:
BOOL
xMBPortSerialPutByte( CHAR ucByte )
{
/* Put a byte in the UARTs transmit buffer. This function is called
* by the protocol stack if pxMBFrameCBTransmitterEmpty( ) has been
* called. */
if(HAL_UART_Transmit (&huart1 ,(uint8_t *)&ucByte,1,0x01) != HAL_OK ) //添加发送一位代码
return FALSE ;
else
return TRUE;
}
BOOL
xMBPortSerialGetByte( CHAR * pucByte )
{
/* Return the byte in the UARTs receive buffer. This function is called
* by the protocol stack after pxMBFrameCBByteReceived( ) has been called.
*/
if(HAL_UART_Receive (&huart1 ,(uint8_t *)pucByte,1,0x01) != HAL_OK )//添加接收一位代码
return FALSE ;
else
return TRUE;
}

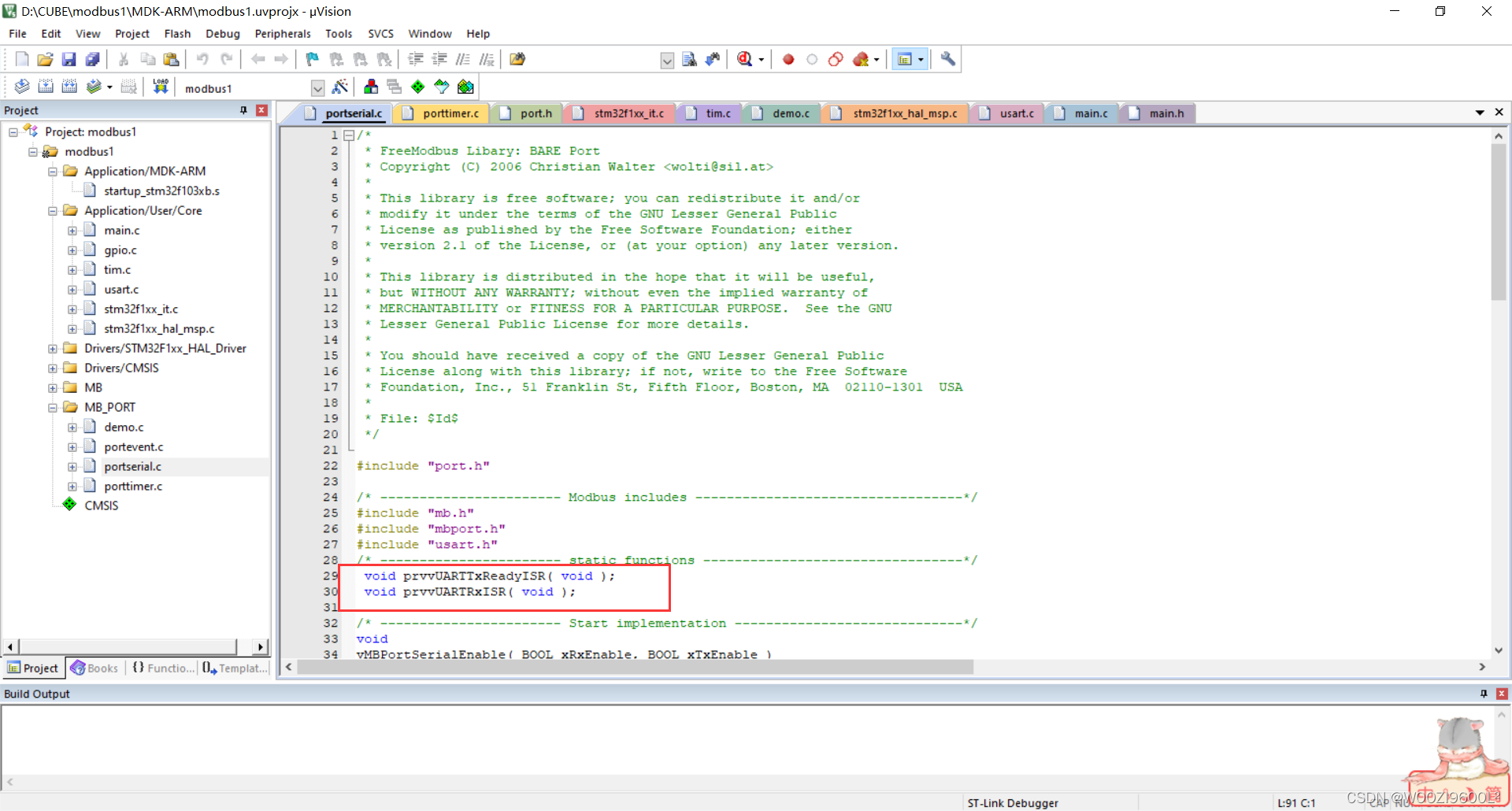

将prvvUARTTxReadyISR和prvvUARTRxISR前面的static删除，记得也在对应声明里删掉:
void prvvUARTTxReadyISR( void )
{
pxMBFrameCBTransmitterEmpty( );
}
/* Create an interrupt handler for the receive interrupt for your target
* processor. This function should then call pxMBFrameCBByteReceived( ). The
* protocol stack will then call xMBPortSerialGetByte( ) to retrieve the
* character.
*/
void prvvUARTRxISR( void )
{
pxMBFrameCBByteReceived( );
}
porttimer.c文件:
/*
* FreeModbus Libary: BARE Port
* Copyright (C) 2006 Christian Walter <wolti@sil.at>
*
* This library is free software; you can redistribute it and/or
* modify it under the terms of the GNU Lesser General Public
* License as published by the Free Software Foundation; either
* version 2.1 of the License, or (at your option) any later version.
*
* This library is distributed in the hope that it will be useful,
* but WITHOUT ANY WARRANTY; without even the implied warranty of
* MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU
* Lesser General Public License for more details.
*
* You should have received a copy of the GNU Lesser General Public
* License along with this library; if not, write to the Free Software
* Foundation, Inc., 51 Franklin St, Fifth Floor, Boston, MA 02110-1301 USA
*
* File: $Id$
*/
/* ----------------------- Platform includes --------------------------------*/
#include "port.h"
#include "stm32f1xx_hal.h"
#include "tim.h"
/* ----------------------- Modbus includes ----------------------------------*/
#include "mb.h"
#include "mbport.h"
/* ----------------------- static functions ---------------------------------*/
void prvvTIMERExpiredISR( void );
/* ----------------------- Start implementation -----------------------------*/
BOOL
xMBPortTimersInit( USHORT usTim1Timerout50us )//定时器初始化直接返回TRUE，已经在mian函数初始化过
{
return TRUE;
}
inline void
vMBPortTimersEnable( )//使能定时器中断，我用的是定时器4，所以为&htim4
{
/* Enable the timer with the timeout passed to xMBPortTimersInit( ) */
/* Enable the timer with the timeout passed to xMBPortTimersInit( ) */
__HAL_TIM_CLEAR_IT(&htim4,TIM_IT_UPDATE);
__HAL_TIM_ENABLE_IT(&htim4,TIM_IT_UPDATE);
__HAL_TIM_SET_COUNTER(&htim4,0);
__HAL_TIM_ENABLE(&htim4);
}
inline void
vMBPortTimersDisable( )//取消定时器中断
{
/* Disable any pending timers. */
__HAL_TIM_DISABLE(&htim4);
__HAL_TIM_SET_COUNTER(&htim4,0);
__HAL_TIM_DISABLE_IT(&htim4,TIM_IT_UPDATE);
__HAL_TIM_CLEAR_IT(&htim4,TIM_IT_UPDATE);
}
/* Create an ISR which is called whenever the timer has expired. This function
* must then call pxMBPortCBTimerExpired( ) to notify the protocol stack that
* the timer has expired.
*/
void prvvTIMERExpiredISR( void )//modbus定时器动作，需要在中断内使用
{
( void )pxMBPortCBTimerExpired( );
}

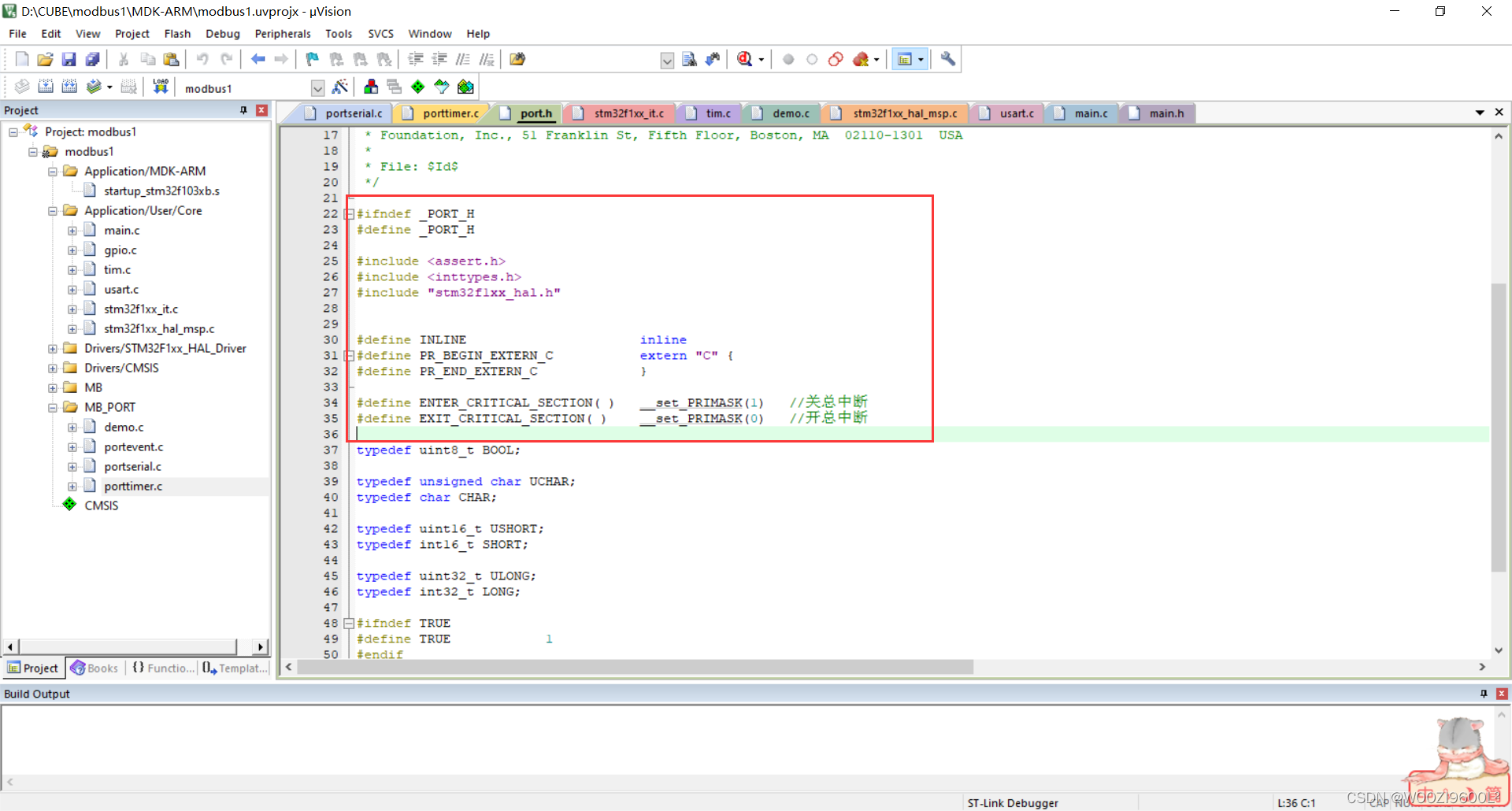

port.h文件:
#ifndef _PORT_H
#define _PORT_H
#include <assert.h>
#include <inttypes.h>
#include "stm32f1xx_hal.h"
#define INLINE inline
#define PR_BEGIN_EXTERN_C extern "C" {
#define PR_END_EXTERN_C }
#define ENTER_CRITICAL_SECTION( ) __set_PRIMASK(1) //关总中断
#define EXIT_CRITICAL_SECTION( ) __set_PRIMASK(0) //开总中断
stm32f1xx_it.c文件:
/* USER CODE BEGIN PFP */
extern void prvvUARTTxReadyISR(void);
extern void prvvUARTRxISR(void);
extern void prvvTIMERExpiredISR( void );
/* USER CODE END PFP */
更改串口1的中断处理函数:
void USART1_IRQHandler(void)
{
/* USER CODE BEGIN USART1_IRQn 0 */
/* USER CODE END USART1_IRQn 0 */
HAL_UART_IRQHandler(&huart1);
/* USER CODE BEGIN USART1_IRQn 1 */
if(__HAL_UART_GET_IT_SOURCE(&huart1, UART_IT_RXNE)!= RESET)
{
prvvUARTRxISR();//接收中断
}
if(__HAL_UART_GET_IT_SOURCE(&huart1, UART_IT_TXE)!= RESET)
{
prvvUARTTxReadyISR();//发送中断
}
HAL_NVIC_ClearPendingIRQ(USART1_IRQn);
HAL_UART_IRQHandler(&huart1);
/* USER CODE END USART1_IRQn 1 */
}
增加定时器中断回调函数，注意增加的位置:
/* USER CODE BEGIN 1 */
void HAL_TIM_PeriodElapsedCallback(TIM_HandleTypeDef *htim) //定时器中断回调函数，用于连接porttimer.c文件的函数
{
/* NOTE : This function Should not be modified, when the callback is needed,
the __HAL_TIM_PeriodElapsedCallback could be implemented in the user file
*/
prvvTIMERExpiredISR( );
}
/* USER CODE END 1 */
demo.c文件:
/* ----------------------- Modbus includes ----------------------------------*/
#include "mb.h"
#include "mbport.h"
/* ----------------------- Defines ------------------------------------------*/
#define REG_INPUT_START 0
#define REG_INPUT_NREGS 5
/* ----------------------- Static variables ---------------------------------*/
static USHORT usRegInputStart = REG_INPUT_START;
//static
uint16_t usRegInputBuf[REG_INPUT_NREGS];
uint16_t InputBuff[5];
eMBErrorCode
eMBRegInputCB( UCHAR * pucRegBuffer, USHORT usAddress, USHORT usNRegs )
{
eMBErrorCode eStatus = MB_ENOERR;
int iRegIndex;
int i;
InputBuff[0] = 0x11;
InputBuff[1] = 0x22;
InputBuff[2] = 0x33;
InputBuff[3] = 0x44;
if( ( usAddress >= REG_INPUT_START )
&& ( usAddress + usNRegs <= REG_INPUT_START + REG_INPUT_NREGS ) )
{
iRegIndex = ( int )( usAddress - usRegInputStart );
for(i=0;i<usNRegs;i++)
{
*pucRegBuffer=InputBuff[i+usAddress-1]>>8;
pucRegBuffer++;
*pucRegBuffer=InputBuff[i+usAddress-1]&0xff;
pucRegBuffer++;
}
}
else
{
eStatus = MB_ENOREG;
}
return eStatus;
}
eMBErrorCode
eMBRegHoldingCB( UCHAR * pucRegBuffer, USHORT usAddress, USHORT usNRegs,
eMBRegisterMode eMode )
{
return MB_ENOREG;
}
eMBErrorCode
eMBRegCoilsCB( UCHAR * pucRegBuffer, USHORT usAddress, USHORT usNCoils,
eMBRegisterMode eMode )
{
return MB_ENOREG;
}
eMBErrorCode
eMBRegDiscreteCB( UCHAR * pucRegBuffer, USHORT usAddress, USHORT usNDiscrete )
{
return MB_ENOREG;
}
main.c：
启动modbus需要在main函数进行初始化、开启侦听操作,所以需要在main.c里添加代码，添加头文件，注意添加的位置：
/* USER CODE BEGIN Includes */
#include "mb.h"
#include "mbport.h"
/* USER CODE END Includes */
mian函数：
int main(void)
{
/* USER CODE BEGIN 1 */
/* USER CODE END 1 */
/* MCU Configuration--------------------------------------------------------*/
/* Reset of all peripherals, Initializes the Flash interface and the Systick. */
HAL_Init();
/* USER CODE BEGIN Init */
/* USER CODE END Init */
/* Configure the system clock */
SystemClock_Config();
/* USER CODE BEGIN SysInit */
/* USER CODE END SysInit */
/* Initialize all configured peripherals */
MX_GPIO_Init();
MX_TIM4_Init();
MX_USART1_UART_Init();
/* USER CODE BEGIN 2 */
eMBInit( MB_RTU, 0x01, 1, 115200, MB_PAR_NONE);//初始化modbus，走modbusRTU，从站地址为0x01，端口为1。
eMBEnable( );//使能modbus
/* USER CODE END 2 */
/* Infinite loop */
/* USER CODE BEGIN WHILE */
while (1)
{
/* USER CODE END WHILE */
( void )eMBPoll( );//启动modbus侦听
/* USER CODE BEGIN 3 */
}
/* USER CODE END 3 */
}
所有程序修改完毕，编译烧写到板子上。
五、测试

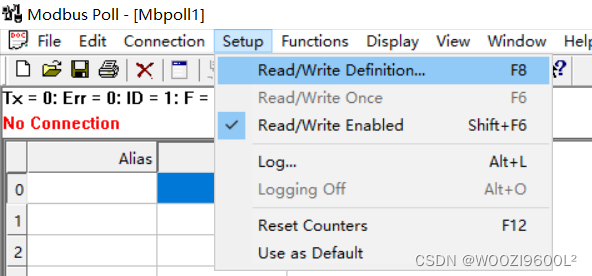

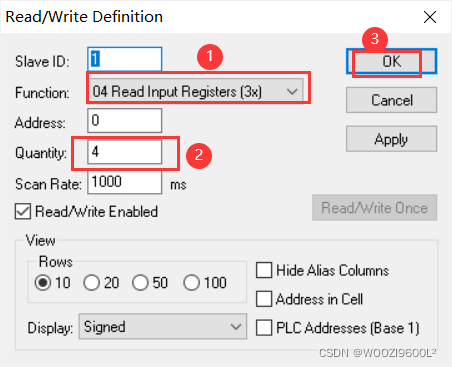

打开modbuspoll，点击setup第一个读写定义，设置如下图2：

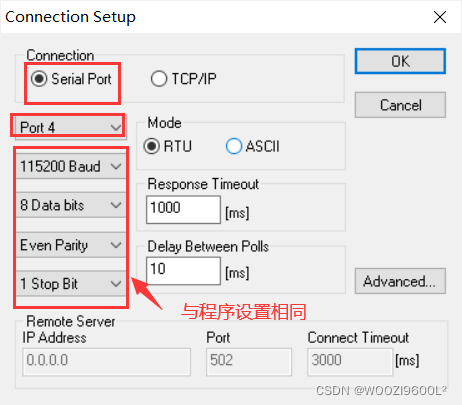

点击connection的connect，进入连接设置，选项如图，我使用的是usb转ttl，用的是com端口，我连接的口是com4，所以选择的是port4:

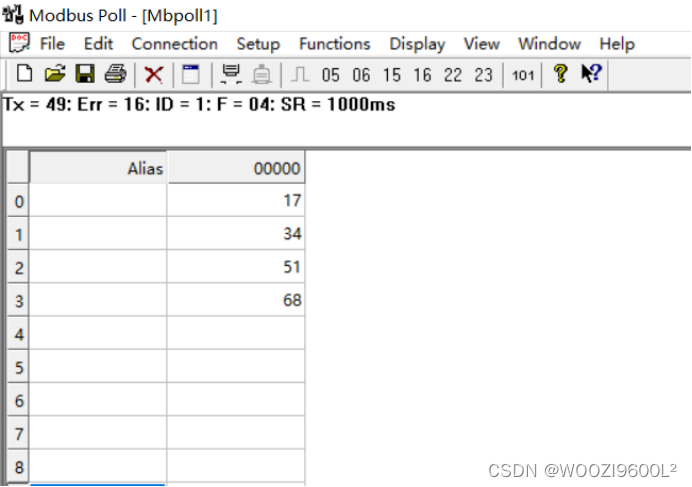

连接之后，结果如下，这里的值与demo.c里设置的值一致，移植成功。:
六、总结
一定要仔细，错了一步可能就得不到输出，又不好排查是哪里错了。
