[嵌入式]STM32 PA15复用为PWM波输出

N32G45X是类似STM32的一种国产方案，我想让PA15输出一组PWM波，
可以选用TIM2通道1（方案1），也可以选用TIM8的反向通道1（方案2）

以输出占空比为50%的方波波形为例：
方案1**
方案1代码 方法如下：

void GPIO_Config(void)
{
  	GPIO_InitType GPIO_InitStructure;
	RCC_EnableAPB1PeriphClk(RCC_APB1_PERIPH_TIM2,ENABLE);
	RCC_EnableAPB2PeriphClk(RCC_APB2_PERIPH_GPIOA | RCC_APB2_PERIPH_AFIO, ENABLE);
	GPIO_ConfigPinRemap(GPIO_RMP_SW_JTAG_SW_ENABLE,ENABLE);	//GPIO_RMP_SW_JTAG_SW_ENABLE  GPIO_RMP_SW_JTAG_DISABLE
	GPIO_ConfigPinRemap(GPIO_PartialRemap1_TIM2,ENABLE);
	GPIO_InitStructure.Pin  =  GPIO_PIN_15;			//PWM-IO
	GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
	GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AF_PP;  //GPIO_Mode_AF_PP  GPIO_Mode_Out_PP
	GPIO_InitPeripheral(GPIOA, &GPIO_InitStructure);
	GPIO_SetBits(GPIOA,GPIO_PIN_15);
}

void TIM2_Init(u16 psc, u16 arr)
{
    TIM_TimeBaseInitType  TIM_TimeBaseStructure;
    OCInitType  TIM_OCInitStructure;

    RCC_EnableAPB1PeriphClk(RCC_APB1_PERIPH_TIM2, ENABLE);

    /*Set auto-load register value*/
    TIM_TimeBaseStructure.Period = arr;
    /*Set the prescaler value*/
    TIM_TimeBaseStructure.Prescaler = psc;
    /*Set the clock segmentation*/
    TIM_TimeBaseStructure.ClkDiv=0;
		TIM_TimeBaseStructure.RepetCnt = 0;
    /*Set the counting mode*/
    TIM_TimeBaseStructure.CntMode = TIM_CNT_MODE_UP;
    /*Initialize the TIMx register*/
    TIM_InitTimeBase(TIM2, &TIM_TimeBaseStructure);
#if 1
    TIM_InitOcStruct(&TIM_OCInitStructure);
    /*Configure PWM mode*/
    TIM_OCInitStructure.OcMode = TIM_OCMODE_PWM1;
    /*Output enabled*/
    TIM_OCInitStructure.OutputState = TIM_OUTPUT_STATE_ENABLE;
    /*Initial pulse width is set 20,is the capture compare value*/
    TIM_OCInitStructure.Pulse = 365;  //   arr/2 , output square wave
    /*Less than CCR1 value is low*/
    TIM_OCInitStructure.OcPolarity = TIM_OC_POLARITY_LOW;
    /*Initialize TIM8_OC1 register*/
    TIM_InitOc1(TIM2, &TIM_OCInitStructure);

    /*Preload enable*/
    TIM_ConfigOc1Preload(TIM2, TIM_OC_PRE_LOAD_ENABLE);
#endif
    /*Enable TIM2*/
    TIM_Enable(TIM2, ENABLE);
}

然后再main中调用之即可。
例如：
int main(void)
{
GPIO_Config();
TIM2_Init(8,799);
while(1)
{}
}

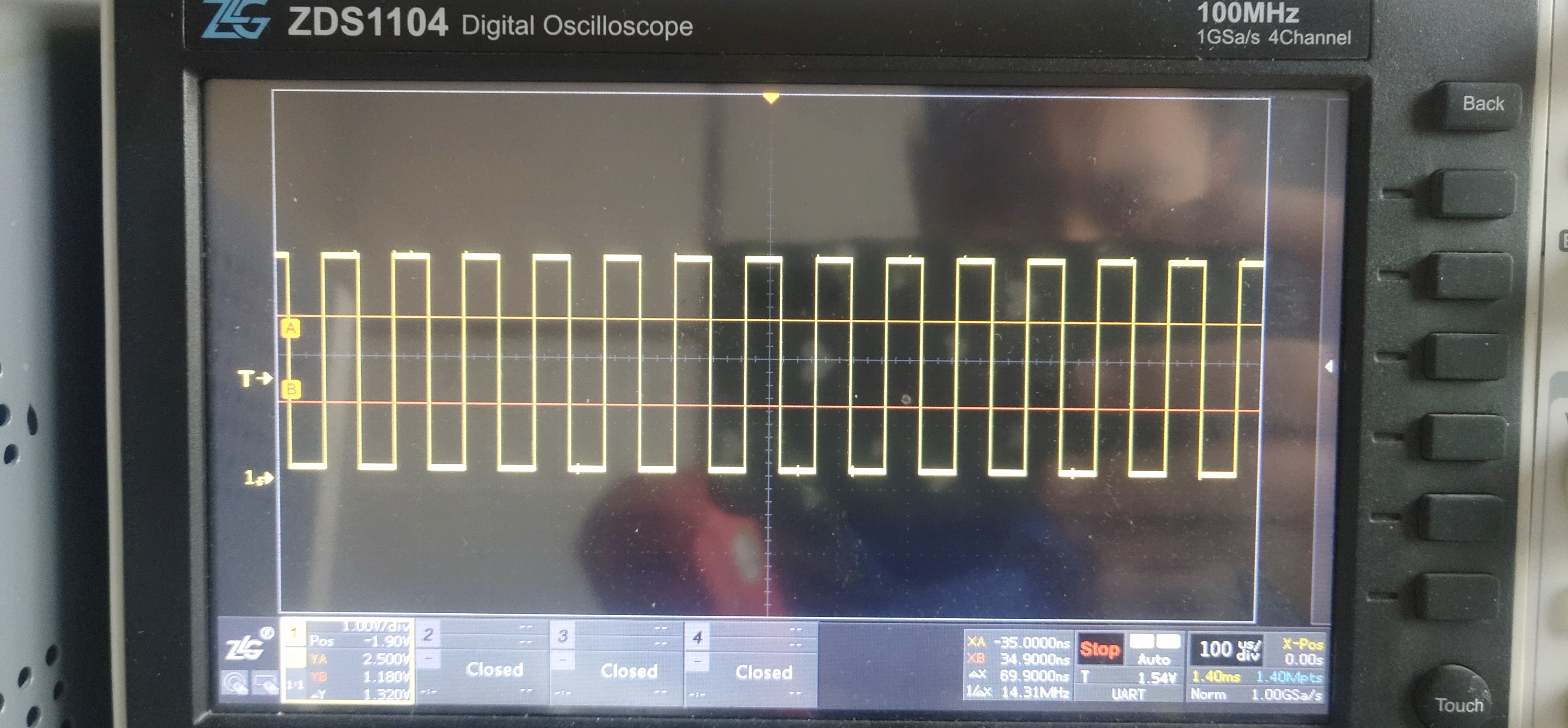

示波器读取PA15对地输出波形如下：

*******一个问题
有的初学者工程师会问：单独输出一路反向通道PWM波是否可以？？答案是可以，查看方案2.

*******方案2
方案2代码如下：

void GPIO_Config(void)
{
  	GPIO_InitType GPIO_InitStructure;
	RCC_EnableAPB2PeriphClk(RCC_APB2_PERIPH_GPIOA | RCC_APB2_PERIPH_GPIOB |RCC_APB2_PERIPH_GPIOC|
	RCC_APB2_PERIPH_GPIOD|RCC_APB2_PERIPH_AFIO|RCC_APB2_PERIPH_TIM8, ENABLE);//RCC_APB2_PERIPH_AFIO
	GPIO_ConfigPinRemap(GPIO_RMP_SW_JTAG_SW_ENABLE,ENABLE);	//GPIO_RMP_SW_JTAG_SW_ENABLE  GPIO_RMP_SW_JTAG_DISABLE
	GPIO_ConfigPinRemap(GPIO_RMP3_TIM8,ENABLE);
	GPIO_InitStructure.Pin  =  GPIO_PIN_15;			//output PWM-IO
	GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
	GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AF_PP;  //GPIO_Mode_AF_PP  GPIO_Mode_Out_PP
	GPIO_InitPeripheral(GPIOA, &GPIO_InitStructure);
	GPIO_SetBits(GPIOA,GPIO_PIN_15);
}

void TIM8_Init(u16 psc, u16 arr)
{
    TIM_TimeBaseInitType  TIM_TimeBaseStructure;
    OCInitType  TIM_OCInitStructure;
    RCC_EnableAPB2PeriphClk(RCC_APB2_PERIPH_TIM8, ENABLE);
    /*Set auto-load register value*/
    TIM_TimeBaseStructure.Period = arr;
    /*Set the prescaler value*/
    TIM_TimeBaseStructure.Prescaler = psc;
    /*Set the clock segmentation*/
    TIM_TimeBaseStructure.ClkDiv=0;
		TIM_TimeBaseStructure.RepetCnt = 0;
    /*Set the counting mode*/
    TIM_TimeBaseStructure.CntMode = TIM_CNT_MODE_UP;
    /*Initialize the TIMx register*/
    TIM_InitTimeBase(TIM8, &TIM_TimeBaseStructure);
#if 1
    TIM_InitOcStruct(&TIM_OCInitStructure);
    /*Configure PWM mode*/
    TIM_OCInitStructure.OcMode = TIM_OCMODE_PWM1;
    /*Output enabled*/
    TIM_OCInitStructure.OutputNState = TIM_OUTPUT_NSTATE_ENABLE;
    /*Initial pulse width is set 20,is the capture compare value*/
    TIM_OCInitStructure.Pulse = 365;
    /*Less than CCR1 value is low*/
    TIM_OCInitStructure.OcNPolarity = TIM_OCN_POLARITY_LOW;
	TIM_OCInitStructure.OcNIdleState = TIM_OCN_IDLE_STATE_RESET;
    /*Initialize TIM8_OC1 register*/
    TIM_InitOc1(TIM8, &TIM_OCInitStructure);

    /*Preload enable*/
    TIM_ConfigOc1Preload(TIM8, TIM_OC_PRE_LOAD_ENABLE);
#endif
    /*Enable TIM8*/
    TIM_Enable(TIM8, ENABLE);
	TIM_EnableCtrlPwmOutputs(TIM8,ENABLE);
}

然后再main中调用之即可。
例如：
int main(void)
{
GPIO_Config();
TIM8_Init(8,799);
while(1)
{}
}

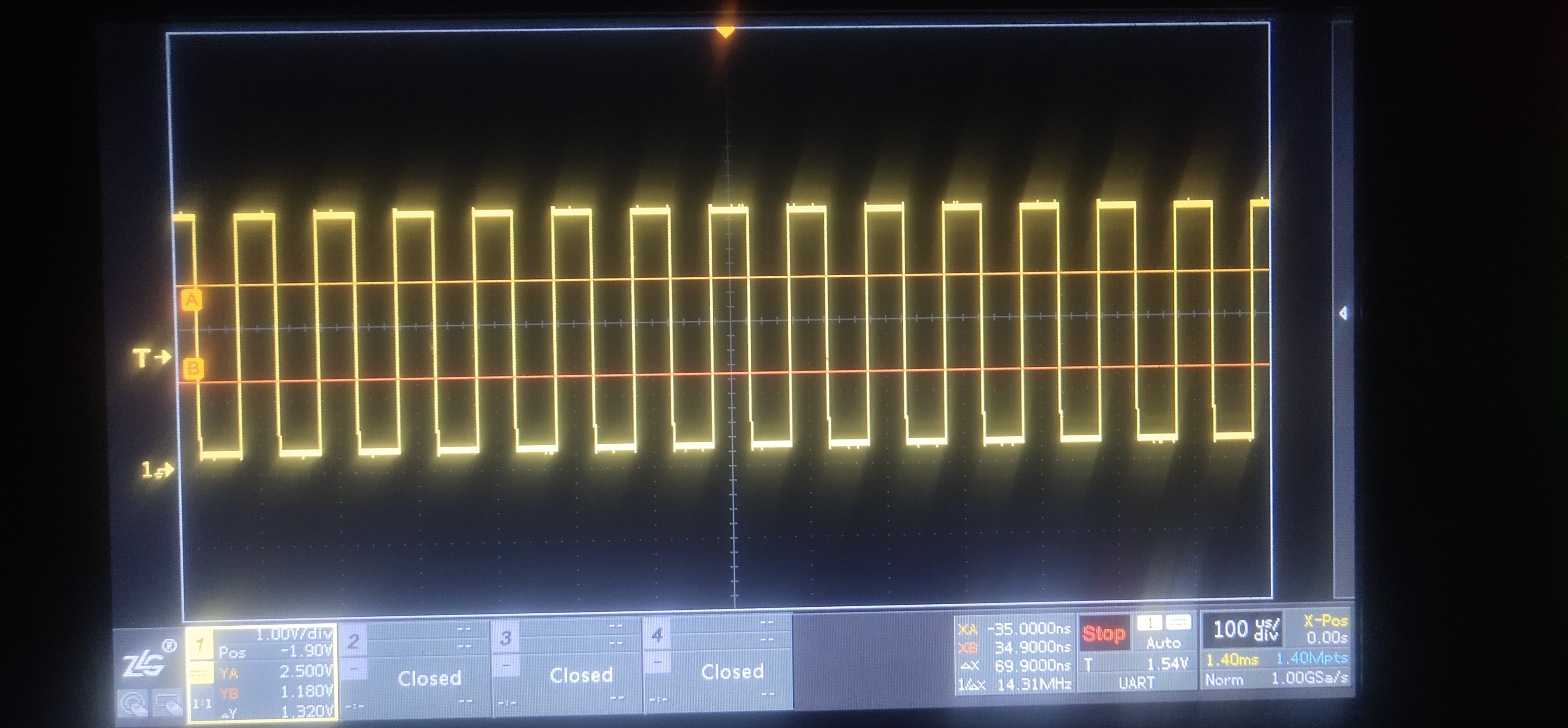

示波器读取PA15对地输出波形如下：

拍的有点反光，另外我要说明一点，我设置的就是让它输出占空比为50%的方波。
各位亲们可以修改捕获值和ARR值来配置不同的PWM波。
