[嵌入式]蓝桥杯嵌入式STM32G431——第八届省赛真题模拟升降控制器

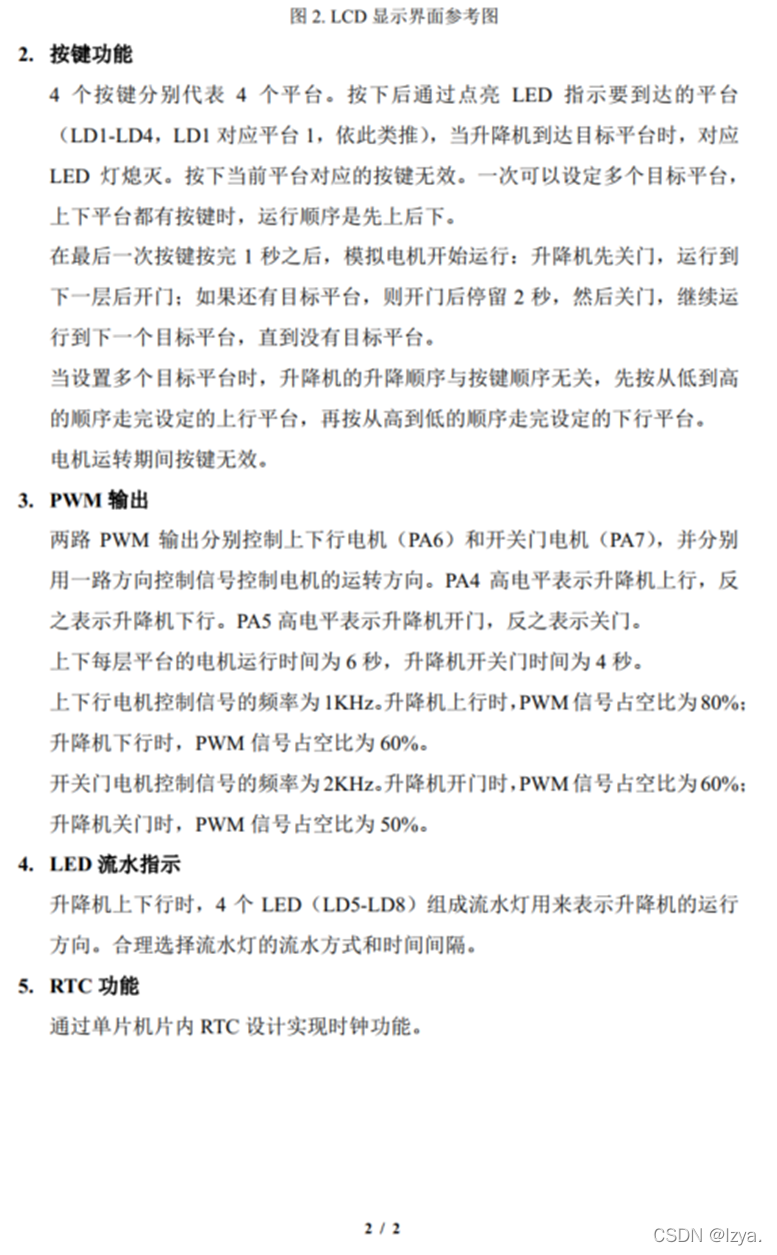

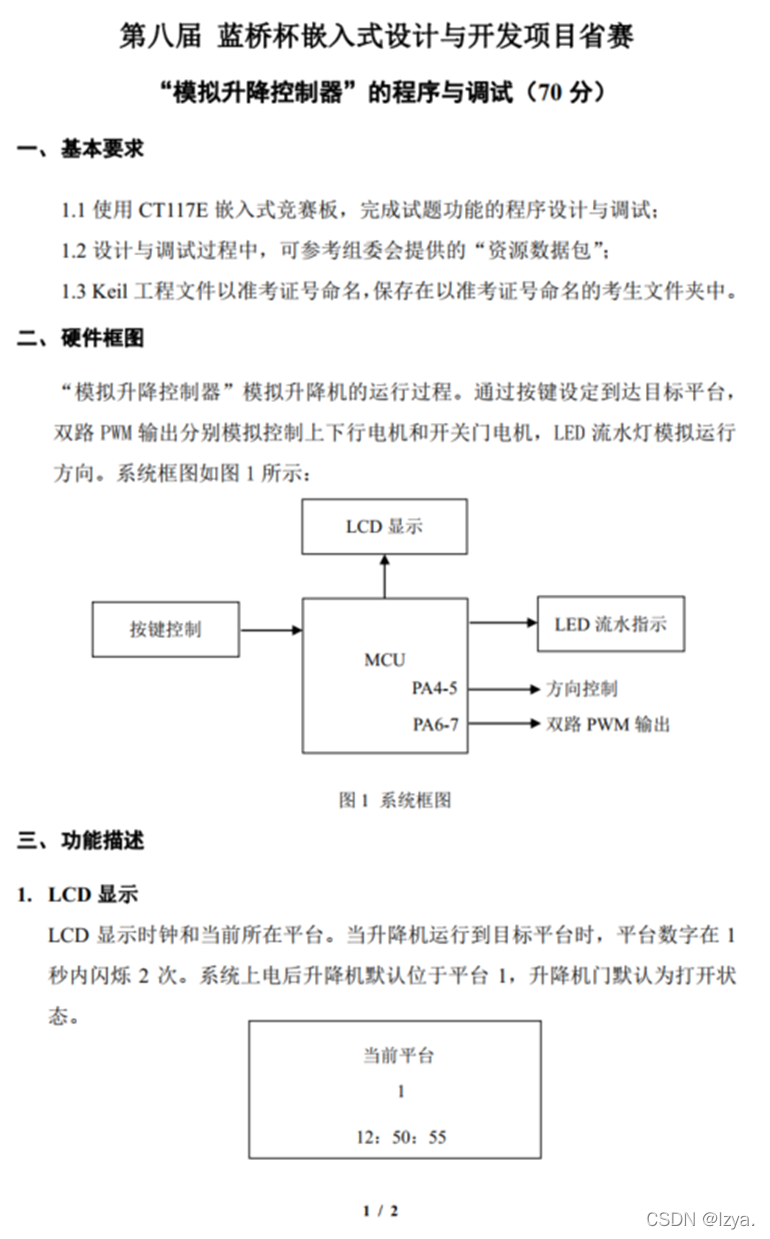

第八届省赛真题

主函数部分代码

#include "main.h"
#include "rcc.h"
#include "led_key.h"
#include "lcd.h"
#include "rtc.h"
#include "tim.h"
//***执行速度控制变量
__IO uint32_t uwTick_LED_Speed_Ctrl;
__IO uint32_t uwTick_KEY_Speed_Ctrl;
__IO uint32_t uwTick_LCD_Speed_Ctrl;



//***全局变量区
uint8_t ucLED;

uint8_t key_value,key_up,key_down;
static uint8_t key_old;	//按键三行代码

uint8_t LCD_String_Disp[21];

RTC_TimeTypeDef T;
RTC_DateTypeDef D;

uint8_t Current_platform = 1; //当前平台默认为1
uint8_t Set_platform; //只使用该变量的低四位 按键B1-B4对应设置的需要到达的平台对应LD1-LD4

__IO uint32_t uwTick_Time_Count; //用于时间计数

uint8_t State_Num; //状态号变量，默认为0
uint8_t Direction; //1表示上行 2表示下行
uint8_t Flow_LED = 0x10; //流水灯 只使用高四位

//***子函数声明区
void SystemClock_Config(void);
void LED_Proc(void);
void KEY_Proc(void);
void LCD_Proc(void);
void Lift_State_Proc(void);


//***主函数区
int main(void)
{
  HAL_Init();

  SystemClock_Config();

	//*函数初始化区
	LED_KEY_Init();

	LCD_Init();
	LCD_Clear(Black);
	LCD_SetBackColor(Black);
	LCD_SetTextColor(Magenta);

	RTC_Init();

	TIM3_Init();
	//__HAL_TIM_SET_COMPARE(&htim3, TIM_CHANNEL_1,800);
	HAL_TIM_PWM_Start(&htim3 , TIM_CHANNEL_1);

	TIM17_Init();
	HAL_TIM_PWM_Start(&htim3 , TIM_CHANNEL_1);

  while (1)
  {
		Lift_State_Proc();
		LED_Proc();
		KEY_Proc();
		LCD_Proc();
  }

}

void LED_Proc(void)
{
	if((uwTick - uwTick_LED_Speed_Ctrl)<100) return;
		uwTick_LED_Speed_Ctrl = uwTick; //100ms执行一次


	LED_Disp(ucLED);
}


void KEY_Proc(void)
{
	if((uwTick - uwTick_KEY_Speed_Ctrl)<100) return;
		uwTick_KEY_Speed_Ctrl = uwTick; //100ms执行一次

	key_value = KEY_Scan();
	key_up = key_value & (key_value ^ key_old);
	key_down = ~key_value & (key_value ^ key_old);
	key_old = key_value;

	if(State_Num == 0)
	{
		if(key_down == 1) //B1按下
		{
			if(Current_platform != 1) Set_platform |= 0x01; //当前楼层按下不起作用
		}

		else if(key_down == 2)	//B2按下
		{
			if(Current_platform != 2) Set_platform |= 0x02;
		}

		else if(key_down == 3)	//B3按下
		{
			if(Current_platform != 3) Set_platform |= 0x04;
		}

		else if(key_down == 4)	//B4按下
		{
			if(Current_platform != 4) Set_platform |= 0x08;
		}
	}
	ucLED &= 0xF0; //使用与等于 将低四位清理 高四位保持
	ucLED |= Set_platform; //使用或等于 保持高四位不变

	if(key_down != 0) //当没有按键按下时，开始计数
	{
		uwTick_Time_Count = uwTick; //更新计时初始时间，开始计时
	}
}

void LCD_Proc(void)
{
	if((uwTick - uwTick_LCD_Speed_Ctrl)<100) return;
		uwTick_LCD_Speed_Ctrl = uwTick; //100ms执行一次


	memset(LCD_String_Disp , 0 ,sizeof(LCD_String_Disp));
	sprintf((char*)LCD_String_Disp , "  Current platform        ");
	LCD_DisplayStringLine(Line1 , LCD_String_Disp);

	if(State_Num != 5)
	{
		memset(LCD_String_Disp , 0 ,sizeof(LCD_String_Disp));
		sprintf((char*)LCD_String_Disp , "          %1d            ",(unsigned int)Current_platform);
		LCD_DisplayStringLine(Line4 , LCD_String_Disp);
	}


	HAL_RTC_GetTime(&hrtc , &T ,RTC_FORMAT_BIN);
	HAL_RTC_GetDate(&hrtc , &D ,RTC_FORMAT_BIN);
	memset(LCD_String_Disp , 0 ,sizeof(LCD_String_Disp));
	sprintf((char*)LCD_String_Disp , "      %02d-%02d-%02d ",T.Hours,T.Minutes,T.Seconds);
	LCD_DisplayStringLine(Line6 , LCD_String_Disp);

	if(State_Num == 0)
	{
		memset(LCD_String_Disp , 0 ,sizeof(LCD_String_Disp));
		sprintf((char*)LCD_String_Disp , "    Open door         ");	//升降机默认为打开
		LCD_DisplayStringLine(Line8 , LCD_String_Disp);
	}

}

void Lift_State_Proc(void) //升降机状态处理函数
{
	if(Set_platform) //当有按键按下设置了需要到达的平台执行此程序，否则不执行
	{
		switch(State_Num)
		{
			case 0:
				if((uwTick - uwTick_Time_Count)>=1000) //如果等待时间超过1秒，进入下一状态-状态1
					State_Num = 1;
				else
					break;

			case 1:  //控制升降机关门，配置PA7关门PWM信号 PA7     ------> TIM17_CH1
				HAL_GPIO_WritePin(GPIOA, GPIO_PIN_5, GPIO_PIN_RESET); //PA5 = 0
				__HAL_TIM_SET_COMPARE(&htim17, TIM_CHANNEL_1,250); // PA7 关门 - 2khz 占空比 50% - 250
				HAL_TIM_PWM_Start(&htim17 , TIM_CHANNEL_1);

				memset(LCD_String_Disp , 0 ,sizeof(LCD_String_Disp));
				sprintf((char*)LCD_String_Disp , "    Closing door         ");
				LCD_DisplayStringLine(Line8 , LCD_String_Disp);

				uwTick_Time_Count = uwTick; //更新计时初始时间，开始计时
				State_Num = 2;

			case 2: //等待4s关门时间是否到达，
				if((uwTick - uwTick_Time_Count)>4000) //如果关门时间大于4s，停止关门PWM进入下一状态
				{
					HAL_TIM_PWM_Stop(&htim17 , TIM_CHANNEL_1);
					memset(LCD_String_Disp , 0 ,sizeof(LCD_String_Disp));
					sprintf((char*)LCD_String_Disp , "    Close door         ");
					LCD_DisplayStringLine(Line8 , LCD_String_Disp);

					HAL_Delay(1000);

					State_Num = 3;
				}
				else
					break;

			case 3:	//	判断升降机是上行还是下行,配置PA6上下行PWM信号 PA6    ------> TIM3_CH1
				if(Set_platform > ( 1<<(Current_platform-1) ) ) //如果设置的平台大于当前平台——上行
				{
					Direction = 1;

					HAL_GPIO_WritePin(GPIOA, GPIO_PIN_4, GPIO_PIN_SET); //PA4 = 1
					__HAL_TIM_SET_COMPARE(&htim3, TIM_CHANNEL_1,800); // PA6 上行 - 1khz 占空比 80% - 800
					HAL_TIM_PWM_Start(&htim3 , TIM_CHANNEL_1);

					memset(LCD_String_Disp , 0 ,sizeof(LCD_String_Disp));
					sprintf((char*)LCD_String_Disp , "    Lift Up         ");
					LCD_DisplayStringLine(Line8 , LCD_String_Disp);

				}
				else if(Set_platform < ( 1<<(Current_platform-1) ) ) //如果设置的平台小于当前平台——下行
				{

					Direction = 2;

					HAL_GPIO_WritePin(GPIOA, GPIO_PIN_4, GPIO_PIN_SET); //PA4 = 0
					__HAL_TIM_SET_COMPARE(&htim3, TIM_CHANNEL_1,600); // PA6 下行 - 1khz 占空比 60%- 600
					HAL_TIM_PWM_Start(&htim3 , TIM_CHANNEL_1);

					memset(LCD_String_Disp , 0 ,sizeof(LCD_String_Disp));
					sprintf((char*)LCD_String_Disp , "    Lift Down         ");
					LCD_DisplayStringLine(Line8 , LCD_String_Disp);
				}

				uwTick_Time_Count = uwTick; //更新计时初始时间，开始计时
				State_Num = 4;

			case 4:	//等待6s升降机上行或下行时间是否到达
				if((uwTick - uwTick_Time_Count)>=6000) //如果时间到达 控制当前平台变量加一或减一，流水灯关闭和恢复初始状态，进入下一状态
				{
					if(Direction == 1) //上行 当前平台加一个单位
					{
						Current_platform += 1;
					}
					else if(Direction == 2) //下行 当前平台减一个单位
					{
						Current_platform -= 1;
					}
					ucLED &= 0x0F;
					Flow_LED = 0x10;
					State_Num = 5;

				}
				else //产生流水灯的效果，左至右 上行 右至左 下行，退出，继续等待6秒的到来
				{
					if(Direction == 1) //上行 流水灯从左到右
					{
						Flow_LED = Flow_LED>>1; //右移1位 0001 0000 -> 0000 1000
						if(Flow_LED == 0x08) //0001 0000 - 0000 1000
							Flow_LED = 0x80;
						ucLED &= 0x0F;
						ucLED |= Flow_LED;
					}
					else if(Direction == 2) //下行 流水灯从右到左
					{
						ucLED &= 0x0F;
						ucLED |= Flow_LED;
						Flow_LED = Flow_LED<<1;
						if(Flow_LED  == 0x00)	//1000 0000 - 0001 0000
							Flow_LED = 0x10;
					}
					HAL_Delay(300);
					break;
				}

			case 5://判断当前到达的平台是否是对应需要到达的平台
				if(( 1<<(Current_platform-1) ) == Set_platform)	//是,停止上下行PWM信号，开门（open door）配置PA7
				{
					HAL_TIM_PWM_Stop(&htim3 , TIM_CHANNEL_1);
					HAL_GPIO_WritePin(GPIOA, GPIO_PIN_5, GPIO_PIN_RESET); //PA5 = 1
					__HAL_TIM_SET_COMPARE(&htim17, TIM_CHANNEL_1,300); // PA7 开门 - 2khz 占空比 60% - 300
					HAL_TIM_PWM_Start(&htim17 , TIM_CHANNEL_1);


					memset(LCD_String_Disp , 0 ,sizeof(LCD_String_Disp));
					sprintf((char*)LCD_String_Disp , "    Opening door            ");
					LCD_DisplayStringLine(Line8 , LCD_String_Disp);

					memset(LCD_String_Disp , 0 ,sizeof(LCD_String_Disp));
					sprintf((char*)LCD_String_Disp , "                         ");
					LCD_DisplayStringLine(Line4 , LCD_String_Disp);
					HAL_Delay(250);

					memset(LCD_String_Disp , 0 ,sizeof(LCD_String_Disp));
					sprintf((char*)LCD_String_Disp , "          %1d            ",(unsigned int)Current_platform);
					LCD_DisplayStringLine(Line4 , LCD_String_Disp);
					HAL_Delay(250);

					memset(LCD_String_Disp , 0 ,sizeof(LCD_String_Disp));
					sprintf((char*)LCD_String_Disp , "                         ");
					LCD_DisplayStringLine(Line4 , LCD_String_Disp);
					HAL_Delay(250);

					memset(LCD_String_Disp , 0 ,sizeof(LCD_String_Disp));
					sprintf((char*)LCD_String_Disp , "          %1d            ",(unsigned int)Current_platform);
					LCD_DisplayStringLine(Line4 , LCD_String_Disp);
					HAL_Delay(250);

					uwTick_Time_Count = uwTick; //更新计时初始时间，开始计时
					State_Num = 6;
				}
				else
				{
					State_Num = 3;
					break;
				}

			case 6 : //等待开门时间4s到来
				if((uwTick - uwTick_Time_Count)>=4000) //等待4s开门，关闭开门PWM信号
				{
					HAL_TIM_PWM_Stop(&htim17 , TIM_CHANNEL_1);

					memset(LCD_String_Disp , 0 ,sizeof(LCD_String_Disp));
					sprintf((char*)LCD_String_Disp , "    Open door            ");
					LCD_DisplayStringLine(Line8 , LCD_String_Disp);

					Set_platform &= (~(1<<(Current_platform-1)));  //到达设置的目标平台，将此目标平台清除
					ucLED &= 0xF0;
					ucLED |= Set_platform;
					LED_Disp(ucLED);
					State_Num = 7;

				}
				else
					break;

			case 7: //判断是否还有其他目标平台
				if( Set_platform != 0 ) //还有其他设置平台，进入状态8
				{
					uwTick_Time_Count = uwTick; //更新计时初始时间，开始计时
					State_Num = 8;
				}
				else	//没有其他设置平台，进入状态0
				{

					memset(LCD_String_Disp , 0 ,sizeof(LCD_String_Disp));
					sprintf((char*)LCD_String_Disp , "    Get it %1d floor           ",(unsigned int)Current_platform);
					LCD_DisplayStringLine(Line8 , LCD_String_Disp);
					HAL_Delay(1000);

					State_Num = 0;
					break;
				}

			case 8: //

				if((uwTick - uwTick_Time_Count)>=2000) //等待2s
				{
					State_Num = 1;
					break;
				}
				else
					break;
		}
	}

}
