[嵌入式]GD32F450XX ADC2 DMA多路采集

因为GD官方给的例程中没有关于ADC2 DMA 独立模式多路采集的例程，所以在此上传一个。
直接上代码

#include "gd32f4xx.h"
#include "gd32f450i_eval.h"
#include "systick.h"
#include <stdio.h>

#define ADC_X ADC2

uint16_t adc_value[4];

void rcu_config(void);
void gpio_config(void);
void dma_config(void);
void adc_config(void);
void timer_config(void);

/*!
    \brief      main function
    \param[in]  none
    \param[out] none
    \retval     none
*/

int main(void)
{
    /* system clocks configuration */
    rcu_config();
    /* systick configuration */
    systick_config();
    /* GPIO configuration */
    gpio_config();
	/* TIMER configuration */
    timer_config();

    /* ADC configuration */
    adc_config();
	/* DMA configuration */
    dma_config();
    /* configure COM port */
    gd_eval_com_init(EVAL_COM0);

    while(1){
        delay_1ms(1000);
        printf("\r\n *******************************");
        printf("\r\n ADC0 regular channel data = 0x%04X", adc_value[0]);
        printf("\r\n ADC0 regular channel data = 0x%04X", adc_value[1]);
        printf("\r\n ADC0 regular channel data = 0x%04X", adc_value[2]);
        printf("\r\n ADC0 regular channel data = 0x%04X\r\n", adc_value[3]);
    }
}

/*!
    \brief      configure the different system clocks
    \param[in]  none
    \param[out] none
    \retval     none
*/
void rcu_config(void)
{
    /* enable GPIOC clock */
    rcu_periph_clock_enable(RCU_GPIOA);
    /* enable ADC clock */
    rcu_periph_clock_enable(RCU_ADC0);
	rcu_periph_clock_enable(RCU_ADC2);
    /* enable timer1 clock */
    rcu_periph_clock_enable(RCU_TIMER1);
    rcu_timer_clock_prescaler_config(RCU_TIMER_PSC_MUL4);
    /* enable DMA clock */
    rcu_periph_clock_enable(RCU_DMA1);
    /* config ADC clock */
    adc_clock_config(ADC_ADCCK_PCLK2_DIV6);
}

/*!
    \brief      configure the GPIO peripheral
    \param[in]  none
    \param[out] none
    \retval     none
*/
void gpio_config(void)
{
    /* config the GPIO as analog mode */
    gpio_mode_set(GPIOA, GPIO_MODE_ANALOG, GPIO_PUPD_NONE, GPIO_PIN_1);
    gpio_mode_set(GPIOA, GPIO_MODE_ANALOG, GPIO_PUPD_NONE, GPIO_PIN_2);
    gpio_mode_set(GPIOA, GPIO_MODE_ANALOG, GPIO_PUPD_NONE, GPIO_PIN_3);
    gpio_mode_set(GPIOA, GPIO_MODE_ANALOG, GPIO_PUPD_NONE, GPIO_PIN_4 );
}

/*!
    \brief      configure the DMA peripheral
    \param[in]  none
    \param[out] none
    \retval     none
*/
void dma_config(void)
{
    /* ADC_DMA_channel configuration */
    dma_single_data_parameter_struct dma_single_data_parameter;

    /* ADC DMA_channel configuration */
    dma_deinit(DMA1, DMA_CH0);

    /* initialize DMA single data mode */
    dma_single_data_parameter.periph_addr = (uint32_t)(&ADC_RDATA(ADC_X));
    dma_single_data_parameter.periph_inc = DMA_PERIPH_INCREASE_DISABLE;
    dma_single_data_parameter.memory0_addr = (uint32_t)(adc_value);
    dma_single_data_parameter.memory_inc = DMA_MEMORY_INCREASE_ENABLE;
    dma_single_data_parameter.periph_memory_width = DMA_PERIPH_WIDTH_16BIT;
    dma_single_data_parameter.direction = DMA_PERIPH_TO_MEMORY;
    dma_single_data_parameter.number = 4;
    dma_single_data_parameter.priority = DMA_PRIORITY_HIGH;
    dma_single_data_mode_init(DMA1, DMA_CH0, &dma_single_data_parameter);
    dma_channel_subperipheral_select(DMA1, DMA_CH0, DMA_SUBPERI0);

    /* enable DMA circulation mode */
    dma_circulation_enable(DMA1, DMA_CH0);
	dma_channel_subperipheral_select(DMA1, DMA_CH0, DMA_SUBPERI2);
    /* enable DMA channel */
    dma_channel_enable(DMA1, DMA_CH0);
}

/*!
    \brief      configure the ADC peripheral
    \param[in]  none
    \param[out] none
    \retval     none
*/
void adc_config(void)
{
    /* ADC mode config */
    adc_sync_mode_config(ADC_SYNC_MODE_INDEPENDENT);
    /* ADC contineous function disable */
    adc_special_function_config(ADC_X, ADC_CONTINUOUS_MODE, DISABLE);
    /* ADC scan mode disable */
    adc_special_function_config(ADC_X, ADC_SCAN_MODE, ENABLE);
    /* ADC data alignment config */
    adc_data_alignment_config(ADC_X, ADC_DATAALIGN_RIGHT);

    /* ADC channel length config */
    adc_channel_length_config(ADC_X, ADC_REGULAR_CHANNEL, 4);
    /* ADC regular channel config */
    adc_regular_channel_config(ADC_X, 0, ADC_CHANNEL_1, ADC_SAMPLETIME_15);
    adc_regular_channel_config(ADC_X, 1, ADC_CHANNEL_2, ADC_SAMPLETIME_15);
    adc_regular_channel_config(ADC_X, 2, ADC_CHANNEL_3, ADC_SAMPLETIME_15);
    adc_regular_channel_config(ADC_X, 3, ADC_CHANNEL_4, ADC_SAMPLETIME_15);
    /* ADC trigger config */
    adc_external_trigger_source_config(ADC_X, ADC_REGULAR_CHANNEL, ADC_EXTTRIG_REGULAR_T1_CH1);
    adc_external_trigger_config(ADC_X, ADC_REGULAR_CHANNEL, EXTERNAL_TRIGGER_RISING);

    /* ADC DMA function enable */
    adc_dma_request_after_last_enable(ADC_X);
    adc_dma_mode_enable(ADC_X);

    /* enable ADC interface */
    adc_enable(ADC_X);
    /* wait for ADC stability */
    delay_1ms(1);
    /* ADC calibration and reset calibration */
    adc_calibration_enable(ADC_X);

//    /* enable ADC software trigger */
//    adc_software_trigger_enable(ADC2, ADC_REGULAR_CHANNEL);
}
/*!
    \brief      configure the timer peripheral
    \param[in]  none
    \param[out] none
    \retval     none
*/
void timer_config(void)
{
    timer_oc_parameter_struct timer_ocintpara;
    timer_parameter_struct timer_initpara;

    /* TIMER1 configuration */
    timer_initpara.prescaler         = 19999;
    timer_initpara.alignedmode       = TIMER_COUNTER_EDGE;
    timer_initpara.counterdirection  = TIMER_COUNTER_UP;
    timer_initpara.period            = 9999;
    timer_initpara.clockdivision     = TIMER_CKDIV_DIV1;
    timer_initpara.repetitioncounter = 0;
    timer_init(TIMER1,&timer_initpara);

    /* CH1 configuration in PWM mode0 */
    timer_ocintpara.ocpolarity  = TIMER_OC_POLARITY_HIGH;
    timer_ocintpara.outputstate = TIMER_CCX_ENABLE;
    timer_channel_output_config(TIMER1,TIMER_CH_1,&timer_ocintpara);

    timer_channel_output_pulse_value_config(TIMER1,TIMER_CH_1,9900);
    timer_channel_output_mode_config(TIMER1,TIMER_CH_1,TIMER_OC_MODE_PWM0);
    timer_channel_output_shadow_config(TIMER1,TIMER_CH_1,TIMER_OC_SHADOW_DISABLE);

    /* enable TIMER1 */
    timer_enable(TIMER1);
}
/* retarget the C library printf function to the USART */
int fputc(int ch, FILE *f)
{
    usart_data_transmit(EVAL_COM0, (uint8_t)ch);
    while(RESET == usart_flag_get(EVAL_COM0, USART_FLAG_TBE));
    return ch;
}

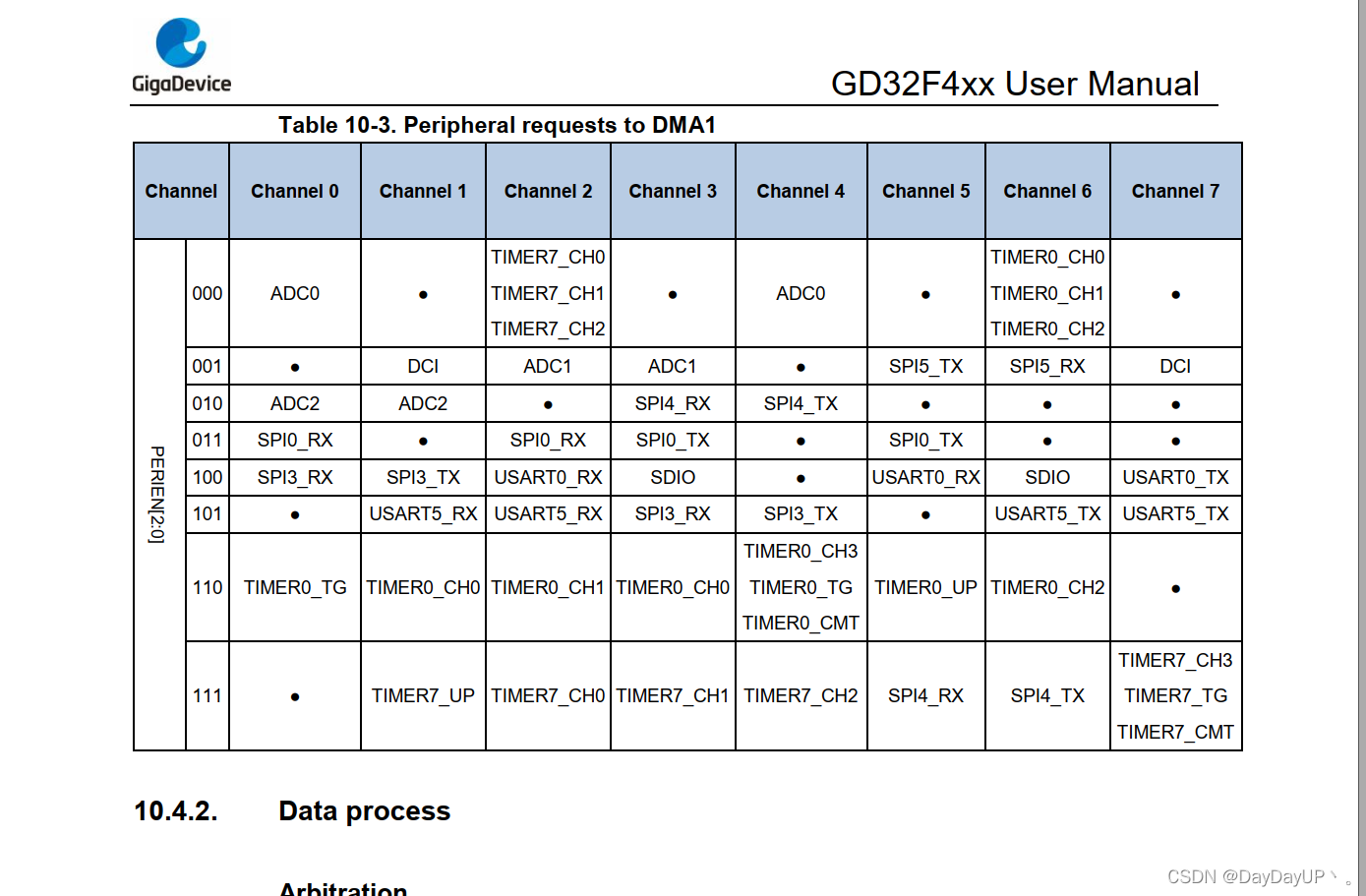

1，首先第一个需要注意的地方是 官方的例程中 关于DMA的配置

官方使用的是 DMA1 的通道0 ADC0
dma_channel_subperipheral_select(DMA1, DMA_CH0, DMA_SUBPERI0);
而我们要配置为 DMA1 的通道0 ADC2
dma_channel_subperipheral_select(DMA1, DMA_CH0, DMA_SUBPERI2);

2，如果要使用软件触发的话需要同时 使能扫描模式和连续转换模式，如果只使能扫描模式的话只会进行一次转换。
/* ADC contineous function disable /
adc_special_function_config(ADC_X, ADC_CONTINUOUS_MODE, ENABLE);
/ ADC scan mode disable */
adc_special_function_config(ADC_X, ADC_SCAN_MODE, ENABLE);

以上问题也是问了代理商技术支持后解决的，还是感谢技术支持，大家共勉，避免踩坑。
