[嵌入式]【FPGA】FPGA lcd彩条的实现

一、LCD

LCD （ Liquid Crystal Display 的简称）液晶显示器。LCD 的构造是在两片平行的玻璃基板当中放置液晶盒，下基板玻璃上设置TFT（薄膜晶体管），上基板玻璃上设置彩色滤光片，通过TFT上的信号与电压改变来控制液晶分子的转动方向，从而达到控制每个像素点偏振光出射与否而达到显示目的。LCD已经替代CRT成为主流，价格也已经下降了很多，并已充分普及。

二、看TM043NDH02-40–LCD手册

1.描述

用的LCD的型号是TM043NDH02-40

2.信号接口

3.LCD模块图

4.LCD时序

同步脉冲a:sync

显示后沿b:back porch

显示时序段c:display

显示前沿d:font porch

5.LCD原理图

三、代码部分

1.lcd_driver.v

module lcd_driver(
    input				clk		,
    input				rst_n	,
    input   [23:0]      rgb_data,
    output  [7:0]       lcd_r   ,
    output  [7:0]       lcd_g   ,
    output  [7:0]       lcd_b   ,
    output              lcd_vsync,
    output              lcd_hsync,
    output              lcd_dclk,
    output              lcd_disp,
    output              lcd_de  ,
    output  [10:0]      pixel_x ,
    output  [9:0]       pixel_y
);

// 场
parameter   V_SYNC      = 2     ,
            V_BKPORCH   = 33    ,
            V_DISPLAY   = 480   ,
            V_FTPORCH   = 10    ,
            V_ALL       = V_SYNC + V_BKPORCH + V_DISPLAY + V_FTPORCH;
// 行
parameter   H_SYNC      = 96    ,
            H_BKPORCH   = 48    ,
            H_DISPLAY   = 640   ,
            H_FTPORCH   = 16    ,
            H_ALL       = H_SYNC + H_BKPORCH + H_DISPLAY + H_FTPORCH;

// 场帧长计数器
reg     [10:0]      cnt_v;
wire                add_cnt_v;
wire                end_cnt_v;

// 行帧长计数器
reg     [10:0]      cnt_h;
wire                add_cnt_h;
wire                end_cnt_h;

// 行帧长计数器
always @(posedge clk or negedge rst_n)begin
   if(!rst_n)begin
        cnt_h <= 0;
    end
    else if(add_cnt_h)begin
            if(end_cnt_h)begin
                cnt_h <= 0;
            end
            else begin
                cnt_h <= cnt_h + 1;
            end
    end
   else  begin
       cnt_h <= cnt_h;
    end
end

assign add_cnt_h = 1'b1;
assign end_cnt_h = add_cnt_h && cnt_h == H_ALL - 1;

// 场帧长计数器
always @(posedge clk or negedge rst_n)begin
   if(!rst_n)begin
        cnt_v <= 0;
    end
    else if(add_cnt_v)begin
            if(end_cnt_v)begin
                cnt_v <= 0;
            end
            else begin
                cnt_v <= cnt_v + 1;
            end
    end
   else  begin
       cnt_v <= cnt_v;
    end
end

assign add_cnt_v = end_cnt_h;
assign end_cnt_v = add_cnt_v && cnt_v == V_ALL - 1;

// 场同步信号
assign lcd_vsync = (cnt_v <= V_SYNC - 1)?1'b0:1'b1;

// 行同步信号
assign lcd_hsync = (cnt_h <= H_SYNC - 1)?1'b0:1'b1;

// lcd_de显示有效
assign lcd_de = (((cnt_v >= V_SYNC + V_BKPORCH - 1) && (cnt_v <= V_SYNC + V_BKPORCH + V_DISPLAY - 1)) && ((cnt_h >= H_SYNC + H_BKPORCH - 1) && (cnt_h <= H_SYNC + H_BKPORCH + H_DISPLAY - 1)))?1'b1:1'b0;

// lcd rgb565
assign lcd_r = (lcd_de)?rgb_data[7:0]:0;
assign lcd_g = (lcd_de)?rgb_data[15:8]:0;
assign lcd_b = (lcd_de)?rgb_data[23:16]:0;

// 显示纵坐标
assign pixel_y = (lcd_de)?(cnt_v - (V_SYNC + V_BKPORCH)):0;

// 显示横坐标
assign pixel_x = (lcd_de)?(cnt_h - (H_SYNC + H_BKPORCH)):0;

// 串行时钟
assign lcd_dclk = clk;

// 正常显示置高电平
assign lcd_disp = 1'b1;

endmodule

2.lcd_show.v

module lcd_show(
    input               clk,
    input               rst_n,
    input   [10:0]      pixel_x,
    input   [9:0]       pixel_y,
    output  [23:0]      rgb_data
);

// LCD的分辨率
parameter   H_DISPLAY = 480,
            V_DISPLAY = 272;

parameter   RED     = 24'b11111111_00000000_00000000,
            GREEN   = 24'b00000000_11111111_00000000,
            BLUE    = 24'b00000000_00000000_11111111,
            BLACK   = 24'b00000000_00000000_00000000;

// rgb数据寄存
reg     [23:0]      rgb_data_r;

always @(posedge clk or negedge rst_n)begin
    if(!rst_n)begin
        rgb_data_r <= BLACK;
    end
    else if((pixel_x >= 0) && (pixel_x < H_DISPLAY/3))begin
        rgb_data_r <= RED;
    end
    else if((pixel_x >= H_DISPLAY/3) && (pixel_x < H_DISPLAY/3*2))begin
        rgb_data_r <= GREEN;
    end
    else begin
        rgb_data_r <= BLUE;
    end
end

assign rgb_data = rgb_data_r;

endmodule

3.top.v

module top(
    input				clk		,
    input				rst_n	,
    output  [7:0]       lcd_r   ,
    output  [7:0]       lcd_g   ,
    output  [7:0]       lcd_b   ,
    output              lcd_vsync,
    output              lcd_hsync,
    output              lcd_dclk,
    output              lcd_disp,
    output              lcd_de
);

wire                clk_25m;
wire    [10:0]      pixel_x;
wire    [9:0]       pixel_y;
wire    [23:0]      rgb_data;


pll	pll_inst (
	.areset ( ~rst_n ),
	.inclk0 ( clk ),
	.c0     ( clk_25m ),
	.locked ( locked_sig )
	);


lcd_driver u_lcd_driver(
    /* input				*/.clk		(clk_25m ),
    /* input				*/.rst_n    (rst_n   ),
    /* input   [23:0]       */.rgb_data (rgb_data),
    /* output  [7:0]        */.lcd_r    (lcd_r   ),
    /* output  [7:0]        */.lcd_g    (lcd_g   ),
    /* output  [7:0]        */.lcd_b    (lcd_b   ),
    /* output               */.lcd_vsync(lcd_vsync),
    /* output               */.lcd_hsync(lcd_hsync),
    /* output               */.lcd_dclk (lcd_dclk),
    /* output               */.lcd_disp (lcd_disp),
    /* output               */.lcd_de   (lcd_de  ),
    /* output  [10:0]       */.pixel_x  (pixel_x ),
    /* output  [9:0]        */.pixel_y  (pixel_y )

);


lcd_show u_lcd_show(
    /* input                */.clk       (clk     ),
    /* input                */.rst_n     (rst_n   ),
    /* input   [10:0]       */.pixel_x   (pixel_x ),
    /* input   [9:0]        */.pixel_y   (pixel_y ),
    /* output  [23:0]       */.rgb_data  (rgb_data)
);
endmodule

四、仿真验证

这个就直接上板了

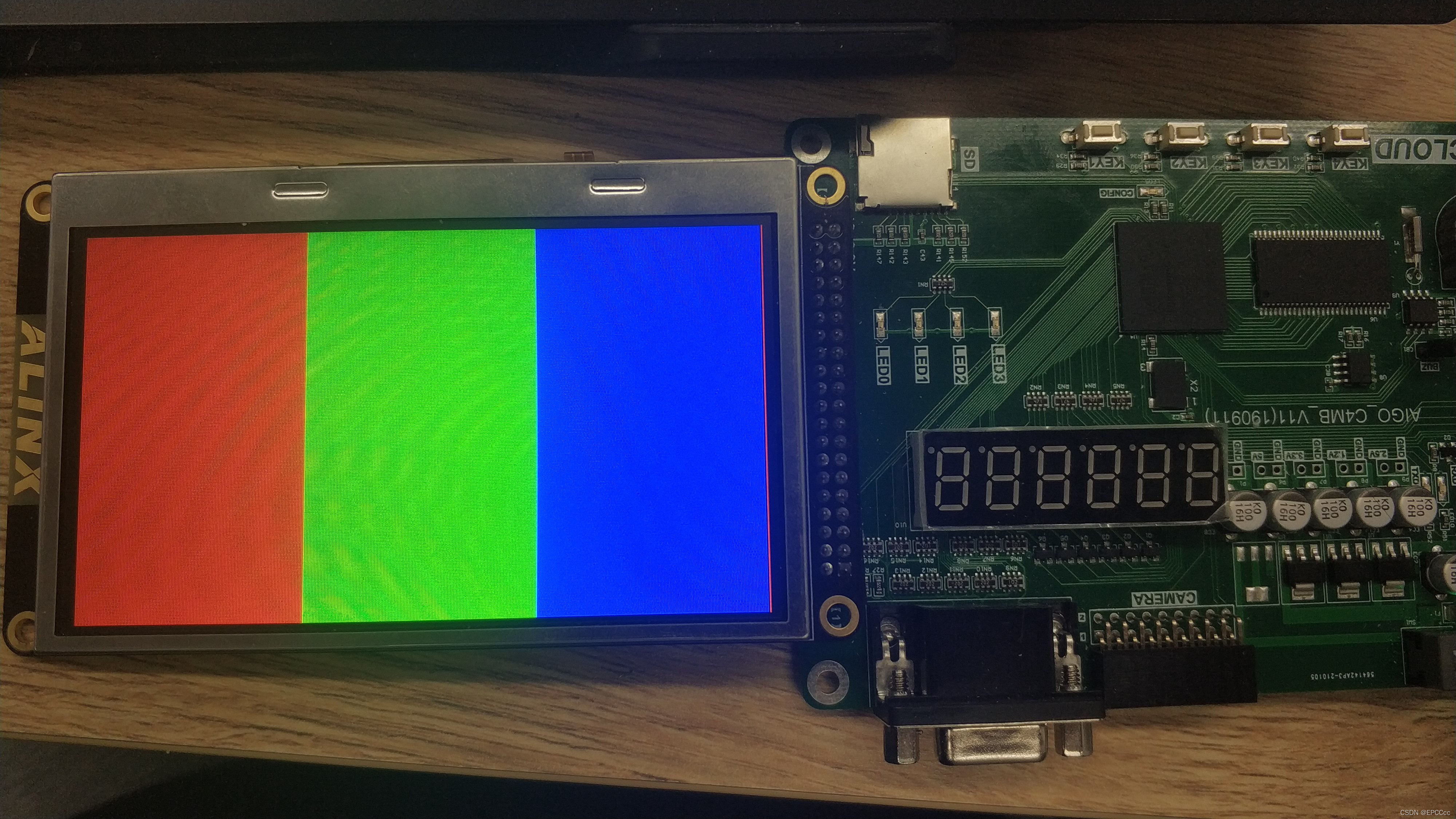

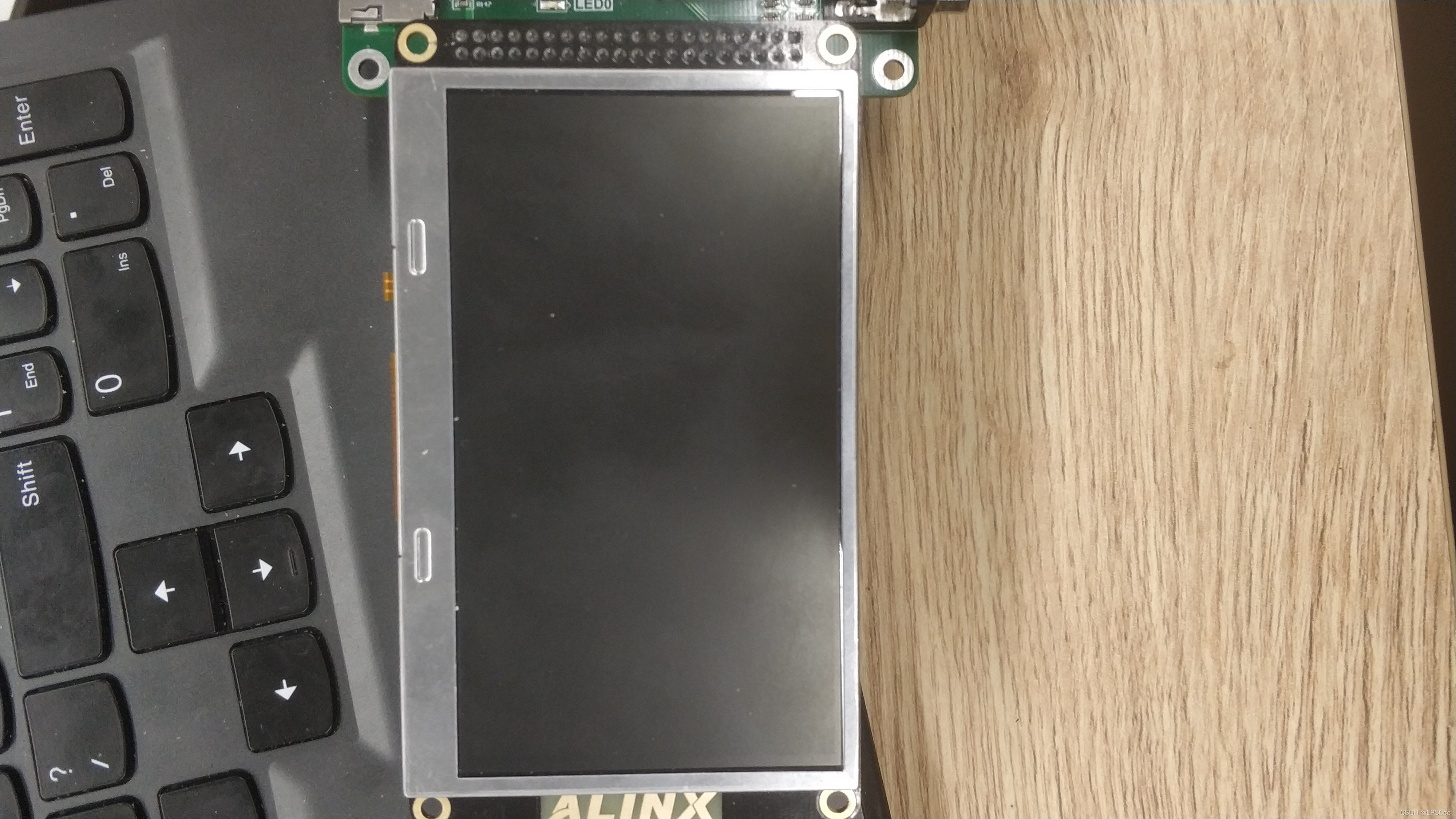

五、上板验证

六、总结

这个只是简单的看看那个手册的时序，然后写的驱动，其实lcd和vga一样的，只是lcd比vga多了几个信号，lcd是rgb888，vga是rgb565，数据转换一下，这个项目是为了摄像头而准备的，所有的学的到时候来个综合的。
