import serial
import threading
class SerialCommand:
"""
波特率可以使用以下列表中的数值
"""
baudrates = [50, 75, 110, 134, 150, 200, 300, 600, 1200, 1800, 2400, 4800, 9600, 19200, 38400, 57600, 115200]
@classmethod
def get_all_ports(cls):
"""
类方法：获取系统上所有串口
:return: 字符串表示的可用串口的列表
"""
ports = []
import serial.tools.list_ports
ports_list = list(serial.tools.list_ports.comports())
if len(ports_list) == 0:
return None
for i in range(0, len(ports_list)):
port = ports_list[i]
port = (str(port)).split(' ')[0]
ports.append(port)
return ports
def __init__(self, portx, bps=9600, timeout=None, bytesize=serial.EIGHTBITS, parity=serial.PARITY_NONE,
stopbites=serial.STOPBITS_ONE):
"""
设置使用的串口和波特率，已经超时时间
:param portx: 要使用的串口
:param bps: 要使用的波特率
:param timeout: 超时时间
:param bytesize: 字节长度
:param parity: 校验方式
:param stopbites: 停止位长度
"""
self.portx = portx
self.bps = bps
self.timeout = timeout
self.bytesize = bytesize
self.parity = parity
self.stopbites = stopbites
@property
def portx(self):
return self.__portx
@portx.setter
def portx(self, portx):
if portx not in SerialCommand.get_all_ports():
raise ValueError("Use SerialCommand. get_all_ports() method to see all usable serial ports")
else:
self.__portx = portx
@property
def bps(self):
return self.__bps
@bps.setter
def bps(self, bps):
if bps not in SerialCommand.baudrates:
raise ValueError("bps must be one of the list %s" % str(SerialCommand.baudrates))
else:
self.__bps = bps
@property
def timeout(self):
return self.__timeout
@timeout.setter
def timeout(self, timeout):
if timeout == None or timeout >= 0:
self.__timeout = timeout
else:
raise TypeError("timeout should be large than 0 or None")
@property
def bytesize(self):
return self.__bytesize
@bytesize.setter
def bytesize(self, bytesize):
if bytesize in [serial.EIGHTBITS, serial.FIVEBITS, serial.SEVENBITS, serial.SIXBITS]:
self.__bytesize = bytesize
else:
raise ValueError(
"bytesize should be in [serial.EIGHTBITS, serial.FIVEBITS, serial.SEVENBITS, serial.SIXBITS]")
@property
def parity(self):
return self.__parity
@parity.setter
def parity(self, parity):
if parity in [serial.PARITY_NONE, serial.PARITY_ODD, serial.PARITY_EVEN]:
self.__parity = parity
else:
raise ValueError("parity should be in [serial.PARITY_NONE,serial.PARITY_ODD,serial.PARITY_EVEN]")
@property
def stopbites(self):
return self.__stopbites
@stopbites.setter
def stopbites(self, stopbites):
if stopbites in [serial.STOPBITS_ONE, serial.STOPBITS_TWO, serial.STOPBITS_ONE_POINT_FIVE]:
self.__stopbites = stopbites
else:
raise ValueError(
"stopbites should in [serial.STOPBITS_ONE,serial.STOPBITS_TWO,serial.STOPBITS_ONE_POINT_FIVE]")
def openserial(self):
"""
使用初始化时的端口名，波特率和超时时间打开一个串口
:return: 0表示打开成功，-1表示打开失败
"""
try:
self.__serial = serial.Serial(self.portx, baudrate=self.bps, timeout=self.timeout, parity=self.parity,
bytesize=self.bytesize, stopbits=self.stopbites)
except:
return -1
return 0
def closeserial(self):
"""
关闭串口
:return:
"""
if self.__serial is not None and self.__serial.isOpen():
self.__serial.close()
def write(self, data):
"""
通过串口发送数据
:param data: 要发送的数据
:return: 返回发送的字节数
"""
if not isinstance(data, list):
print("data should be a list instance")
return -1
for ch in data:
ch = ch & 0x00FF
self.__serial.write(chr(ch).encode('ascii'))
return len(data)
def read(self, len):
lst = []
for i in range(len):
if self.__serial.readable():
ch = self.__serial.read()
lst.append(ch)
else:
break
return lst
def isOpen(self):
if self.__serial is not None and self.__serial.isOpen():
return True
else:
return False
def used_port_info(self):
"""
输出串口信息
:return: None
"""
if self.__serial is not None:
print("Serial Port info:")
print("Port name：", self.__serial.name)
# print("Port：",self.__serial.port)
print("Open:", self.__serial.isOpen())
print("Baudrate：", self.__serial.baudrate)
print("Bytesize", self.__serial.bytesize)
print("Parity", self.__serial.parity)
print("stopbits", self.__serial.stopbits)
print("Timeout：", self.__serial.timeout)
print("writeTimeout", self.__serial.writeTimeout)
print("xonxoff", self.__serial.xonxoff)
print("rtscts", self.__serial.rtscts)
print("dsrdtr", self.__serial.dsrdtr)
print("interCharTimeout", self.__serial.interCharTimeout)
class SerialReceive(threading.Thread):
"""
这个类的实例用于开启一个线程，专用于接收
"""
def __init__(self, serialcommand):
threading.Thread.__init__(self, name="SerialReceive")
self.serialcommand = serialcommand
@property
def serialcommand(self):
return self.__serialcommand
@serialcommand.setter
def serialcommand(self, serialcommand):
if isinstance(serialcommand, SerialCommand):
self.__serialcommand = serialcommand
else:
raise TypeError("serialcommand should be a instance of class SerialCommand")
def __check(self):
if self.serialcommand.isOpen():
return True
else:
return False
def receive(self, strlen=1):
lst = self.serialcommand.read(strlen)
for ch in lst:
print("0x" + ch.hex(), ' ')
print()
def run(self):
while self.__check():
try:
self.receive(1)
except:
print("stop receive")
if __name__ == "__main__":
ports = SerialCommand.get_all_ports()
sercomm = SerialCommand(ports[0], 115200)
sercomm.openserial()
sercomm.used_port_info()
sr = SerialReceive(sercomm)
sr.start()
while True:
sdata = input("请输入ascii字符串： ")
if sdata == "q!":
break
lst = []
print("data:%s,len:%d" % (sdata, len(sdata)))
length = len(sdata)
for i in range(length):
lst.append(ord(sdata[i]))
print(lst)
chars = sercomm.write(lst)
print("send %d chars" % chars)
sercomm.closeserial()

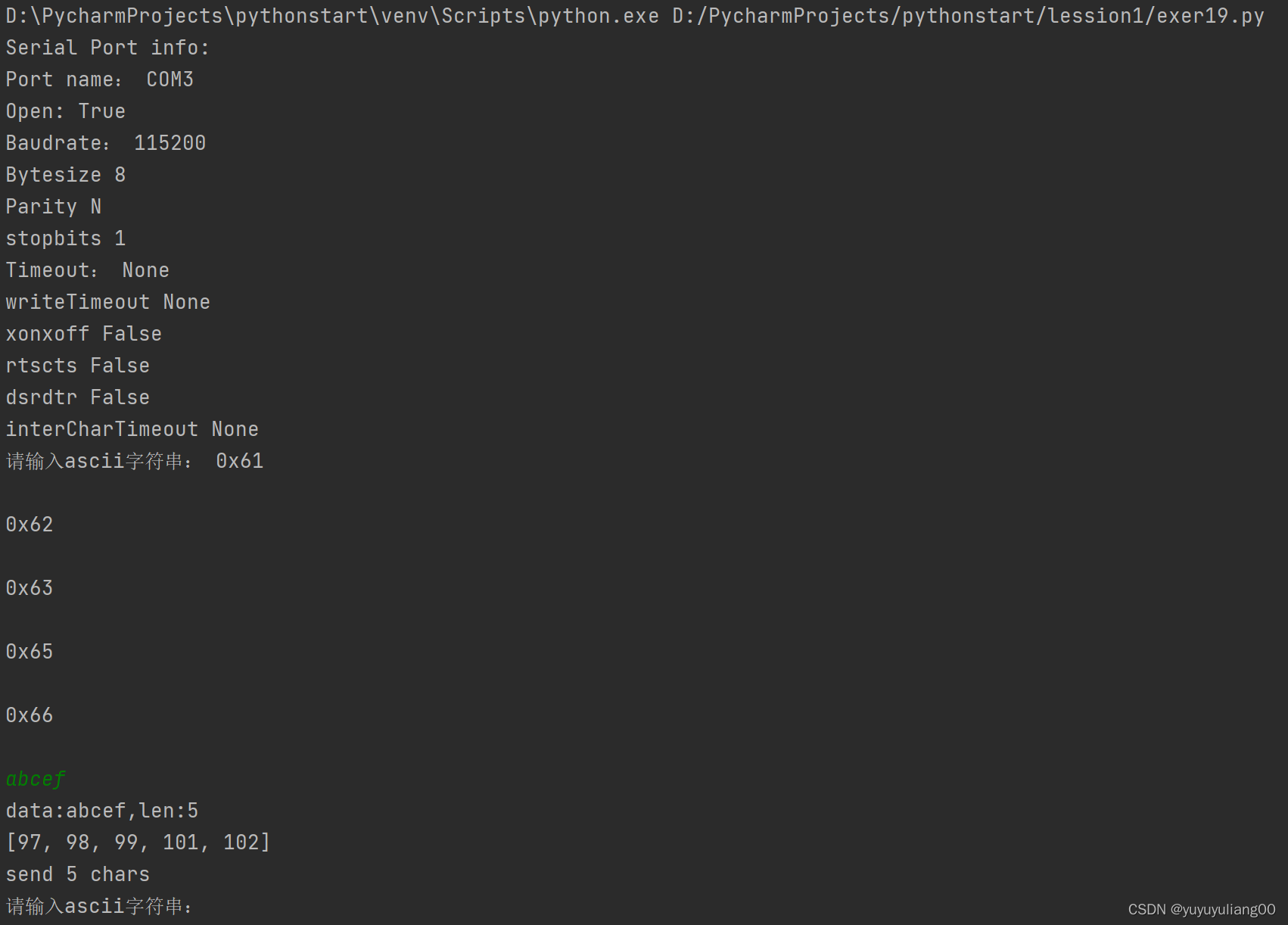

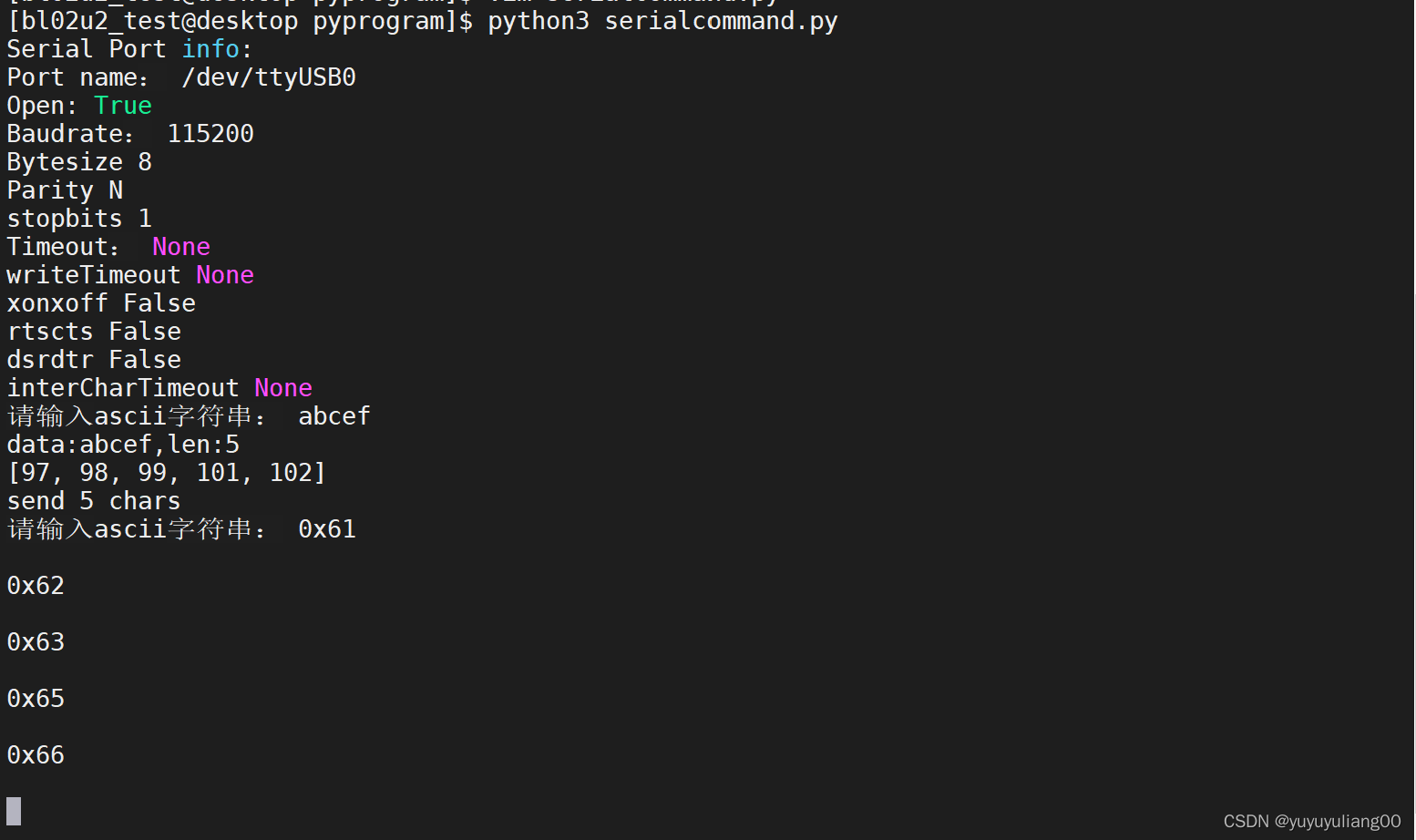

测试：
两个收发端可以全双工通信
linux端：提示输入字符串后面，输入abcdef回车后，windows端收到0x61 0x62 0x63 0x64 0x65 0x66
?windows端：
提示输入字符串后面，输入abcdef回车后，linux端同样收到0x61 0x62 0x63 0x64 0x65 0x66
