char * 和 int * 的区别

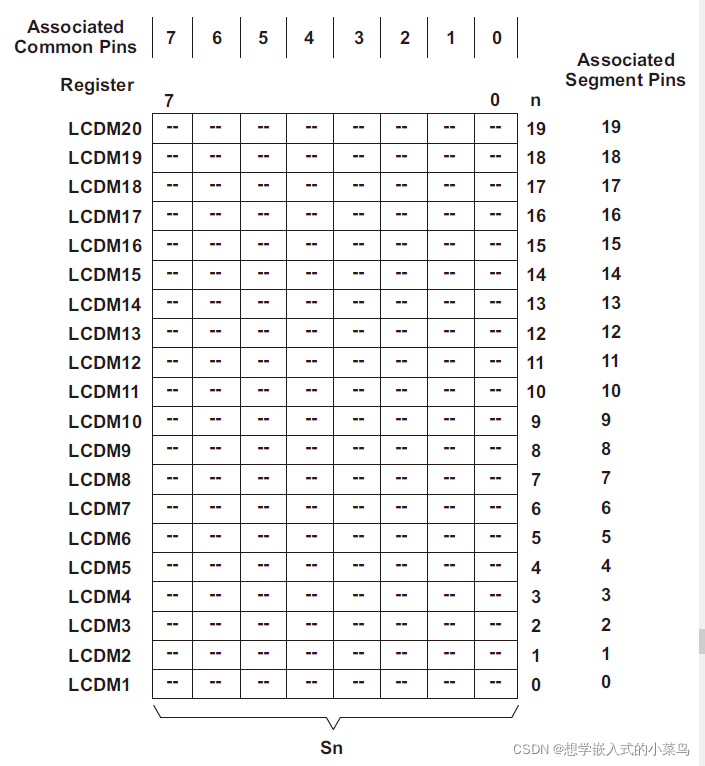

在学习过程中遇到了对单片机LCD外设内存地址操作的问题,问题如下 例如内存的起始地址是0XA20(内存分布如下),
定义一个变量add = 0XA20(代表LCDM1);访问下一个地址(如LCDM2)时采用add+1的操作 我应该怎么利用变量来操作地址里面的内容呢?
方法一: *(unsigned char *)add = 0X0F; // LCM1 *(unsigned char *)(add+1) = 0X0F; // LCDM2
方法二: *(unsigned char *)add = 0X0F; // LCM1 *((unsigned char *)add+1) = 0X0F; // LCDM2```c
方法三: *(unsigned int *)add = 0X0F; // LCM1 *(unsigned int *)(add+1) = 0X0F; // LCDM2
方法四: *(unsigned int *)add = 0X0F; // LCM1 *((unsigned int *)add+1) = 0X0F; // LCDM2
#include "stdio.h"
int main()
{
char c_buf[5] = {1,2,3,4,5};
int z_buf[5] = {6,7,8,9,10};
char *c = c_buf;
int *z = z_buf;
int a = 1245;
printf("sizeof(c) = %ld\n",sizeof(c));
printf("sizeof(z) = %ld\n",sizeof(z));
printf("c_add = %p\n",c);
printf("z_add = %p\n",z);
printf("c_add+1 = %p\n",c+1);
printf("z_add+1 = %p\n",z+1);
printf("(char *)a = %p\n",(char *)a);
printf("(char *)(a+1) = %p\n",(char *)(a+1));
printf("(int *)a = %p\n",(int *)a);
printf("(int *)(a+1) = %p\n",(int *)(a+1));
printf("(char *)a = %p\n",(char *)a);
printf("(char *)a+1 = %p\n",(char *)a+1);
printf("(int *)a = %p\n",(int *)a);
printf("(int *)a+1 = %p\n",(int *)a+1);
return 0;
}
运行结果如下:
sizeof(c) = 8
sizeof(z) = 8
c_add = 0x7ffea5a70960
z_add = 0x7ffea5a70940
c_add+1 = 0x7ffea5a70961
z_add+1 = 0x7ffea5a70944
(char *)a = 0x4dd
(char *)(a+1) = 0x4de
(int *)a = 0x4dd
(int *)(a+1) = 0x4de
(char *)a = 0x4dd
(char *)a+1 = 0x4de
(int *)a = 0x4dd
(int *)a+1 = 0x4e1
分析下代码和答案,就知道该怎么选则合适了,方法一、二、三,看着都是可以的,但是因为内存偏移是一个字节,所以最好还是别使用方法三(毕竟出问题就凉凉了)。 遇到数值强转为指针时,强转为指针是(char *)还是(int * )呢?我们根据内存的偏移大小来确定的。
自己遇到问题及解决记录的,如有问题欢迎指出,谢谢
|
