[嵌入式]C51_day10:IIC协议

1、IIC协议

1.1 IIC协议概述

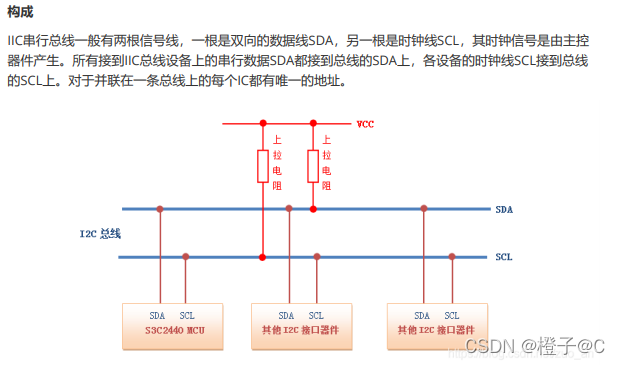

IIC全称Inter-Integrated Circuit (集成电路总线)是由PHILIPS公司在80年代开发的两线式串行总线，用于连接微控制器及其外围设备。IIC属于半双工同步通信方式

特点：

简单性和有效性。

由于接口直接在组件之上，因此IIC总线占用的空间非常小，减少了电路板的空间和芯片管脚的数量，降低了互联成本。总线的长度可高达25英尺，并且能够以10Kbps的最大传输速率支持40个组件

多主控(multimastering)

其中任何能够进行发送和接收的设备都可以成为主总线。一个主控能够控制信号的传输和时钟频率。当然，在任何时间点上只能有一个主控。

?

?

#include "reg52.h"
#include "intrins.h"

sbit scl = P0^1;
sbit sda = P0^3;

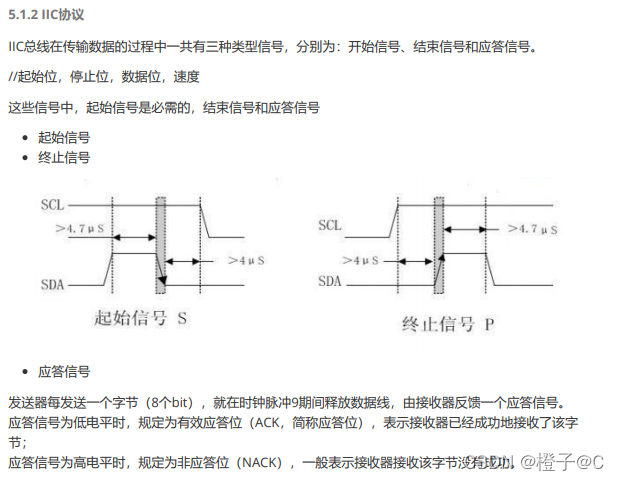

void IIC_Start()
{
	sda = 1;
	scl = 1;
	_nop_();
	sda = 0;
	_nop_();
}

void IIC_Stop()
{
	sda = 0;
	scl = 1;
	_nop_();
	sda = 1;
	_nop_();
}

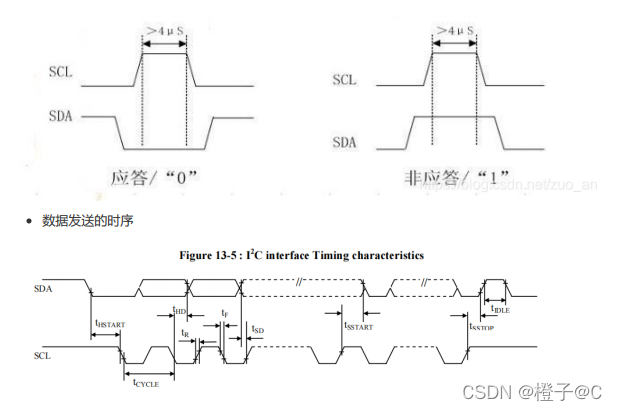

char IIC_ACK()
{
	char flag;
	sda = 1;//就在时钟脉冲9期间释放数据线
	_nop_();
	scl = 1;
	_nop_();
	flag = sda;
	_nop_();
	scl = 0;
	_nop_();

	return flag;
}

void IIC_Send_Byte(char dataSend)
{
	int i;

	for(i = 0;i<8;i++){
		scl = 0;//scl拉低，让sda做好数据准备
		sda = dataSend & 0x80;//1000 0000获得dataSend的最高位，给sda
		_nop_();//发送数据建立时间
		scl = 1;//scl拉高开始发送
		_nop_();//数据发送时间
		scl = 0;//发送完毕拉低
		_nop_();//
		dataSend = dataSend << 1;
	}
}


void main()
{
		int a = 10;

		IIC_Start();

}

?

写命令/数据的代码?

#include "reg52.h"
#include "intrins.h"

sbit scl = P0^1;
sbit sda = P0^3;

void IIC_Start()
{
	sda = 1;
	scl = 1;
	_nop_();
	sda = 0;
	_nop_();
}

void IIC_Stop()
{
	sda = 0;
	scl = 1;
	_nop_();
	sda = 1;
	_nop_();
}

char IIC_ACK()
{
	char flag;
	sda = 1;//就在时钟脉冲9期间释放数据线
	_nop_();
	scl = 1;
	_nop_();
	flag = sda;
	_nop_();
	scl = 0;
	_nop_();

	return flag;
}

void IIC_Send_Byte(char dataSend)
{
	int i;

	for(i = 0;i<8;i++){
		scl = 0;//scl拉低，让sda做好数据准备
		sda = dataSend & 0x80;//1000 0000获得dataSend的最高位，给sda
		_nop_();//发送数据建立时间
		scl = 1;//scl拉高开始发送
		_nop_();//数据发送时间
		scl = 0;//发送完毕拉低
		_nop_();//
		dataSend = dataSend << 1;
	}
}

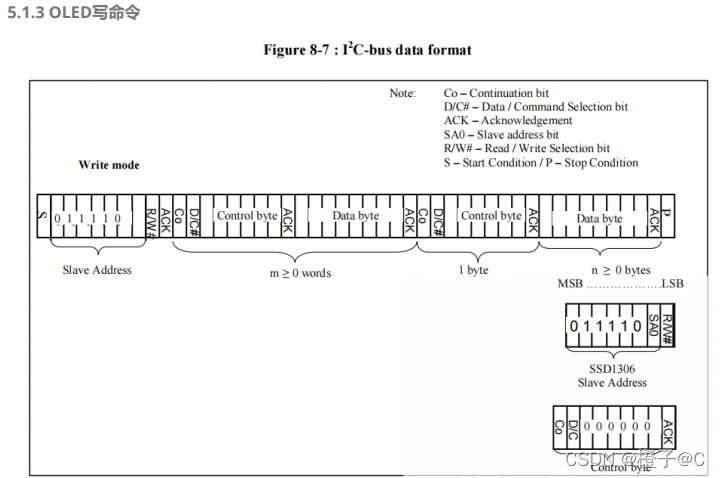

void Oled_Write_Cmd(char dataCmd)
{
	//	1. start()
	IIC_Start();
	//
	//	2. 写入从机地址  b0111 1000 0x78
	IIC_Send_Byte(0x78);
	//	3. ACK
	IIC_ACK();
	//	4. cotrol byte: (0)(0)000000 写入命令   (0)(1)000000写入数据
	IIC_Send_Byte(0x00);
	//	5. ACK
	IIC_ACK();
	//6. 写入指令/数据
	IIC_Send_Byte(dataCmd);
	//7. ACK
	IIC_ACK();
	//8. STOP
	IIC_Stop();
}

void Oled_Write_Data(char dataData)
{
	//	1. start()
	IIC_Start();
	//
	//	2. 写入从机地址  b0111 1000 0x78
	IIC_Send_Byte(0x78);
	//	3. ACK
	IIC_ACK();
	//	4. cotrol byte: (0)(0)000000 写入命令   (0)(1)000000写入数据
	IIC_Send_Byte(0x00);
	//	5. ACK
	IIC_ACK();
	///6. 写入指令/数据
	IIC_Send_Byte(dataData);
	//7. ACK
	IIC_ACK();
	//8. STOP
	IIC_Stop();
}


void main()
{
		int a = 10;

		IIC_Start();

}

?

?

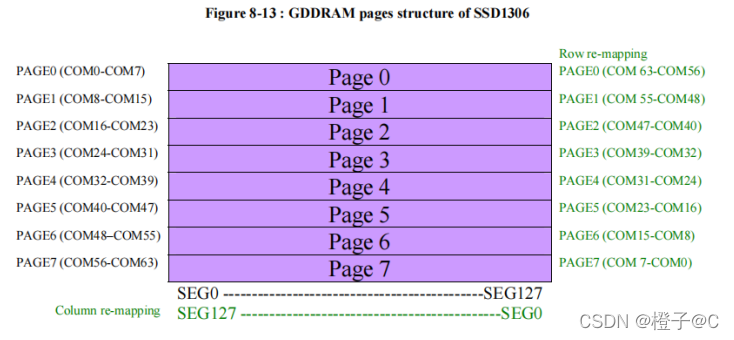

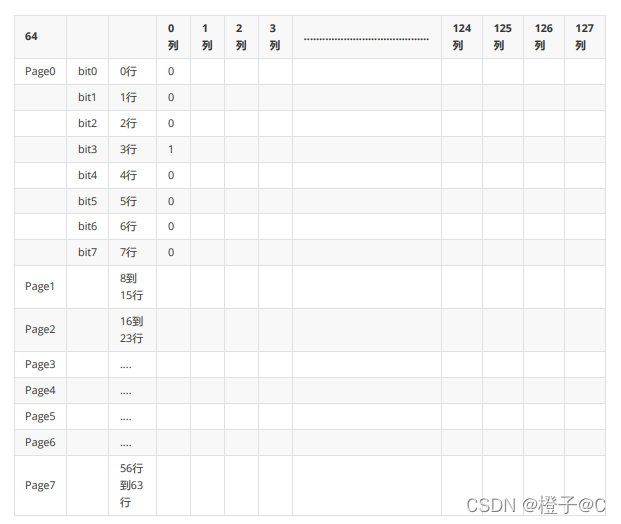

?如果写入0x08（b00001000）会显示什么呢一个字节负责一个Page的一列显示

?

#include "reg52.h"
#include "intrins.h"

sbit scl = P0^1;
sbit sda = P0^3;

void IIC_Start()
{
	scl = 0;
	sda = 1;
	scl = 1;
	_nop_();
	sda = 0;
	_nop_();
}

void IIC_Stop()
{
	scl = 0;
	sda = 0;
	scl = 1;
	_nop_();
	sda = 1;
	_nop_();
}

char IIC_ACK()
{
	char flag;
	sda = 1;//就在时钟脉冲9期间释放数据线
	_nop_();
	scl = 1;
	_nop_();
	flag = sda;
	_nop_();
	scl = 0;
	_nop_();

	return flag;
}

void IIC_Send_Byte(char dataSend)
{
	int i;

	for(i = 0;i<8;i++){
		scl = 0;//scl拉低，让sda做好数据准备
		sda = dataSend & 0x80;//1000 0000获得dataSend的最高位，给sda
		_nop_();//发送数据建立时间
		scl = 1;//scl拉高开始发送
		_nop_();//数据发送时间
		scl = 0;//发送完毕拉低
		_nop_();//
		dataSend = dataSend << 1;
	}
}

void Oled_Write_Cmd(char dataCmd)
{
	//	1. start()
	IIC_Start();
	//
	//	2. 写入从机地址  b0111 1000 0x78
	IIC_Send_Byte(0x78);
	//	3. ACK
	IIC_ACK();
	//	4. cotrol byte: (0)(0)000000 写入命令   (0)(1)000000写入数据
	IIC_Send_Byte(0x00);
	//	5. ACK
	IIC_ACK();
	//6. 写入指令/数据
	IIC_Send_Byte(dataCmd);
	//7. ACK
	IIC_ACK();
	//8. STOP
	IIC_Stop();
}

void Oled_Write_Data(char dataData)
{
	//	1. start()
	IIC_Start();
	//
	//	2. 写入从机地址  b0111 1000 0x78
	IIC_Send_Byte(0x78);
	//	3. ACK
	IIC_ACK();
	//	4. cotrol byte: (0)(0)000000 写入命令   (0)(1)000000写入数据
	IIC_Send_Byte(0x40);
	//	5. ACK
	IIC_ACK();
	///6. 写入指令/数据
	IIC_Send_Byte(dataData);
	//7. ACK
	IIC_ACK();
	//8. STOP
	IIC_Stop();
}


void Oled_Init(void){
	Oled_Write_Cmd(0xAE);//--display off
	Oled_Write_Cmd(0x00);//---set low column address
	Oled_Write_Cmd(0x10);//---set high column address
	Oled_Write_Cmd(0x40);//--set start line address
	Oled_Write_Cmd(0xB0);//--set page address
	Oled_Write_Cmd(0x81); // contract control
	Oled_Write_Cmd(0xFF);//--128
	Oled_Write_Cmd(0xA1);//set segment remap
	Oled_Write_Cmd(0xA6);//--normal / reverse
	Oled_Write_Cmd(0xA8);//--set multiplex ratio(1 to 64)
	Oled_Write_Cmd(0x3F);//--1/32 duty
	Oled_Write_Cmd(0xC8);//Com scan direction
	Oled_Write_Cmd(0xD3);//-set display offset
	Oled_Write_Cmd(0x00);//

	Oled_Write_Cmd(0xD5);//set osc division
	Oled_Write_Cmd(0x80);//

	Oled_Write_Cmd(0xD8);//set area color mode off
	Oled_Write_Cmd(0x05);//

	Oled_Write_Cmd(0xD9);//Set Pre-Charge Period
	Oled_Write_Cmd(0xF1);//

	Oled_Write_Cmd(0xDA);//set com pin configuartion
	Oled_Write_Cmd(0x12);//

	Oled_Write_Cmd(0xDB);//set Vcomh
	Oled_Write_Cmd(0x30);//

	Oled_Write_Cmd(0x8D);//set charge pump enable
	Oled_Write_Cmd(0x14);//

	Oled_Write_Cmd(0xAF);//--turn on oled panel
}

void Oled_Clear()
{
	unsigned char i,j; //-128 --- 127

	for(i=0;i<8;i++){
		Oled_Write_Cmd(0xB0 + i);//page0--page7
		//每个page从0列
		Oled_Write_Cmd(0x00);
		Oled_Write_Cmd(0x10);
		//0到127列，依次写入0，每写入数据，列地址自动偏移
		for(j = 0;j<128;j++){
			Oled_Write_Data(0);
		}
	}
}


/*--  文字:  A  --*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
char A1[8] = {0x00,0x00,0xC0,0x38,0xE0,0x00,0x00,0x00};
char A2[8] = {0x20,0x3C,0x23,0x02,0x02,0x27,0x38,0x20};



/*--  文字:  上  --*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=16x16   --*/
char s1[16] = {0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x40,0x40,0x40,0x40,0x40,0x40,0x00,0x00,0x00};
char s2[16] = {0x40,0x40,0x40,0x40,0x40,0x40,0x7F,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x00};

/*--  文字:  官  --*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=16x16   --*/
code char g1[16] = {0x10,0x0C,0x04,0xE4,0x24,0x24,0x25,0x26,0x24,0x24,0x24,0xE4,0x04,0x14,0x0C,0x00};
code char g2[16] = {0x00,0x00,0x00,0xFF,0x49,0x49,0x49,0x49,0x49,0x49,0x49,0x49,0xF8,0x00,0x00,0x00};

/*--  文字:  可  --*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=16x16   --*/
code char k1[16] = {0x00,0x02,0x02,0xF2,0x12,0x12,0x12,0xF2,0x02,0x02,0x02,0xFE,0x02,0x02,0x02,0x00};
code char k2[16] = {0x00,0x00,0x00,0x0F,0x04,0x04,0x04,0x0F,0x00,0x40,0x80,0x7F,0x00,0x00,0x00,0x00};

/*--  文字:  编  --*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=16x16   --*/
code char b1[16] = {0x20,0x30,0xAC,0x63,0x30,0x00,0xFC,0x24,0x25,0x26,0x24,0x24,0x24,0x3C,0x00,0x00};
code char b2[16] = {0x22,0x67,0x22,0x12,0x52,0x38,0x07,0xFF,0x09,0x7F,0x09,0x3F,0x89,0xFF,0x00,0x00};

/*--  文字:  程  --*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=16x16   --*/
code char c1[16] = {0x24,0x24,0xA4,0xFE,0x23,0x22,0x00,0x3E,0x22,0x22,0x22,0x22,0x22,0x3E,0x00,0x00};
code char c2[16] = {0x08,0x06,0x01,0xFF,0x01,0x06,0x40,0x49,0x49,0x49,0x7F,0x49,0x49,0x49,0x41,0x00};



void main()
{
		unsigned char  i;
		//1. OLED初始化
		Oled_Init();
		//2. 选择一个位置

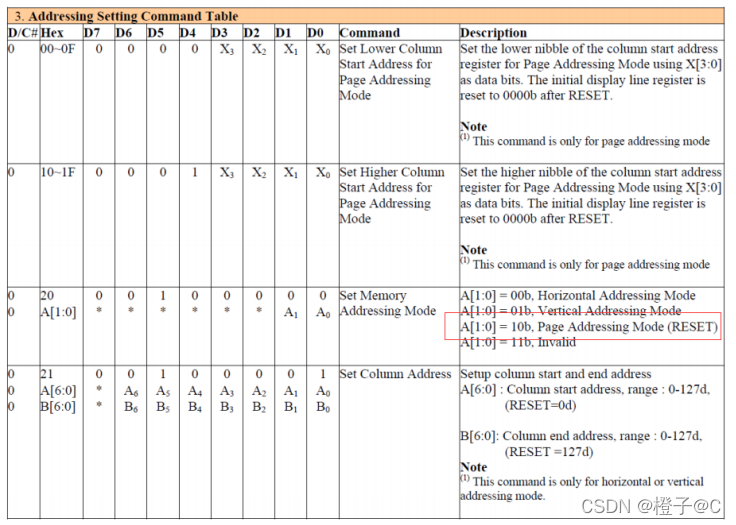

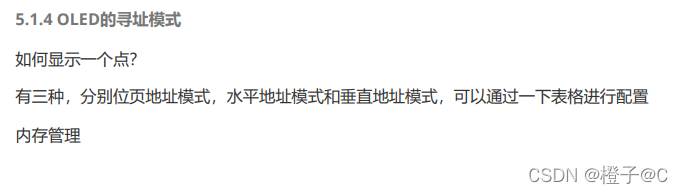

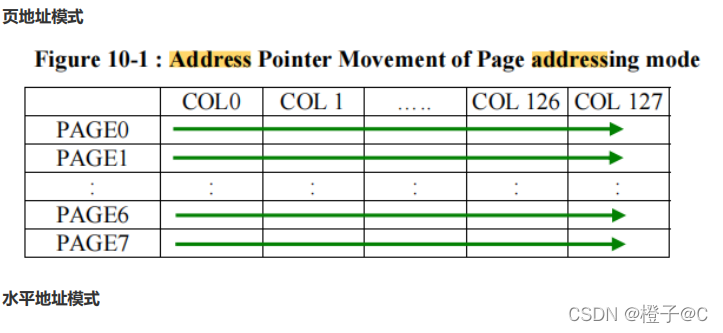

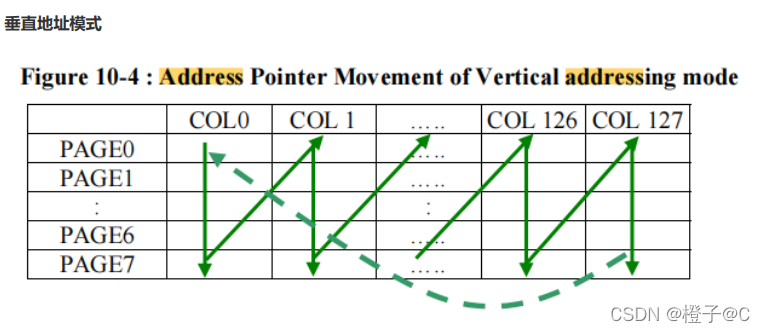

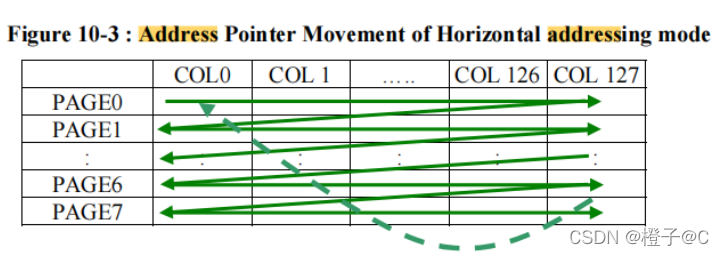

		//2.1 确认页寻址模式
		Oled_Write_Cmd(0x20);
		Oled_Write_Cmd(0x02);
		Oled_Clear();
		//2.2 选择PAGE0   1011 0000
		//								0xB0
		Oled_Write_Cmd(0xB0);
		Oled_Write_Cmd(0x00);
		Oled_Write_Cmd(0x10);

		for(i=0;i<16;i++){

				Oled_Write_Data(s1[i]);
		}
		for(i=0;i<16;i++){

				Oled_Write_Data(g1[i]);
		}
		for(i=0;i<16;i++){

				Oled_Write_Data(k1[i]);
		}
		for(i=0;i<16;i++){

				Oled_Write_Data(b1[i]);
		}
		for(i=0;i<16;i++){

				Oled_Write_Data(c1[i]);
		}


		Oled_Write_Cmd(0xB1);
		Oled_Write_Cmd(0x00);
		Oled_Write_Cmd(0x10);
		for(i=0;i<16;i++){

				Oled_Write_Data(s2[i]);
		}
		for(i=0;i<16;i++){

				Oled_Write_Data(g2[i]);
		}
		for(i=0;i<16;i++){

				Oled_Write_Data(k2[i]);
		}
		for(i=0;i<16;i++){

				Oled_Write_Data(b2[i]);
		}
		for(i=0;i<16;i++){

				Oled_Write_Data(c2[i]);
		}
		while(1);
}

?显示一张图片

#include "reg52.h"
#include "intrins.h"

sbit scl = P0^1;
sbit sda = P0^3;

void IIC_Start()
{
	scl = 0;
	sda = 1;
	scl = 1;
	_nop_();
	sda = 0;
	_nop_();
}

void IIC_Stop()
{
	scl = 0;
	sda = 0;
	scl = 1;
	_nop_();
	sda = 1;
	_nop_();
}

char IIC_ACK()
{
	char flag;
	sda = 1;//就在时钟脉冲9期间释放数据线
	_nop_();
	scl = 1;
	_nop_();
	flag = sda;
	_nop_();
	scl = 0;
	_nop_();

	return flag;
}

void IIC_Send_Byte(char dataSend)
{
	int i;

	for(i = 0;i<8;i++){
		scl = 0;//scl拉低，让sda做好数据准备
		sda = dataSend & 0x80;//1000 0000获得dataSend的最高位，给sda
		_nop_();//发送数据建立时间
		scl = 1;//scl拉高开始发送
		_nop_();//数据发送时间
		scl = 0;//发送完毕拉低
		_nop_();//
		dataSend = dataSend << 1;
	}
}

void Oled_Write_Cmd(char dataCmd)
{
	//	1. start()
	IIC_Start();
	//
	//	2. 写入从机地址  b0111 1000 0x78
	IIC_Send_Byte(0x78);
	//	3. ACK
	IIC_ACK();
	//	4. cotrol byte: (0)(0)000000 写入命令   (0)(1)000000写入数据
	IIC_Send_Byte(0x00);
	//	5. ACK
	IIC_ACK();
	//6. 写入指令/数据
	IIC_Send_Byte(dataCmd);
	//7. ACK
	IIC_ACK();
	//8. STOP
	IIC_Stop();
}

void Oled_Write_Data(char dataData)
{
	//	1. start()
	IIC_Start();
	//
	//	2. 写入从机地址  b0111 1000 0x78
	IIC_Send_Byte(0x78);
	//	3. ACK
	IIC_ACK();
	//	4. cotrol byte: (0)(0)000000 写入命令   (0)(1)000000写入数据
	IIC_Send_Byte(0x40);
	//	5. ACK
	IIC_ACK();
	///6. 写入指令/数据
	IIC_Send_Byte(dataData);
	//7. ACK
	IIC_ACK();
	//8. STOP
	IIC_Stop();
}


void Oled_Init(void){
	Oled_Write_Cmd(0xAE);//--display off
	Oled_Write_Cmd(0x00);//---set low column address
	Oled_Write_Cmd(0x10);//---set high column address
	Oled_Write_Cmd(0x40);//--set start line address
	Oled_Write_Cmd(0xB0);//--set page address
	Oled_Write_Cmd(0x81); // contract control
	Oled_Write_Cmd(0xFF);//--128
	Oled_Write_Cmd(0xA1);//set segment remap
	Oled_Write_Cmd(0xA6);//--normal / reverse
	Oled_Write_Cmd(0xA8);//--set multiplex ratio(1 to 64)
	Oled_Write_Cmd(0x3F);//--1/32 duty
	Oled_Write_Cmd(0xC8);//Com scan direction
	Oled_Write_Cmd(0xD3);//-set display offset
	Oled_Write_Cmd(0x00);//

	Oled_Write_Cmd(0xD5);//set osc division
	Oled_Write_Cmd(0x80);//

	Oled_Write_Cmd(0xD8);//set area color mode off
	Oled_Write_Cmd(0x05);//

	Oled_Write_Cmd(0xD9);//Set Pre-Charge Period
	Oled_Write_Cmd(0xF1);//

	Oled_Write_Cmd(0xDA);//set com pin configuartion
	Oled_Write_Cmd(0x12);//

	Oled_Write_Cmd(0xDB);//set Vcomh
	Oled_Write_Cmd(0x30);//

	Oled_Write_Cmd(0x8D);//set charge pump enable
	Oled_Write_Cmd(0x14);//

	Oled_Write_Cmd(0xAF);//--turn on oled panel
}

void Oled_Clear()
{
	unsigned char i,j; //-128 --- 127

	for(i=0;i<8;i++){
		Oled_Write_Cmd(0xB0 + i);//page0--page7
		//每个page从0列
		Oled_Write_Cmd(0x00);
		Oled_Write_Cmd(0x10);
		//0到127列，依次写入0，每写入数据，列地址自动偏移
		for(j = 0;j<128;j++){
			Oled_Write_Data(0);
		}
	}
}

code unsigned char bmpImager[] = {

/*--  调入了一幅图像：D:\无标题.bmp  --*/
/*--  宽度x高度=128x64  --128x8x8*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0xF0,0x08,0x0C,0x04,0x06,0x06,0x0C,0x04,0x0C,0xFC,0x1C,0x74,0xFC,0xF8,
0xF0,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x01,0x07,0x04,0x88,0xF8,0x08,0x08,0x0C,0x06,0x01,0x00,0x00,0x01,0x1F,
0x7F,0xFF,0xDC,0xF8,0xE0,0xC0,0x40,0xC0,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x10,0x18,0x08,0x0C,
0x04,0x04,0x06,0x02,0x01,0x01,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0x60,0xC0,0x80,0x80,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0xE0,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,
0x03,0x06,0x1C,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x07,0xFC,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x08,0x88,0xE8,0x38,0x0E,0x09,0x08,
0x08,0x88,0xE8,0x18,0x08,0x08,0x08,0x00,0x00,0xFF,0x89,0x89,0x89,0xFF,0x00,0xFF,
0x89,0x89,0x89,0x89,0xFF,0x00,0x00,0x04,0x04,0x84,0x74,0x6F,0xA4,0x24,0x24,0x24,
0x24,0xA4,0x64,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x80,0xF0,0x1F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x7F,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x08,0x09,0x09,0x06,0x06,
0x06,0x05,0x08,0x08,0x10,0x10,0x00,0x00,0x0C,0x03,0x10,0x10,0x10,0x1F,0x18,0x07,
0x00,0x00,0x10,0x10,0x1F,0x00,0x10,0x08,0x06,0x11,0x10,0x08,0x09,0x0A,0x06,0x06,
0x0B,0x08,0x10,0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF0,
0x1E,0x03,0x00,0x00,0xC0,0x60,0x30,0x0C,0x04,0x06,0x02,0x01,0x01,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,
0x1E,0x60,0x78,0x0F,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,


};

void Oled_Show_Image(unsigned char *image)
{
	unsigned char i;
	unsigned int j;

	for(i=0;i<8;i++){
		Oled_Write_Cmd(0xB0 + i);//page0--page7
		//每个page从0列
		Oled_Write_Cmd(0x00);
		Oled_Write_Cmd(0x10);
		//0到127列，依次写入0，每写入数据，列地址自动偏移
		for(j = 128 * i; j<(128 * (i+1));j++){
			Oled_Write_Data(image[j]);
		}
	}
}



void main()
{

		//1. OLED初始化
		Oled_Init();
		//2. 选择一个位置
		//2.1 确认页寻址模式
		Oled_Write_Cmd(0x20);
		Oled_Write_Cmd(0x02);
		Oled_Clear();
		Oled_Show_Image(bmpImager);

		while(1);
}
