1.引言

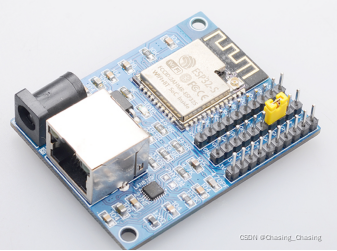

? ? ? ? 最近买了一块esp32以太网开发板（如下图示），想测试esp32以太网功能，但新人上手肯定会遇到一些问题，特此记录。

2.实验?

? ? ? ? 我的编译环境是：idf，而非arduino。使用的SDK是4.4版本。

????????选择的demo是esp-idf-v4.4\examples\ethernet\basic。遇到的问题是，编译配置esp32的ethernet\basic demo后，烧录至设备，esp32上电不断重启，打印如下log。

I (254) cpu_start: Pro cpu up.
I (255) cpu_start: Starting app cpu, entry point is 0x400810b4
I (241) cpu_start: App cpu up.
I (269) cpu_start: Pro cpu start user code
I (269) cpu_start: cpu freq: 160000000
I (269) cpu_start: Application information:
I (273) cpu_start: Project name:     ethernet_basic
I (279) cpu_start: App version:      v4.4-dirty
I (284) cpu_start: Compile time:     Apr  7 2022 17:19:05
I (290) cpu_start: ELF file SHA256:  5753ad8f9d190cda...
I (296) cpu_start: ESP-IDF:          v4.4-dirty
I (302) heap_init: Initializing. RAM available for dynamic allocation:
I (309) heap_init: At 3FFAE6E0 len 00001920 (6 KiB): DRAM
I (315) heap_init: At 3FFB3BF8 len 0002C408 (177 KiB): DRAM
I (321) heap_init: At 3FFE0440 len 00003AE0 (14 KiB): D/IRAM
I (327) heap_init: At 3FFE4350 len 0001BCB0 (111 KiB): D/IRAM
I (334) heap_init: At 4008B948 len 000146B8 (81 KiB): IRAM
I (341) spi_flash: detected chip: generic
I (345) spi_flash: flash io: dio
I (350) cpu_start: Starting scheduler on PRO CPU.
I (0) cpu_start: Starting scheduler on APP CPU.
E (459) esp.emac: emac_esp32_init(355): reset timeout
E (459) esp_eth: esp_eth_driver_install(222): init mac failed
ESP_ERROR_CHECK failed: esp_err_t 0x107 (ESP_ERR_TIMEOUT) at 0x4008548c
file: "../main/ethernet_example_main.c" line 122
func: app_main
expression: esp_eth_driver_install(&config, &eth_handle)

abort() was called at PC 0x4008548f on core 0


Backtrace:0x40081926:0x3ffb6fe00x40085499:0x3ffb7000 0x4008a63a:0x3ffb7020 0x4008548f:0x3ffb7090 0x400d6361:0x3ffb70b0 0x400ffd11:0x3ffb7140 0x400880e5:0x3ffb7160

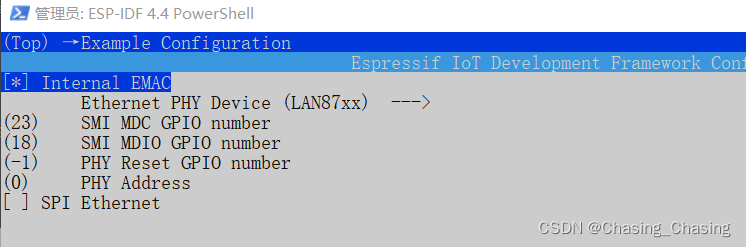

? ? ? ? 当然我肯定知道肯定要改一下代码或配置什么的，所以我就根据卖家提供的arduino代码对demo重新进行配置，如下图示。

????????配置重新编译结果还是一样，期间因为我接的网线是带poe的线，网线有供电，导致开发板电流达到1A，急剧发热。然后按卖家提供资料的配置还是不行，所以以为是芯片坏了，烧掉了。

????????后面看了下面官方的介绍，才知道自己少配置了。Ethernet - ESP32 - — ESP-IDF Programming Guide latest documentation

?????????下面的配置比较关键，是因为LAN8720A所使用的以太网电路没有外部晶振提供时钟的，如下图的第三种。

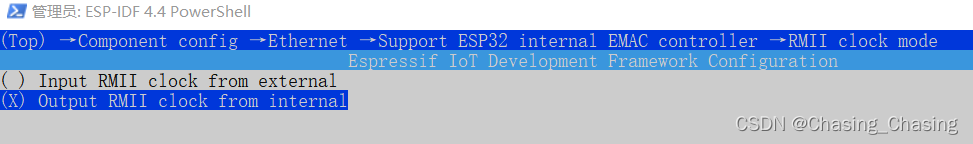

? ? ? ? LAN8720A所处于的模式是REF_CLK_IN模式，所以需要由esp32输出来提供50MHz时钟驱动网络芯片，因此配置完下面后，重新烧录代码就成功运行了。

????????经过上述配置，成功运行以太网demo。

I (240) boot: Disabling RNG early entropy source...
I (254) cpu_start: Pro cpu up.
I (254) cpu_start: Starting app cpu, entry point is 0x400810b4
I (0) cpu_start: App cpu up.
I (268) cpu_start: Pro cpu start user code
I (268) cpu_start: cpu freq: 160000000
I (268) cpu_start: Application information:
I (273) cpu_start: Project name:     ethernet_basic
I (278) cpu_start: App version:      v4.4-dirty
I (283) cpu_start: Compile time:     Apr  7 2022 18:19:57
I (289) cpu_start: ELF file SHA256:  f076945ba85f01ea...
I (295) cpu_start: ESP-IDF:          v4.4-dirty
I (301) heap_init: Initializing. RAM available for dynamic allocation:
I (308) heap_init: At 3FFAE6E0 len 00001920 (6 KiB): DRAM
I (314) heap_init: At 3FFB3BF8 len 0002C408 (177 KiB): DRAM
I (320) heap_init: At 3FFE0440 len 00003AE0 (14 KiB): D/IRAM
I (327) heap_init: At 3FFE4350 len 0001BCB0 (111 KiB): D/IRAM
I (333) heap_init: At 4008B948 len 000146B8 (81 KiB): IRAM
I (340) spi_flash: detected chip: generic
I (344) spi_flash: flash io: dio
I (349) cpu_start: Starting scheduler on PRO CPU.
I (0) cpu_start: Starting scheduler on APP CPU.
I (369) system_api: Base MAC address is not set
I (369) system_api: read default base MAC address from EFUSE
I (389) esp_eth.netif.netif_glue: 78:e3:6d:1b:24:af
I (389) esp_eth.netif.netif_glue: ethernet attached to netif
I (4389) eth_example: Ethernet Started
I (6389) eth_example: Ethernet Link Up
I (6389) eth_example: Ethernet HW Addr 78:e3:6d:1b:24:af
I (8859) esp_netif_handlers: eth ip: 192.168.0.213, mask: 255.255.255.0, gw: 192.168.0.1
I (8859) eth_example: Ethernet Got IP Address
I (8859) eth_example: ~~~~~~~~~~~
I (8859) eth_example: ETHIP:192.168.0.213
I (8869) eth_example: ETHMASK:255.255.255.0
I (8869) eth_example: ETHGW:192.168.0.1
I (8879) eth_example: ~~~~~~~~~~~

over！
