OLED显示
基本参数：
?OLED（Organic Light Emitting Diode）：有机发光二极管
?OLED显示屏：性能优异的新型显示屏，具有功耗低、相应速度快、宽视角、轻薄柔韧等特点
?0.96寸OLED模块：小巧玲珑、占用接口少、简单易用，是电子设计中非常常见的显示屏模块
?供电：3~5.5V，通信协议：I2C/SPI，分辨率：128*64
本篇文章默认你是有一些I2C通讯的基础知识的，所以在源码展示部分有直接调用的 I2C_SAND_BYTE（），I2C发送数据函数
常见的硬件连接方式：
电亮方式：
将分辨率为128*64的屏幕分为多个8x8像素块来显示：
那么以8x8像素块为基本单位而言，行就有8个像素块，列就有16个像素块
单独对于一个小的8x8像素块而言，根据芯片的配置，采用“纵向取模下高位的方式”。即如图电亮第一列的像素点需要输入的数据为0x47，转化为二进制数据为0100 0111。二进制数的高位在下，低位在上。“1”表示电亮，“0”表示熄灭
对于英文，数字，汉字而言需要用不同方式的8x8元素块进行拼接显示，这样显示的效果最好，后续会详细说明
（下面的代码注释紊乱是编码的问题，复制到Keil5里选择ANSI编码就没问题了）
本篇默认有I2C的基础
OLED初始化
#define OLED0561_ADD 0x78 // OLEDμ?I2Cμ??·￡¨???1DT??￡?
#define COM 0x00 // OLED ??á?￡¨???1DT??￡?
#define DAT 0x40 // OLED êy?Y￡¨???1DT??￡?
void OLED0561_Init (void){//OLED?á?a??ê?3?ê??ˉ
OLED_DISPLAY_OFF(); //OLED1???ê?
OLED_DISPLAY_CLEAR(); //?????á???úèY
OLED_DISPLAY_ON(); //OLED?á3?ê??μéè??2￠?a??ê?
}
void OLED_DISPLAY_ON (void){//OLED?á3?ê??μéè??2￠?a??ê?
u8 buf[28]={
0xae,//0xae:1???ê?￡?0xaf:?a??ê?
0x00,0x10,//?aê?μ??·￡¨??×??ú￡?
0xd5,0x80,//??ê?ê±?ó?μ?ê￡?
0xa8,0x3f,//?′ó??ê￡?
0xd3,0x00,//??ê???ò?￡?
0XB0,//D′è?ò3????￡¨0xB0~7￡?
0x40,//??ê??aê???
0x8d,0x14,//VCCμ??′
0xa1,//éè??????D?ó3é?￡?
0xc8,//COMê?3?·?ê?￡?
0xda,0x12,//COMê?3?·?ê?￡?
0x81,0xff,//??±è?è￡???á?￡o0x81￡?êy?Y￡o0~255￡¨255×???￡?
0xd9,0xf1,//3?μ??ü?ú￡?
0xdb,0x30,//VCCμ??1ê?3?
0x20,0x00,//?????°?·éè??
0xa4,//0xa4:?y3￡??ê?￡?0xa5:??ì?μ?áá
0xa6,//0xa6:?y3￡??ê?￡?0xa7:·′é???ê?
0xaf//0xae:1???ê?￡?0xaf:?a??ê?
}; //
I2C_SAND_BUFFER(OLED0561_ADD,COM,buf,28);
}
void OLED_DISPLAY_OFF (void){//OLED?á1???ê?
u8 buf[3]={
0xae,//0xae:1???ê?￡?0xaf:?a??ê?
0x8d,0x10,//VCCμ??′
}; //
I2C_SAND_BUFFER(OLED0561_ADD,COM,buf,3);
}
void OLED_DISPLAY_LIT (u8 x){//OLED?ááá?èéè??￡¨0~255￡?
I2C_SAND_BYTE(OLED0561_ADD,COM,0x81);
I2C_SAND_BYTE(OLED0561_ADD,COM,x);//áá?è?μ
}
void OLED_DISPLAY_CLEAR(void){//???á2ù×÷
u8 j,t;
for(t=0xB0;t<0xB8;t++){ //éè???eê?ò3μ??·?a0xB0
I2C_SAND_BYTE(OLED0561_ADD,COM,t); //ò3μ??·￡¨′ó0xB0μ?0xB7￡?
I2C_SAND_BYTE(OLED0561_ADD,COM,0x10); //?eê?áDμ??·μ???4??
I2C_SAND_BYTE(OLED0561_ADD,COM,0x00); //?eê?áDμ??·μ?μí4??
//0x1000?a128￡??yo???ó|??ê?×?·?ê±oòμ?128áD
for(j=0;j<132;j++){ //??ò3?úèYì?3?(2?·??á??êμ?ê?éò??y?ˉ132áD￡?μ?ê????ü??ê??D??μ?128áD￡??ùò??aà??aá????á3?·?￡???132áDD′è?0)
I2C_SAND_BYTE(OLED0561_ADD,DAT,0x00);
}
}
}
OLED显示ASCLL表里面的字符
//??ê?ó￠??ó?êy×?8*16μ?ASCII??￡¨????μ?×￠êíóD?ó￡?oo×?±??aó￠??￡?
//è??￡′óD??a8*16￡?è??￡·?ê??a?°′óé?μ????±?°×Y?ò8μ????????±
void OLED_DISPLAY_8x16(u8 x, //??ê?oo×?μ?ò3×?±ê￡¨′ó0μ?7￡?￡¨′?′|2??éDT??￡?
u8 y, //??ê?oo×?μ?áD×?±ê￡¨′ó0μ?128áD￡???8áD?aò????ù±?μ￥??￡?×??à16*8￡?ê?è?μ?ê±oòò2ê?ò?x*8à′ê?è?￡?
u16 w){ //òa??ê?oo×?μ?±ào?
u8 j,t,c=0;
y=y+2; //òòOLED?áμ??ú???y?ˉD???ê?′ó0x02áD×÷?a?áé?×?×óò?áD￡??ùò?òa?óé???ò?á?(êμ?ê?éò??y?ˉ132DD￡?μ?ê?????ê??D??μ?128DD￡??ùò?+2±￡?¤×?·?2??ò×ó??ò?2??????￡???óú?a??OLEDμ??ú???y?ˉD???????￡?2?í?μ?D???2?ò??ù)
for(t=0;t<2;t++){
I2C_SAND_BYTE(OLED0561_ADD,COM,0xb0+x); //ò3μ??·￡¨′ó0xB0μ?0xB7￡?
I2C_SAND_BYTE(OLED0561_ADD,COM,y/16+0x10); //?eê?áDμ??·μ???4??(×￠òa?óé???ò??μ0x10)
I2C_SAND_BYTE(OLED0561_ADD,COM,y%16); //?eê?áDμ??·μ?μí4??
for(j=0;j<8;j++)//??ò3?úèYì?3?
{
I2C_SAND_BYTE(OLED0561_ADD,DAT,ASCII_8x16[(w*16)+c-512]);//?aá?oíASII±í??ó|òa??512(?aà?11?¨μ?±íê?′óASCLL±íμ?ê?????32μ?127μ?×?·?￡??ùò?òa??ê?32o?×?·?ê±￡o32*16-512=0?íè?μ?ê?±í?Dμ?μúò????a??)
c++;
}
x++; //ò3μ??·?ó1(ê?è?ó￠??ê±￡?′ó×óμ?óòμ?áDμ??·2?±?￡?DD+1)
}
}
void OLED_DISPLAY_8x16(u8 x , u8 y , u16 w)
这里需要说明的是 y 的取值范围为0 ~ 128列，调用函数的时候，y输入x*8，x=0 ~ 15，一共可以表示16列字母或者数字。当然如果你觉得位置不如意的话，依据可以将y设置为0 ~ 128中间的一个数字，而不仅仅局限于那16个固定的列坐标。在设计函数的时候并没有将y设计成只输入8x8块元素的列数，而是128列像素点的列数，这样显示的时候更具有灵活性。
当然如果你觉得输入x * 8比较麻烦，也可以将y=y * 8内嵌到函数中。后面的显示字符串也确实是这么处理的
发送数据函数
void OLED_DISPLAY_8x16(u8 x , u8 y , u16 w)里面嵌套的for循环：
这里的 j 就是显示多少列的意思，对于显示ASCLL码，8列就够了，显示汉字的时候需要16列，显示图片的时候就是显示图片的宽度像素值，0~128中间的某个值。
{(w*16)+c-512}是一个将ASCLL对应字符的标号转化为数组ASCII_8x16中的序号的公式，很简单验证：因为我们这里是ASCLL表中第32号到127号，如果我们要表示ASCLL中的第32号元素那么有：(32 * 16)-512=0,恰好是数组中的第一个元素。（ASCLL数组在文末有展示）
for(j=0;j<8;j++)
{ I2C_SAND_BYTE(OLED0561_ADD,DAT,ASCII_8x16[(w*16)+c-512]);
c++;
}
OLED显示字符串
//?òLCM·￠?íò???×?·?′?,3¤?è64×?·????ú?￡
//ó|ó?￡oOLED_DISPLAY_8_16_BUFFER(0," DoYoung Studio");
void OLED_DISPLAY_8x16_BUFFER(u8 row,u8 *str){
u8 r=0; //ó￠??×?·?′ó0?aê?ê?è?￡?è?oóè?1???òa??ò?ò???×?·?μ?????￡??ò???μ8??áD????￡????′?ú×?·?′?à???′ò????
while(*str != '\0'){
OLED_DISPLAY_8x16(row,r*8,*str++);
r++;
}
}
对于字符串的表示，这里显然就用到我们刚刚说道的r*8来嵌入。
初始列默认为第0列(r=0)，需要左移显示的字符时，进行空格操作。与显示单个字符一样，但是不管怎么说每行最多显示16列
OLED显示汉字
//??ê?oo×?16*16
//è??￡′óD??a16*16￡?è??￡·?ê??a?°′ó×óμ?óò′óé?μ????±?°×Y?ò8μ????????±
void OLED_DISPLAY_16x16(u8 x, //??ê?oo×?μ?ò3×?±ê￡¨′ó0xB0μ?0xB7￡?
u8 y, //??ê?oo×?μ?áD×?±ê￡¨′ó0μ?63￡?
u16 w){ //òa??ê?oo×?μ?±ào?
u8 j,t,c=0;
for(t=0;t<2;t++){
I2C_SAND_BYTE(OLED0561_ADD,COM,0xb0+x); //ò3μ??·￡¨′ó0xB0μ?0xB7￡?
I2C_SAND_BYTE(OLED0561_ADD,COM,y/16+0x10); //?eê?áDμ??·μ???4??
I2C_SAND_BYTE(OLED0561_ADD,COM,y%16); //?eê?áDμ??·μ?μí4??
for(j=0;j<16;j++){ //??ò3?úèYì?3?
I2C_SAND_BYTE(OLED0561_ADD,DAT,GB_16[(w*32)+c]);
c++;}x++; //ò3μ??·?ó1
}
I2C_SAND_BYTE(OLED0561_ADD,COM,0xAF); //?a??ê?
}
细心观察发现，汉字的显示和单个英文或者数字相似，只是第二个 for 循环中的 j 值的取值范围以及字库不同：GB_16[(w*32)+c]
汉字显示两行，每行有2个8x8方块，即16列，所以 j = 16
一共就有32列，所以，每个汉字由32个数据构成，即w后面乘以32
OLED显示图片
仔细观察发现与初始化的息屏操作相似，息屏是将每一个像素点都置0，这里是根据提前生产好的数组PIC1[，]来显示。
void OLED_DISPLAY_PIC1(void){ //??ê?è??áí???
u8 m,i;
for(m=0;m<8;m++){//
I2C_SAND_BYTE(OLED0561_ADD,COM,0xb0+m);
I2C_SAND_BYTE(OLED0561_ADD,COM,0x10); //?eê?áDμ??·μ???4??
I2C_SAND_BYTE(OLED0561_ADD,COM,0x02); //?eê?áDμ??·μ?μí4??
for(i=0;i<128;i++){//?íè?128′?í?????ê??úèY
I2C_SAND_BYTE(OLED0561_ADD,DAT,PIC1[i+m*128]);}
}
}

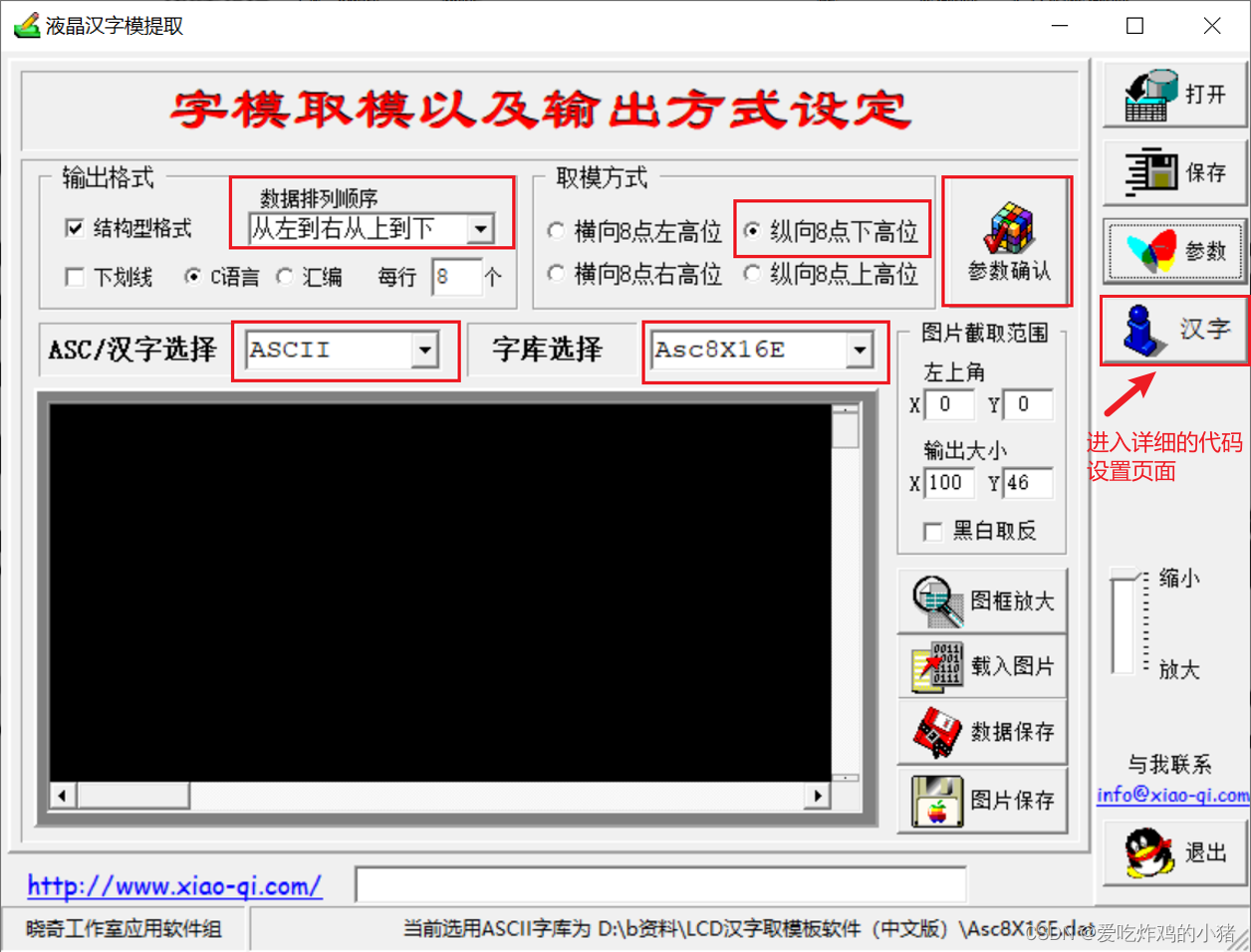

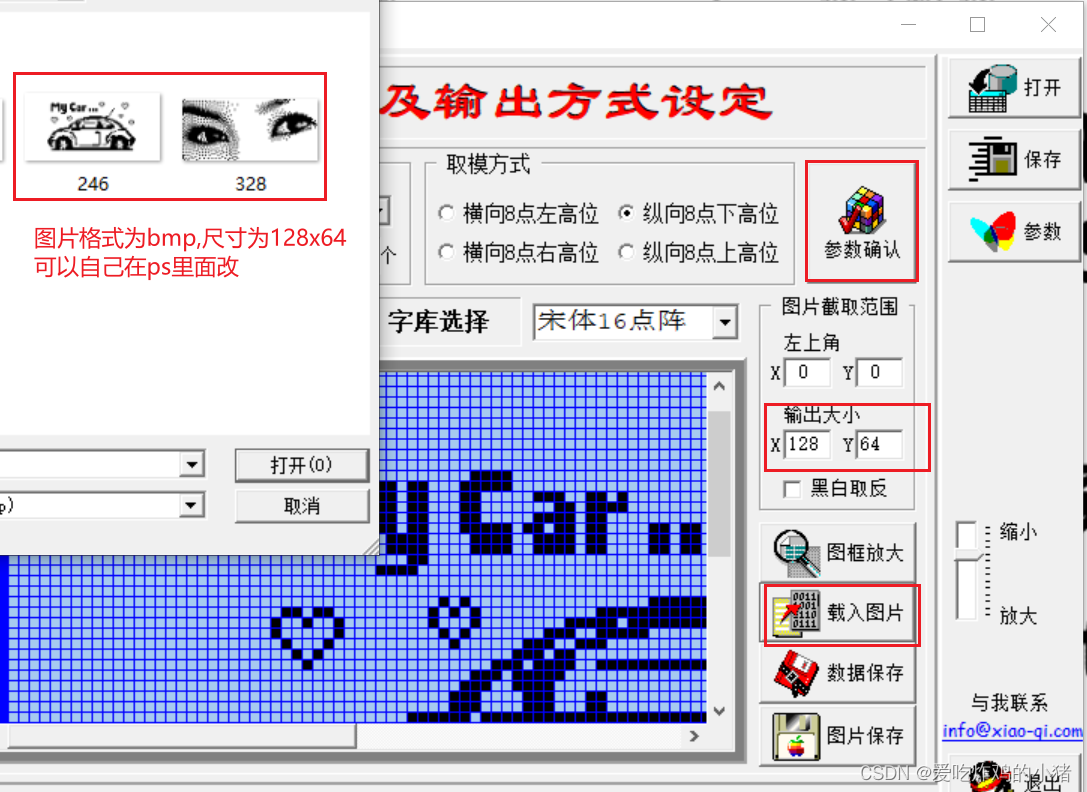

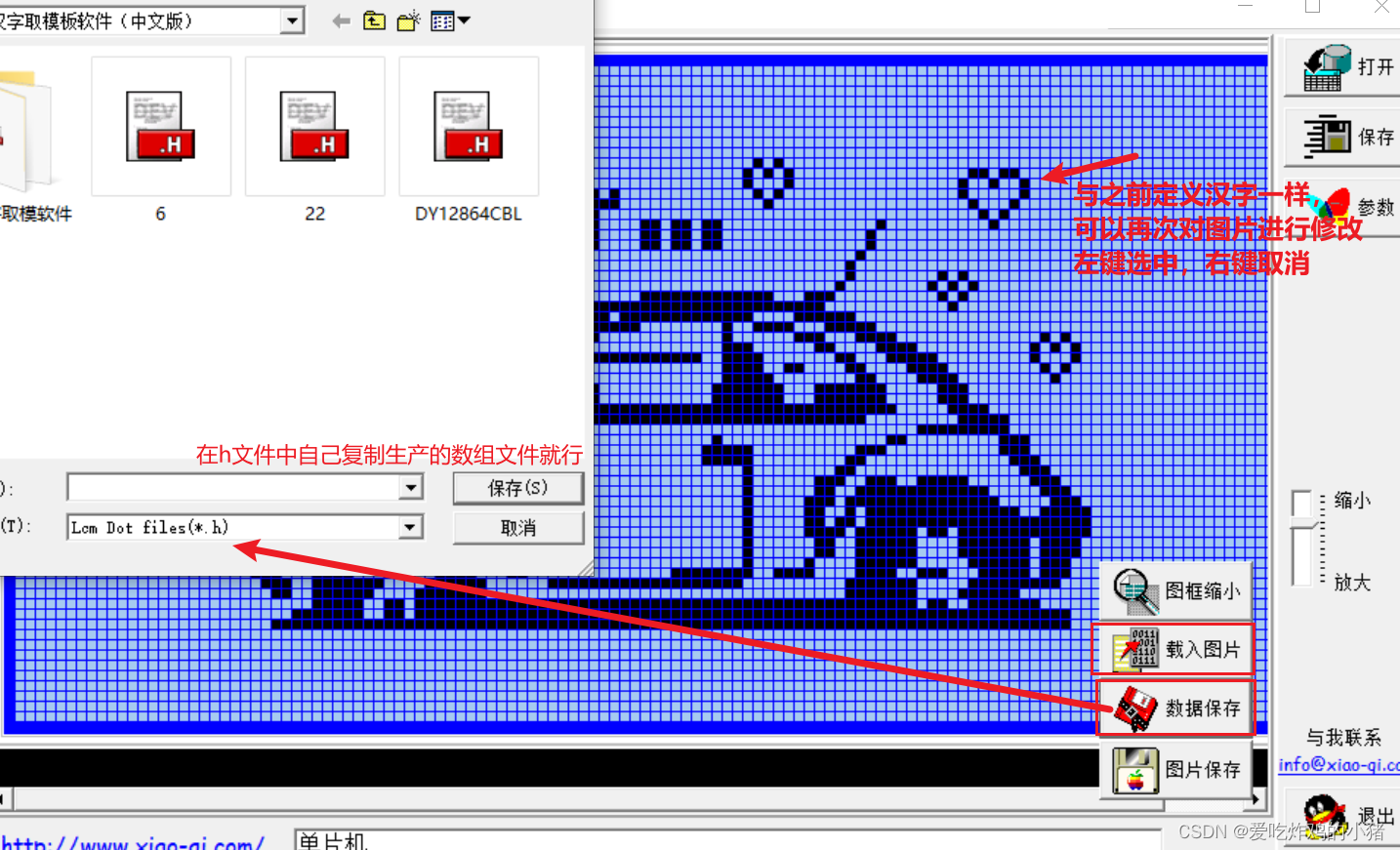

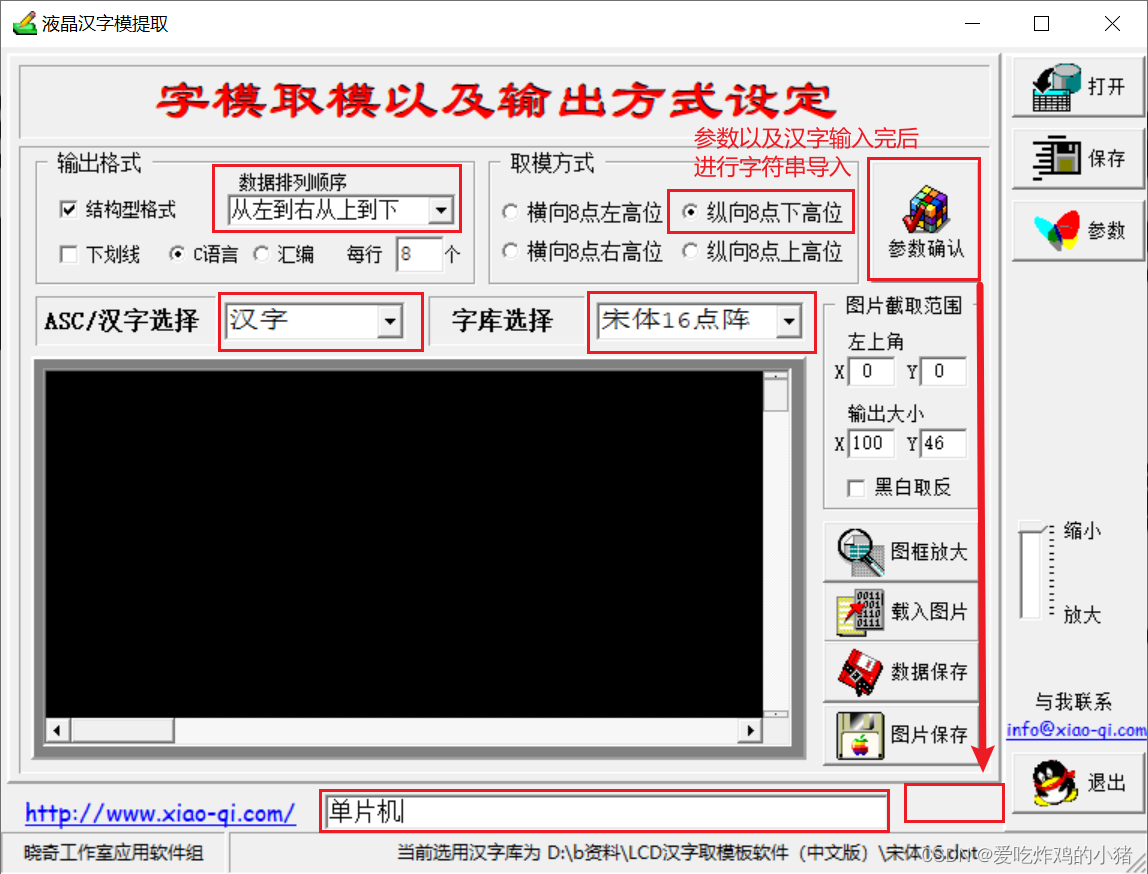

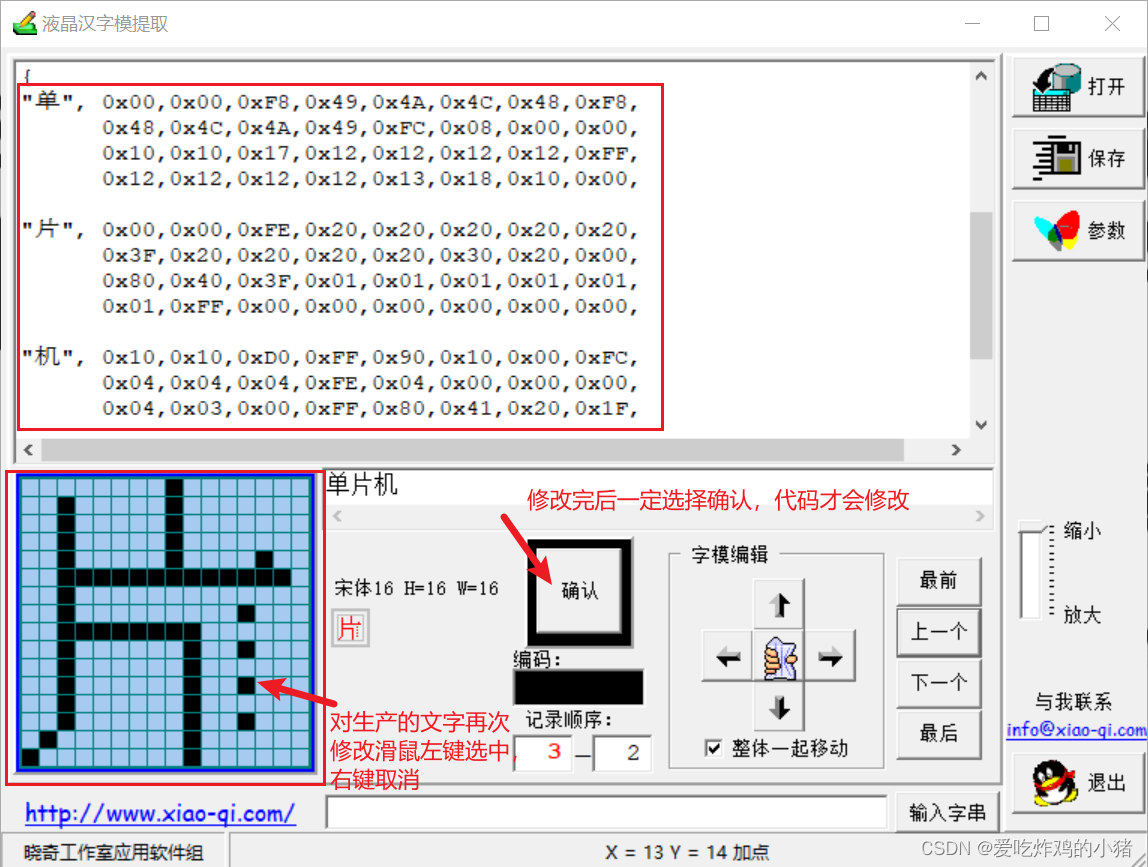

ASCLL库，字模库以及图片库的自定义化生成：
