1.函数解析
1.SEGGER_RTT_ConfigUpBuffer 和 SEGGER_RTT_ConfigDownBuffer 配置说明
SEGGER_RTT_ConfigUpBuffer 和 SEGGER_RTT_ConfigDownBuffer 配置说明
* BufferIndex 配置的通道Index of the buffer to configure.
* sName 通道别名Pointer to a constant name string.
* pBuffer 指定通道缓冲区，也可以不指定 填 0Pointer to a buffer to be used.
* BufferSize 指定通道缓冲区大小 Size of the buffer.
* Flags 可选的标志如下 Operating modes. Define behavior if buffer is full (not enough space for entire message).
*
#define SEGGER_RTT_MODE_NO_BLOCK_SKIP (0) // 跳过 Skip. Do not block, output nothing. (Default)
#define SEGGER_RTT_MODE_NO_BLOCK_TRIM (1) // 传多少算多少 Trim: Do not block, output as much as fits.
#define SEGGER_RTT_MODE_BLOCK_IF_FIFO_FULL (2) // 阻塞传输 Block: Wait until there is space in the buffer.
#define SEGGER_RTT_MODE_MASK (3)
# RTT Viewer 示例代码分析
1.2阻塞等待一个输入字符：
SEGGER_RTT_WaitKey();//至少等待一个字符后才返回 死等
1.3输出一个字符串：
SEGGER_RTT_WriteString(0, “\r\nSelected <2>. Configuring RTT and starting…\r\n”);
1.4检测是否有数据可输入
SEGGER_RTT_HasKey(); //检查缓冲区至少有一个数据可读，>0个返回 1 ==0 返回0
1.5 读取一个已经收到的数据
SEGGER_RTT_GetKey(); //这里就是把之前的空格字符读取走

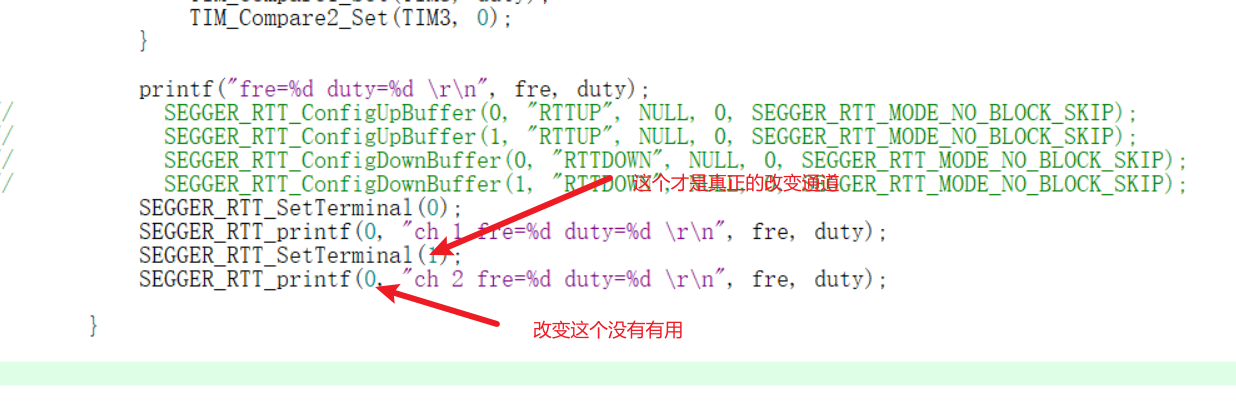

1.4 改变数据输出通道
SEGGER_RTT_SetTerminal(1);
RTT 重定向
int fputc(int ch, FILE *f)
{
#if defined (RTT)
SEGGER_RTT_PutChar(0, ch);
#else
/*清除标志位*/
USART_ClearFlag(USART1,USART_FLAG_TC);
/* 发送一个字节数据到USART1 */
USART_SendData(USART1, (uint8_t) ch);
/* 等待发送完毕 */
while (USART_GetFlagStatus(USART1, USART_FLAG_TC) == RESET);
#endif
return (ch);
}
RTT Viewer打印float
RTT Viewer不能打印出float类型的数据，要想打印浮点数，最简单的办法就是将浮点型数据转为字符串
int sprintf(char *str, const char *format, ...);
int snprintf(char *str, size_t size, const char *format, ...);
输出颜色改变
在头文件中定义了以下内容：
#define RTT_CTRL_RESET "\x1B[0m" // Reset to default colors
#define RTT_CTRL_CLEAR "\x1B[2J" // Clear screen, reposition cursor to top left
#define RTT_CTRL_TEXT_BLACK "\x1B[2;30m"
#define RTT_CTRL_TEXT_RED "\x1B[2;31m"
#define RTT_CTRL_TEXT_GREEN "\x1B[2;32m"
#define RTT_CTRL_TEXT_YELLOW "\x1B[2;33m"
#define RTT_CTRL_TEXT_BLUE "\x1B[2;34m"
#define RTT_CTRL_TEXT_MAGENTA "\x1B[2;35m"
#define RTT_CTRL_TEXT_CYAN "\x1B[2;36m"
#define RTT_CTRL_TEXT_WHITE "\x1B[2;37m"
#define RTT_CTRL_TEXT_BRIGHT_BLACK "\x1B[1;30m"
#define RTT_CTRL_TEXT_BRIGHT_RED "\x1B[1;31m"
#define RTT_CTRL_TEXT_BRIGHT_GREEN "\x1B[1;32m"
#define RTT_CTRL_TEXT_BRIGHT_YELLOW "\x1B[1;33m"
#define RTT_CTRL_TEXT_BRIGHT_BLUE "\x1B[1;34m"
#define RTT_CTRL_TEXT_BRIGHT_MAGENTA "\x1B[1;35m"
#define RTT_CTRL_TEXT_BRIGHT_CYAN "\x1B[1;36m"
#define RTT_CTRL_TEXT_BRIGHT_WHITE "\x1B[1;37m"
#define RTT_CTRL_BG_BLACK "\x1B[24;40m"
#define RTT_CTRL_BG_RED "\x1B[24;41m"
#define RTT_CTRL_BG_GREEN "\x1B[24;42m"
#define RTT_CTRL_BG_YELLOW "\x1B[24;43m"
#define RTT_CTRL_BG_BLUE "\x1B[24;44m"
#define RTT_CTRL_BG_MAGENTA "\x1B[24;45m"
#define RTT_CTRL_BG_CYAN "\x1B[24;46m"
#define RTT_CTRL_BG_WHITE "\x1B[24;47m"
#define RTT_CTRL_BG_BRIGHT_BLACK "\x1B[4;40m"
#define RTT_CTRL_BG_BRIGHT_RED "\x1B[4;41m"
#define RTT_CTRL_BG_BRIGHT_GREEN "\x1B[4;42m"
#define RTT_CTRL_BG_BRIGHT_YELLOW "\x1B[4;43m"
#define RTT_CTRL_BG_BRIGHT_BLUE "\x1B[4;44m"
#define RTT_CTRL_BG_BRIGHT_MAGENTA "\x1B[4;45m"
#define RTT_CTRL_BG_BRIGHT_CYAN "\x1B[4;46m"
#define RTT_CTRL_BG_BRIGHT_WHITE "\x1B[4;47m"
使用方法

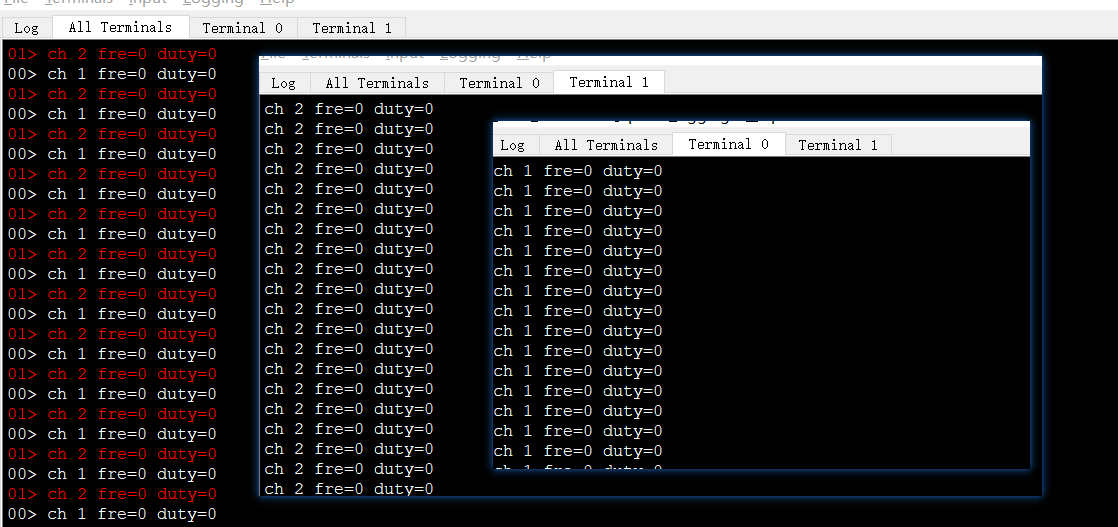

测试结果
2.官方示例
2.1.数据输入示例
void input_test(void) {
//输出提示信息
SEGGER_RTT_WriteString(0, "SEGGER Real-Time-Terminal Sample\r\n");
//配置上传缓冲区
SEGGER_RTT_ConfigUpBuffer(0, NULL, NULL, 0, SEGGER_RTT_MODE_NO_BLOCK_SKIP);
do {
//死等一个按键数据
r = SEGGER_RTT_WaitKey();
//回显用户数据
SEGGER_RTT_Write(0, &r, 1);
r++;
} while (1);
}
2.2.打印示例
void rtt_vrewer_test(void) {
SEGGER_RTT_ConfigUpBuffer(0, NULL, NULL, 0, SEGGER_RTT_MODE_BLOCK_IF_FIFO_FULL);
SEGGER_RTT_WriteString(0, "SEGGER Real-Time-Terminal Sample\r\n\r\n");
SEGGER_RTT_WriteString(0, "###### Testing SEGGER_printf() ######\r\n");
SEGGER_RTT_printf(0, "printf Test: %%c, 'S' : %c.\r\n", 'S');
SEGGER_RTT_printf(0, "printf Test: %%5c, 'E' : %5c.\r\n", 'E');
SEGGER_RTT_printf(0, "printf Test: %%-5c, 'G' : %-5c.\r\n", 'G');
SEGGER_RTT_printf(0, "printf Test: %%5.3c, 'G' : %-5c.\r\n", 'G');
SEGGER_RTT_printf(0, "printf Test: %%.3c, 'E' : %-5c.\r\n", 'E');
SEGGER_RTT_printf(0, "printf Test: %%c, 'R' : %c.\r\n", 'R');
SEGGER_RTT_WriteString(0,"-------------------------------------------------------\r\n");
SEGGER_RTT_printf(0, "printf Test: %%s, \"RTT\" : %s.\r\n", "RTT");
SEGGER_RTT_printf(0, "printf Test: %%s, \"RTT\\r\\nRocks.\" : %s.\r\n", "RTT\r\nRocks.");
SEGGER_RTT_WriteString(0,"-------------------------------------------------------\r\n");
SEGGER_RTT_printf(0, "printf Test: %%u, 12345 : %u.\r\n", 12345);
SEGGER_RTT_printf(0, "printf Test: %%+u, 12345 : %+u.\r\n", 12345);
SEGGER_RTT_printf(0, "printf Test: %%.3u, 12345 : %.3u.\r\n", 12345);
SEGGER_RTT_printf(0, "printf Test: %%.6u, 12345 : %.6u.\r\n", 12345);
SEGGER_RTT_printf(0, "printf Test: %%6.3u, 12345 : %6.3u.\r\n", 12345);
SEGGER_RTT_printf(0, "printf Test: %%8.6u, 12345 : %8.6u.\r\n", 12345);
SEGGER_RTT_printf(0, "printf Test: %%08u, 12345 : %08u.\r\n", 12345);
SEGGER_RTT_printf(0, "printf Test: %%08.6u, 12345 : %08.6u.\r\n", 12345);
SEGGER_RTT_printf(0, "printf Test: %%0u, 12345 : %0u.\r\n", 12345);
SEGGER_RTT_printf(0, "printf Test: %%-.6u, 12345 : %-.6u.\r\n", 12345);
SEGGER_RTT_printf(0, "printf Test: %%-6.3u, 12345 : %-6.3u.\r\n", 12345);
SEGGER_RTT_printf(0, "printf Test: %%-8.6u, 12345 : %-8.6u.\r\n", 12345);
SEGGER_RTT_printf(0, "printf Test: %%-08u, 12345 : %-08u.\r\n", 12345);
SEGGER_RTT_printf(0, "printf Test: %%-08.6u, 12345 : %-08.6u.\r\n", 12345);
SEGGER_RTT_printf(0, "printf Test: %%-0u, 12345 : %-0u.\r\n", 12345);
SEGGER_RTT_WriteString(0,"-------------------------------------------------------\r\n");
SEGGER_RTT_printf(0, "printf Test: %%u, -12345 : %u.\r\n", -12345);
SEGGER_RTT_printf(0, "printf Test: %%+u, -12345 : %+u.\r\n", -12345);
SEGGER_RTT_printf(0, "printf Test: %%.3u, -12345 : %.3u.\r\n", -12345);
SEGGER_RTT_printf(0, "printf Test: %%.6u, -12345 : %.6u.\r\n", -12345);
SEGGER_RTT_printf(0, "printf Test: %%6.3u, -12345 : %6.3u.\r\n", -12345);
SEGGER_RTT_printf(0, "printf Test: %%8.6u, -12345 : %8.6u.\r\n", -12345);
SEGGER_RTT_printf(0, "printf Test: %%08u, -12345 : %08u.\r\n", -12345);
SEGGER_RTT_printf(0, "printf Test: %%08.6u, -12345 : %08.6u.\r\n", -12345);
SEGGER_RTT_printf(0, "printf Test: %%0u, -12345 : %0u.\r\n", -12345);
SEGGER_RTT_printf(0, "printf Test: %%-.6u, -12345 : %-.6u.\r\n", -12345);
SEGGER_RTT_printf(0, "printf Test: %%-6.3u, -12345 : %-6.3u.\r\n", -12345);
SEGGER_RTT_printf(0, "printf Test: %%-8.6u, -12345 : %-8.6u.\r\n", -12345);
SEGGER_RTT_printf(0, "printf Test: %%-08u, -12345 : %-08u.\r\n", -12345);
SEGGER_RTT_printf(0, "printf Test: %%-08.6u, -12345 : %-08.6u.\r\n", -12345);
SEGGER_RTT_printf(0, "printf Test: %%-0u, -12345 : %-0u.\r\n", -12345);
SEGGER_RTT_WriteString(0,"-------------------------------------------------------\r\n");
SEGGER_RTT_printf(0, "printf Test: %%d, -12345 : %d.\r\n", -12345);
SEGGER_RTT_printf(0, "printf Test: %%+d, -12345 : %+d.\r\n", -12345);
SEGGER_RTT_printf(0, "printf Test: %%.3d, -12345 : %.3d.\r\n", -12345);
SEGGER_RTT_printf(0, "printf Test: %%.6d, -12345 : %.6d.\r\n", -12345);
SEGGER_RTT_printf(0, "printf Test: %%6.3d, -12345 : %6.3d.\r\n", -12345);
SEGGER_RTT_printf(0, "printf Test: %%8.6d, -12345 : %8.6d.\r\n", -12345);
SEGGER_RTT_printf(0, "printf Test: %%08d, -12345 : %08d.\r\n", -12345);
SEGGER_RTT_printf(0, "printf Test: %%08.6d, -12345 : %08.6d.\r\n", -12345);
SEGGER_RTT_printf(0, "printf Test: %%0d, -12345 : %0d.\r\n", -12345);
SEGGER_RTT_printf(0, "printf Test: %%-.6d, -12345 : %-.6d.\r\n", -12345);
SEGGER_RTT_printf(0, "printf Test: %%-6.3d, -12345 : %-6.3d.\r\n", -12345);
SEGGER_RTT_printf(0, "printf Test: %%-8.6d, -12345 : %-8.6d.\r\n", -12345);
SEGGER_RTT_printf(0, "printf Test: %%-08d, -12345 : %-08d.\r\n", -12345);
SEGGER_RTT_printf(0, "printf Test: %%-08.6d, -12345 : %-08.6d.\r\n", -12345);
SEGGER_RTT_printf(0, "printf Test: %%-0d, -12345 : %-0d.\r\n", -12345);
SEGGER_RTT_WriteString(0,"-------------------------------------------------------\r\n");
SEGGER_RTT_printf(0, "printf Test: %%x, 0x1234ABC : %x.\r\n", 0x1234ABC);
SEGGER_RTT_printf(0, "printf Test: %%+x, 0x1234ABC : %+x.\r\n", 0x1234ABC);
SEGGER_RTT_printf(0, "printf Test: %%.3x, 0x1234ABC : %.3x.\r\n", 0x1234ABC);
SEGGER_RTT_printf(0, "printf Test: %%.6x, 0x1234ABC : %.6x.\r\n", 0x1234ABC);
SEGGER_RTT_printf(0, "printf Test: %%6.3x, 0x1234ABC : %6.3x.\r\n", 0x1234ABC);
SEGGER_RTT_printf(0, "printf Test: %%8.6x, 0x1234ABC : %8.6x.\r\n", 0x1234ABC);
SEGGER_RTT_printf(0, "printf Test: %%08x, 0x1234ABC : %08x.\r\n", 0x1234ABC);
SEGGER_RTT_printf(0, "printf Test: %%08.6x, 0x1234ABC : %08.6x.\r\n", 0x1234ABC);
SEGGER_RTT_printf(0, "printf Test: %%0x, 0x1234ABC : %0x.\r\n", 0x1234ABC);
SEGGER_RTT_printf(0, "printf Test: %%-.6x, 0x1234ABC : %-.6x.\r\n", 0x1234ABC);
SEGGER_RTT_printf(0, "printf Test: %%-6.3x, 0x1234ABC : %-6.3x.\r\n", 0x1234ABC);
SEGGER_RTT_printf(0, "printf Test: %%-8.6x, 0x1234ABC : %-8.6x.\r\n", 0x1234ABC);
SEGGER_RTT_printf(0, "printf Test: %%-08x, 0x1234ABC : %-08x.\r\n", 0x1234ABC);
SEGGER_RTT_printf(0, "printf Test: %%-08.6x, 0x1234ABC : %-08.6x.\r\n", 0x1234ABC);
SEGGER_RTT_printf(0, "printf Test: %%-0x, 0x1234ABC : %-0x.\r\n", 0x1234ABC);
SEGGER_RTT_WriteString(0,"-------------------------------------------------------\r\n");
SEGGER_RTT_printf(0, "printf Test: %%p, &_Cnt : %p.\r\n", &_Cnt);
SEGGER_RTT_WriteString(0, "###### SEGGER_printf() Tests done. ######\r\n");
do {
_Cnt++;
} while (1);
}
2.3.菜单案例
/*
这个例子主要是测试数据输入和字符串输出
这个测试的例子主要功能是：
1. 开机提示输出请：进入选择 1 或 2
2. 持续等待输入输入，收到一个数据就判定是否是1 和 2
3. 如果输入是1：输出信息： "\r\nSelected <1>. Configuring RTT and starting...\r\n"
如果输入是2：输出信息：nSelected <2>. Configuring RTT and starting...
4. 在do while 循环内部窥探是否有数据输入，有数据的情况下判定数据是否 空格 按键输入，如果是空格数据输出信息： “Operation cancelled, going back to menu...”，并跳出循环
5. 读取刚刚的空格数据
6. 输出回车换行信息
7. 进入第1步
*/
void TEST(void)
{
int r;
int CancelOp;
do
{
_Cnt = 0;
SEGGER_RTT_WriteString(0, "SEGGER Real-Time-Terminal Sample\r\n");
SEGGER_RTT_WriteString(0, "Press <1> to continue in blocking mode (Application waits if necessary, no data lost)\r\n");
SEGGER_RTT_WriteString(0, "Press <2> to continue in non-blocking mode (Application does not wait, data lost if fifo full)\r\n");
do
{
r = SEGGER_RTT_WaitKey();//至少等待一个字符后才返回
}
while ((r != '1') && (r != '2'));
if (r == '1')
{
SEGGER_RTT_WriteString(0, "\r\nSelected <1>. Configuring RTT and starting...\r\n");
SEGGER_RTT_ConfigUpBuffer(0, NULL, NULL, 0, SEGGER_RTT_MODE_BLOCK_IF_FIFO_FULL);
}
else
{
SEGGER_RTT_WriteString(0, "\r\nSelected <2>. Configuring RTT and starting...\r\n");
//配置上传的缓冲区
SEGGER_RTT_ConfigUpBuffer(0, NULL, NULL, 0, SEGGER_RTT_MODE_NO_BLOCK_SKIP);
}
CancelOp = 0;
do
{
for (_Delay = 0; _Delay < 10000; _Delay++);
SEGGER_RTT_printf(0, "Count: %d. Press <Space> to get back to menu.\r\n", _Cnt++);
r = SEGGER_RTT_HasKey(); //检查缓冲区至少有一个数据可读，>0个返回 1 ==0 返回0
if (r)
{
CancelOp = (SEGGER_RTT_GetKey() == ' ') ? 1 : 0;
}
//
// Check if user selected to cancel the current operation
//
if (CancelOp)
{
//向指定通道写入一个字符串
SEGGER_RTT_WriteString(0, "Operation cancelled, going back to menu...\r\n");
break;
}
}
while (1);
//从缓冲区读取一个字符
SEGGER_RTT_GetKey(); //这里就是把之前的空格字符读取走
SEGGER_RTT_WriteString(0, "\r\n");
}
while (1);
}
