[开发工具]arcpy管线数据处理小工具

arcpy管线数据处理

一、需求

管线数据规整过程，需要依照标准给属性字段赋值，人工操作显然不现实，因此，需要借助arcpy开发小工具进行批量处理。

1. 给gdb中的每个 要素数据集 的 要素属性表字段 赋值，这里的赋值主要是根据设定好的规则进行属性字段赋值；



2. 管线表和管点表是有对应关系的，如：
   管线表中的 起点 和 终点 对应管点表的 PllCode，所以PllCode码变了，StartPoint 和EndPoint也要跟着变。

二、代码

#!/usr/bin/env python
# -*- coding:UTF-8 -*-
import arcpy
import os
import datetime
import sys
import logging

reload(sys)
sys.setdefaultencoding('utf8')

isDone = []

# Step0:错误日志输出
# 错误日志
# logger = logging.getLogger()  # 实例化一个logger对象
# logger.setLevel(logging.INFO)  # 设置初始显示级别
# file_handle = logging.FileHandler("log", encoding="UTF-8")
# stream_handle = logging.StreamHandler()
# fmt = logging.Formatter('%(asctime)s %(filename)s %(levelname)s %(message)s')
# file_handle.setFormatter(fmt)  # 文件句柄设置格式
# logger.addHandler(file_handle)  # logger对象绑定文件句柄


# 得到gdb中各要素的路径
def getShpPath():
    shpPath = []
    shpName = []
    for fs in arcpy.ListDatasets():
        for shp in arcpy.ListFeatureClasses(feature_dataset=fs):
            shpPath.append(fs + '/' + shp)
            shpName.append(shp)
    return shpPath, shpName


# 获取项目要素基础信息
def getShpInfo(shpPath):
    # path = 'JZD2015SZ009/JS_JS_GHXK_L_2015_009'
    fsName = shpPath.split('/', 1)[0]  # 要素数据集名称
    shpName = shpPath.split('/', 1)[1]  # 要素名称
    shpType = shpName.split('_')[3]  # 要素类型
    prjNo = fsName.split('JZD', 1)[1]  # 工程项目编码
    pllType = shpName.split('_')[0]  # 管线类别
    pllSubType = shpName.split('_')[1]  # 管线子类
    state = shpName.split('_')[2]
    if state == "GHXK":
        pipState = "规划管"
    else:
        pipState = "现状管"

    licCode = '建字第' + shpName.split('_')[4] + '市政' + shpName.split('_')[5] + '号'  # 规划许可证号
    dbDate = datetime.datetime.now()  # 数据库建库时间
    info = {
        "fsName": fsName,
        "shpName": shpName,
        "shpType": shpType,
        "prjNo": prjNo,
        "pllType": pllType,
        "pllSubType": pllSubType,
        "pipState": pipState,
        "licCode": licCode,
        "dbDate": dbDate.strftime("%Y-%m-%d %H:%M:%S")
    }  # 属性信息字典
    return info


# 改正编码（赋予管点PllCode,连带修改管线的StartPoint、EndPoint）
def correctCode(info, shpNameArr, path):
    if path in isDone:
        print "已处理过"
        if info["shpType"] == "L":  # 已处理过且是线的话，直接可以给出
            setLcode(path, info)
    else:
        if info["shpType"] == "L":
            pShpName = info["shpName"].replace("_L_", "_P_")
            if pShpName in shpNameArr:
                ex = info["prjNo"] + info["pllType"] + info["pllSubType"]
                lPath = path
                pPath = path.split('/', 1)[0] + '/' + pShpName
                p2lCodeUni(pPath, lPath, ex)
                setLcode(path, info)
            else:
                print "不存在" + pShpName
        if info["shpType"] == "P":
            ex = info["prjNo"] + info["pllType"] + info["pllSubType"]
            pPath = path
            lPath = path.split('/', 1)[0] + '/' + info["shpName"].replace("_P_", "_L_")
            p2lCodeUni(pPath, lPath, ex)


# 赋给点PllCode，并相应修改线 StartPoint、EndPoint
def p2lCodeUni(pPath, lPath, ex):
    fileds = ["OBJECTID", "PllCode", "StartPoint", "EndPoint"]
    pCursor = arcpy.UpdateCursor(pPath)
    # lCursor = arcpy.UpdateCursor(lPath)
    for pr in pCursor:
        objId = pr.getValue(fileds[0])
        newCode = ex + (5 - len(str(objId))) * '0' + str(objId)
        pllCode = pr.getValue(fileds[1])
        pr.setValue(fileds[1], newCode)
        pCursor.updateRow(pr)
        lCursor = arcpy.UpdateCursor(lPath)
        for lr in lCursor:
            # print pllCode, lr.getValue(fileds[2]), lr.getValue(fileds[3])
            if lr.getValue(fileds[2]) == pllCode:
                lr.setValue(fileds[2], newCode)
            if lr.getValue(fileds[3]) == pllCode:
                lr.setValue(fileds[3], newCode)
            lCursor.updateRow(lr)
        del lr, lCursor
    isDone.append(pPath)
    isDone.append(lPath)


# 设置属性值（管点和线）
def setAttr(info, p):
    # fileds = ["PrjNo", "LicCode", "PllCode", "PllType", "PllSubtype", "DBDate", "PipState"]
    inTable = p
    arcpy.CalculateField_management(inTable, "PrjNo", "\'" + info["prjNo"] + "\'", "PYTHON_9.3")
    arcpy.CalculateField_management(inTable, "LicCode", "\'" + info["licCode"] + "\'", "PYTHON_9.3")
    arcpy.CalculateField_management(inTable, "PllType", "\'" + info["pllType"] + "\'", "PYTHON_9.3")
    arcpy.CalculateField_management(inTable, "PllSubtype", "\'" + info["pllSubType"] + "\'", "PYTHON_9.3")
    arcpy.CalculateField_management(inTable, "DBDate", "\'" + info["dbDate"] + "\'", "PYTHON_9.3")
    arcpy.CalculateField_management(inTable, "PipState", "\'" + info["pipState"] + "\'", "PYTHON_9.3")


def setLcode(lPath, info):
    ex = info["prjNo"] + info["pllType"] + info["pllSubType"]
    filedList = ["StartPoint", "EndPoint", "PllCode"]
    cursor = arcpy.UpdateCursor(lPath)
    for row in cursor:
        start_p = row.getValue(filedList[0])
        end_p = row.getValue(filedList[1])
        code = ex + start_p[-5:] + "_" + end_p[-5:]
        row.setValue(filedList[2], code)
        cursor.updateRow(row)

三、源码链接和工具箱下载

见我上传的资源:https://download.csdn.net/download/m0_37970224/20618507

四、遇到的问题

遇到的问题，这里也一并记录

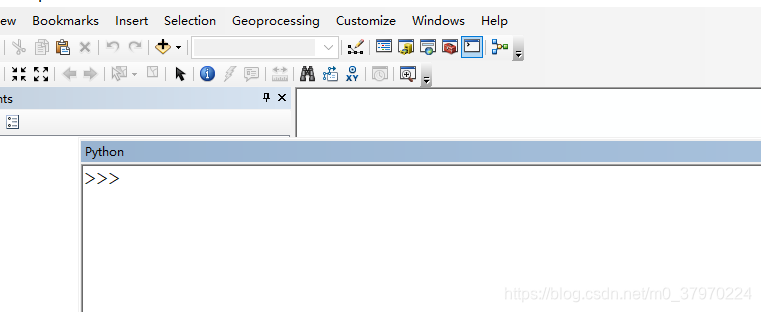

1. arcmap 里面可以写arcpy ，这是没错，但不好用，我想用pycharm，怎么整？

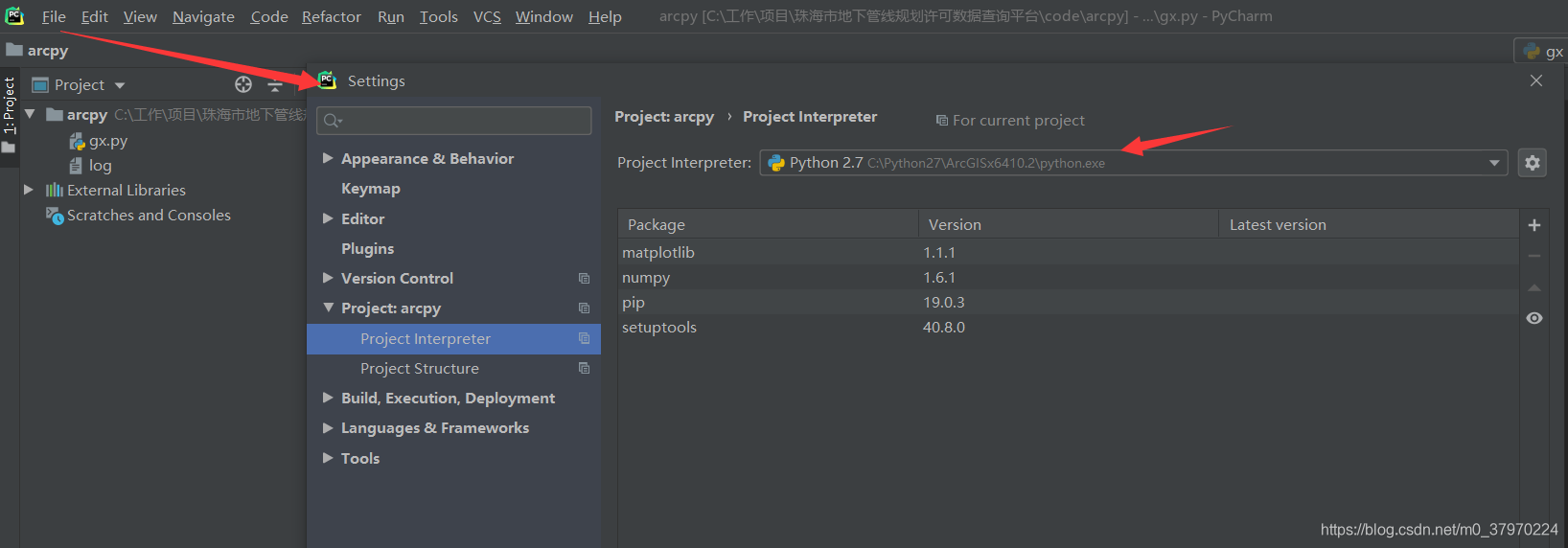

   打开pycharm，设置一下路径，ok


2. arcpy都有哪些函数方法，我咋用，
   传送门：https://resources.arcgis.com/zh-cn/help/main/10.1/index.html#/na/018v0000006p000000/

3.我在pycharm里写好了脚本，怎么做成tbx工具？
教程：https://blog.csdn.net/sinat_36226553/article/details/105846731

运行时候报错unexpected indent，报脚本缩进错误，莫名奇妙

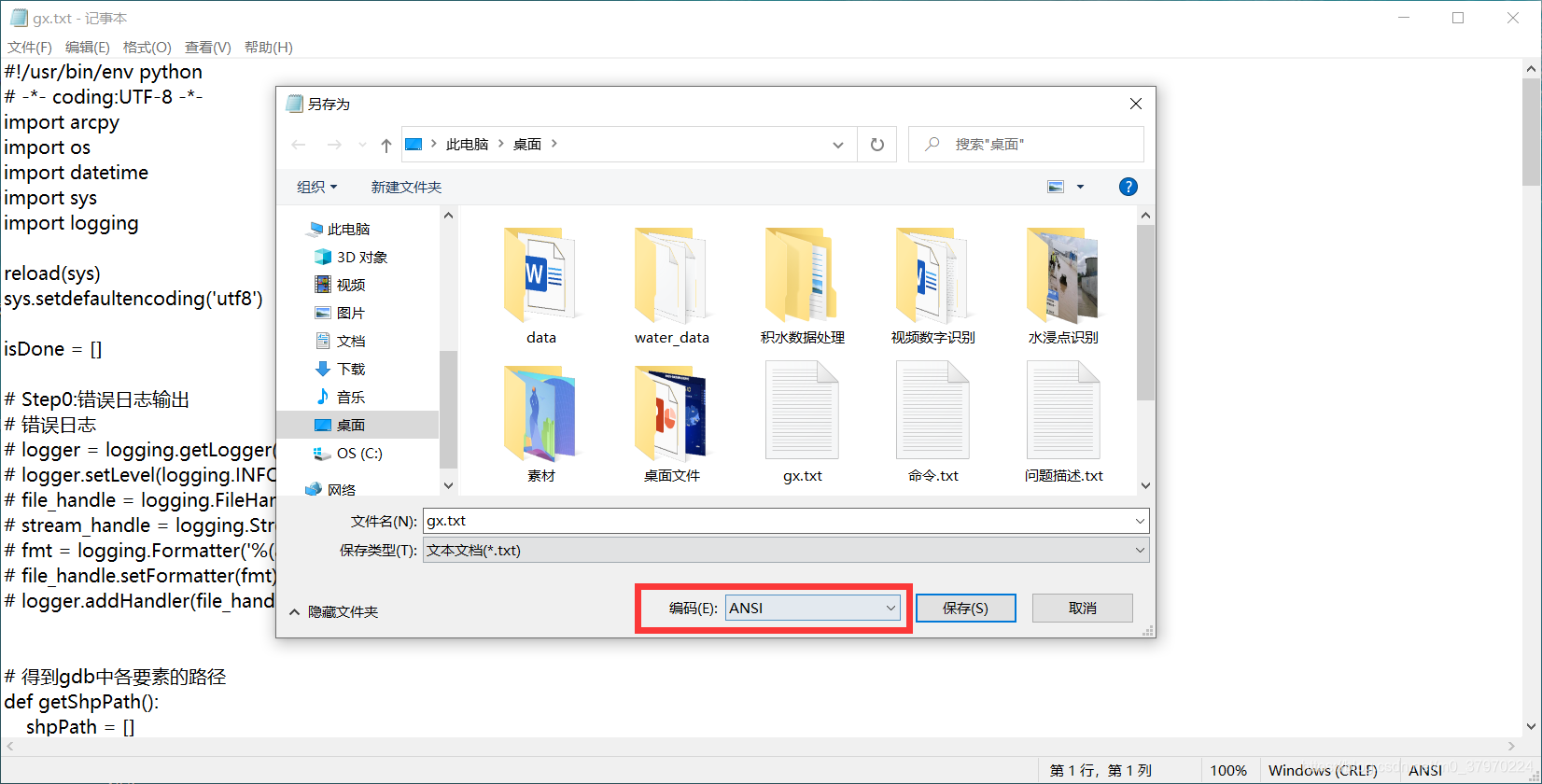

打开源代码，保存为ansi格式

参考：https://blog.51cto.com/u_12139363/3161608
