[开发工具]fusesource和eclipse的mqtt的demo实现

环境

mqtt服务器: apollo下载(下文中使用了apache-apollo-1.7.1-unix-distro)
mqtt pc端测试工具 :mqttfx下载

mqtt服务

解压apollo包到指定文件夹(如： E:\tools)
cmd打开dos窗口，进入 E:\tools\apache-apollo-1.7.1-unix-distro\apache-apollo-1.7.1\bin
执行命令创建名称为“mybroker”的broker apollo.cmd create mybroker；会在当前文件夹下生成mybroker的文件夹
进入mybroker文件夹执行apollo-broker.cmd run启动mqtt服务
访问本地mqtt服务 http://127.0.0.1:61680/console/index.html，默认用户名：admin，密码：password，可在users.properties新增修改

PC mqtt客户端mqttfx
exe一路下一步
创建连接

输入profileName，broker address

输入默认的mq账号密码，admin-password，点击ok

点击蓝色的connect按钮

连接成功，右边灰球变绿球

连接成功后，服务端可以看到连接的终端

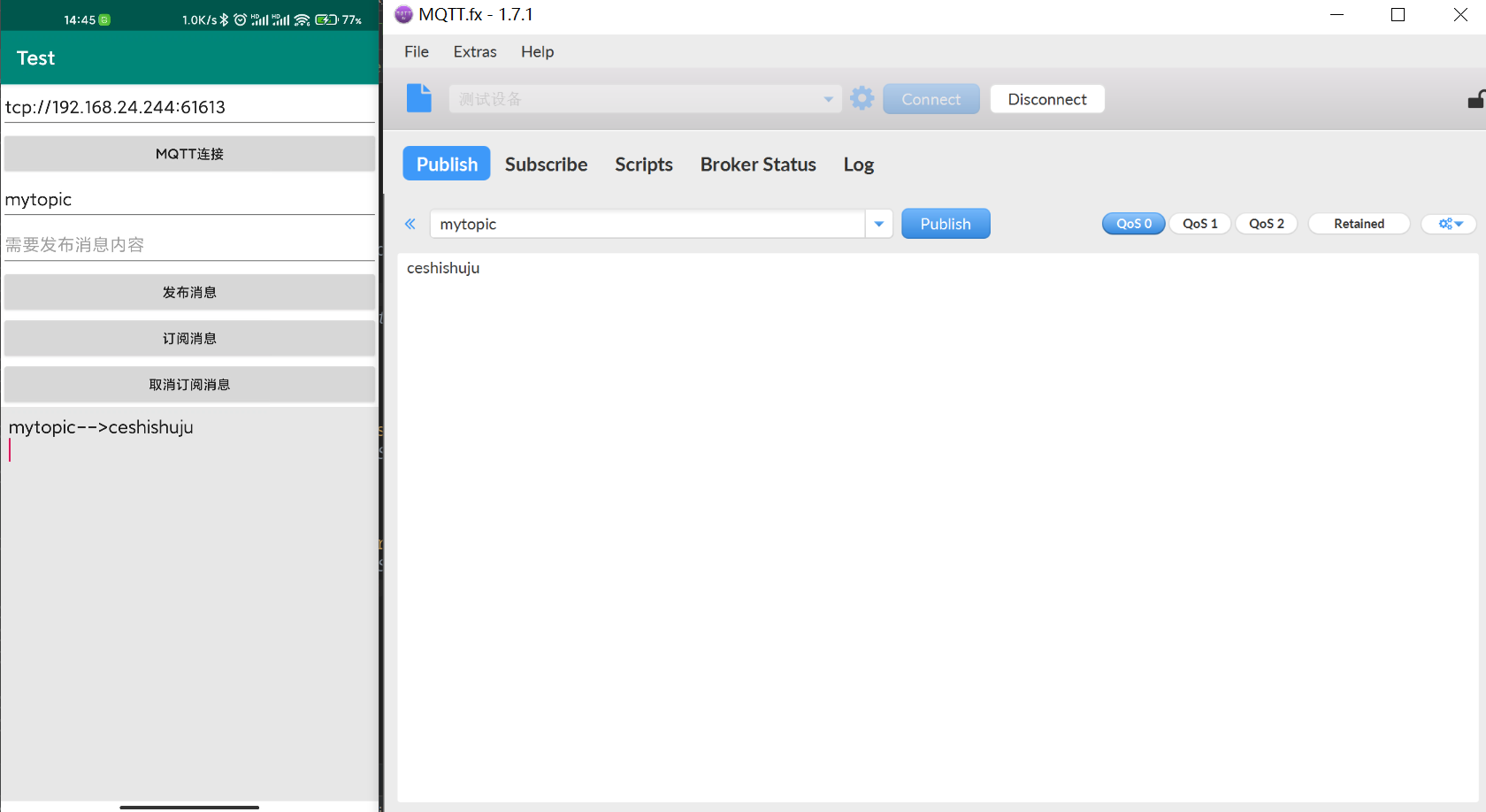

此时，在mqttfx上就可以自己和自己玩，订阅和发布

android实现mqtt

方式一（fusesource）：

添加依赖

    implementation 'org.fusesource.mqtt-client:mqtt-client:1.16'

界面MQTTActivity

public class MQTTActivity extends AppCompatActivity {

    private Unbinder unbinder;


    @BindView(R.id.et_mqtt_url)
    protected EditText et_mqtt_url;

    @BindView(R.id.btn_mq_connect)
    protected Button btn_mq_connect;

    @BindView(R.id.et_message_publish)
    protected EditText et_message_publish;

    @BindView(R.id.et_subscribe_topic)
    protected EditText et_subscribe_topic;

    @BindView(R.id.et_message_content)
    protected EditText et_message_content;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_mqtt);
        unbinder = ButterKnife.bind(this);
    }

    /*mqtt连接*/
    @OnClick(R.id.btn_mq_connect)
    protected void mqConnect() {
        String mqttUrl = et_mqtt_url.getText().toString();
        if (TextUtils.isEmpty(mqttUrl)) {
            ToastUtils.showShort("mq url为空");
            return;
        }
        MqttManager.getInstance().startConnect(mqttUrl, new MqttManager.OnMessageReceiver() {
            @Override
            public void onReceiver(String topic, String message) {
                //收到消息
                et_message_content.append(topic + "<--" + message + "\n");
            }
        });
    }

    /*mqtt消息发布*/
    @OnClick(R.id.btn_message_publish)
    public void publishMessage(View view) {
        String topic = et_subscribe_topic.getText().toString();
        if (TextUtils.isEmpty(topic)) {
            ToastUtils.showShort("topic为空");
            return;
        }
        String message = et_message_publish.getText().toString();
        if (TextUtils.isEmpty(message)) {
            ToastUtils.showShort("发布的消息内容为空");
            return;
        }
        MqttManager.getInstance().publishMessage(topic, message, new Callback<Void>() {
            @Override
            public void onSuccess(Void value) {
                Log.d("MQTTActivity", "publish onSuccess");
                et_message_content.append(topic + "-->" + message + "\n");
            }

            @Override
            public void onFailure(Throwable value) {
                Log.d("MQTTActivity", "publish onFailure");
            }
        });
    }

    /*mqtt消息订阅*/
    @OnClick(R.id.btn_message_subscribe)
    protected void mqSubscribe() {
        String topic = et_subscribe_topic.getText().toString();
        if (TextUtils.isEmpty(topic)) {
            ToastUtils.showShort("topic为空");
            return;
        }
        MqttManager.getInstance().addSubscribeMessage(topic);
    }

    /*取消mqtt消息订阅*/
    @OnClick(R.id.btn_message_unsubscribe)
    protected void mqUnSubscribe() {
        String topic = et_subscribe_topic.getText().toString();
        if (TextUtils.isEmpty(topic)) {
            ToastUtils.showShort("topic为空");
            return;
        }
        MqttManager.getInstance().unSubscribeMessage(topic);
    }

    @Override
    protected void onDestroy() {
        super.onDestroy();
        MqttManager.getInstance().disconnect();
        unbinder.unbind();
    }
}

MqttManager

public class MqttManager {
    private static final String TAG = "MqttManager";
    public static boolean isDisconnect = true;
    private final static short KEEP_ALIVE = 30;
    private static MqttManager instance;
    private static MQTT mqtt;
    private CallbackConnection callbackConnection;
    private OnMessageReceiver messageCallBack;

    private MqttManager() {
        mqtt = new MQTT();
        mqtt.setVersion("3.1.1");
        mqtt.setSendBufferSize(10 * 1024 * 1024);
        mqtt.setReceiveBufferSize(10 * 1024 * 1024);
        mqtt.setKeepAlive(KEEP_ALIVE);
        mqtt.setClientId("test");
        mqtt.setCleanSession(false);
        mqtt.setUserName("admin");
        mqtt.setPassword("password");
    }

    public static MqttManager getInstance() {
        if (instance == null) {
            instance = new MqttManager();
        }
        return instance;
    }


    public void startConnect(String url, OnMessageReceiver messageCallBack) {
        if (url == null || url.length() <= 0) {
            return;
        }
        this.messageCallBack = messageCallBack;
        if (callbackConnection != null) {
            callbackConnection.disconnect(new Callback<Void>() {
                @Override
                public void onSuccess(Void aVoid) {
                    Log.i(TAG, "disconnect success");
                }

                @Override
                public void onFailure(Throwable throwable) {
                    Log.i(TAG, "disconnect failed");
                    throwable.printStackTrace();
                }
            });
        }
        try {
            mqtt.setHost(url);
            mqtt.setCleanSession(true);
            callbackConnection = mqtt.callbackConnection();
            callbackConnection.listener(new ConnectListener());
            callbackConnection.connect(new ConnectCallBack());
        } catch (URISyntaxException e) {
            e.printStackTrace();
        }
    }

    /*订阅新的topic*/
    public void addSubscribeMessage(String topic) {
        if (callbackConnection != null) {
            Topic[] topics = {new Topic(topic, QoS.EXACTLY_ONCE)
            };
            callbackConnection.subscribe(topics, new Callback<byte[]>() {
                @Override
                public void onSuccess(byte[] bytes) {
                    ToastUtils.showShort("订阅成功");
                    Log.d(TAG, "订阅成功");
                }

                @Override
                public void onFailure(Throwable throwable) {
                    ToastUtils.showShort("订阅失败");
                    Log.d(TAG, "订阅失败:" + throwable.toString());
                    isDisconnect = true;
                    callbackConnection.disconnect(null);
                }
            });
        }
    }

    /*取消订阅某个topic*/
    public void unSubscribeMessage(String topic) {
        if (callbackConnection != null) {
            UTF8Buffer[] topics = {new UTF8Buffer(topic)};
            callbackConnection.unsubscribe(topics, new Callback<Void>() {
                @Override
                public void onSuccess(Void value) {
                    ToastUtils.showShort("取消订阅" + topic + "成功");
                }

                @Override
                public void onFailure(Throwable throwable) {
                    ToastUtils.showShort("取消订阅" + topic + "失败");
                    Log.i(TAG, "取消订阅" + topic + "失败:" + throwable.toString());
                }
            });
        }
    }

    /*发布消息*/
    public void publishMessage(String topic, String message, Callback callBack) {
        if (callbackConnection != null) {
            callbackConnection.getDispatchQueue().execute(new Runnable() {
                @Override
                public void run() {
                    callbackConnection.publish(topic, message.getBytes(), QoS.AT_MOST_ONCE, false, callBack);
                }
            });
        } else {
            isDisconnect = true;
        }
    }

    private class ConnectListener implements Listener {
        @Override
        public void onConnected() {
            Log.i(TAG, "onConnected");
            isDisconnect = false;
        }

        @Override
        public void onDisconnected() {
            Log.i(TAG, "onDisconnected");
            isDisconnect = true;
        }

        @Override
        public void onPublish(UTF8Buffer utf8Buffer, Buffer buffer, Runnable runnable) {
            runnable.run();
            Log.d(TAG, "receive success");
            String topicOrigin = new String(utf8Buffer.toByteArray());
            String receiveData = new String(buffer.toByteArray());
            LogUtils.d("topicOrigin->" + topicOrigin);
            LogUtils.d("receiveData->" + receiveData);
            if (messageCallBack != null) {
                messageCallBack.onReceiver(topicOrigin, receiveData);
            }
        }

        @Override
        public void onFailure(Throwable throwable) {
            Log.i(TAG, "onConnect fail");
            isDisconnect = true;
            callbackConnection.disconnect(null);
            throwable.printStackTrace();
        }
    }

    /**
     * 断开连接
     */
    public void disconnect() {
        if (callbackConnection != null) {
            callbackConnection.disconnect(new Callback<Void>() {
                @Override
                public void onSuccess(Void aVoid) {
                    Log.i(TAG, "disconnect success");
                }

                @Override
                public void onFailure(Throwable throwable) {
                    Log.i(TAG, "disconnect failed");
                    throwable.printStackTrace();
                }
            });
        }
    }

    private class ConnectCallBack implements Callback<Void> {
        @Override
        public void onSuccess(Void aVoid) {
            ToastUtils.showShort("连接成功");
            Log.i(TAG, "连接成功");
            //订阅项目中所有的topic
        }

        @Override
        public void onFailure(Throwable throwable) {
            ToastUtils.showShort("连接失败");
            Log.i(TAG, "连接失败:" + throwable.toString());
        }
    }

    public interface OnMessageReceiver {
        void onReceiver(String topic, String message);
    }

}

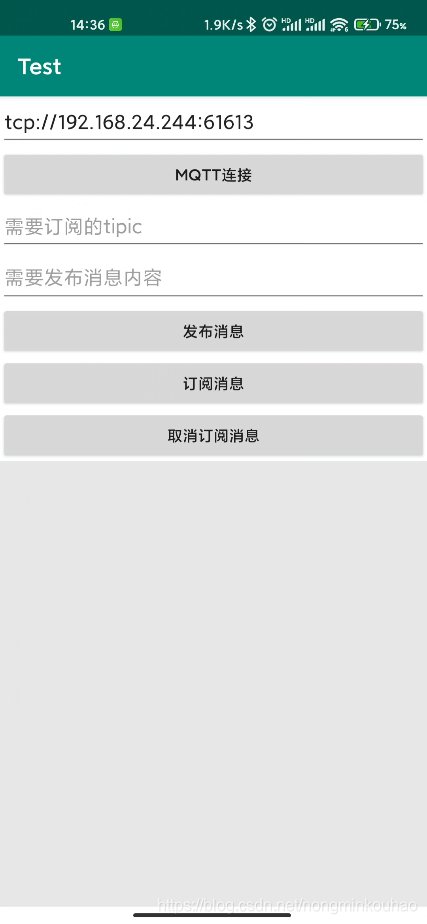

布局文件activity_mqtt.xml

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="#FFFFFF"
    android:orientation="vertical">

    <EditText
        android:id="@+id/et_mqtt_url"
        android:layout_width="match_parent"
        android:layout_height="48dp"
        android:hint="tcp://ip:端口"
        android:text="tcp://192.168.12.22:61613" />

    <Button
        android:id="@+id/btn_mq_connect"
        android:layout_width="match_parent"
        android:layout_height="48dp"
        android:text="mqtt连接" />

    <EditText
        android:id="@+id/et_subscribe_topic"
        android:layout_width="match_parent"
        android:layout_height="48dp"
        android:hint="需要订阅的topic" />

    <EditText
        android:id="@+id/et_message_publish"
        android:layout_width="match_parent"
        android:layout_height="48dp"
        android:gravity="top|left"
        android:hint="需要发布消息内容" />

    <Button
        android:id="@+id/btn_message_publish"
        android:layout_width="match_parent"
        android:layout_height="48dp"
        android:text="发布消息" />

    <Button
        android:id="@+id/btn_message_subscribe"
        android:layout_width="match_parent"
        android:layout_height="48dp"
        android:text="订阅消息" />

    <Button
        android:id="@+id/btn_message_unsubscribe"
        android:layout_width="match_parent"
        android:layout_height="48dp"
        android:text="取消订阅消息" />

    <EditText
        android:id="@+id/et_message_content"
        android:layout_width="match_parent"
        android:layout_height="0dp"
        android:layout_weight="1"
        android:background="@color/C_E6E6E6"
        android:gravity="top"
        android:padding="8dp"
        android:scrollbars="vertical" />
</LinearLayout>

权限

    <uses-permission android:name="android.permission.INTERNET" />
    <uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />

方式二（eclipse）：

添加依赖

model中的build.gradle

    //mqtt eclipse 方案
    implementation 'org.eclipse.paho:org.eclipse.paho.client.mqttv3:1.1.0'
    implementation 'org.eclipse.paho:org.eclipse.paho.android.service:1.1.1'
    implementation 'com.android.support:support-v4:29.0.3'

    //eventbus
    implementation 'org.greenrobot:eventbus:3.1.1'

根目录中的build.gradle

    maven {
        url "https://repo.eclipse.org/content/repositories/paho-releases/"
    }

界面 MQTTEclipseActivity

public class MQTTEclipseActivity extends AppCompatActivity {

    private Unbinder unbinder;

    @BindView(R.id.et_mqtt_url)
    protected EditText et_mqtt_url;

    @BindView(R.id.et_message_publish)
    protected EditText et_message_publish;

    @BindView(R.id.et_subscribe_topic)
    protected EditText et_subscribe_topic;

    @BindView(R.id.et_message_content)
    protected EditText et_message_content;

    private IService iService = null;
    private MyServiceConnection conn = null;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_mqtt_eclipse);
        unbinder = ButterKnife.bind(this);
        EventBus.getDefault().register(this);
        conn = new MyServiceConnection();
        Intent intent = new Intent(this, MQTTService.class);
        bindService(intent, conn, BIND_AUTO_CREATE);
    }

    /*mqtt连接*/
    @OnClick(R.id.btn_mq_connect)
    protected void mqConnect() {
        String mqttUrl = et_mqtt_url.getText().toString();
        if (TextUtils.isEmpty(mqttUrl)) {
            ToastUtils.showShort("mq url为空");
            return;
        }
        if (iService != null) {
            iService.invokeServiceConnect(mqttUrl);
        }
    }

    /*mqtt消息发布*/
    @OnClick(R.id.btn_message_publish)
    public void publishMessage(View view) {
        String topic = et_subscribe_topic.getText().toString();
        if (TextUtils.isEmpty(topic)) {
            ToastUtils.showShort("topic为空");
            return;
        }
        String message = et_message_publish.getText().toString();
        if (TextUtils.isEmpty(message)) {
            ToastUtils.showShort("发布的消息内容为空");
            return;
        }
        if (iService != null) {
            iService.invokeServicePublish(topic, message);
        }
    }

    /*mqtt消息订阅*/
    @OnClick(R.id.btn_message_subscribe)
    protected void mqSubscribe() {
        String topic = et_subscribe_topic.getText().toString();
        if (TextUtils.isEmpty(topic)) {
            ToastUtils.showShort("topic为空");
            return;
        }
        if (iService != null) {
            iService.invokeServiceSubscribe(topic);
        }
    }

    /*取消mqtt消息订阅*/
    @OnClick(R.id.btn_message_unsubscribe)
    protected void mqUnSubscribe() {
        String topic = et_subscribe_topic.getText().toString();
        if (TextUtils.isEmpty(topic)) {
            ToastUtils.showShort("topic为空");
            return;
        }
        if (iService != null) {
            iService.invokeServiceUnSubscribe(topic);
        }
    }

    @Subscribe(threadMode = ThreadMode.MAIN)
    public void getMqttMessage(MQTTMessage mqttMessage) {
        Log.i(MQTTService.TAG, "get topic:" + mqttMessage.getTopic());
        Log.i(MQTTService.TAG, "get message:" + mqttMessage.getMessage());
        Log.i(MQTTService.TAG, "get qos:" + mqttMessage.getQos());
        et_message_content.append(mqttMessage.getTopic() + "-->" + mqttMessage.getMessage() + "\n");
    }

    @Override
    protected void onDestroy() {
        super.onDestroy();
        unbindService(conn);
        unbinder.unbind();
        EventBus.getDefault().unregister(this);
    }

    class MyServiceConnection implements ServiceConnection {
        @Override
        public void onServiceConnected(ComponentName name, IBinder service) {
            iService = (IService) service;
        }

        @Override
        public void onServiceDisconnected(ComponentName name) {

        }
    }
}

布局文件

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="#FFFFFF"
    android:orientation="vertical">

    <EditText
        android:id="@+id/et_mqtt_url"
        android:layout_width="match_parent"
        android:layout_height="48dp"
        android:hint="tcp://ip:端口"
        android:text="tcp://192.168.12.22:61613" />

    <Button
        android:id="@+id/btn_mq_connect"
        android:layout_width="match_parent"
        android:layout_height="48dp"
        android:text="mqtt连接" />

    <EditText
        android:id="@+id/et_subscribe_topic"
        android:layout_width="match_parent"
        android:layout_height="48dp"
        android:hint="需要订阅的topic" />

    <EditText
        android:id="@+id/et_message_publish"
        android:layout_width="match_parent"
        android:layout_height="48dp"
        android:gravity="top|left"
        android:hint="需要发布消息内容" />

    <Button
        android:id="@+id/btn_message_publish"
        android:layout_width="match_parent"
        android:layout_height="48dp"
        android:text="发布消息" />

    <Button
        android:id="@+id/btn_message_subscribe"
        android:layout_width="match_parent"
        android:layout_height="48dp"
        android:text="订阅消息" />

    <Button
        android:id="@+id/btn_message_unsubscribe"
        android:layout_width="match_parent"
        android:layout_height="48dp"
        android:text="取消订阅消息" />

    <EditText
        android:id="@+id/et_message_content"
        android:layout_width="match_parent"
        android:layout_height="0dp"
        android:layout_weight="1"
        android:background="@color/C_E6E6E6"
        android:gravity="top"
        android:padding="8dp"
        android:scrollbars="vertical" />
</LinearLayout>

消息类MQTTMessage


public class MQTTMessage {
    private String message;
    private String topic;
    private String qos;

    public MQTTMessage(String message, String topic, String qos) {
        this.message = message;
        this.topic = topic;
        this.qos = qos;
    }

    public String getMessage() {
        return message;
    }

    public void setMessage(String message) {
        this.message = message;
    }

    public String getTopic() {
        return topic;
    }

    public void setTopic(String topic) {
        this.topic = topic;
    }

    public String getQos() {
        return qos;
    }

    public void setQos(String qos) {
        this.qos = qos;
    }
}

MQTTService

public class MQTTService extends Service {

    public static final String TAG = MQTTService.class.getSimpleName();

    private static MqttAndroidClient client;
    private MqttConnectOptions conOpt;

    private String userName = "admin";
    private String passWord = "password";
    private String clientId = "test";

    @Override
    public int onStartCommand(Intent intent, int flags, int startId) {
        return super.onStartCommand(intent, flags, startId);
    }

    private void init(String uri) {
        // 服务器地址（协议+地址+端口号）
        client = new MqttAndroidClient(this, uri, clientId);
        // 设置MQTT监听并且接受消息
        client.setCallback(mqttCallback);

        conOpt = new MqttConnectOptions();
        // 清除缓存
        conOpt.setCleanSession(true);
        // 设置超时时间，单位：秒
        conOpt.setConnectionTimeout(10);
        // 心跳包发送间隔，单位：秒
        conOpt.setKeepAliveInterval(20);
        // 用户名
        conOpt.setUserName(userName);
        // 密码
        conOpt.setPassword(passWord.toCharArray());
        connection();
    }

    /**
     * 连接MQTT服务器
     */
    private void connection() {
        if (!client.isConnected()) {
            try {
                client.connect(conOpt, null, new IMqttActionListener() {
                    @Override
                    public void onSuccess(IMqttToken asyncActionToken) {
                        ToastUtils.showShort("连接成功");
                        Log.i(TAG, "连接成功");
                    }

                    @Override
                    public void onFailure(IMqttToken asyncActionToken, Throwable exception) {
                        ToastUtils.showShort("连接失败");
                        Log.i(TAG, "连接失败:" + exception.toString());
                    }
                });
            } catch (MqttException e) {
                e.printStackTrace();
            }
        }
    }

    // MQTT监听并且接受消息
    private MqttCallback mqttCallback = new MqttCallback() {

        @Override
        public void messageArrived(String topic, MqttMessage message) throws Exception {

            String str1 = new String(message.getPayload());
            EventBus.getDefault().post(new MQTTMessage(new String(message.getPayload()), topic, String.valueOf(message.getQos())));
            String str2 = topic + ";qos:" + message.getQos() + ";retained:" + message.isRetained();
            Log.i(TAG, "messageArrived:" + str1);
            Log.i(TAG, str2);
        }

        @Override
        public void deliveryComplete(IMqttDeliveryToken token) {

        }

        @Override
        public void connectionLost(Throwable cause) {
            // 失去连接，重连
            connection();
        }
    };

    @Nullable
    @Override
    public IBinder onBind(Intent intent) {
        LogUtils.d("onBind");
        return new MyBinder();
    }

    /**
     * 订阅
     *
     * @param topic
     */
    private void subscribe(String topic) {
        try {
            client.subscribe(topic, 2, null, new IMqttActionListener() {
                @Override
                public void onSuccess(IMqttToken asyncActionToken) {
                    ToastUtils.showShort("订阅" + topic + "成功");
                }

                @Override
                public void onFailure(IMqttToken asyncActionToken, Throwable exception) {
                    ToastUtils.showShort("订阅" + topic + "失败");
                    Log.i(TAG, "订阅" + topic + "失败:" + exception.toString());
                }
            });
        } catch (MqttException e) {
            e.printStackTrace();
        }
    }

    /**
     * 发布消息
     *
     * @param topic
     * @param msg
     */
    private void publish(String topic, String msg) {
        Integer qos = 0;
        Boolean retained = false;
        try {
            client.publish(topic, msg.getBytes(), qos.intValue(), retained.booleanValue());
        } catch (MqttException e) {
            e.printStackTrace();
        }
    }

    /**
     * 取消订阅
     *
     * @param topic
     */
    private void unSubscribe(String topic) {
        try {
            client.unsubscribe(topic, null, new IMqttActionListener() {
                @Override
                public void onSuccess(IMqttToken asyncActionToken) {
                    ToastUtils.showShort("取消订阅" + topic + "成功");
                }

                @Override
                public void onFailure(IMqttToken asyncActionToken, Throwable exception) {
                    ToastUtils.showShort("取消订阅" + topic + "失败");
                    Log.i(TAG, "取消订阅" + topic + "失败:" + exception.toString());
                }
            });
        } catch (MqttException e) {
            e.printStackTrace();
        }
    }

    //实现一个接口，然后我们就在绑定服务的时候拿到这个Binder对象，然后调用接口里面的方法
    class MyBinder extends Binder implements IService {
        @Override
        public void invokeServiceConnect(String url) {
            init(url);
        }

        @Override
        public void invokeServiceSubscribe(String topic) {
            subscribe(topic);
        }

        @Override
        public void invokeServiceUnSubscribe(String topic) {
            unSubscribe(topic);
        }

        @Override
        public void invokeServicePublish(String topic, String messge) {
            publish(topic, messge);
        }
    }

    @Override
    public void onDestroy() {
        if (client != null) {
            client.unregisterResources();
            client.close();
            client = null;
        }
        super.onDestroy();
    }
}

权限

    <uses-permission android:name="android.permission.INTERNET" />
    <uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
    <uses-permission android:name="android.permission.WAKE_LOCK" />

截图(两种方案界面一致)

在这里插入图片描述
手机端连接mq后并订阅mytopic，PC端mqttfx发布topic为“mytopic”内容为“ceshishuju”的数据，这时手机端就可以收到对应的数据

PC端mqttfx工具连接后订阅sssa的topic，手机端mq连接后，输入topic，输入发送内容点击发布消息，这是PC端mqttfx就可以收到手机端发送的内容
在这里插入图片描述
demo下载地址见这里，免积分
