环境
- Windows：10
- Anaconda：2.0.4
- Python 3.7.10
- torch：1.7.0
- torchvision：0.8.0
- YOLOX：0.1.0
- OpenVINO 工具包 2020.2
OpenVINO安装：https://blog.csdn.net/qq_44989881/article/details/119296663
下载 轻型模型：YOLOX-Nano
https://github.com/Megvii-BaseDetection/storage/releases/download/0.0.1/yolox_nano.pth

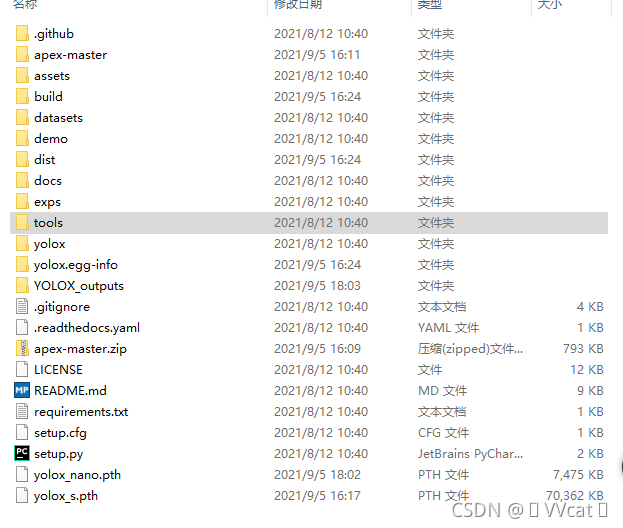

cd C:\Users\vvcat\Desktop\YOLOX-0.1.0
通过 -n 转换标准 YOLOX 模型：
parser = argparse.ArgumentParser("YOLOX onnx deploy")
parser.add_argument(
"--output-name", type=str, default="yolox.onnx", help="output name of models"
)
parser.add_argument(
"--input", default="images", type=str, help="input node name of onnx model"
)
parser.add_argument(
"--output", default="output", type=str, help="output node name of onnx model"
)
parser.add_argument(
"-o", "--opset", default=11, type=int, help="onnx opset version"
)
parser.add_argument("--no-onnxsim", action="store_true", help="use onnxsim or not")
parser.add_argument(
"-f",
"--exp_file",
default=None,
type=str,
help="expriment description file",
)
parser.add_argument("-expn", "--experiment-name", type=str, default=None)
parser.add_argument("-n", "--name", type=str, default=None, help="model name")
parser.add_argument("-c", "--ckpt", default=None, type=str, help="ckpt path")
parser.add_argument(
"opts",
help="Modify config options using the command-line",
default=None,
nargs=argparse.REMAINDER,
)
由以上为 export_onnx.py 文件提供的可选参数。
python tools/export_onnx.py --output-name yolox_nano.onnx --opset 10 -f exps/default/nano.py -c ./yolox_nano.pth
- –output-name：输出的模型名称。
- -c：训练好的模型
- -o：opset 版本，默认 11。但是，如果需要将 onnx 模型进一步转换为OpenVINO，则输入 opset 版本指定为 10。
(yolox) C:\Users\vvcat\Desktop\YOLOX-0.1.0>python tools/export_onnx.py --output-name yolox_nano.onnx --opset 10 -f exps/default/nano.py -c ./yolox_nano.pth
2021-09-05 20:09:49.403 | INFO | main:main:55 - args value: Namespace(ckpt=’./yolox_nano.pth’, exp_file=‘exps/default/nano.py’, experiment_name=None, input=‘images’, name=None, no_onnxsim=False, opset=10, opts=[], output=‘output’, output_name=‘yolox_nano.onnx’)
2021-09-05 20:09:49.623 | INFO | main:main:79 - loading checkpoint done.
H:\AnacondaNavigator\Anaconda\envs\yolox\lib\site-packages\torch\onnx\symbolic_helper.py:267: UserWarning: You are trying to export the model with onnx:Resize for ONNX opset version 10. This operator might cause results to not match the expected results by PyTorch.
ONNX’s Upsample/Resize operator did not match Pytorch’s Interpolation until opset 11. Attributes to determine how to transform the input were added in onnx:Resize in opset 11 to support Pytorch’s behavior (like coordinate_transformation_mode and nearest_mode).
We recommend using opset 11 and above for models using this operator.
“” + str(export_onnx_opset_version) + ". "
2021-09-05 20:09:56.399 | INFO | _main:main:89 - generated onnx model named yolox_nano.onnx
2021-09-05 20:09:57.052 | INFO | _main_:main:101 - generated simplified onnx model named yolox_nano.onnx
生成了 yolox_nano.onnx 文件
将 ONNX 转换为 OpenVINO需要的IR文件
cd C:\Program Files (x86)\Intel\openvino_2021.2.185\bin
setupvars.bat
(yolox) C:\Program Files (x86)\Intel\openvino_2021.2.185\bin>setupvars.bat
Python 3.7.10
[setupvars.bat] OpenVINO environment initialized
转换工具的安装要求
cd C:\Program Files (x86)\Intel\openvino_2021.2.185\deployment_tools\model_optimizer\install_prerequisites
install_prerequisites_onnx.bat
(yolox) C:\Program Files (x86)\Intel\openvino_2021.2.185\deployment_tools\model_optimizer\install_prerequisites>install_prerequisites_onnx.bat
Python 3.7.10
ECHO 处于关闭状态。
Requirement already satisfied: onnx>=1.1.2 in h:\anacondanavigator\anaconda\envs\yolox\lib\site-packages (from -r …\requirements_onnx.txt (line 1)) (1.8.1)
Requirement already satisfied: networkx>=1.11 in h:\anacondanavigator\anaconda\envs\yolox\lib\site-packages (from -r …\requirements_onnx.txt (line 2)) (2.6.2)
Requirement already satisfied: numpy>=1.14.0 in h:\anacondanavigator\anaconda\envs\yolox\lib\site-packages (from -r …\requirements_onnx.txt (line 3)) (1.21.2)
Collecting test-generator==0.1.1
Using cached test_generator-0.1.1-py2.py3-none-any.whl (5.5 kB)
Collecting defusedxml>=0.5.0
Using cached defusedxml-0.7.1-py2.py3-none-any.whl (25 kB)
Requirement already satisfied: six in h:\anacondanavigator\anaconda\envs\yolox\lib\site-packages (from test-generator==0.1.1->-r …\requirements_onnx.txt (line 4)) (1.16.0)
Requirement already satisfied: typing-extensions>=3.6.2.1 in h:\anacondanavigator\anaconda\envs\yolox\lib\site-packages (from onnx>=1.1.2->-r …\requirements_onnx.txt (line 1)) (3.10.0.0)
Requirement already satisfied: protobuf in h:\anacondanavigator\anaconda\envs\yolox\lib\site-packages (from onnx>=1.1.2->-r …\requirements_onnx.txt (line 1)) (3.17.3)
Installing collected packages: test-generator, defusedxml
Successfully installed defusedxml-0.7.1 test-generator-0.1.1
*****************************************************************************************
Warning: please expect that Model Optimizer conversion might be slow.
You can boost conversion speed by installing protobuf-*.egg located in the
“model-optimizer\install_prerequisites” folder or building protobuf library from sources.
For more information please refer to Model Optimizer FAQ, question #80.
然后转换模型
cd C:\Program Files (x86)\Intel\openvino_2021.2.185\deployment_tools\model_optimizer
python mo.py --input_model C:\Users\vvcat\Desktop\YOLOX-0.1.0\yolox_nano.onnx --input_shape [1,3,416,416] --data_type FP16 --output_dir Converted_output
(yolox) C:\Program Files (x86)\Intel\openvino_2021.2.185\deployment_tools\model_optimizer>python mo.py --input_model C:\Users\vvcat\Desktop\YOLOX-0.1.0\yolox_nano.onnx --input_shape [1,3,416,416] --data_type FP16 --output_dir Converted_output
Model Optimizer arguments:
Common parameters:
- Path to the Input Model: C:\Users\vvcat\Desktop\YOLOX-0.1.0\yolox_nano.onnx
- Path for generated IR: C:\Program Files (x86)\Intel\openvino_2021.2.185\deployment_tools\model_optimizer\Converted_output
- IR output name: yolox_nano
- Log level: ERROR
- Batch: Not specified, inherited from the model
- Input layers: Not specified, inherited from the model
- Output layers: Not specified, inherited from the model
- Input shapes: [1,3,416,416]
- Mean values: Not specified
- Scale values: Not specified
- Scale factor: Not specified
- Precision of IR: FP16
- Enable fusing: True
- Enable grouped convolutions fusing: True
- Move mean values to preprocess section: None
- Reverse input channels: False
ONNX specific parameters:
Model Optimizer version: 2021.2.0-1877-176bdf51370-releases/2021/2
[ SUCCESS ] Generated IR version 10 model.
[ SUCCESS ] XML file: C:\Program Files (x86)\Intel\openvino_2021.2.185\deployment_tools\model_optimizer\Converted_output\yolox_nano.xml
[ SUCCESS ] BIN file: C:\Program Files (x86)\Intel\openvino_2021.2.185\deployment_tools\model_optimizer\Converted_output\yolox_nano.bin
[ SUCCESS ] Total execution time: 33.50 seconds.
It’s been a while, check for a new version of Intel? Distribution of OpenVINO? toolkit here https://software.intel.com/content/www/us/en/develop/tools/openvino-toolkit/choose-download.html?cid=other&source=Prod&campid=ww_2021_bu_IOTG&content=upg_pro&medium=organic_uid_agjj or on the GitHub*
转换成功后得到 xxx.bin，xxx.mapping，xxx.xml等三个文件。
我在我的YOLOX项目中创建了一个xml 文件夹， 然后我将xxx.bin，xxx.xml等两个文件，放在里面。
OpenVINO测试转换后的效果：
cd C:\Users\vvcat\Desktop\YOLOX-0.1.0
格式如下：
python openvino_inference.py -m < XML_MODEL_PATH > -i < IMAGE_PATH > -o < OUTPUT_DIR > -s < SCORE_THR > -d < DEVICE >
例如：
python ./demo/OpenVINO/python/openvino_inference.py -m ./xml/yolox_nano.xml -i ./assets/dog.jpg -o ./YOLOX_outputs -s 0.4 -d CPU
注：openvino_inference.py中的 OpenVINO 采用的是同步推理。
(yolox) C:\Users\vvcat\Desktop\YOLOX-0.1.0>python ./demo/OpenVINO/python/openvino_inference.py -m ./xml/yolox_nano.xml -i ./assets/dog.jpg -o ./YOLOX_outputs -s 0.4 -d CPU
H:\AnacondaNavigator\Anaconda\envs\yolox\lib\site-packages\thop\utils.py:1: DeprecationWarning: Using or importing the ABCs from ‘collections’ instead of from ‘collections.abc’ is deprecated since Python 3.3,and in 3.9 it will stop working
from collections import Iterable
[ INFO ] Creating Inference Engine
[ INFO ] Reading the network: ./xml/yolox_nano.xml
[ INFO ] Configuring input and output blobs
[ INFO ] Loading the model to the plugin
[ INFO ] Starting inference in synchronous mode

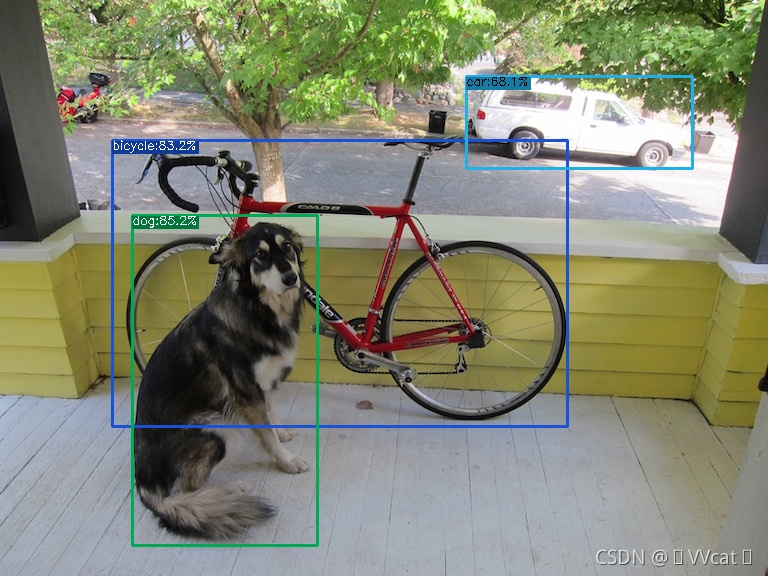

效果如下：
出现问题一：在转换模型的时候遇到以下问题
[ ERROR ] Failed to create directory C:\Program Files (x86)\Intel\openvino_2021.2.185\deployment_tools\model_optimizer\Converted_output. Permission denied!
For more information please refer to Model Optimizer FAQ, question #22. (https://docs.openvinotoolkit.org/latest/openvino_docs_MO_DG_prepare_model_Model_Optimizer_FAQ.html?question=22#question-22)
如果遇到 Windows 的权限问题，请用管理员的身份运行 Anaconda Prompt (Anaconda)
出现问题二：numpy 版本太低，导致无法使用 OpenVINO 运行，如果安装大于 1.16.6 小于 1.20.1版本，也会出现 OpenVINO 版本过低类似的错误。
(yolox) C:\Users\vvcat\Desktop\YOLOX-0.1.0>pip install numpy==1.15.1
Collecting numpy==1.15.1
Downloading numpy-1.15.1-cp37-none-win_amd64.whl (13.5 MB)
|████████████████████████████████| 13.5 MB 92 kB/s
Installing collected packages: numpy
ERROR: pip’s dependency resolver does not currently take into account all the packages that are installed. This behaviour is the source of the following dependency conflicts.
scipy 1.7.1 requires numpy<1.23.0,>=1.16.5, but you have numpy 1.15.1 which is incompatible.
scikit-image 0.18.3 requires numpy>=1.16.5, but you have numpy 1.15.1 which is incompatible.
onnxruntime 1.8.0 requires numpy>=1.16.6, but you have numpy 1.15.1 which is incompatible.
onnx 1.8.1 requires numpy>=1.16.6, but you have numpy 1.15.1 which is incompatible.
matplotlib 3.4.3 requires numpy>=1.16, but you have numpy 1.15.1 which is incompatible.
建议安装 numpy==1.20.1 版本以上，但是使用GPU作为设备运行 OpenVINO又会出现以下错误。
pip install numpy==1.20.3
(yolox) C:\Users\vvcat\Desktop\YOLOX-0.1.0>python ./demo/OpenVINO/python/openvino_inference.py -m ./xml/yolox_nano.xml -i ./assets/dog.jpg -o ./YOLOX_outputs -s 0.4 -d GPU
H:\AnacondaNavigator\Anaconda\envs\yolox\lib\site-packages\thop\utils.py:1: DeprecationWarning: Using or importing the ABCs from ‘collections’ instead of from ‘collections.abc’ is deprecated since Python 3.3,and in 3.9 it will stop working
from collections import Iterable
[ INFO ] Creating Inference Engine
[ INFO ] Reading the network: ./xml/yolox_nano.xml
[ INFO ] Configuring input and output blobs
[ INFO ] Loading the model to the plugin
[ INFO ] Starting inference in synchronous mode
C:\Users\vvcat\Desktop\YOLOX-0.1.0\yolox\utils\demo_utils.py:94: RuntimeWarning: overflow encountered in exp
outputs[…, 2:4] = np.exp(outputs[…, 2:4]) * expanded_strides
Traceback (most recent call last):
File “./demo/OpenVINO/python/openvino_inference.py”, line 158, in
sys.exit(main())
File “./demo/OpenVINO/python/openvino_inference.py”, line 143, in main
boxes_xyxy /= ratio
TypeError: ufunc ‘true_divide’ output (typecode ‘d’) could not be coerced to provided output parameter (typecode ‘h’) according to the casting rule ‘‘same_kind’’
这个BUG暂时未找到解决的办法，还在解决中，今天先到这吧，如果找到解决的办法，会填上这个坑。
