[开发工具]Idea 2021调用webservice详解

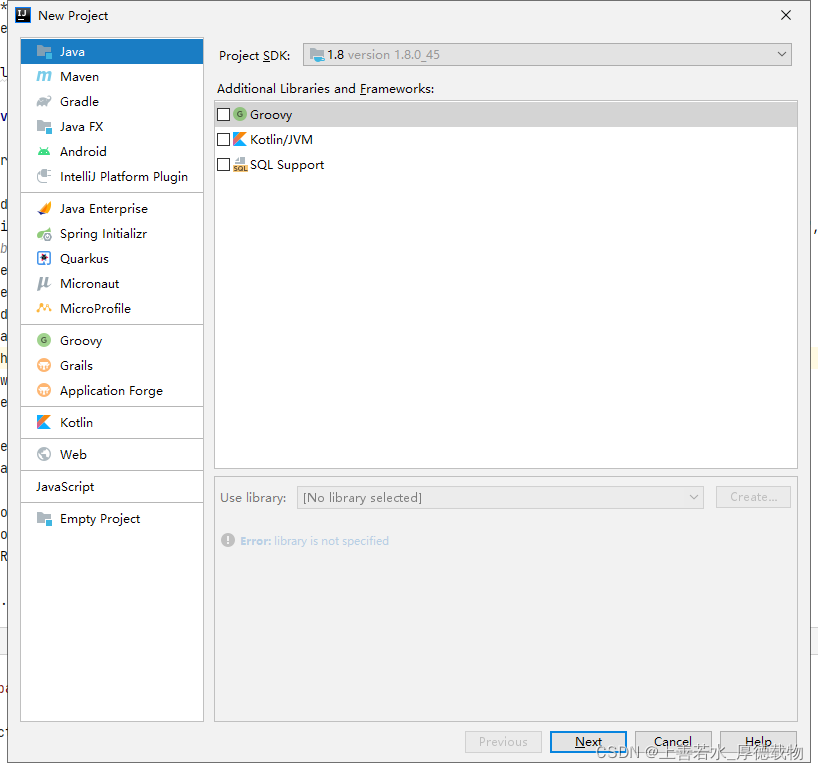

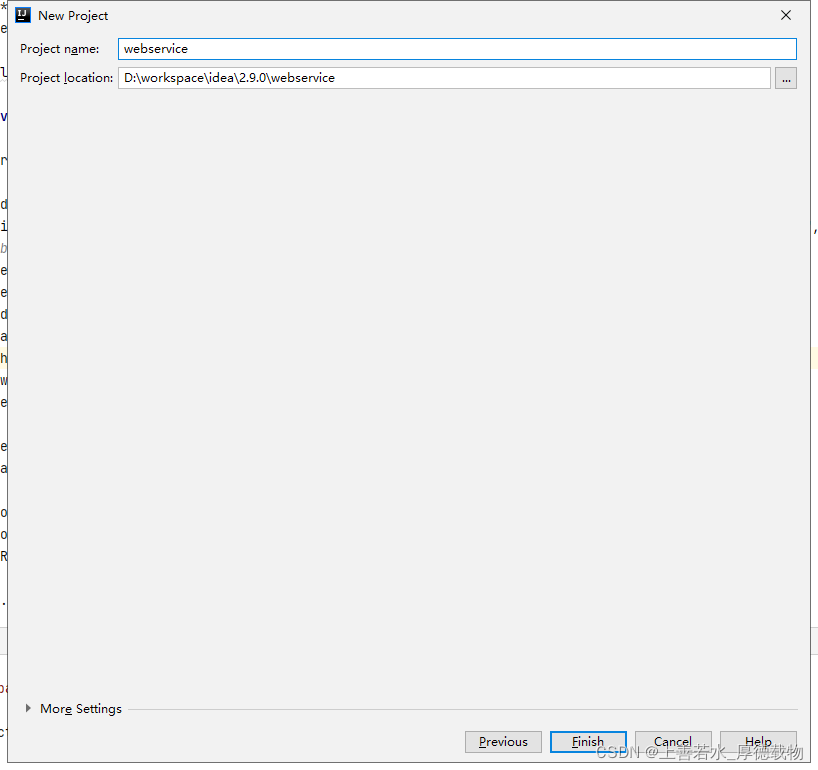

1.新建普通的Java工程

?

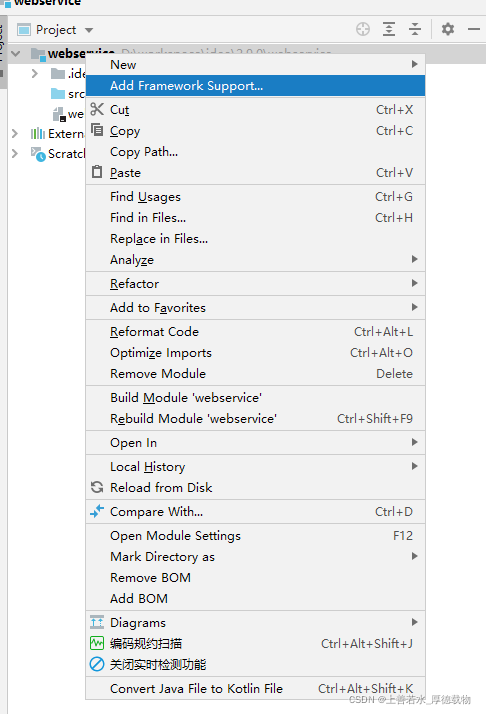

2.工程上右键添加Framework支持

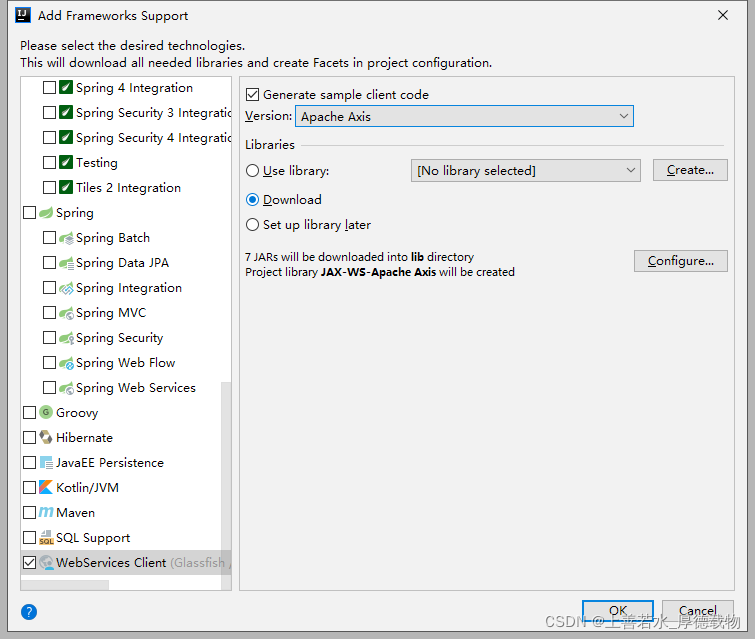

选择Apache Axis 1.2

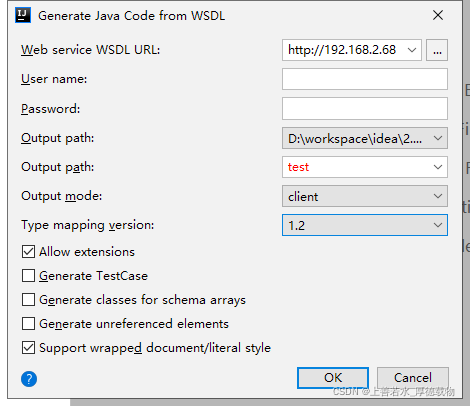

3.在弹出的生成Java Code界面输入wsdl地址和输出路径，其他可留空。

4.修改生成的HelloWorldClient代码

package example;

import org.apache.axis.message.SOAPHeaderElement;
import test.*;

import javax.xml.soap.SOAPException;

public class HelloWorldClient
{
  public static void main(String[] argv) {
    try {
      Tdcus921ServiceLocator locator = new Tdcus921ServiceLocator();
      Tdcus921 service = locator.gettdcus921SoapPort();
      // 添加认证信息
      ((Tdcus921SoapBindingStub)service).setUsername("admin");
      ((Tdcus921SoapBindingStub)service).setPassword("123456");
      //添加额外的头信息
      try {
        SOAPHeaderElement headerElement = new SOAPHeaderElement(locator.gettdcus921SoapPortAddress(),"Activation");
        headerElement.addChildElement("unit").addTextNode("999");
        ((Tdcus921SoapBindingStub)service).setHeader(headerElement);
      } catch (SOAPException e) {
        e.printStackTrace();
      }
      // 请求参数
      CreateRequestType crt = new CreateRequestType();
      CreateRequestTypeDataAreaTdcus921 tdcus = new CreateRequestTypeDataAreaTdcus921();
      tdcus.setId("20");
      tdcus.setName("tesa");
      tdcus.setPhone("1511234121323");
      tdcus.setPwd("123");
      tdcus.setText("测试测试");
      CreateRequestTypeDataAreaTdcus921 [] list = new CreateRequestTypeDataAreaTdcus921[]{tdcus};
      crt.setDataArea(list);

      CreateResponseType responseType = service.create(crt);
      //响应参数
      CreateResponseTypeDataAreaTdcus921 ct [] = responseType.getDataArea();
      for(CreateResponseTypeDataAreaTdcus921 c : ct)
      {
        System.out.println("ok:"+c.getId());
      }
    } catch (javax.xml.rpc.ServiceException ex) {
      ex.printStackTrace();
    } catch (java.rmi.RemoteException ex) {
      ex.printStackTrace();
    }
  }
}

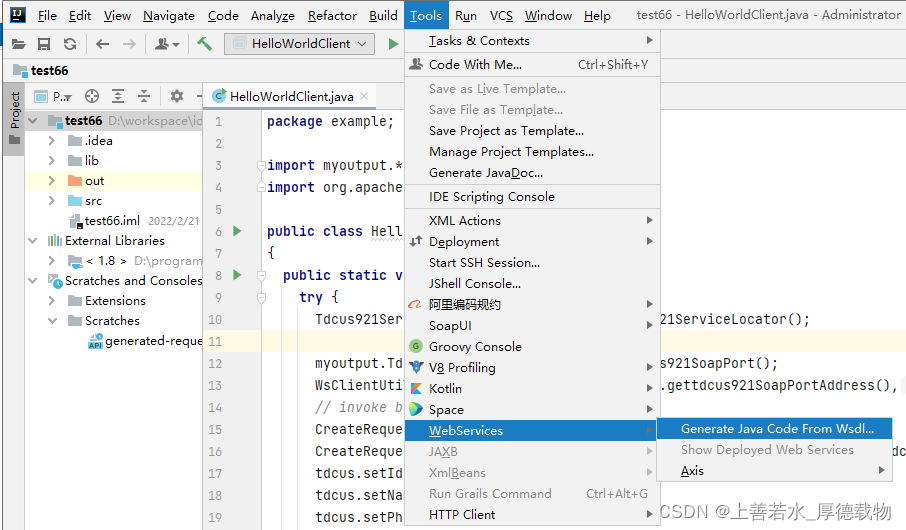

5.后续还想在此工程上生成wsdl代码时,点击tools的webservice工具

?
