[开发工具]vscode完成verilog编辑仿真环境配置（带完整源码包）

示例代码包下载

vscode配置verilog开发环境示例代码包，可编译运行，观察波形-嵌入式文档类资源-CSDN下载

?具体操作按图索骥~~~~~

1. 安装iverilog编译器

官网链接 Icarus Verilog for Windows

?

选择下载带了Icarus和wtkwave的版本，这样既可以查看波形。

可以在命令行查看，配置路径

iverilog -v
Icarus Verilog version 12.0 (devel) (s20150603-1110-g18392a46)

Copyright (c) 2000-2021 Stephen Williams (steve@icarus.com)

  This program is free software; you can redistribute it and/or modify
  it under the terms of the GNU General Public License as published by
  the Free Software Foundation; either version 2 of the License, or
  (at your option) any later version.

  This program is distributed in the hope that it will be useful,
  but WITHOUT ANY WARRANTY; without even the implied warranty of
  MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
  GNU General Public License for more details.

  You should have received a copy of the GNU General Public License along
  with this program; if not, write to the Free Software Foundation, Inc.,
  51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA.

iverilog: no source files.

Usage: iverilog [-EiSuvV] [-B base] [-c cmdfile|-f cmdfile]
                [-g1995|-g2001|-g2005|-g2005-sv|-g2009|-g2012] [-g<feature>]
                [-D macro[=defn]] [-I includedir] [-L moduledir]
                [-M [mode=]depfile] [-m module]
                [-N file] [-o filename] [-p flag=value]
                [-s topmodule] [-t target] [-T min|typ|max]
                [-W class] [-y dir] [-Y suf] [-l file] source_file(s)

See the man page for details.

gtkwave -v

GTKWave Analyzer v3.3.108 (w)1999-2020 BSI

vvp -h
Usage: vvp [options] input-file [+plusargs...]
Options:
 -h             Print this help message.
 -i             Interactive mode (unbuffered stdio).
 -l file        Logfile, '-' for <stderr>
 -M path        VPI module directory
 -M -           Clear VPI module path
 -m module      Load vpi module.
 -n             Non-interactive ($stop = $finish).
 -N             Same as -n, but exit code is 1 instead of 0
 -s             $stop right away.
 -v             Verbose progress messages.
 -V             Print the version information.

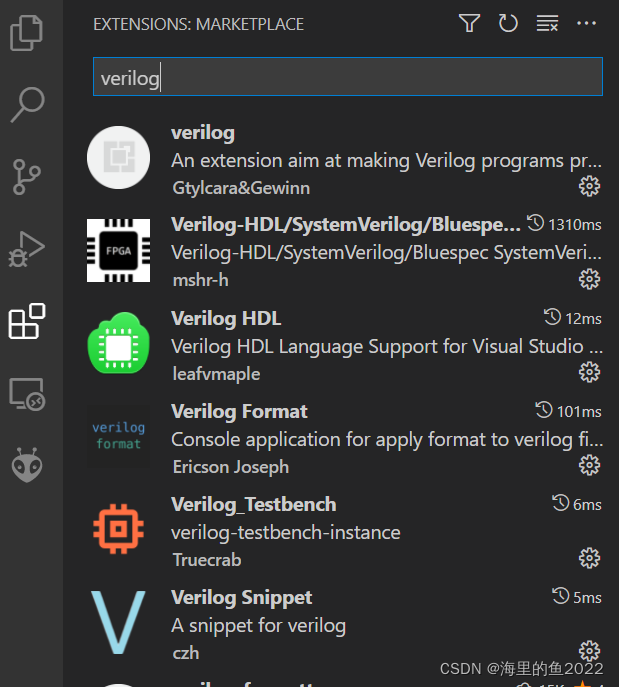

2 Vscode安装插件

这些就够用了，包括了编译运行和testbench自动实例化

?3. 示例验证

?编辑一个8位时钟脉冲计数器

module counter(out, clk, enable,reset);
output[7:0]  out;
input clk, reset, enable;
reg[7:0] out;
always @ (posedge clk) begin
    if(reset) begin
        out <= 8'b0;
    end else if(enable) begin
        out <= out + 1;
    end
end
endmodule

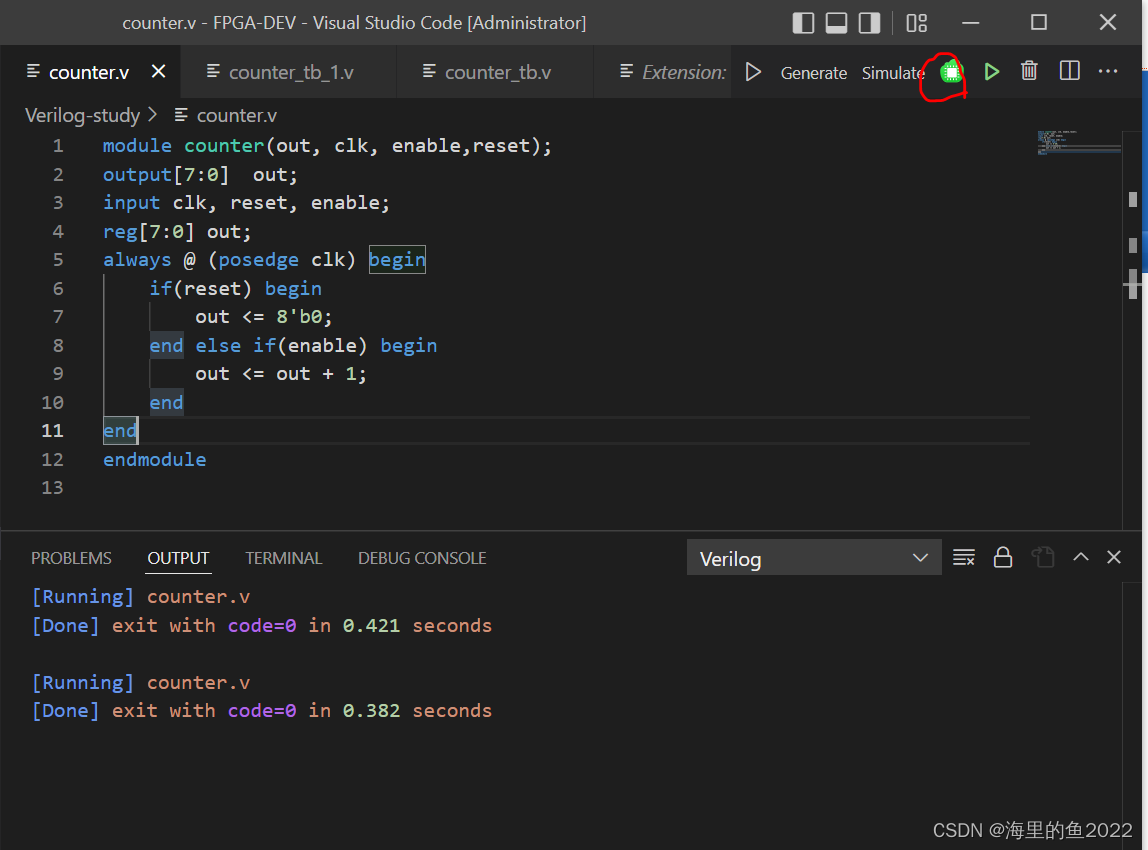

运行检查错误

?4. 自动生成testbench实例化框架，注意，只是框架，具体测试信号激励还是要自己填写。

CTRL+SHIFT+P选择testbench，运行结果

python c:\Users\haiyang.pan\.vscode\extensions\truecrab.verilog-testbench-instance-0.0.5\out\vTbgenerator.py d:\FPGA-DEV\Verilog-study\counter.v
//~ `New testbench
`timescale  1ns / 1ps

module tb_counter;

// counter Parameters
parameter PERIOD  = 10;


// counter Inputs
reg   clk                                  = 0 ;
reg   reset                                = 0 ;
reg   enable                               = 0 ;

// counter Outputs
wire  [7:0]  out                           ;


initial
begin
    forever #(PERIOD/2)  clk=~clk;
end

initial
begin
    #(PERIOD*2) rst_n  =  1;
end

counter  u_counter (
    .clk                     ( clk           ),
    .reset                   ( reset         ),
    .enable                  ( enable        ),

    .out                     ( out     [7:0] )
);

initial
begin

    $finish;
end

endmodule

copy到testbench的设计文件里，并添加激励信号定义

//~ `New testbench
`timescale  1ns / 1ps

module tb_counter;

// counter Parameters
parameter PERIOD  = 10;


// counter Inputs
reg   clk                                  = 0 ;
reg   reset                                = 0 ;
reg   enable                               = 0 ;

// counter Outputs
wire  [7:0]  out                           ;


initial
begin
    forever #(PERIOD/2)  clk=~clk;
end

//initial
//begin
//    #(PERIOD*2) rst_n  =  1;
//end

counter  u_counter (
    .clk                     ( clk           ),
    .reset                   ( reset         ),
    .enable                  ( enable        ),

    .out                     ( out     [7:0] )
);

initial
begin
        clk   = 0;
        forever #10 clk = ~clk;
    $finish;
end
initial begin
        reset = 1;
        #15 reset = 0;
        #1000 $finish;
    end
    initial
    begin
        $dumpfile("counter_tb.vcd");        //生成的vcd文件名称
        $dumpvars(0, tb_counter);    //tb模块名称
    end
    initial begin
        enable = 1;
    end

endmodule

?运行编译仿真

命令行运行

 iverilog -o counter.vvp counter.v counter_tb_1.v

?VVP生成波形

vvp counter.vvp
VCD info: dumpfile counter_tb.vcd opened for output.
counter_tb_1.v:46: $finish called at 1015000 (1ps)

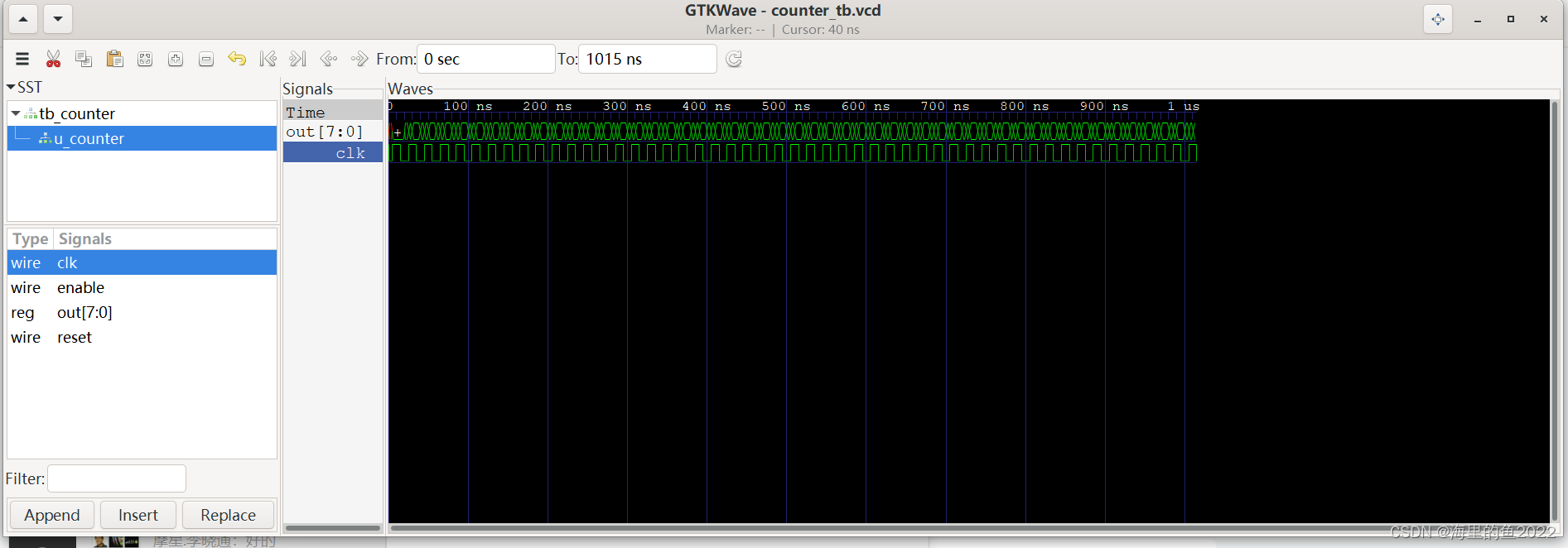

?gtkwave观察波形

gtkwave counter_tb.vcd

?
