内存管理关键数据结构
1.结点管理

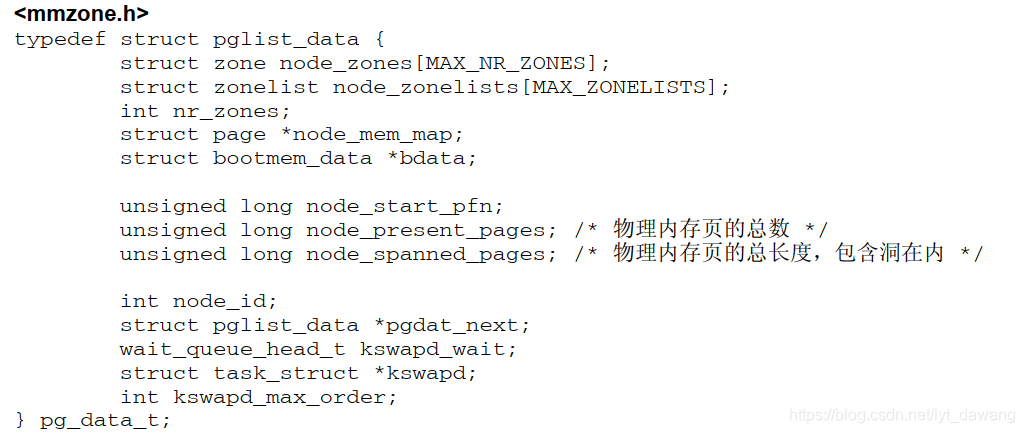

pg_data_t是用于表示结点的基本元素，定义如下：
1.node_zone是一个数组，包含了结点各内存域的数据结构
2.node_zonelists指定了备用结点以及内存域的列表，以便在当前结点没有内存时，从备用结点分配内存。
3.结点中不同内存域的数目保存在nr_zones.
4.node_mem_map是指向page实例数组的指针，用于描述结点内所有物理内存页。它包含了结点内所有内存域的。
5.在系统启动期间，内存管理子系统初始化之前，内核页需要使用内存（另外还必须保留部分内存用于初始化内存管理子系统）。为解决这个问题，内核使用了自举内存分配器（ boot memory allocator）。bdata是指向自举内存分配器数据结构的实例。
6.node_start_pfn是该NUMA结点第一个页帧的逻辑编号。系统中所有结点的页帧是依次编号的，每个页帧的编号都是全局唯一的。
node_start_pfn在UMA系统中总是0，因为其中只有一个结点，因此其第一个页帧编号总是0。
node_present_pages指定了结点中页帧的数目，而node_spanned_pages则给出了该节点以页帧为单位计算的长度。二者的值可能不同，因为结点中可能存在一些空洞，并不真正的对应页帧。
7.node_id，全局结点ID。系统中NUAM结点都从0开始编号。
8.pgdat_next,链接下一个结点，系统中所有结点都通过单链表连接起来，其末尾通过空指针标记。
9.kswapd_wait是交换守护进程的等待队列，在将页帧换出结点时会用到。kawapd指向负责该结点的交换守护进程的task_struct。kswapd_max_order用于页交换子系统的实现，用来定义需要释放的区域的长度（我们当前不感兴趣时）。
结点状态管理

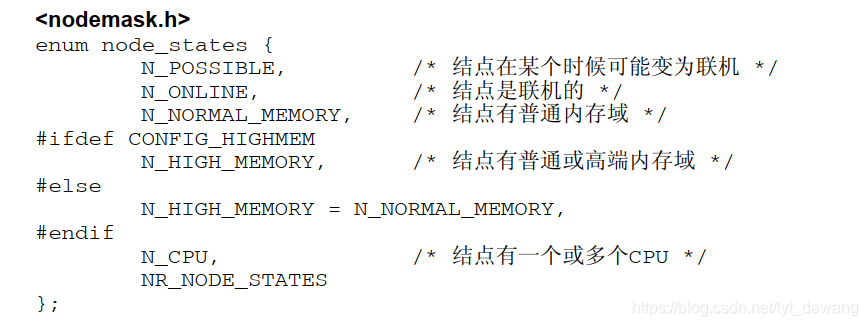

如果系统中结点 多于一个，内核会维护一个位图，用以提供各个结点的状态信息，状态位是用掩码标识的，可以使用下列值。
对内存管理有必要的标志是N_HIGH_MEMORY和N_NORMAL_MEMORY。如果结点有普通或高端内存则使用N_HIGH_MEMORY，仅当结点没有高端内存才设置N_NORMAL_MEMORY。
两个辅助函数用来设置或清除位域或特定结点中的一个比特位：
<nodemask.h>
void node_set_state(int node, enum node_states state)
void node_clear_state(int node, enum node_states state)
此外，宏for_each_node_state(__node, __state)用来迭代处于特定状态的所有结点，而foreach_online_node(node)则迭代所有活动结点。如果内核编译为只支持单个结点（即使用平坦内存模型），则没有结点位图，上述操作该位图的函数则变为空操作。
2.内存域
内核使用zone结构来描述内存域，其定义如下：
struct zone {
/* Read-mostly fields */
/* zone watermarks, access with *_wmark_pages(zone) macros */
unsigned long _watermark[NR_WMARK];
unsigned long watermark_boost;
unsigned long nr_reserved_highatomic;
/*
* We don't know if the memory that we're going to allocate will be
* freeable or/and it will be released eventually, so to avoid totally
* wasting several GB of ram we must reserve some of the lower zone
* memory (otherwise we risk to run OOM on the lower zones despite
* there being tons of freeable ram on the higher zones). This array is
* recalculated at runtime if the sysctl_lowmem_reserve_ratio sysctl
* changes.
*/
long lowmem_reserve[MAX_NR_ZONES];
#ifdef CONFIG_NUMA
int node;
#endif
struct pglist_data *zone_pgdat;
struct per_cpu_pageset __percpu *pageset;
#ifndef CONFIG_SPARSEMEM
/*
* Flags for a pageblock_nr_pages block. See pageblock-flags.h.
* In SPARSEMEM, this map is stored in struct mem_section
*/
unsigned long *pageblock_flags;
#endif /* CONFIG_SPARSEMEM */
/* zone_start_pfn == zone_start_paddr >> PAGE_SHIFT */
unsigned long zone_start_pfn;
/*
* spanned_pages is the total pages spanned by the zone, including
* holes, which is calculated as:
* spanned_pages = zone_end_pfn - zone_start_pfn;
*
* present_pages is physical pages existing within the zone, which
* is calculated as:
* present_pages = spanned_pages - absent_pages(pages in holes);
*
* managed_pages is present pages managed by the buddy system, which
* is calculated as (reserved_pages includes pages allocated by the
* bootmem allocator):
* managed_pages = present_pages - reserved_pages;
*
* So present_pages may be used by memory hotplug or memory power
* management logic to figure out unmanaged pages by checking
* (present_pages - managed_pages). And managed_pages should be used
* by page allocator and vm scanner to calculate all kinds of watermarks
* and thresholds.
*
* Locking rules:
*
* zone_start_pfn and spanned_pages are protected by span_seqlock.
* It is a seqlock because it has to be read outside of zone->lock,
* and it is done in the main allocator path. But, it is written
* quite infrequently.
*
* The span_seq lock is declared along with zone->lock because it is
* frequently read in proximity to zone->lock. It's good to
* give them a chance of being in the same cacheline.
*
* Write access to present_pages at runtime should be protected by
* mem_hotplug_begin/end(). Any reader who can't tolerant drift of
* present_pages should get_online_mems() to get a stable value.
*/
atomic_long_t managed_pages;
unsigned long spanned_pages;
unsigned long present_pages;
const char *name;
#ifdef CONFIG_MEMORY_ISOLATION
/*
* Number of isolated pageblock. It is used to solve incorrect
* freepage counting problem due to racy retrieving migratetype
* of pageblock. Protected by zone->lock.
*/
unsigned long nr_isolate_pageblock;
#endif
#ifdef CONFIG_MEMORY_HOTPLUG
/* see spanned/present_pages for more description */
seqlock_t span_seqlock;
#endif
int initialized;
/* Write-intensive fields used from the page allocator */
ZONE_PADDING(_pad1_)
/* free areas of different sizes */
struct free_area free_area[MAX_ORDER];
/* zone flags, see below */
unsigned long flags;
/* Primarily protects free_area */
spinlock_t lock;
/* Write-intensive fields used by compaction and vmstats. */
ZONE_PADDING(_pad2_)
/*
* When free pages are below this point, additional steps are taken
* when reading the number of free pages to avoid per-cpu counter
* drift allowing watermarks to be breached
*/
unsigned long percpu_drift_mark;
#if defined CONFIG_COMPACTION || defined CONFIG_CMA
/* pfn where compaction free scanner should start */
unsigned long compact_cached_free_pfn;
/* pfn where compaction migration scanner should start */
unsigned long compact_cached_migrate_pfn[ASYNC_AND_SYNC];
unsigned long compact_init_migrate_pfn;
unsigned long compact_init_free_pfn;
#endif
#ifdef CONFIG_COMPACTION
/*
* On compaction failure, 1<<compact_defer_shift compactions
* are skipped before trying again. The number attempted since
* last failure is tracked with compact_considered.
* compact_order_failed is the minimum compaction failed order.
*/
unsigned int compact_considered;
unsigned int compact_defer_shift;
int compact_order_failed;
#endif
#if defined CONFIG_COMPACTION || defined CONFIG_CMA
/* Set to true when the PG_migrate_skip bits should be cleared */
bool compact_blockskip_flush;
#endif
bool contiguous;
ZONE_PADDING(_pad3_)
/* Zone statistics */
atomic_long_t vm_stat[NR_VM_ZONE_STAT_ITEMS];
atomic_long_t vm_numa_stat[NR_VM_NUMA_STAT_ITEMS];
} ____cacheline_internodealigned_in_smp;
该结构特殊的方面在于它由ZONE_PADDING分割为几个部分。这是因为对zone结构的访问非常频繁。在多处理器系统上，通常有多个CPU访问结构成员。因此会使用锁防止它们彼此干扰，避免错误和不一致。由于内核对该数据结构访问非常频繁，因此会经常性的获取该结构的两个自旋锁zone->lock和zone->lrulock。
如果数据保存在CPU高速缓存中，那么会处理的更快速。高速缓存分为行，每一行负责不同的内存区。内核使用ZONE_PADDING宏生成填充字段添加到结构中，以确保每个自旋锁都处于自身的缓存行中
