[开发测试]react单元测试和集成测试

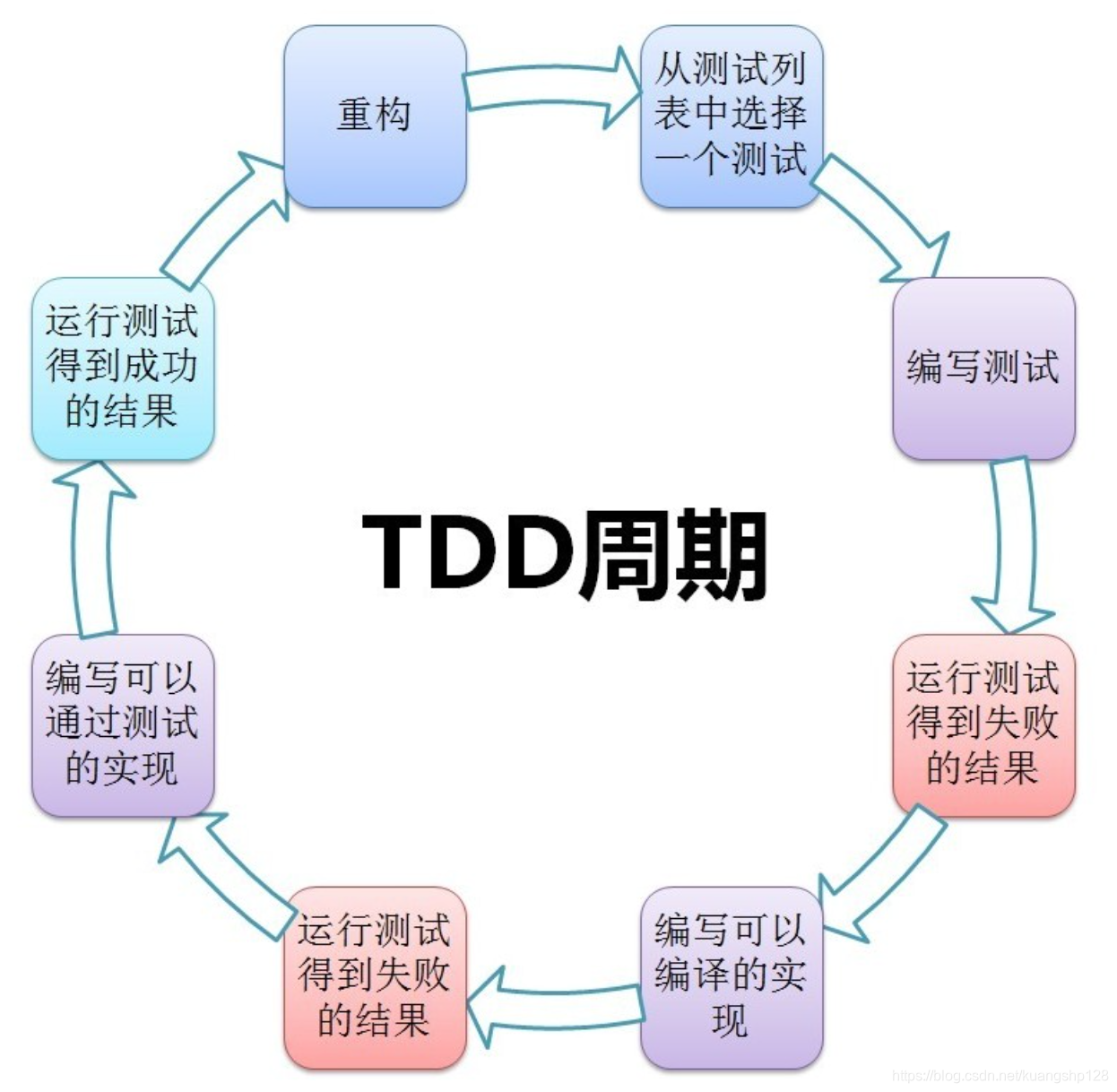

一、TDD(Test-Driven-Development)的认识

TDD简单点来说就是测试驱动开发，这里说的测试并不是指开发团队中的测试小组来驱动开发者写代码，而是开发人员根据业务场景编写的单元测试文件，通过单元测试文件来写业务代码，直到业务代码都通过单元测试为止。

整个环节可以拆分为:

二、自己手动实践一个TDD

• 1、创建一个react项目

  npx create-react-app react-demo01 --template typescript


• 2、可以将react配置映射出来，查看react的测试包，正常项目是不需要反射出来的

  "@testing-library/jest-dom": "^5.11.4",
  "@testing-library/react": "^11.1.0",
  "@testing-library/user-event": "^12.1.10",
  "@types/jest": "^26.0.15",


• 3、这里需要安装依赖包来对ts的支持

  # 因为使用的是ts需要安装
  npm install @types/jest -D


• 4、这里直接使用bootstrap来布局，最终要交付的产品如下图



  根据业务来拆分组件

  • Message.tsx是一个列表值的组件
  • MessageList.tsx是全部列表组件的集合
  • MessageForm.tsx是下面表单提交的组件
  • MessageApp.tsx是一个整体组件

• 5、先编写__tests__/Message.tsx单元测试

  业务 场景分析: 希望渲染一个li标签,标签的类名是list-group-item里面要有内容

  // src/__tests__/Message.tsx
  import React from 'react';
  // 可以先写一个空的组件，先把单元测试写完
  import Message from './../../components/Message';
  import { render, screen } from '@testing-library/react';

  describe('测试Message组件', () => {
    test('应该渲染一个li,类名是list-group-item', () => {
      const message: string = 'hello word';
      // 渲染组件
      render(<Message message={message} />);
      // 查询组件中是否有li标签
      expect(screen.getByRole('item').nodeName.toLocaleLowerCase()).toBe('li');
      expect(screen.getByRole('item').isEqualNode).toBeTruthy();
      // 判断类名
      expect(screen.getByRole('item').className).toBe('list-group-item');
      // 判断内容
      expect(screen.getByRole('item').textContent).toBe(message);
    });
  });

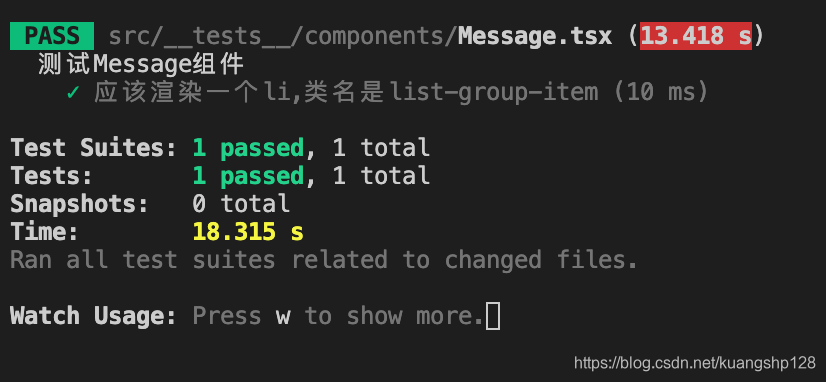

• 6、根据测试用例编写组件

  // src/components/Message.tsx

  import React, { PropsWithChildren } from 'react';
  type IProps = PropsWithChildren<{
    message: string;
  }>;
  const Message: React.FC<IProps> = (props: IProps) => {
    const { message } = props;
    return <li className='list-group-item' role='item'>{message}</li>;
  };

  export default Message;




• 7、src/__tests__/MessageList.tsx组件

  // 测试用例
  import React from 'react';
  import { render, screen } from '@testing-library/react';
  import MessageList from './../../components/MessageList';

  describe('测试MessageList组件', () => {
    test('测试当前组件是否为ul，并且类名是list-group', () => {
      const messageList: string[] = ['hello', 'word'];
      render(<MessageList messageList={messageList} />);
      // 判断节点为ul
      expect(screen.getByRole('ul').nodeName.toLocaleLowerCase()).toBe('ul');
      // 判断当前节点的类名
      expect(screen.getByRole('ul').className).toBe('list-group');
    });

    test('测试当前组件下面是否为li', () => {
      const messageList: string[] = ['hello', 'word'];
      render(<MessageList messageList={messageList} />);
      // 当前的节点是ul
      expect(screen.getByRole('ul').className).toBe('list-group');
      // 下面有2个节点
      expect(screen.getByRole('ul').childNodes.length).toEqual(2);
      // 直接查询子节点判断
      expect(screen.getAllByRole('item').length).toEqual(2);
      // 判断节点是li
      expect(screen.getByRole('ul').lastChild.nodeName.toLocaleLowerCase()).toBe(
        'li'
      );
    });
  });


  // 组件代码
  import React, { PropsWithChildren } from 'react';
  import Message from './Message';
  type IProps = PropsWithChildren<{
    messageList: string[];
  }>;
  const MessageList: React.FC<IProps> = (props: IProps) => {
    const { messageList } = props;
    return (
      <ul className='list-group' role='ul' data-testid='list-group'>
        {messageList.map((item: string, index: number) => {
          return <Message key={index} message={item} />;
        })}
      </ul>
    );
  };

  export default MessageList;


• 8、表单的

  import React from 'react';
  import { render, screen, fireEvent } from '@testing-library/react';
  import MessageForm from './../../components/MessageForm';

  describe('测试MessageForm组件', () => {
    test('测试当前是结构', () => {
      const addMessage = jest.fn();
      render(<MessageForm addMessage={addMessage} />);
      // 查询到节点看是不是这个
      expect(screen.getByTestId('form').nodeName.toLocaleLowerCase()).toBe(
        'form'
      );
      // 判断下面是否有节点input和button
      expect(screen.getByTestId('button')).toBeTruthy();
      expect(
        screen.getByTestId('form').getElementsByTagName('input')
      ).toBeTruthy();
      expect(
        screen.getByPlaceholderText('请输入留言内容').nodeName.toLocaleLowerCase()
      ).toBe('input');
    });

    test('测试表单的事件', () => {
      const addMessage = jest.fn();
      render(<MessageForm addMessage={addMessage} />);
      const message: string = 'hello word';
      // 给input赋值
      fireEvent.change(screen.getByTestId('message'), {
        target: { value: message },
      });
      // expect(screen.getByTestId('message').nodeValue).toBe(message);
      // 模拟点击事件
      fireEvent.click(screen.getByTestId('button'));
      // 期望这个函数被调用
      expect(addMessage).toBeCalled();
    });

  	test('测试表单内容为空的时候不提交', () => {
      const addMessage = jest.fn();
      render(<MessageForm addMessage={addMessage} />);
      const message: string = '';
      fireEvent.change(screen.getByTestId('message'), {
        target: { value: message },
      });
  		// 判断输入框的值
      (expect(screen.getByTestId('message')) as any).toHaveValue(message);
      fireEvent.click(screen.getByTestId('button'));
      expect(addMessage).not.toBeCalled();
    });
  });


  import React, { PropsWithChildren, useRef } from 'react';

  type IProps = PropsWithChildren<{
    addMessage: (message: string) => void;
  }>;
  const MessageForm: React.FC<IProps> = (props: IProps) => {
    const { addMessage } = props;
    const inputRef = useRef<HTMLInputElement | null>(null);

    const submitHandler = (
      event: React.MouseEvent<HTMLButtonElement, MouseEvent>
    ): void => {
      event.preventDefault();
      if (inputRef.current!.value) {
        addMessage(inputRef.current!.value);
        inputRef.current!.value = '';
      }
    };
    return (
      <form data-testid='form'>
        <div className='form-group'>
          <label htmlFor='message'>留言内容:</label>
          <input
            type='text'
            className='form-control'
            data-testid='message'
            ref={inputRef}
            placeholder='请输入留言内容'
          />
        </div>
        <button
          type='button'
          data-testid='button'
          className='btn btn-primary'
          style={{ width: '100%' }}
          onClick={submitHandler}
        >
          提交
        </button>
      </form>
    );
  };

  export default MessageForm;


• 9、同理MessageApp.tsx的单元测试也类似

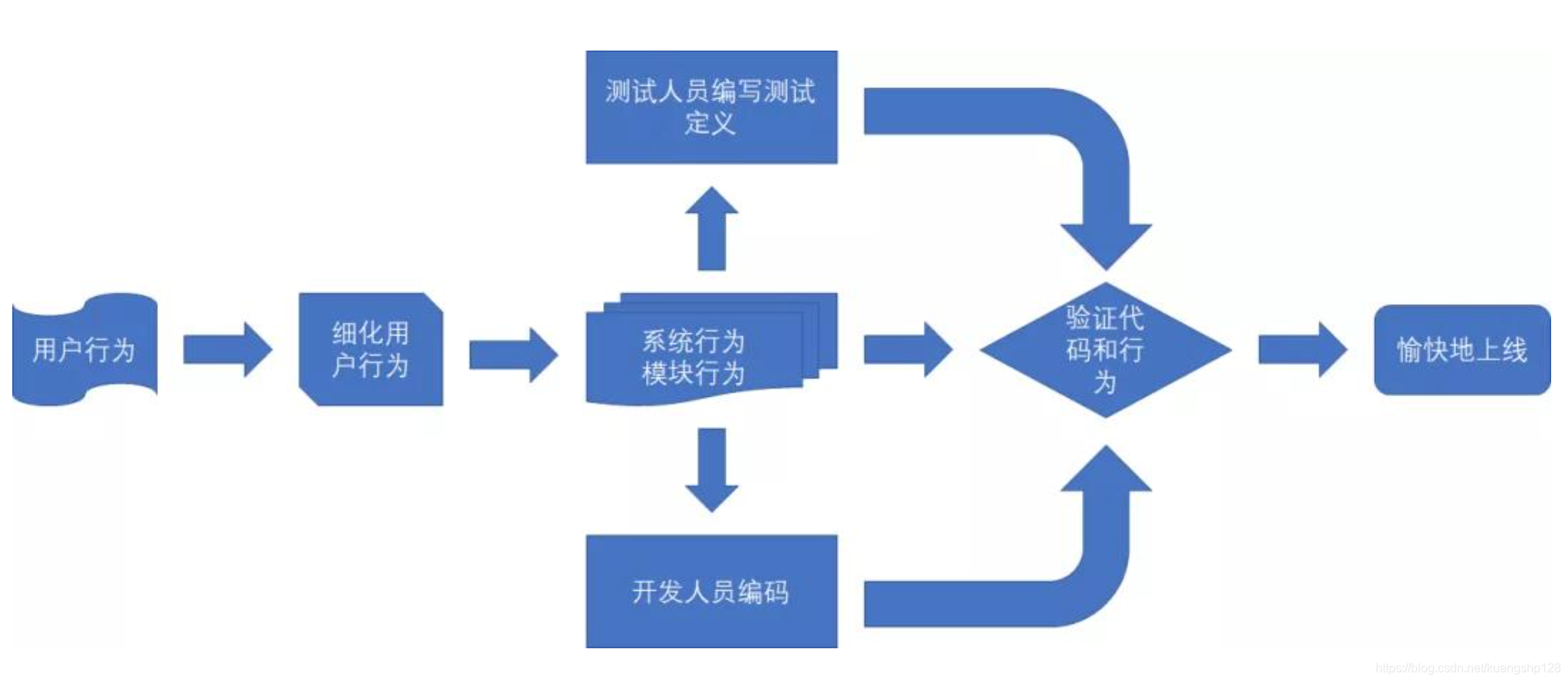

三、BDD(Behavior Driven Development)行为驱动测试

BDD将TDD的一般技术和原理与领域驱动设计(DDD)的想法相结合。 BDD是一个设计活动，您可以根据预期行为逐步构建功能块。简单来说就是你根据项目需求来先写摸测试用例的模板，然后撸代码，代码撸了完了，在根据测试用例模板来完善单元测试，最后用单元测试来验证你写的代码。

• 1、测试代码和上面的类似，只是顺序有所不一样

四、组件中有接口请求的测试

• 1、页面打开就加载数据

  import React, { useState, useEffect } from 'react';
  import axios from 'axios';

  export interface IUser {
    login: string;
    id: number;
    node_id: string;
    avatar_url: string;
    gravatar_id: string;
    url: string;
    html_url: string;
    followers_url: string;
    following_url: string;
    gists_url: string;
    starred_url: string;
    subscriptions_url: string;
    organizations_url: string;
    repos_url: string;
    events_url: string;
    received_events_url: string;
    type: string;
    site_admin: boolean;
  }
  const GitHubUser = () => {
    const [userList, setUserList] = useState<IUser[]>([]);
    const [loading, setLoading] = useState<boolean>(true);

    useEffect(() => {
      axios.get('https://api.github.com/users?since=1').then((res) => {
        setLoading(false);
        setUserList(res.data);
      });
    }, []);
    return (
      <>
        <div data-testid='loading'>
          <span>{loading ? 'loading....' : ''}</span>
        </div>
        <ul>
          {userList.map((item: IUser) => {
            return <li key={item.id}>{item.login}</li>;
          })}
        </ul>
      </>
    );
  };

  export default GitHubUser;


  // 单元测试代码
  import React from 'react';
  import { render, screen } from '@testing-library/react';
  import axios from 'axios';
  import GitHubUser from './../../components/GitHubUser';

  jest.mock('axios');
  const mockedAxios = axios as jest.Mocked<typeof axios>;

  describe('测试axios请求', () => {
    test('测试发起axios请求', async () => {
      // 模拟发送请求数据
      mockedAxios.get.mockResolvedValueOnce({
        data: [
          { id: 1, login: 'hello' },
          { id: 2, login: 'word' },
        ],
      });
      // 渲染组件
      render(<GitHubUser />);
      // 判断节点内容
      const loadingText = await screen.findByTestId('loading');
      (expect(loadingText) as any).toHaveTextContent('');
      const userGroup = await screen.findByTestId('user-group');
      (expect(userGroup) as any).not.toHaveTextContent();
    });
  });


• 2、模拟按钮点击去获取数据

  import React, { useState } from 'react';
  import axios from 'axios';

  export interface IUser {
    login: string;
    id: number;
  }
  const GitHubUser = () => {
    const [userList, setUserList] = useState<IUser[]>([]);
    const [loading, setLoading] = useState<boolean>(false);

    const getData = () => {
      setLoading(true);
      axios.get('https://api.github.com/users?since=1').then((res) => {
        console.log(res.data, '测试请求结果');
        setLoading(false);
        setUserList(res.data);
      });
    };
    return (
      <>
        <button onClick={getData} data-testid='button'>
          点击获取数据
        </button>
        <div data-testid='loading'>
          <span>{loading ? 'loading....' : ''}</span>
        </div>
        <ul data-testid='user-group'>
          {userList.map((item: IUser) => {
            return (
              <li key={item.id} data-testid='item'>
                {item.login}
              </li>
            );
          })}
        </ul>
      </>
    );
  };

  export default GitHubUser;


  import React from 'react';
  import { render, screen, fireEvent, act } from '@testing-library/react';
  import userEvent from '@testing-library/user-event';
  import axios from 'axios';
  import GitHubUser from './../../components/GitHubUser';

  jest.mock('axios');
  const mockedAxios = axios as jest.Mocked<typeof axios>;

  describe('测试axios请求', () => {

    test('模拟点击获取数据', async () => {
      const data = [
        { id: 1, login: 'hello' },
        { id: 2, login: 'word' },
      ];
      // 模拟发送请求数据
      mockedAxios.get.mockImplementationOnce(() => Promise.resolve({ data }));
      // 因为这里是异步的，所以要使用act包裹下
      await act(async () => {
        render(<GitHubUser />);
        // 模拟点击事件
        userEvent.click(screen.getByTestId('button'));
      });
      expect(screen.queryAllByTestId('item').length).toBe(2);
      expect(screen.queryAllByTestId('item')[1]).toHaveTextContent('word');
    });
  });
