关联查询
环境搭建
-
- 代码实现
public class Customer {
private Integer customerId;//用户编号
private String customerName;//用户姓名
private String address;//收货地址
private List<Order> orderList;//订单列表
}
public class Order {
private Integer orderId;//订单编号
private String orderState;//订单状态
private Customer customer;//用户信息
}
一对一查询
自定义映射规则：resultMap
- 需求
- 根据id查询订单信息，关联查询用户信息
- 代码实现
<!--Order类的自定义输出映射规则-->
<resultMap id="orderMap" type="order">
<id property="orderId" column="order_id" javaType="int"></id>
<result property="orderState" column="order_state" javaType="String"></result>
<association property="customer" javaType="customer">
<id property="customerId" column="customer_id" javaType="int"></id>
<result property="customerName" column="customer_name" javaType="String"></result>
<result property="address" column="address" javaType="String"></result>
</association>
</resultMap>
<select id="selectOrderAndCustomerByOrderId" resultMap="orderMap">
select *
from tb_order
inner join tb_customer on tb_customer.customer_id = tb_order.customer_no
where tb_order.order_id = #{orderId}
</select>
一对多查询
- 需求
- 根据id查询用户记录，关联查询订单记录
- 代码实现
<!--Customer类自定义输出映射规则-->
<resultMap id="customerMap" type="customer">
<id property="customerId" column="customer_id" javaType="int"></id>
<result property="customerName" column="customer_name" javaType="String"></result>
<result property="address" column="address" javaType="String"></result>
<collection property="orderList" ofType="order">
<id property="orderId" column="order_id" javaType="int"></id>
<result property="orderState" column="order_state" javaType="String"></result>
</collection>
</resultMap>
<select id="selectCustomerAndOrderByCustomerId" resultMap="customerMap">
select *
from tb_customer
left outer join tb_order on tb_customer.customer_id = tb_order.customer_no
where tb_customer.customer_id = #{customerId}
</select>
分步查询
分步查询概述
概述
将一次多表查询拆分成多次单表查询，为后续的延迟加载做铺垫。
分步查询之一对一
-
- 根据id查询订单信息，分步查询用户信息
- 分析
-- 根据orderId查询tb_order信息(customer_no)，再根据customer_no查询tb_customer
select customer_no from tb_order where order_id = 1;
select * from tb_customer where customer_id = 1;
代码实现
<!--分步查询-->
<resultMap id="orderMap2" type="order">
<id property="orderId" column="order_id" javaType="int"></id>
<result property="orderState" column="order_state" javaType="String"></result>
<!--①②调用第二次单表查询:传入customer_no字段值-->
<association
property="customer"
select="com.atguigu.mapper.CustomerMapper.selectCustomerByCustomerId"
column="customer_no"
/>
</resultMap>
<!--①①第一次单表查询-->
<select id="selectOrderByOrderId" resultMap="orderMap2">
select *
from tb_order
where order_id = #{orderId}
</select>
<!--①③第二次单表查询-->
<select id="selectCustomerByCustomerId" resultType="customer">
select *
from tb_customer
where customer_id = #{customerId}
</select>
分步查询之一对多
- 需求
- 根据id查询用户记录，分步查询订单记录
- 分析
-- 根据customer_name查询tb_customer信息(customer_id)，再根据customer_id查询tb_order
select * from tb_customer where customer_name = '张三';
select * from tb_order where customer_no = 1;
代码实现
<!--分步查询-->
<resultMap id="customerMap2" type="customer">
<id property="customerId" column="customer_id" javaType="int"></id>
<result property="customerName" column="customer_name" javaType="String"></result>
<result property="address" column="address" javaType="String"></result>
<!--②②调用第二次单表查询-->
<collection property="orderList"
ofType="order"
select="com.atguigu.mapper.OrderMapper.selectOrderListByCustomerId"
column="customer_id"
/>
</resultMap>
<!--②①第一次单表查询-->
<select id="selectCustomerByCustomerName" resultMap="customerMap2">
select * from tb_customer where customer_name = #{customerName}
</select>
<!--②③第二次单表查询-->
<select id="selectOrderListByCustomerId" resultType="order">
select *
from tb_order
where customer_no = #{customerId}
</select>
mybatis延迟加载（懒加载）
- 概述
- 也叫懒加载，就是在使用某条数据再去查询，不使用就不查询。
- 注意事项
- 通常情况下,一对一查询不需要做延迟加载,一对多需要做延迟加载
延迟加载之一对一
- 开发步骤
- ①编写SqlMapConfig.xml
- 开启延迟加载
- ②给具体statement配置延迟加载
- ①编写SqlMapConfig.xml
- ①编写SqlMapConfig.xml
<!--开启延迟加载-->
<setting name="lazyLoadingEnabled" value="true"/>
②给具体statement配置延迟加载
<!--分步查询-->
<resultMap id="orderMap2" type="order">
<id property="orderId" column="order_id" javaType="int"></id>
<result property="orderState" column="order_state" javaType="String"></result>
<!--①②调用第二次单表查询:传入customer_no字段值-->
<!-- fetchType="eager"-->
<association
property="customer"
select="com.atguigu.mapper.CustomerMapper.selectCustomerByCustomerId"
column="customer_no"
fetchType="lazy"
/>
</resultMap>
<!--①①第一次单表查询-->
<select id="selectOrderByOrderId" resultMap="orderMap2">
select *
from tb_order
where order_id = #{orderId}
</select>
延迟加载之一对多
- 开发步骤
- ①编写SqlMapConfig.xml
- 开启延迟加载
- ②给具体statement配置延迟加载
- ①编写SqlMapConfig.xml
- ①编写SqlMapConfig.xml
- ②给具体statement配置延迟加载
<!--分步查询-->
<resultMap id="customerMap2" type="customer">
<id property="customerId" column="customer_id" javaType="int"></id>
<result property="customerName" column="customer_name" javaType="String"></result>
<result property="address" column="address" javaType="String"></result>
<!--②②调用第二次单表查询-->
<collection property="orderList"
ofType="order"
select="com.atguigu.mapper.OrderMapper.selectOrderListByCustomerId"
column="customer_id"
fetchType="lazy"
/>
</resultMap>
<!--②①第一次单表查询-->
<select id="selectCustomerByCustomerName" resultMap="customerMap2">
select * from tb_customer where customer_name = #{customerName}
</select>
mybatis缓存
缓存概念和分类
- 概述
- 第一次查询数据库(磁盘)后，会将记录存储到缓存中，第二次查询该记录，直接从缓存(内存)中获取。
- 分类
- 一级缓存
- 当前SqlSession有效
- 二级缓存
- SqlSessionFactory有效，跨SqlSession；
- 当SqlSession.close，一级缓存就会写入到二级缓存中。
- 一级缓存
一级缓存的验证
- 概述
- 一级缓存是 SqlSession 范围的缓存，当调用 SqlSession 的修改，添加，删除， commit()， close()等方法时，就会清空一级缓存。
- 代码实现
@Test
public void selectUserById() throws Exception {
SqlSession sqlSession = sqlSessionFactory.openSession();
UserMapper userMapper = sqlSession.getMapper(UserMapper.class);
//查询userId=1的记录
User user = userMapper.selectUserById(37);
System.out.println("user = " + user);
//查询userId=1的记录
user = userMapper.selectUserById(37);
System.out.println("user = " + user);
sqlSession.close();
}
一级缓存的清空
- 概述
- 如果 sqlSession去执行commit操作（执行插入、更新、删除），清空 SqlSession中的一级 缓存，这样做的目的为了让缓存中存储的是最新的信息
- 代码实现
@Test
public void selectUserById() throws Exception {
SqlSession sqlSession = sqlSessionFactory.openSession();
UserMapper userMapper = sqlSession.getMapper(UserMapper.class);
//查询userId=1的记录
User user = userMapper.selectUserById(37);
System.out.println("user = " + user);
//执行DML，清空一级缓存
userMapper.deleteUserById(15);
//查询userId=1的记录
user = userMapper.selectUserById(37);
System.out.println("user = " + user);
sqlSession.close();
}
二级缓存的验证
- 概述
- 二级缓存是跨SqlSession的；
- 当SqlSession关闭时，会将一级缓存中的内容写入到二级缓存中。
- 开发步骤
- ①编写SqlMapConfig.xml
- 开启全局缓存
- ②编写mapper映射文件
- 开启二级缓存
- ③二级缓存验证
- ①编写SqlMapConfig.xml
- ①编写SqlMapConfig.xml
<!--开启缓存-->
<setting name="cacheEnabled" value="true"/>
②编写mapper映射文件
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.atguigu.mapper.UserMapper">
<!--开启二级缓存-->
<cache></cache>
<select id="selectUserById" resultType="user" useCache="true">
select *
from tb_user
where user_id = #{userId}
</select>
</mapper>
③二级缓存验证
@Test
public void selectUserById2() throws Exception {
SqlSession sqlSession = sqlSessionFactory.openSession();
UserMapper userMapper = sqlSession.getMapper(UserMapper.class);
//-----一级缓存的验证-----
User user = userMapper.selectUserById(37);
//user = userMapper.selectUserById(37);
//一级缓存关闭，会将一级缓存中的内容写入到二级缓存
sqlSession.close();
//-----二级缓存的验证-----
sqlSession = sqlSessionFactory.openSession();
userMapper = sqlSession.getMapper(UserMapper.class);
user = userMapper.selectUserById(37);
sqlSession.close();
sqlSession = sqlSessionFactory.openSession();
userMapper = sqlSession.getMapper(UserMapper.class);
user = userMapper.selectUserById(37);
sqlSession.close();
}
二级缓存的清空
逆向工程概述
- 正向工程
- 先创建Java实体类，由框架负责根据实体类生成数据库表。Hibernate是支持正向工程 的。
- 逆向工程
- 先创建数据库表，由框架负责根据数据库表，反向生成如下资源
- Java实体类 、Mapper接口 、Mapper配置文件
- 先创建数据库表，由框架负责根据数据库表，反向生成如下资源
逆向工程操作
- 开发步骤
- ①新建项目 : mybatis-generator-project
- ②编写pom.xml
- 引入逆向工程相关依赖
- ③编写generatorConfig.xml
- 逆向工程核心配置文件
- ④执行\mybatis‐generator‐maven‐plugin
- 生成javabean实体类、mapper接口、mapper映射文件
- ①新建项目 : mybatis-generator-project
- ②编写pom.xml
<dependencies>
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis</artifactId>
<version>3.5.7</version>
</dependency>
</dependencies>
<!-- 控制Maven在构建过程中相关配置 -->
<build>
<!-- 构建过程中用到的插件 -->
<plugins>
<!-- 具体插件，逆向工程的操作是以构建过程中插件形式出现的 -->
<plugin>
<groupId>org.mybatis.generator</groupId>
<artifactId>mybatis-generator-maven-plugin</artifactId>
<version>1.3.0</version>
<!-- 插件的依赖 -->
<dependencies>
<!-- 逆向工程的核心依赖 -->
<dependency>
<groupId>org.mybatis.generator</groupId>
<artifactId>mybatis-generator-core</artifactId>
<version>1.3.2</version>
</dependency>
<!-- 数据库连接池 -->
<dependency>
<groupId>com.mchange</groupId>
<artifactId>c3p0</artifactId>
<version>0.9.2</version>
</dependency>
<!-- MySQL驱动 -->
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>5.1.8</version>
</dependency>
</dependencies>
</plugin>
</plugins>
</build>
③编写generatorConfig.xml
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
"http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">
<generatorConfiguration>
<!--
targetRuntime: 执行生成的逆向工程的版本
MyBatis3Simple: 生成基本的CRUD（清新简洁版）
MyBatis3: 生成带条件的CRUD（奢华尊享版）
-->
<context id="DB2Tables" targetRuntime="MyBatis3">
<!-- 数据库的连接信息 -->
<jdbcConnection driverClass="com.mysql.jdbc.Driver"
connectionURL="jdbc:mysql://127.0.0.1:3306/mydb1"
userId="root"
password="root">
</jdbcConnection>
<!-- javaBean的生成策略-->
<javaModelGenerator targetPackage="com.atguigu.pojo" targetProject=".\src\main\java">
<property name="enableSubPackages" value="true"/>
<property name="trimStrings" value="true"/>
</javaModelGenerator>
<!-- SQL映射文件的生成策略 -->
<sqlMapGenerator targetPackage="com.atguigu.mapper" targetProject=".\src\main\java">
<property name="enableSubPackages" value="true"/>
</sqlMapGenerator>
<!-- Mapper接口的生成策略 -->
<javaClientGenerator type="XMLMAPPER" targetPackage="com.atguigu.mapper"
targetProject=".\src\main\java">
<property name="enableSubPackages" value="true"/>
</javaClientGenerator>
<!-- 逆向分析的表 -->
<!-- tableName设置为*号，可以对应所有表，此时不写domainObjectName -->
<!-- domainObjectName属性指定生成出来的实体类的类名 -->
<table tableName="tb_user" domainObjectName="User"/>
<table tableName="tb_exam" domainObjectName="Exam"/>
</context>
</generatorConfiguration>
④执行mybatis‐generator‐maven‐plugin
QBC查询
-
概述
- QBC：Query By Criteria
- QBC查询最大的特点就是将SQL语句中的WHERE子句进行了组件化的封装，让我们可以通 过调用Criteria对象的方法自由的拼装查询条件。

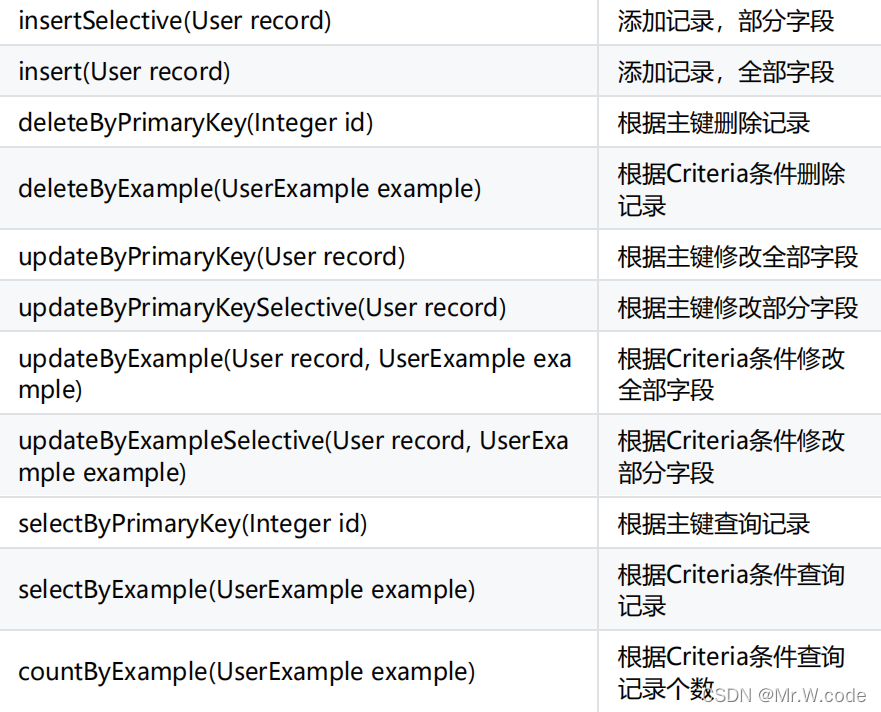

- 方法
-
代码实现
public class UserMapperTest {
private SqlSessionFactory sqlSessionFactory;
@Before
public void init() throws IOException {
sqlSessionFactory = new SqlSessionFactoryBuilder()
.build(Resources.getResourceAsStream("SqlMapConfig.xml"));
}
/**
* 添加记录，插入全部字段
*/
@Test
public void insert() {
SqlSession sqlSession = sqlSessionFactory.openSession();
UserMapper userMapper = sqlSession.getMapper(UserMapper.class);
User record = new User(null, null, "12345", 250.0);
userMapper.insert(record);
sqlSession.commit();
sqlSession.close();
}
/**
* 添加记录，插入部分字段(动态SQL)
*/
@Test
public void insertSelective() {
SqlSession sqlSession = sqlSessionFactory.openSession();
UserMapper userMapper = sqlSession.getMapper(UserMapper.class);
User record = new User(null, null, "12345", 250.0);
userMapper.insertSelective(record);
sqlSession.commit();
sqlSession.close();
}
/**
* 删除记录，根据id
*/
@Test
public void deleteByPrimaryKey() {
SqlSession sqlSession = sqlSessionFactory.openSession();
UserMapper userMapper = sqlSession.getMapper(UserMapper.class);
int deleteByPrimaryKey = userMapper.deleteByPrimaryKey(50);
System.out.println("deleteByPrimaryKey = " + deleteByPrimaryKey);
sqlSession.commit();
sqlSession.close();
}
/**
* 删除记录，根据Criteria条件
*/
@Test
public void deleteByExample() {
SqlSession sqlSession = sqlSessionFactory.openSession();
UserMapper userMapper = sqlSession.getMapper(UserMapper.class);
UserExample userExample = new UserExample();
UserExample.Criteria criteria = userExample.createCriteria();
criteria.andUserIdEqualTo(49);
UserExample.Criteria criteria2 = userExample.or();
criteria2.andUserIdEqualTo(50);
userMapper.deleteByExample(userExample);
sqlSession.commit();
sqlSession.close();
}
/**
* 修改记录，根据id，修改全部字段
*/
@Test
public void updateByPrimaryKey() {
SqlSession sqlSession = sqlSessionFactory.openSession();
UserMapper userMapper = sqlSession.getMapper(UserMapper.class);
User record = new User(48, null, "123", 500.0);
userMapper.updateByPrimaryKey(record);
sqlSession.commit();
sqlSession.close();
}
/**
* 修改记录，根据id，修改部分字段(动态SQL)
*/
@Test
public void updateByPrimaryKeySelective() {
SqlSession sqlSession = sqlSessionFactory.openSession();
UserMapper userMapper = sqlSession.getMapper(UserMapper.class);
User record = new User(48, null, "123", 500.0);
userMapper.updateByPrimaryKeySelective(record);
sqlSession.commit();
sqlSession.close();
}
/**
* 修改记录，根据Criteria条件，修改全部字段
*/
@Test
public void updateByExample() {
SqlSession sqlSession = sqlSessionFactory.openSession();
UserMapper userMapper = sqlSession.getMapper(UserMapper.class);
//要修改生成的值
User record = new User(48, null, "aaa", 500.0);
//条件
UserExample userExample = new UserExample();
UserExample.Criteria criteria = userExample.createCriteria();
criteria.andUserIdEqualTo(48);
userMapper.updateByExample(record, userExample);
sqlSession.commit();
sqlSession.close();
}
/**
* 修改记录，根据Criteria条件，修改部分字段(动态SQL)
*/
@Test
public void updateByExampleSelective() {
SqlSession sqlSession = sqlSessionFactory.openSession();
UserMapper userMapper = sqlSession.getMapper(UserMapper.class);
//要修改生成的值
User record = new User(48, null, "bbb", 500.0);
//条件
UserExample userExample = new UserExample();
UserExample.Criteria criteria = userExample.createCriteria();
criteria.andUserIdEqualTo(48);
userMapper.updateByExampleSelective(record, userExample);
sqlSession.commit();
sqlSession.close();
}
/**
* 查询记录，根据id
*/
@Test
public void selectByPrimaryKey() {
SqlSession sqlSession = sqlSessionFactory.openSession();
UserMapper userMapper = sqlSession.getMapper(UserMapper.class);
User user = userMapper.selectByPrimaryKey(48);
System.out.println("user = " + user);
sqlSession.close();
}
/**
* 查询记录，根据Criteria条件
*/
@Test
public void selectByExample() {
SqlSession sqlSession = sqlSessionFactory.openSession();
UserMapper userMapper = sqlSession.getMapper(UserMapper.class);
UserExample userExample = new UserExample();
UserExample.Criteria criteria = userExample.createCriteria();
criteria.andUserNameLike("%a%");
List<User> userList = userMapper.selectByExample(userExample);
System.out.println("userList = " + userList);
sqlSession.close();
}
/**
* 统计个数，根据Criteria条件
*/
@Test
public void countByExample() {
SqlSession sqlSession = sqlSessionFactory.openSession();
UserMapper userMapper = sqlSession.getMapper(UserMapper.class);
UserExample userExample = new UserExample();
UserExample.Criteria criteria = userExample.createCriteria();
criteria.andUserNameLike("%a%");
int count = userMapper.countByExample(userExample);
System.out.println("count = " + count);
sqlSession.close();
}
}
mybatis注解开发基本使用
- 概述
- 替代mapper映射文件
- 代码实现
public interface UserMapper {
@Insert("insert into tb_user values(null,#{userName},#{userPwd},#{money})")
int addUser(User inputUser) throws Exception;
@Delete("delete from tb_user where user_id = #{userId}")
int deleteUserByPrimaryKey(Integer userId) throws Exception;
@Update("update tb_user set user_name = #{userName} where user_id = #{userId}")
int updateUserByPrimaryKey(User user) throws Exception;
@Select("select * from tb_user where user_id = #{userId}")
User selectUserByPrimaryKey(Integer userId) throws Exception;
@Select("select * from tb_user")
List<User> selectUserList() throws Exception;
}
复杂关系映射注解说明
- 概述
- 之前我们可以在映射文件中通过配置来实现， 在使用注解 开发时我们需要借助@Results 注解， @Result 注解， @One 注解， @Many 注解。
- @Results注解
- 相当于标签
- 配合@Result注解使用
- @Result注解
- 相当于标签、标签
- 配合@One、@Many注解使用
- @One
- 相当于标签
- 一对一查询
- @Many
- 相当于标签
- 一对多查询
注解实现一对一查询
- 需求
- 根据id查询订单信息，关联查询用户信息
- 代码实现
public interface OrderMapper {
@Results({
@Result(id = true, property = "orderId", column = "order_id", javaType = Integer.class),
@Result(id = false, property = "orderState", column = "order_state", javaType = String.class),
@Result(
id = false,
property = "customer",
column = "customer_no",
one = @One(//①②调用第二次单表查询
select = "com.atguigu.mapper.CustomerMapper.selectCustomerByCustomerId",
fetchType = FetchType.EAGER
))
})
//①①第一次单表查询
@Select("select * from tb_order where order_id = #{orderId}")
Order selectOrderByOrderId(Integer orderId) throws Exception;
}
public interface CustomerMapper {
//①③第二次单表查询
@Select("select * from tb_customer where customer_id = #{customerId}")
Customer selectCustomerByCustomerId(Integer customerId) throws Exception;
}
注解实现一对多查询
- 需求
- 根据id查询用户信息，关联查询订单信息
- 代码实现
public interface CustomerMapper {
//②①第一次单表查询
@Results({
@Result(id = true, property = "customerId", column = "customer_id", javaType = Integer.class),
@Result(id = false, property = "customerName", column = "customer_name", javaType = String.class),
@Result(id = false, property = "address", column = "address", javaType = String.class),
@Result(
id = false,
property = "orderList",
column = "customer_id",
many = @Many(//②②调用第二次单表查询
select = "com.atguigu.mapper.OrderMapper.selectOrderListByCustomerId",
fetchType = FetchType.LAZY
)
)
})
@Select("select * from tb_customer where customer_name = #{customerName}")
Customer selectCustomerByCustomerName(String customerName) throws Exception;
}
public interface OrderMapper {
//②③第二次单表查询
@Select("select * from tb_order where customer_no = #{customerId}")
List<Order> selectOrderListByCustomerId(Integer customerId) throws Exception;
}```
