[开发测试]WSO2 ESB 5.0.0 配置消息存储

一、配置数据源

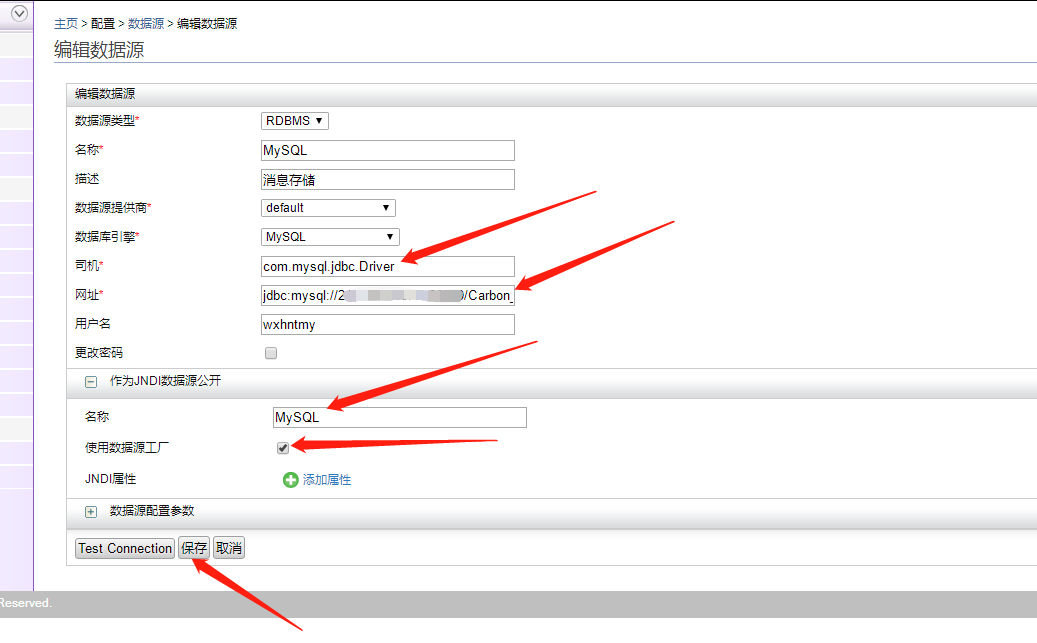

1、添加数据源

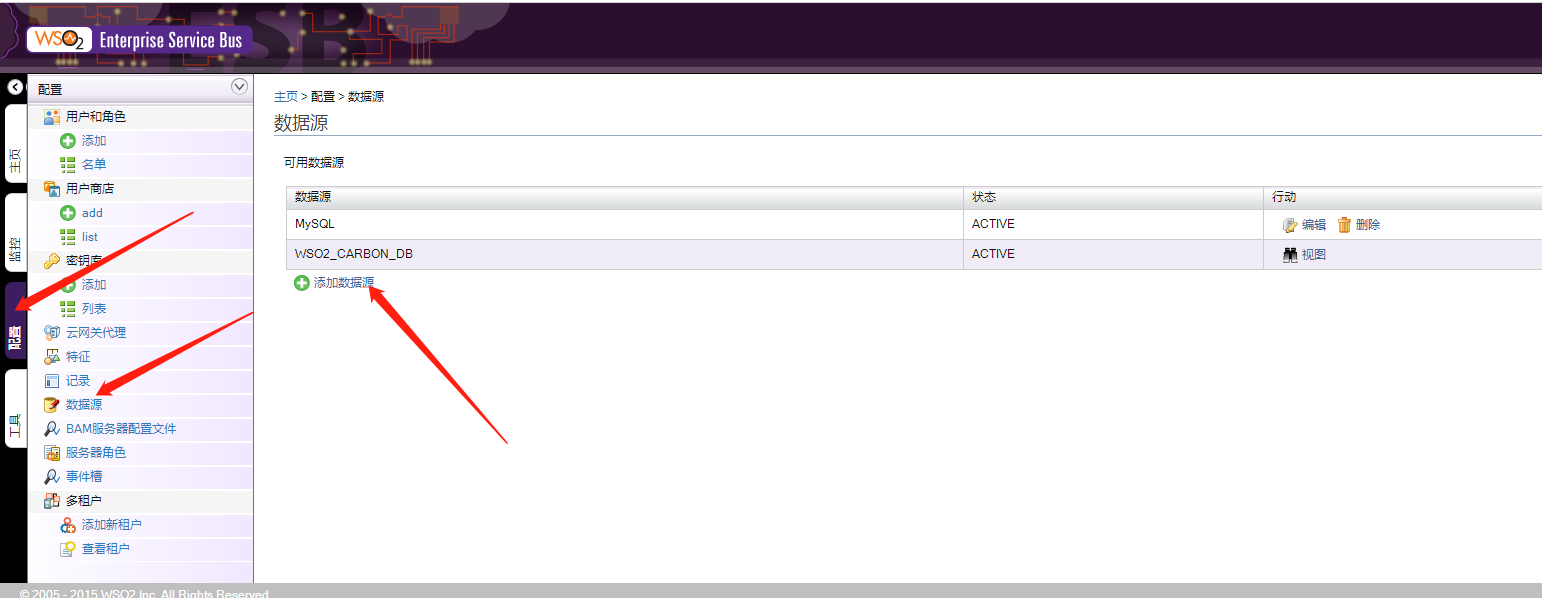

配置 --> 数据源 --> 添加数据源

2、添加存储数据的表

CREATE TABLE jdbc_message_store(
	indexId BIGINT( 20 ) NOT NULL AUTO_INCREMENT ,
	msg_id VARCHAR( 200 ) NOT NULL ,
	message BLOB NOT NULL ,
	PRIMARY KEY ( indexId )
);

二、配置接口

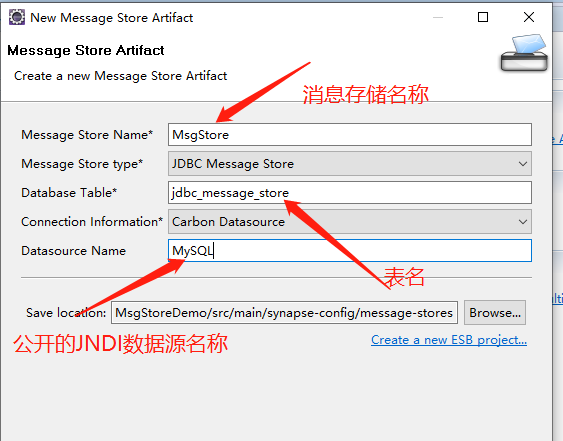

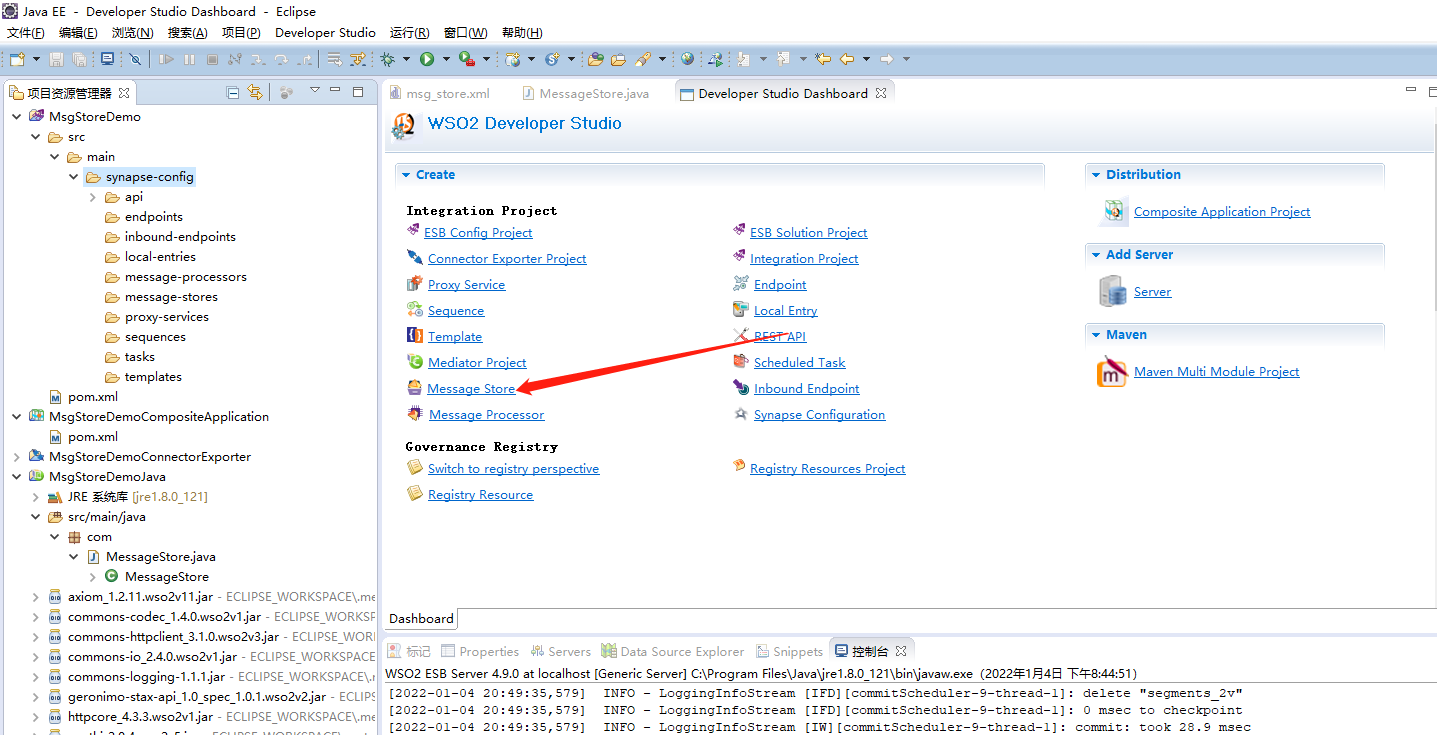

1、添加 Message Store

MsgStore.xml

<?xml version="1.0" encoding="UTF-8"?>
<messageStore class="org.apache.synapse.message.store.impl.jdbc.JDBCMessageStore" name="MsgStore" xmlns="http://ws.apache.org/ns/synapse">
    <parameter name="store.jdbc.dsName">MySQL</parameter>
    <parameter name="store.producer.guaranteed.delivery.enable">false</parameter>
    <parameter name="store.jdbc.table">jdbc_message_store</parameter>
</messageStore>

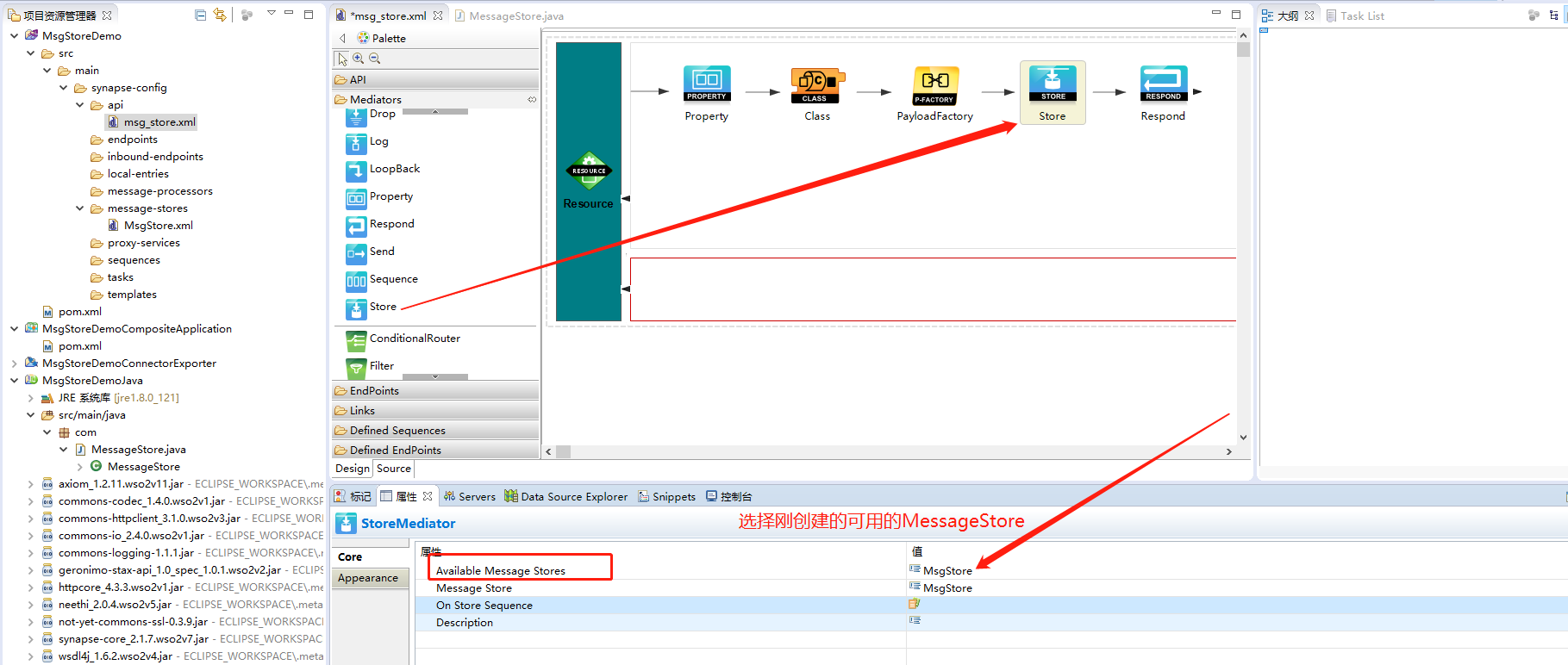

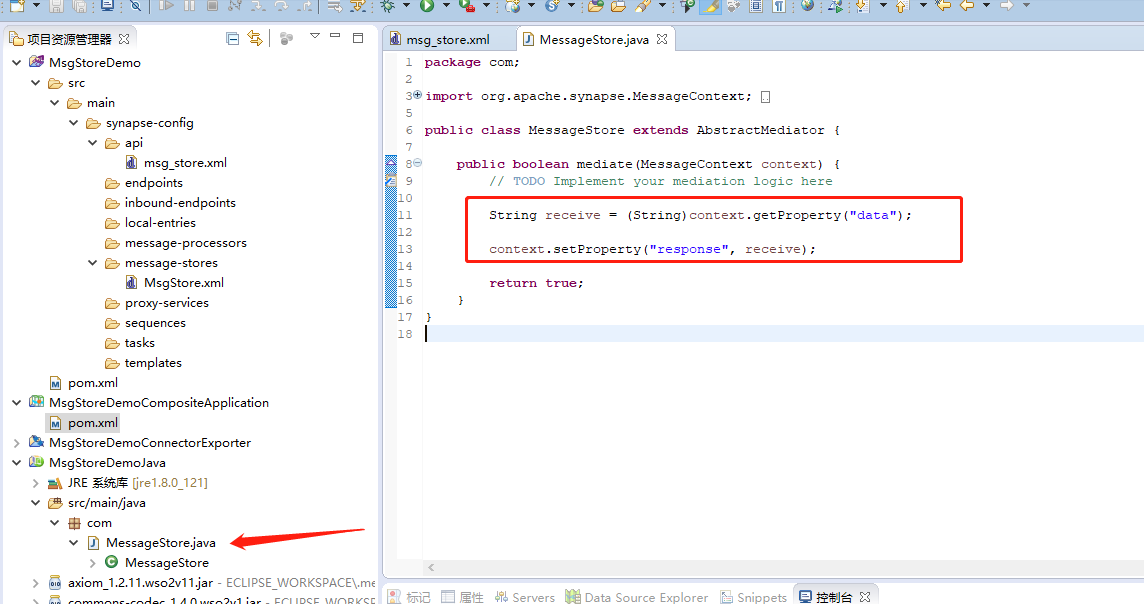

2、在 API 中添加 Store

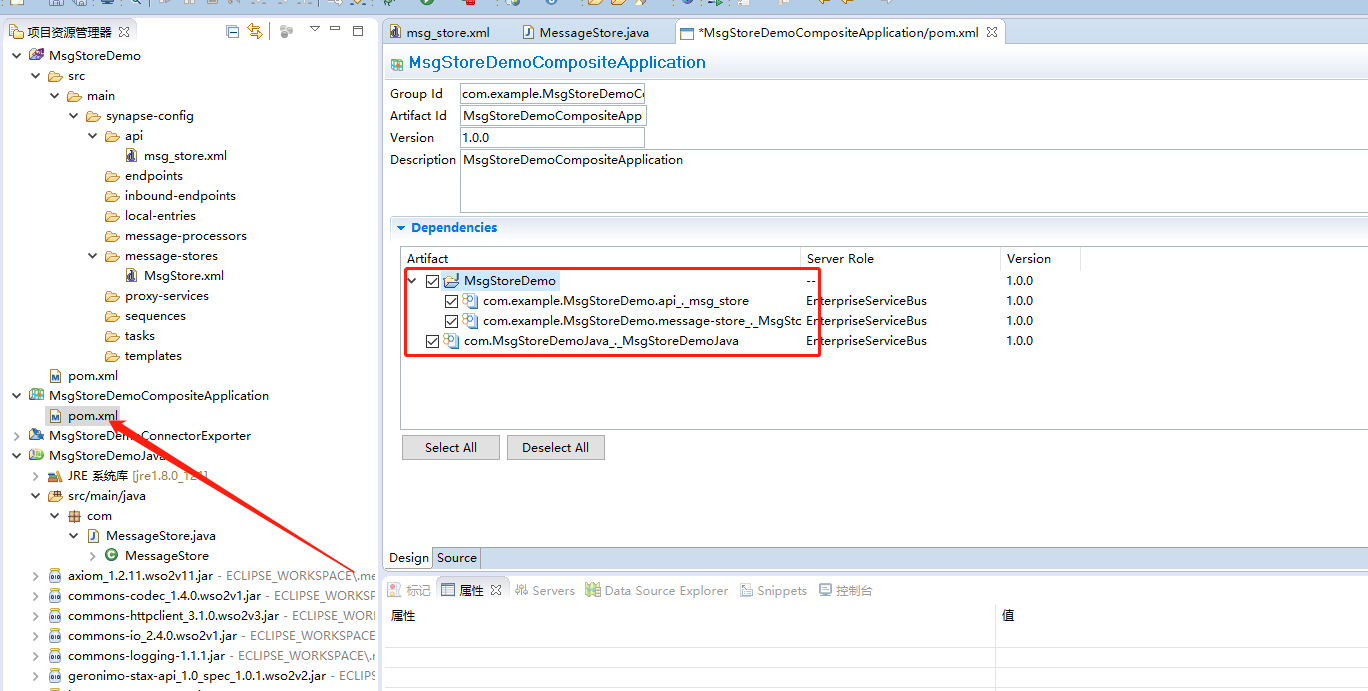

3、发布应用

4、Postman 测试

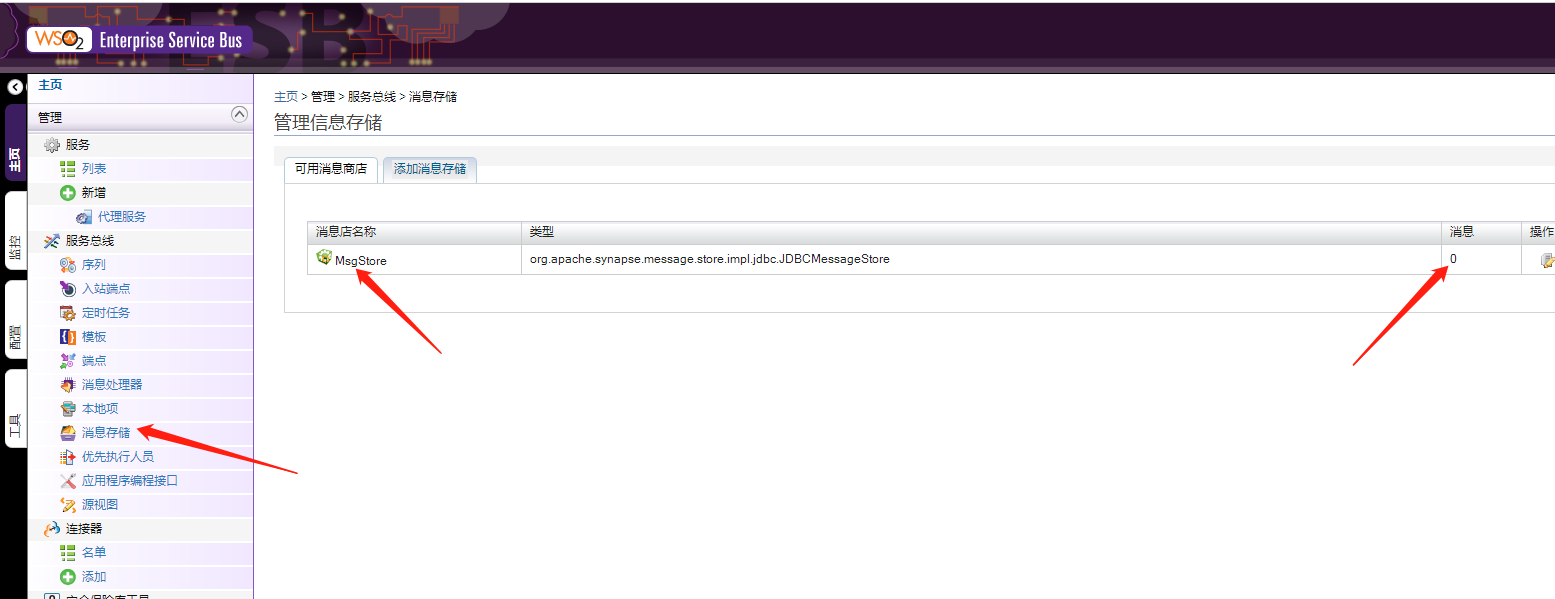

未接到消息时为0.

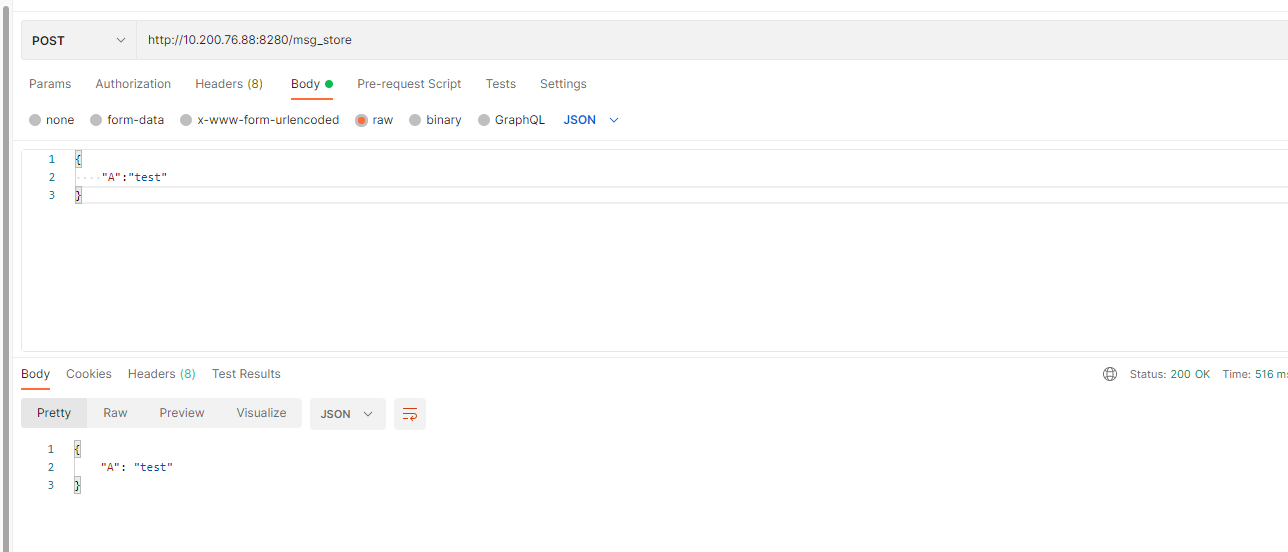

postman发送报文

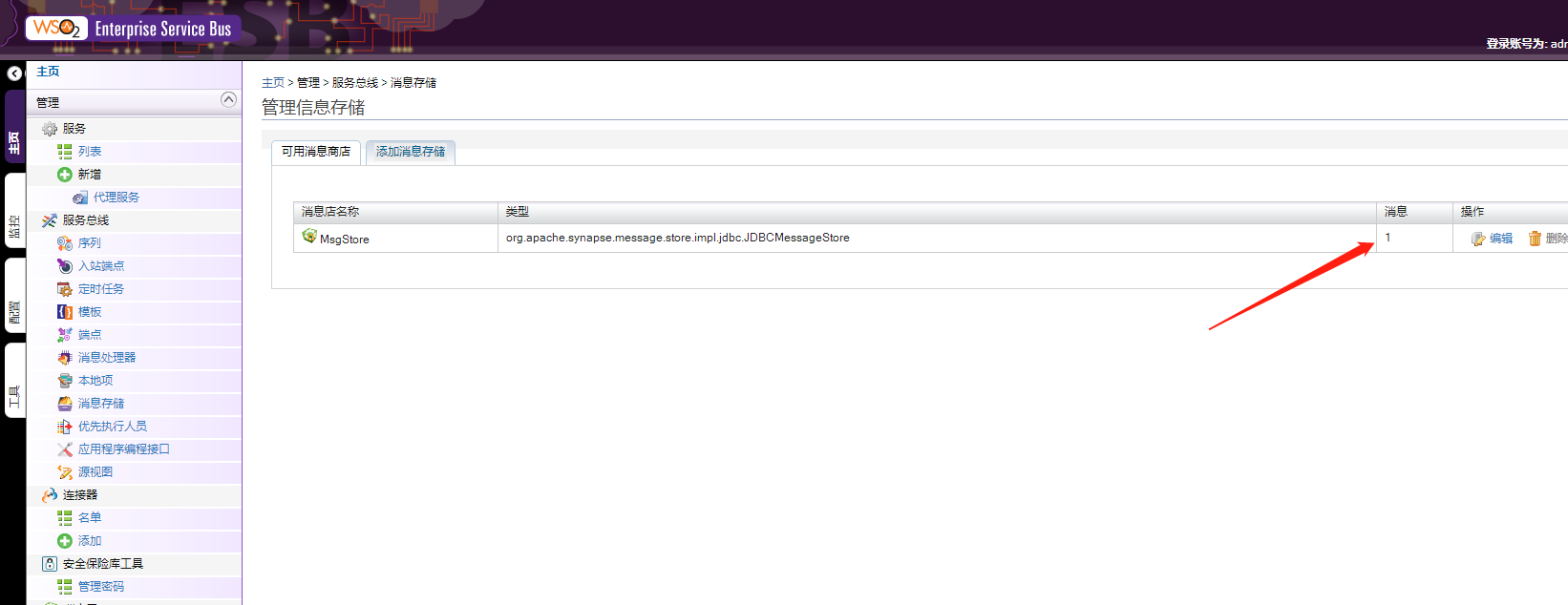

再次刷新消息存储，消息变为1了！

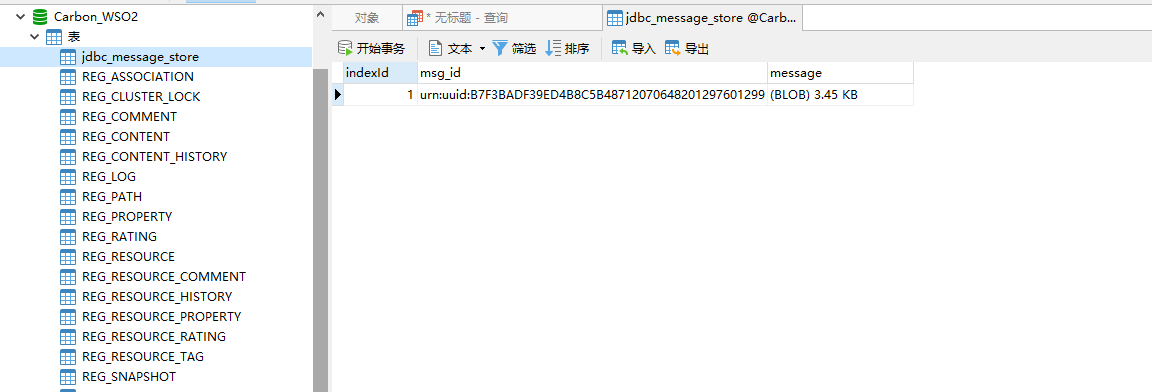

数据库表也存储了这条消息

三、查看存储的消息

1、查看消息内容

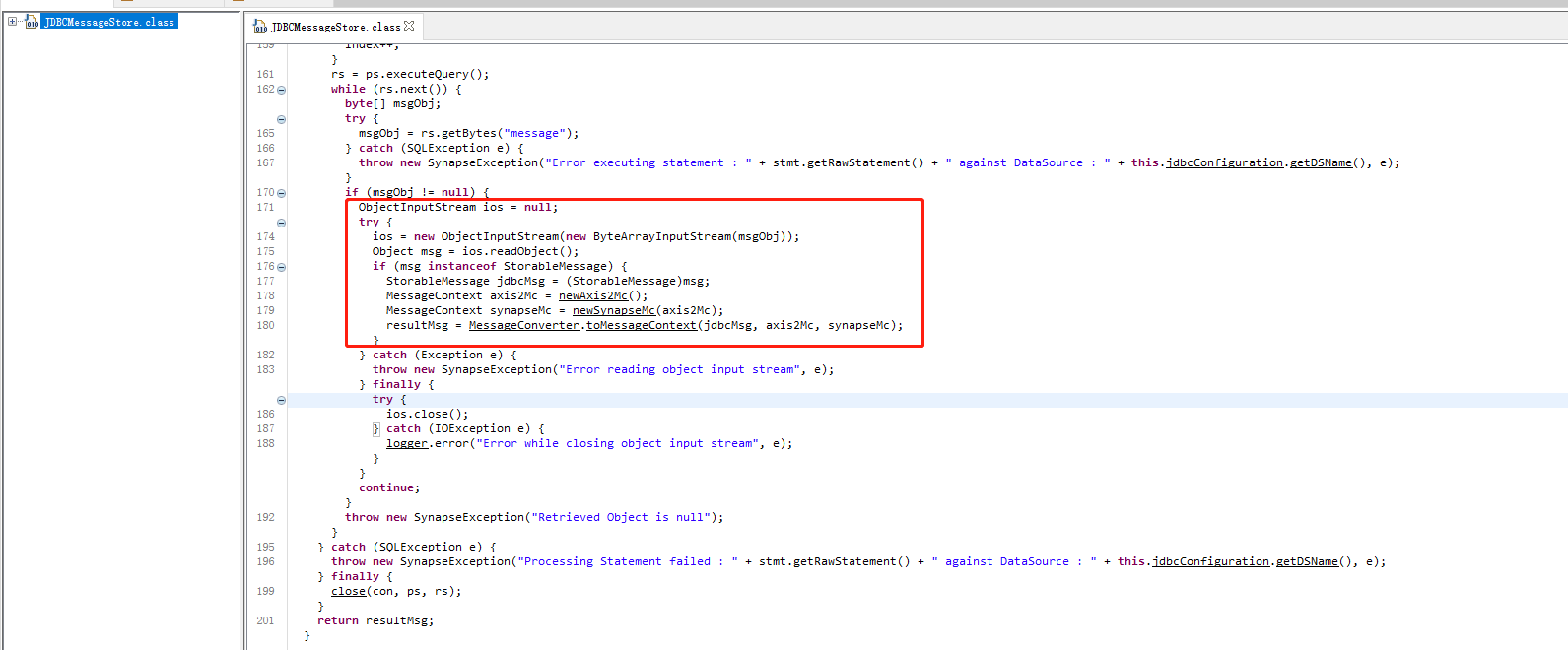

不能直接查看 message 内容，需要另外使用程序查看，因为 blob 存储的是对象。查看源码它是使用 ObjectInputStream 读取消息的。

使用 Eclipse Java 新建一个工程

导入 WSO2 包：WSO2ESB_HOME\repository\components\plugins\synapse-core_2.1.7.wso2v7.jar
JDBC包：mysql-connector-java-5.1.26.jar
fastjson包：fastjson-1.2.15.jar

Main.java

package com;

import java.util.List;
import java.util.Map;

import org.apache.synapse.message.store.impl.commons.StorableMessage;

import com.alibaba.fastjson.JSON;

public class Main {

	public static void main(String[] args) {
		// TODO 自动生成的方法存根

		String[] field = { "indexId", "msg_id", "message" };
		String sqlString = "SELECT indexId,msg_id,message FROM jdbc_message_store;";
		List<Object> msgList = Utils.getMysqlInfo(sqlString, field);

		String indexId = "", msg_id = "";
		StorableMessage message = null;

		// 行数
		for (int i = 0; i < (msgList.size() / field.length); i++) {
			// 列数
			for (int j = 0; j < field.length; j++) {
				if (j == 0) {
					indexId = (String) msgList.get(i * field.length + j);
				}
				if (j == 1) {
					msg_id = (String) msgList.get(i * field.length + j);
				}
				if (j == 2) {
					message = (StorableMessage)msgList.get(i * field.length + j);
				}
			}
			//System.out.println(indexId + "\t" + msg_id);
			Map map = message.getAxis2message().getProperties();
			System.out.println(JSON.toJSON(map));
			Map map2 = message.getSynapseMessage().getProperties();
			System.out.println(JSON.toJSON(map2));
		}

	}

}

Utils.java

package com;

import java.io.ByteArrayInputStream;
import java.io.IOException;
import java.io.ObjectInputStream;
import java.sql.Connection;
import java.sql.DriverManager;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.sql.SQLException;
import java.util.ArrayList;
import java.util.List;

import org.apache.synapse.message.store.impl.commons.StorableMessage;

public class Utils {

	private static Connection conn;

	/**
	 * 数据库连接
	 *
	 * @return
	 */
	public static Connection getsourcedata() {
		String dburl = "";
		String username = "";
		String password = "";

		dburl = "jdbc:mysql://localhost:3306/Carbon_WSO2?useUnicode=true&characterEncoding=utf8&useSSL=false&allowPublicKeyRetrieval=true&serverTimezone=GMT%2B8";
		username = "wxhntmy";
		password = "123456";
		try {
			Class.forName("com.mysql.jdbc.Driver");
			conn = DriverManager.getConnection(dburl, username, password);
			System.out.println("数据库连接成功！");
		} catch (Exception e) {
			e.printStackTrace();
		}
		return conn;
	}

	/**
	 * 查询数据库获取结果
	 *
	 * @param sql   "SQL语句"
	 * @param field "字段" 可传多值,String[]
	 * @return
	 */
	public static List<Object> getMysqlInfo(String sql, String... field) {
		List<Object> respon = new ArrayList<>();
		PreparedStatement pstmt = null;
		Connection con = Utils.getsourcedata();
//		getLogger("supplier_receive_java","getMysqlInfo_<field>",field);
		try {
			pstmt = con.prepareStatement(sql);
			ResultSet result = pstmt.executeQuery();
			System.out.println("utils 最终运行SQL: " + pstmt);
			while (result.next()) {
				for (String string : field) {
					if ("message".equals(string)) {
						byte[] msgObj = result.getBytes(string);

						if (msgObj != null) {
							ObjectInputStream ios = null;
							try {
								ios = new ObjectInputStream(new ByteArrayInputStream(msgObj));
								Object msg = ios.readObject();
								if (msg instanceof StorableMessage) {
						              StorableMessage jdbcMsg = (StorableMessage)msg;
						              //System.out.println(jdbcMsg);
						              respon.add(jdbcMsg);
						        }
							} catch (Exception e) {
								e.printStackTrace();
							} finally {
								try {
									ios.close();
								} catch (IOException e) {
									e.printStackTrace();
								}
							}
							continue;
						}

					} else {
						respon.add(result.getString(string));
					}
				}
			}
			pstmt.close();
			con.close();
		} catch (SQLException e) {
			e.printStackTrace();
			try {
				con.close();
			} catch (SQLException e1) {
				e1.printStackTrace();
			}
		}
		return respon;
	}

}

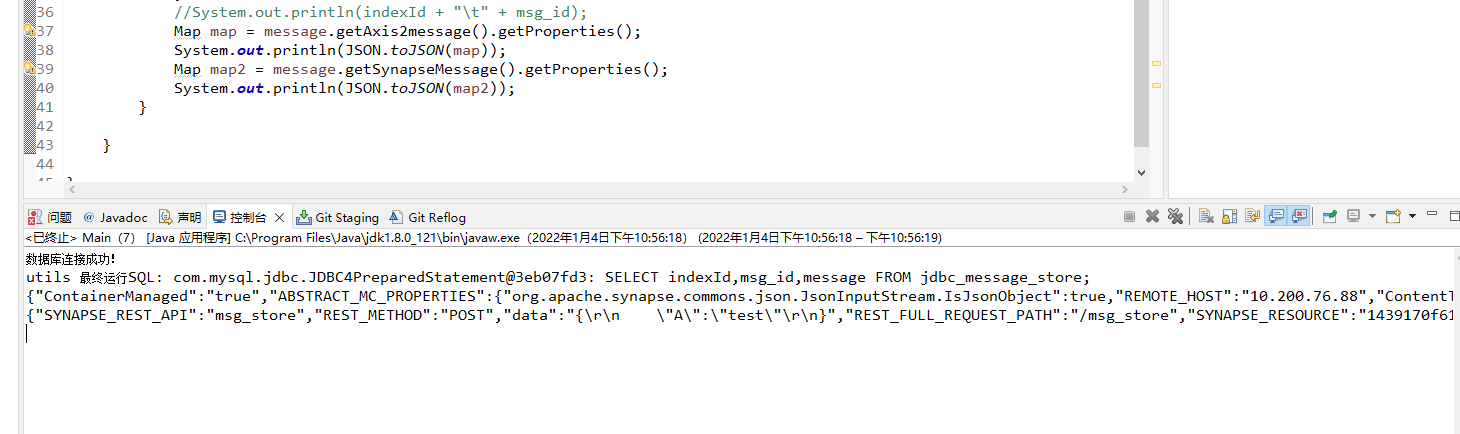

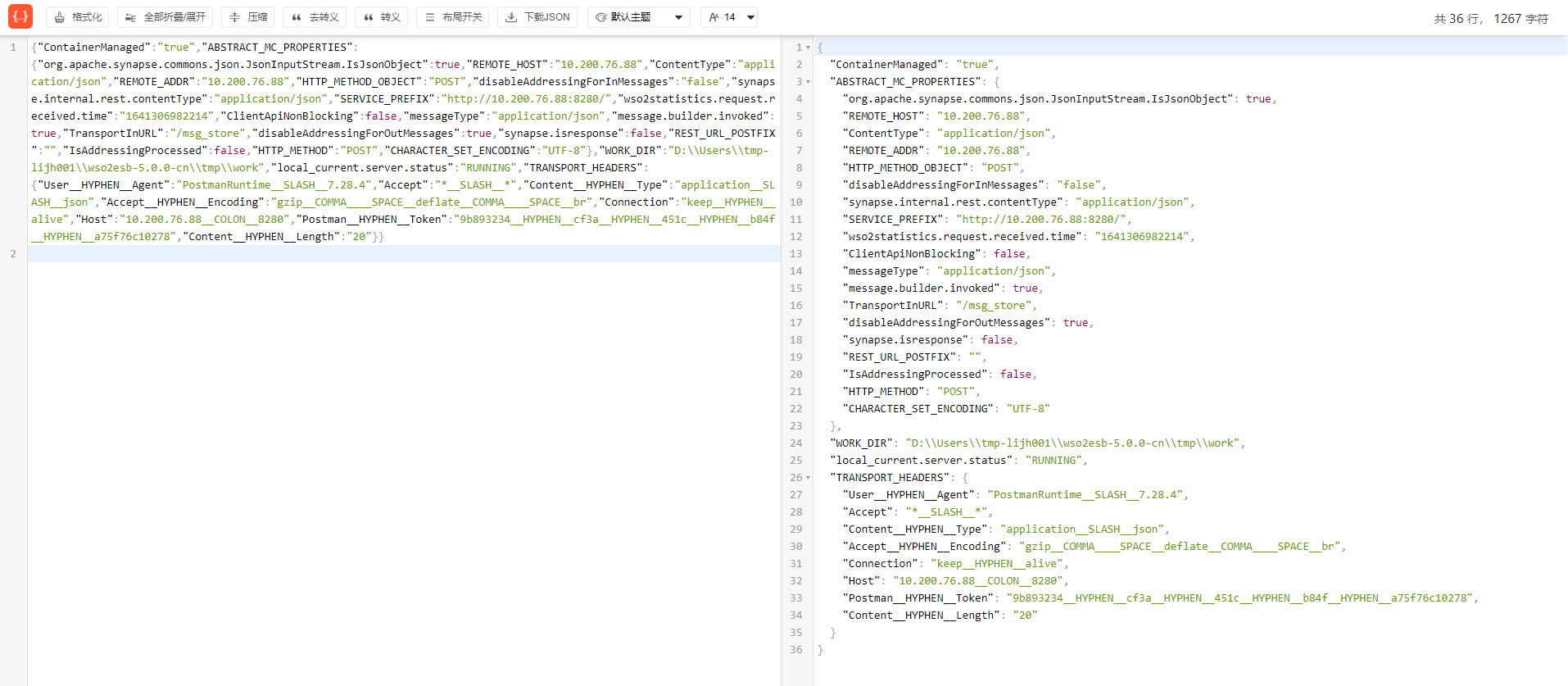

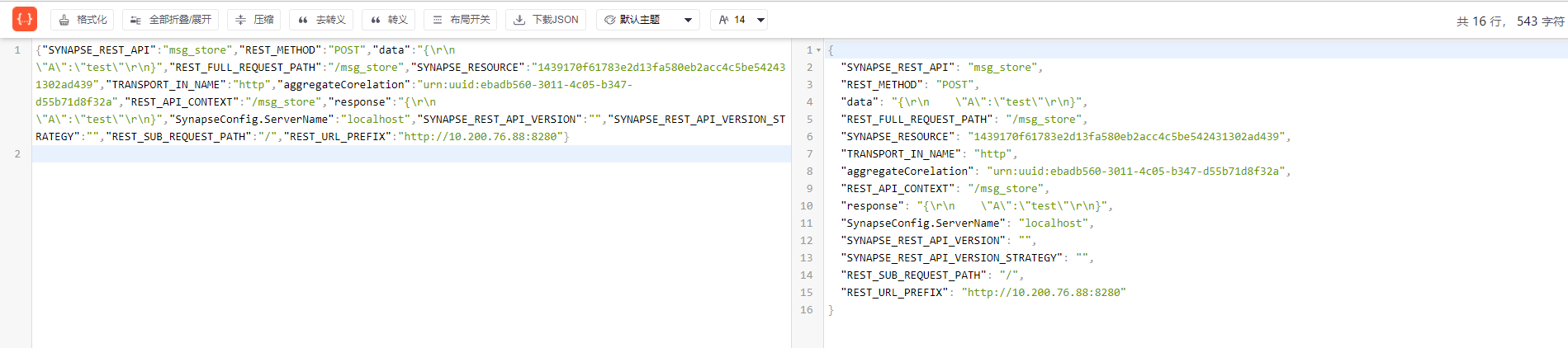

2、查看消息

message.getAxis2message().getProperties()

message.getSynapseMessage().getProperties()，这里可以看到我们设置的属性
