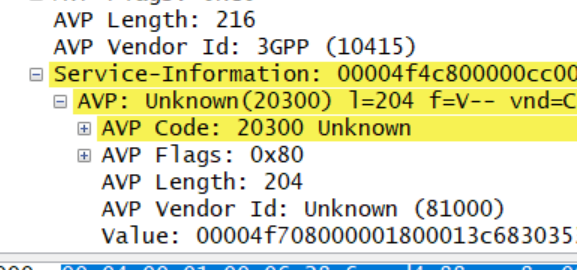

昨天同事找我看一下网卡包中DIAMETER协议。发现DIAMETER中SERVICE-INFORMATION部分中的自定义的CODE看不到。问我有没有解决方案。
正好前两年我遇到这样的问题。使用自定义的lua脚本，然后wireshark将自定义的lua脚本加载到内存中。然后decode as 相应的protocol即可。
具体操作如下：

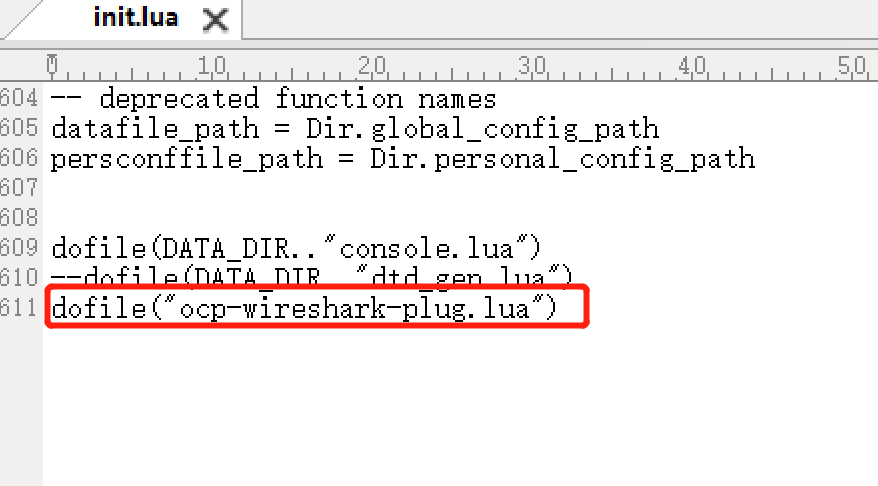

一：编辑init.lua文件最后一行添加dofile("ocp-wireshark-plug.lua")
? ? ? ? ? ?

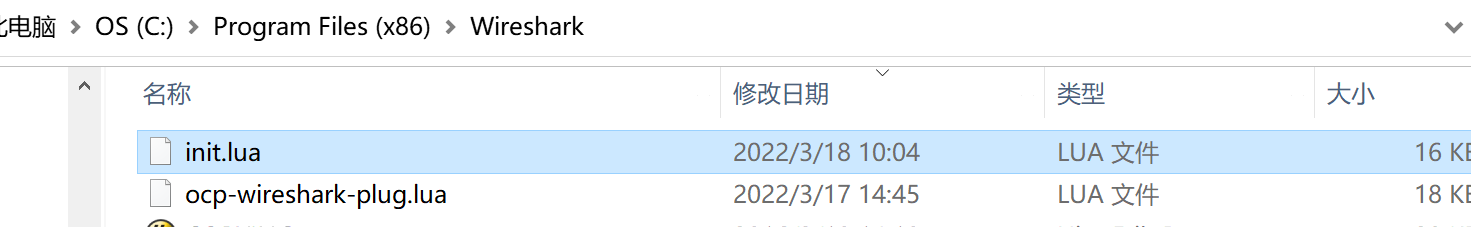

二、将lua脚本文件ocp-wireshark-plug.lua放到wireshark的目录下。
? ??
?
三、重启wireshark

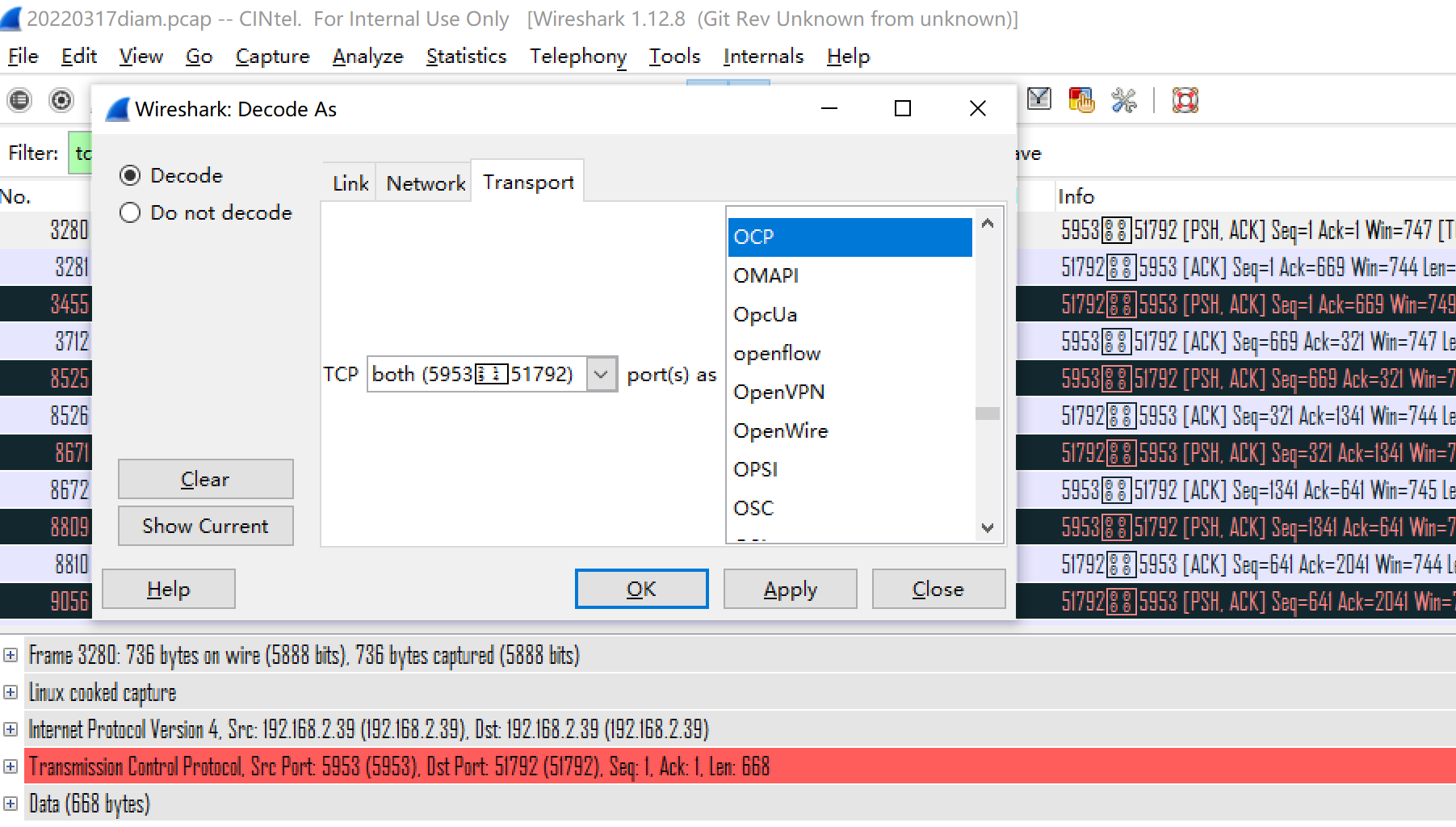

四、decode as?
?
?
五、lua脚本内容
-------------------------------------------
-- ocp diameter procol parser for wireshark
-------------------------------------------
local ocp_proto = Proto("ocp",?
?? ??? ??? ??? ??? ??? ?"China Telecom OCP");
local ocp_port = 6664;
-- DEFINE AVPS
local AVP_DEF = {
?? ?["263"] = {["name"] = "Session-Id", ["type"] = "String"},
?? ?["264"] = {["name"] = "Origin-Host", ["type"] = "String"},
?? ?["296"] = {["name"] = "Origin-Realm", ["type"] = "String"},
?? ?["283"] = {["name"] = "Destination-Realm", ["type"] = "String"},
?? ?["258"] = {["name"] = "Auth-Application-Id", ["type"] = "Uint32"},
?? ?["461"] = {["name"] = "Service-Context-Id", ["type"] = "String"},
?? ?["80172"] = {["name"] = "Service-Flow-Id", ["type"] = "String"},
?? ?["416"] = {["name"] = "CC-Request-Type", ["type"] = "Enum", ["Range"] = {
?? ??? ?[1] = "INITIAL_REQUEST", [2] = "UPDATE_REQUEST",?
?? ??? ?[3] = "TERMINATION_REQUEST", [4] = "EVENT_REQUEST"
?? ?}},
?? ?["415"] = {["name"] = "CC-Request-Number", ["type"] = "Uint32"},
?? ?["293"] = {["name"] = "Destination-Host", ["type"] = "String"},
?? ?["1"] ? = {["name"] = "User-Name", ["type"] = "String"},
?? ?["278"] = {["name"] = "Origin-State-Id", ["type"] = "Uint32"},
?? ?["55"] ?= {["name"] = "Event-Timestamp", ["type"] = "Uint32"},
?? ?["443"] = {["name"] = "Subscription-Id", ["type"] = "Group"},
?? ?["450"] = {["name"] = "Subscription-Id-Type", ["type"] = "Enum", ["Range"] = {
?? ??? ?[0] = "END_USER_E164",
?? ??? ?[1] = "END_USER_IMSI",
?? ??? ?[2] = "END_USER_SIP_URI",
?? ??? ?[3] = "END_USER_NAI",
?? ??? ?[4] = "END_USER_PRIVATE"
?? ?}},
?? ?["444"] = {["name"] = "Subscription-Id-Data", ["type"] = "String"},
?? ?["21101"] = {["name"] = "ESN", ["type"] = "String"},
?? ?["21102"] = {["name"] = "MEID", ["type"] = "String"},
?? ?["295"] = {["name"] = "Termination-Cause", ["type"] = "Enum", ["Range"] = {
?? ??? ?[0] = "Unknown",
?? ??? ?[1] = "DIAMETER_LOGOUT",
?? ??? ?[2] = "DIAMETER_SERVICE_NOT_PROVIDED",
?? ??? ?[3] = "DIAMETER_BAD_ANSWER",
?? ??? ?[4] = "DIAMETER_ADMINISTRATIVE",
?? ??? ?[5] = "DIAMETER_LINK_BROKEN",
?? ??? ?[6] = "DIAMETER_AUTH_EXPIRED",
?? ??? ?[7] = "DIAMETER_USER_MOVED",
?? ??? ?[8] = "DIAMETER_SESSION_TIMEOUT"
?? ?}},
?? ?["282"] = {["name"] = "Route-Record", ["type"] = "String"},
?? ?["439"] = {["name"] = "Service-Identifier", ["type"] = "Uint32"},
?? ?["436"] = {["name"] = "Request-Action", ["type"] = "Enum", ["Range"] = {
?? ??? ?[0] = "DIRECT_DEBITING",
?? ??? ?[1] = "REFUND_ACCOUNT",
?? ??? ?[2] = "CHECK_BALANCE",
?? ??? ?[3] = "PRICE_ENQUIRY",
?? ??? ?[4] = "RATABLE_ENQUIRY",
?? ??? ?[5] = "HB_DEBITING",
?? ??? ?[6] = "Reserve_Request",
?? ??? ?[7] = "Reserve_Confirm",
?? ??? ?[8] = "Reserve_Cancel",
?? ??? ?[9] = "Service_AUTHORISE",
?? ??? ?[10] = "Service_UNAUTHORISE"
?? ?}},
?? ?["437"] = {["name"] = "Requested-Service-Unit", ["type"] = "Group"},
?? ?["420"] = {["name"] = "CC-Time", ["type"] = "Uint32"},
?? ?["413"] = {["name"] = "CC-mONEY", ["type"] = "Group"},
?? ?["445"] = {["name"] = "Unit-Value", ["type"] = "Group"},
?? ?["447"] = {["name"] = "Value-Digits", ["type"] = "Uint64"},
?? ?["429"] = {["name"] = "Exponent", ["type"] = "Uint32"},
?? ?["425"] = {["name"] = "Currency-Code", ["type"] = "Uint32"},
?? ?["421"] = {["name"] = "CC-Total-Octets", ["type"] = "Uint64"},
?? ?["412"] = {["name"] = "CC-Input-Octets", ["type"] = "Uint64"},
?? ?["414"] = {["name"] = "CC-Output-Octets", ["type"] = "Uint64"},
?? ?["417"] = {["name"] = "CC-Service-Specific-Units", ["type"] = "Uint64"},
?? ?["20520"] = {["name"] = "Trial-Begin-Time", ["type"] = "Uint32"},
?? ?["446"] = {["name"] = "Used-Service-Unit", ["type"] = "Group"},
?? ?["872"] = {["name"] = "Reporting-Reason", ["type"] = "Enum", ["Range"] = {
?? ??? ?[0] = "THRESHOLD", [1] = "QHT", [2] = "FINAL",
?? ??? ?[3] = "QUOTA_EXHAUSTED", [4] = "VALIDITY_TIME",
?? ??? ?[5] = "QTHER_QUOTA_TYPE", [6] = "RATING_CONDITION_CHANGE",
?? ??? ?[7] = "FORCED_REAUTHORISATION", [8] = "POOL_EXHAUSTED"
?? ?}},
?? ?["870"] = {["name"] = "Trigger-Type", ["type"] = "Enum", ["Range"] = {
?? ??? ?[0] = "UNKNOWN",
?? ??? ?[1] = "CHANGE_IN_SGSN_IP_ADDRESS",
?? ??? ?[2] = "CHANGE_IN_QOS",
?? ??? ?[3] = "CHANGE_IN_LOCATION",
?? ??? ?[4] = "CHANGE_IN_RAT"
?? ?}},
?? ?["439"] = {["name"] = "Service-Identifier", ["type"] = "Uint32"},
?? ?["437"] = {["name"] = "Request-Service-Uinit", ["type"] = "Group"},
?? ?["413"] = {["name"] = "CC-Money", ["type"] = "Grouped"},
?? ?["432"] = {["name"] = "Rating-Group", ["type"] = "Uint32"},
?? ?["20513"] = {["name"] = "Product-Offer-Id", ["type"] = "String"},
?? ?["1016"] = {["name"] = "QoS-Information", ["type"] = "Group"},
?? ?["411"] = {["name"] = "CC-Correlation-Id", ["type"] = "String"},
?? ?["458"] = {["name"] = "User-Equipment-Info", ["type"] = "Group"},
?? ?["459"] = {["name"] = "User-Equipment-Info-type", ["type"] = "Uint32"},
?? ?["460"] = {["name"] = "User-Equipment-Info-Value", ["type"] = "String"},
?? ?["284"] = {["name"] = "Proxy-Info", ["type"] = "Group"},
?? ?["280"] = {["name"] = "Proxy-Host", ["type"] = "String"},
?? ?["33"] ?= {["name"] = "proxy-State", ["type"] = "String"},
?? ?["873"] = {["name"] = "Service-Infomation", ["type"] = "Group"},
?? ?["874"] = {["name"] = "PS-Information", ["type"] = "Group"},
?? ?["20300"] = {["name"] = "IN-Information", ["type"] = "Group"},
?? ?["20400"] = {["name"] = "P2PSMS-Information", ["type"] = "Group"},
?? ?["20500"] = {["name"] = "ISMP-Information", ["type"] = "Group"},
?? ?["20600"] = {["name"] = "DSL-Information", ["type"] = "Group"},
?? ?["20700"] = {["name"] = "PSTN-Event-Information", ["type"] = "Group"},
?? ?["20800"] = {["name"] = "Recharge-Information", ["type"] = "Group"},
?? ?["879"] = {["name"] = "POC-Information", ["type"] = "Group"},
?? ?["22200"] = {["name"] = "IM-Information", ["type"] = "Group"},
?? ?["876"] = {["name"] = "IMS-Information", ["type"] = "Group"},
?? ?["5000"] = {["name"] = "Balance-Information", ["type"] = "Group"},
?? ?["21000"] = {["name"] = "Auth-Service-Information", ["type"] = "Group"},
?? ?["20329"] = {["name"] = "AoC-Information", ["type"] = "Group"},
?? ?["20340"] = {["name"] = "AoC-Confirmation", ["type"] = "Enum", ["Range"] = {
?? ??? ?[0] = "no", [1] = "yes"
?? ?}},
?? ?["80047"] = {["name"] = "Forward-Info", ["type"] = "Group"},
?? ?["80048"] = {["name"] = "Self-Host", ["type"] = "String"},
?? ?["80049"] = {["name"] = "Downstream-Host", ["type"] = "String"},
?? ?["80050"] = {["name"] = "Resonse-Time", ["type"] = "Uint32"},
?? ?["268"] = {["name"] = "Result-Code", ["type"] = "Uint32"},
?? ?["431"] = {["name"] = "Granted-Service-Unit", ["type"] = "Group"},
?? ?["451"] = {["name"] = "Traffic-Time-Change", ["type"] = "Uint32"},
?? ?["868"] = {["name"] = "Time-Quota-Threshold", ["type"] = "Uint64"},
?? ?["869"] = {["name"] = "Volume-Quota-Threshold", ["type"] = "Uint64"},
?? ?["423"] = {["name"] = "Cost-Information", ["type"] = "Group"},
?? ?["424"] = {["name"] = "Cost-Unit", ["type"] = "String"},
?? ?["430"] = {["name"] = "Final-Unit-Indication", ["type"] = "Group"},
?? ?["449"] = {["name"] = "Final-Unit-Action", ["type"] = "Enum", ["Range"] = {
?? ??? ?[0] = "TERMINATE",
?? ??? ?[1] = "REDIRECT",
?? ??? ?[2] = "RESTRICT_ACCESS"
?? ?}},
?? ?["434"] = {["name"] = "Redirect-Server", ["type"] = "Group"},
?? ?["433"] = {["name"] = "Enum", ["type"] = "Enum", ["Range"] = {
?? ??? ?[0] = "IPv4", [1] = "IPv6", [2] = "URL", [3] = "SIP URI"
?? ?}},
?? ?["435"] = {["name"] = "Redirect-Server-Address", ["type"] = "String"},
?? ?["427"] = {["name"] = "Credit-Control-Failure-Handling", ["type"] = "Enum", ["Range"] = {
?? ??? ?[0] = "TERMINATE", [1] = "CONTINUE", [2] = "RETRY_AND_TERMINATE"
?? ?}},
?? ?["428"] = {["name"] = "Direct-Debiting-Failure-Handle", ["type"] = "Enum", ["Range"] = {
?? ??? ?[0] = "TERMINATE_OR_BUFFER",
?? ??? ?[1] = "CONTINUE"
?? ?}},
?? ?["456"] = {["name"] = "Multiple-Service-Credit-Control", ["type"] = "Group"},
?? ?["871"] = {["name"] = "Quota-Holding-Time", ["type"] = "Uint32"},
?? ?["881"] = {["name"] = "Quota-Consumption-Time", ["type"] = "Uint32"},
?? ?["448"] = {["name"] = "Validity-Time", ["type"] = "Uint32"},
?? ?["438"] = {["name"] = "Restriction-Filter-Rule", ["type"] = "String"},
?? ?["11"] = {["name"] = "Filter-Id", ["type"] = "Group"},
?? ?["279"] = {["name"] = "Failed-AVP", ["type"] = "Group"},
?? ?["20372"] = {["name"] = "Account-Type", ["type"] = "Uint32"},
?? ?["20330"] = {["name"] = "AoC-Balance", ["type"] = "Uint32"},
?? ?["20331"] = {["name"] = "AoC-Language-ID", ["type"] = "Enum", ["Range"] = {
?? ??? ?[0] = "Mix", [1] = "Chinese", [2] = "English", [3] = "Local Language"
?? ?}},
?? ?["20332"] = {["name"] = "AoC-Tariff", ["type"] = "Group"},
?? ?["20333"] = {["name"] = "AoC-Start-Time", ["type"] = "Uint32"},
?? ?["20334"] = {["name"] = "AoC-Unit", ["type"] = "Uint32"},
?? ?["20335"] = {["name"] = "AoC-Price", ["type"] = "Uint32"},
?? ?["20356"] = {["name"] = "Account-Information", ["type"] = "Group"},
?? ?["20357"] = {["name"] = "AccountId", ["type"] = "String"},
?? ?["20359"] = {["name"] = "AccountDate", ["type"] = "Uint32"},
?? ?["20631"] = {["name"] = "Service-Result-Code", ["type"] = "Uint32"},
?? ?["50104"] = {["name"] = "Total-Balance-Available", ["type"] = "Uint32"},
?? ?["20521"] = {["name"] = "Result-Code-Desc", ["type"] = "String"},
?? ?["257"] = {["name"] = "Balance-Reserved", ["type"] = "Uint64"},
?? ?["80074"] = {["name"] = "Business-Security-Information", ["type"] = "Group"},
?? ?["80075"] = {["name"] = "Business-Security-Data", ["type"] = "String"},
?? ?["80076"] = {["name"] = "Key-Version", ["type"] = "String"},
?? ?["259"] = {["name"] = "Acct-Application-Id", ["type"] = "Uint32"},
?? ?["269"] = {["name"] = "Product-Name", ["type"] = "String"},
?? ?["266"] = {["name"] = "Vendor-Id", ["type"] = "Uint32"},
?? ?["265"] = {["name"] = "Supported-Vendor-Id", ["type"] = "Uint32"},
?? ?["260"] = {["name"] = "Vendor-Specific-Application-Id", ["type"] = "Group"},
?? ?["267"] = {["name"] = "Firmware-Revision", ["type"] = "Uint32"},
};
local CMD_DEF = {
?? ?[272] = {[0] = "CCA", [1] = "CCR"},
?? ?[258] = {[0] = "RAA", [1] = "RAR"},
?? ?[274] = {[0] = "ASA", [1] = "ASR"},
?? ?[280] = {[0] = "DWA", [1] = "DWR"},
?? ?[282] = {[0] = "DPA", [1] = "DPR"},
?? ?[257] = {[0] = "CEA", [1] = "CER"}
};
function extends(ParentKlass)?
?? ?local klass = {};
?? ?setmetatable(klass, ParentKlass);
?? ?klass.__index = klass;
?? ?return klass;
end
local function getByteBits(n)
?? ?local tn = n;
?? ?local x = {};
?? ?for i = 1,8 do
?? ??? ?x[9 - i] = (tn % 2);
?? ??? ?tn = math.floor(tn / 2);
?? ?end
?? ?return x;
end
local avp = {};
function avp.new(self)?
?? ?local o = {};
?? ?o._avpCode = 0;
?? ?o._avpFlag = 0;
?? ?o._avpLen ?= 0;
?? ?o._vendor ?= "";
?? ?o._avpData = "";
?? ?o._avpHeadLen = 0;
?? ?setmetatable(o, self);
?? ?self.__index = self;
?? ?return o;
end
function avp._parseHead(self, buf, offset)?
?? ?self._avpCode = buf(offset,4):uint();
?? ?offset = offset + 4;
?? ?self._avpHeadLen = 4;
?? ?self._avpFlag = buf(offset,1):uint();
?? ?offset = offset + 1;
?? ?self._avpHeadLen = self._avpHeadLen + 1;
?? ?self._avpLen = buf(offset,3):uint();
?? ?offset = offset + 3;
?? ?self._avpHeadLen = self._avpHeadLen + 3;
?? ?if self._avpFlag >= 0x80 then
?? ??? ?self._vendor = buf(offset,4):uint();
?? ??? ?offset = offset + 4;
?? ??? ?self._avpHeadLen = self._avpHeadLen + 4;
?? ?end
?? ?self._avpLen = math.floor((self._avpLen + 3)/4) * 4;
?? ?return offset;
end
function avp.parse(self, buf, offset, curTree, blen)
?? ?local offsetLen = {["offset"] = offset, ["blen"] = blen};
?? ?self:_parse(buf, offsetLen, curTree);
?? ?return offsetLen.offset;
end
function avp._align32(self, x)
?? ?local alignLen = math.floor(((self._avpLen + 3) / 4));
?? ?return x + (alignLen - self._avpLen);
end
function avp._printAVP(self, buf, off, curTree)
?? ?local at = curTree:add(ocp_proto, buf(off, self._avpLen), "[Unknown AVP]");
?? ?local fb = getByteBits(self._avpFlag);
?? ?local sflag = {[8] = "r", [7] = "r", [6] = "r", [5] = "r",
?? ??? ??? ??? ? ? [4] = "r", [3] = "P", [2] = "M", [1] = "V"};
?? ?for i=8,1,-1 do
?? ??? ?sflag[i] = sflag[i] .. "(" .. fb[i] .. ")";
?? ?end
?? ?local af = table.concat(sflag, ",");
?? ?at:add(ocp_proto.fields.avpCode, buf(off, 4));
?? ?at:add(ocp_proto.fields.avpFlag, buf(off+4,1));
?? ?at:add(ocp_proto.fields.strFlag, af);
?? ?at:add(ocp_proto.fields.avpLen, buf(off+5, 3));
?? ?if self._avpHeadLen > 8 then
?? ??? ?at:add(ocp_proto.fields.avpVendor, buf(off+8,4));
?? ??? ?at:add(ocp_proto.fields.avpData, buf(off+12, self._avpLen - 12));
?? ?else
?? ??? ?at:add(ocp_proto.fields.avpData, buf(off+8, self._avpLen - 8));
?? ?end
end
function avp._parse(self, buf, ol, curTree)
?? ?if ol.offset >= ol.blen then
?? ??? ?return;
?? ?end
?? ?local off0 = ol.offset;
?? ?ol.offset = self:_parseHead(buf, ol.offset);
?? ?-- curTree:add(ocp_proto.fields.debug, "avpLen: " .. self._avpLen .. ", avp head len: " .. self._avpHeadLen);
?? ?local bodyLen = self._avpLen - self._avpHeadLen;
?? ?if bodyLen + ol.offset > ol.blen then
?? ??? ?bodyLen = ol.blen - ol.offset;
?? ?end
?? ?local ai = AVP_DEF["" .. self._avpCode];
?? ?if ai == nil then
?? ??? ?self:_printAVP(buf, off0, curTree);
?? ??? ?ol.offset = off0 + self._avpLen;
?? ??? ?return;
?? ?end
?? ?local field = nil;
?? ?if ai["type"] == "Group" then
?? ??? ?-- curTree:add(ocp_proto.fields.debug, "parse group");
?? ??? ?local mt = curTree:add(ocp_proto, buf(ol.offset, bodyLen), "[" .. ai["name"] .. "]");
?? ??? ?local tmpIndex = {["offset"] = ol.offset, ["blen"] = bodyLen + ol.offset};
?? ??? ?while true do
?? ??? ??? ?-- local _ta = avp:new();
?? ??? ??? ?local _ta = avp:new();
?? ??? ??? ?_ta:_parse(buf, tmpIndex, mt);
?? ??? ??? ?if tmpIndex.offset >= tmpIndex.blen then
?? ??? ??? ??? ?break;
?? ??? ??? ?end
?? ??? ?end
?? ?else
?? ??? ?field = ocp_proto.fields["" .. self._avpCode];
?? ??? ?if field ~= nil then
?? ??? ??? ?-- curTree:add(ocp_proto.fields.debug, "bodyLen: " .. bodyLen .. ", offset:" .. ol.offset);
?? ??? ??? ?curTree:add(field, buf(ol.offset, bodyLen));
?? ??? ?else
?? ??? ??? ?self:_printAVP(buf, off0, curTree);
?? ??? ?end
?? ?end
?? ?-- ol.offset = off0 + self._avpLen + 1;
?? ?ol.offset = off0 + self._avpLen;
end
local OcpHead = {
?? ?new = function(self)
?? ??? ?local o = {};
?? ??? ?o.msgLen ?= 0;
?? ??? ?o._cmdFlag = 0;
?? ??? ?o._cmdCode = 0;
?? ??? ?o.cmdName = "";
?? ??? ?setmetatable(o, self);
?? ??? ?self.__index = self;
?? ??? ?return o;
?? ?end,
?? ?parse = function(self, buf, off, blen, root)
?? ??? ?if blen < 20 then
?? ??? ??? ?return off;
?? ??? ?end
?? ??? ?off = off + 1;
?? ??? ?self.msgLen = buf(off, 3):uint();
?? ??? ?local curTree = root:add(ocp_proto, buf(off-1, 20), ?"[OCP-HEADER]");
?? ??? ?curTree:add(ocp_proto.fields.ocp_version, buf(off-1, 1));
?? ??? ?curTree:add(ocp_proto.fields.ocp_msgLen, buf(off, 3));
?? ??? ?off = off + 3;
?? ??? ?self._cmdFlag = buf(off, 1):uint();
?? ??? ?local cmdStrFlag = "" .. self._cmdFlag .. ": ";
?? ??? ?local tmpflag = getByteBits(self._cmdFlag);
?? ??? ?local tbflag = {[8] = "r", [7] = "r", [6] = "r", [5] = "r",?
?? ??? ??? ??? ??? ??? ?[4] = "T", [3] = "E", [2] = "P", [1] = "R"};
?? ??? ?for i = 8,1,-1 do
?? ??? ??? ?tbflag[i] = tbflag[i] .. "(" .. tmpflag[i] .. ")";
?? ??? ?end
?? ??? ?local cmdStrFlag = cmdStrFlag .. table.concat(tbflag, ",");
?? ??? ?curTree:add(ocp_proto.fields.ocp_cmdFlag, buf(off, 1));
?? ??? ?curTree:add(ocp_proto.fields.strFlag, cmdStrFlag);
?? ??? ?off = off + 1;
?? ??? ?self._cmdCode = buf(off, 3):uint();
?? ??? ?if CMD_DEF[self._cmdCode] ~= nil then
?? ??? ??? ?self.cmdName = CMD_DEF[self._cmdCode][tmpflag[1]];
?? ??? ?else
?? ??? ??? ?self.cmdName = "" .. self._cmdCode;
?? ??? ?end
?? ??? ?curTree:add(ocp_proto.fields.ocp_cmdCode, buf(off, 3));
?? ??? ?off = off + 3;
?? ??? ?curTree:add(ocp_proto.fields.ocp_appId, buf(off, 4));
?? ??? ?off = off + 4;
?? ??? ?curTree:add(ocp_proto.fields.ocp_hbh, buf(off, 4));
?? ??? ?off = off + 4;
?? ??? ?curTree:add(ocp_proto.fields.ocp_e2e, buf(off, 4));
?? ??? ?off = off + 4;
?? ??? ?local reqtype = 0;
?? ??? ?if self._cmdFlag >= 0x80 then
?? ??? ??? ?reqtype = 1;
?? ??? ?end
?? ??? ?return off;
?? ?end,
};
function ocp_proto.dissector(buf, pkt, tree)
?? ?local blen = buf:len();
?? ?if blen == 0 then
?? ??? ?return;
?? ?end
?? ?pkt.cols.protocol = ocp_proto.name;
?? ?local subtree = tree:add(ocp_proto, buf(0, blen));
?? ?local offset ?= 0;
?? ?local oh = OcpHead:new();
?? ?offset = oh:parse(buf, offset, blen, subtree);?
?? ?if oh.cmdName ~= "" then
?? ??? ?pkt.cols.info = oh.cmdName;
?? ?end
?? ?while offset < oh.msgLen do
?? ??? ?local ta = avp:new();
?? ??? ?offset = ta:parse(buf, offset, subtree, oh.msgLen);
?? ?end
end
-- initialization protocol
function ocp_proto.init()
end
-- register a chained dissector for ocp_port
local tcp_table = DissectorTable.get("tcp.port");
dissector = tcp_table:get_dissector(ocp_port);
tcp_table:add(ocp_port, ocp_proto);
-- init coloumns
ocp_proto.fields.debug = ProtoField.string("DEBUG", "DEBUG");
ocp_proto.fields.strFlag ?= ProtoField.string("FlagInfo", "Flag Info");
ocp_proto.fields.unknown = ProtoField.string("AVP", "AVP");
ocp_proto.fields.avpCode = ProtoField.uint32("AVPCode", "AVP Code");
ocp_proto.fields.avpFlag = ProtoField.uint8("AVPFlag", "AVP Flag");
ocp_proto.fields.avpLen = ProtoField.uint32("AVPLength", "AVP Length");
ocp_proto.fields.avpVendor = ProtoField.uint32("AVPVendor", "AVP Vendor");
ocp_proto.fields.avpData = ProtoField.string("AVPData", "AVP Data");
for k, v in pairs(AVP_DEF) do
?? ?local field = nil;
?? ?local n = v["name"];
?? ?if v["name"] == nil then
?? ??? ?n = "unknow";
?? ?end
?? ?if v["type"] == "String" or v["type"] == "UTF8String" then
?? ??? ?field = ProtoField.string(n, n);
?? ?elseif v["type"] == "Int32" or v["type"] == "Uint32" then
?? ??? ?field = ProtoField.uint32(n, n, base.DEC);
?? ?elseif v["type"] == "Int64" or v["type"] == "Uint64" then
?? ??? ?field = ProtoField.uint64(n, n, base.DEC);
?? ?elseif v["type"] == "Enum" then
?? ??? ?field = ProtoField.uint32(n, n, base.DEC, v["Range"]);
?? ?end
?? ?if field ~= nil then
?? ??? ?ocp_proto.fields[k] = field;
?? ?end
end
ocp_proto.fields.ocp_version = ProtoField.uint8("Version", "Version", base.DEC);
ocp_proto.fields.ocp_msgLen = ProtoField.uint32("MsgLen", "Message length", base.DEC);
ocp_proto.fields.ocp_cmdFlag = ProtoField.uint8("CmdFlags", "Command Flags", base.DEC);
ocp_proto.fields.ocp_cmdCode = ProtoField.uint32("CmdCode", "Command Code", base.DEC);
ocp_proto.fields.ocp_appId = ProtoField.uint32("Application-ID", "Application ID", base.DEC);
ocp_proto.fields.ocp_hbh = ProtoField.uint32("Hop-by-Hop", "Hop by Hop", base.DEC);
ocp_proto.fields.ocp_e2e = ProtoField.uint32("End-to-End", "End to End", base.DEC);
?
?
?
