[游戏开发]C for Graphic：Ugui CanvasRenderer Effect

前几天没想准备做点ugui效果就又找到unity的bug了，那就是和上一篇相关，我想对ugui line制作一些简单的动效，结果发现uivertex的uv字段不生效，同时发现FillMesh函数也无效，那么对我来说Graphic.OnPopulateMesh就没用了，我得想别的办法。
下面来详细说明一下我碰到的问题：
我想给绘制的line加上shader动效，所以需要uv0参数，我按照如下图计算出uv0：

代码如下：

    /// <summary>
    /// 获取每一段“线段”的长度
    /// </summary>
    /// <param name="poses"></param>
    /// <returns></returns>
    private float[] GetLineLengths(Vector2[] poses)
    {
        float[] seglens = new float[poses.Length - 1];
        float length = 0;
        for (int i = 1; i < poses.Length; i++)
        {
            Vector2 fpos = poses[i - 1];
            Vector2 tpos = poses[i];
            float len = Vector2.Distance(fpos, tpos);
            length += len;
            seglens[i - 1] = length;
        }
        return seglens;
    }

    /// <summary>
    /// 获取vertex uv0
    /// 根据距离/总长计算
    /// </summary>
    /// <param name="findex"></param>
    /// <param name="tindex"></param>
    /// <returns></returns>
    private Vector2 GetVertexUV0(int findex, int tindex)
    {
        Vector2 uv = new Vector2(0, Mathf.Abs(tindex - 1));
        if (findex != 0)
        {
            float len = lengths[findex - 1];
            float sumlen = lengths[lengths.Length - 1];
            uv = new Vector2(len / sumlen, Mathf.Abs(tindex - 1));
        }
#if UNITY_EDITOR
        Debug.LogWarningFormat("findex = {0} tindex = {1} uv = {2}", findex, tindex, uv);
#endif
        return uv;
    }

			for (int i = 0; i < ptcount; i++)
            {
                int firstindex = i % ptslist.Count;
                int secondindex = i / ptslist.Count;
                UIVertex vertex = new UIVertex();
                vertex.position = ptslist[firstindex][secondindex];
                vertex.uv0 = GetVertexUV0(firstindex, secondindex);
                vertex.uv1 = vertex.uv0;
                vertex.uv2 = vertex.uv0;
                vertex.uv3 = vertex.uv0;
                vh.AddVert(vertex);
            }

我为了测试，把uv0-3都赋值了，顺便做了个uv sample shader，如下：

Shader "Ugui/UguiUVSampleShader"
{
    Properties
    {
        _MainTex ("Texture", 2D) = "white" {}
        _MainColor("Main Color",Color) = (1,1,1,1)
    }
    SubShader
    {
        Tags { "RenderType"="Transparent" "Queue"="Transparent" }
        LOD 100

        Pass
        {
            Cull OFF
            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag

            #include "UnityCG.cginc"

            struct appdata
            {
                float4 vertex : POSITION;
                float2 uv : TEXCOORD0;
            };

            struct v2f
            {
                float2 uv : TEXCOORD0;
                float4 vertex : SV_POSITION;
            };

            sampler2D _MainTex;
            float4 _MainTex_ST;

            float4 _MainColor;

            v2f vert (appdata v)
            {
                v2f o;
                o.vertex = UnityObjectToClipPos(v.vertex);
                o.uv = TRANSFORM_TEX(v.uv, _MainTex);
                return o;
            }

            fixed4 frag (v2f i) : SV_Target
            {
                fixed4 col = tex2D(_MainTex, i.uv);
                return col;
            }
            ENDCG
        }
    }
}

结果？？？没效果？如图：

我顺便试了下color属性，发现有效果：

  vertex.color = Color.green;

我给上面四个顶点赋值了不同的颜色，就正常渲染了，但是，这并不满足我的需求，用c#写动效，效率不见得ok。
同时我测试了一下FillMesh方式，如下：

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.UI;

public class UguiMeshGraphic : Graphic
{
    protected override void OnPopulateMesh(VertexHelper vh)
    {
        //base.OnPopulateMesh(vh);

        vh.Clear();

        Mesh mesh = new Mesh();
        mesh.vertices = new Vector3[] { new Vector3(0, 0), new Vector3(0, 100), new Vector3(100, 100), new Vector3(100, 0) };
        mesh.uv = new Vector2[] { new Vector2(0, 0), new Vector2(0, 1), new Vector2(1, 1), new Vector2(1, 0) };
        mesh.triangles = new int[]
        {
            0,1,2,
            0,2,3,
        };
        vh.FillMesh(mesh);
    }
}

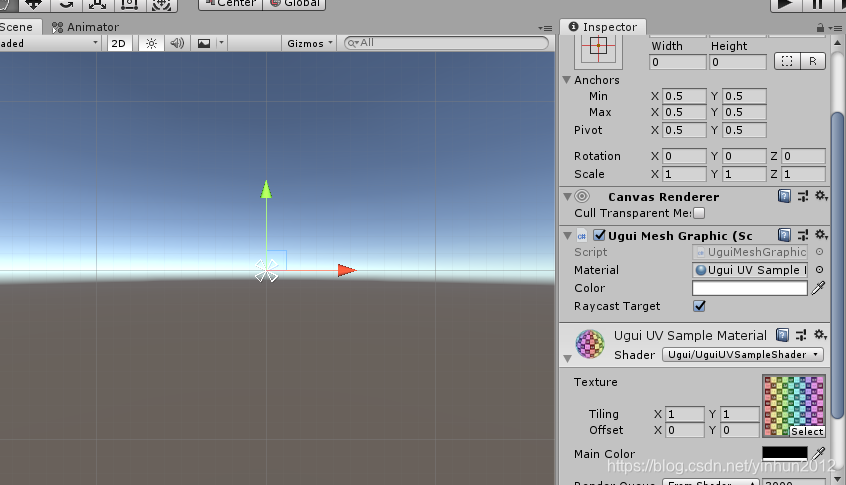

结果？？？别说uv sample了，连网格都构建不出来，如下：

好吧，unity2018.4.12f1 personal版本，不知道是不是版本问题（或是我的问题），我也没兴趣切换别的版本测试了（有兴趣的同学可以试试），毕竟如果这是个随机的bug，那就算我以后切换了版本还是可能遇到问题。这样的话，UnityEngine.UI.Graphic.OnPopulateMesh，我们就可以放弃了，另想他法。
还好CanvasRenderer这个组件照样能满足我们的ugui渲染需求，下面测试一下：

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class UguiTestMeshRender : MonoBehaviour
{
    public Material mat;

    private void Start()
    {
        Mesh mesh = new Mesh();
        mesh.vertices = new Vector3[] { new Vector3(0, 0), new Vector3(0, 100), new Vector3(100, 100), new Vector3(100, 0) };
        mesh.uv = new Vector2[] { new Vector2(0, 0), new Vector2(0, 1), new Vector2(1, 1), new Vector2(1, 0) };
        mesh.triangles = new int[]
        {
            0,1,2,
            0,2,3,
        };

        CanvasRenderer crender = GetComponent<CanvasRenderer>();
        crender.SetMaterial(mat, null);
        crender.SetMesh(mesh);
    }
}

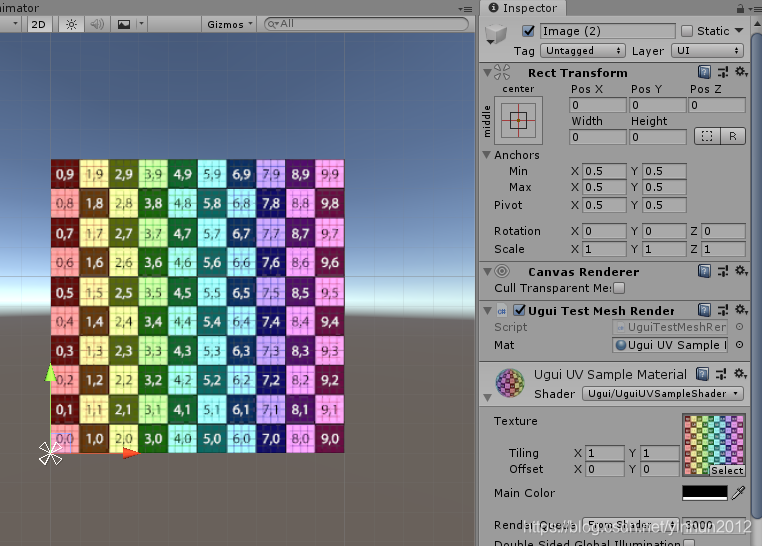

Good，需要的效果直接就出来了：

那么，接下来我们改版c#代码：

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class UguiLineRenderer : MonoBehaviour
{
    [Range(0, 20)]
    public float width = 10f;

    public Vector2[] positions;

    public Material mat;

    private float[] lengths;

    public bool isUpdate = false;

    private CanvasRenderer canvasRender;

    void Start()
    {
        canvasRender = GetComponent<CanvasRenderer>();
    }

    void Update()
    {
        if (isUpdate)
        {
            DrawUpdate();
            isUpdate = false;
        }
    }

    /// <summary>
    /// 更新绘制
    /// </summary>
    private void DrawUpdate()
    {
        if (positions == null || positions.Length < 2)
        {
            return;
        }

        lengths = GetLineLengths(positions);

        Mesh mesh = new Mesh();

        //如果只有两个顶点
        //直接生成直线即可
        if (positions.Length == 2)
        {
            Vector2 a = positions[0];
            Vector2 b = positions[1];

            Vector2[] a1a2 = CalculateVerticalPoints(a, a, b, width);
            Vector2[] b1b2 = CalculateVerticalPoints(b, a, b, width);

            Vector2 a1 = a1a2[0];
            Vector2 a2 = a1a2[1];
            Vector2 b1 = b1b2[0];
            Vector2 b2 = b1b2[1];

            mesh.vertices = new Vector3[] { a2, a1, b1, b2 };
            mesh.uv = new Vector2[] { new Vector2(0, 0), new Vector2(0, 1), new Vector2(1, 1), new Vector2(1, 0) };
            mesh.triangles = new int[]
            {
                0,1,2,
                0,2,3,
            };
        }
        else
        {
            //如果是多顶点组成的矩形数组
            //储存A1A2/B1B2...Z1Z2
            List<Vector2[]> ptslist = new List<Vector2[]>();
            //先储存A1A2
            {
                Vector2[] a1a2 = CalculateVerticalPoints(positions[0], positions[0], positions[1], width);
                ptslist.Add(a1a2);
            }
            //再储存B1B2...Y1Y2
            {
                for (int i = 1; i < positions.Length - 1; i++)
                {
                    Vector2 a = positions[i - 1];
                    Vector2 b = positions[i];
                    Vector2 c = positions[i + 1];
                    Vector2 d = positions[i];               //d=c

                    Vector2[] a1a2 = CalculateVerticalPoints(a, a, b, width);
                    Vector2[] b1b2 = CalculateVerticalPoints(b, a, b, width);
                    Vector2[] c1c2 = CalculateVerticalPoints(c, d, c, width);
                    Vector2[] d1d2 = CalculateVerticalPoints(d, d, c, width);

                    Vector2 a1 = a1a2[0];
                    Vector2 a2 = a1a2[1];
                    Vector2 b1 = b1b2[0];
                    Vector2 b2 = b1b2[1];
                    Vector2 c1 = c1c2[0];
                    Vector2 c2 = c1c2[1];
                    Vector2 d1 = d1d2[0];
                    Vector2 d2 = d1d2[1];
                    //如果线段AB和DC平行
                    if (IsVector2Approximiate(b1, d1) && IsVector2Approximiate(b2, d2))
                    {
                        //任意储存b1b2或d1d2
                        ptslist.Add(b1b2);
                    }
                    //如果线段AB和DC相交
                    else
                    {
                        Vector2 crossb1 = CalculateLineCross(a1, b1, c1, d1);
                        Vector2 crossb2 = CalculateLineCross(a2, b2, c2, d2);
                        //储存交点b1b2
                        ptslist.Add(new Vector2[] { crossb1, crossb2 });
                    }
                }
            }
            //最后储存Z1Z2
            {
                Vector2[] z1z2 = CalculateVerticalPoints(positions[positions.Length - 1], positions[positions.Length - 2], positions[positions.Length - 1], width);
                ptslist.Add(z1z2);
            }
            //再来构建网格
            int ptcount = ptslist.Count * 2;
            Vector3[] vertices = new Vector3[ptcount];
            Vector2[] uvs = new Vector2[ptcount];
            for (int i = 0; i < ptcount; i++)
            {
                int firstindex = i % ptslist.Count;
                int secondindex = i / ptslist.Count;
                vertices[i] = ptslist[firstindex][secondindex];
                uvs[i] = GetVertexUV0(firstindex, secondindex);
            }
            int quadcount = ptslist.Count - 1;
            List<int> trilist = new List<int>();
            for (int i = 0; i < quadcount; i++)
            {
                //quad左上角顺时针
                int topleftindex = i;
                int bottomleftindex = i + ptslist.Count;
                trilist.AddRange(new int[] { topleftindex, topleftindex + 1, bottomleftindex });
                trilist.AddRange(new int[] { topleftindex + 1, bottomleftindex + 1, bottomleftindex });
            }
            mesh.vertices = vertices;
            mesh.uv = uvs;
            mesh.triangles = trilist.ToArray();
        }
        canvasRender.SetMaterial(mat, null);
        canvasRender.SetMesh(mesh);
    }

    /// <summary>
    /// 获取每一段“线段”的长度
    /// </summary>
    /// <param name="poses"></param>
    /// <returns></returns>
    private float[] GetLineLengths(Vector2[] poses)
    {
        float[] seglens = new float[poses.Length - 1];
        float length = 0;
        for (int i = 1; i < poses.Length; i++)
        {
            Vector2 fpos = poses[i - 1];
            Vector2 tpos = poses[i];
            float len = Vector2.Distance(fpos, tpos);
            length += len;
            seglens[i - 1] = length;
        }
        return seglens;
    }

    /// <summary>
    /// 获取vertex uv0
    /// 根据距离/总长计算
    /// </summary>
    /// <param name="findex"></param>
    /// <param name="tindex"></param>
    /// <returns></returns>
    private Vector2 GetVertexUV0(int findex, int tindex)
    {
        Vector2 uv = new Vector2(0, Mathf.Abs(tindex - 1));
        if (findex != 0)
        {
            float len = lengths[findex - 1];
            float sumlen = lengths[lengths.Length - 1];
            uv = new Vector2(len / sumlen, Mathf.Abs(tindex - 1));
        }
#if UNITY_EDITOR
        Debug.LogWarningFormat("findex = {0} tindex = {1} uv = {2}", findex, tindex, uv);
#endif
        return uv;
    }

    /// <summary>
    /// 判断两vector2坐标相近
    /// </summary>
    /// <param name="a"></param>
    /// <param name="b"></param>
    /// <returns></returns>
    private bool IsVector2Approximiate(Vector2 a, Vector2 b)
    {
        if (Mathf.Approximately(a.x, b.x) && Mathf.Approximately(a.y, b.y))
        {
            return true;
        }
        return false;
    }

    /// <summary>
    /// 计算两射线交点
    /// </summary>
    /// <param name="p1"></param>
    /// <param name="p2"></param>
    /// <param name="p4"></param>
    /// <param name="p3"></param>
    /// <returns></returns>
    private Vector2 CalculateLineCross(Vector2 p1, Vector2 p2, Vector2 p4, Vector2 p3)
    {
        //构建直线参数k和a
        float k1 = (p2.y - p1.y) / (p2.x - p1.x);
        float a1 = p2.y - k1 * p2.x;

        float k2 = (p3.y - p4.y) / (p3.x - p4.x);
        float a2 = p3.y - k2 * p3.x;
        //根据求解计算交点
        float y = (k2 * a1 - k1 * a2) / (k2 - k1);
        float x = 0;
        if (k1 != 0)
        {
            x = (y - a1) / k1;
        }
        else if (k2 != 0)
        {
            x = (y - a2) / k2;
        }
        return new Vector2(x, y);
    }

    /// <summary>
    /// 计算A1和A2
    /// po代表pa或者pb
    /// 和本来的pa，pb分开为了通用
    /// </summary>
    /// <param name="po"></param>
    /// <param name="pa"></param>
    /// <param name="pb"></param>
    /// <param name="wid"></param>
    /// <returns></returns>
    private Vector2[] CalculateVerticalPoints(Vector2 po, Vector2 pa, Vector2 pb, float wid)
    {
        //先计算出a3
        float halfwid = wid / 2f;
        Vector2 npapb = (pb - pa).normalized;
        Vector2 pa3 = npapb * halfwid;

        //再根据矩阵旋转计算出a1，a2
        Vector2 pa1 = po + CalculatePointRotate(pa3, 90);
        Vector2 pa2 = po + CalculatePointRotate(pa3, 270);

#if UNITY_EDITOR
        Debug.LogFormat("po = {0} pa3 = {1} pa1 = {2} pa2 = {3}", po, pa3, pa1, pa2);
#endif
        return new Vector2[] { pa1, pa2 };
    }

    /// <summary>
    /// 计算f旋转ang角度后的t
    /// </summary>
    /// <param name="f"></param>
    /// <param name="ang"></param>
    /// <returns></returns>
    private Vector2 CalculatePointRotate(Vector2 f, float ang)
    {
        float rad = ang * Mathf.Deg2Rad;
        Matrix2x2 m2x2 = new Matrix2x2();
        m2x2.m00 = Mathf.Cos(rad);
        m2x2.m01 = -Mathf.Sin(rad);
        m2x2.m10 = Mathf.Sin(rad);
        m2x2.m11 = -Mathf.Cos(rad);
        Vector2 t = m2x2 * f;
        return t;
    }

    public class Matrix2x2
    {
        public float m00;
        public float m01;
        public float m10;
        public float m11;

        public static Vector2 operator *(Matrix2x2 m2x2, Vector2 v2)
        {
            float x = m2x2.m00 * v2.x + m2x2.m01 * v2.y;
            float y = m2x2.m10 * v2.x + m2x2.m11 * v2.y;
            return new Vector2(x, y);
        }
    }
}

效果如下：

这样的话，uv0就生效了，那么接下来我们写两个effect shader，比如虚线：

Shader "Ugui/UguiDottedLineShader"
{
    Properties
    {
        _MainTex ("Texture", 2D) = "white" {}
        _MainColor("Color",Color) = (1,1,1,1)
        _Pow("Pow",Range(0,1000)) = 200
    }
    SubShader
    {
        Tags { "RenderType"="Transparent" "Queue"="Transparent" }
        LOD 100

        Pass
        {
            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag

            #include "UnityCG.cginc"

            struct appdata
            {
                float4 vertex : POSITION;
                float2 uv : TEXCOORD0;
            };

            struct v2f
            {
                float2 uv : TEXCOORD0;
                float4 vertex : SV_POSITION;
            };

            sampler2D _MainTex;
            float4 _MainTex_ST;
            float4 _MainColor;
            float _Pow;

            v2f vert (appdata v)
            {
                v2f o;
                o.vertex = UnityObjectToClipPos(v.vertex);
                o.uv = TRANSFORM_TEX(v.uv, _MainTex);
                return o;
            }

            fixed4 frag (v2f i) : SV_Target
            {
                fixed4 col = _MainColor;
                float s = sin(i.uv*_Pow);
                if(s<0)
                {
                    discard;
                }
                return col;
            }
            ENDCG
        }
    }
}

效果如下：

效果原理也简单：就是根据sin(uv.x)进行周期性的discard pixel，就可以做成虚线。
再来一个移动的效果：

Shader "Ugui/UguiLineMotionShader"
{
    Properties
    {
        _MainTex ("Texture", 2D) = "white" {}
        _BgColor("Bg Color",Color) = (1,1,1,1)
        _ForeColor("Fore Color",Color) = (1,1,1,1)
        _Speed("Speed",Range(0,2)) = 1
        _Pow("Pow",Range(0,100)) = 10
    }
    SubShader
    {
        Tags { "RenderType"="Transparent" "Queue"="Transparent" }
        LOD 100

        Pass
        {
            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag

            #include "UnityCG.cginc"

            struct appdata
            {
                float4 vertex : POSITION;
                float2 uv : TEXCOORD0;
            };

            struct v2f
            {
                float2 uv : TEXCOORD0;
                float4 vertex : SV_POSITION;
            };

            sampler2D _MainTex;
            float4 _MainTex_ST;
            float4 _BgColor;
            float4 _ForeColor;
            float _Speed;
            float _Pow;

            v2f vert (appdata v)
            {
                v2f o;
                o.vertex = UnityObjectToClipPos(v.vertex);
                o.uv = TRANSFORM_TEX(v.uv, _MainTex);
                return o;
            }

            fixed4 frag (v2f i) : SV_Target
            {
                i.uv.x -= _Time.y * _Speed;
                float s = sin(i.uv.x * _Pow);
                fixed4 col = lerp(_ForeColor,_BgColor,s);
                return col;
            }
            ENDCG
        }
    }
}

效果如下：

原理也比较简单：就是根据uv.x进行偏移，通过sin函数制作周期的波峰，就行了。
好，今天就到这里，以后有时间继续。
