[游戏开发]Unity3D复刻UnityShader 之 ShaderToy - Bubbles

背景:

突然发现了一个Shader相关的神仙网站,之前对Shader也不了解,准备把能自己搬得,都用Unity实现[复刻]一遍…

官方地址/参考资料:

官网地址:https://www.shadertoy.com/view/4dl3zn

参考:https://www.freesion.com/article/2242713762/

ShaderToy-Bubbles原始代码:

// Created by inigo quilez - iq/2013
// I share this piece (art and code) here in Shadertoy and through its Public API, only for educational purposes.
// You cannot use, sell, share or host this piece or modifications of it as part of your own commercial or non-commercial product, website or project.
// You can share a link to it or an unmodified screenshot of it provided you attribute "by Inigo Quilez, @iquilezles and iquilezles.org".
// If you are a techer, lecturer, educator or similar and these conditions are too restrictive for your needs, please contact me and we'll work it out.

void mainImage( out vec4 fragColor, in vec2 fragCoord )
{
	vec2 uv = -1.0 + 2.0*fragCoord.xy / iResolution.xy;
	uv.x *=  iResolution.x / iResolution.y;

    // background
	vec3 color = vec3(0.8 + 0.2*uv.y);

    // bubbles
	for( int i=0; i<40; i++ )
	{
        // bubble seeds
		float pha =      sin(float(i)*546.13+1.0)*0.5 + 0.5;
		float siz = pow( sin(float(i)*651.74+5.0)*0.5 + 0.5, 4.0 );
		float pox =      sin(float(i)*321.55+4.1) * iResolution.x / iResolution.y;

        // buble size, position and color
		float rad = 0.1 + 0.5*siz;
		vec2  pos = vec2( pox, -1.0-rad + (2.0+2.0*rad)*mod(pha+0.1*iTime*(0.2+0.8*siz),1.0));
		float dis = length( uv - pos );
		vec3  col = mix( vec3(0.94,0.3,0.0), vec3(0.1,0.4,0.8), 0.5+0.5*sin(float(i)*1.2+1.9));
		//    col+= 8.0*smoothstep( rad*0.95, rad, dis );

        // render
		float f = length(uv-pos)/rad;
		f = sqrt(clamp(1.0-f*f,0.0,1.0));
		color -= col.zyx *(1.0-smoothstep( rad*0.95, rad, dis )) * f;
	}

    // vigneting
	color *= sqrt(1.5-0.5*length(uv));

	fragColor = vec4(color,1.0);
}

Unity复刻开始

核心显示类:

using System;
using UnityEngine;

[ExecuteInEditMode]
public class ShaderToy : MonoBehaviour
{

    public int horizontalResolution = 320;
    public int verticalResolution = 240;
    public Shader shaderToy;
    private Material shaderToyMaterial = null;
    public Material material
    {
        get
        {
            shaderToyMaterial = CheckShaderAndCreateMaterial(shaderToy, shaderToyMaterial);
            return shaderToyMaterial;
        }
    }

    // Called by camera to apply image effect
    void OnRenderImage(RenderTexture source, RenderTexture destination)
    {
        // To draw the shader at full resolution, use:
        // Graphics.Blit (source, destination, material);

        // To draw the shader at scaled down resolution, use:
        RenderTexture scaled = RenderTexture.GetTemporary(horizontalResolution, verticalResolution);
        Graphics.Blit(source, scaled, material);
        Graphics.Blit(scaled, destination);
        RenderTexture.ReleaseTemporary(scaled);
    }

    protected Material CheckShaderAndCreateMaterial(Shader shader, Material material)
    {
        if (shader == null)
        {
            return null;
        }

        if (shader.isSupported && material && material.shader == shader)
            return material;

        if (!shader.isSupported)
        {
            return null;
        }
        else
        {
            material = new Material(shader);
            material.hideFlags = HideFlags.DontSave;
            if (material)
                return material;
            else
                return null;
        }
    }
}

核心unity shader:

// Upgrade NOTE: replaced 'mul(UNITY_MATRIX_MVP,*)' with 'UnityObjectToClipPos(*)'

// See https://www.shadertoy.com/view/4dl3zn
// GLSL -> HLSL reference: https://msdn.microsoft.com/en-GB/library/windows/apps/dn166865.aspx

Shader "Custom/Bubbles" {

    SubShader {

        Pass {
            CGPROGRAM

            #pragma vertex vert
            #pragma fragment frag

            struct v2f{
                float4 position : SV_POSITION;
            };

            v2f vert(float4 v:POSITION) : SV_POSITION {
                v2f o;
                o.position = UnityObjectToClipPos (v);
                return o;
            }

            fixed4 frag(v2f i) : SV_Target {

                float2 uv = -1.0 + 2.0*i.position.xy/ _ScreenParams.xy;
                uv.x *= _ScreenParams.x/ _ScreenParams.y ;

                // Background
                fixed4 outColour = fixed4(0.8+0.2*uv.y,0.8+0.2*uv.y,0.8+0.2*uv.y,1);

                // Bubbles
                for (int i = 0; i < 40; i++) {

                    // Bubble seeds
                    float pha =      sin(float(i)*546.13+1.0)*0.5 + 0.5;
                    float siz = pow( sin(float(i)*651.74+5.0)*0.5 + 0.5, 4.0 );
                    float pox =      sin(float(i)*321.55+4.1);

                    // Bubble size, position and color
                    float rad = 0.1 + 0.5*siz;
                    float2  pos = float2( pox, -1.0-rad + (2.0+2.0*rad)*fmod(pha+0.1*_Time.y*(0.2+0.8*siz),1.0));
                    float dis = length(uv-pos);
                    float3 col = lerp( float3(0.94,0.3,0.0), float3(0.1,0.4,0.8), 0.5+0.5*sin(float(i)*1.2+1.9));

                    // Add a black outline around each bubble
                    col+= 8.0*smoothstep( rad*0.95, rad, dis );

                    // Render
                    float f = length(uv-pos)/rad;
                    f = sqrt(clamp(1.0-f*f,0.0,1.0));

                    outColour.rgb -= col.zyx *(1.0-smoothstep( rad*0.95, rad, dis )) * f;
                }

                // Vignetting
                outColour *= sqrt(1.5-0.5*length(uv));

                return outColour;
            }

            ENDCG
        }
    }
}

复刻结束,展示效果:

ShaderToy-Bubbles效果:

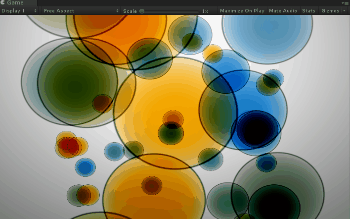

Unity-Bubbles效果

github完整项目地址:

https://github.com/zld126126/MyUnity/tree/main/MyShaderToy/Assets/MyExamples/Bubbles
