[游戏开发]数码管制作猜数字小游戏

简介

实验用的一位8段LED数码管,左边的图片是数码管内部结构图，右边的图片是实物图。

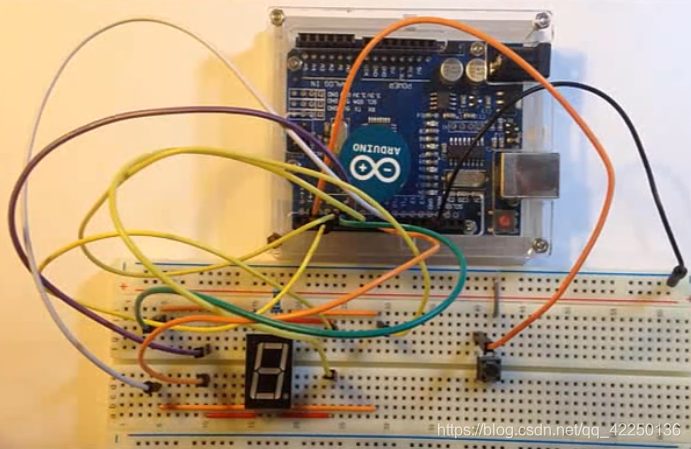

接线图

Arduino代码

代码如下：

/*
每次按键后闪动随机图案，最后停留在一个数字上面
此版本已基本实现猜数字游戏装置功能。
*/
int myNumber;

void setup() {
  pinMode(2, INPUT_PULLUP);
  Serial.begin(9600);
  int pinNumber = 3;
  while(pinNumber <= 9){
    pinMode(pinNumber, OUTPUT);
    pinNumber = pinNumber + 1;
  }
  randomSeed(analogRead(A0));
}

// the loop function runs over and over again forever
void loop() {
  if (!digitalRead(2)){
    myNumber = getRandomNumber(0, 10);
  }
  displayNumber(myNumber);
}
int getRandomNumber(int minNumber, int maxNumber){
  int randomNumber;

  int i;
  while(i < 15){
    i = i + 1;
    randomNumber = random(minNumber,maxNumber);
    //displayNumber(randomNumber);
    displayRandom();
    delay(100);
    displayClear();
    delay(100);

    Serial.print("i = ");
    Serial.println(i);
    Serial.print("randomNumber = ");
    Serial.println(randomNumber);
    Serial.println("");
  }
  return randomNumber;
}

void displayNumber(int ledNumber){
  switch(ledNumber){
    case 1:  //显示1
      digitalWrite(4, HIGH);
      digitalWrite(7, HIGH);
      break;
    case 2:  //显示2
      digitalWrite(3, HIGH);
      digitalWrite(4, HIGH);
      digitalWrite(5, HIGH);
      digitalWrite(8, HIGH);
      digitalWrite(9, HIGH);
      break;
    case 3:   //显示3
      digitalWrite(3, HIGH);
      digitalWrite(4, HIGH);
      digitalWrite(5, HIGH);
      digitalWrite(7, HIGH);
      digitalWrite(8, HIGH);
      break;
    case 4:  //显示4
      digitalWrite(4, HIGH);
      digitalWrite(5, HIGH);
      digitalWrite(6, HIGH);
      digitalWrite(7, HIGH);
      break;
    case 5:  //显示5
      digitalWrite(3, HIGH);
      digitalWrite(5, HIGH);
      digitalWrite(6, HIGH);
      digitalWrite(7, HIGH);
      digitalWrite(8, HIGH);
      break;
    case 6:  //显示6
      digitalWrite(3, HIGH);
      digitalWrite(5, HIGH);
      digitalWrite(6, HIGH);
      digitalWrite(7, HIGH);
      digitalWrite(8, HIGH);
      digitalWrite(9, HIGH);
      break;
    case 7:  //显示7
      digitalWrite(3, HIGH);
      digitalWrite(4, HIGH);
      digitalWrite(7, HIGH);
      break;
    case 8:  //显示8
      digitalWrite(3, HIGH);
      digitalWrite(4, HIGH);
      digitalWrite(5, HIGH);
      digitalWrite(6, HIGH);
      digitalWrite(7, HIGH);
      digitalWrite(8, HIGH);
      digitalWrite(9, HIGH);
      break;
    case 9:  //显示9
      digitalWrite(3, HIGH);
      digitalWrite(4, HIGH);
      digitalWrite(5, HIGH);
      digitalWrite(6, HIGH);
      digitalWrite(7, HIGH);
      digitalWrite(8, HIGH);
      break;
    case 0:  //显示默认
      digitalWrite(3, HIGH);
      digitalWrite(4, HIGH);
      digitalWrite(6, HIGH);
      digitalWrite(7, HIGH);
      digitalWrite(8, HIGH);
      digitalWrite(9, HIGH);
      break;
    default:
        digitalWrite(4, HIGH);
        digitalWrite(5, HIGH);
        digitalWrite(7, HIGH);
        digitalWrite(8, HIGH);
        digitalWrite(9, HIGH);
    }
}

void displayClear(){
  digitalWrite(3, LOW);
  digitalWrite(4, LOW);
  digitalWrite(5, LOW);
  digitalWrite(6, LOW);
  digitalWrite(7, LOW);
  digitalWrite(8, LOW);
  digitalWrite(9, LOW);
}

void displayRandom(){
  int randomPin = random(3,9);
  digitalWrite(randomPin, HIGH);
}

总结

根据这个实验可以制作一个小小的猜数字的游戏，进一步了解与学习如何使用数码管。
