[游戏开发]Aurora Engine 游戏引擎入门 20（封装VertexArray渲染类）

简介

本人梦想着做一款自己的游戏引擎，万事开头难，但总得有人去做，本序列由
由B站转载学习，非个人研究，鸣谢！
B站链接
原作者Github

OpenGL的渲染步骤

1. 生成顶点数据，描述需要渲染的一个面，可以有N个顶点组成

   在使用Glad之后渲染的坐标体系

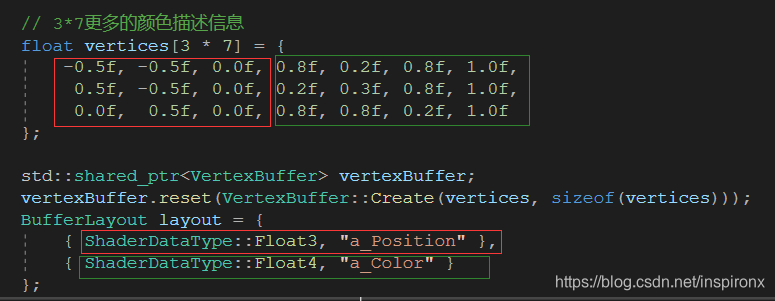

2. 设置BufferLayout，数据在渲染时候的表示方式

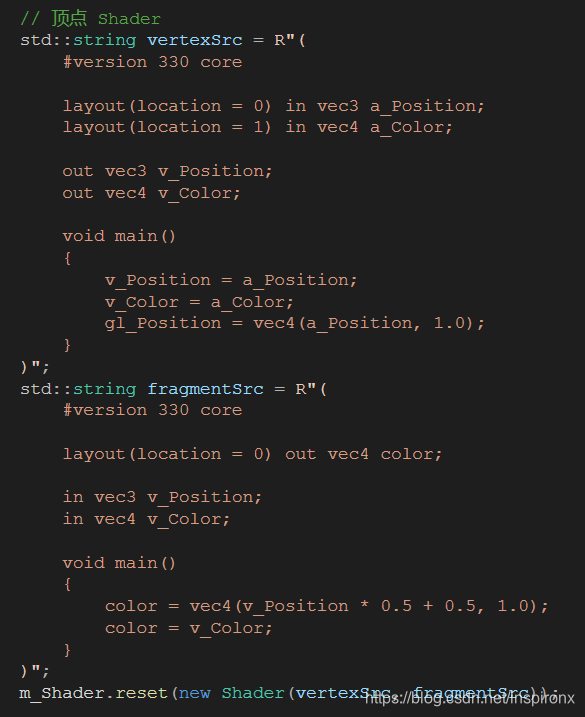

   使用Glad之后数据读取布局方式，根据布局，前面3个是pos，后4个是color；总计7个，3组数据输入给顶点渲染器

3. 设置IndexBuffer，顶点渲染的顺序

   一个三角形的渲染顺序，012

VertexArray

// VertexArray.h
#pragma once

#include <memory>
#include "Aurora/Renderer/Buffer.h"

namespace Aurora
{
	// 定义顶点数组接口，可以是OpenGL、Vullkan、DX实现
	class VertexArray
	{
	public:
		virtual ~VertexArray() {}

		// Bind 将顶点数据输送给渲染接口
		virtual void Bind() const = 0;
		virtual void Unbind() const = 0;

		// 添加一组需要渲染的顶点数据
		virtual void AddVertexBuffer(const std::shared_ptr<VertexBuffer>& vertexBuffer) = 0;
		// 每一次渲染，标记为一个index
		virtual void SetIndexBuffer(const std::shared_ptr<IndexBuffer>& indexBuffer) = 0;

		virtual const std::vector<std::shared_ptr<VertexBuffer>>& GetVertexBuffers() const = 0;
		virtual const std::shared_ptr<IndexBuffer>& GetIndexBuffer() const = 0;

		static VertexArray* Create();
	};

}

// VertexArray.cpp
#include "aopch.h"
#include "VertexArray.h"

#include "Renderer.h"
#include "Platform/OpenGL/OpenGLVertexArray.h"

namespace Aurora
{
	VertexArray* VertexArray::Create()
	{
		switch (Renderer::GetAPI())
		{
		case RendererAPI::None:    AO_CORE_ASSERT(false, "RendererAPI::None is currently not supported!"); return nullptr;
		case RendererAPI::OpenGL:  return new OpenGLVertexArray();
		}

		AO_CORE_ASSERT(false, "Unknown RendererAPI!");
		return nullptr;
	}
}

OpenGLVertexArray

// OpenGLVertexArray.h
#pragma once

#include "Aurora/Renderer/VertexArray.h"

namespace Aurora
{
	class OpenGLVertexArray : public VertexArray
	{
	public:
		OpenGLVertexArray();
		virtual ~OpenGLVertexArray();

		virtual void Bind() const override;
		virtual void Unbind() const override;

		virtual void AddVertexBuffer(const std::shared_ptr<VertexBuffer>& vertexBuffer) override;
		virtual void SetIndexBuffer(const std::shared_ptr<IndexBuffer>& indexBuffer) override;

		virtual const std::vector<std::shared_ptr<VertexBuffer>>& GetVertexBuffers() const { return m_VertexBuffers; }
		virtual const std::shared_ptr<IndexBuffer>& GetIndexBuffer() const { return m_IndexBuffer; }
	private:
		uint32_t m_RendererID;
		std::vector<std::shared_ptr<VertexBuffer>> m_VertexBuffers;
		std::shared_ptr<IndexBuffer> m_IndexBuffer;
	};
}

// OpenGLVertexArray.cpp
#include "aopch.h"
#include "OpenGLVertexArray.h"
#include <glad/glad.h>

namespace Aurora
{
	static GLenum ShaderDataTypeToOpenGLBaseType(ShaderDataType type)
	{
		switch (type)
		{
			case Aurora::ShaderDataType::Float:    return GL_FLOAT;
			case Aurora::ShaderDataType::Float2:   return GL_FLOAT;
			case Aurora::ShaderDataType::Float3:   return GL_FLOAT;
			case Aurora::ShaderDataType::Float4:   return GL_FLOAT;
			case Aurora::ShaderDataType::Mat3:     return GL_FLOAT;
			case Aurora::ShaderDataType::Mat4:     return GL_FLOAT;
			case Aurora::ShaderDataType::Int:      return GL_INT;
			case Aurora::ShaderDataType::Int2:     return GL_INT;
			case Aurora::ShaderDataType::Int3:     return GL_INT;
			case Aurora::ShaderDataType::Int4:     return GL_INT;
			case Aurora::ShaderDataType::Bool:     return GL_BOOL;
		}

		AO_CORE_ASSERT(false, "Unknown ShaderDataType!");
		return 0;
	}

	OpenGLVertexArray::OpenGLVertexArray()
	{
		glCreateVertexArrays(1, &m_RendererID);
	}

	OpenGLVertexArray::~OpenGLVertexArray()
	{
		glDeleteVertexArrays(1, &m_RendererID);
	}

	// Bind 将顶点数据输送给 OpenGL
	void OpenGLVertexArray::Bind() const
	{
		glBindVertexArray(m_RendererID);
	}

	// UnBind 将OpenGL内的顶点数据置空
	void OpenGLVertexArray::Unbind() const
	{
		glBindVertexArray(0);
	}

	void OpenGLVertexArray::AddVertexBuffer(const std::shared_ptr<VertexBuffer>& vertexBuffer)
	{
		AO_CORE_ASSERT(vertexBuffer->GetLayout().GetElements().size(), "Vertex Buffer has no layout!");

		glBindVertexArray(m_RendererID);
		vertexBuffer->Bind();

		uint32_t index = 0;
		const auto& layout = vertexBuffer->GetLayout();
		for (const auto& element : layout)
		{
			glEnableVertexAttribArray(index);
			glVertexAttribPointer(index,
				element.GetComponentCount(),
				ShaderDataTypeToOpenGLBaseType(element.Type),
				element.Normalized ? GL_TRUE : GL_FALSE,
				layout.GetStride(),
				(const void*)element.Offset);
			index++;
		}

		m_VertexBuffers.push_back(vertexBuffer);
	}

	void OpenGLVertexArray::SetIndexBuffer(const std::shared_ptr<IndexBuffer>& indexBuffer)
	{
		glBindVertexArray(m_RendererID);
		indexBuffer->Bind();

		m_IndexBuffer = indexBuffer;
	}
}

单次渲染流程

		m_VertexArray.reset(VertexArray::Create());

		// 3*7更多的颜色描述信息
		float vertices[3 * 7] = {
			-0.5f, -0.5f, 0.0f, 0.8f, 0.2f, 0.8f, 1.0f,
			 0.5f, -0.5f, 0.0f, 0.2f, 0.3f, 0.8f, 1.0f,
			 0.0f,  0.5f, 0.0f, 0.8f, 0.8f, 0.2f, 1.0f
		};

		std::shared_ptr<VertexBuffer> vertexBuffer;
		vertexBuffer.reset(VertexBuffer::Create(vertices, sizeof(vertices)));
		BufferLayout layout = {
			{ ShaderDataType::Float3, "a_Position" },
			{ ShaderDataType::Float4, "a_Color" }
		};
		vertexBuffer->SetLayout(layout);
		m_VertexArray->AddVertexBuffer(vertexBuffer);

		uint32_t indices[3] = { 0, 1, 2 };
		std::shared_ptr<IndexBuffer> indexBuffer;
		indexBuffer.reset(IndexBuffer::Create(indices, sizeof(indices) / sizeof(uint32_t)));
		m_VertexArray->SetIndexBuffer(indexBuffer);

		m_SquareVA.reset(VertexArray::Create());
