[游戏开发]unity 序列帧动画 UGUI GPU版

? ? ?之前的项目因序列帧数量量大，图片大，耗费不少的资源，想搞一版GPU版本的序列帧试试水，看看性能，初见成效，但是弊端也蛮明显，就是不能合并drawcall，不过还能凑合着用

? ? 流程大概就是把图片资源全部压进GPU，用Material传递索引数据_Index，shader根据不同的索引来显示不同的图片，这样就大大的解放了CPU端的计算，也算是一种性能的提升吧。不过缺点也挺明显，就是图片集，每个图片必须是2的幂次方，且长宽必须相等，这点来说，对于没那么严格的UI像素，想必问题不大。先上实例看下效果

?再上代码

using System;
using System.Collections;
using System.Collections.Generic;

using UnityEngine;
using UnityEngine.UI;

using UnityEngine.Events;
using UnityEngine.EventSystems;


//规范命名、添加注释、合理封装、限制访问权限、异常处理
public class SequenceFrame : MonoBehaviour, IPointerClickHandler
{



    public enum State
    {
        idle,
        playing,
        pause
    }
    public enum State1
    {
        once,
        loop
    }
    //播放状态(默认、播放中、暂停)
    private State play_state;
    private RawImage _showImage;
    private bool _isSelect;
    private int index;
    private float tim;
    private float waittim;
    private bool isplay;
    private int _selectMax;
    private int _hightMax;
    private Material _curMaterial;
    private int _curMax;



    public float FrameNumber = 30;

    public State1 condition = State1.once;


    public bool Play_Awake = false;
    /// <summary>
    /// 点击后是否产生渐变效果
    /// </summary>
    public bool ISGradualChange = true;
    //回调事件
    public UnityEvent onCompleteEvent;
    public List<Texture2D> SelectTexture2Ds;
    public List<Texture2D> HighLighTexture2Ds;
    public Shader Shader;
    public event Action<SequenceFrame> ClickEvent;
    void Awake()
    {


        tim = 0;
        index = 0;
        waittim = 1 / FrameNumber;
        play_state = State.idle;
        isplay = false;

        if (SelectTexture2Ds.Count < 1)
        {
            Debug.LogError("SelectTexture2Ds数组为0，请给SelectTexture2Ds数组添加元素！！！");
        }

        if (Play_Awake)
        {
            Play();
        }


        _showImage = this.GetComponent<RawImage>();
        if (_showImage == null) throw new UnityException("没有找到ugui组件");


        _curMaterial = new Material(Shader);

        InitData();

        SetMat(_selectMax);
        _curMaterial.SetInt("_Index", 0);
        _curMaterial.SetFloat("_Convert",0);


    }

    private void SetMat(int depth)
    {
        _curMax =depth;
    }
    private void InitData()
    {
        var texs1 = GlobalSetting.LoadImage("_TexArr", SelectTexture2Ds);
        _curMaterial.SetTexture("_TexArr", texs1);
        _selectMax = texs1.depth;


        var texs2 = GlobalSetting.LoadImage("_HightArr", HighLighTexture2Ds);
        _curMaterial.SetTexture("_HightArr", texs2);
        _hightMax = texs2.depth;

        _showImage.material = _curMaterial;

    }
    void Update()
    {
        //测试
        if (Input.GetKeyDown(KeyCode.A))
        {
            Play();
        }
        if (Input.GetKeyDown(KeyCode.S))
        {
            Replay();
        }
        if (Input.GetKeyDown(KeyCode.D))
        {
            Stop();
        }
        if (Input.GetKeyDown(KeyCode.P))
        {
            Pause();
        }
        UpMove();


            _farmeCount++;
            if (_farmeCount >= 20)
            {
                _curMaterial.SetFloat("_Convert", 0);
            }


    }

    private void OnDestroy()
    {
        Debug.Log("Destroy textureArray");
        Destroy(_curMaterial);
        //删除图集，如果其他ui也用到，会导致其他UI的图片消失
        GlobalSetting.Dispose();
    }

    private void UpMove()
    {
        //单播
        if (condition == State1.once)
        {
            if (play_state == State.idle && isplay)
            {
                play_state = State.playing;
                index = 0;
                tim = 0;
            }
            if (play_state == State.pause && isplay)
            {
                play_state = State.playing;
                tim = 0;
            }
            if (play_state == State.playing && isplay)
            {
                tim += Time.deltaTime;
                if (tim >= waittim)
                {
                    tim = 0;
                    index++;
                    if (index >= _curMax)
                    {
                        index = 0;
                        //ShowImage.sprite = _curSelectList[index];
                        _curMaterial.SetInt("_Index", index);
                        isplay = false;
                        play_state = State.idle;
                        //此处可添加结束回调函数
                        if (onCompleteEvent != null)
                        {
                            onCompleteEvent.Invoke();
                            return;
                        }
                    }
                    // ShowImage.sprite = _curSelectList[index];
                    _curMaterial.SetInt("_Index", index);
                }
            }
        }
        //循环播放
        if (condition == State1.loop)
        {
            if (play_state == State.idle && isplay)
            {
                play_state = State.playing;
                index = 0;
                tim = 0;
            }
            if (play_state == State.pause && isplay)
            {
                play_state = State.playing;
                tim = 0;
            }
            if (play_state == State.playing && isplay)
            {
                tim += Time.deltaTime;
                if (tim >= waittim)
                {
                    tim = 0;
                    index++;
                    if (index >= _curMax)
                    {
                        index = 0;
                        //此处可添加结束回调函数
                    }
                    _curMaterial.SetInt("_Index", index);
                }
            }
        }
    }
    /// <summary>
    /// 播放
    /// </summary>
    public void Play()
    {
        isplay = true;
    }
    /// <summary>
    /// 暂停
    /// </summary>
    public void Pause()
    {
        isplay = false;
        play_state = State.pause;
    }
    /// <summary>
    /// 停止
    /// </summary>
    public void Stop()
    {
        isplay = false;
        play_state = State.idle;
        index = 0;
        tim = 0;
        if (_curMaterial == null)
        {
            Debug.LogWarning("Image为空，请赋值");
            return;
        }
        _curMaterial.SetInt("_Index", 0);
    }
    /// <summary>
    /// 重播
    /// </summary>
    public void Replay()
    {
        isplay = true;
        play_state = State.playing;
        index = 0;
        tim = 0;
    }

    /// <summary>
    /// 点击后改变图片效果
    /// </summary>
    /// <param name="isShow"></param>
    public void ChangeSperite(bool isShow)
    {
        if (ISGradualChange) return;

        if (isShow)
        {
            if ( _hightMax> 0)
            {
                SetMat(_hightMax);

            }
            _isSelect = true;
        }
        else
        {

            SetMat( _selectMax);
            _isSelect = false;

        }
    }


    private int _farmeCount = 0;
    private void ClickEffect()
    {


        if (_hightMax > 0)
        {
            _curMaterial.SetFloat("_Convert", 1);
        }
        _farmeCount = 0;


    }

    /// <summary>
    /// 是否过了点击的间隔时间，防止密密麻麻点击造成的崩溃
    /// </summary>
    private bool _isInterval = true;

    private Coroutine _coroutineInterval;


    private void OnEnable()
    {
        _isInterval = true;
    }
    /// <summary>
    /// 间隔点允许下一次点击的时间
    /// </summary>
    public float IntervalTime = 0.5f;
    public void OnPointerClick(PointerEventData eventData)
    {


        if (_isInterval)
        {
            _isInterval = false;
            _coroutineInterval = StartCoroutine(GlobalSetting.WaitTime(IntervalTime, (() =>
            {
                _isInterval = true;
                Debug.LogError("恢复点击");

            })));
        }
        else
        {
            Debug.LogError("不允许点击");

            return ;
        }


        if (ISGradualChange)
        {
            ClickEffect();
        }
        else
        {
            GradualChange();
        }



        if (ClickEvent != null)
            ClickEvent(this);

    }

    private void OnDisable()
    {
        SetMat( _selectMax);
    }
    private void GradualChange()
    {
        //ShowImage.DOColor(new Color(168 / 255f, 183 / 255f, 255f / 255f, 0.35f), 0.25f).OnComplete((() =>
        //{
        //    ShowImage.DOColor(new Color(255f / 255f, 255f / 255f, 255f / 255f, 1f), 0.25f).SetDelay(0.15f);
        //}));


    }
}

再来一个工具类

using System;
using System.Collections;
using System.Collections.Generic;
using System.IO;
using UnityEngine;
using UnityEngine.Rendering;
using Object = UnityEngine.Object;

public static class GlobalSetting
{

    /// <summary>
    /// Texture2DArray 限制，长跟宽必须一致，并且符合2的幂次方
    /// </summary>
    public static int Size = 512;

    public static Dictionary<string,Texture2DArray> Texture2DArrayDic=new Dictionary<string, Texture2DArray>();
    public static Texture2DArray LoadImage(string key,List<Texture2D> texs)
    {
        if (Texture2DArrayDic.ContainsKey(key))
        {
            return Texture2DArrayDic[key];
        }

        Texture2DArray texture2DArray = null;
        if (texs.Count == 0)
        {
            string[] files = Directory.GetFiles(Application.streamingAssetsPath + "/Pictures");

            texs = new List<Texture2D>();
            foreach (string file in files)
            {
                if (file.Contains(".meta")) continue;



                byte[] bytes = File.ReadAllBytes(file);

                Texture2D tex = new Texture2D(1024, 1024);

                tex.LoadImage(bytes);

                tex.Apply();

                tex = Resize(tex, Size, Size);

                texs.Add(tex);


            }
            texture2DArray = SetTexToGpu(texs.ToArray());


        }
        else
        {
            List<Texture2D> temps = new List<Texture2D>();
            foreach (Texture2D texture2D in texs)
            {
                var tex = Resize(texture2D, Size, Size);
                temps.Add(tex);
            }
            texture2DArray = SetTexToGpu(temps.ToArray());


        }

        Texture2DArrayDic.Add(key, texture2DArray);
        return texture2DArray;
    }
    /// <summary>
    /// 缩略图片
    /// </summary>
    /// <param name="source"></param>
    /// <param name="newWidth"></param>
    /// <param name="newHeight"></param>
    /// <returns></returns>
    public static Texture2D Resize(Texture2D source, int newWidth, int newHeight)
    {
        source.filterMode = FilterMode.Point;
        RenderTexture rt = RenderTexture.GetTemporary(newWidth, newHeight);
        rt.filterMode = FilterMode.Point;
        RenderTexture.active = rt;
        Graphics.Blit(source, rt);
        var nTex = new Texture2D(newWidth, newHeight);
        nTex.ReadPixels(new Rect(0, 0, newWidth, newHeight), 0, 0);
        nTex.Apply();
        RenderTexture.active = null;
        Object.Destroy(rt);//及时删掉
        return nTex;
    }

    public static Texture2DArray SetTexToGpu(Texture2D[] texs)
    {
        if (texs == null || texs.Length == 0)
        {

            return null;
        }

        if (SystemInfo.copyTextureSupport == CopyTextureSupport.None ||
            !SystemInfo.supports2DArrayTextures)
        {

            return null;
        }

        Texture2DArray texArr = new Texture2DArray(texs[0].width, texs[0].width, texs.Length, texs[0].format, false, false);

        for (int i = 0; i < texs.Length; i++)
        {
            //拷贝的贴图必须符合2的幂次方
            Graphics.CopyTexture(texs[i], 0, 0, texArr, i, 0);
        }

        texArr.wrapMode = TextureWrapMode.Clamp;
        texArr.filterMode = FilterMode.Trilinear;
      for (int i = 0; i < texs.Length; i++)
      {
          Object.Destroy(texs[i]);
      }
      Resources.UnloadUnusedAssets();

      return texArr;
    }

    public static IEnumerator WaitTime(float time, Action action)
    {
        yield return new WaitForSeconds(time);
        if (action != null) action();
    }


    //慎重删除
    public static void Dispose()
    {
        foreach (KeyValuePair<string, Texture2DArray> pair in Texture2DArrayDic)
        {
            var temp = pair.Value;
            Object.Destroy(temp);
        }
        Texture2DArrayDic.Clear();


    }
}

其次就是Shader了

Shader "Unlit/SequenceFrame"
{
   Properties
	{

		 _MainTex("MainTex",2D)="white" {}
		 _Speed("Speed",float)=0
	}

	SubShader
	{
		Tags{"LightMode" = "ForwardBase"  "IgnoreProjector" = "True" "RenderType" = "Transparent"  }
		LOD 100

		Pass
		{

		   //  关闭深度写入
           ZWrite Off
           //  开启混合模式，并设置混合因子为SrcAlpha和OneMinusSrcAlpha
           Blend SrcAlpha OneMinusSrcAlpha

			CGPROGRAM

			#pragma vertex vert
			#pragma fragment frag
			#include "UnityCG.cginc"
			#pragma multi_compile_instancing


			UNITY_DECLARE_TEX2DARRAY(_TexArr);
			UNITY_DECLARE_TEX2DARRAY(_HightArr);
			float _Convert;
			sampler2D _MainTex;
			float _Speed;
			struct appdata
			{
				float4 vertex : POSITION;
				float3 uv : TEXCOORD0;
				UNITY_VERTEX_INPUT_INSTANCE_ID
			};

			struct v2f
			{
				float4 pos : SV_POSITION;
				float3 uv : TEXCOORD0;
				UNITY_VERTEX_INPUT_INSTANCE_ID
			};
			UNITY_INSTANCING_BUFFER_START(Props)
                UNITY_DEFINE_INSTANCED_PROP(int,_Index)
            UNITY_INSTANCING_BUFFER_END(Props)
			v2f vert (appdata v)
			{
				v2f o;
				UNITY_SETUP_INSTANCE_ID(v);
                UNITY_TRANSFER_INSTANCE_ID(v, o);
				o.pos = UnityObjectToClipPos(v.vertex);
				o.uv = v.uv;
				return o;
			}

			fixed4 frag (v2f i) : SV_Target
			{
			   UNITY_SETUP_INSTANCE_ID(i);



			   fixed4 texColor = UNITY_SAMPLE_TEX2DARRAY(_TexArr, float3(i.uv.xy, UNITY_ACCESS_INSTANCED_PROP(Props, _Index)));
			   fixed4 texColorHigh = UNITY_SAMPLE_TEX2DARRAY(_HightArr, float3(i.uv.xy, UNITY_ACCESS_INSTANCED_PROP(Props, _Index)));

			   fixed4 endCol = lerp(texColor,texColorHigh,_Convert);
			   return endCol;

			}
			ENDCG
		}
	}

	Fallback "VertexLit"

}

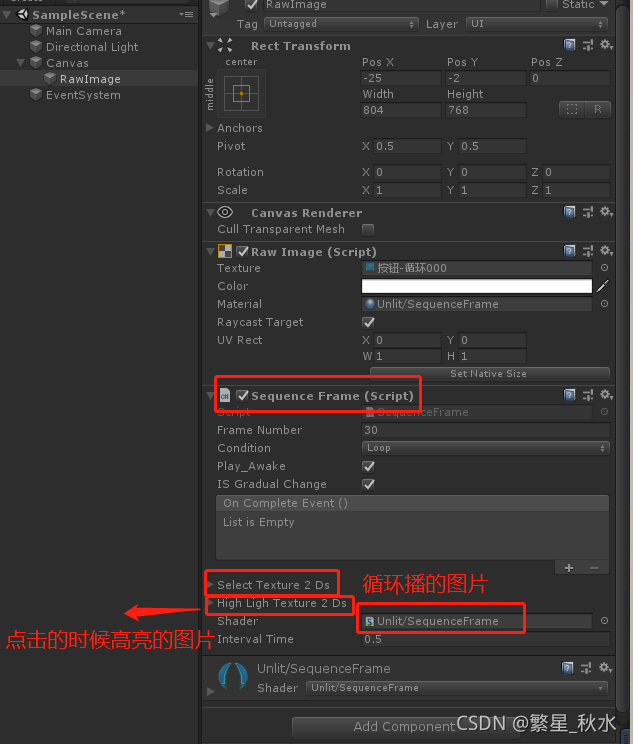

布局图

?
