[游戏开发]Unity 中通过ScrollView(ScrollRect)实现翻页效果

一、组件属性设置如下如图所示：

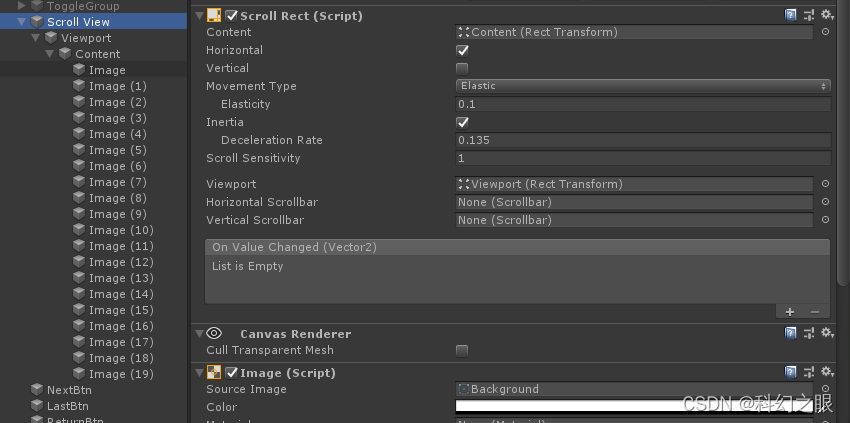

1、Sroll Rect

2、Content Size Fiter和Grid Layout Group

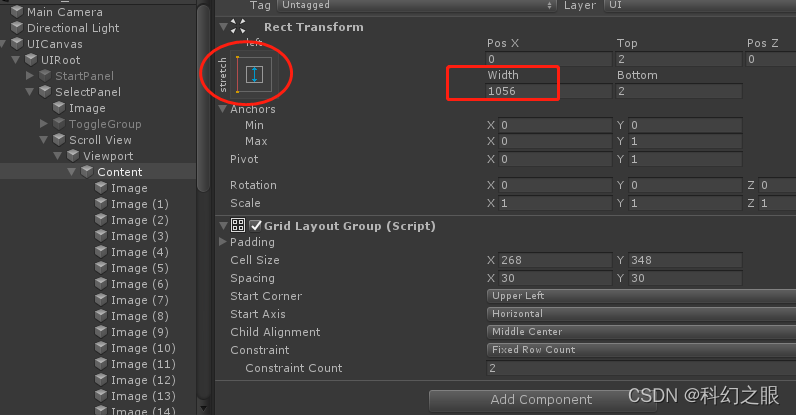

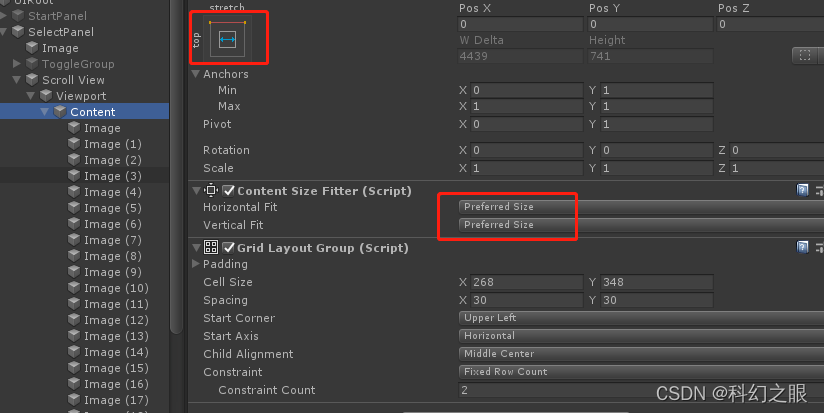

若content锚点为Top,有ContentSizeFitter组件，需将Honizontal Fit改为Preferred Size，使用脚本中方法一计算方式。

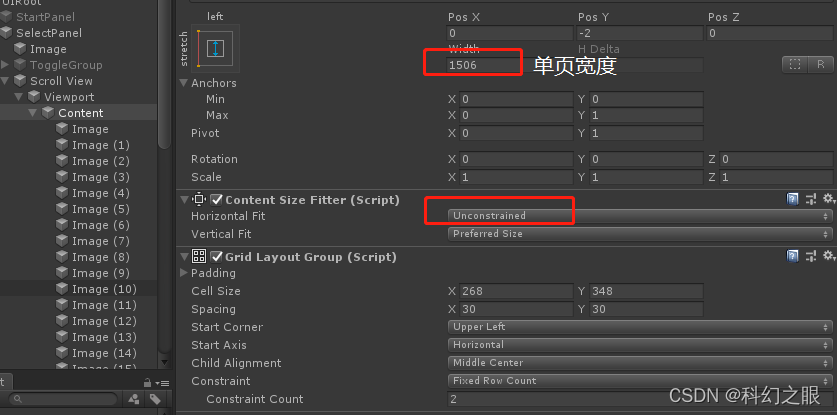

若content锚点为Left,有ContentSizeFitter组件，需将Honizontal Fit改为unconstrained，设置每页宽度，使用脚本中方法二计算方式。

?若无ContentSizeFitter组件,且content锚点设置为Left时，使用方法一的计算方式，需要设置总页数宽度；使用脚本中方法二的计算方式，需要设置每页宽度。

?

?二、具体代码如下（根据自己的功能需求调整代码逻辑）

using UnityEngine;
using UnityEngine.UI;

/// <summary>
/// 通过ScrollView(ScrollRect)实现翻页效果
/// </summary>
public class ScrollViewTurnPages : MonoBehaviour
{
    public Button nextBtn;
    public Button lastBtn;
    private RectTransform contents;
    private ScrollRect scrollrect;

    //根据需求设定
    private int btnAllcount = 20;//按钮总个数
    private int btnCount = 10;//每页中按钮个数

    private float contentsWidth;
    private float delta_X;
    private float targePoint;
    private bool isRoll; //是否翻页

    void Start()
    {
        contents = transform.Find("Viewport/Content") as RectTransform;
        scrollrect = transform.GetComponent<ScrollRect>();
        btnAllcount = contents.childCount;
        #region 方法一
        contentsWidth = contents.rect.width;
        delta_X = Mathf.CeilToInt(btnAllcount / btnCount) * contentsWidth;
        #endregion
        #region 方法二
        //contentsWidth = contents.sizeDelta.x;
        //delta_X = Mathf.CeilToInt(btnAllcount / btnCount) * contentsWidth;//通过计算获得contents的长度
        //contents.sizeDelta = new Vector2(delta_X, contents.sizeDelta.y);//给contents设定大小
        #endregion
        Debug.LogError(contentsWidth);
        //下一页
        nextBtn.onClick.AddListener(delegate
        {
            isRoll = true;
            targePoint += 1 / (delta_X / contentsWidth - 1);
            if (targePoint > 1)
                targePoint = 1;
        });

        //上一页
        lastBtn.onClick.AddListener(delegate
        {
            isRoll = true;
            targePoint -= 1 / (delta_X / contentsWidth - 1);
            if (targePoint < 0)
                targePoint = 0;
        });
    }

    private void Update()
    {
        //翻页
        if (isRoll)
        {
            if (Mathf.Abs(scrollrect.horizontalNormalizedPosition - targePoint) < 0.01f)
            {
                scrollrect.horizontalNormalizedPosition = targePoint;
                isRoll = false;
                return;
            }
            //设置水平滚动位置
            scrollrect.horizontalNormalizedPosition = Mathf.Lerp(scrollrect.horizontalNormalizedPosition, targePoint, Time.timeScale * 0.1f);
        }
    }
}

参考博客地址：【笔记】Unity ScrollView 按钮翻页_zjh_368的博客-CSDN博客_unity按钮翻页
