[游戏开发]Unity shader 学习记录（复杂光照2-光照衰减与阴影 ）

unity支持四种光源类型：平行光、点光源、聚光灯和面光源。

光源最常用得属性有：位置、方向、颜色、强度遗迹衰减。

1、光照衰减：在前向渲染中添加光照衰减：

Shader "Unity Shaders Book/Chapter 9/Forward Rendering" {
	Properties {
		_Diffuse ("Diffuse", Color) = (1, 1, 1, 1)
		_Specular ("Specular", Color) = (1, 1, 1, 1)
		_Gloss ("Gloss", Range(8.0, 256)) = 20
	}
	SubShader {
		Tags { "RenderType"="Opaque" }

		Pass {
			// Pass for ambient light & first pixel light (directional light)
			Tags { "LightMode"="ForwardBase" }

			CGPROGRAM

			// Apparently need to add this declaration
			#pragma multi_compile_fwdbase

			#pragma vertex vert
			#pragma fragment frag

			#include "Lighting.cginc"

			fixed4 _Diffuse;
			fixed4 _Specular;
			float _Gloss;

			struct a2v {
				float4 vertex : POSITION;
				float3 normal : NORMAL;
			};

			struct v2f {
				float4 pos : SV_POSITION;
				float3 worldNormal : TEXCOORD0;
				float3 worldPos : TEXCOORD1;
			};

			v2f vert(a2v v) {
				v2f o;
				o.pos = UnityObjectToClipPos(v.vertex);

				o.worldNormal = UnityObjectToWorldNormal(v.normal);

				o.worldPos = mul(unity_ObjectToWorld, v.vertex).xyz;

				return o;
			}

			fixed4 frag(v2f i) : SV_Target {
				fixed3 worldNormal = normalize(i.worldNormal);
				fixed3 worldLightDir = normalize(_WorldSpaceLightPos0.xyz);

				fixed3 ambient = UNITY_LIGHTMODEL_AMBIENT.xyz;

			 	fixed3 diffuse = _LightColor0.rgb * _Diffuse.rgb * max(0, dot(worldNormal, worldLightDir));

			 	fixed3 viewDir = normalize(_WorldSpaceCameraPos.xyz - i.worldPos.xyz);
			 	fixed3 halfDir = normalize(worldLightDir + viewDir);
			 	fixed3 specular = _LightColor0.rgb * _Specular.rgb * pow(max(0, dot(worldNormal, halfDir)), _Gloss);

				fixed atten = 1.0;

				return fixed4(ambient + (diffuse + specular) * atten, 1.0);
			}

			ENDCG
		}

		Pass {
			// Pass for other pixel lights
			Tags { "LightMode"="ForwardAdd" }

			Blend One One

			CGPROGRAM

			// Apparently need to add this declaration
			#pragma multi_compile_fwdadd

			#pragma vertex vert
			#pragma fragment frag

			#include "Lighting.cginc"
			#include "AutoLight.cginc"

			fixed4 _Diffuse;
			fixed4 _Specular;
			float _Gloss;

			struct a2v {
				float4 vertex : POSITION;
				float3 normal : NORMAL;
			};

			struct v2f {
				float4 pos : SV_POSITION;
				float3 worldNormal : TEXCOORD0;
				float3 worldPos : TEXCOORD1;
			};

			v2f vert(a2v v) {
				v2f o;
				o.pos = UnityObjectToClipPos(v.vertex);

				o.worldNormal = UnityObjectToWorldNormal(v.normal);

				o.worldPos = mul(unity_ObjectToWorld, v.vertex).xyz;

				return o;
			}

			fixed4 frag(v2f i) : SV_Target {
				fixed3 worldNormal = normalize(i.worldNormal);
				#ifdef USING_DIRECTIONAL_LIGHT
					fixed3 worldLightDir = normalize(_WorldSpaceLightPos0.xyz);
				#else
					fixed3 worldLightDir = normalize(_WorldSpaceLightPos0.xyz - i.worldPos.xyz);
				#endif

				fixed3 diffuse = _LightColor0.rgb * _Diffuse.rgb * max(0, dot(worldNormal, worldLightDir));

				fixed3 viewDir = normalize(_WorldSpaceCameraPos.xyz - i.worldPos.xyz);
				fixed3 halfDir = normalize(worldLightDir + viewDir);
				fixed3 specular = _LightColor0.rgb * _Specular.rgb * pow(max(0, dot(worldNormal, halfDir)), _Gloss);

				#ifdef USING_DIRECTIONAL_LIGHT
					fixed atten = 1.0;
				#else
					#if defined (POINT)
				        float3 lightCoord = mul(unity_WorldToLight, float4(i.worldPos, 1)).xyz;
				        fixed atten = tex2D(_LightTexture0, dot(lightCoord, lightCoord).rr).UNITY_ATTEN_CHANNEL;
				    #elif defined (SPOT)
				        float4 lightCoord = mul(unity_WorldToLight, float4(i.worldPos, 1));
				        fixed atten = (lightCoord.z > 0) * tex2D(_LightTexture0, lightCoord.xy / lightCoord.w + 0.5).w * tex2D(_LightTextureB0, dot(lightCoord, lightCoord).rr).UNITY_ATTEN_CHANNEL;
				    #else
				        fixed atten = 1.0;
				    #endif
				#endif

				return fixed4((diffuse + specular) * atten, 1.0);
			}

			ENDCG
		}
	}
	FallBack "Specular"
}

在shader中，环境光只用计算一次，在base pass中计算，add pass?要使用混合，不然会覆盖base pass的颜色。

我们使用_WorldSpaceLightPos0来得到平行光得方向、点光源和聚光灯的位置。_LigthColor0来得到他的颜色和强度。

在不同光源方向计算上，要根据不同光源类型来进行计算。

#ifdef USING_DIRECTIONAL_LIGHT
	fixed3 worldLightDir = normalize(_WorldSpaceLightPos0.xyz);
#else
	fixed3 worldLightDir = normalize(_WorldSpaceLightPos0.xyz - i.worldPos.xyz);
#endif

然后再根据计算不同光源的衰减：

#ifdef USING_DIRECTIONAL_LIGHT
	fixed atten = 1.0;
#else
    #if defined (POINT)
	    float3 lightCoord = mul(unity_WorldToLight, float4(i.worldPos, 1)).xyz;
	    fixed atten = tex2D(_LightTexture0, dot(lightCoord, lightCoord).rr).UNITY_ATTEN_CHANNEL;
    #elif defined (SPOT)
	    float4 lightCoord = mul(unity_WorldToLight, float4(i.worldPos, 1));
	    fixed atten = (lightCoord.z > 0) * tex2D(_LightTexture0, lightCoord.xy / lightCoord.w + 0.5).w * tex2D(_LightTextureB0, dot(lightCoord, lightCoord).rr).UNITY_ATTEN_CHANNEL;
    #else
				        fixed atten = 1.0;
    #endif
#endif

unity内部使用_LightTexture0来计算光源衰减，但如果对光源使用了cookie，那么衰减查找纹理就是_LightTextureB0，在上方的代码中也有反应。

2、阴影

我们使用shadow?map技术来实现阴影，主要分为两种实现方式：传统阴影纹理技术和屏幕空间的阴影映射技术。

传统的实现原理是生成一张阴影阴影映射纹理，然后把顶点变换到光源空间，再用xy分量对纹理进行采样，如果该深度值小于顶点的深度值（Z分量）说明该点位于阴影中。

屏幕空间的阴影映射技术是先得到光源的阴影映射纹理和摄像机的深度纹理，再根据这两张纹理得到屏幕空间的阴影图（如果摄像机的深度图中记录的表面深度大于阴影映射纹理的深度值，表明该表面处于阴影中），再对阴影图进行采样就得到了。

生成阴影：

一般读取引擎自带的pass，该pass的lightmode标签设置为shadowcast。这个pass的渲染目标不是帧缓存，而是阴影映射纹理。

接收阴影：

读取阴影映射纹理数据，吧采样数据和最后的光照结果（漫反射和高光反射）相乘来产生阴影效果。

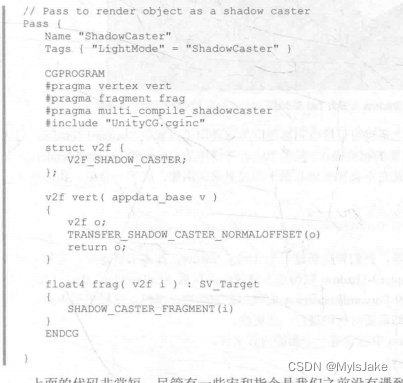

生成阴影shader：内置着色器，命名是：VertexLit.shader，一般在自己写的shader的FallBack中调用。

?接收阴影shader：

Shader "Unity Shaders Book/Chapter 9/Shadow" {
	Properties {
		_Diffuse ("Diffuse", Color) = (1, 1, 1, 1)
		_Specular ("Specular", Color) = (1, 1, 1, 1)
		_Gloss ("Gloss", Range(8.0, 256)) = 20
	}
	SubShader {
		Tags { "RenderType"="Opaque" }

		Pass {
			// Pass for ambient light & first pixel light (directional light)
			Tags { "LightMode"="ForwardBase" }

			CGPROGRAM

			// Apparently need to add this declaration
			#pragma multi_compile_fwdbase

			#pragma vertex vert
			#pragma fragment frag

			// Need these files to get built-in macros
			#include "Lighting.cginc"
			#include "AutoLight.cginc"

			fixed4 _Diffuse;
			fixed4 _Specular;
			float _Gloss;

			struct a2v {
				float4 vertex : POSITION;
				float3 normal : NORMAL;
			};

			struct v2f {
				float4 pos : SV_POSITION;
				float3 worldNormal : TEXCOORD0;
				float3 worldPos : TEXCOORD1;
				SHADOW_COORDS(2)
			};

			v2f vert(a2v v) {
			 	v2f o;
			 	o.pos = UnityObjectToClipPos(v.vertex);

			 	o.worldNormal = UnityObjectToWorldNormal(v.normal);

			 	o.worldPos = mul(unity_ObjectToWorld, v.vertex).xyz;

			 	// Pass shadow coordinates to pixel shader
			 	TRANSFER_SHADOW(o);

			 	return o;
			}

			fixed4 frag(v2f i) : SV_Target {
				fixed3 worldNormal = normalize(i.worldNormal);
				fixed3 worldLightDir = normalize(_WorldSpaceLightPos0.xyz);

				fixed3 ambient = UNITY_LIGHTMODEL_AMBIENT.xyz;

			 	fixed3 diffuse = _LightColor0.rgb * _Diffuse.rgb * max(0, dot(worldNormal, worldLightDir));

			 	fixed3 viewDir = normalize(_WorldSpaceCameraPos.xyz - i.worldPos.xyz);
			 	fixed3 halfDir = normalize(worldLightDir + viewDir);
			 	fixed3 specular = _LightColor0.rgb * _Specular.rgb * pow(max(0, dot(worldNormal, halfDir)), _Gloss);

				fixed atten = 1.0;

				fixed shadow = SHADOW_ATTENUATION(i);

				return fixed4(ambient + (diffuse + specular) * atten * shadow, 1.0);
			}

			ENDCG
		}

		Pass {
			// Pass for other pixel lights
			Tags { "LightMode"="ForwardAdd" }

			Blend One One

			CGPROGRAM

			// Apparently need to add this declaration
			#pragma multi_compile_fwdadd
			// Use the line below to add shadows for point and spot lights
//			#pragma multi_compile_fwdadd_fullshadows

			#pragma vertex vert
			#pragma fragment frag

			#include "Lighting.cginc"
			#include "AutoLight.cginc"

			fixed4 _Diffuse;
			fixed4 _Specular;
			float _Gloss;

			struct a2v {
				float4 vertex : POSITION;
				float3 normal : NORMAL;
			};

			struct v2f {
				float4 position : SV_POSITION;
				float3 worldNormal : TEXCOORD0;
				float3 worldPos : TEXCOORD1;
			};

			v2f vert(a2v v) {
			 	v2f o;
			 	o.position = UnityObjectToClipPos(v.vertex);

			 	o.worldNormal = UnityObjectToWorldNormal(v.normal);

			 	o.worldPos = mul(unity_ObjectToWorld, v.vertex).xyz;

			 	return o;
			}

			fixed4 frag(v2f i) : SV_Target {
				fixed3 worldNormal = normalize(i.worldNormal);
				#ifdef USING_DIRECTIONAL_LIGHT
					fixed3 worldLightDir = normalize(_WorldSpaceLightPos0.xyz);
				#else
					fixed3 worldLightDir = normalize(_WorldSpaceLightPos0.xyz - i.worldPos.xyz);
				#endif

			 	fixed3 diffuse = _LightColor0.rgb * _Diffuse.rgb * max(0, dot(worldNormal, worldLightDir));

			 	fixed3 viewDir = normalize(_WorldSpaceCameraPos.xyz - i.worldPos.xyz);
			 	fixed3 halfDir = normalize(worldLightDir + viewDir);
			 	fixed3 specular = _LightColor0.rgb * _Specular.rgb * pow(max(0, dot(worldNormal, halfDir)), _Gloss);

				#ifdef USING_DIRECTIONAL_LIGHT
					fixed atten = 1.0;
				#else
					float3 lightCoord = mul(unity_WorldToLight, float4(i.worldPos, 1)).xyz;
					fixed atten = tex2D(_LightTexture0, dot(lightCoord, lightCoord).rr).UNITY_ATTEN_CHANNEL;
				#endif

				return fixed4((diffuse + specular) * atten, 1.0);
			}

			ENDCG
		}
	}
	FallBack "Specular"
}

主要使用SHADOW_COORDS、TRANSFER_SHADOW、SHADOW_ATTONUATION阴影“三剑客”来实现。SHADOW_COORDS的参数主要是定义把数据塞到第几张纹理里面。

需要注意的是，由于这些宏会使用上下文变量来进行计算，所以变量名要相匹配，如：a2f中的定点坐标变量必须是vertex，顶点着色器的输出结构体v2f必须命名为v，v2f的顶点位置变量必须命名为pos。

3、统一管理光照衰减和阴影

unity提供了内置的宏UNITY_LIGHT_ATTENUATION来实现。

代码如下：

Shader "Unity Shaders Book/Chapter 9/Attenuation And Shadow Use Build-in Functions" {
	Properties {
		_Diffuse ("Diffuse", Color) = (1, 1, 1, 1)
		_Specular ("Specular", Color) = (1, 1, 1, 1)
		_Gloss ("Gloss", Range(8.0, 256)) = 20
	}
	SubShader {
		Tags { "RenderType"="Opaque" }

		Pass {
			// Pass for ambient light & first pixel light (directional light)
			Tags { "LightMode"="ForwardBase" }

			CGPROGRAM

			// Apparently need to add this declaration
			#pragma multi_compile_fwdbase

			#pragma vertex vert
			#pragma fragment frag

			// Need these files to get built-in macros
			#include "Lighting.cginc"
			#include "AutoLight.cginc"

			fixed4 _Diffuse;
			fixed4 _Specular;
			float _Gloss;

			struct a2v {
				float4 vertex : POSITION;
				float3 normal : NORMAL;
			};

			struct v2f {
				float4 pos : SV_POSITION;
				float3 worldNormal : TEXCOORD0;
				float3 worldPos : TEXCOORD1;
				SHADOW_COORDS(2)
			};

			v2f vert(a2v v) {
			 	v2f o;
			 	o.pos = UnityObjectToClipPos(v.vertex);

			 	o.worldNormal = UnityObjectToWorldNormal(v.normal);

			 	o.worldPos = mul(unity_ObjectToWorld, v.vertex).xyz;

			 	// Pass shadow coordinates to pixel shader
			 	TRANSFER_SHADOW(o);

			 	return o;
			}

			fixed4 frag(v2f i) : SV_Target {
				fixed3 worldNormal = normalize(i.worldNormal);
				fixed3 worldLightDir = normalize(UnityWorldSpaceLightDir(i.worldPos));

				fixed3 ambient = UNITY_LIGHTMODEL_AMBIENT.xyz;

			 	fixed3 diffuse = _LightColor0.rgb * _Diffuse.rgb * max(0, dot(worldNormal, worldLightDir));

			 	fixed3 viewDir = normalize(UnityWorldSpaceViewDir(i.worldPos));
			 	fixed3 halfDir = normalize(worldLightDir + viewDir);
			 	fixed3 specular = _LightColor0.rgb * _Specular.rgb * pow(max(0, dot(worldNormal, halfDir)), _Gloss);

				// UNITY_LIGHT_ATTENUATION not only compute attenuation, but also shadow infos
				UNITY_LIGHT_ATTENUATION(atten, i, i.worldPos);

				return fixed4(ambient + (diffuse + specular) * atten, 1.0);
			}

			ENDCG
		}

		Pass {
			// Pass for other pixel lights
			Tags { "LightMode"="ForwardAdd" }

			Blend One One

			CGPROGRAM

			// Apparently need to add this declaration
			#pragma multi_compile_fwdadd
			// Use the line below to add shadows for point and spot lights
//			#pragma multi_compile_fwdadd_fullshadows

			#pragma vertex vert
			#pragma fragment frag

			#include "Lighting.cginc"
			#include "AutoLight.cginc"

			fixed4 _Diffuse;
			fixed4 _Specular;
			float _Gloss;

			struct a2v {
				float4 vertex : POSITION;
				float3 normal : NORMAL;
			};

			struct v2f {
				float4 pos : SV_POSITION;
				float3 worldNormal : TEXCOORD0;
				float3 worldPos : TEXCOORD1;
				SHADOW_COORDS(2)
			};

			v2f vert(a2v v) {
			 	v2f o;
			 	o.pos = UnityObjectToClipPos(v.vertex);

			 	o.worldNormal = UnityObjectToWorldNormal(v.normal);

			 	o.worldPos = mul(unity_ObjectToWorld, v.vertex).xyz;

			 	// Pass shadow coordinates to pixel shader
			 	TRANSFER_SHADOW(o);

			 	return o;
			}

			fixed4 frag(v2f i) : SV_Target {
				fixed3 worldNormal = normalize(i.worldNormal);
				fixed3 worldLightDir = normalize(UnityWorldSpaceLightDir(i.worldPos));

			 	fixed3 diffuse = _LightColor0.rgb * _Diffuse.rgb * max(0, dot(worldNormal, worldLightDir));

			 	fixed3 viewDir = normalize(UnityWorldSpaceViewDir(i.worldPos));
			 	fixed3 halfDir = normalize(worldLightDir + viewDir);
			 	fixed3 specular = _LightColor0.rgb * _Specular.rgb * pow(max(0, dot(worldNormal, halfDir)), _Gloss);

				// UNITY_LIGHT_ATTENUATION not only compute attenuation, but also shadow infos
				UNITY_LIGHT_ATTENUATION(atten, i, i.worldPos);

				return fixed4((diffuse + specular) * atten, 1.0);
			}

			ENDCG
		}
	}
	FallBack "Specular"
}

它接收三个参数，第一个是atten,不用自己定义，它内部会进行定义；第二个是v2f,它会传递给SHADOE_ATTENUATION用来计算阴影值；第三个是世界空间的坐标它会对光照衰减纹理进行采样。

4、透明物体的阴影

分为两种，透明度测试和透明度混合。对透明度测试的，接收阴影跟不透明物体一致，生成阴影fallback要使用Transparent/Cutout/VertexLit。需要注意，使用这个回调时，需要命名一个_Cutoff的Range属性的属性来控制阴影浓度。最后再打开mesh的双面渲染。

而透明度混合处理方式和不透明物体一样，fallback要使用Transparent/VertexLit或是VertexLit。

透明度混合代码如下：

Shader "Unity Shaders Book/Chapter 9/Alpha Blend With Shadow" {
	Properties {
		_Color ("Color Tint", Color) = (1, 1, 1, 1)
		_MainTex ("Main Tex", 2D) = "white" {}
		_AlphaScale ("Alpha Scale", Range(0, 1)) = 1
	}
	SubShader {
		Tags {"Queue"="Transparent" "IgnoreProjector"="True" "RenderType"="Transparent"}

		Pass {
			Tags { "LightMode"="ForwardBase" }

			ZWrite Off
			Blend SrcAlpha OneMinusSrcAlpha

			CGPROGRAM

			#pragma multi_compile_fwdbase

			#pragma vertex vert
			#pragma fragment frag

			#include "Lighting.cginc"
			#include "AutoLight.cginc"

			fixed4 _Color;
			sampler2D _MainTex;
			float4 _MainTex_ST;
			fixed _AlphaScale;

			struct a2v {
				float4 vertex : POSITION;
				float3 normal : NORMAL;
				float4 texcoord : TEXCOORD0;
			};

			struct v2f {
				float4 pos : SV_POSITION;
				float3 worldNormal : TEXCOORD0;
				float3 worldPos : TEXCOORD1;
				float2 uv : TEXCOORD2;
				SHADOW_COORDS(3)
			};

			v2f vert(a2v v) {
			 	v2f o;
			 	o.pos = UnityObjectToClipPos(v.vertex);

			 	o.worldNormal = UnityObjectToWorldNormal(v.normal);

			 	o.worldPos = mul(unity_ObjectToWorld, v.vertex).xyz;

			 	o.uv = TRANSFORM_TEX(v.texcoord, _MainTex);

			 	// Pass shadow coordinates to pixel shader
			 	TRANSFER_SHADOW(o);

			 	return o;
			}

			fixed4 frag(v2f i) : SV_Target {
				fixed3 worldNormal = normalize(i.worldNormal);
				fixed3 worldLightDir = normalize(UnityWorldSpaceLightDir(i.worldPos));

				fixed4 texColor = tex2D(_MainTex, i.uv);

				fixed3 albedo = texColor.rgb * _Color.rgb;

				fixed3 ambient = UNITY_LIGHTMODEL_AMBIENT.xyz * albedo;

				fixed3 diffuse = _LightColor0.rgb * albedo * max(0, dot(worldNormal, worldLightDir));

			 	// UNITY_LIGHT_ATTENUATION not only compute attenuation, but also shadow infos
				UNITY_LIGHT_ATTENUATION(atten, i, i.worldPos);

				return fixed4(ambient + diffuse * atten, texColor.a * _AlphaScale);
			}

			ENDCG
		}
	}
	FallBack "Transparent/VertexLit"
	// Or  force to apply shadow
//	FallBack "VertexLit"
}

最后贴两个真正可以使用的unity光照阴影shader。

BumpedDiffuse和BumpedSpecular,这两个shader都包含了发现文里、多光源、光照衰减、阴影相关处理，不同的是BumpedDiffuse使用了phong模型，BumpedSpecular使用了Blinn-phong模型。

代码如下：

Shader "Unity Shaders Book/Common/Bumped Diffuse" {
	Properties {
		_Color ("Color Tint", Color) = (1, 1, 1, 1)
		_MainTex ("Main Tex", 2D) = "white" {}
		_BumpMap ("Normal Map", 2D) = "bump" {}
	}
	SubShader {
		Tags { "RenderType"="Opaque" "Queue"="Geometry"}

		Pass {
			Tags { "LightMode"="ForwardBase" }

			CGPROGRAM

			#pragma multi_compile_fwdbase

			#pragma vertex vert
			#pragma fragment frag

			#include "Lighting.cginc"
			#include "AutoLight.cginc"

			fixed4 _Color;
			sampler2D _MainTex;
			float4 _MainTex_ST;
			sampler2D _BumpMap;
			float4 _BumpMap_ST;

			struct a2v {
				float4 vertex : POSITION;
				float3 normal : NORMAL;
				float4 tangent : TANGENT;
				float4 texcoord : TEXCOORD0;
			};

			struct v2f {
				float4 pos : SV_POSITION;
				float4 uv : TEXCOORD0;
				float4 TtoW0 : TEXCOORD1;
				float4 TtoW1 : TEXCOORD2;
				float4 TtoW2 : TEXCOORD3;
				SHADOW_COORDS(4)
			};

			v2f vert(a2v v) {
				v2f o;
				o.pos = UnityObjectToClipPos(v.vertex);

				o.uv.xy = v.texcoord.xy * _MainTex_ST.xy + _MainTex_ST.zw;
				o.uv.zw = v.texcoord.xy * _BumpMap_ST.xy + _BumpMap_ST.zw;

				float3 worldPos = mul(unity_ObjectToWorld, v.vertex).xyz;
				fixed3 worldNormal = UnityObjectToWorldNormal(v.normal);
				fixed3 worldTangent = UnityObjectToWorldDir(v.tangent.xyz);
				fixed3 worldBinormal = cross(worldNormal, worldTangent) * v.tangent.w;

				o.TtoW0 = float4(worldTangent.x, worldBinormal.x, worldNormal.x, worldPos.x);
				o.TtoW1 = float4(worldTangent.y, worldBinormal.y, worldNormal.y, worldPos.y);
				o.TtoW2 = float4(worldTangent.z, worldBinormal.z, worldNormal.z, worldPos.z);

				TRANSFER_SHADOW(o);

				return o;
			}

			fixed4 frag(v2f i) : SV_Target {
				float3 worldPos = float3(i.TtoW0.w, i.TtoW1.w, i.TtoW2.w);
				fixed3 lightDir = normalize(UnityWorldSpaceLightDir(worldPos));
				fixed3 viewDir = normalize(UnityWorldSpaceViewDir(worldPos));

				fixed3 bump = UnpackNormal(tex2D(_BumpMap, i.uv.zw));
				bump = normalize(half3(dot(i.TtoW0.xyz, bump), dot(i.TtoW1.xyz, bump), dot(i.TtoW2.xyz, bump)));

				fixed3 albedo = tex2D(_MainTex, i.uv.xy).rgb * _Color.rgb;

				fixed3 ambient = UNITY_LIGHTMODEL_AMBIENT.xyz * albedo;

			 	fixed3 diffuse = _LightColor0.rgb * albedo * max(0, dot(bump, lightDir));

				UNITY_LIGHT_ATTENUATION(atten, i, worldPos);

				return fixed4(ambient + diffuse * atten, 1.0);
			}

			ENDCG
		}

		Pass {
			Tags { "LightMode"="ForwardAdd" }

			Blend One One

			CGPROGRAM

			#pragma multi_compile_fwdadd
			// Use the line below to add shadows for point and spot lights
//			#pragma multi_compile_fwdadd_fullshadows

			#pragma vertex vert
			#pragma fragment frag

			#include "Lighting.cginc"
			#include "AutoLight.cginc"

			fixed4 _Color;
			sampler2D _MainTex;
			float4 _MainTex_ST;
			sampler2D _BumpMap;
			float4 _BumpMap_ST;

			struct a2v {
				float4 vertex : POSITION;
				float3 normal : NORMAL;
				float4 tangent : TANGENT;
				float4 texcoord : TEXCOORD0;
			};

			struct v2f {
				float4 pos : SV_POSITION;
				float4 uv : TEXCOORD0;
				float4 TtoW0 : TEXCOORD1;
				float4 TtoW1 : TEXCOORD2;
				float4 TtoW2 : TEXCOORD3;
				SHADOW_COORDS(4)
			};

			v2f vert(a2v v) {
				v2f o;
				o.pos = UnityObjectToClipPos(v.vertex);

				o.uv.xy = v.texcoord.xy * _MainTex_ST.xy + _MainTex_ST.zw;
				o.uv.zw = v.texcoord.xy * _BumpMap_ST.xy + _BumpMap_ST.zw;

				float3 worldPos = mul(unity_ObjectToWorld, v.vertex).xyz;
				fixed3 worldNormal = UnityObjectToWorldNormal(v.normal);
				fixed3 worldTangent = UnityObjectToWorldDir(v.tangent.xyz);
				fixed3 worldBinormal = cross(worldNormal, worldTangent) * v.tangent.w;

				o.TtoW0 = float4(worldTangent.x, worldBinormal.x, worldNormal.x, worldPos.x);
				o.TtoW1 = float4(worldTangent.y, worldBinormal.y, worldNormal.y, worldPos.y);
				o.TtoW2 = float4(worldTangent.z, worldBinormal.z, worldNormal.z, worldPos.z);

				TRANSFER_SHADOW(o);

				return o;
			}

			fixed4 frag(v2f i) : SV_Target {
				float3 worldPos = float3(i.TtoW0.w, i.TtoW1.w, i.TtoW2.w);
				fixed3 lightDir = normalize(UnityWorldSpaceLightDir(worldPos));
				fixed3 viewDir = normalize(UnityWorldSpaceViewDir(worldPos));

				fixed3 bump = UnpackNormal(tex2D(_BumpMap, i.uv.zw));
				bump = normalize(half3(dot(i.TtoW0.xyz, bump), dot(i.TtoW1.xyz, bump), dot(i.TtoW2.xyz, bump)));

				fixed3 albedo = tex2D(_MainTex, i.uv.xy).rgb * _Color.rgb;

			 	fixed3 diffuse = _LightColor0.rgb * albedo * max(0, dot(bump, lightDir));

				UNITY_LIGHT_ATTENUATION(atten, i, worldPos);

				return fixed4(diffuse * atten, 1.0);
			}

			ENDCG
		}
	}
	FallBack "Diffuse"
}

Shader "Unity Shaders Book/Common/Bumped Specular" {
	Properties {
		_Color ("Color Tint", Color) = (1, 1, 1, 1)
		_MainTex ("Main Tex", 2D) = "white" {}
		_BumpMap ("Normal Map", 2D) = "bump" {}
		_Specular ("Specular Color", Color) = (1, 1, 1, 1)
		_Gloss ("Gloss", Range(8.0, 256)) = 20
	}
	SubShader {
		Tags { "RenderType"="Opaque" "Queue"="Geometry"}

		Pass {
			Tags { "LightMode"="ForwardBase" }

			CGPROGRAM

			#pragma multi_compile_fwdbase

			#pragma vertex vert
			#pragma fragment frag

			#include "UnityCG.cginc"
			#include "Lighting.cginc"
			#include "AutoLight.cginc"

			fixed4 _Color;
			sampler2D _MainTex;
			float4 _MainTex_ST;
			sampler2D _BumpMap;
			float4 _BumpMap_ST;
			fixed4 _Specular;
			float _Gloss;

			struct a2v {
				float4 vertex : POSITION;
				float3 normal : NORMAL;
				float4 tangent : TANGENT;
				float4 texcoord : TEXCOORD0;
			};

			struct v2f {
				float4 pos : SV_POSITION;
				float4 uv : TEXCOORD0;
				float4 TtoW0 : TEXCOORD1;
                float4 TtoW1 : TEXCOORD2;
                float4 TtoW2 : TEXCOORD3;
				SHADOW_COORDS(4)
			};

			v2f vert(a2v v) {
			 	v2f o;
			 	o.pos = UnityObjectToClipPos(v.vertex);

			 	o.uv.xy = v.texcoord.xy * _MainTex_ST.xy + _MainTex_ST.zw;
			 	o.uv.zw = v.texcoord.xy * _BumpMap_ST.xy + _BumpMap_ST.zw;

				TANGENT_SPACE_ROTATION;

				float3 worldPos = mul(unity_ObjectToWorld, v.vertex).xyz;
                fixed3 worldNormal = UnityObjectToWorldNormal(v.normal);
                fixed3 worldTangent = UnityObjectToWorldDir(v.tangent.xyz);
                fixed3 worldBinormal = cross(worldNormal, worldTangent) * v.tangent.w;

                o.TtoW0 = float4(worldTangent.x, worldBinormal.x, worldNormal.x, worldPos.x);
                o.TtoW1 = float4(worldTangent.y, worldBinormal.y, worldNormal.y, worldPos.y);
                o.TtoW2 = float4(worldTangent.z, worldBinormal.z, worldNormal.z, worldPos.z);

  				TRANSFER_SHADOW(o);

			 	return o;
			}

			fixed4 frag(v2f i) : SV_Target {
				float3 worldPos = float3(i.TtoW0.w, i.TtoW1.w, i.TtoW2.w);
				fixed3 lightDir = normalize(UnityWorldSpaceLightDir(worldPos));
				fixed3 viewDir = normalize(UnityWorldSpaceViewDir(worldPos));

				fixed3 bump = UnpackNormal(tex2D(_BumpMap, i.uv.zw));
				bump = normalize(half3(dot(i.TtoW0.xyz, bump), dot(i.TtoW1.xyz, bump), dot(i.TtoW2.xyz, bump)));

				fixed3 albedo = tex2D(_MainTex, i.uv.xy).rgb * _Color.rgb;

				fixed3 ambient = UNITY_LIGHTMODEL_AMBIENT.xyz * albedo;

			 	fixed3 diffuse = _LightColor0.rgb * albedo * max(0, dot(bump, lightDir));

			 	fixed3 halfDir = normalize(lightDir + viewDir);
			 	fixed3 specular = _LightColor0.rgb * _Specular.rgb * pow(max(0, dot(bump, halfDir)), _Gloss);

				UNITY_LIGHT_ATTENUATION(atten, i, worldPos);

				return fixed4(ambient + (diffuse + specular) * atten, 1.0);
			}

			ENDCG
		}

		Pass {
			Tags { "LightMode"="ForwardAdd" }

			Blend One One

			CGPROGRAM

			#pragma multi_compile_fwdadd
			// Use the line below to add shadows for point and spot lights
//			#pragma multi_compile_fwdadd_fullshadows

			#pragma vertex vert
			#pragma fragment frag

			#include "Lighting.cginc"
			#include "AutoLight.cginc"

			fixed4 _Color;
			sampler2D _MainTex;
			float4 _MainTex_ST;
			sampler2D _BumpMap;
			float4 _BumpMap_ST;
			float _BumpScale;
			fixed4 _Specular;
			float _Gloss;

			struct a2v {
				float4 vertex : POSITION;
				float3 normal : NORMAL;
				float4 tangent : TANGENT;
				float4 texcoord : TEXCOORD0;
			};

			struct v2f {
				float4 pos : SV_POSITION;
				float4 uv : TEXCOORD0;
				float4 TtoW0 : TEXCOORD1;
                float4 TtoW1 : TEXCOORD2;
                float4 TtoW2 : TEXCOORD3;
				SHADOW_COORDS(4)
			};

			v2f vert(a2v v) {
			 	v2f o;
			 	o.pos = UnityObjectToClipPos(v.vertex);

			 	o.uv.xy = v.texcoord.xy * _MainTex_ST.xy + _MainTex_ST.zw;
			 	o.uv.zw = v.texcoord.xy * _BumpMap_ST.xy + _BumpMap_ST.zw;

				float3 worldPos = mul(unity_ObjectToWorld, v.vertex).xyz;
                fixed3 worldNormal = UnityObjectToWorldNormal(v.normal);
                fixed3 worldTangent = UnityObjectToWorldDir(v.tangent.xyz);
                fixed3 worldBinormal = cross(worldNormal, worldTangent) * v.tangent.w;

  				o.TtoW0 = float4(worldTangent.x, worldBinormal.x, worldNormal.x, worldPos.x);
			  	o.TtoW1 = float4(worldTangent.y, worldBinormal.y, worldNormal.y, worldPos.y);
			  	o.TtoW2 = float4(worldTangent.z, worldBinormal.z, worldNormal.z, worldPos.z);

			 	TRANSFER_SHADOW(o);

			 	return o;
			}

			fixed4 frag(v2f i) : SV_Target {
				float3 worldPos = float3(i.TtoW0.w, i.TtoW1.w, i.TtoW2.w);
				fixed3 lightDir = normalize(UnityWorldSpaceLightDir(worldPos));
				fixed3 viewDir = normalize(UnityWorldSpaceViewDir(worldPos));

				fixed3 bump = UnpackNormal(tex2D(_BumpMap, i.uv.zw));
				bump = normalize(half3(dot(i.TtoW0.xyz, bump), dot(i.TtoW1.xyz, bump), dot(i.TtoW2.xyz, bump)));

				fixed3 albedo = tex2D(_MainTex, i.uv.xy).rgb * _Color.rgb;

			 	fixed3 diffuse = _LightColor0.rgb * albedo * max(0, dot(bump, lightDir));

			 	fixed3 halfDir = normalize(lightDir + viewDir);
			 	fixed3 specular = _LightColor0.rgb * _Specular.rgb * pow(max(0, dot(bump, halfDir)), _Gloss);

				UNITY_LIGHT_ATTENUATION(atten, i, worldPos);

				return fixed4((diffuse + specular) * atten, 1.0);
			}

			ENDCG
		}
	}
	FallBack "Specular"
}
