[游戏开发]Unity3d如何实现UGUI.Text的UV流动效果

一.实现简单的Text+贴图效果

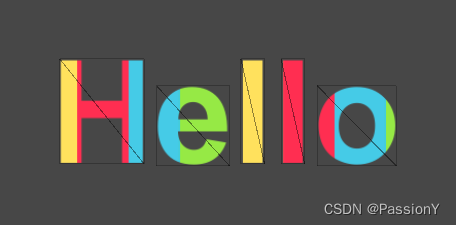

我们先效果如下：

原理：

UGUI的Text和Image本身就支持Material，我们添加PositionAsUV组件，让Text识别到UV变化就行，然后接下来就是我们给材质添加一张贴图就行了。

• 1.创建一个Text文本框，调整合适的大小，填写测试文字


• 2.添加Position As UV1组件,给Text加材质比加组件


• 3.创建Material材质，附加shader:UI/Unlit/Text Detail


• 4.给Text的Material属性赋值材质。

• 5.给材质添加Detail(RGB)贴图，自定义

• 6.设置Canvas的Additional Shader Channles 选中TexCoord1


随着我们修改Text的大小，我们可以看到纹理的UV会变化，这些就是Position As UV1组件的作用，他会根据Text中字体的位置修改UV坐标

二.实现Text+贴图炫光流动

原理

和上面原理相同，只不过我们稍微修改下系统的TextDetail.shader
功能添加：

• 1.添加一个NoiseTex 噪波扰动图，
• 2.使用Time,修改NoiseTex的UV，然后传递给DetialTex，使图片的UV流动。
  效果如下：


shader代码如下：

// Upgrade NOTE: replaced 'mul(UNITY_MATRIX_MVP,*)' with 'UnityObjectToClipPos(*)'

Shader "UI/Unlit/Custom Text Detail"
{
	Properties
	{
	    [PerRendererData]
		_MainTex ("Alpha (A)", 2D) = "white" {}
		[PerRendererData]
		_Color ("Main Color", Color) = (1,1,1,1)


		_DetailTex ("Detail (RGB)", 2D) = "white" {}
		_detail_panner_u ("tex01_panner_u", Float ) = 0
        _detail_panner_v ("tex01_panner_v", Float ) = 0
		_detail_strong ("tex01_strong", Range(0.0, 1.0)) = 1

		_NoiseTex ("Noise (R)", 2D) = "white" {}
        _noise_strong ("tex02_strong", Float ) = 1
        _noise_panner_u ("tex02_panner_u", Float ) = 0
        _noise_panner_v ("tex02_panner_v", Float ) = 0

        _flow_color("flow_color", Color) = (1,1,1,1)
        _flow_strong("flow_strong", Float) = 1

		[hideinInspector]
		_StencilComp ("Stencil Comparison", Float) = 8
		[hideinInspector]
		_Stencil ("Stencil ID", Float) = 0
		[hideinInspector]
		_StencilOp ("Stencil Operation", Float) = 0
		[hideinInspector]
		_StencilWriteMask ("Stencil Write Mask", Float) = 255
		[hideinInspector]
		_StencilReadMask ("Stencil Read Mask", Float) = 255
        [hideinInspector]
		_ColorMask ("Color Mask", Float) = 15
	}

	SubShader
	{
		LOD 200

		Tags
		{
			"Queue" = "Transparent"
			"IgnoreProjector" = "True"
			"RenderType" = "Transparent"
			"PreviewType"="Plane"
		}

		Stencil
		{
			Ref [_Stencil]
			Comp [_StencilComp]
			Pass [_StencilOp]
			ReadMask [_StencilReadMask]
			WriteMask [_StencilWriteMask]
		}

		Cull Off
		Lighting Off
		ZWrite Off
		ZTest [unity_GUIZTestMode]
		Offset -1, -1
		Blend one OneMinusSrcAlpha
		ColorMask [_ColorMask]

		Pass
		{
			CGPROGRAM
				#pragma vertex vert
				#pragma fragment frag
				#include "UnityCG.cginc"

				struct appdata_t
				{
					float4 vertex : POSITION;
					float2 texcoord : TEXCOORD0;
					float2 texcoord2 : TEXCOORD1;
					fixed4 color : COLOR;
				};

				struct v2f
				{
					float4 vertex : POSITION;
					float2 texcoord : TEXCOORD0;
					float2 texcoord2 : TEXCOORD1;
					fixed4 color : COLOR;
				};

				sampler2D _MainTex;
				sampler2D _DetailTex;
				sampler2D _NoiseTex;

				float4 _MainTex_ST;
				float4 _DetailTex_ST;
				float4 _NoiseTex_ST;

				float4 _DetailTex_TexelSize;
				fixed4 _Color;
				fixed _detail_strong;
                fixed _noise_strong;
                fixed _detail_panner_u;
                fixed _detail_panner_v;
                fixed _noise_panner_u;
                fixed _noise_panner_v;
                fixed4 _flow_color;
                fixed _flow_strong;

				v2f vert (appdata_t v)
				{
					v2f o;
					o.vertex = UnityObjectToClipPos(v.vertex);
					o.texcoord = TRANSFORM_TEX(v.texcoord, _MainTex);
					o.texcoord2 = TRANSFORM_TEX(v.texcoord2 * _DetailTex_TexelSize.xy, _DetailTex);
					o.color = v.color;
					return o;
				}

				half4 frag (v2f i) : COLOR
				{
					half4 col = i.color*_Color;

                    float2 dist_uv = i.texcoord2+(_Time.g*float2(_noise_panner_u,_noise_panner_u));
                    float4 noise = tex2D(_NoiseTex,TRANSFORM_TEX(dist_uv, _NoiseTex));

                    float2 detail_uv = i.texcoord2+_Time.g*float2(_detail_panner_u,_detail_panner_v)+noise.r*_noise_strong;
					fixed4 detail = tex2D(_DetailTex, detail_uv) + noise.r*_flow_color*_flow_strong;

					col.rgb = lerp(col.rgb, col.rgb * detail.rgb, detail.a * _detail_strong);
					col.a *= tex2D(_MainTex, i.texcoord).a;

					clip (col.a - 0.01);
					return col;
				}
			ENDCG
		}
	}
}

好了，这篇文章就到这里，希望对你有所帮助
