一：效果演示

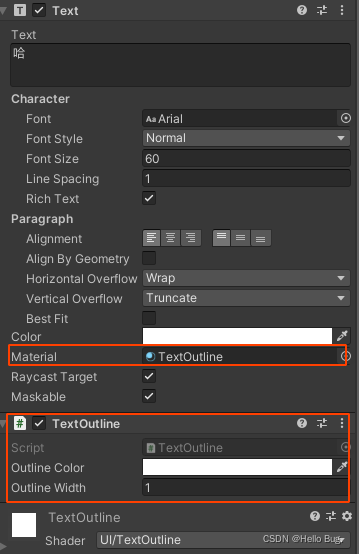

?二：使用
Outline Color：描边颜色
Outline Width：描边宽度
三：为什么尽量避免使用UGUI的Outline和Shadaw组件?
下面是Outline的源码，不论是Outline还是Shadow，它的实现原理都是把原来的顶点拷贝出来一份，根据偏移量来设置拷贝出来的顶点位置，相当于复制出一个一模一样的Text组件进行位置偏移。Shadow拷贝一份，Outline拷贝四份
using System.Collections.Generic;
namespace UnityEngine.UI
{
[AddComponentMenu("UI/Effects/Outline", 15)]
/// <summary>
/// Adds an outline to a graphic using IVertexModifier.
/// </summary>
public class Outline : Shadow
{
protected Outline()
{}
public override void ModifyMesh(VertexHelper vh)
{
if (!IsActive())
return;
var verts = ListPool<UIVertex>.Get();
vh.GetUIVertexStream(verts);
var neededCpacity = verts.Count * 5;
if (verts.Capacity < neededCpacity)
verts.Capacity = neededCpacity;
var start = 0;
var end = verts.Count;
ApplyShadowZeroAlloc(verts, effectColor, start, verts.Count, effectDistance.x, effectDistance.y);
start = end;
end = verts.Count;
ApplyShadowZeroAlloc(verts, effectColor, start, verts.Count, effectDistance.x, -effectDistance.y);
start = end;
end = verts.Count;
ApplyShadowZeroAlloc(verts, effectColor, start, verts.Count, -effectDistance.x, effectDistance.y);
start = end;
end = verts.Count;
ApplyShadowZeroAlloc(verts, effectColor, start, verts.Count, -effectDistance.x, -effectDistance.y);
vh.Clear();
vh.AddUIVertexTriangleStream(verts);
ListPool<UIVertex>.Release(verts);
}
}
}四：代码实现
Shadar：
Shader "UI/TextOutline"
{
Properties
{
_MainTex ("Main Texture", 2D) = "white" {}
_Color ("Tint", Color) = (1, 1, 1, 1)
//_OutlineColor ("Outline Color", Color) = (1, 1, 1, 1)
//_OutlineWidth ("Outline Width", Int) = 1
_StencilComp ("Stencil Comparison", Float) = 8
_Stencil ("Stencil ID", Float) = 0
_StencilOp ("Stencil Operation", Float) = 0
_StencilWriteMask ("Stencil Write Mask", Float) = 255
_StencilReadMask ("Stencil Read Mask", Float) = 255
_ColorMask ("Color Mask", Float) = 15
[Toggle(UNITY_UI_ALPHACLIP)] _UseUIAlphaClip ("Use Alpha Clip", Float) = 0
}
SubShader
{
Tags
{
"Queue"="Transparent"
"IgnoreProjector"="True"
"RenderType"="Transparent"
"PreviewType"="Plane"
"CanUseSpriteAtlas"="True"
}
Stencil
{
Ref [_Stencil]
Comp [_StencilComp]
Pass [_StencilOp]
ReadMask [_StencilReadMask]
WriteMask [_StencilWriteMask]
}
Cull Off
Lighting Off
ZWrite Off
ZTest [unity_GUIZTestMode]
Blend SrcAlpha OneMinusSrcAlpha
ColorMask [_ColorMask]
Pass
{
Name "OUTLINE"
CGPROGRAM
#pragma vertex vert
#pragma fragment frag
//Add for RectMask2D
#include "UnityUI.cginc"
//End for RectMask2D
sampler2D _MainTex;
fixed4 _Color;
fixed4 _TextureSampleAdd;
float4 _MainTex_TexelSize;
//float4 _OutlineColor;
//int _OutlineWidth;
//Add for RectMask2D
float4 _ClipRect;
//End for RectMask2D
struct appdata
{
float4 vertex : POSITION;
float4 tangent : TANGENT;
float4 normal : NORMAL;
float2 texcoord : TEXCOORD0;
float2 uv1 : TEXCOORD1;
float2 uv2 : TEXCOORD2;
float2 uv3 : TEXCOORD3;
fixed4 color : COLOR;
};
struct v2f
{
float4 vertex : SV_POSITION;
float4 tangent : TANGENT;
float4 normal : NORMAL;
float2 texcoord : TEXCOORD0;
float2 uv1 : TEXCOORD1;
float2 uv2 : TEXCOORD2;
float2 uv3 : TEXCOORD3;
//Add for RectMask2D
float4 worldPosition : TEXCOORD4;
//End for RectMask2D
fixed4 color : COLOR;
};
v2f vert(appdata IN)
{
v2f o;
//Add for RectMask2D
o.worldPosition = IN.vertex;
//End for RectMask2D
o.vertex = UnityObjectToClipPos(IN.vertex);
o.tangent = IN.tangent;
o.texcoord = IN.texcoord;
o.color = IN.color * _Color;
o.uv1 = IN.uv1;
o.uv2 = IN.uv2;
o.uv3 = IN.uv3;
o.normal = IN.normal;
return o;
}
/*
fixed IsInRect(float2 pPos, float4 pClipRect)
{
pPos = step(pClipRect.xy, pPos) * step(pPos, pClipRect.zw);
return pPos.x * pPos.y;
}
*/
fixed IsInRect(float2 pPos, float2 pClipRectMin, float2 pClipRectMax)
{
pPos = step(pClipRectMin, pPos) * step(pPos, pClipRectMax);
return pPos.x * pPos.y;
}
fixed SampleAlpha(int pIndex, v2f IN)
{
const fixed sinArray[12] = { 0, 0.5, 0.866, 1, 0.866, 0.5, 0, -0.5, -0.866, -1, -0.866, -0.5 };
const fixed cosArray[12] = { 1, 0.866, 0.5, 0, -0.5, -0.866, -1, -0.866, -0.5, 0, 0.5, 0.866 };
float2 pos = IN.texcoord + _MainTex_TexelSize.xy * float2(cosArray[pIndex], sinArray[pIndex]) * IN.normal.z; //normal.z 存放 _OutlineWidth
return IsInRect(pos, IN.uv1, IN.uv2) * (tex2D(_MainTex, pos) + _TextureSampleAdd).w * IN.tangent.w; //tangent.w 存放 _OutlineColor.w
}
fixed4 frag(v2f IN) : SV_Target
{
fixed4 color = (tex2D(_MainTex, IN.texcoord) + _TextureSampleAdd) * IN.color;
if (IN.normal.z > 0) //normal.z 存放 _OutlineWidth
{
color.w *= IsInRect(IN.texcoord, IN.uv1, IN.uv2); //uv1 uv2 存着原始字的uv长方形区域大小
half4 val = half4(IN.uv3.x, IN.uv3.y, IN.tangent.z, 0); //uv3.xy tangent.z 分别存放着 _OutlineColor的rgb
val.w += SampleAlpha(0, IN);
val.w += SampleAlpha(1, IN);
val.w += SampleAlpha(2, IN);
val.w += SampleAlpha(3, IN);
val.w += SampleAlpha(4, IN);
val.w += SampleAlpha(5, IN);
val.w += SampleAlpha(6, IN);
val.w += SampleAlpha(7, IN);
val.w += SampleAlpha(8, IN);
val.w += SampleAlpha(9, IN);
val.w += SampleAlpha(10, IN);
val.w += SampleAlpha(11, IN);
color = (val * (1.0 - color.a)) + (color * color.a);
color.a *= IN.color.a*IN.color.a*IN.color.a; //字逐渐隐藏时，描边也要隐藏
}
//Add for RectMask2D
color.a *= UnityGet2DClipping(IN.worldPosition.xy, _ClipRect);
#ifdef UNITY_UI_ALPHACLIP
clip(color.a - 0.001);
#endif
//End for RectMask2D
return color;
}
ENDCG
}
}
}CS：
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.UI;
[AddComponentMenu("LFramework/UI/Effect/TextOutline", 0)]
public class TextOutline : BaseMeshEffect
{
protected TextOutline()
{
}
//描边颜色
public Color m_OutlineColor = Color.white;
//描边宽度
public float m_OutlineWidth = 1;
private static List<UIVertex> m_VetexList = new List<UIVertex>();
protected override void Awake()
{
base.Awake();
if (graphic)
{
if (graphic.material == null
|| graphic.material.shader.name != "UI/TextOutline")
{
Debug.LogError("没有找到材质TextOutline.mat");
}
if (graphic.canvas)
{
var v1 = graphic.canvas.additionalShaderChannels;
var v2 = AdditionalCanvasShaderChannels.TexCoord1;
if ((v1 & v2) != v2)
{
graphic.canvas.additionalShaderChannels |= v2;
}
v2 = AdditionalCanvasShaderChannels.TexCoord2;
if ((v1 & v2) != v2)
{
graphic.canvas.additionalShaderChannels |= v2;
}
v2 = AdditionalCanvasShaderChannels.TexCoord3;
if ((v1 & v2) != v2)
{
graphic.canvas.additionalShaderChannels |= v2;
}
v2 = AdditionalCanvasShaderChannels.Tangent;
if ((v1 & v2) != v2)
{
graphic.canvas.additionalShaderChannels |= v2;
}
v2 = AdditionalCanvasShaderChannels.Normal;
if ((v1 & v2) != v2)
{
graphic.canvas.additionalShaderChannels |= v2;
}
}
Refresh();
}
}
#if UNITY_EDITOR
protected override void OnValidate()
{
base.OnValidate();
if (graphic.material != null)
{
if (graphic.material.shader.name != "UI/TextOutline")
{
Debug.LogError("没有找到材质TextOutline.mat");
}
Refresh();
}
}
#endif
private void Refresh()
{
graphic.SetVerticesDirty();
}
public override void ModifyMesh(VertexHelper vh)
{
vh.GetUIVertexStream(m_VetexList);
ProcessVertices();
vh.Clear();
vh.AddUIVertexTriangleStream(m_VetexList);
}
private void ProcessVertices()
{
for (int i = 0, count = m_VetexList.Count - 3; i <= count; i += 3)
{
var v1 = m_VetexList[i];
var v2 = m_VetexList[i + 1];
var v3 = m_VetexList[i + 2];
//计算原顶点坐标中心点
var minX = Min(v1.position.x, v2.position.x, v3.position.x);
var minY = Min(v1.position.y, v2.position.y, v3.position.y);
var maxX = Max(v1.position.x, v2.position.x, v3.position.x);
var maxY = Max(v1.position.y, v2.position.y, v3.position.y);
var posCenter = new Vector2(minX + maxX, minY + maxY) * 0.5f;
//计算原始顶点坐标和UV的方向
Vector2 triX, triY, uvX, uvY;
Vector2 pos1 = v1.position;
Vector2 pos2 = v2.position;
Vector2 pos3 = v3.position;
if (Mathf.Abs(Vector2.Dot((pos2 - pos1).normalized, Vector2.right))
> Mathf.Abs(Vector2.Dot((pos3 - pos2).normalized, Vector2.right)))
{
triX = pos2 - pos1;
triY = pos3 - pos2;
uvX = v2.uv0 - v1.uv0;
uvY = v3.uv0 - v2.uv0;
}
else
{
triX = pos3 - pos2;
triY = pos2 - pos1;
uvX = v3.uv0 - v2.uv0;
uvY = v2.uv0 - v1.uv0;
}
//计算原始uv框
var uvMin = Min(v1.uv0, v2.uv0, v3.uv0);
var uvMax = Max(v1.uv0, v2.uv0, v3.uv0);
//OutlineColor和OutlineWidth也传入,避免出现不一样的材质球
var col_rg = new Vector2(m_OutlineColor.r, m_OutlineColor.g);//描边颜色用uv3和tangent的zw传递
var col_ba = new Vector4(0, 0, m_OutlineColor.b, m_OutlineColor.a);
var normal = new Vector3(0, 0, m_OutlineWidth);//描边的宽度用normal的z传递
//为每一个顶点设置新的Position和UV，并传入原始UV框
v1 = SetNewPosAndUV(v1, m_OutlineWidth, posCenter, triX, triY, uvX, uvY, uvMin, uvMax);
v1.uv3 = col_rg;
v1.tangent = col_ba;
v1.normal = normal;
v2 = SetNewPosAndUV(v2, m_OutlineWidth, posCenter, triX, triY, uvX, uvY, uvMin, uvMax);
v2.uv3 = col_rg;
v2.tangent = col_ba;
v2.normal = normal;
v3 = SetNewPosAndUV(v3, m_OutlineWidth, posCenter, triX, triY, uvX, uvY, uvMin, uvMax);
v3.uv3 = col_rg;
v3.tangent = col_ba;
v3.normal = normal;
//应用设置后的UIVertex
m_VetexList[i] = v1;
m_VetexList[i + 1] = v2;
m_VetexList[i + 2] = v3;
}
}
private static UIVertex SetNewPosAndUV(UIVertex pVertex, float pOutLineWidth,
Vector2 pPosCenter,
Vector2 pTriangleX, Vector2 pTriangleY,
Vector2 pUVX, Vector2 pUVY,
Vector2 pUVOriginMin, Vector2 pUVOriginMax)
{
//Position
var pos = pVertex.position;
var posXOffset = pos.x > pPosCenter.x ? pOutLineWidth : -pOutLineWidth;
var posYOffset = pos.y > pPosCenter.y ? pOutLineWidth : -pOutLineWidth;
pos.x += posXOffset;
pos.y += posYOffset;
pVertex.position = pos;
//UV
var uv = pVertex.uv0;
uv += pUVX / pTriangleX.magnitude * posXOffset * (Vector2.Dot(pTriangleX, Vector2.right) > 0 ? 1 : -1);
uv += pUVY / pTriangleY.magnitude * posYOffset * (Vector2.Dot(pTriangleY, Vector2.up) > 0 ? 1 : -1);
pVertex.uv0 = uv;
pVertex.uv1 = pUVOriginMin;
pVertex.uv2 = pUVOriginMax;
return pVertex;
}
private static float Min(float pA, float pB, float pC)
{
return Mathf.Min(Mathf.Min(pA, pB), pC);
}
private static float Max(float pA, float pB, float pC)
{
return Mathf.Max(Mathf.Max(pA, pB), pC);
}
private static Vector2 Min(Vector2 pA, Vector2 pB, Vector2 pC)
{
return new Vector2(Min(pA.x, pB.x, pC.x), Min(pA.y, pB.y, pC.y));
}
private static Vector2 Max(Vector2 pA, Vector2 pB, Vector2 pC)
{
return new Vector2(Max(pA.x, pB.x, pC.x), Max(pA.y, pB.y, pC.y));
}
}五：自己编写UGUI的Outline组件
与UGUI实现的思路相同
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.UI;
[AddComponentMenu("LFramework/UI/Effect/TextOutline", 0)]
public class TextOutline: BaseMeshEffect
{
protected TextOutline()
{
}
//描边颜色
public Color m_OutlineColor = Color.white;
//描边宽度
public float m_OutlineWidth = 1;
List<UIVertex> m_VetexList = new List<UIVertex>();
public override void ModifyMesh(VertexHelper vh)
{
vh.GetUIVertexStream(m_VetexList);
int startIndex = 0;
int endIndex = m_VetexList.Count;
ProcessVertex(m_VetexList, startIndex, endIndex, m_OutlineWidth, 0);
startIndex = endIndex;
endIndex = m_VetexList.Count;
ProcessVertex(m_VetexList, startIndex, endIndex, -m_OutlineWidth, 0);
startIndex = endIndex;
endIndex = m_VetexList.Count;
ProcessVertex(m_VetexList, startIndex, endIndex, 0, m_OutlineWidth);
startIndex = endIndex;
endIndex = m_VetexList.Count;
ProcessVertex(m_VetexList, startIndex, endIndex, 0, -m_OutlineWidth);
vh.Clear();
vh.AddUIVertexTriangleStream(m_VetexList);
m_VetexList.Clear();
}
void ProcessVertex(List<UIVertex> vertexList, int startIndex, int endIndex, float x, float y)
{
UIVertex uiVertex;
for (int i = startIndex; i < endIndex; i++)
{
uiVertex = vertexList[i];
vertexList.Add(uiVertex);
Vector3 offset = new Vector3(x, y);
uiVertex.position += offset;
uiVertex.color = m_OutlineColor;
vertexList[i] = uiVertex;
}
}
}
