[游戏开发]Shader + Particle 如何做出血液飞溅并摊开的效果

Shader "LSQ/EffectAchievement/BloodstainParticle"
{
    SubShader
    {
        Tags
        {
            "RenderType"="Transparent"
            "Queue"="Transparent"
            "IgnoreProjector"="true"
            "DisableBatching"="true"
        }

		Blend SrcAlpha OneMinusSrcAlpha
        ZWrite Off
		Cull Off

        Pass
        {
            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag

            #include "UnityCG.cginc"

            struct appdata
            {
                float4 vertex : POSITION;
                float4 texcoord : TEXCOORD0;
                half4 color : COLOR;
            };

            struct v2f
            {
                float4 vertex : SV_POSITION;
                float4 texcoord : TEXCOORD0;
                half4 color : COLOR;
            };

            float3 mod289(float3 x)
{
    return x - floor(x / 289.0) * 289.0;
}

            float2 mod289(float2 x)
{
    return x - floor(x / 289.0) * 289.0;
}

            float3 permute(float3 x)
{
    return mod289((x * 34.0 + 1.0) * x);
}

            float3 taylorInvSqrt(float3 r)
{
    return 1.79284291400159 - 0.85373472095314 * r;
}

            float snoise(float2 v)
{
    const float4 C = float4( 0.211324865405187,  // (3.0-sqrt(3.0))/6.0
                             0.366025403784439,  // 0.5*(sqrt(3.0)-1.0)
                            -0.577350269189626,  // -1.0 + 2.0 * C.x
                             0.024390243902439); // 1.0 / 41.0
    // First corner
    float2 i  = floor(v + dot(v, C.yy));
    float2 x0 = v -   i + dot(i, C.xx);

    // Other corners
    float2 i1;
    i1.x = step(x0.y, x0.x);
    i1.y = 1.0 - i1.x;

    // x1 = x0 - i1  + 1.0 * C.xx;
    // x2 = x0 - 1.0 + 2.0 * C.xx;
    float2 x1 = x0 + C.xx - i1;
    float2 x2 = x0 + C.zz;

    // Permutations
    i = mod289(i); // Avoid truncation effects in permutation
    float3 p =
      permute(permute(i.y + float3(0.0, i1.y, 1.0))
                    + i.x + float3(0.0, i1.x, 1.0));

    float3 m = max(0.5 - float3(dot(x0, x0), dot(x1, x1), dot(x2, x2)), 0.0);
    m = m * m;
    m = m * m;

    // Gradients: 41 points uniformly over a line, mapped onto a diamond.
    // The ring size 17*17 = 289 is close to a multiple of 41 (41*7 = 287)
    float3 x = 2.0 * frac(p * C.www) - 1.0;
    float3 h = abs(x) - 0.5;
    float3 ox = floor(x + 0.5);
    float3 a0 = x - ox;

    // Normalise gradients implicitly by scaling m
    m *= taylorInvSqrt(a0 * a0 + h * h);

    // Compute final noise value at P
    float3 g;
    g.x = a0.x * x0.x + h.x * x0.y;
    g.y = a0.y * x1.x + h.y * x1.y;
    g.z = a0.z * x2.x + h.z * x2.y;
    return 130.0 * dot(m, g);
}

            float3 snoise_grad(float2 v)
{
    const float4 C = float4( 0.211324865405187,  // (3.0-sqrt(3.0))/6.0
                             0.366025403784439,  // 0.5*(sqrt(3.0)-1.0)
                            -0.577350269189626,  // -1.0 + 2.0 * C.x
                             0.024390243902439); // 1.0 / 41.0
    // First corner
    float2 i  = floor(v + dot(v, C.yy));
    float2 x0 = v -   i + dot(i, C.xx);

    // Other corners
    float2 i1;
    i1.x = step(x0.y, x0.x);
    i1.y = 1.0 - i1.x;

    // x1 = x0 - i1  + 1.0 * C.xx;
    // x2 = x0 - 1.0 + 2.0 * C.xx;
    float2 x1 = x0 + C.xx - i1;
    float2 x2 = x0 + C.zz;

    // Permutations
    i = mod289(i); // Avoid truncation effects in permutation
    float3 p =
      permute(permute(i.y + float3(0.0, i1.y, 1.0))
                    + i.x + float3(0.0, i1.x, 1.0));

    float3 m = max(0.5 - float3(dot(x0, x0), dot(x1, x1), dot(x2, x2)), 0.0);
    float3 m2 = m * m;
    float3 m3 = m2 * m;
    float3 m4 = m2 * m2;

    // Gradients: 41 points uniformly over a line, mapped onto a diamond.
    // The ring size 17*17 = 289 is close to a multiple of 41 (41*7 = 287)
    float3 x = 2.0 * frac(p * C.www) - 1.0;
    float3 h = abs(x) - 0.5;
    float3 ox = floor(x + 0.5);
    float3 a0 = x - ox;

    // Normalise gradients
    float3 norm = taylorInvSqrt(a0 * a0 + h * h);
    float2 g0 = float2(a0.x, h.x) * norm.x;
    float2 g1 = float2(a0.y, h.y) * norm.y;
    float2 g2 = float2(a0.z, h.z) * norm.z;

    // Compute noise and gradient at P
    float2 grad =
      -6.0 * m3.x * x0 * dot(x0, g0) + m4.x * g0 +
      -6.0 * m3.y * x1 * dot(x1, g1) + m4.y * g1 +
      -6.0 * m3.z * x2 * dot(x2, g2) + m4.z * g2;
    float3 px = float3(dot(x0, g0), dot(x1, g1), dot(x2, g2));
    return 130.0 * float3(grad, dot(m4, px));
}

            uint Hash(uint s)
            {
                s ^= 2747636419u;
                s *= 2654435769u;
                s ^= s >> 16;
                s *= 2654435769u;
                s ^= s >> 16;
                s *= 2654435769u;
                return s;
            }

            float Random(uint seed)
            {
                return float(Hash(seed)) / 4294967295.0; // 2^32-1
            }

            v2f vert (appdata v)
            {
                v2f o;
                o.vertex = UnityObjectToClipPos(v.vertex);
                o.texcoord = v.texcoord;
                o.color = v.color;
                return o;
            }

            fixed4 frag (v2f i) : SV_Target
            {

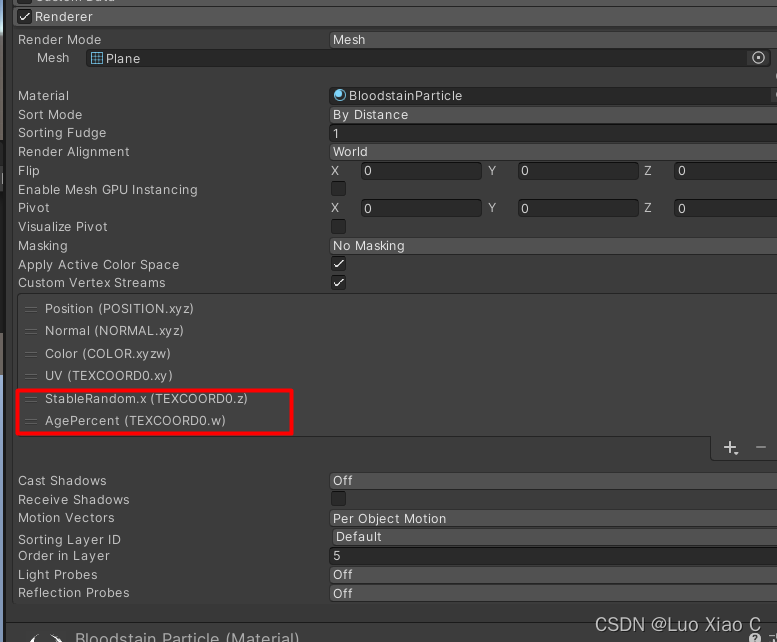

                // Parameters from the particle system
                float seed = i.texcoord.z;
                float time = i.texcoord.w;

                // Animated radius parameter
                float tp = 1 - time;
                float radius = 1 - tp * tp * tp * tp;

                // Zero centered UV
                float2 uv = i.texcoord.xy - 0.5;//objectPos.xz - 0.5; //*** xy -> xz

                // Noise 1 - Radial curve
                float freq = lerp(1.2, 2.7, Random(seed * 48923.23));
                float n1 = snoise(atan2(uv.x, uv.y) * freq + seed * 764.2174);

                // I prefer steep curves, so use sixth power.
                float n1p = n1 * n1;
                n1p = n1p * n1p * n1p;

                // Noise 2 - Small dot
                float n2 = snoise(uv * 8 / radius + seed * 1481.28943);

                // Potential = radius + noise * radius ^ 3;
                float p = radius * (0.23 + radius * radius * (n1p * 0.9 + n2 * 0.07));

                // Antialiased thresholding
                float l = length(uv);
                float a = smoothstep(l - 0.01, l, p);

                return half4(i.color.rgb, i.color.a * a);
            }
            ENDCG
        }
    }
}
