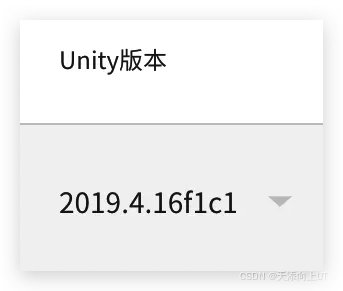

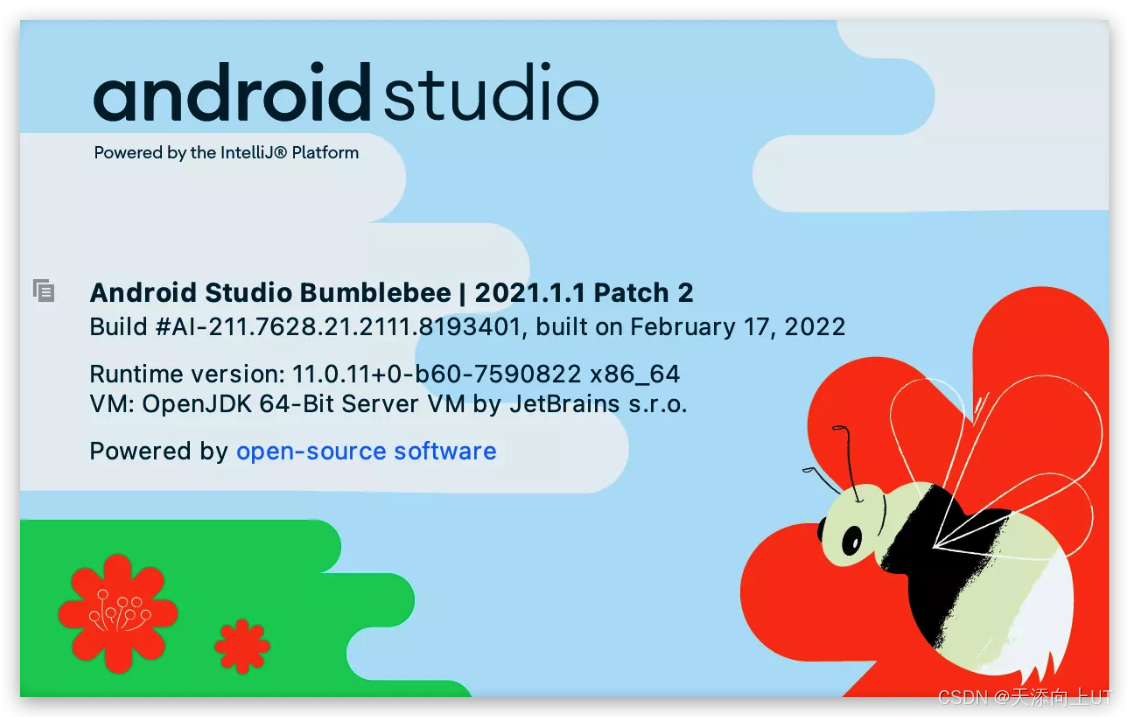

嵌入项目的AndroidStudio版本和Unity版本

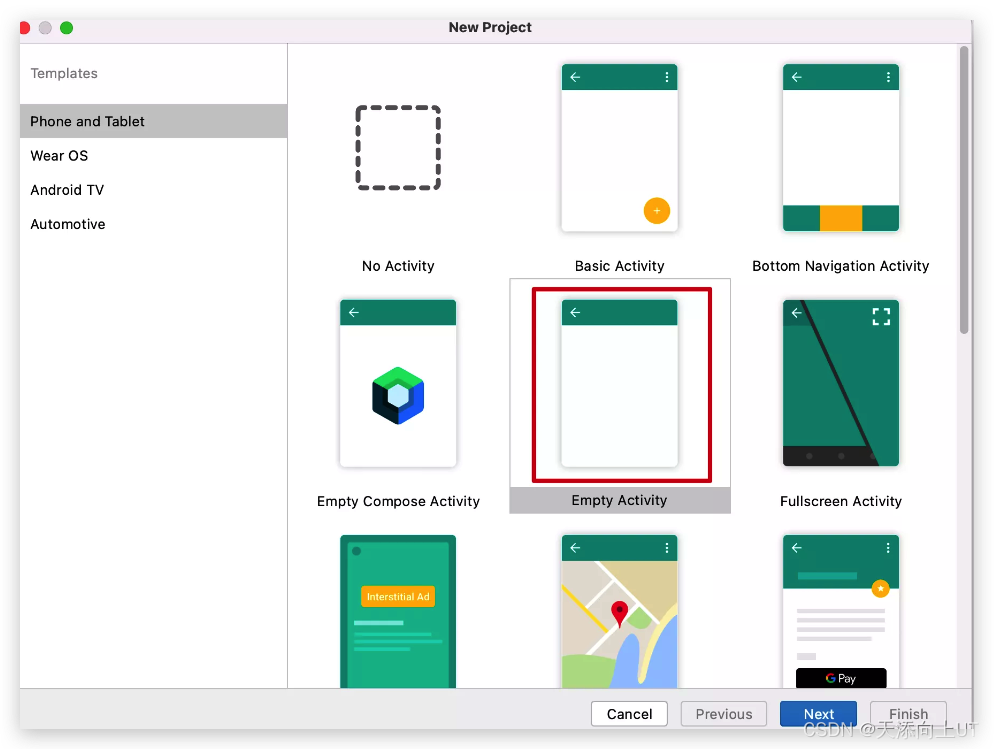

01 新建一个新的安卓项目

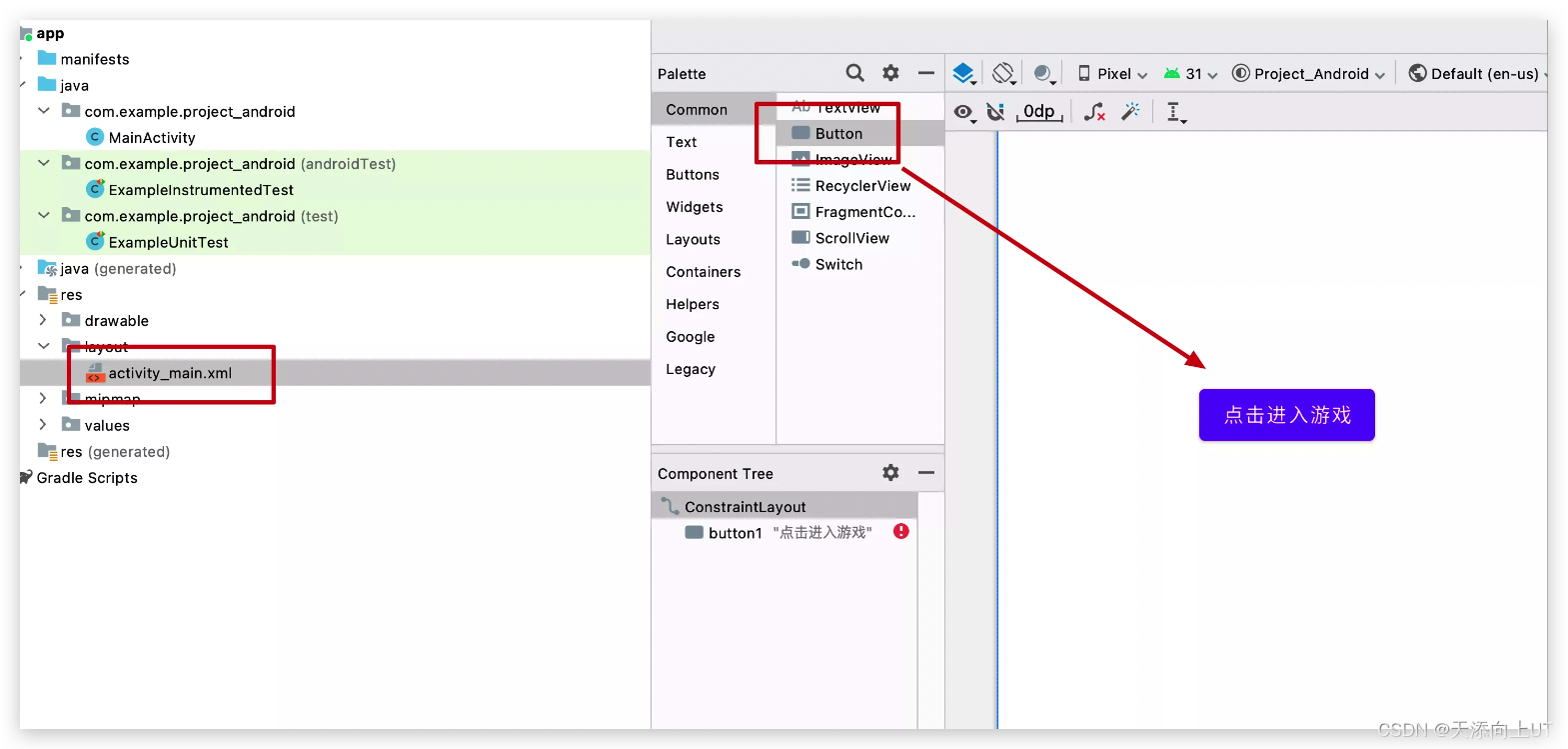

项目里新建一个button

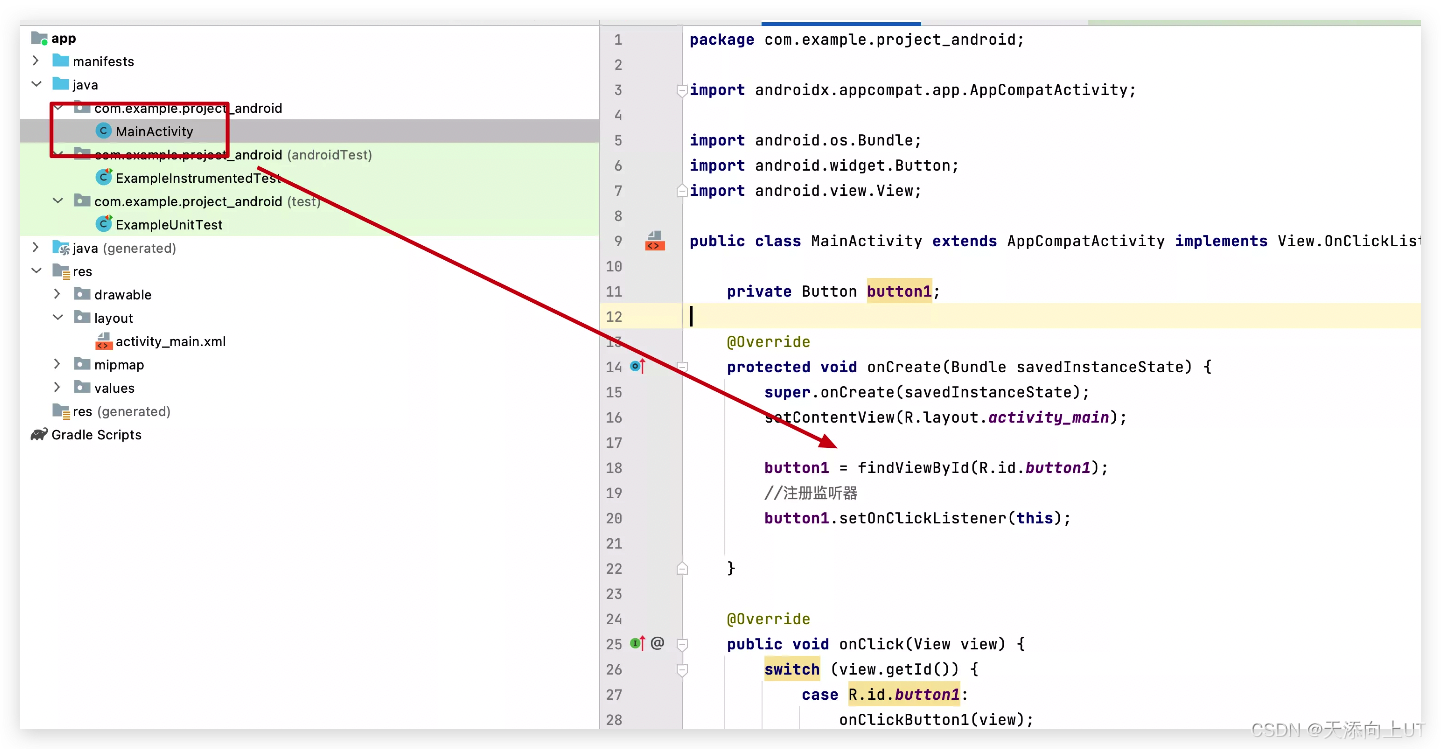

实现button的点击事件进入游戏
package com.example.project_android;
import androidx.appcompat.app.AppCompatActivity;
import android.os.Bundle;
import android.widget.Button;
import android.view.View;
public class MainActivity extends AppCompatActivity implements View.OnClickListener {
private Button button1;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
button1 = findViewById(R.id.button1);
//注册监听器
button1.setOnClickListener(this);
}
@Override
public void onClick(View view) {
switch (view.getId()) {
case R.id.button1:
onClickButton1(view);
break;
default:
break;
}
}
private void onClickButton1(View view) {
System.out.println("触发点击进入游戏的按钮事件");
}
}

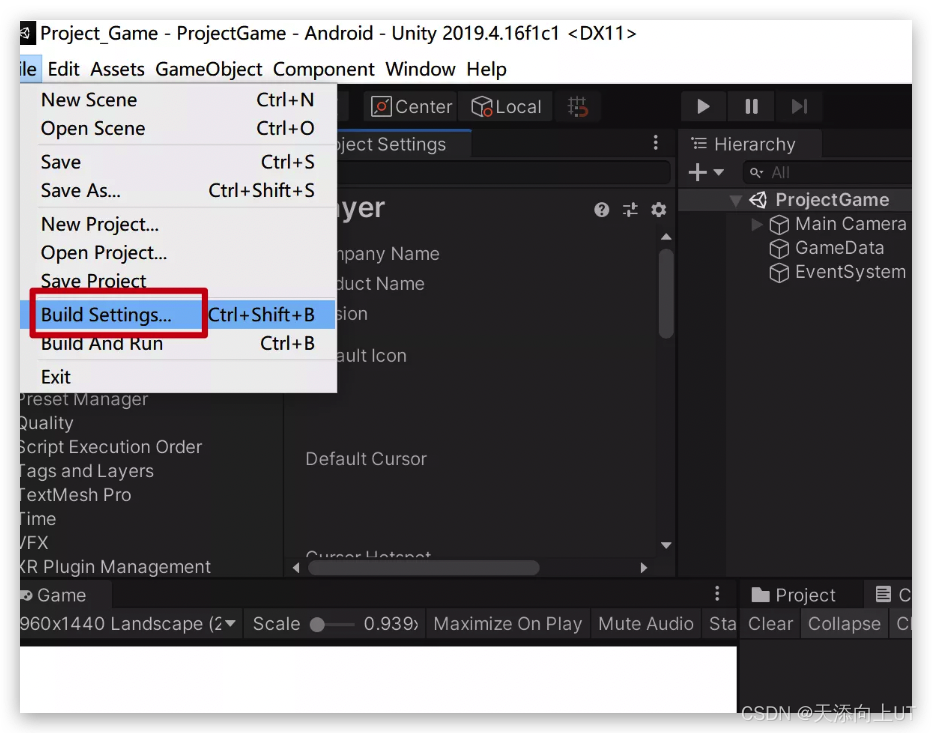

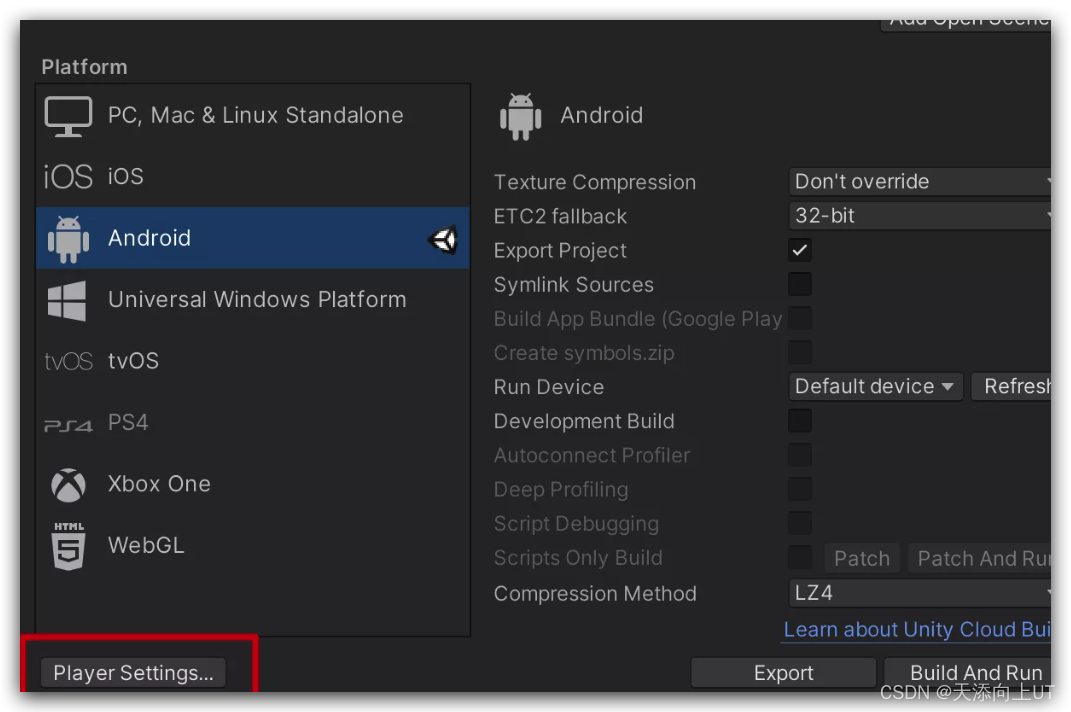

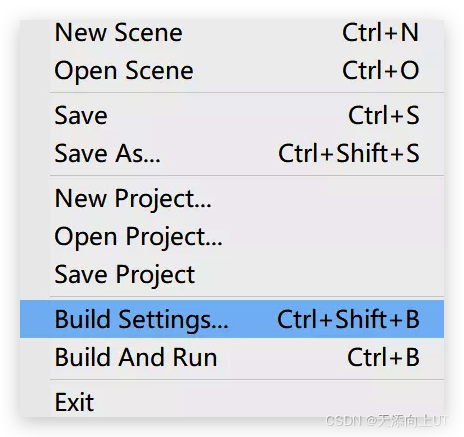

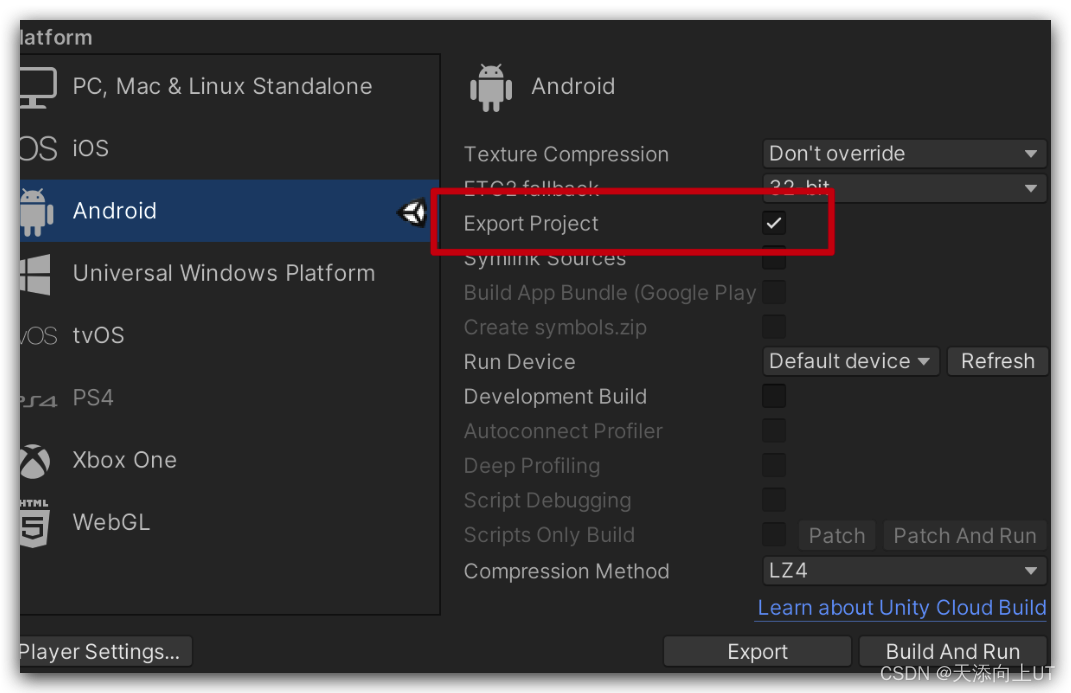

unity导出android工程

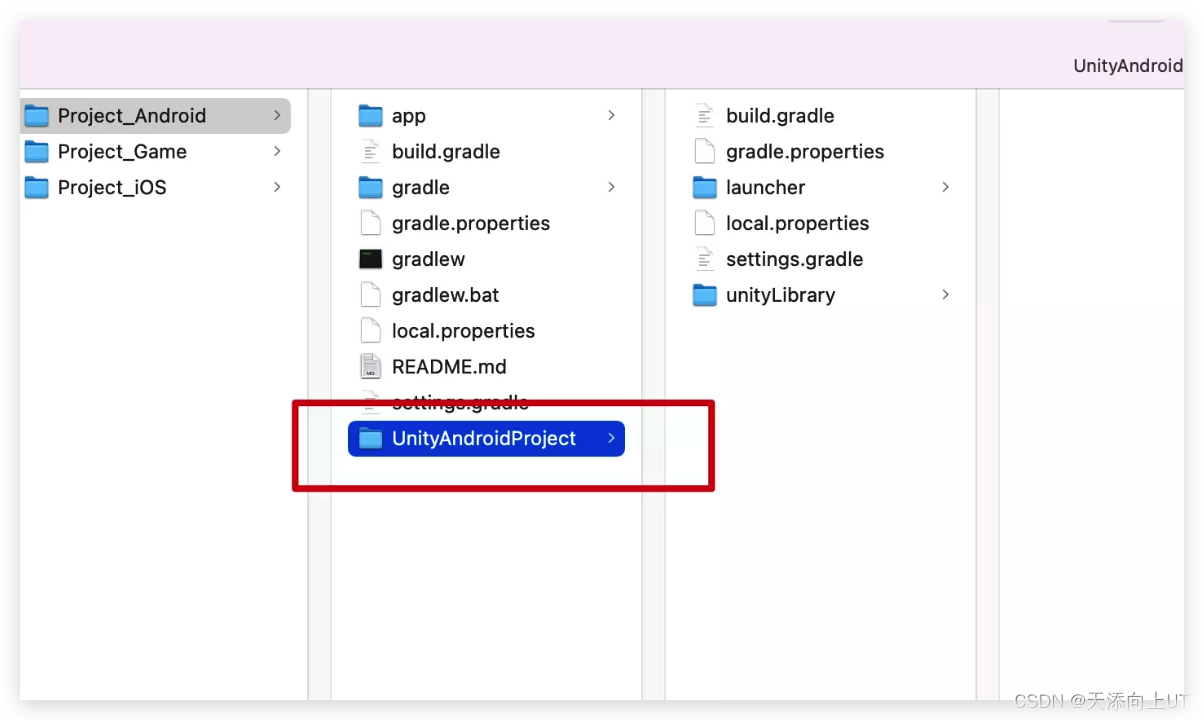

导出的工程文件夹放入原生的安卓项目

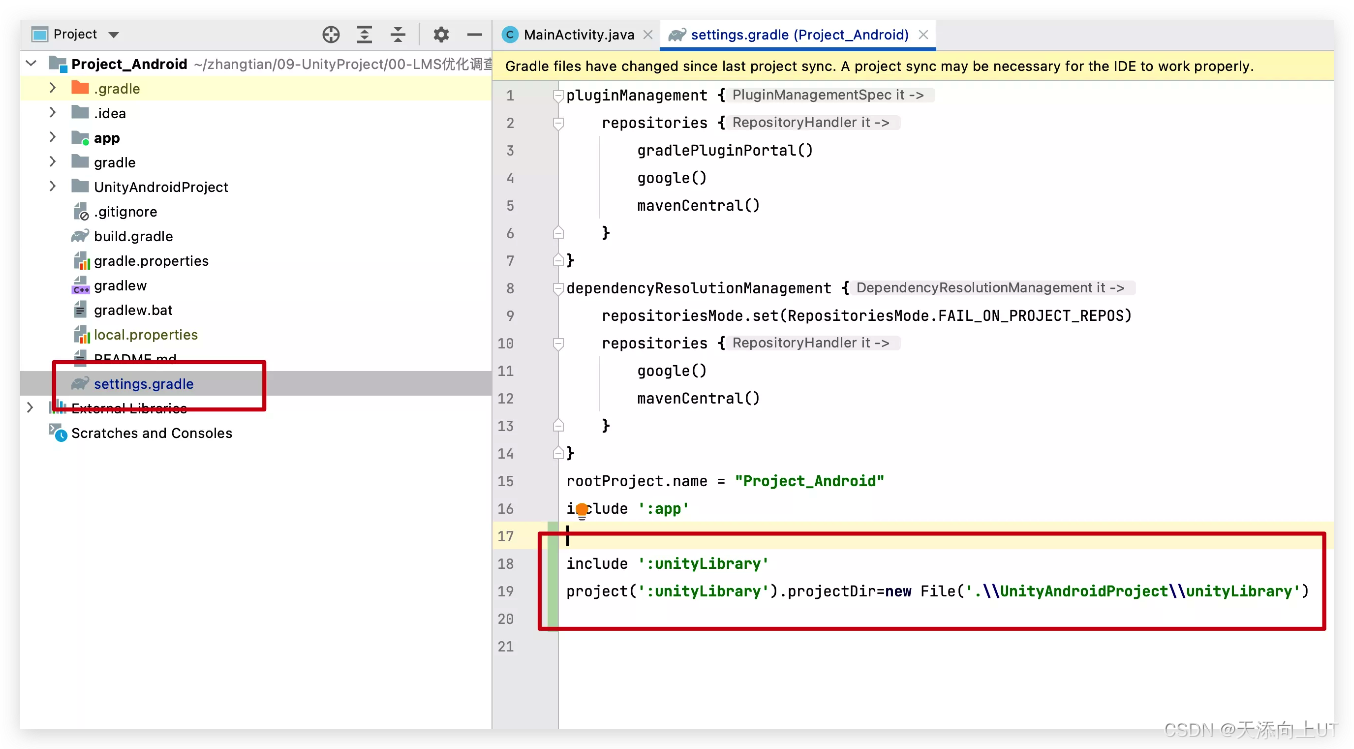

放入如下代码
include ':unityLibrary'
project(':unityLibrary').projectDir=new File('.\\UnityAndroidProject\\unityLibrary')

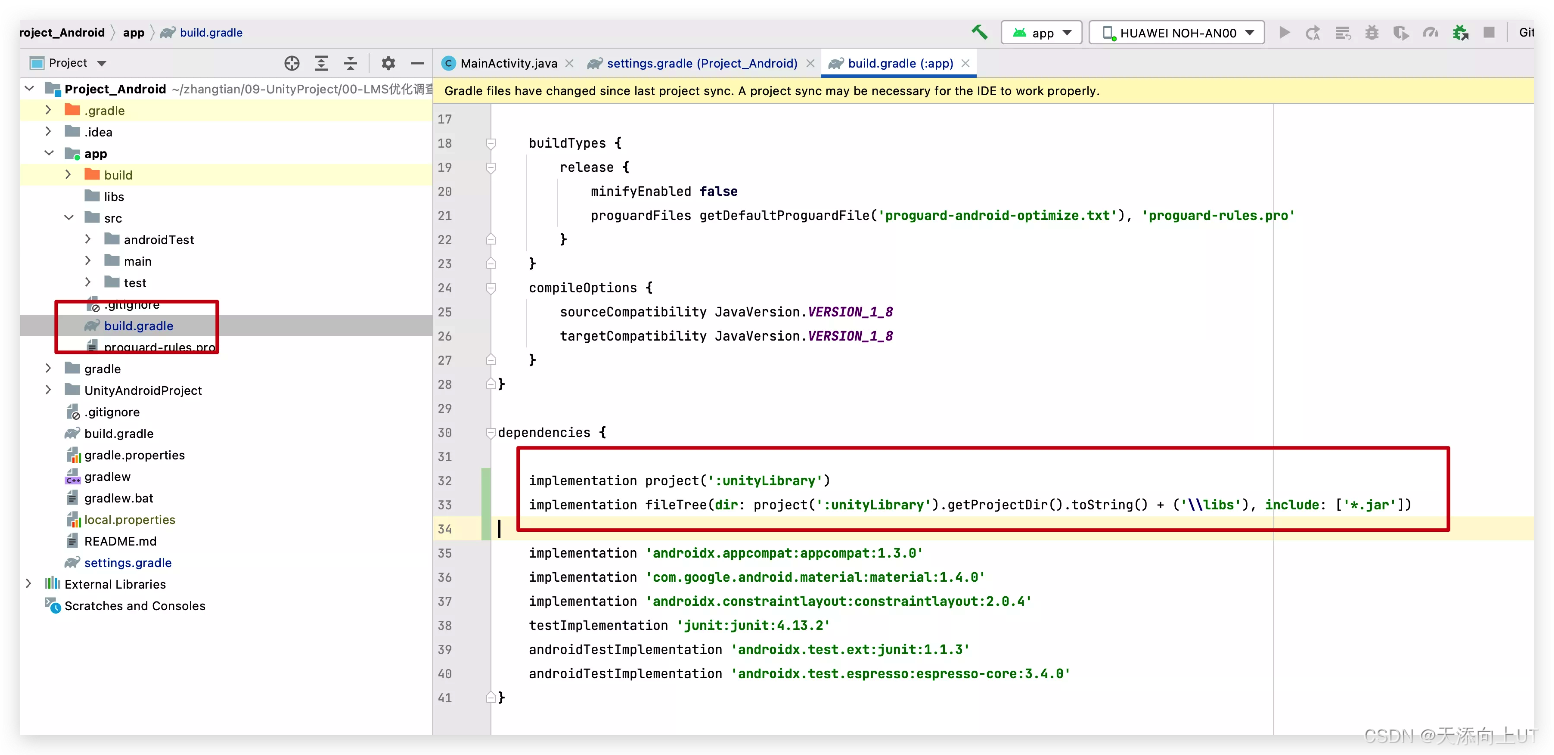

放入如下代码
implementation project(':unityLibrary')
implementation fileTree(dir: project(':unityLibrary').getProjectDir().toString() + ('\\libs'), include: ['*.jar'])

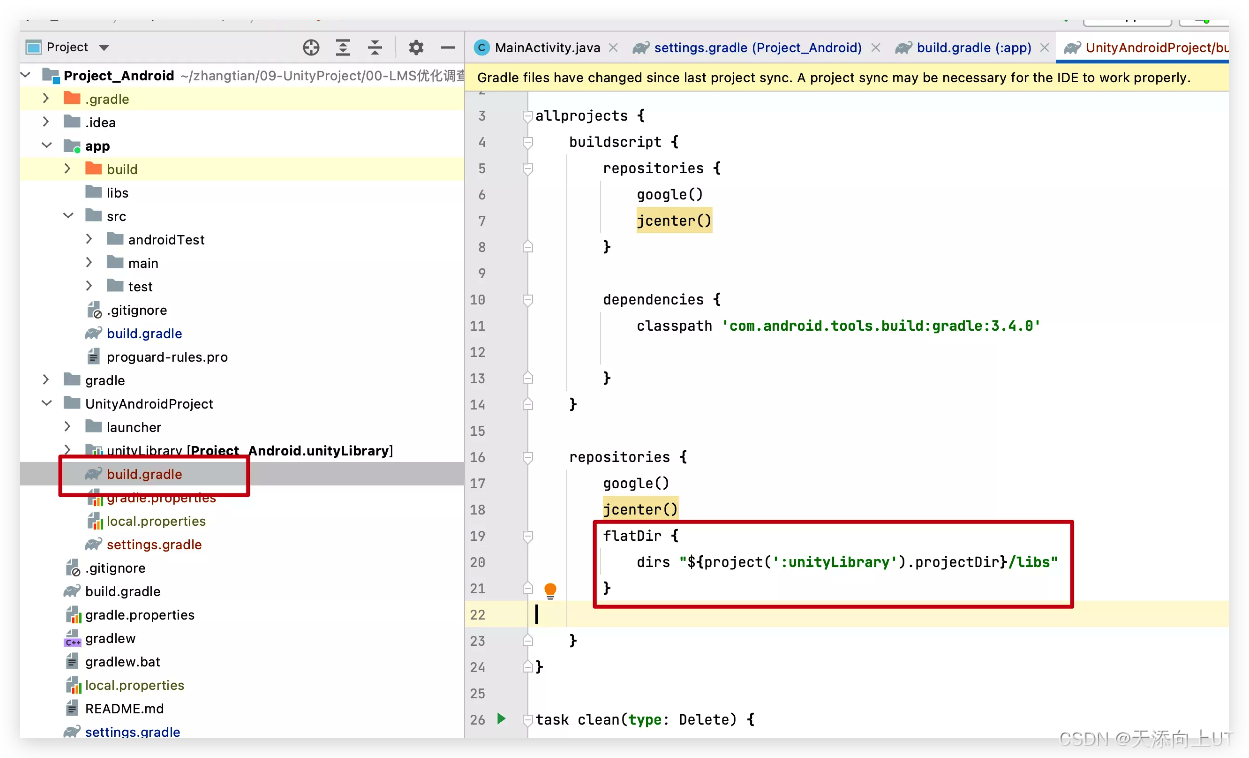

放入如下代码
flatDir {
dirs "${project(':unityLibrary').projectDir}/libs"
}

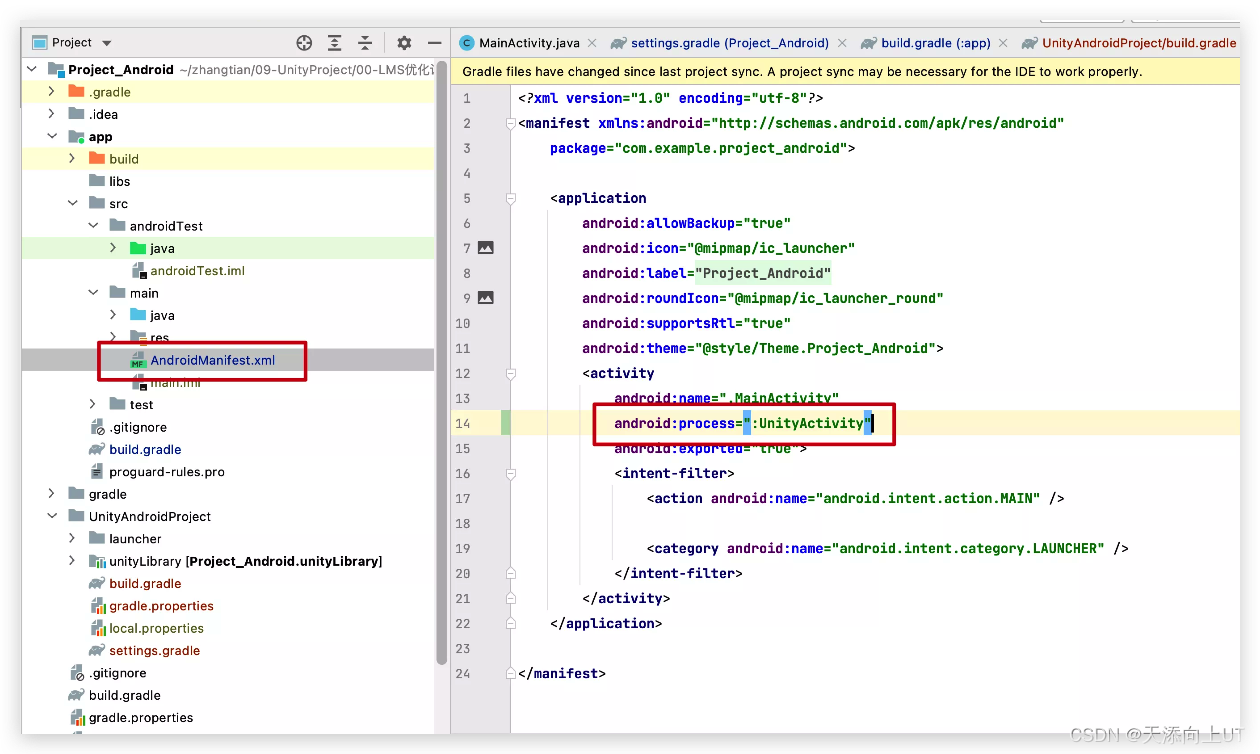

android:process=":UnityActivity"

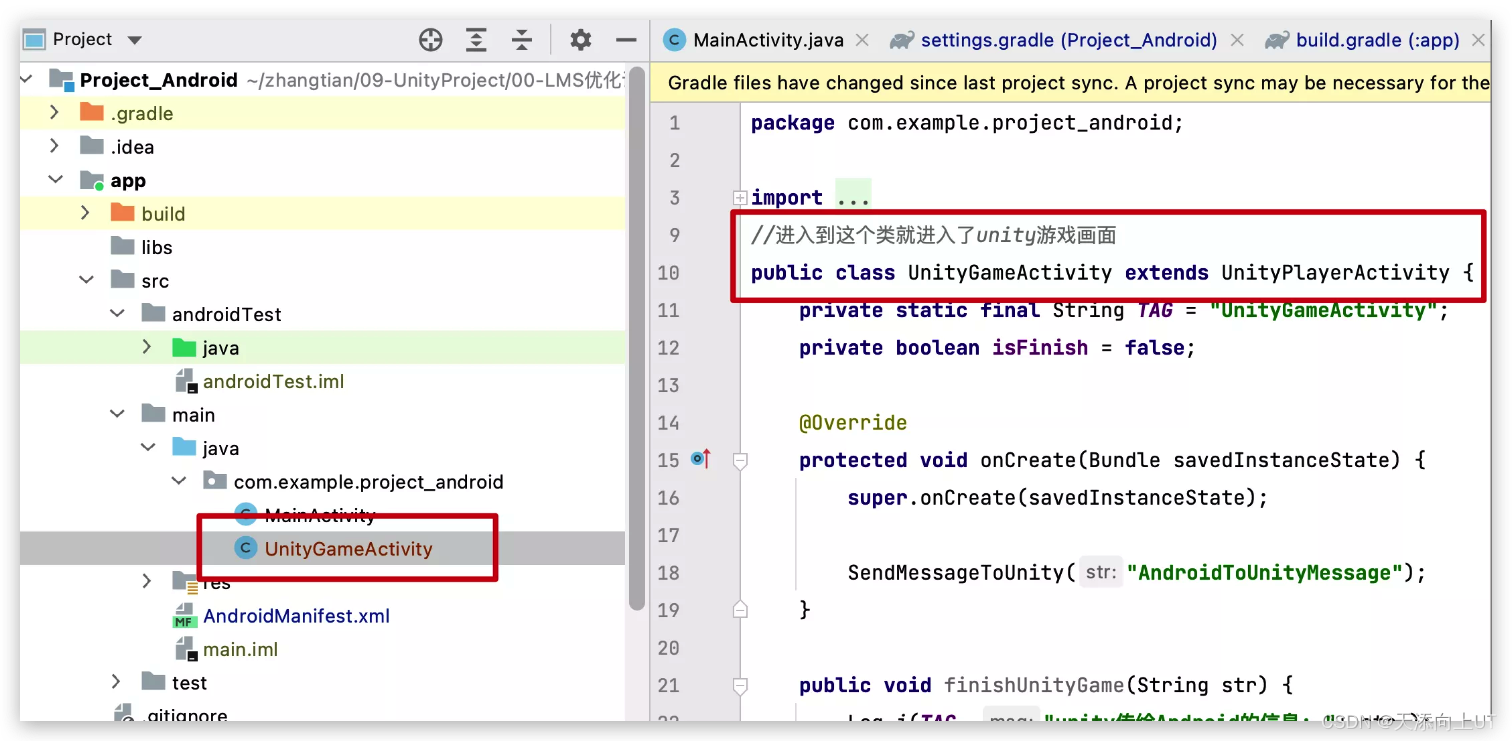

项目里添加UnityGameActivity.java
package com.example.project_android;
import android.os.Bundle;
import android.util.Log;
import android.view.KeyEvent;
import com.unity3d.player.UnityPlayer;
import com.unity3d.player.UnityPlayerActivity;
//进入到这个类就进入了unity游戏画面
public class UnityGameActivity extends UnityPlayerActivity {
private static final String TAG = "UnityGameActivity";
private boolean isFinish = false;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
SendMessageToUnity("AndroidToUnityMessage");
}
public void finishUnityGame(String str) {
Log.i(TAG, "unity传给Android的信息: "+ str );
isFinish = true;
//关闭unity游戏返回app
finish();
}
public void SendMessageToUnity(String str) {
Log.i(TAG, "Android传给unity的信息: " + str);
//其中GameData是unity生成的gameobject，脚本要挂在上面。AndroidToUnity是unity里实现的方法。str是传过去的值。
UnityPlayer.UnitySendMessage("GameData", "AndroidToUnity", str);
}
@Override
protected void onResume() {
Log.e(TAG, "onResume: " );
super.onResume();
}
@Override
protected void onPause() {
Log.e(TAG, "onPause: " );
super.onPause();
if (!isFinish){
mUnityPlayer.pause();
}
}
@Override
protected void onStop() {
Log.e(TAG, "onStop: " );
super.onStop();
}
@Override
protected void onDestroy() {
Log.e(TAG, "onDestroy: " );
super.onDestroy();
}
}

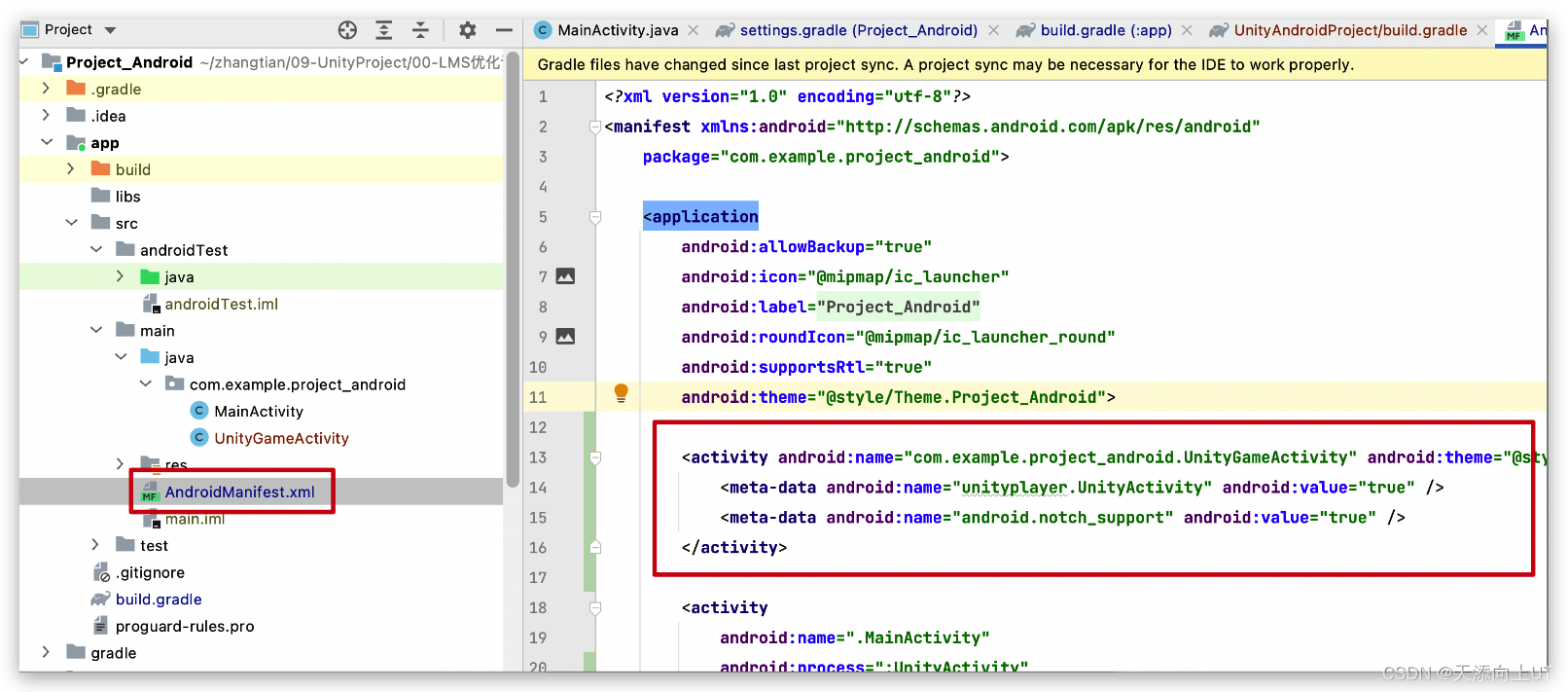

需要配置，才能找到这个类
<activity android:name="com.example.project_android.UnityGameActivity" android:theme="@style/UnityThemeSelector" android:screenOrientation="landscape" android:launchMode="singleTask" android:configChanges="mcc|mnc|locale|touchscreen|keyboard|keyboardHidden|navigation|orientation|screenLayout|uiMode|screenSize|smallestScreenSize|fontScale|layoutDirection|density" android:hardwareAccelerated="false">
<meta-data android:name="unityplayer.UnityActivity" android:value="true" />
<meta-data android:name="android.notch_support" android:value="true" />
</activity>

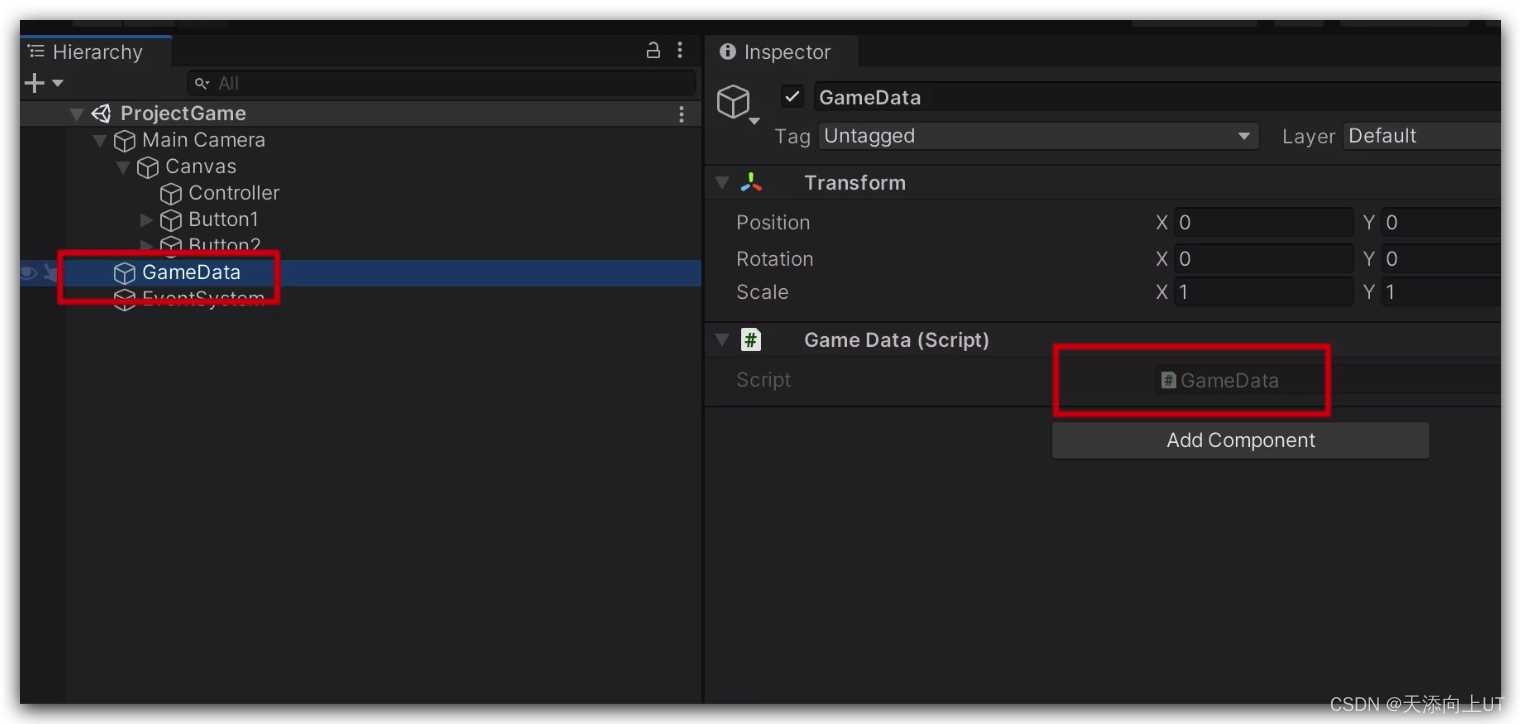

unity的脚本加上可以接收信息的方法，脚本需要挂在GameData上
public void AndroidToUnity(string str)
{
Debug.Log("Unity接收Android信息 = " + str);
//通过Newtonsoft.Json插件的JsonConvert.DeserializeObject方法，将json格式的string数据转换为model数据
//UnityDataModel unityDataModel = JsonConvert.DeserializeObject<UnityDataModel>(str);
//Debug.Log("unityDataModel.key1 = " + unityDataModel.key1);
//Debug.Log("unityDataModel.key2 = " + unityDataModel.key2);
}
完整代码
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using Newtonsoft.Json;
public class GameData : MonoBehaviour
{
public void IOSToUnity(string str)
{
Debug.Log("Unity接收IOS信息 = " + str);
//通过Newtonsoft.Json插件的JsonConvert.DeserializeObject方法，将json格式的string数据转换为model数据
UnityDataModel unityDataModel = JsonConvert.DeserializeObject<UnityDataModel>(str);
Debug.Log("unityDataModel.key1 = " + unityDataModel.key1);
Debug.Log("unityDataModel.key2 = " + unityDataModel.key2);
}
public void AndroidToUnity(string str)
{
Debug.Log("Unity接收Android信息 = " + str);
//通过Newtonsoft.Json插件的JsonConvert.DeserializeObject方法，将json格式的string数据转换为model数据
//UnityDataModel unityDataModel = JsonConvert.DeserializeObject<UnityDataModel>(str);
//Debug.Log("unityDataModel.key1 = " + unityDataModel.key1);
//Debug.Log("unityDataModel.key2 = " + unityDataModel.key2);
}
private void Awake()
{
DontDestroyOnLoad(this);
}
}
安卓端在button的点击事件里，加上启动unity游戏的方法
private void onClickButton1(View view) {
System.out.println("触发点击进入游戏的按钮事件");
startActivity(new Intent(view.getContext(), UnityGameActivity.class));
}

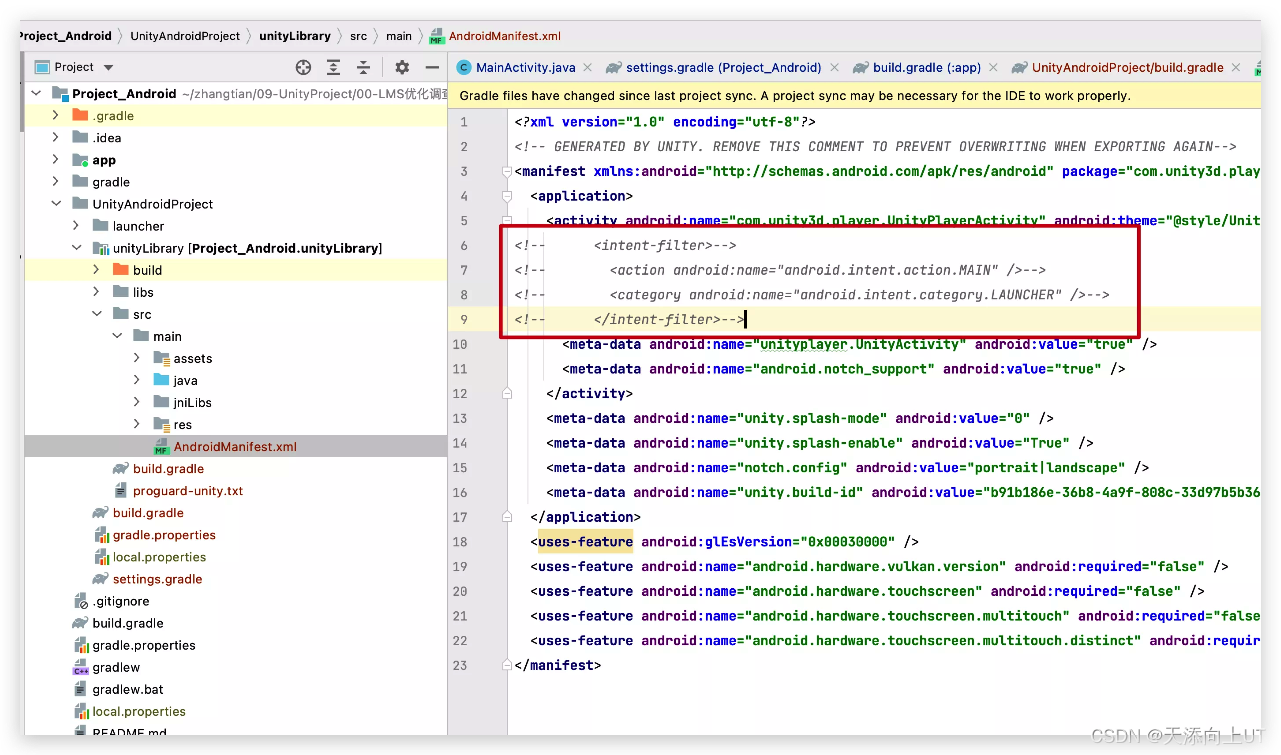

解决安装以上双图标问题
unity导出的android sdk 和 android studio导出的android sdk版本要一致

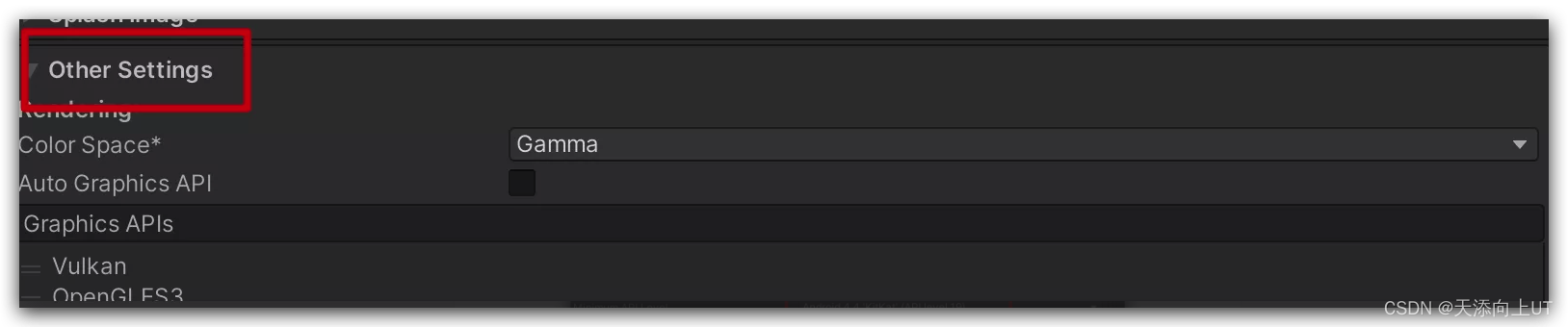

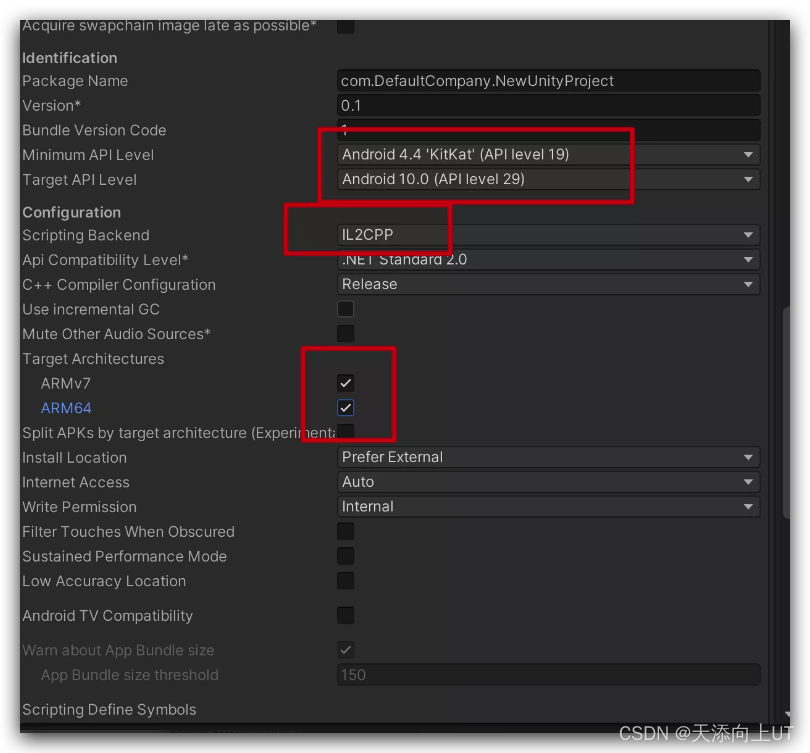

解决：E/Unity: Failed to load 'libmain.so’问题，需要在unity做如下配置：E/Unity: Failed to load 'libmain.so’问题，需要在unity做如下配置

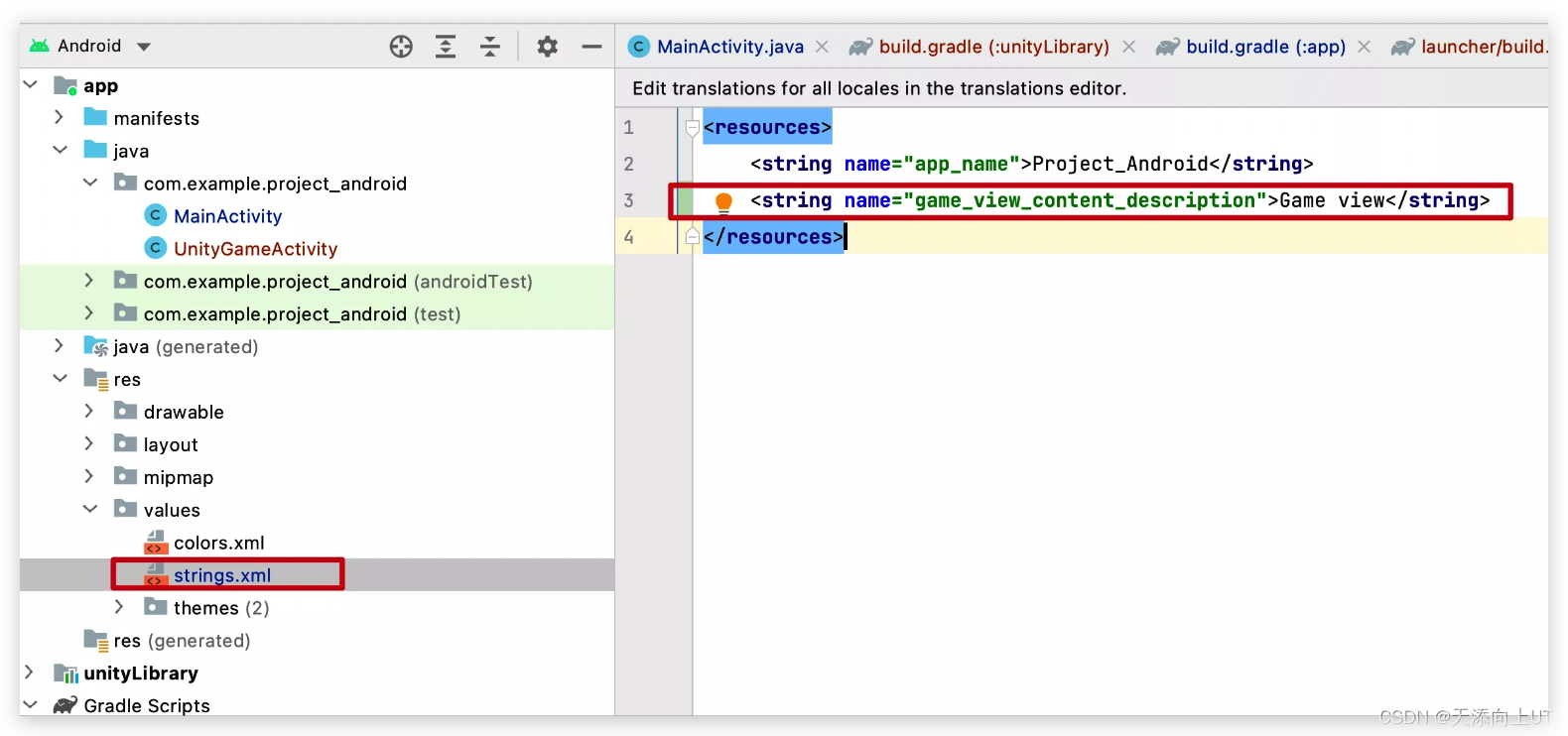

游戏启动闪退问题解决
<string name="game_view_content_description">Game view</string>
Unity端结束游戏时发信息给安卓端
核心代码
#if UNITY_ANDROID
try
{
AndroidJavaClass jc = new AndroidJavaClass("com.unity3d.player.UnityPlayer");
AndroidJavaObject overrideActivity = jc.GetStatic<AndroidJavaObject>("currentActivity");
//AndroidToUnityMessage是发送给Android的信息，finishUnityGame是安卓端接收的方法
overrideActivity.Call("finishUnityGame", "AndroidToUnityMessage");
}
catch (Exception e)
{
Debug.Log(e.Message);
}
#endif
安卓可以横屏且可以旋转的设置

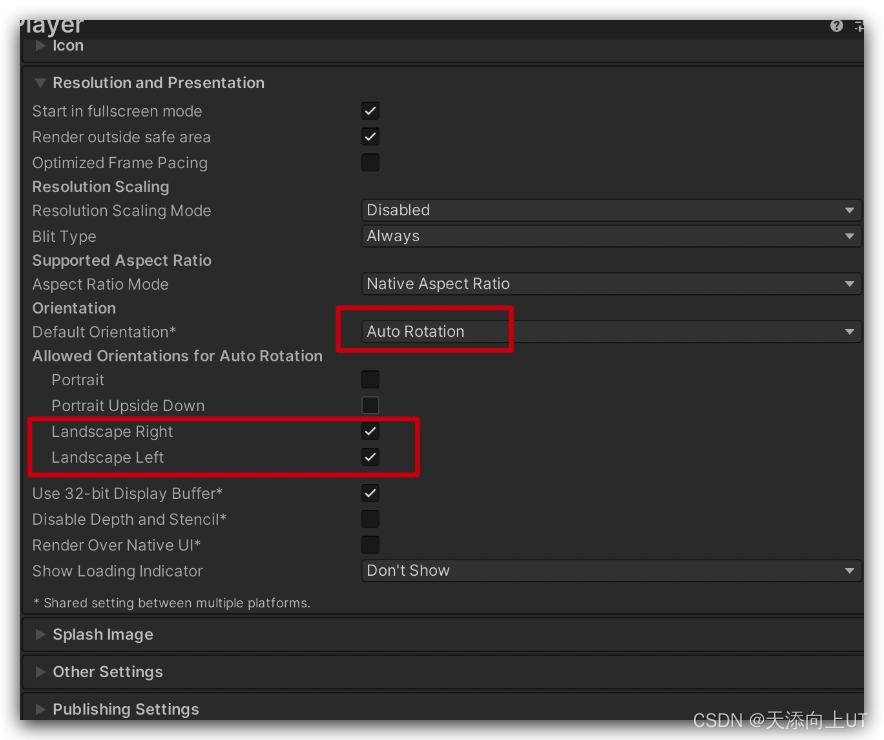

unity里的设置
AndroidStudio里的设置
<activity android:name="com.unity3d.player.UnityPlayerActivity" android:theme="@style/UnityThemeSelector" android:screenOrientation="sensorLandscape" android:launchMode="singleTask" android:configChanges="mcc|mnc|locale|touchscreen|keyboard|keyboardHidden|navigation|orientation|screenLayout|uiMode|screenSize|smallestScreenSize|fontScale|layoutDirection|density" android:hardwareAccelerated="false">
