项目需要做一个android饼状图的效果 因为元素比较多 并且有些元素的百分比为0也需要显示出来,一开始考虑使用MPAndroidChart
https://github.com/PhilJay/MPAndroidChart,毕竟点赞数量多 但是看了下效果 跟要求差别还是有点大,所以又找了个其他的项目参考PieChartViewhttps://github.com/luweibin3118/PieChartView, 这个项目 发现只能设置int类型的百分比 而且当条目过多的时候 会导致显示的文本覆盖重合之类的 所以改了两个地方
1.将int 类型改为float类型 百分比
2.将百分比显示由标注线下面移动到 content后面

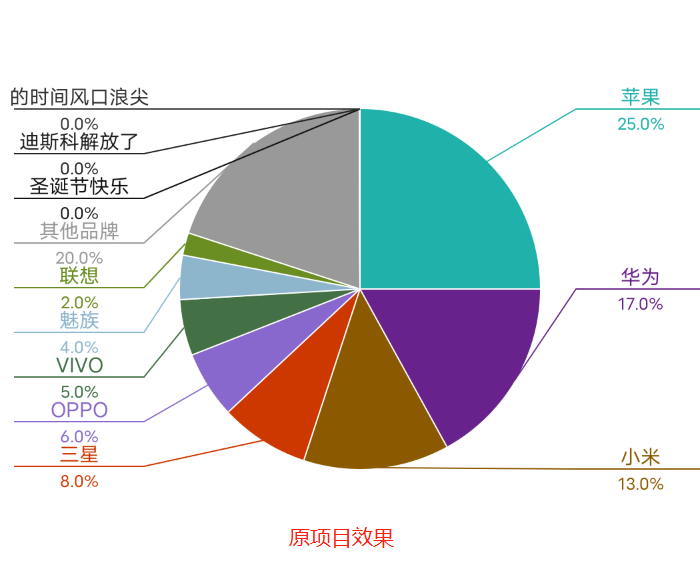

下面贴下代码和效果
?源代码可以去项目里面找? 我只放下修改后的代码
import android.animation.ValueAnimator;
import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Paint;
import android.graphics.Path;
import android.graphics.PathMeasure;
import android.graphics.Point;
import android.graphics.RectF;
import android.util.AttributeSet;
import android.view.View;
import android.view.animation.LinearInterpolator;
import java.text.DecimalFormat;
import java.util.ArrayList;
import java.util.List;
public class MyPieChartView extends View{
private Paint mPaint;
private Path mPath, drawLinePath = new Path();
private PathMeasure mPathMeasure = new PathMeasure();
private Canvas mCanvas;
private int width, height;
private RectF pieRectF, tempRectF;
private int radius;
private List<MyPieChartView.ItemType> itemTypeList, leftTypeList, rightTypeList;
private List<Point> itemPoints;
private int cell = 0;
private float innerRadius = 0.0f;
private float offRadius = 0, offLine;
private int textAlpha;
private Point firstPoint;
private int backGroundColor = 0xffffffff;
private int itemTextSize = 30, textPadding = 8;
private int defaultStartAngle = -90;
private float pieCell;
private ValueAnimator animator;
private long animDuration = 1000;
private Point startPoint = new Point();
private Point centerPoint = new Point();
private Point endPoint = new Point();
private Point tempPoint = new Point();
public MyPieChartView(Context context) {
super(context);
init();
}
public MyPieChartView(Context context, AttributeSet attrs) {
super(context, attrs);
init();
}
private void init() {
mPaint = new Paint(Paint.ANTI_ALIAS_FLAG | Paint.DITHER_FLAG);
mPath = new Path();
pieRectF = new RectF();
tempRectF = new RectF();
itemTypeList = new ArrayList<>();
leftTypeList = new ArrayList<>();
rightTypeList = new ArrayList<>();
itemPoints = new ArrayList<>();
}
@Override
protected void onAttachedToWindow() {
super.onAttachedToWindow();
startAnim();
}
@Override
protected void onDetachedFromWindow() {
super.onDetachedFromWindow();
if (animator != null) {
animator.cancel();
}
}
private void startAnim() {
animator = ValueAnimator.ofFloat(0, 360f * 2);
animator.setDuration(animDuration);
animator.setInterpolator(new LinearInterpolator());
animator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
@Override
public void onAnimationUpdate(ValueAnimator animation) {
float value = (float) animation.getAnimatedValue();
if (value < 360f) {
offRadius = value;
offLine = 0;
textAlpha = 0;
} else if (value >= 360f) {
offRadius = 360f;
offLine = (value - 360f) / 360f;
if (offLine > 0.5f) {
textAlpha = (int) (255 * ((offLine - 0.5f) / 0.5f));
if (textAlpha > 255) textAlpha = 255;
} else {
textAlpha = 0;
}
} else if (value == 360f * 2) {
offRadius = 360f;
offLine = 1.0f;
textAlpha = 255;
}
postInvalidate();
}
});
animator.start();
}
@Override
protected void onSizeChanged(int w, int h, int oldw, int oldh) {
super.onSizeChanged(w, h, oldw, oldh);
this.width = w;
this.height = h;
radius = Math.min(width, height) / 4;
pieRectF.set(width / 2 - radius, height / 2 - radius, width / 2 + radius, height / 2 + radius);
}
@Override
protected void onDraw(Canvas canvas) {
super.onDraw(canvas);
try {
mCanvas = canvas;
drawPie();
if (offRadius == 360f) {
drawTitle();
}
} catch (Exception e) {
e.printStackTrace();
}
}
private void drawTitle() {
resetPaint();
float startRadius = defaultStartAngle;
int count = rightTypeList.size();
int h;
if (count > 1) {
h = (radius * 2) / (count - 1);
} else {
h = radius;
}
for (int i = 0; i < count; i++) {
mPath.reset();
MyPieChartView.ItemType itemType = rightTypeList.get(i);
double angle = 2 * Math.PI * ((startRadius + itemType.radius / 2) / 360d);
int x = (int) (width / 2 + radius * Math.cos(angle));
int y = (int) (height / 2 + radius * Math.sin(angle));
startPoint.set(x, y);
centerPoint.set((int) (width / 2 + radius * 1.2f), height / 2 - radius + h * (i));
endPoint.set((int) (width * 0.98f), centerPoint.y);
mPath.moveTo(startPoint.x, startPoint.y);
mPath.lineTo(centerPoint.x, centerPoint.y);
mPath.lineTo(endPoint.x, endPoint.y);
resetPaint();
mPaint.setStrokeWidth(2);
mPaint.setColor(itemType.color);
mPaint.setStyle(Paint.Style.STROKE);
mPathMeasure.setPath(mPath, false);
drawLinePath.reset();
mPathMeasure.getSegment(0, mPathMeasure.getLength() * offLine, drawLinePath, true);
mCanvas.drawPath(drawLinePath, mPaint);
startRadius += itemType.radius;
if (textAlpha > 0) {
mPaint.setTextSize(itemTextSize);
mPaint.setStyle(Paint.Style.FILL);
mPaint.setTextAlign(Paint.Align.CENTER);
mPaint.setAlpha(textAlpha);
mCanvas.drawText(itemType.type+itemType.getPercent(), centerPoint.x + (endPoint.x - centerPoint.x) / 2,
centerPoint.y - textPadding, mPaint);
mPaint.setTextSize(itemTextSize * 4 / 5);
// mCanvas.drawText(itemType.getPercent(), centerPoint.x + (endPoint.x - centerPoint.x) / 2,
// centerPoint.y + (itemTextSize + textPadding) * 4 / 5, mPaint); //itemType.getPercent()移动到itemType.type后面了
}
}
count = leftTypeList.size();
if (count > 1) {
h = (radius * 2) / (count - 1);
} else {
h = radius;
}
for (int i = 0; i < count; i++) {
mPath.reset();
MyPieChartView.ItemType itemType = leftTypeList.get(i);
double angle = 2 * Math.PI * ((startRadius + itemType.radius / 2) / 360d);
int x = (int) (width / 2 + radius * Math.cos(angle));
int y = (int) (height / 2 + radius * Math.sin(angle));
startPoint.set(x, y);
centerPoint.set((int) (width / 2 - radius * 1.2f), height / 2 - radius + h * (count - 1 - i));
endPoint.set((int) (width * 0.02f), centerPoint.y);
mPath.moveTo(startPoint.x, startPoint.y);
mPath.lineTo(centerPoint.x, centerPoint.y);
mPath.lineTo(endPoint.x, endPoint.y);
resetPaint();
mPaint.setStrokeWidth(2);
mPaint.setColor(itemType.color);
mPaint.setAntiAlias(true);
mPaint.setDither(true);
mPaint.setStyle(Paint.Style.STROKE);
mPathMeasure.setPath(mPath, false);
drawLinePath.reset();
mPathMeasure.getSegment(0, mPathMeasure.getLength() * offLine, drawLinePath, true);
mCanvas.drawPath(drawLinePath, mPaint);
startRadius += itemType.radius;
if (textAlpha > 0) {
mPaint.setTextSize(itemTextSize);
mPaint.setStyle(Paint.Style.FILL);
mPaint.setTextAlign(Paint.Align.CENTER);
mPaint.setAlpha(textAlpha);
mCanvas.drawText(itemType.type+itemType.getPercent(), centerPoint.x + (endPoint.x - centerPoint.x) / 2,
centerPoint.y - textPadding, mPaint);
mPaint.setTextSize(itemTextSize * 4 / 5);
// mCanvas.drawText(itemType.getPercent(), centerPoint.x + (endPoint.x - centerPoint.x) / 2,
// centerPoint.y + (itemTextSize + textPadding) * 4 / 5, mPaint);
}
}
if (textAlpha == 1f) {
itemTypeList.clear();
leftTypeList.clear();
rightTypeList.clear();
itemPoints.clear();
}
}
private void drawPie() {
if (mCanvas == null) {
return;
}
mCanvas.drawColor(backGroundColor);
mPaint.setStyle(Paint.Style.FILL);
float sum = 0;
for (MyPieChartView.ItemType itemType : itemTypeList) {
sum += itemType.widget;
}
float a = 360f / sum;
float startRadius = defaultStartAngle;
float sumRadius = 0;
leftTypeList.clear();
rightTypeList.clear();
itemPoints.clear();
for (MyPieChartView.ItemType itemType : itemTypeList) {
itemType.radius = itemType.widget * a;
double al = 2 * Math.PI * ((startRadius + 90) / 360d);
tempPoint.set((int) (width / 2 + radius * Math.sin(al)),
(int) (height / 2 - radius * Math.cos(al)));
if (cell > 0) {
if (startRadius == defaultStartAngle) {
firstPoint = tempPoint;
}
}
double angle = 2 * Math.PI * ((startRadius + itemType.radius / 2) / 360d);
double sin = -Math.sin(angle);
double cos = -Math.cos(angle);
if (cos > 0) {
leftTypeList.add(itemType);
} else {
rightTypeList.add(itemType);
}
sumRadius += Math.abs(itemType.radius);
mPaint.setStyle(Paint.Style.FILL);
mPaint.setColor(itemType.color);
if (pieCell > 0) {
if (sumRadius <= offRadius) {
tempRectF.set(pieRectF.left - (float) (pieCell * cos), pieRectF.top - (float) (pieCell * sin),
pieRectF.right - (float) (pieCell * cos), pieRectF.bottom - (float) (pieCell * sin));
mCanvas.drawArc(tempRectF, startRadius, itemType.radius, true, mPaint);
} else {
mCanvas.drawArc(tempRectF, startRadius, itemType.radius - (Math.abs(offRadius - sumRadius)), true, mPaint);
break;
}
} else {
if (sumRadius <= offRadius) {
mCanvas.drawArc(pieRectF, startRadius, itemType.radius, true, mPaint);
} else {
mCanvas.drawArc(pieRectF, startRadius, itemType.radius - (Math.abs(offRadius - sumRadius)), true, mPaint);
break;
}
}
startRadius += itemType.radius;
if (cell > 0 && pieCell == 0) {
mPaint.setColor(backGroundColor);
mPaint.setStrokeWidth(cell);
mCanvas.drawLine(getWidth() / 2, getHeight() / 2, tempPoint.x, tempPoint.y, mPaint);
}
}
if (cell > 0 && firstPoint != null && pieCell == 0) {
mPaint.setColor(backGroundColor);
mPaint.setStrokeWidth(cell);
mCanvas.drawLine(getWidth() / 2, getHeight() / 2, firstPoint.x, firstPoint.y, mPaint);
}
mPaint.setStyle(Paint.Style.FILL);
mPaint.setColor(backGroundColor);
if (innerRadius > 0 && pieCell == 0) {
mCanvas.drawCircle(width / 2, height / 2, radius * innerRadius, mPaint);
}
}
public void resetPaint() {
mPaint.reset();
mPaint.setAntiAlias(true);
mPaint.setDither(true);
mPaint.setAlpha(255);
}
/**
* 添加一条分类数据
*
* @param itemType
*/
public void addItemType(MyPieChartView.ItemType itemType) {
if (itemTypeList != null) {
itemTypeList.add(itemType);
}
}
/**
* 设置每条图之间的间歇大小
*
* @param cell
*/
public void setCell(int cell) {
this.cell = cell;
}
/**
* 设置内部圆的半径比例，eg：0.5f
*
* @param innerRadius
*/
public void setInnerRadius(float innerRadius) {
if (innerRadius > 1.0f) {
innerRadius = 1.0f;
} else if (innerRadius < 0) {
innerRadius = 0;
}
this.innerRadius = innerRadius;
}
/**
* 设置背景颜色
*
* @param backGroundColor
*/
public void setBackGroundColor(int backGroundColor) {
this.backGroundColor = backGroundColor;
}
/**
* 设置每条字体大小
*
* @param itemTextSize
*/
public void setItemTextSize(int itemTextSize) {
this.itemTextSize = itemTextSize;
}
/**
* 设置字体距离横线的padding值
*
* @param textPadding
*/
public void setTextPadding(int textPadding) {
this.textPadding = textPadding;
}
/**
* 设置动画时间
*
* @param animDuration
*/
public void setAnimDuration(long animDuration) {
this.animDuration = animDuration;
}
/**
* 代替方法{@link #setCell(int)}
*
* @param pieCell
*/
@Deprecated
public void setPieCell(int pieCell) {
this.cell = pieCell;
}
public static class ItemType {
private static final DecimalFormat df = new DecimalFormat("0.0%");
String type;
float widget;
int color;
float radius;
public ItemType(String type, float widget, int color) {
this.type = type;
this.widget = widget;
this.color = color;
}
public String getPercent() {
return df.format(radius / 360f);
}
}
}
布局文件:
<com.runjiang.cityplatform.widget.MyPieChartView
android:id="@+id/piechart"
android:layout_width="match_parent"
android:layout_height="300dp"/>使用方法很简单:
pieChartView.addItemType(new PieChartView.ItemType("小米", 13, 0xff8B5A00));
