前景提要
STM32 H743确实是个好芯片，但是这个MAC只有一个真是让我觉得不太够，想整双MAC的A核芯片玩玩，奈何实在也是没得精力弄Linux，虽然imx6ull也是一个好芯片。。。。
外挂MAC的方案有很多，最后还是选了W5500…
SPI口还是可以的，即是速度拉跨，但是即使10M的以太网也是很不错了，相比串口,CAN啥的
100M不指望了，这个SPI应该也跑不到那么高速吧，已经满足需求了
实际操作
芯片: STM32H743VIT6核心板
X宝买的W5500模块
自己画了个底板，不想用杜邦线，因为杜邦线不太靠谱
CubeMX设置

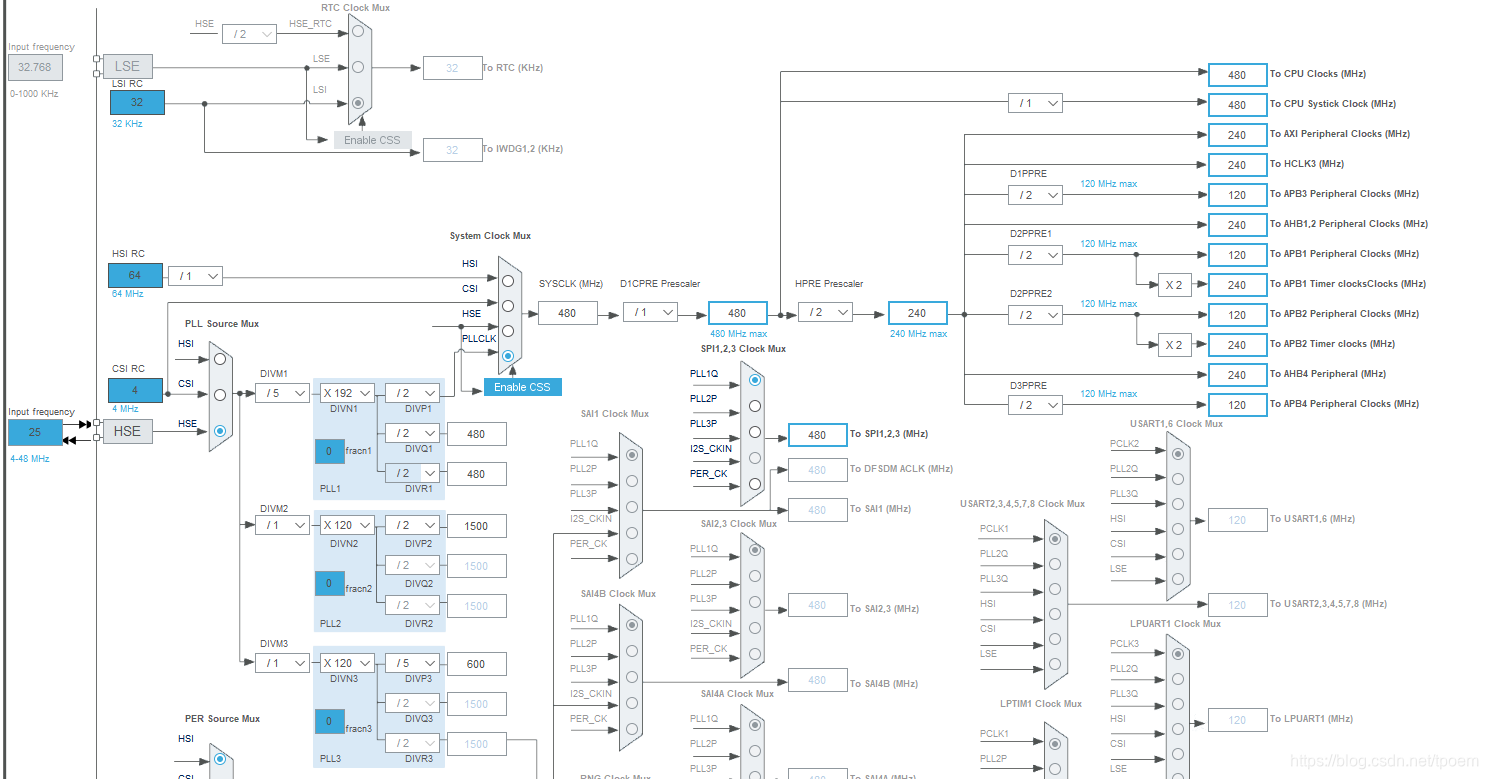

时钟设置
注意，我这个核心板是25M晶振

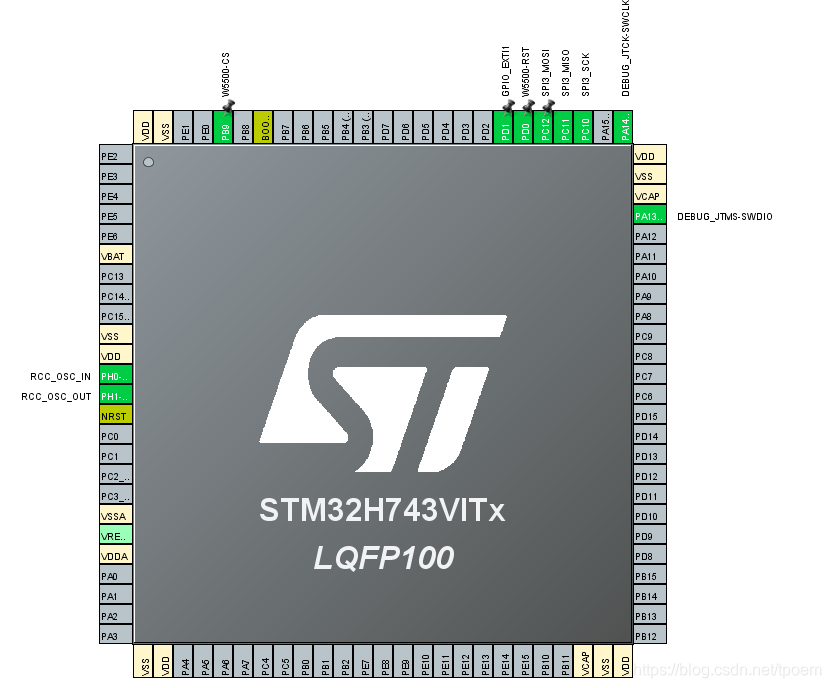

引脚与外设
我这里用的是SPI3，SPI引脚就不说了吧，额外要给模块分:
- RST复位引脚
- INT外部中断引脚【它的IO库有没有用不知道】
- 片选CS【这个一定要！！】

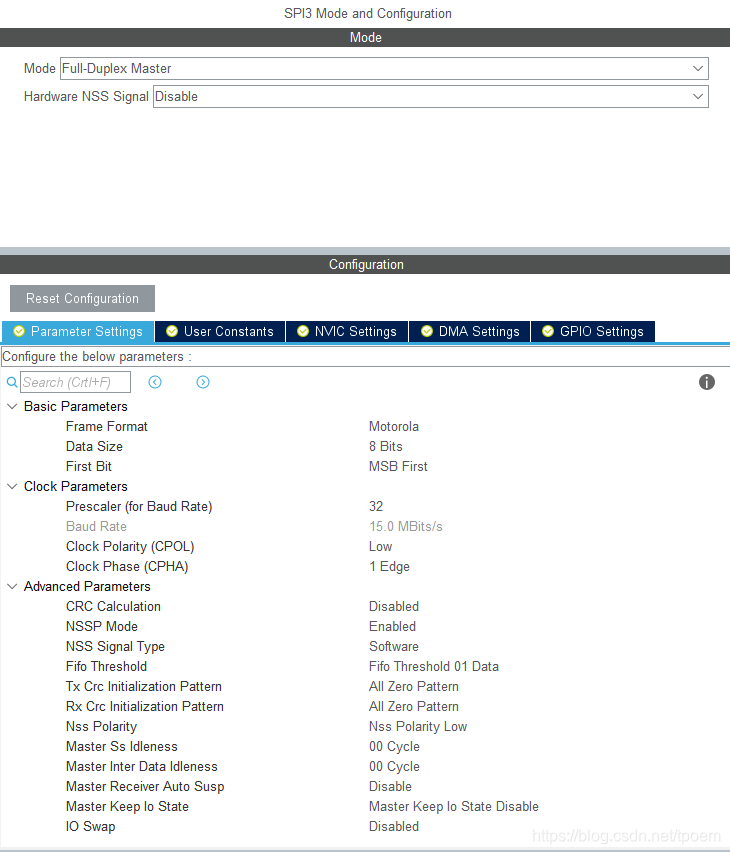

话不多说上外设
W5500好像SPI接口不能太快，30M可能就是最大了 我看的教程
我是看这个教程跟着搞的，时间有点跨度了，有点差异
适配H743和W5500，搭建工程
然后生成CubeMX IDE工程
然后按照那个教程说的去Github上下W5500官方的IO库,下下来，添加好引用关系之后
适配很简单就是对接几个函数指针
简单起见，我这里是裸机环境

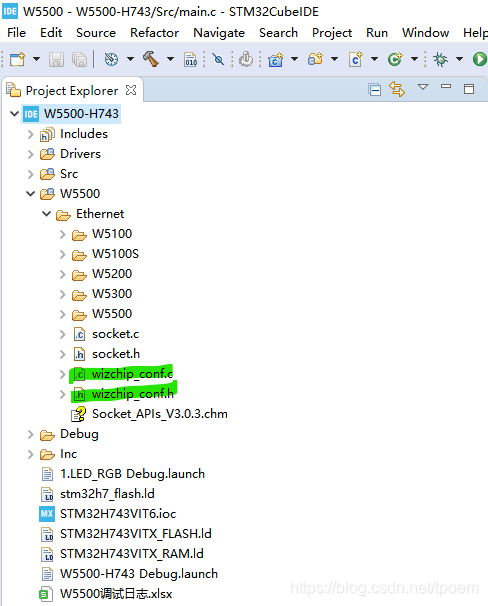

基本上对IO库的对接集中在画绿色的两个文件上
按照要求补上操作SPI需要的函数接口，注册到它的IO库上
直接附上我的代码
wizchip_conf.c
//****************************************************************************/
//!
//! \file wizchip_conf.c
//! \brief WIZCHIP Config Header File.
//! \version 1.0.1
//! \date 2013/10/21
//! \par Revision history
//! <2015/02/05> Notice
//! The version history is not updated after this point.
//! Download the latest version directly from GitHub. Please visit the our GitHub repository for ioLibrary.
//! >> https://github.com/Wiznet/ioLibrary_Driver
//! <2014/05/01> V1.0.1 Refer to M20140501
//! 1. Explicit type casting in wizchip_bus_readdata() & wizchip_bus_writedata()
// Issued by Mathias ClauBen.
//! uint32_t type converts into ptrdiff_t first. And then recoverting it into uint8_t*
//! For remove the warning when pointer type size is not 32bit.
//! If ptrdiff_t doesn't support in your complier, You should must replace ptrdiff_t into your suitable pointer type.
//! <2013/10/21> 1st Release
//! \author MidnightCow
//! \copyright
//!
//! Copyright (c) 2013, WIZnet Co., LTD.
//! All rights reserved.
//!
//! Redistribution and use in source and binary forms, with or without
//! modification, are permitted provided that the following conditions
//! are met:
//!
//! * Redistributions of source code must retain the above copyright
//! notice, this list of conditions and the following disclaimer.
//! * Redistributions in binary form must reproduce the above copyright
//! notice, this list of conditions and the following disclaimer in the
//! documentation and/or other materials provided with the distribution.
//! * Neither the name of the <ORGANIZATION> nor the names of its
//! contributors may be used to endorse or promote products derived
//! from this software without specific prior written permission.
//!
//! THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
//! AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
//! IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
//! ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE
//! LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
//! CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
//! SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS
//! INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
//! CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
//! ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF
//! THE POSSIBILITY OF SUCH DAMAGE.
//
//*****************************************************************************/
//A20140501 : for use the type - ptrdiff_t
#include <stddef.h>
//
#include "main.h"
#include "stm32h7xx.h"
#include "stm32h7xx_hal.h"
#include "wizchip_conf.h"
#include "spi.h"
/
//M20150401 : Remove ; in the default callback function such as wizchip_cris_enter(), wizchip_cs_select() and etc.
/
/**
* @brief Default function to enable interrupt.
* @note This function help not to access wrong address. If you do not describe this function or register any functions,
* null function is called.
*/
//void wizchip_cris_enter(void) {};
void wizchip_cris_enter(void) {__set_PRIMASK(1);}//关中断进临界区
/**
* @brief Default function to disable interrupt.
* @note This function help not to access wrong address. If you do not describe this function or register any functions,
* null function is called.
*/
//void wizchip_cris_exit(void) {};
void wizchip_cris_exit(void) {__set_PRIMASK(0);}//开中断退出临界区
/**
* @brief Default function to select chip.
* @note This function help not to access wrong address. If you do not describe this function or register any functions,
* null function is called.
*/
//void wizchip_cs_select(void) {};
void wizchip_cs_select(void) {HAL_GPIO_WritePin(W5500_CS_GPIO_Port, W5500_CS_Pin, GPIO_PIN_RESET);}//片选
/**
* @brief Default function to deselect chip.
* @note This function help not to access wrong address. If you do not describe this function or register any functions,
* null function is called.
*/
//void wizchip_cs_deselect(void) {};
void wizchip_cs_deselect(void) {HAL_GPIO_WritePin(W5500_CS_GPIO_Port, W5500_CS_Pin, GPIO_PIN_SET);}//关片选
/**
* @brief Default function to read in direct or indirect interface.
* @note This function help not to access wrong address. If you do not describe this function or register any functions,
* null function is called.
*/
//M20150601 : Rename the function for integrating with W5300
//uint8_t wizchip_bus_readbyte(uint32_t AddrSel) { return * ((volatile uint8_t *)((ptrdiff_t) AddrSel)); }
iodata_t wizchip_bus_readdata(uint32_t AddrSel) { return * ((volatile iodata_t *)((ptrdiff_t) AddrSel)); }//不是W5500的不管
/**
* @brief Default function to write in direct or indirect interface.
* @note This function help not to access wrong address. If you do not describe this function or register any functions,
* null function is called.
*/
//M20150601 : Rename the function for integrating with W5300
//void wizchip_bus_writebyte(uint32_t AddrSel, uint8_t wb) { *((volatile uint8_t*)((ptrdiff_t)AddrSel)) = wb; }
void wizchip_bus_writedata(uint32_t AddrSel, iodata_t wb) { *((volatile iodata_t*)((ptrdiff_t)AddrSel)) = wb; }//不是W5500的不管
/**
* @brief Default function to read in SPI interface.
* @note This function help not to access wrong address. If you do not describe this function or register any functions,
* null function is called.
*/
//uint8_t wizchip_spi_readbyte(void) {return 0;};
uint8_t wizchip_spi_readbyte(void)//SPI单字节读
{
uint8_t value;
if (HAL_SPI_Receive(&hspi3, &value, 1, 1000) != HAL_OK) {
value = 0;
}
return value;
}
/**
* @brief Default function to write in SPI interface.
* @note This function help not to access wrong address. If you do not describe this function or register any functions,
* null function is called.
*/
//void wizchip_spi_writebyte(uint8_t wb) {};
void wizchip_spi_writebyte(uint8_t wb) {
HAL_SPI_Transmit(&hspi3, &wb, 1, 1000);//SPI单字节写
}
/**
* @brief Default function to burst read in SPI interface.
* @note This function help not to access wrong address. If you do not describe this function or register any functions,
* null function is called.
*/
//void wizchip_spi_readburst(uint8_t* pBuf, uint16_t len) {};
void wizchip_spi_readburst(uint8_t* pBuf, uint16_t len)
{
if (!pBuf) {
return;
}
HAL_SPI_Receive(&hspi3, pBuf, len, 1000);//SPI多字节读
}
/**
* @brief Default function to burst write in SPI interface.
* @note This function help not to access wrong address. If you do not describe this function or register any functions,
* null function is called.
*/
//void wizchip_spi_writeburst(uint8_t* pBuf, uint16_t len) {};
void wizchip_spi_writeburst(uint8_t* pBuf, uint16_t len) {
if (!pBuf) {
return;
}
HAL_SPI_Transmit(&hspi3, pBuf, len, 1000);//SPI多字节写
}
/**
* @\ref _WIZCHIP instance
*/
//
//M20150401 : For a compiler didnot support a member of structure
// Replace the assignment of struct members with the assingment of array
//
/*
_WIZCHIP WIZCHIP =
{
.id = _WIZCHIP_ID_,
.if_mode = _WIZCHIP_IO_MODE_,
.CRIS._enter = wizchip_cris_enter,
.CRIS._exit = wizchip_cris_exit,
.CS._select = wizchip_cs_select,
.CS._deselect = wizchip_cs_deselect,
.IF.BUS._read_byte = wizchip_bus_readbyte,
.IF.BUS._write_byte = wizchip_bus_writebyte
// .IF.SPI._read_byte = wizchip_spi_readbyte,
// .IF.SPI._write_byte = wizchip_spi_writebyte
};
*/
_WIZCHIP WIZCHIP =
{
_WIZCHIP_IO_MODE_,
_WIZCHIP_ID_ ,
{
wizchip_cris_enter,
wizchip_cris_exit
},
{
wizchip_cs_select,
wizchip_cs_deselect
},
{
{
//M20150601 : Rename the function
//wizchip_bus_readbyte,
//wizchip_bus_writebyte
wizchip_bus_readdata,
wizchip_bus_writedata
},
}
};
//函数绑定
void w5500_regFunc(void)
{
reg_wizchip_cris_cbfunc(wizchip_cris_enter, wizchip_cris_exit);
reg_wizchip_cs_cbfunc(wizchip_cs_select, wizchip_cs_deselect);
reg_wizchip_spi_cbfunc(wizchip_spi_readbyte, wizchip_spi_writebyte);
reg_wizchip_spiburst_cbfunc(wizchip_spi_readburst, wizchip_spi_writeburst);
}
static uint8_t _DNS_[4]; // DNS server ip address
static dhcp_mode _DHCP_; // DHCP mode
void reg_wizchip_cris_cbfunc(void(*cris_en)(void), void(*cris_ex)(void))
{
if(!cris_en || !cris_ex)
{
WIZCHIP.CRIS._enter = wizchip_cris_enter;
WIZCHIP.CRIS._exit = wizchip_cris_exit;
}
else
{
WIZCHIP.CRIS._enter = cris_en;
WIZCHIP.CRIS._exit = cris_ex;
}
}
void reg_wizchip_cs_cbfunc(void(*cs_sel)(void), void(*cs_desel)(void))
{
if(!cs_sel || !cs_desel)
{
WIZCHIP.CS._select = wizchip_cs_select;
WIZCHIP.CS._deselect = wizchip_cs_deselect;
}
else
{
WIZCHIP.CS._select = cs_sel;
WIZCHIP.CS._deselect = cs_desel;
}
}
//M20150515 : For integrating with W5300
//void reg_wizchip_bus_cbfunc(uint8_t(*bus_rb)(uint32_t addr), void (*bus_wb)(uint32_t addr, uint8_t wb))
void reg_wizchip_bus_cbfunc(iodata_t(*bus_rb)(uint32_t addr), void (*bus_wb)(uint32_t addr, iodata_t wb))
{
while(!(WIZCHIP.if_mode & _WIZCHIP_IO_MODE_BUS_));
//M20150601 : Rename call back function for integrating with W5300
/*
if(!bus_rb || !bus_wb)
{
WIZCHIP.IF.BUS._read_byte = wizchip_bus_readbyte;
WIZCHIP.IF.BUS._write_byte = wizchip_bus_writebyte;
}
else
{
WIZCHIP.IF.BUS._read_byte = bus_rb;
WIZCHIP.IF.BUS._write_byte = bus_wb;
}
*/
if(!bus_rb || !bus_wb)
{
WIZCHIP.IF.BUS._read_data = wizchip_bus_readdata;
WIZCHIP.IF.BUS._write_data = wizchip_bus_writedata;
}
else
{
WIZCHIP.IF.BUS._read_data = bus_rb;
WIZCHIP.IF.BUS._write_data = bus_wb;
}
}
void reg_wizchip_spi_cbfunc(uint8_t (*spi_rb)(void), void (*spi_wb)(uint8_t wb))
{
while(!(WIZCHIP.if_mode & _WIZCHIP_IO_MODE_SPI_));
if(!spi_rb || !spi_wb)
{
WIZCHIP.IF.SPI._read_byte = wizchip_spi_readbyte;
WIZCHIP.IF.SPI._write_byte = wizchip_spi_writebyte;
}
else
{
WIZCHIP.IF.SPI._read_byte = spi_rb;
WIZCHIP.IF.SPI._write_byte = spi_wb;
}
}
// 20140626 Eric Added for SPI burst operations
void reg_wizchip_spiburst_cbfunc(void (*spi_rb)(uint8_t* pBuf, uint16_t len), void (*spi_wb)(uint8_t* pBuf, uint16_t len))
{
while(!(WIZCHIP.if_mode & _WIZCHIP_IO_MODE_SPI_));
if(!spi_rb || !spi_wb)
{
WIZCHIP.IF.SPI._read_burst = wizchip_spi_readburst;
WIZCHIP.IF.SPI._write_burst = wizchip_spi_writeburst;
}
else
{
WIZCHIP.IF.SPI._read_burst = spi_rb;
WIZCHIP.IF.SPI._write_burst = spi_wb;
}
}
int8_t ctlwizchip(ctlwizchip_type cwtype, void* arg)
{
#if _WIZCHIP_ == W5100S || _WIZCHIP_ == W5200 || _WIZCHIP_ == W5500
uint8_t tmp = 0;
#endif
uint8_t* ptmp[2] = {0,0};
switch(cwtype)
{
case CW_RESET_WIZCHIP:
wizchip_sw_reset();
break;
case CW_INIT_WIZCHIP:
if(arg != 0)
{
ptmp[0] = (uint8_t*)arg;
ptmp[1] = ptmp[0] + _WIZCHIP_SOCK_NUM_;
}
return wizchip_init(ptmp[0], ptmp[1]);
case CW_CLR_INTERRUPT:
wizchip_clrinterrupt(*((intr_kind*)arg));
break;
case CW_GET_INTERRUPT:
*((intr_kind*)arg) = wizchip_getinterrupt();
break;
case CW_SET_INTRMASK:
wizchip_setinterruptmask(*((intr_kind*)arg));
break;
case CW_GET_INTRMASK:
*((intr_kind*)arg) = wizchip_getinterruptmask();
break;
//M20150601 : This can be supported by W5200, W5500
//#if _WIZCHIP_ > W5100
#if (_WIZCHIP_ == W5200 || _WIZCHIP_ == W5500)
case CW_SET_INTRTIME:
setINTLEVEL(*(uint16_t*)arg);
break;
case CW_GET_INTRTIME:
*(uint16_t*)arg = getINTLEVEL();
break;
#endif
case CW_GET_ID:
((uint8_t*)arg)[0] = WIZCHIP.id[0];
((uint8_t*)arg)[1] = WIZCHIP.id[1];
((uint8_t*)arg)[2] = WIZCHIP.id[2];
((uint8_t*)arg)[3] = WIZCHIP.id[3];
((uint8_t*)arg)[4] = WIZCHIP.id[4];
((uint8_t*)arg)[5] = 0;
break;
#if _WIZCHIP_ == W5100S || _WIZCHIP_ == W5500
case CW_RESET_PHY:
wizphy_reset();
break;
case CW_SET_PHYCONF:
wizphy_setphyconf((wiz_PhyConf*)arg);
break;
case CW_GET_PHYCONF:
wizphy_getphyconf((wiz_PhyConf*)arg);
break;
case CW_GET_PHYSTATUS:
break;
case CW_SET_PHYPOWMODE:
return wizphy_setphypmode(*(uint8_t*)arg);
#endif
#if _WIZCHIP_ == W5100S || _WIZCHIP_ == W5200 || _WIZCHIP_ == W5500
case CW_GET_PHYPOWMODE:
tmp = wizphy_getphypmode();
if((int8_t)tmp == -1) return -1;
*(uint8_t*)arg = tmp;
break;
case CW_GET_PHYLINK:
tmp = wizphy_getphylink();
if((int8_t)tmp == -1) return -1;
*(uint8_t*)arg = tmp;
break;
#endif
default:
return -1;
}
return 0;
}
int8_t ctlnetwork(ctlnetwork_type cntype, void* arg)
{
switch(cntype)
{
case CN_SET_NETINFO:
wizchip_setnetinfo((wiz_NetInfo*)arg);
break;
case CN_GET_NETINFO:
wizchip_getnetinfo((wiz_NetInfo*)arg);
break;
case CN_SET_NETMODE:
return wizchip_setnetmode(*(netmode_type*)arg);
case CN_GET_NETMODE:
*(netmode_type*)arg = wizchip_getnetmode();
break;
case CN_SET_TIMEOUT:
wizchip_settimeout((wiz_NetTimeout*)arg);
break;
case CN_GET_TIMEOUT:
wizchip_gettimeout((wiz_NetTimeout*)arg);
break;
default:
return -1;
}
return 0;
}
void wizchip_sw_reset(void)
{
uint8_t gw[4], sn[4], sip[4];
uint8_t mac[6];
//A20150601
#if _WIZCHIP_IO_MODE_ == _WIZCHIP_IO_MODE_BUS_INDIR_
uint16_t mr = (uint16_t)getMR();
setMR(mr | MR_IND);
#endif
//
getSHAR(mac);
getGAR(gw); getSUBR(sn); getSIPR(sip);
setMR(MR_RST);
getMR(); // for delay
//A2015051 : For indirect bus mode
#if _WIZCHIP_IO_MODE_ == _WIZCHIP_IO_MODE_BUS_INDIR_
setMR(mr | MR_IND);
#endif
//
setSHAR(mac);
setGAR(gw);
setSUBR(sn);
setSIPR(sip);
}
int8_t wizchip_init(uint8_t* txsize, uint8_t* rxsize)
{
int8_t i;
#if _WIZCHIP_ < W5200
int8_t j;
#endif
int8_t tmp = 0;
wizchip_sw_reset();
if(txsize)
{
tmp = 0;
//M20150601 : For integrating with W5300
#if _WIZCHIP_ == W5300
for(i = 0 ; i < _WIZCHIP_SOCK_NUM_; i++)
{
if(txsize[i] >= 64) return -1; //No use 64KB even if W5300 support max 64KB memory allocation
tmp += txsize[i];
if(tmp > 128) return -1;
}
if(tmp % 8) return -1;
#else
for(i = 0 ; i < _WIZCHIP_SOCK_NUM_; i++)
{
tmp += txsize[i];
#if _WIZCHIP_ < W5200 //2016.10.28 peter add condition for w5100 and w5100s
if(tmp > 8) return -1;
#else
if(tmp > 16) return -1;
#endif
}
for(i = 0 ; i < _WIZCHIP_SOCK_NUM_; i++)
{
#if _WIZCHIP_ < W5200 //2016.10.28 peter add condition for w5100
j = 0;
while((txsize[i] >> j != 1)&&(txsize[i] !=0)){j++;}
setSn_TXBUF_SIZE(i, j);
#else
setSn_TXBUF_SIZE(i, txsize[i]);
#endif
}
#endif
}
if(rxsize)
{
tmp = 0;
#if _WIZCHIP_ == W5300
for(i = 0 ; i < _WIZCHIP_SOCK_NUM_; i++)
{
if(rxsize[i] >= 64) return -1; //No use 64KB even if W5300 support max 64KB memory allocation
tmp += rxsize[i];
if(tmp > 128) return -1;
}
if(tmp % 8) return -1;
#else
for(i = 0 ; i < _WIZCHIP_SOCK_NUM_; i++)
{
tmp += rxsize[i];
#if _WIZCHIP_ < W5200 //2016.10.28 peter add condition for w5100 and w5100s
if(tmp > 8) return -1;
#else
if(tmp > 16) return -1;
#endif
}
for(i = 0 ; i < _WIZCHIP_SOCK_NUM_; i++)
{
#if _WIZCHIP_ < W5200 // add condition for w5100
j = 0;
while((rxsize[i] >> j != 1)&&(txsize[i] !=0)){j++;}
setSn_RXBUF_SIZE(i, j);
#else
setSn_RXBUF_SIZE(i, rxsize[i]);
#endif
}
#endif
}
return 0;
}
void wizchip_clrinterrupt(intr_kind intr)
{
uint8_t ir = (uint8_t)intr;
uint8_t sir = (uint8_t)((uint16_t)intr >> 8);
#if _WIZCHIP_ < W5500
ir |= (1<<4); // IK_WOL
#endif
#if _WIZCHIP_ == W5200
ir |= (1 << 6);
#endif
#if _WIZCHIP_ < W5200
sir &= 0x0F;
#endif
#if _WIZCHIP_ <= W5100S
ir |= sir;
setIR(ir);
//A20150601 : For integrating with W5300
#elif _WIZCHIP_ == W5300
setIR( ((((uint16_t)ir) << 8) | (((uint16_t)sir) & 0x00FF)) );
#else
setIR(ir);
//M20200227 : For clear
//setSIR(sir);
for(ir=0; ir<8; ir++){
if(sir & (0x01 <<ir) ) setSn_IR(ir, 0xff);
}
#endif
}
intr_kind wizchip_getinterrupt(void)
{
uint8_t ir = 0;
uint8_t sir = 0;
uint16_t ret = 0;
#if _WIZCHIP_ <= W5100S
ir = getIR();
sir = ir & 0x0F;
//A20150601 : For integrating with W5300
#elif _WIZCHIP_ == W5300
ret = getIR();
ir = (uint8_t)(ret >> 8);
sir = (uint8_t)ret;
#else
ir = getIR();
sir = getSIR();
#endif
//M20150601 : For Integrating with W5300
//#if _WIZCHIP_ < W5500
#if _WIZCHIP_ < W5200
ir &= ~(1<<4); // IK_WOL
#endif
#if _WIZCHIP_ == W5200
ir &= ~(1 << 6);
#endif
ret = sir;
ret = (ret << 8) + ir;
return (intr_kind)ret;
}
void wizchip_setinterruptmask(intr_kind intr)
{
uint8_t imr = (uint8_t)intr;
uint8_t simr = (uint8_t)((uint16_t)intr >> 8);
#if _WIZCHIP_ < W5500
imr &= ~(1<<4); // IK_WOL
#endif
#if _WIZCHIP_ == W5200
imr &= ~(1 << 6);
#endif
#if _WIZCHIP_ < W5200
simr &= 0x0F;
imr |= simr;
setIMR(imr);
//A20150601 : For integrating with W5300
#elif _WIZCHIP_ == W5300
setIMR( ((((uint16_t)imr) << 8) | (((uint16_t)simr) & 0x00FF)) );
#else
setIMR(imr);
setSIMR(simr);
#endif
}
intr_kind wizchip_getinterruptmask(void)
{
uint8_t imr = 0;
uint8_t simr = 0;
uint16_t ret = 0;
#if _WIZCHIP_ < W5200
imr = getIMR();
simr = imr & 0x0F;
//A20150601 : For integrating with W5300
#elif _WIZCHIP_ == W5300
ret = getIMR();
imr = (uint8_t)(ret >> 8);
simr = (uint8_t)ret;
#else
imr = getIMR();
simr = getSIMR();
#endif
#if _WIZCHIP_ < W5500
imr &= ~(1<<4); // IK_WOL
#endif
#if _WIZCHIP_ == W5200
imr &= ~(1 << 6); // IK_DEST_UNREACH
#endif
ret = simr;
ret = (ret << 8) + imr;
return (intr_kind)ret;
}
int8_t wizphy_getphylink(void)
{
int8_t tmp = PHY_LINK_OFF;
#if _WIZCHIP_ == W5100S
if(getPHYSR() & PHYSR_LNK)
tmp = PHY_LINK_ON;
#elif _WIZCHIP_ == W5200
if(getPHYSTATUS() & PHYSTATUS_LINK)
tmp = PHY_LINK_ON;
#elif _WIZCHIP_ == W5500
if(getPHYCFGR() & PHYCFGR_LNK_ON)
tmp = PHY_LINK_ON;
#else
tmp = -1;
#endif
return tmp;
}
#if _WIZCHIP_ > W5100
int8_t wizphy_getphypmode(void)
{
int8_t tmp = 0;
#if _WIZCHIP_ == W5200
if(getPHYSTATUS() & PHYSTATUS_POWERDOWN)
tmp = PHY_POWER_DOWN;
else
tmp = PHY_POWER_NORM;
#elif _WIZCHIP_ == 5500
if((getPHYCFGR() & PHYCFGR_OPMDC_ALLA) == PHYCFGR_OPMDC_PDOWN)
tmp = PHY_POWER_DOWN;
else
tmp = PHY_POWER_NORM;
#else
tmp = -1;
#endif
return tmp;
}
#endif
#if _WIZCHIP_ == W5100S
void wizphy_reset(void)
{
uint16_t tmp = wiz_mdio_read(PHYMDIO_BMCR);
tmp |= BMCR_RESET;
wiz_mdio_write(PHYMDIO_BMCR, tmp);
while(wiz_mdio_read(PHYMDIO_BMCR)&BMCR_RESET){}
}
void wizphy_setphyconf(wiz_PhyConf* phyconf)
{
uint16_t tmp = wiz_mdio_read(PHYMDIO_BMCR);
if(phyconf->mode == PHY_MODE_AUTONEGO)
tmp |= BMCR_AUTONEGO;
else
{
tmp &= ~BMCR_AUTONEGO;
if(phyconf->duplex == PHY_DUPLEX_FULL)
{
tmp |= BMCR_DUP;
}
else
{
tmp &= ~BMCR_DUP;
}
if(phyconf->speed == PHY_SPEED_100)
{
tmp |= BMCR_SPEED;
}
else
{
tmp &= ~BMCR_SPEED;
}
}
wiz_mdio_write(PHYMDIO_BMCR, tmp);
}
void wizphy_getphyconf(wiz_PhyConf* phyconf)
{
uint16_t tmp = 0;
tmp = wiz_mdio_read(PHYMDIO_BMCR);
phyconf->by = PHY_CONFBY_SW;
if(tmp & BMCR_AUTONEGO)
{
phyconf->mode = PHY_MODE_AUTONEGO;
}
else
{
phyconf->mode = PHY_MODE_MANUAL;
if(tmp&BMCR_DUP) phyconf->duplex = PHY_DUPLEX_FULL;
else phyconf->duplex = PHY_DUPLEX_HALF;
if(tmp&BMCR_SPEED) phyconf->speed = PHY_SPEED_100;
else phyconf->speed = PHY_SPEED_10;
}
}
int8_t wizphy_setphypmode(uint8_t pmode)
{
uint16_t tmp = 0;
tmp = wiz_mdio_read(PHYMDIO_BMCR);
if( pmode == PHY_POWER_DOWN)
{
tmp |= BMCR_PWDN;
}
else
{
tmp &= ~BMCR_PWDN;
}
wiz_mdio_write(PHYMDIO_BMCR, tmp);
tmp = wiz_mdio_read(PHYMDIO_BMCR);
if( pmode == PHY_POWER_DOWN)
{
if(tmp & BMCR_PWDN) return 0;
}
else
{
if((tmp & BMCR_PWDN) != BMCR_PWDN) return 0;
}
return -1;
}
#endif
#if _WIZCHIP_ == W5500
void wizphy_reset(void)
{
uint8_t tmp = getPHYCFGR();
tmp &= PHYCFGR_RST;
setPHYCFGR(tmp);
tmp = getPHYCFGR();
tmp |= ~PHYCFGR_RST;
setPHYCFGR(tmp);
}
void wizphy_setphyconf(wiz_PhyConf* phyconf)
{
uint8_t tmp = 0;
if(phyconf->by == PHY_CONFBY_SW)
tmp |= PHYCFGR_OPMD;
else
tmp &= ~PHYCFGR_OPMD;
if(phyconf->mode == PHY_MODE_AUTONEGO)
tmp |= PHYCFGR_OPMDC_ALLA;
else
{
if(phyconf->duplex == PHY_DUPLEX_FULL)
{
if(phyconf->speed == PHY_SPEED_100)
tmp |= PHYCFGR_OPMDC_100F;
else
tmp |= PHYCFGR_OPMDC_10F;
}
else
{
if(phyconf->speed == PHY_SPEED_100)
tmp |= PHYCFGR_OPMDC_100H;
else
tmp |= PHYCFGR_OPMDC_10H;
}
}
setPHYCFGR(tmp);
wizphy_reset();
}
void wizphy_getphyconf(wiz_PhyConf* phyconf)
{
uint8_t tmp = 0;
tmp = getPHYCFGR();
phyconf->by = (tmp & PHYCFGR_OPMD) ? PHY_CONFBY_SW : PHY_CONFBY_HW;
switch(tmp & PHYCFGR_OPMDC_ALLA)
{
case PHYCFGR_OPMDC_ALLA:
case PHYCFGR_OPMDC_100FA:
phyconf->mode = PHY_MODE_AUTONEGO;
break;
default:
phyconf->mode = PHY_MODE_MANUAL;
break;
}
switch(tmp & PHYCFGR_OPMDC_ALLA)
{
case PHYCFGR_OPMDC_100FA:
case PHYCFGR_OPMDC_100F:
case PHYCFGR_OPMDC_100H:
phyconf->speed = PHY_SPEED_100;
break;
default:
phyconf->speed = PHY_SPEED_10;
break;
}
switch(tmp & PHYCFGR_OPMDC_ALLA)
{
case PHYCFGR_OPMDC_100FA:
case PHYCFGR_OPMDC_100F:
case PHYCFGR_OPMDC_10F:
phyconf->duplex = PHY_DUPLEX_FULL;
break;
default:
phyconf->duplex = PHY_DUPLEX_HALF;
break;
}
}
void wizphy_getphystat(wiz_PhyConf* phyconf)
{
uint8_t tmp = getPHYCFGR();
phyconf->duplex = (tmp & PHYCFGR_DPX_FULL) ? PHY_DUPLEX_FULL : PHY_DUPLEX_HALF;
phyconf->speed = (tmp & PHYCFGR_SPD_100) ? PHY_SPEED_100 : PHY_SPEED_10;
}
int8_t wizphy_setphypmode(uint8_t pmode)
{
uint8_t tmp = 0;
tmp = getPHYCFGR();
if((tmp & PHYCFGR_OPMD)== 0) return -1;
tmp &= ~PHYCFGR_OPMDC_ALLA;
if( pmode == PHY_POWER_DOWN)
tmp |= PHYCFGR_OPMDC_PDOWN;
else
tmp |= PHYCFGR_OPMDC_ALLA;
setPHYCFGR(tmp);
wizphy_reset();
tmp = getPHYCFGR();
if( pmode == PHY_POWER_DOWN)
{
if(tmp & PHYCFGR_OPMDC_PDOWN) return 0;
}
else
{
if(tmp & PHYCFGR_OPMDC_ALLA) return 0;
}
return -1;
}
#endif
void wizchip_setnetinfo(wiz_NetInfo* pnetinfo)
{
setSHAR(pnetinfo->mac);
setGAR(pnetinfo->gw);
setSUBR(pnetinfo->sn);
setSIPR(pnetinfo->ip);
_DNS_[0] = pnetinfo->dns[0];
_DNS_[1] = pnetinfo->dns[1];
_DNS_[2] = pnetinfo->dns[2];
_DNS_[3] = pnetinfo->dns[3];
_DHCP_ = pnetinfo->dhcp;
}
void wizchip_getnetinfo(wiz_NetInfo* pnetinfo)
{
getSHAR(pnetinfo->mac);
getGAR(pnetinfo->gw);
getSUBR(pnetinfo->sn);
getSIPR(pnetinfo->ip);
pnetinfo->dns[0]= _DNS_[0];
pnetinfo->dns[1]= _DNS_[1];
pnetinfo->dns[2]= _DNS_[2];
pnetinfo->dns[3]= _DNS_[3];
pnetinfo->dhcp = _DHCP_;
}
int8_t wizchip_setnetmode(netmode_type netmode)
{
uint8_t tmp = 0;
#if _WIZCHIP_ != W5500
if(netmode & ~(NM_WAKEONLAN | NM_PPPOE | NM_PINGBLOCK)) return -1;
#else
if(netmode & ~(NM_WAKEONLAN | NM_PPPOE | NM_PINGBLOCK | NM_FORCEARP)) return -1;
#endif
tmp = getMR();
tmp |= (uint8_t)netmode;
setMR(tmp);
return 0;
}
netmode_type wizchip_getnetmode(void)
{
return (netmode_type) getMR();
}
void wizchip_settimeout(wiz_NetTimeout* nettime)
{
setRCR(nettime->retry_cnt);
setRTR(nettime->time_100us);
}
void wizchip_gettimeout(wiz_NetTimeout* nettime)
{
nettime->retry_cnt = getRCR();
nettime->time_100us = getRTR();
}
wizchip_conf.h
//*****************************************************************************
//
//! \file wizchip_conf.h
//! \brief WIZCHIP Config Header File.
//! \version 1.0.0
//! \date 2013/10/21
//! \par Revision history
//! <2015/02/05> Notice
//! The version history is not updated after this point.
//! Download the latest version directly from GitHub. Please visit the our GitHub repository for ioLibrary.
//! >> https://github.com/Wiznet/ioLibrary_Driver
//! <2013/10/21> 1st Release
//! \author MidnightCow
//! \copyright
//!
//! Copyright (c) 2013, WIZnet Co., LTD.
//! All rights reserved.
//!
//! Redistribution and use in source and binary forms, with or without
//! modification, are permitted provided that the following conditions
//! are met:
//!
//! * Redistributions of source code must retain the above copyright
//! notice, this list of conditions and the following disclaimer.
//! * Redistributions in binary form must reproduce the above copyright
//! notice, this list of conditions and the following disclaimer in the
//! documentation and/or other materials provided with the distribution.
//! * Neither the name of the <ORGANIZATION> nor the names of its
//! contributors may be used to endorse or promote products derived
//! from this software without specific prior written permission.
//!
//! THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
//! AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
//! IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
//! ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE
//! LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
//! CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
//! SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS
//! INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
//! CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
//! ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF
//! THE POSSIBILITY OF SUCH DAMAGE.
//
//*****************************************************************************
/**
* @defgroup extra_functions 2. WIZnet Extra Functions
*
* @brief These functions is optional function. It could be replaced at WIZCHIP I/O function because they were made by WIZCHIP I/O functions.
* @details There are functions of configuring WIZCHIP, network, interrupt, phy, network information and timer. \n
*
*/
#ifndef _WIZCHIP_CONF_H_
#define _WIZCHIP_CONF_H_
#ifdef __cplusplus
extern "C" {
#endif
#include <stdint.h>
/**
* @brief Select WIZCHIP.
* @todo You should select one, \b W5100, \b W5100S, \b W5200, \b W5300, \b W5500 or etc. \n\n
* ex> <code> #define \_WIZCHIP_ W5500 </code>
*/
#define W5100 5100
#define W5100S 5100+5
#define W5200 5200
#define W5300 5300
#define W5500 5500
#ifndef _WIZCHIP_
#define _WIZCHIP_ W5500 // W5100, W5100S, W5200, W5300, W5500
#endif
#define _WIZCHIP_IO_MODE_NONE_ 0x0000
#define _WIZCHIP_IO_MODE_BUS_ 0x0100 /**< Bus interface mode */
#define _WIZCHIP_IO_MODE_SPI_ 0x0200 /**< SPI interface mode */
//#define _WIZCHIP_IO_MODE_IIC_ 0x0400
//#define _WIZCHIP_IO_MODE_SDIO_ 0x0800
// Add to
//
#define _WIZCHIP_IO_MODE_BUS_DIR_ (_WIZCHIP_IO_MODE_BUS_ + 1) /**< BUS interface mode for direct */
#define _WIZCHIP_IO_MODE_BUS_INDIR_ (_WIZCHIP_IO_MODE_BUS_ + 2) /**< BUS interface mode for indirect */
#define _WIZCHIP_IO_MODE_SPI_VDM_ (_WIZCHIP_IO_MODE_SPI_ + 1) /**< SPI interface mode for variable length data*/
#define _WIZCHIP_IO_MODE_SPI_FDM_ (_WIZCHIP_IO_MODE_SPI_ + 2) /**< SPI interface mode for fixed length data mode*/
#define _WIZCHIP_IO_MODE_SPI_5500_ (_WIZCHIP_IO_MODE_SPI_ + 3) /**< SPI interface mode for fixed length data mode*/
#if (_WIZCHIP_ == W5100)
#define _WIZCHIP_ID_ "W5100\0"
/**
* @brief Define interface mode.
* @todo you should select interface mode as chip. Select one of @ref \_WIZCHIP_IO_MODE_SPI_ , @ref \_WIZCHIP_IO_MODE_BUS_DIR_ or @ref \_WIZCHIP_IO_MODE_BUS_INDIR_
*/
// #define _WIZCHIP_IO_MODE_ _WIZCHIP_IO_MODE_BUS_DIR_
// #define _WIZCHIP_IO_MODE_ _WIZCHIP_IO_MODE_BUS_INDIR_
#define _WIZCHIP_IO_MODE_ _WIZCHIP_IO_MODE_SPI_
//A20150601 : Define the unit of IO DATA.
typedef uint8_t iodata_t;
//A20150401 : Indclude W5100.h file
#include "W5100/w5100.h"
#elif (_WIZCHIP_ == W5100S)
#define _WIZCHIP_ID_ "W5100S\0"
/**
* @brief Define interface mode.
* @todo you should select interface mode as chip. Select one of @ref \_WIZCHIP_IO_MODE_SPI_ , @ref \_WIZCHIP_IO_MODE_BUS_DIR_ or @ref \_WIZCHIP_IO_MODE_BUS_INDIR_
*/
// #define _WIZCHIP_IO_MODE_ _WIZCHIP_IO_MODE_BUS_INDIR_
//#define _WIZCHIP_IO_MODE_ _WIZCHIP_IO_MODE_SPI_5500_
#define _WIZCHIP_IO_MODE_ _WIZCHIP_IO_MODE_SPI_
//A20150601 : Define the unit of IO DATA.
typedef uint8_t iodata_t;
//A20150401 : Indclude W5100.h file
#include "W5100S/w5100s.h"
#elif (_WIZCHIP_ == W5200)
#define _WIZCHIP_ID_ "W5200\0"
/**
* @brief Define interface mode.
* @todo you should select interface mode as chip. Select one of @ref \_WIZCHIP_IO_MODE_SPI_ or @ref \ _WIZCHIP_IO_MODE_BUS_INDIR_
*/
#ifndef _WIZCHIP_IO_MODE_
// #define _WIZCHIP_IO_MODE_ _WIZCHIP_IO_MODE_BUS_INDIR_
#define _WIZCHIP_IO_MODE_ _WIZCHIP_IO_MODE_SPI_
#endif
//A20150601 : Define the unit of IO DATA.
typedef uint8_t iodata_t;
#include "W5200/w5200.h"
#elif (_WIZCHIP_ == W5500)
#define _WIZCHIP_ID_ "W5500\0"
/**
* @brief Define interface mode. \n
* @todo Should select interface mode as chip.
* - @ref \_WIZCHIP_IO_MODE_SPI_ \n
* -@ref \_WIZCHIP_IO_MODE_SPI_VDM_ : Valid only in @ref \_WIZCHIP_ == W5500 \n
* -@ref \_WIZCHIP_IO_MODE_SPI_FDM_ : Valid only in @ref \_WIZCHIP_ == W5500 \n
* - @ref \_WIZCHIP_IO_MODE_BUS_ \n
* - @ref \_WIZCHIP_IO_MODE_BUS_DIR_ \n
* - @ref \_WIZCHIP_IO_MODE_BUS_INDIR_ \n
* - Others will be defined in future. \n\n
* ex> <code> #define \_WIZCHIP_IO_MODE_ \_WIZCHIP_IO_MODE_SPI_VDM_ </code>
*
*/
#ifndef _WIZCHIP_IO_MODE_
//#define _WIZCHIP_IO_MODE_ _WIZCHIP_IO_MODE_SPI_FDM_
#define _WIZCHIP_IO_MODE_ _WIZCHIP_IO_MODE_SPI_VDM_
#endif
//A20150601 : Define the unit of IO DATA.
typedef uint8_t iodata_t;
#include "W5500/w5500.h"
#elif ( _WIZCHIP_ == W5300)
#define _WIZCHIP_ID_ "W5300\0"
/**
* @brief Define interface mode.
* @todo you should select interface mode as chip. Select one of @ref \_WIZCHIP_IO_MODE_SPI_ , @ref \_WIZCHIP_IO_MODE_BUS_DIR_ or @ref \_WIZCHIP_IO_MODE_BUS_INDIR_
*/
#ifndef _WIZCHIP_IO_MODE_
#define _WIZCHIP_IO_MODE_ _WIZCHIP_IO_MODE_BUS_DIR_
// #define _WIZCHIP_IO_MODE_ _WIZCHIP_IO_MODE_BUS_INDIR_
#endif
//A20150601 : Define the unit and bus width of IO DATA.
/**
* @brief Select the data width 8 or 16 bits.
* @todo you should select the bus width. Select one of 8 or 16.
*/
#ifndef _WIZCHIP_IO_BUS_WIDTH_
#define _WIZCHIP_IO_BUS_WIDTH_ 16 // 8
#endif
#if _WIZCHIP_IO_BUS_WIDTH_ == 8
typedef uint8_t iodata_t;
#elif _WIZCHIP_IO_BUS_WIDTH_ == 16
typedef uint16_t iodata_t;
#else
#error "Unknown _WIZCHIP_IO_BUS_WIDTH_. It should be 8 or 16."
#endif
//
#include "W5300/w5300.h"
#else
#error "Unknown defined _WIZCHIP_. You should define one of 5100, 5200, and 5500 !!!"
#endif
#ifndef _WIZCHIP_IO_MODE_
#error "Undefined _WIZCHIP_IO_MODE_. You should define it !!!"
#endif
/**
* @brief Define I/O base address when BUS IF mode.
* @todo Should re-define it to fit your system when BUS IF Mode (@ref \_WIZCHIP_IO_MODE_BUS_,
* @ref \_WIZCHIP_IO_MODE_BUS_DIR_, @ref \_WIZCHIP_IO_MODE_BUS_INDIR_). \n\n
* ex> <code> #define \_WIZCHIP_IO_BASE_ 0x00008000 </code>
*/
#if _WIZCHIP_IO_MODE_ & _WIZCHIP_IO_MODE_BUS_
// #define _WIZCHIP_IO_BASE_ 0x60000000 // for 5100S IND
#define _WIZCHIP_IO_BASE_ 0x68000000 // for W5300
#elif _WIZCHIP_IO_MODE_ & _WIZCHIP_IO_MODE_SPI_
#define _WIZCHIP_IO_BASE_ 0x00000000 // for 5100S SPI
#endif
#ifndef _WIZCHIP_IO_BASE_
#define _WIZCHIP_IO_BASE_ 0x00000000 // 0x8000
#endif
//M20150401 : Typing Error
//#if _WIZCHIP_IO_MODE_ & _WIZCHIP_IO_MODE_BUS
#if _WIZCHIP_IO_MODE_ & _WIZCHIP_IO_MODE_BUS_
#ifndef _WIZCHIP_IO_BASE_
#error "You should be define _WIZCHIP_IO_BASE to fit your system memory map."
#endif
#endif
#if _WIZCHIP_ >= W5200
#define _WIZCHIP_SOCK_NUM_ 8 ///< The count of independant socket of @b WIZCHIP
#else
#define _WIZCHIP_SOCK_NUM_ 4 ///< The count of independant socket of @b WIZCHIP
#endif
/********************************************************
* WIZCHIP BASIC IF functions for SPI, SDIO, I2C , ETC.
*********************************************************/
/**
* @ingroup DATA_TYPE
* @brief The set of callback functions for W5500:@ref WIZCHIP_IO_Functions W5200:@ref WIZCHIP_IO_Functions_W5200
*/
typedef struct __WIZCHIP
{
uint16_t if_mode; ///< host interface mode
uint8_t id[7]; ///< @b WIZCHIP ID such as @b 5100, @b 5200, @b 5500, and so on.
/**
* The set of critical section callback func.
*/
struct _CRIS
{
void (*_enter) (void); ///< crtical section enter
void (*_exit) (void); ///< critial section exit
}CRIS;
/**
* The set of @ref \_WIZCHIP_ select control callback func.
*/
struct _CS
{
void (*_select) (void); ///< @ref \_WIZCHIP_ selected
void (*_deselect)(void); ///< @ref \_WIZCHIP_ deselected
}CS;
/**
* The set of interface IO callback func.
*/
union _IF
{
/**
* For BUS interface IO
*/
//M20156501 : Modify the function name for integrating with W5300
//struct
//{
// uint8_t (*_read_byte) (uint32_t AddrSel);
// void (*_write_byte) (uint32_t AddrSel, uint8_t wb);
//}BUS;
struct
{
iodata_t (*_read_data) (uint32_t AddrSel);
void (*_write_data) (uint32_t AddrSel, iodata_t wb);
}BUS;
/**
* For SPI interface IO
*/
struct
{
uint8_t (*_read_byte) (void);
void (*_write_byte) (uint8_t wb);
void (*_read_burst) (uint8_t* pBuf, uint16_t len);
void (*_write_burst) (uint8_t* pBuf, uint16_t len);
}SPI;
// To be added
//
}IF;
}_WIZCHIP;
extern _WIZCHIP WIZCHIP;
/**
* @ingroup DATA_TYPE
* WIZCHIP control type enumration used in @ref ctlwizchip().
*/
typedef enum
{
CW_RESET_WIZCHIP, ///< Resets WIZCHIP by softly
CW_INIT_WIZCHIP, ///< Initializes to WIZCHIP with SOCKET buffer size 2 or 1 dimension array typed uint8_t.
CW_GET_INTERRUPT, ///< Get Interrupt status of WIZCHIP
CW_CLR_INTERRUPT, ///< Clears interrupt
CW_SET_INTRMASK, ///< Masks interrupt
CW_GET_INTRMASK, ///< Get interrupt mask
CW_SET_INTRTIME, ///< Set interval time between the current and next interrupt.
CW_GET_INTRTIME, ///< Set interval time between the current and next interrupt.
CW_GET_ID, ///< Gets WIZCHIP name.
//D20150601 : For no modification your application code
//#if _WIZCHIP_ == W5500
CW_RESET_PHY, ///< Resets internal PHY. Valid Only W5500
CW_SET_PHYCONF, ///< When PHY configured by internal register, PHY operation mode (Manual/Auto, 10/100, Half/Full). Valid Only W5000
CW_GET_PHYCONF, ///< Get PHY operation mode in internal register. Valid Only W5500
CW_GET_PHYSTATUS, ///< Get real PHY status on operating. Valid Only W5500
CW_SET_PHYPOWMODE, ///< Set PHY power mode as normal and down when PHYSTATUS.OPMD == 1. Valid Only W5500
//#endif
//D20150601 : For no modification your application code
//#if _WIZCHIP_ == W5200 || _WIZCHIP_ == W5500
CW_GET_PHYPOWMODE, ///< Get PHY Power mode as down or normal, Valid Only W5100, W5200
CW_GET_PHYLINK ///< Get PHY Link status, Valid Only W5100, W5200
//#endif
}ctlwizchip_type;
/**
* @ingroup DATA_TYPE
* Network control type enumration used in @ref ctlnetwork().
*/
typedef enum
{
CN_SET_NETINFO, ///< Set Network with @ref wiz_NetInfo
CN_GET_NETINFO, ///< Get Network with @ref wiz_NetInfo
CN_SET_NETMODE, ///< Set network mode as WOL, PPPoE, Ping Block, and Force ARP mode
CN_GET_NETMODE, ///< Get network mode as WOL, PPPoE, Ping Block, and Force ARP mode
CN_SET_TIMEOUT, ///< Set network timeout as retry count and time.
CN_GET_TIMEOUT, ///< Get network timeout as retry count and time.
}ctlnetwork_type;
/**
* @ingroup DATA_TYPE
* Interrupt kind when CW_SET_INTRRUPT, CW_GET_INTERRUPT, CW_SET_INTRMASK
* and CW_GET_INTRMASK is used in @ref ctlnetwork().
* It can be used with OR operation.
*/
typedef enum
{
#if _WIZCHIP_ == W5500
IK_WOL = (1 << 4), ///< Wake On Lan by receiving the magic packet. Valid in W500.
#elif _WIZCHIP_ == W5300
IK_FMTU = (1 << 4), ///< Received a ICMP message (Fragment MTU)
#endif
IK_PPPOE_TERMINATED = (1 << 5), ///< PPPoE Disconnected
#if _WIZCHIP_ != W5200
IK_DEST_UNREACH = (1 << 6), ///< Destination IP & Port Unreachable, No use in W5200
#endif
IK_IP_CONFLICT = (1 << 7), ///< IP conflict occurred
IK_SOCK_0 = (1 << 8), ///< Socket 0 interrupt
IK_SOCK_1 = (1 << 9), ///< Socket 1 interrupt
IK_SOCK_2 = (1 << 10), ///< Socket 2 interrupt
IK_SOCK_3 = (1 << 11), ///< Socket 3 interrupt
#if _WIZCHIP_ > W5100S
IK_SOCK_4 = (1 << 12), ///< Socket 4 interrupt, No use in 5100
IK_SOCK_5 = (1 << 13), ///< Socket 5 interrupt, No use in 5100
IK_SOCK_6 = (1 << 14), ///< Socket 6 interrupt, No use in 5100
IK_SOCK_7 = (1 << 15), ///< Socket 7 interrupt, No use in 5100
#endif
#if _WIZCHIP_ > W5100S
IK_SOCK_ALL = (0xFF << 8) ///< All Socket interrupt
#else
IK_SOCK_ALL = (0x0F << 8) ///< All Socket interrupt
#endif
}intr_kind;
#define PHY_CONFBY_HW 0 ///< Configured PHY operation mode by HW pin
#define PHY_CONFBY_SW 1 ///< Configured PHY operation mode by SW register
#define PHY_MODE_MANUAL 0 ///< Configured PHY operation mode with user setting.
#define PHY_MODE_AUTONEGO 1 ///< Configured PHY operation mode with auto-negotiation
#define PHY_SPEED_10 0 ///< Link Speed 10
#define PHY_SPEED_100 1 ///< Link Speed 100
#define PHY_DUPLEX_HALF 0 ///< Link Half-Duplex
#define PHY_DUPLEX_FULL 1 ///< Link Full-Duplex
#define PHY_LINK_OFF 0 ///< Link Off
#define PHY_LINK_ON 1 ///< Link On
#define PHY_POWER_NORM 0 ///< PHY power normal mode
#define PHY_POWER_DOWN 1 ///< PHY power down mode
#if _WIZCHIP_ == W5100S || _WIZCHIP_ == W5500
/**
* @ingroup DATA_TYPE
* It configures PHY configuration when CW_SET PHYCONF or CW_GET_PHYCONF in W5500,
* and it indicates the real PHY status configured by HW or SW in all WIZCHIP. \n
* Valid only in W5500.
*/
typedef struct wiz_PhyConf_t
{
uint8_t by; ///< set by @ref PHY_CONFBY_HW or @ref PHY_CONFBY_SW
uint8_t mode; ///< set by @ref PHY_MODE_MANUAL or @ref PHY_MODE_AUTONEGO
uint8_t speed; ///< set by @ref PHY_SPEED_10 or @ref PHY_SPEED_100
uint8_t duplex; ///< set by @ref PHY_DUPLEX_HALF @ref PHY_DUPLEX_FULL
//uint8_t power; ///< set by @ref PHY_POWER_NORM or @ref PHY_POWER_DOWN
//uint8_t link; ///< Valid only in CW_GET_PHYSTATUS. set by @ref PHY_LINK_ON or PHY_DUPLEX_OFF
}wiz_PhyConf;
#endif
/**
* @ingroup DATA_TYPE
* It used in setting dhcp_mode of @ref wiz_NetInfo.
*/
typedef enum
{
NETINFO_STATIC = 1, ///< Static IP configuration by manually.
NETINFO_DHCP ///< Dynamic IP configruation from a DHCP sever
}dhcp_mode;
/**
* @ingroup DATA_TYPE
* Network Information for WIZCHIP
*/
typedef struct wiz_NetInfo_t
{
uint8_t mac[6]; ///< Source Mac Address
uint8_t ip[4]; ///< Source IP Address
uint8_t sn[4]; ///< Subnet Mask
uint8_t gw[4]; ///< Gateway IP Address
uint8_t dns[4]; ///< DNS server IP Address
dhcp_mode dhcp; ///< 1 - Static, 2 - DHCP
}wiz_NetInfo;
/**
* @ingroup DATA_TYPE
* Network mode
*/
typedef enum
{
#if _WIZCHIP_ == W5500
NM_FORCEARP = (1<<1), ///< Force to APP send whenever udp data is sent. Valid only in W5500
#endif
NM_WAKEONLAN = (1<<5), ///< Wake On Lan
NM_PINGBLOCK = (1<<4), ///< Block ping-request
NM_PPPOE = (1<<3), ///< PPPoE mode
}netmode_type;
/**
* @ingroup DATA_TYPE
* Used in CN_SET_TIMEOUT or CN_GET_TIMEOUT of @ref ctlwizchip() for timeout configruation.
*/
typedef struct wiz_NetTimeout_t
{
uint8_t retry_cnt; ///< retry count
uint16_t time_100us; ///< time unit 100us
}wiz_NetTimeout;
/**
*@brief Registers call back function for critical section of I/O functions such as
*\ref WIZCHIP_READ, @ref WIZCHIP_WRITE, @ref WIZCHIP_READ_BUF and @ref WIZCHIP_WRITE_BUF.
*@param cris_en : callback function for critical section enter.
*@param cris_ex : callback function for critical section exit.
*@todo Describe @ref WIZCHIP_CRITICAL_ENTER and @ref WIZCHIP_CRITICAL_EXIT marco or register your functions.
*@note If you do not describe or register, default functions(@ref wizchip_cris_enter & @ref wizchip_cris_exit) is called.
*/
void reg_wizchip_cris_cbfunc(void(*cris_en)(void), void(*cris_ex)(void));
/**
*@brief Registers call back function for WIZCHIP select & deselect.
*@param cs_sel : callback function for WIZCHIP select
*@param cs_desel : callback fucntion for WIZCHIP deselect
*@todo Describe @ref wizchip_cs_select and @ref wizchip_cs_deselect function or register your functions.
*@note If you do not describe or register, null function is called.
*/
void reg_wizchip_cs_cbfunc(void(*cs_sel)(void), void(*cs_desel)(void));
/**
*@brief Registers call back function for bus interface.
*@param bus_rb : callback function to read byte data using system bus
*@param bus_wb : callback function to write byte data using system bus
*@todo Describe @ref wizchip_bus_readbyte and @ref wizchip_bus_writebyte function
*or register your functions.
*@note If you do not describe or register, null function is called.
*/
//M20150601 : For integrating with W5300
//void reg_wizchip_bus_cbfunc(uint8_t (*bus_rb)(uint32_t addr), void (*bus_wb)(uint32_t addr, uint8_t wb));
void reg_wizchip_bus_cbfunc(iodata_t (*bus_rb)(uint32_t addr), void (*bus_wb)(uint32_t addr, iodata_t wb));
/**
*@brief Registers call back function for SPI interface.
*@param spi_rb : callback function to read byte using SPI
*@param spi_wb : callback function to write byte using SPI
*@todo Describe \ref wizchip_spi_readbyte and \ref wizchip_spi_writebyte function
*or register your functions.
*@note If you do not describe or register, null function is called.
*/
void reg_wizchip_spi_cbfunc(uint8_t (*spi_rb)(void), void (*spi_wb)(uint8_t wb));
/**
*@brief Registers call back function for SPI interface.
*@param spi_rb : callback function to burst read using SPI
*@param spi_wb : callback function to burst write using SPI
*@todo Describe \ref wizchip_spi_readbyte and \ref wizchip_spi_writebyte function
*or register your functions.
*@note If you do not describe or register, null function is called.
*/
void reg_wizchip_spiburst_cbfunc(void (*spi_rb)(uint8_t* pBuf, uint16_t len), void (*spi_wb)(uint8_t* pBuf, uint16_t len));
/**
* @ingroup extra_functions
* @brief Controls to the WIZCHIP.
* @details Resets WIZCHIP & internal PHY, Configures PHY mode, Monitor PHY(Link,Speed,Half/Full/Auto),
* controls interrupt & mask and so on.
* @param cwtype : Decides to the control type
* @param arg : arg type is dependent on cwtype.
* @return 0 : Success \n
* -1 : Fail because of invalid \ref ctlwizchip_type or unsupported \ref ctlwizchip_type in WIZCHIP
*/
int8_t ctlwizchip(ctlwizchip_type cwtype, void* arg);
/**
* @ingroup extra_functions
* @brief Controls to network.
* @details Controls to network environment, mode, timeout and so on.
* @param cntype : Input. Decides to the control type
* @param arg : Inout. arg type is dependent on cntype.
* @return -1 : Fail because of invalid \ref ctlnetwork_type or unsupported \ref ctlnetwork_type in WIZCHIP \n
* 0 : Success
*/
int8_t ctlnetwork(ctlnetwork_type cntype, void* arg);
/*
* The following functions are implemented for internal use.
* but You can call these functions for code size reduction instead of ctlwizchip() and ctlnetwork().
*/
/**
* @ingroup extra_functions
* @brief Reset WIZCHIP by softly.
*/
void wizchip_sw_reset(void);
/**
* @ingroup extra_functions
* @brief Initializes WIZCHIP with socket buffer size
* @param txsize Socket tx buffer sizes. If null, initialized the default size 2KB.
* @param rxsize Socket rx buffer sizes. If null, initialized the default size 2KB.
* @return 0 : succcess \n
* -1 : fail. Invalid buffer size
*/
int8_t wizchip_init(uint8_t* txsize, uint8_t* rxsize);
/**
* @ingroup extra_functions
* @brief Clear Interrupt of WIZCHIP.
* @param intr : @ref intr_kind value operated OR. It can type-cast to uint16_t.
*/
void wizchip_clrinterrupt(intr_kind intr);
/**
* @ingroup extra_functions
* @brief Get Interrupt of WIZCHIP.
* @return @ref intr_kind value operated OR. It can type-cast to uint16_t.
*/
intr_kind wizchip_getinterrupt(void);
/**
* @ingroup extra_functions
* @brief Mask or Unmask Interrupt of WIZCHIP.
* @param intr : @ref intr_kind value operated OR. It can type-cast to uint16_t.
*/
void wizchip_setinterruptmask(intr_kind intr);
/**
* @ingroup extra_functions
* @brief Get Interrupt mask of WIZCHIP.
* @return : The operated OR vaule of @ref intr_kind. It can type-cast to uint16_t.
*/
intr_kind wizchip_getinterruptmask(void);
//todo
#if _WIZCHIP_ > W5100
int8_t wizphy_getphylink(void); ///< get the link status of phy in WIZCHIP. No use in W5100
int8_t wizphy_getphypmode(void); ///< get the power mode of PHY in WIZCHIP. No use in W5100
#endif
#if _WIZCHIP_ == W5100S || _WIZCHIP_ == W5500
void wizphy_reset(void); ///< Reset phy. Vailid only in W5500
/**
* @ingroup extra_functions
* @brief Set the phy information for WIZCHIP without power mode
* @param phyconf : @ref wiz_PhyConf
*/
void wizphy_setphyconf(wiz_PhyConf* phyconf);
/**
* @ingroup extra_functions
* @brief Get phy configuration information.
* @param phyconf : @ref wiz_PhyConf
*/
void wizphy_getphyconf(wiz_PhyConf* phyconf);
/**
* @ingroup extra_functions
* @brief Get phy status.
* @param phyconf : @ref wiz_PhyConf
*/
void wizphy_getphystat(wiz_PhyConf* phyconf);
/**
* @ingroup extra_functions
* @brief set the power mode of phy inside WIZCHIP. Refer to @ref PHYCFGR in W5500, @ref PHYSTATUS in W5200
* @param pmode Settig value of power down mode.
*/
int8_t wizphy_setphypmode(uint8_t pmode);
#endif
/**
* @ingroup extra_functions
* @brief Set the network information for WIZCHIP
* @param pnetinfo : @ref wizNetInfo
*/
void wizchip_setnetinfo(wiz_NetInfo* pnetinfo);
/**
* @ingroup extra_functions
* @brief Get the network information for WIZCHIP
* @param pnetinfo : @ref wizNetInfo
*/
void wizchip_getnetinfo(wiz_NetInfo* pnetinfo);
/**
* @ingroup extra_functions
* @brief Set the network mode such WOL, PPPoE, Ping Block, and etc.
* @param pnetinfo Value of network mode. Refer to @ref netmode_type.
*/
int8_t wizchip_setnetmode(netmode_type netmode);
/**
* @ingroup extra_functions
* @brief Get the network mode such WOL, PPPoE, Ping Block, and etc.
* @return Value of network mode. Refer to @ref netmode_type.
*/
netmode_type wizchip_getnetmode(void);
/**
* @ingroup extra_functions
* @brief Set retry time value(@ref _RTR_) and retry count(@ref _RCR_).
* @details @ref _RTR_ configures the retransmission timeout period and @ref _RCR_ configures the number of time of retransmission.
* @param nettime @ref _RTR_ value and @ref _RCR_ value. Refer to @ref wiz_NetTimeout.
*/
void wizchip_settimeout(wiz_NetTimeout* nettime);
/**
* @ingroup extra_functions
* @brief Get retry time value(@ref _RTR_) and retry count(@ref _RCR_).
* @details @ref _RTR_ configures the retransmission timeout period and @ref _RCR_ configures the number of time of retransmission.
* @param nettime @ref _RTR_ value and @ref _RCR_ value. Refer to @ref wiz_NetTimeout.
*/
void wizchip_gettimeout(wiz_NetTimeout* nettime);
#ifdef __cplusplus
}
#endif
void w5500_regFunc(void);
#endif // _WIZCHIP_CONF_H_
这边IO库适配完毕
主函数还要再写写初始化W5500的代码
main.c
/* USER CODE BEGIN Header */
/**
******************************************************************************
* @file : main.c
* @brief : Main program body
******************************************************************************
* @attention
*
* <h2><center>© Copyright (c) 2020 STMicroelectronics.
* All rights reserved.</center></h2>
*
* This software component is licensed by ST under BSD 3-Clause license,
* the "License"; You may not use this file except in compliance with the
* License. You may obtain a copy of the License at:
* opensource.org/licenses/BSD-3-Clause
*
******************************************************************************
*/
/* USER CODE END Header */
/* Includes ------------------------------------------------------------------*/
#include "main.h"
#include "spi.h"
#include "gpio.h"
#include "w5500.h"
#include "wizchip_conf.h"
#include "string.h"
#include "socket.h"
/* Private includes ----------------------------------------------------------*/
/* USER CODE BEGIN Includes */
/* USER CODE END Includes */
/* Private typedef -----------------------------------------------------------*/
/* USER CODE BEGIN PTD */
/* USER CODE END PTD */
/* Private define ------------------------------------------------------------*/
/* USER CODE BEGIN PD */
/* USER CODE END PD */
/* Private macro -------------------------------------------------------------*/
/* USER CODE BEGIN PM */
/* USER CODE END PM */
/* Private variables ---------------------------------------------------------*/
/* USER CODE BEGIN PV */
/* USER CODE END PV */
/* Private function prototypes -----------------------------------------------*/
void SystemClock_Config(void);
/* USER CODE BEGIN PFP */
/* USER CODE END PFP */
/* Private user code ---------------------------------------------------------*/
/* USER CODE BEGIN 0 */
static void w5500_hard_rst(void)
{
HAL_GPIO_WritePin(W5500_RST_GPIO_Port, W5500_RST_Pin, GPIO_PIN_RESET);
HAL_Delay(50);
HAL_GPIO_WritePin(W5500_RST_GPIO_Port, W5500_RST_Pin, GPIO_PIN_SET);
HAL_Delay(10);
}
static int w5500_chip_init(void)
{
return wizchip_init(NULL, NULL);
}
static void w5500_phy_init(void)
{
wiz_PhyConf conf;
conf.by = PHY_CONFBY_SW;
conf.mode = PHY_MODE_MANUAL;
conf.speed = PHY_SPEED_10;
conf.duplex = PHY_DUPLEX_FULL;
wizphy_setphyconf(&conf);
}
static void w5500_network_init(void)
{
wiz_NetInfo info;
uint8_t mac[6] = {0x02,0x00,0x00,0x01,0x02,0x03};
uint8_t ip[4] = {192,168,10,100};
uint8_t sn[4] = {255,255,255,0};
uint8_t gw[4] = {192,168,10,1};
uint8_t dns[4] = {0,0,0,0};
memcpy(info.mac, mac, 6);
memcpy(info.ip, ip, 4);
memcpy(info.sn, sn, 4);
memcpy(info.gw, gw, 4);
memcpy(info.dns, dns, 4);
info.dhcp = NETINFO_STATIC;
wizchip_setnetinfo(&info);
}
void w5500_init(void)
{
w5500_hard_rst();//硬件复位W5500
w5500_regFunc();//绑定SPI函数
if(w5500_chip_init()!=0)//芯片初始化
{
while(1);
}
w5500_phy_init();//物理层初始化
w5500_network_init();//网络初始化
wiz_NetInfo info;
wizchip_getnetinfo(&info);//信息回读
}
/* USER CODE END 0 */
/**
* @brief The application entry point.
* @retval int
*/
uint8_t rxBuf[20]={0};
uint8_t rxBuf1[20]={0};
uint8_t rxBuf2[20]={0};
int main(void)
{
/* USER CODE BEGIN 1 */
/* USER CODE END 1 */
/* Enable I-Cache---------------------------------------------------------*/
SCB_EnableICache();
/* Enable D-Cache---------------------------------------------------------*/
SCB_EnableDCache();
/* MCU Configuration--------------------------------------------------------*/
/* Reset of all peripherals, Initializes the Flash interface and the Systick. */
HAL_Init();
/* USER CODE BEGIN Init */
/* USER CODE END Init */
/* Configure the system clock */
SystemClock_Config();
/* USER CODE BEGIN SysInit */
/* USER CODE END SysInit */
/* Initialize all configured peripherals */
MX_GPIO_Init();
MX_SPI3_Init();
/* USER CODE BEGIN 2 */
w5500_init();//初始化W5500
/* USER CODE END 2 */
uint8_t remote_ip[4]={192,168,10,37};
uint16_t remote_port=6000;
uint16_t local_port=5000;
uint8_t remote_ip1[4]={192,168,10,38};
uint16_t remote_port1=6001;
uint16_t local_port1=5000;
uint16_t len=0;
uint16_t len1=0;
/* Infinite loop */
/* USER CODE BEGIN WHILE */
uint8_t buffff[]="Tx Via UDP0";
uint8_t buffff1[]="Tx Via UDP1";
while (1)
{
socket(0, Sn_MR_UDP, local_port, 0);//设置Socket0
socket(1, Sn_MR_UDP, local_port1, 0);//设置Socket1
/*如果是两个Socket本地端口号一样的应用，需用户自己判断远端端口号区分处理收到的数据*/
/*如果是两个独立的端口号那种就是正常两个Socket*/
sendto(0, buffff, sizeof(buffff), remote_ip, remote_port);//Socket0发送
sendto(0, buffff1, sizeof(buffff), remote_ip1, remote_port1);//Socket1发送
// sendto(1, buffff1, sizeof(buffff1), remote_ip1, remote_port1);
HAL_Delay(500);
switch(getSn_SR(0))//查询socket0状态
{
case SOCK_UDP:
{
if(getSn_IR(0) & Sn_IR_RECV)
{
setSn_IR(0, Sn_IR_RECV);
}
if((len=getSn_RX_RSR(0))>0)//收到了UDP数据
{
memset(rxBuf,0,sizeof(rxBuf));
len = recvfrom(0,rxBuf, len, remote_ip,&remote_port);//数据回收
if(remote_port==6000)//如果来自6000
{
memset(rxBuf1,0,sizeof(rxBuf1));
memcpy(rxBuf1,rxBuf,len);
}
if(remote_port==6001)//如果来自6001
{
memset(rxBuf2,0,sizeof(rxBuf2));
memcpy(rxBuf2,rxBuf,len);
}
}
}
}
//类似前面，不写注释了
switch(getSn_SR(1))
{
case SOCK_UDP:
{
if(getSn_IR(1) & Sn_IR_RECV)
{
setSn_IR(1, Sn_IR_RECV);
}
if((len1=getSn_RX_RSR(1))>0)
{
memset(rxBuf,0,sizeof(rxBuf));
len1 = recvfrom(1,rxBuf, len1, remote_ip1,&remote_port1);
}
}
}
}
/* USER CODE END 3 */
}
/**
* @brief System Clock Configuration
* @retval None
*/
void SystemClock_Config(void)
{
RCC_OscInitTypeDef RCC_OscInitStruct = {0};
RCC_ClkInitTypeDef RCC_ClkInitStruct = {0};
RCC_PeriphCLKInitTypeDef PeriphClkInitStruct = {0};
/** Supply configuration update enable
*/
HAL_PWREx_ConfigSupply(PWR_LDO_SUPPLY);
/** Configure the main internal regulator output voltage
*/
__HAL_PWR_VOLTAGESCALING_CONFIG(PWR_REGULATOR_VOLTAGE_SCALE0);
while(!__HAL_PWR_GET_FLAG(PWR_FLAG_VOSRDY)) {}
/** Initializes the RCC Oscillators according to the specified parameters
* in the RCC_OscInitTypeDef structure.
*/
RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSE;
RCC_OscInitStruct.HSEState = RCC_HSE_ON;
RCC_OscInitStruct.PLL.PLLState = RCC_PLL_ON;
RCC_OscInitStruct.PLL.PLLSource = RCC_PLLSOURCE_HSE;
RCC_OscInitStruct.PLL.PLLM = 5;
RCC_OscInitStruct.PLL.PLLN = 192;
RCC_OscInitStruct.PLL.PLLP = 2;
RCC_OscInitStruct.PLL.PLLQ = 12;
RCC_OscInitStruct.PLL.PLLR = 2;
RCC_OscInitStruct.PLL.PLLRGE = RCC_PLL1VCIRANGE_3;
RCC_OscInitStruct.PLL.PLLVCOSEL = RCC_PLL1VCOWIDE;
RCC_OscInitStruct.PLL.PLLFRACN = 0;
if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK)
{
Error_Handler();
}
/** Initializes the CPU, AHB and APB buses clocks
*/
RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK
|RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2
|RCC_CLOCKTYPE_D3PCLK1|RCC_CLOCKTYPE_D1PCLK1;
RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_PLLCLK;
RCC_ClkInitStruct.SYSCLKDivider = RCC_SYSCLK_DIV1;
RCC_ClkInitStruct.AHBCLKDivider = RCC_HCLK_DIV2;
RCC_ClkInitStruct.APB3CLKDivider = RCC_APB3_DIV2;
RCC_ClkInitStruct.APB1CLKDivider = RCC_APB1_DIV2;
RCC_ClkInitStruct.APB2CLKDivider = RCC_APB2_DIV2;
RCC_ClkInitStruct.APB4CLKDivider = RCC_APB4_DIV2;
if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_4) != HAL_OK)
{
Error_Handler();
}
PeriphClkInitStruct.PeriphClockSelection = RCC_PERIPHCLK_SPI3;
PeriphClkInitStruct.Spi123ClockSelection = RCC_SPI123CLKSOURCE_PLL;
if (HAL_RCCEx_PeriphCLKConfig(&PeriphClkInitStruct) != HAL_OK)
{
Error_Handler();
}
}
/* USER CODE BEGIN 4 */
/* USER CODE END 4 */
/**
* @brief This function is executed in case of error occurrence.
* @retval None
*/
void Error_Handler(void)
{
/* USER CODE BEGIN Error_Handler_Debug */
/* User can add his own implementation to report the HAL error return state */
/* USER CODE END Error_Handler_Debug */
}
#ifdef USE_FULL_ASSERT
/**
* @brief Reports the name of the source file and the source line number
* where the assert_param error has occurred.
* @param file: pointer to the source file name
* @param line: assert_param error line source number
* @retval None
*/
void assert_failed(uint8_t *file, uint32_t line)
{
/* USER CODE BEGIN 6 */
/* User can add his own implementation to report the file name and line number,
tex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */
/* USER CODE END 6 */
}
#endif /* USE_FULL_ASSERT */
/************************ (C) COPYRIGHT STMicroelectronics *****END OF FILE****/
main.h
/* USER CODE BEGIN Header */
/**
******************************************************************************
* @file : main.h
* @brief : Header for main.c file.
* This file contains the common defines of the application.
******************************************************************************
* @attention
*
* <h2><center>© Copyright (c) 2020 STMicroelectronics.
* All rights reserved.</center></h2>
*
* This software component is licensed by ST under BSD 3-Clause license,
* the "License"; You may not use this file except in compliance with the
* License. You may obtain a copy of the License at:
* opensource.org/licenses/BSD-3-Clause
*
******************************************************************************
*/
/* USER CODE END Header */
/* Define to prevent recursive inclusion -------------------------------------*/
#ifndef __MAIN_H
#define __MAIN_H
#ifdef __cplusplus
extern "C" {
#endif
/* Includes ------------------------------------------------------------------*/
#include "stm32h7xx_hal.h"
/* Private includes ----------------------------------------------------------*/
/* USER CODE BEGIN Includes */
/* USER CODE END Includes */
/* Exported types ------------------------------------------------------------*/
/* USER CODE BEGIN ET */
/* USER CODE END ET */
/* Exported constants --------------------------------------------------------*/
/* USER CODE BEGIN EC */
/* USER CODE END EC */
/* Exported macro ------------------------------------------------------------*/
/* USER CODE BEGIN EM */
/* USER CODE END EM */
/* Exported functions prototypes ---------------------------------------------*/
void Error_Handler(void);
/* USER CODE BEGIN EFP */
/* USER CODE END EFP */
/* Private defines -----------------------------------------------------------*/
#define W5500_INIT_Pin GPIO_PIN_1
#define W5500_INIT_Port GPIOD
#define W5500_RST_Pin GPIO_PIN_0
#define W5500_RST_GPIO_Port GPIOD
#define W5500_CS_Pin GPIO_PIN_9
#define W5500_CS_GPIO_Port GPIOB
/* USER CODE BEGIN Private defines */
typedef int32_t s32;
typedef int16_t s16;
typedef int8_t s8;
typedef const int32_t sc32;
typedef const int16_t sc16;
typedef const int8_t sc8;
typedef __IO int32_t vs32;
typedef __IO int16_t vs16;
typedef __IO int8_t vs8;
typedef __I int32_t vsc32;
typedef __I int16_t vsc16;
typedef __I int8_t vsc8;
typedef uint32_t u32;
typedef uint16_t u16;
typedef uint8_t u8;
typedef const uint32_t uc32;
typedef const uint16_t uc16;
typedef const uint8_t uc8;
typedef __IO uint32_t vu32;
typedef __IO uint16_t vu16;
typedef __IO uint8_t vu8;
typedef __I uint32_t vuc32;
typedef __I uint16_t vuc16;
typedef __I uint8_t vuc8;
/* USER CODE END Private defines */
#ifdef __cplusplus
}
#endif
#endif /* __MAIN_H */
/************************ (C) COPYRIGHT STMicroelectronics *****END OF FILE****/
效果展示

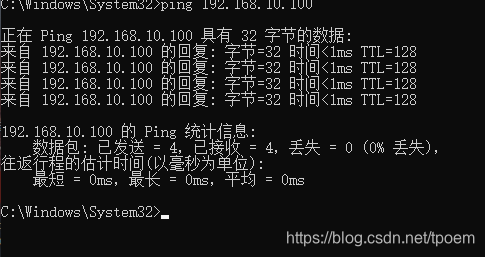

ping通啦

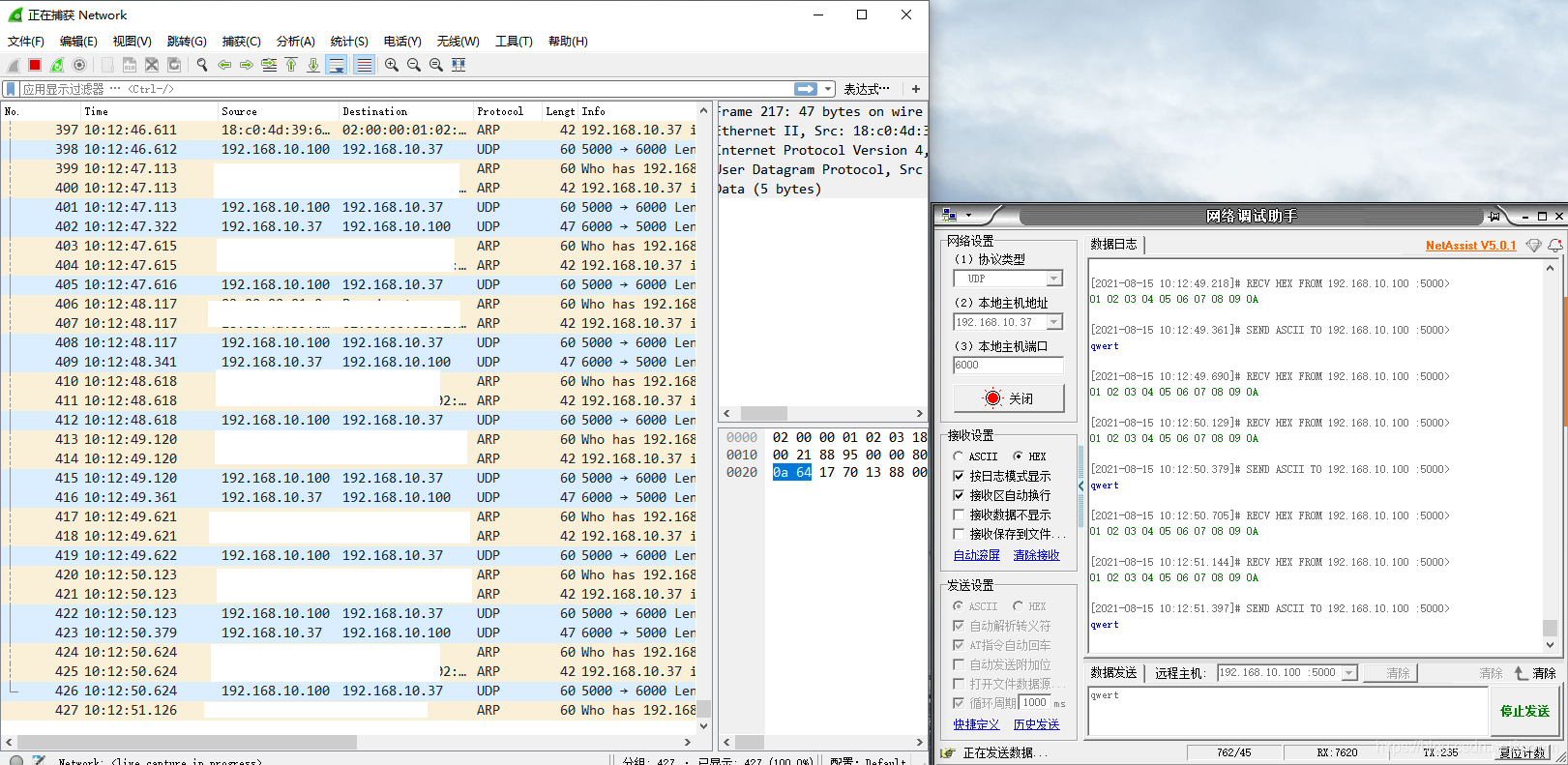

UDP通信OK
W5500对常见UDP端口号与IP绑定的实现效果

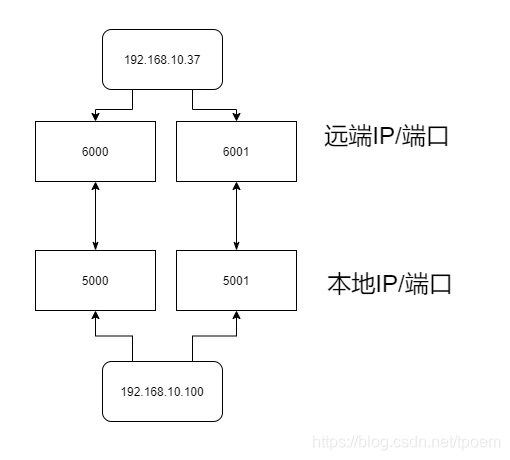

这种场景要开两个socket
这种场景也是要开两个socket

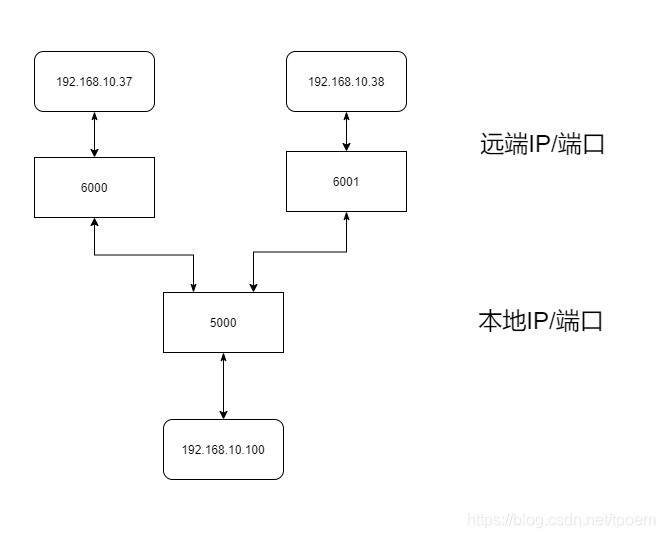

这种开1个Socket就可以，但是对接收的UDP数据的IP端口号要判断下，分别处理，因为相同本地端口号一样，远端IP端口号不一样，可能如果远端IP不一样，端口一样，这种也是适用的
W5500的网络设置
同一局域网内，网关可以不设置，W5500对应的设置网关那个参数不管就可，DNS也是
static void w5500_network_init(void)
{
wiz_NetInfo info;
uint8_t mac[6] = {0x02,0x00,0x00,0x01,0x02,0x03};
uint8_t ip[4] = {192,168,10,100};
uint8_t sn[4] = {255,255,255,0};
// uint8_t gw[4] = {192,168,10,1};
// uint8_t dns[4] = {0,0,0,0};
memcpy(info.mac, mac, 6);
memcpy(info.ip, ip, 4);
memcpy(info.sn, sn, 4);
// memcpy(info.gw, gw, 4);
// memcpy(info.dns, dns, 4);
info.dhcp = NETINFO_STATIC;
wizchip_setnetinfo(&info);
}
