[网络协议]Java从接触到放弃（二十一）--网络编程

Day Twenty-One

网络编程

1. 网络编程中有两个主要的问题
   • 如何准确的定位到网络上的一台或者多台主机
   • 找到主机之后如何进行通信
2. 网络编程中的要素
   • IP和端口号
   • 网络通信协议 udp，tcp

IP

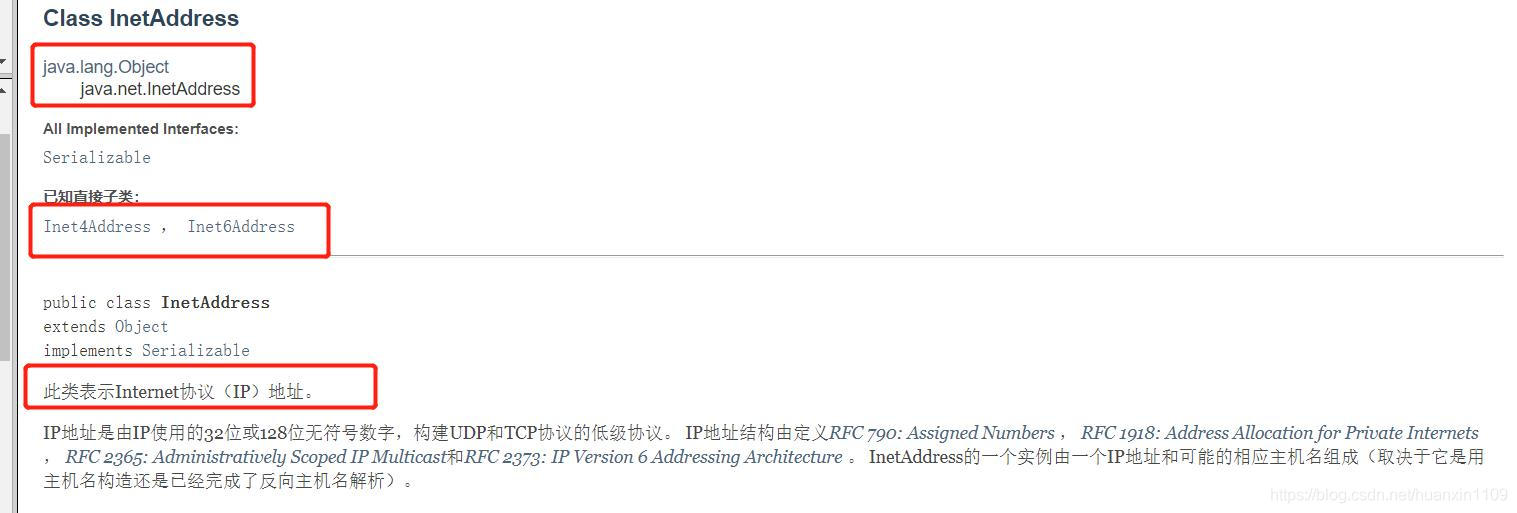

如何能获取到IP地址，在Java中有这样的一个类inetAddress，这个类是在java.net.InetAddress这个包下的，这个包下面的都是和网络相关的。在JavaAPI中对这个类有详细的介绍以及如何去使用。这个类有两个子类，Inet4Address和Inet6Address。

这个类里面没有构造器，只有静态方法。

也就是说我们new一个address，它就会把当前这个地址的IP返回出来。

package com.liuHuan.net;

import java.net.InetAddress;
import java.net.UnknownHostException;

//测试IP
public class TestInetAddress {
    public static void main(String[] args) throws UnknownHostException {
        //查询本机地址
        System.out.println(InetAddress.getByName("127.0.0.1"));
        System.out.println(InetAddress.getByName("localhost"));
        System.out.println(InetAddress.getLocalHost());

        //查询网站IP地址
        InetAddress inetAddress = InetAddress.getByName("www.csdn.com");
        System.out.println(inetAddress);

        //常用方法
        System.out.println(inetAddress.getAddress());
        System.out.println(inetAddress.getCanonicalHostName());//规范的名字
        System.out.println(inetAddress.getHostName());//域名，或者自己电脑的名字
        System.out.println(inetAddress.getHostAddress());//ip
    }
}

端口Port

端口表示计算机上的一个程序的进程：

• 不同的进程有不同的端口号！端口号用来区分软件。

• 端口范围 0~65535

• 端口号分为TCP，UDP端口号，每一个分别有65535个端口号，所以总共有65535*2个。

• 如果说我们在TCP下使用了11这个端口号，我们在UDP下也可同时使用11这个端口号。但是单个协议下，端口号不能冲突。

• 端口分类：

  • 公有端口 0~1023。尽量不要使用，一般会被内置的进程或者服务器使用
    • HTTP：80
    • HTTPS：443
    • FTP：21
    • Telent：23
  • 程序注册端口：1024~49151，分配用户或者程序
    • Tomcat：8080
    • MySQL：3306
    • Oracle：1521
  • 动态、私有端口：49152~65535

• 常用的DOS命令：

  netstat -ano #查看所有的端口
  netstat -ano|findstr "5900" #查看指定的端口
  tasklist|findstr "8696" #查看指定端口的进程


package com.liuHuan.net;

import java.net.InetSocketAddress;

public class TestInetSocketAddress {
    public static void main(String[] args) {
        InetSocketAddress socketAddress = new InetSocketAddress("127.0.0.1", 8080);
        InetSocketAddress socketAddress2 = new InetSocketAddress("localhost", 8080);
        System.out.println(socketAddress);
        System.out.println(socketAddress2);

        System.out.println(socketAddress.getAddress());
        System.out.println(socketAddress.getHostName());//地址
        System.out.println(socketAddress.getPort());//端口号
    }
}

通信协议

协议：就是一个约定。

网络通信协议：速率，传输码率，代码结构，传输控制…

对于网络通信的协议太多了，所以这里我们就要有一个分层的概念。这里对网络通信有OSI和TCP/IP的分层协议。但是最好的，我们现在用的是TCP/IP协议簇，其中有两个比较重要的协议，TCP：用户传输协议；UDP：用户数据报协议。

比较出名的协议就是TCP、IP（网络互联协议）协议

TCP实现聊天

• 客户端

  1. 连接服务器 Socket
  2. 发送消息

  package com.liuHuan.net;

  import java.io.IOException;
  import java.io.OutputStream;
  import java.net.InetAddress;
  import java.net.Socket;

  public class TcpClient {
      public static void main(String[] args) {
          InetAddress serverIP;
          Socket socket = null;
          OutputStream outPut = null;
          try {
              //1.知道服务器的地址，端口
              serverIP = InetAddress.getByName("127.0.0.1");
              int port = 9999;
              //2.创建一个socket连接
              socket = new Socket(serverIP, port);
              //3.发送消息 IO流
              outPut = socket.getOutputStream();
              outPut.write("你好！！".getBytes());

          } catch (Exception e) {
              e.printStackTrace();
          }finally {
              if (null != outPut) {
                  try {
                      outPut.close();
                  } catch (IOException e) {
                      e.printStackTrace();
                  }
              }
              if (null != socket) {
                  try {
                      socket.close();
                  } catch (IOException e) {
                      e.printStackTrace();
                  }
              }
          }
      }
  }


• 服务器

  1. 建立服务的端口 ServerSocket
  2. 等待用户的连接 accept
  3. 接受用户消息

  package com.liuHuan.net;

  import java.io.ByteArrayOutputStream;
  import java.io.IOException;
  import java.io.InputStream;
  import java.net.ServerSocket;
  import java.net.Socket;

  public class TcpServer {
      public static void main(String[] args) {
          ServerSocket serverSocket = null;
          Socket socket = null;
          InputStream inPut = null;
          ByteArrayOutputStream outputStream = null;
          try {
              //1.得有一个地址
              serverSocket = new ServerSocket(9999);
              //2.等待客户端连接过来
              socket = serverSocket.accept();
              //3.读取客户端发过来的信息
              inPut = socket.getInputStream();

  //            管道流实现
              outputStream = new ByteArrayOutputStream();
              byte[] buffer = new byte[1024];
              int len;
              while ((len = inPut.read(buffer)) != -1) {
                  outputStream.write(buffer,0,len);
              }
              System.out.println(outputStream.toString());

  //            用缓冲区实现
  //            byte[] buffer = new byte[1024];
  //            int len;
  //            while ((len = inPut.read(buffer)) != -1) {
  //                System.out.println(new String(buffer, 0, len));
  //            }

          } catch (IOException e) {
              e.printStackTrace();
          }finally {
              if (outputStream != null) {
                  try {
                      outputStream.close();
                  } catch (IOException e) {
                      e.printStackTrace();
                  }
              }
              if (inPut != null) {
                  try {
                      inPut.close();
                  } catch (IOException e) {
                      e.printStackTrace();
                  }
              }
              if (socket != null) {
                  try {
                      socket.close();
                  } catch (IOException e) {
                      e.printStackTrace();
                  }
              }
              if (serverSocket != null) {
                  try {
                      serverSocket.close();
                  } catch (IOException e) {
                      e.printStackTrace();
                  }
              }
          }
      }
  }


实现文件上传

服务端：

package com.liuHuan.net;

import java.io.FileOutputStream;
import java.io.InputStream;
import java.io.OutputStream;
import java.net.ServerSocket;
import java.net.Socket;

public class TcpServer02 {
    public static void main(String[] args) throws Exception {
        //1.创建服务
        ServerSocket serverSocket = new ServerSocket(9000);
        //2.监听客户端的连接
        Socket socket = serverSocket.accept();
        //3.获取输入流
        InputStream inputStream = socket.getInputStream();
        //4.文件输出
        FileOutputStream fileOutputStream = new FileOutputStream("10.jpg");
        byte[] buffer = new byte[1024];
        int len;
        while ((len = inputStream.read(buffer)) != -1) {
            fileOutputStream.write(buffer,0,len);
        }

        //通知客户端，我接收完了
        OutputStream outputStream = socket.getOutputStream();
        outputStream.write("收完了，88".getBytes());

        //关闭所有资源
        outputStream.close();
        fileOutputStream.close();
        inputStream.close();
        socket.close();
        serverSocket.close();
    }
}

客户端

package com.liuHuan.net;

import java.io.*;
import java.net.InetAddress;
import java.net.Socket;

public class TcpClient02 {
    public static void main(String[] args) throws Exception {
        //1.创建一个Socket连接
        Socket socket = new Socket(InetAddress.getByName("127.0.0.1"), 9000);
        //2.创建一个输出流
        OutputStream clientOutPut = socket.getOutputStream();

        //3.读取文件
        FileInputStream picInPut = new FileInputStream(new File("1.jpg"));
        //4.写出文件
        byte[] buffer = new byte[1024];
        int len;
        while ((len = picInPut.read(buffer)) != -1) {
            clientOutPut.write(buffer,0,len);
        }

        //告诉服务端，我发完了。
        socket.shutdownOutput();

        //确定服务器接收完毕，才断开连接
        InputStream inputStream = socket.getInputStream();
        //管道流
        ByteArrayOutputStream outputStream = new ByteArrayOutputStream();
        byte[] buffer2 = new byte[1024];
        int len2;
        while ((len2 = inputStream.read(buffer2)) != -1) {
            outputStream.write(buffer2,0,len2);
        }
        System.out.println(outputStream.toString());

        //关闭所有资源
        outputStream.close();
        inputStream.close();
        picInPut.close();
        clientOutPut.close();
        socket.close();
    }
}

UDP消息发送

可以理解为发短信一样，双方不用建立连接，只需要知道对方的地址就可以。

客户端

package com.liuHuan.net;

import java.net.DatagramPacket;
import java.net.DatagramSocket;
import java.net.InetAddress;

//不需要连接服务器
public class UdpClient01 {
    public static void main(String[] args) throws Exception {
        //1.建立socket连接
        DatagramSocket socket = new DatagramSocket();
        //2.建个包
        String msg = "你好，服务器！";
        //发送给谁
        InetAddress inetAddress = InetAddress.getByName("localhost");
        int port = 9090;
        DatagramPacket packet = new DatagramPacket(msg.getBytes(),0,msg.getBytes().length,inetAddress,port);
        //3.发送包
        socket.send(packet);
        //4.关闭
        socket.close();
    }
}

服务端

package com.liuHuan.net;

import java.net.DatagramPacket;
import java.net.DatagramSocket;
import java.util.Arrays;

//要等待客户端的连接
public class UdpServer01 {
    public static void main(String[] args) throws Exception{
        //开放端口
        DatagramSocket socket = new DatagramSocket(9090);
        //接收数据包
        byte[] buffer = new byte[1024];
        DatagramPacket packet = new DatagramPacket(buffer, 0, buffer.length);

        socket.receive(packet);//阻塞接收

        System.out.println(packet.getAddress().getHostName());
        System.out.println(new String(packet.getData()));
        //关闭连接
        socket.close();
    }
}

UDP聊天实现

一个人发，另一个人只能听：

发送方：

package com.liuHuan.net;

import java.io.BufferedReader;
import java.io.InputStreamReader;
import java.net.DatagramPacket;
import java.net.DatagramSocket;
import java.net.InetAddress;
import java.net.InetSocketAddress;

public class UdpSender01 {
    public static void main(String[] args) throws Exception{
        DatagramSocket socket = new DatagramSocket(8888);

        //准备数据：控制台读取数据 System.in
        BufferedReader reader = new BufferedReader(new InputStreamReader(System.in));

        while (true) {
            String data = reader.readLine();
            DatagramPacket packet = new DatagramPacket(
                    data.getBytes()
                    , 0
                    , data.getBytes().length
                    , new InetSocketAddress("localhost", 6666)
            );

            socket.send(packet);
            if (data.equals("bye")) {
                break;
            }
        }
        socket.close();
    }
}

接收方：

package com.liuHuan.net;

import java.net.DatagramPacket;
import java.net.DatagramSocket;

public class UdpReceive01 {
    public static void main(String[] args) throws Exception {
        DatagramSocket socket = new DatagramSocket(6666);

        while (true) {
            //准备接收包裹
            byte[] container = new byte[1024];
            DatagramPacket packet = new DatagramPacket(container,0,container.length);
            socket.receive(packet);

            //断开连接
            byte[] data = packet.getData();
            String receiveDate = new String(data, 0, data.length);

            System.out.println(receiveDate);

            if (receiveDate.startsWith("bye")) {
                break;
            }
        }

        socket.close();
    }
}

UDP多线程在线咨询

双方既能发送又能收到：

路人甲要和宋兵乙进行实时性的交流。

发送方法：

package com.liuHuan.net;

import java.io.BufferedReader;
import java.io.IOException;
import java.io.InputStreamReader;
import java.net.DatagramPacket;
import java.net.DatagramSocket;
import java.net.InetSocketAddress;
import java.net.SocketException;

public class TalkSend implements Runnable{
    DatagramSocket socket;
    BufferedReader reader;

    private int fromPort;
    private String toIP;
    private int toPort;

    public TalkSend(int fromPort, String toIP, int toPort) throws Exception {
        this.fromPort = fromPort;
        this.toIP = toIP;
        this.toPort = toPort;
        socket = new DatagramSocket(fromPort);
        reader = new BufferedReader(new InputStreamReader(System.in));
    }

    @Override
    public void run() {
        while (true) {
            try {
                String data = reader.readLine();
                DatagramPacket packet = new DatagramPacket(
                        data.getBytes()
                        , 0
                        , data.getBytes().length
                        , new InetSocketAddress(this.toIP, this.toPort)
                );
                socket.send(packet);
                if (data.equals("bye")) {
                    break;
                }
            } catch (IOException e) {
                e.printStackTrace();
            }
        }
        try {
            reader.close();
        } catch (IOException e) {
            e.printStackTrace();
        }
        socket.close();
    }
}

接收方法：

package com.liuHuan.net;

import java.io.IOException;
import java.net.DatagramPacket;
import java.net.DatagramSocket;
import java.net.SocketException;

public class TalkReceive implements  Runnable {
    DatagramSocket socket;

    private int port;
    private String fromName;

    public TalkReceive(int port,String fromName) {
        this.port = port;
        this.fromName = fromName;
        try {
            socket = new DatagramSocket(port);
        } catch (SocketException e) {
            e.printStackTrace();
        }
    }

    @Override
    public void run() {
        try {
            while (true) {
                //准备接收包裹
                byte[] container = new byte[1024];
                DatagramPacket packet = new DatagramPacket(container,0,container.length);
                socket.receive(packet);

                //断开连接
                byte[] data = packet.getData();
                String receiveDate = new String(data, 0, data.length);

                System.out.println(fromName + "：" + receiveDate);

                if (receiveDate.startsWith("bye")) {
                    break;
                }
            }
        } catch (IOException e) {
            e.printStackTrace();
        }

        socket.close();
    }
}

路人甲

package com.liuHuan.net;

public class TalkPeople {
    public static void main(String[] args) throws Exception {
        new Thread(new TalkSend(6666,"localhost",3333)).start();
        new Thread(new TalkReceive(8888,"路人甲")).start();
    }
}

宋兵乙

package com.liuHuan.net;

public class TalkPeople2 {
    public static void main(String[] args) throws Exception {
        new Thread(new TalkSend(5555,"localhost",8888)).start();
        new Thread(new TalkReceive(3333,"宋兵乙")).start();
    }
}

URL下载网络资源

package com.liuHuan.net;

import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.io.IOException;
import java.io.InputStream;
import java.net.HttpURLConnection;
import java.net.MalformedURLException;
import java.net.URL;
import java.net.URLConnection;

public class UrlDown {
    public static void main(String[] args) throws IOException {

        //下载地址
        URL url = new URL("");

        //连接到这个资源
        HttpURLConnection urlConnection = (HttpURLConnection) url.openConnection();

        InputStream inputStream = urlConnection.getInputStream();
        FileOutputStream outputStream = new FileOutputStream("");
        byte[] buffer = new byte[1024];
        int len;
        while ((len = inputStream.read(buffer)) != -1) {
            outputStream.write(buffer,0,len);
        }

        outputStream.close();
        inputStream.close();
        urlConnection.disconnect();//断开连接
    }
}
