[网络协议]WebSocket实现动态可视化（三）

上节链接：WebSocket实现动态可视化（二）
上节已经实现了图表的可视化，但还有优化的地方，如x轴未实现动态，为死数据，且websocket一旦连接还未实现主动断开的操作，所以该篇文章针对这两点做优化处理。

服务端

import random

from flask import Flask
from flask_sockets import Sockets
import datetime
import time
from gevent import pywsgi
from geventwebsocket.handler import WebSocketHandler

app = Flask(__name__)
sockets = Sockets(app)


@sockets.route('/test')
def test(ws):
    while not ws.closed:
        message = ws.receive()
        if message:
            local_time = time.strftime("%H:%M:%S", time.localtime())
            info = random.randint(1, 10)
            msg = {"x": local_time, "y": info}
            time.sleep(1)
            ws.send(str(msg))
        else:
            print('连接断开')
            break


if __name__ == "__main__":
    server = pywsgi.WSGIServer(('0.0.0.0', 5001), application=app,handler_class=WebSocketHandler)
    print('服务已开启')
    server.serve_forever()

客户端

<template>
    <div>
        <!-- 面包屑导航区域 -->
        <el-breadcrumb separator-class="el-icon-arrow-right">
            <el-breadcrumb-item :to="{ path: '/welcome' }">首页</el-breadcrumb-item>
            <el-breadcrumb-item>图表</el-breadcrumb-item>
        </el-breadcrumb>

        <!-- 卡片视图区域 -->
        <el-card>
            <div ref="seller" style="height: 260px; width: 600px; background: rgb(255, 255, 255)" id="msg"></div>
			<el-button type="success" @click="initWebSocket">点击</el-button>
			<el-button type="success" @click="websocketautoclose">停止</el-button>
        </el-card>

    </div>

</template>

<script>
    export default {
        data() {
            return {
				xAxisList: [],
				yAxisList: [],
            }
        },
		mounted() {
            this.initChart()
            this.updateChart()

        },
        methods: {
			// 初始化图表对象
            initChart() {
                this.chart = this.$echarts.init(this.$refs.seller)
            },

            // 更新图表
            updateChart() {

                const option = {
				    dataZoom: [
						{
						  show: true,
						  realtime: true,
						  start: 0,
						  end: 100,
						  xAxisIndex: [0, 1]
						},
						{
						  type: 'inside',
						  realtime: true,
						  start: 0,
						  end: 100,
						  xAxisIndex: [0, 1]
						}
					  ],
					xAxis: {
					type: 'category',
					data: this.xAxisList,
					},
					yAxis: {
					type: 'value'
					},
					series: [
						{
							data: this.yAxisList,
							type: 'line',
							smooth: true
						}
					]
				};
                this.chart.setOption(option)
            },
			initWebSocket() {
				  //初始化websocket
				  let wsuri = 'ws://192.168.1.20:5000/test'
				  this.ws = new WebSocket(wsuri)
				  this.ws.onmessage = this.websocketonmessage
				  this.ws.onopen = this.websocketonopen
				  this.ws.onerror = this.websocketonerror
				  this.ws.onclose = this.websocketclose
				  this.yAxisList = []
				  this.yAxisList = []
				},
			websocketonopen() {
			  console.log('连接 websocket 成功')
			  // 连接成功后发送消息给服务，避免服务收不到消息导致阻塞
			  this.ws.send('test')
			},
			websocketonmessage(e) {
			  //获取websocket推送的数据
			  let msg = eval("("+e.data+")")
			  console.log(msg)
			  this.yAxisList.push(msg.y)
			  this.xAxisList.push(msg.x)
			  this.updateChart()
			  // 每次接收到数据后发送消息给服务，避免服务收不到消息导致阻塞
			  this.ws.send('test')
			  // 判断不存在图表元素则断开连接
			  if (!document.getElementById("msg")) {
				this.websocketautoclose()
				alert('服务已断开，请保持在图表页面')
			  }
			},
			// 连接失败时重新连接
			websocketonerror() {
			  this.initWebSocket()
			},
			// 断开连接后报错
			websocketclose(e) {
			  console.log('断开连接', e)
			  //this.initWebSocket() //断开后重新连接
			},
			// 主动断开连接
			websocketautoclose() {
				this.ws.close()
			},
        }
    }

</script>

<style lang="less" scoped>

</style>

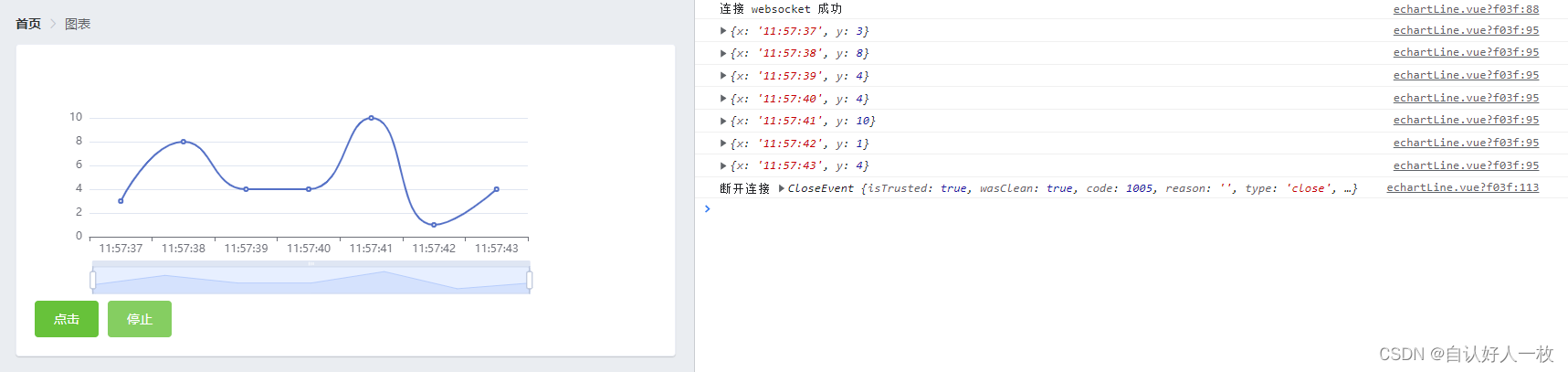

实现效果

小结：

该篇文章已基本实现图表动态可视化，后面如想到有更好的方法再优化处理，有错误或不懂的，以及需要完整源码的可私我，共同进步！
