[网络协议]springboot配置https

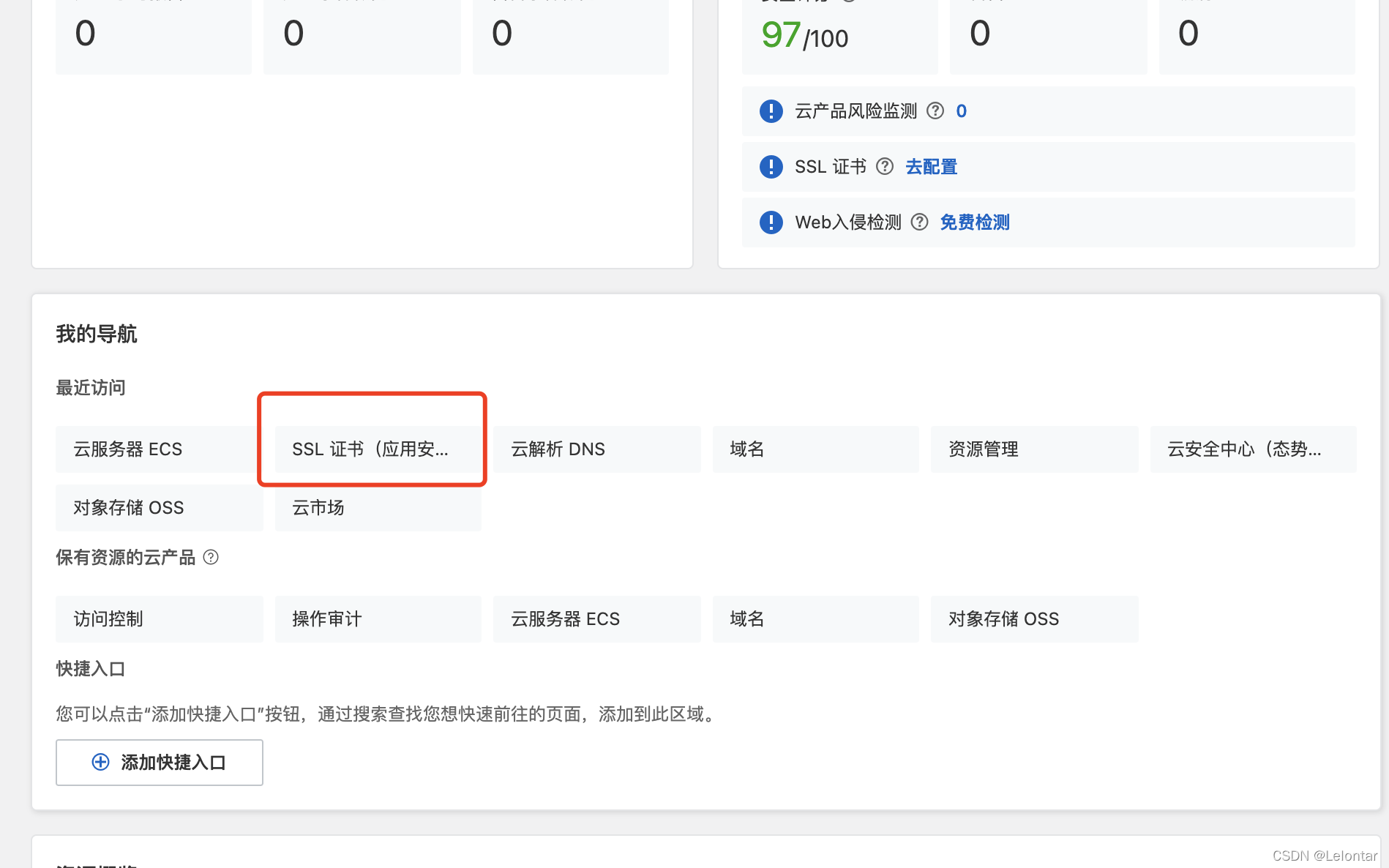

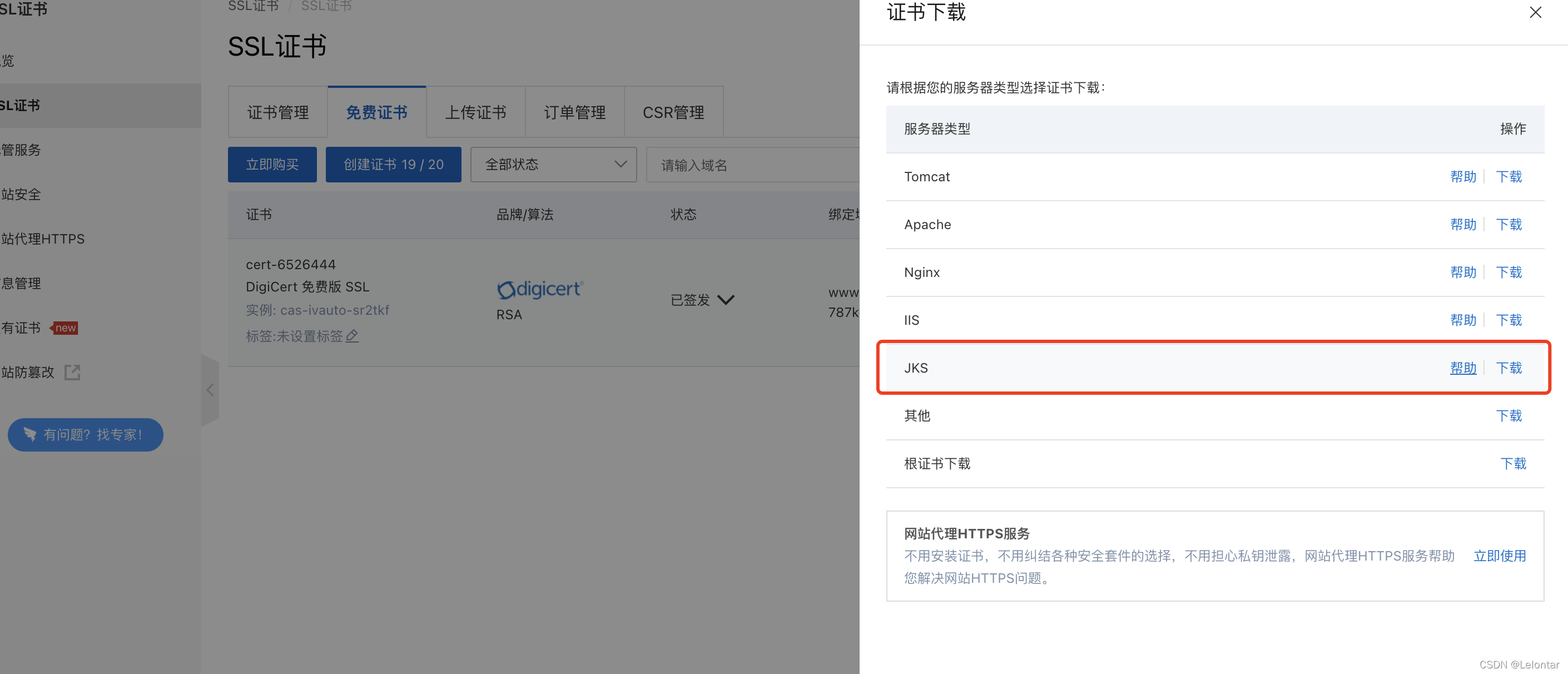

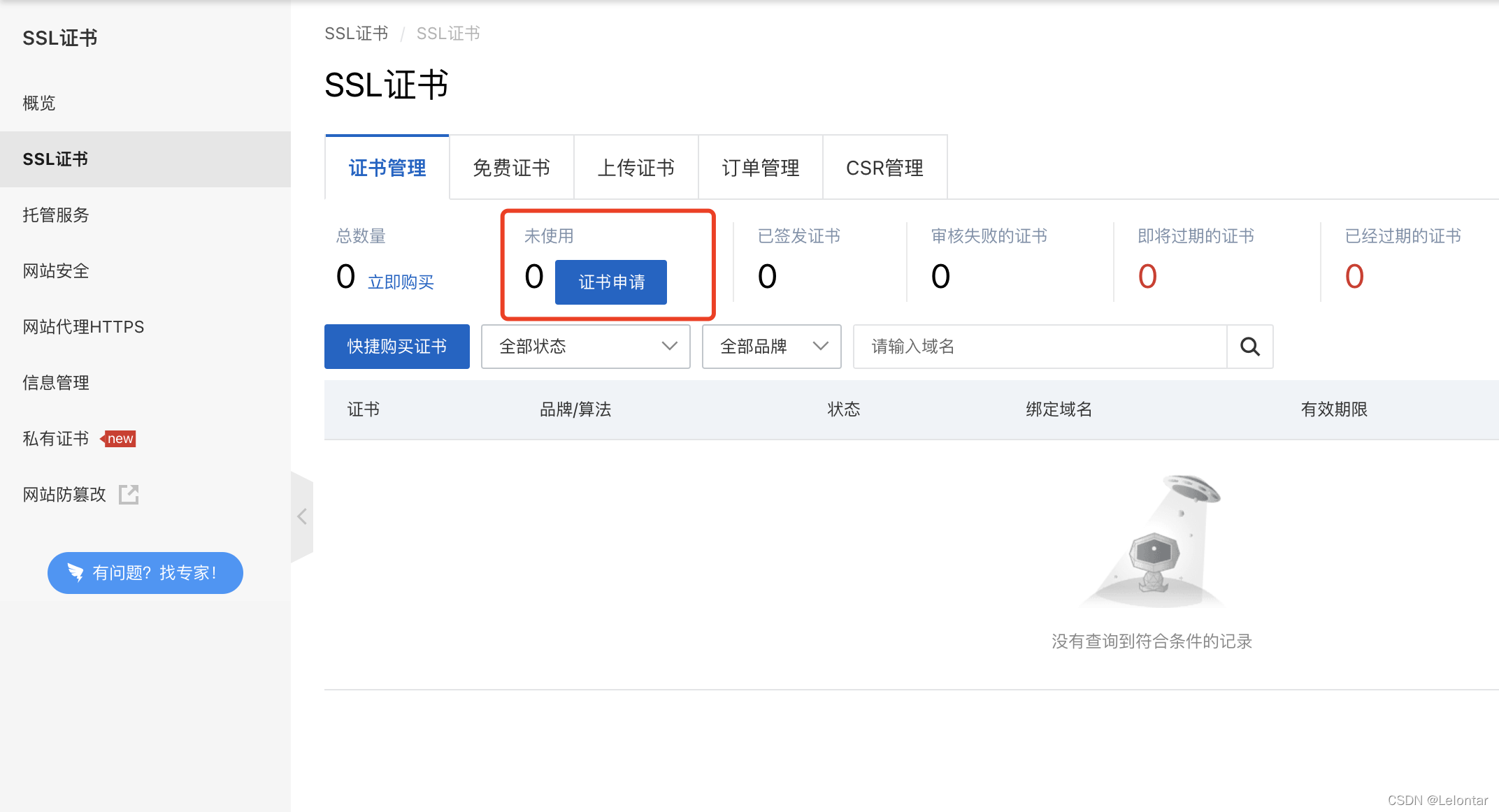

申请、下载SSL证书

• 腾讯云,阿里云都支持免费证书,这里我用的是阿里云

• 步骤如下:


修改application.properties文件

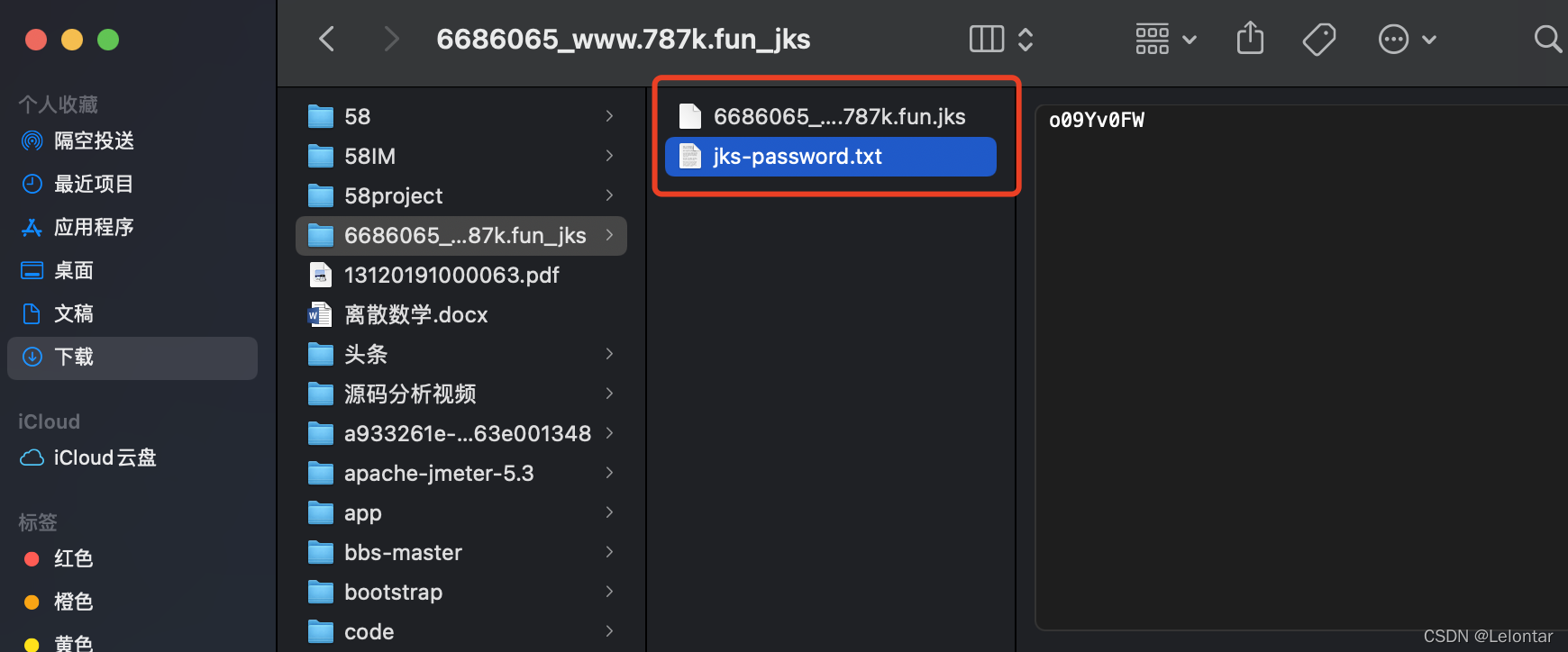

• 将.jks文件与application.properties同级
• 在application.properties文件中添加以下几行配置信息

server.port=443
server.custom.httpPort=80
#自定义启动banner文件的路径
#============================== https配置 ========================================
server.ssl.key-store=classpath:daishu.jks
server.ssl.key-store-password=
server.ssl.key-store-type=JKS

编写HttpsConfig类

package com.daishu.bbs.config;

import org.apache.catalina.Context;
import org.apache.catalina.connector.Connector;
import org.apache.tomcat.util.descriptor.web.SecurityCollection;
import org.apache.tomcat.util.descriptor.web.SecurityConstraint;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.boot.web.embedded.tomcat.TomcatServletWebServerFactory;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

/**
 * @author : xuzhennan @Project : daishu @Package : com.daishu.bbs.config
 * @email : xuzhennan@58.com
 * @date : 2021年12月07日 下午4:46
 */
@Configuration
public class HttpsConfig {

  @Value("${server.custom.httpPort}")
  private Integer httpPort;

  @Value("${server.port}")
  private Integer port;

  /** 访问80端口跳转433 */
  @Bean
  public Connector connector() {
    Connector connector = new Connector("org.apache.coyote.http11.Http11NioProtocol");
    connector.setScheme("http");
    // Connector监听的http的端口号
    connector.setPort(httpPort);
    connector.setSecure(false);
    // 监听到http的端口号后转向到的https的端口号
    connector.setRedirectPort(port);
    return connector;
  }

  @Bean
  public TomcatServletWebServerFactory tomcatServletWebServerFactory(Connector connector) {
    TomcatServletWebServerFactory tomcat =
        new TomcatServletWebServerFactory() {
          @Override
          protected void postProcessContext(Context context) {
            SecurityConstraint securityConstraint = new SecurityConstraint();
            securityConstraint.setUserConstraint("CONFIDENTIAL");
            SecurityCollection collection = new SecurityCollection();
            collection.addPattern("/*");
            securityConstraint.addCollection(collection);
            context.addConstraint(securityConstraint);
          }
        };
    tomcat.addAdditionalTomcatConnectors(connector);
    return tomcat;
  }
}

查看演示效果

演示效果点击这里
