前面的http授权成功后，用的是WebSocket进行登录

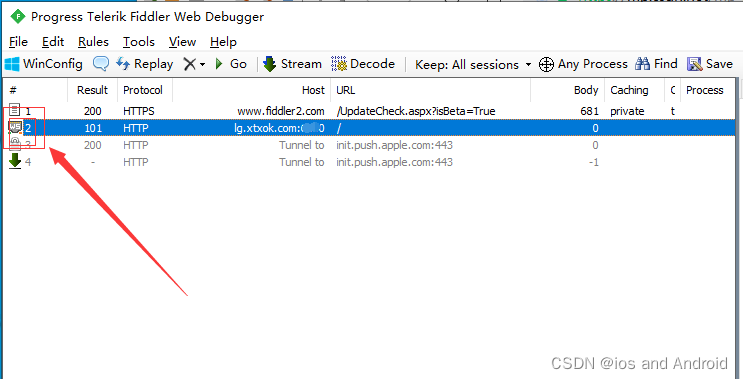

Fiddler 抓包显示

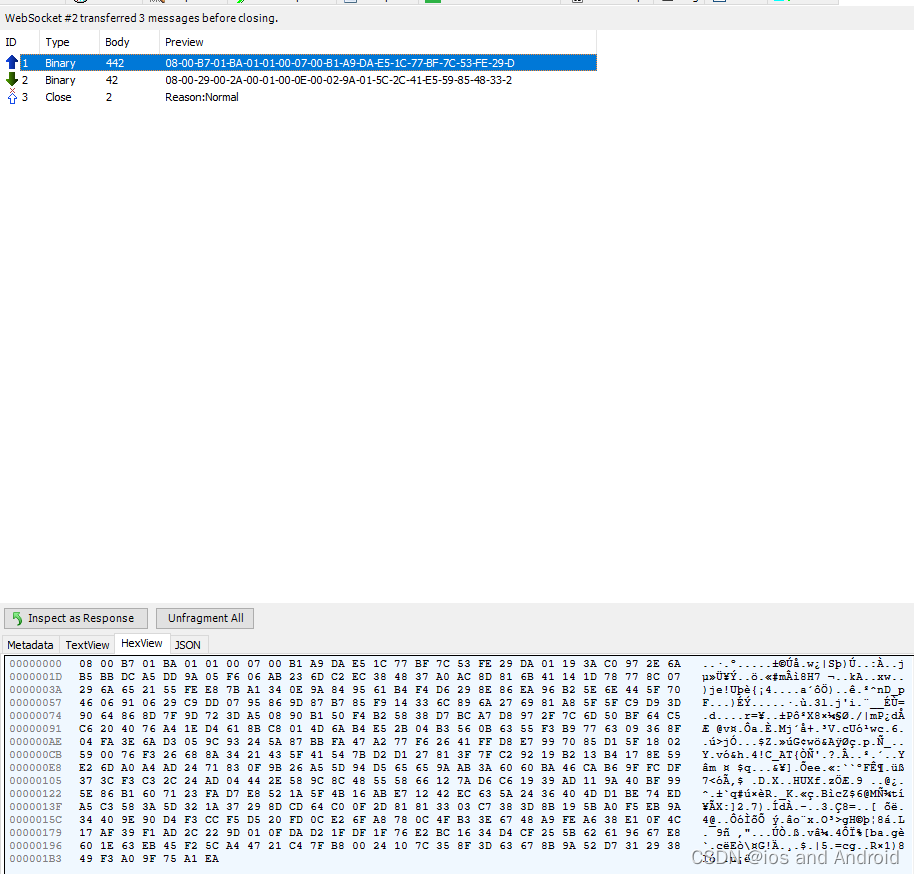

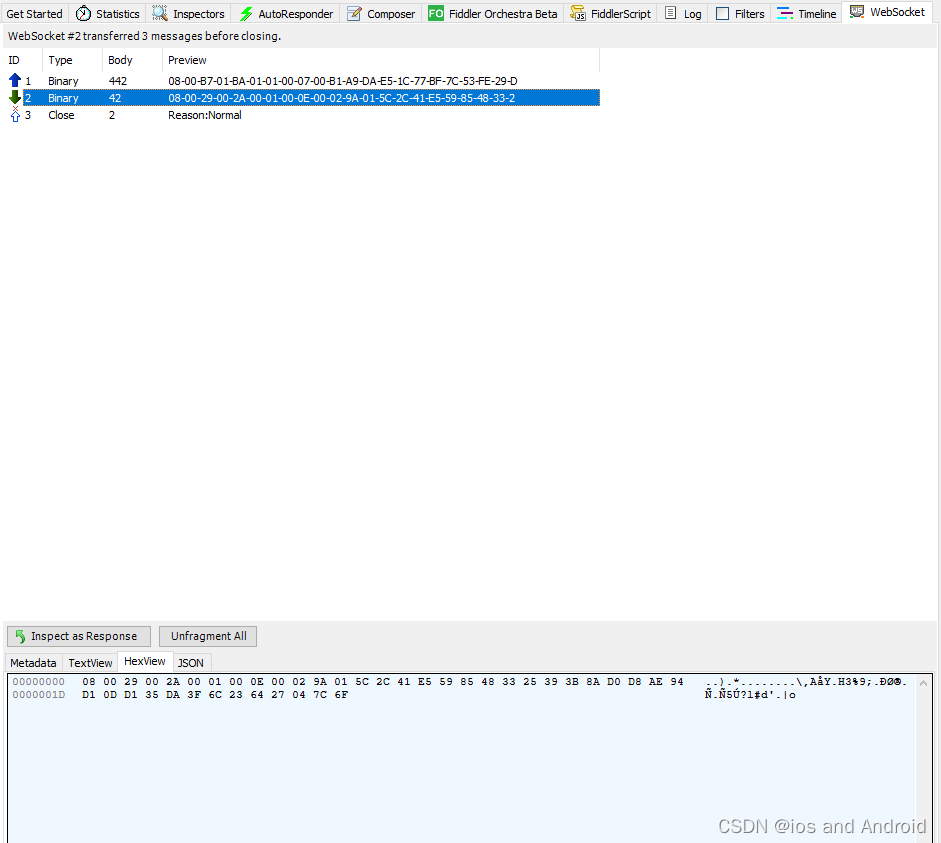

双击进入插件详情，发现是加密的，那就进入js源码看看
?
js源码看看
搜索bufferToData后，得到关键代码
e.prototype.initWithBuffer = function(t) {
switch (this.state) {
case e.ENetDataState.empty:
var n = this.bufferToData(t);
if (null == n) this.state = e.ENetDataState.broken; else {
this.data = n;
this.buffer = t;
this.state = e.ENetDataState.normal;
}
break;
case e.ENetDataState.normal:
cc.error(r, "initWithBuffer", " can not init NetData, the state is normal");
break;
case e.ENetDataState.broken:
cc.error(r, "initWithBuffer", " can not init NetData, the state is broken");
}
};具体实现，主要是看bufferToData 和?dataToBuffer
t.prototype.bufferToData = function(e) {
var o = {
head: null,
content: null
}, n = a.BYProto.sizeof(r.default.Head), c = e.subarray(0, n);
o.head = a.BYProto.interpret(c, r.default.Head);
var l = e.subarray(n, e.byteLength), u = l;
if (o.head.cbDataKind == t.EncryptFlag && l && l.byteLength > 0) {
if (!((u = i.CryptoTool.aesDecryptBuffer(this.aesKey, this.aesIV, l)).byteLength + n >= o.head.wTrimSize)) {
cc.error(s, "bufferToData", "解密后长度不匹配，wMainCmdID = " + o.head.wMainCmdID + ", wSubCmdID = " + o.head.wSubCmdID + ", decrypt.byteLength = " + u.byteLength, ", wTrimSize = " + o.head.wTrimSize);
return;
}
u = u.subarray(0, o.head.wTrimSize - n);
}
o.content = u;
return o;
};
t.prototype.dataToBuffer = function(e) {
var o = a.BYProto.sizeof(r.default.Head), n = e.content;
e.head.cbDataKind = t.EncryptFlag;
if (n) {
e.head.wTrimSize = o + n.byteLength;
var s = i.CryptoTool.aesEncryptBuffer(this.aesKey, this.aesIV, n);
e.head.wPacketSize = o + s.byteLength;
var c = a.BYProto.construct(e.head);
return a.BYProto.concatenateBuffer(c, s);
}
e.head.wTrimSize = o;
e.head.wPacketSize = o;
return a.BYProto.construct(e.head);
};?解密关键
i.CryptoTool.aesDecryptBuffer(this.aesKey, this.aesIV, l)
找找?aesKey 和?aesIV 是怎么生成
搜索得到?setAes 方法赋值了密钥 和 向量
t.prototype.setAes = function(e, t) {
this.aesKey = e;
this.aesIV = t;
};再一波寻找，终于在send 方法找到?setAes 的调用
c.setAes(this.aesKeyBuffer, this.aesIvBuffer);
e.prototype.send = function(e, t, o) {
if (!cc.game.isPaused() && this.state != n.broken) {
var r = new s.default.Head();
r.wMainCmdID = e;
r.wSubCmdID = t;
var i = {
head: r,
content: o
}, c = new a.NetDataWithBY();
if (!this.aesKeyBuffer) {
this.aesKeyBuffer = u.CryptoTool.randomAesKeyBuffer();
this.aesIvBuffer = u.CryptoTool.randomAesIvBuffer();
}
c.setAes(this.aesKeyBuffer, this.aesIvBuffer);//setAes 的调用
c.initWithData(i);
c.getState() == s.default.ENetDataState.normal ? c.isPingMsg() ? this.unshiftSendArray(c) : c.isKernelDetectSocketMsg() ? this.unshiftSendArray(c) : n.reconnecting == this.state ? this.backupArraySend.push(c) : this.sendArray.push(c) : cc.error(h, this.cachekey, "send", "send fail, the NetData state is not normal");
}
};?我们要找的aesKey 和?aesIV， 是由 aesKeyBuffer和 aesIvBuffer 赋值。
分析可以得知，aesKey和aesIV都是每次启动随机生成的。
if (!this.aesKeyBuffer) {??//这里判断密钥是否创建
//创建随机密钥 和 向量
this.aesKeyBuffer = u.CryptoTool.randomAesKeyBuffer();
this.aesIvBuffer = u.CryptoTool.randomAesIvBuffer();
}
//取Key
e.randomAesKeyBuffer = function() {
return n(16);
};
//取Iv
e.randomAesIvBuffer = function() {
return n(16);
};
//生成随机
function n(e) {
for (var t = [], o = 0; o < e; o++){
t.push(Math.floor(255 * Math.random() + 1));
}
return new Uint8Array(t);
}那么我们就测试一下，把重要数据写到本地验证一下。
//js 写文件到本地方法
var writablePath = jsb.fileUtils.getWritablePath();
writablePath += "xdd/";
var fileName = "bufferToData" + "_file.js";
var fullPath = writablePath + fileName;
jsb.fileUtils.createDirectory(writablePath);
jsb.fileUtils.writeStringToFile(JSON.stringify("我的内容"), fullPath);?修改js代码保存->加密->放回缓存位置，打开游戏（具体方法请看上集）
?
?
打开手机xdd目录，得到想要的数据，
?
?
?数据有些看不懂，解析一下在看看【字节集】还原到【十六进制】
还原过程
?得到 纯字节集{8,0,41,0,42,0,1,0,14,0,2,154,1,92,44,65,229,89,133,72,51,37,57,59,138,208,216,174,148,209,13,209,53,218,63,108,35,100,39,4,124,111}
?字节集_字节集到十六进制 (zj)
得到?十六进制080029002A0001000E00029A015C2C41E55985483325393B8AD0D8AE94D10DD135DA3F6C236427047C6F
开始验证解密（密钥也写到了本地，重复上面转换成16进制）
?
aesKey = 127F763C0FEC0D5EEA997C66BA44B2CC
aesIV? =? ?9A1AB62788FC8F89B320425595292AEB?
?经过测试，前20位是包头，需要删除掉再解密
原?
?080029002A0001000E00029A015C2C41E55985483325393B8AD0D8AE94D10DD135DA3F6C236427047C6F
?删掉前20位后
029A015C2C41E55985483325393B8AD0D8AE94D10DD135DA3F6C236427047C6F
解密结果，这里前面显示乱码，是因为?Google?protobuff?格式原因
我们把解密内容设置为十六进制显示
-------->返回类型：文本型
-->系统计算耗时：2 ms
-->系统计算结果：0801121be5beaee4bfa1e68e88e69d83e9aa8ce8af81e5a4b1e8b4a5efbc81
放入protobuff 解析工具，解析一下，原来如此。
?
返回信息是解密完成。
但是发送数据没有解密成功，有时间可以一起研究研究
多次分析，发现也是也是去掉前20位，
?0800B701BA0101000700B1A9DAE51C77BF7C53FE29DA01193AC0972E6AB5BBDCA5DD9A05F606AB236DC2EC384837A0AC8D816B41141D78778C07296A652155FEE87BA1340E9A849561B4F4D6298E86EA96B25E6E445F704606910629C9DD0795869D87B785F914336C896A276981A85F5FC9D93D9064868D7F9D723DA50890B150F4B25838D7BCA7D8972F7C6D50BF64C5C6204076A41ED4618BC8014D6AB4E52B04B3560B6355F3B9776309368F04FA3E6AD3059C93245A87BBFA47A277F62641FFD8E7997085D15F1802590076F326688A3421435F41547BD2D127813F7FC29219B213B4178E59E26DA0A4AD2471830F9B26A55D94D565659AAB3A6060BA46CAB69FFCDF373CF3C32C24AD04442E589C8C48555866127AD6C61939AD119A40BF995E86B1607123FAD7E8521A5F4B16ABE71242EC635A2436404DD1BE74EDA5C3583A5D321A37298DCD64C00F2D81813303C7383D8B195BA0F5EB9A34409E90D4F3CCF5D520FD0CE26FA8780C4FB33E6748A9FEA638E10F4C17AF39F1AD2C229D010FDAD21FDF1F76E2BC1634D4CF255B62619667E8601E63EB45F25CA44721C47FB80024107C358F3D63678B9A52D731293849F3A09F75A1EA
B1A9DAE51C77BF7C53FE29DA01193AC0972E6AB5BBDCA5DD9A05F606AB236DC2EC384837A0AC8D816B41141D78778C07296A652155FEE87BA1340E9A849561B4F4D6298E86EA96B25E6E445F704606910629C9DD0795869D87B785F914336C896A276981A85F5FC9D93D9064868D7F9D723DA50890B150F4B25838D7BCA7D8972F7C6D50BF64C5C6204076A41ED4618BC8014D6AB4E52B04B3560B6355F3B9776309368F04FA3E6AD3059C93245A87BBFA47A277F62641FFD8E7997085D15F1802590076F326688A3421435F41547BD2D127813F7FC29219B213B4178E59E26DA0A4AD2471830F9B26A55D94D565659AAB3A6060BA46CAB69FFCDF373CF3C32C24AD04442E589C8C48555866127AD6C61939AD119A40BF995E86B1607123FAD7E8521A5F4B16ABE71242EC635A2436404DD1BE74EDA5C3583A5D321A37298DCD64C00F2D81813303C7383D8B195BA0F5EB9A34409E90D4F3CCF5D520FD0CE26FA8780C4FB33E6748A9FEA638E10F4C17AF39F1AD2C229D010FDAD21FDF1F76E2BC1634D4CF255B62619667E8601E63EB45F25CA44721C47FB80024107C358F3D63678B9A52D731293849F3A09F75A1EA
?
