[网络协议]闲来无事搭个代理池子

基于ProxyPool创建Proxifier代理

如题目所见，闲来无事在做测试时发现被某网站封了IP，为防止再被封掉，因此有了这篇文章和搭建过程

0x01 安装redis服务

ubuntu16.04
apt-get install redis-server

检查是否服务是否启动

ps aux |grep redis

netstat -lanp | grep 6379

配置redis.conf文件

配置密码及使用远程登

参考：https://www.cnblogs.com/wxjnew/p/9189191.html

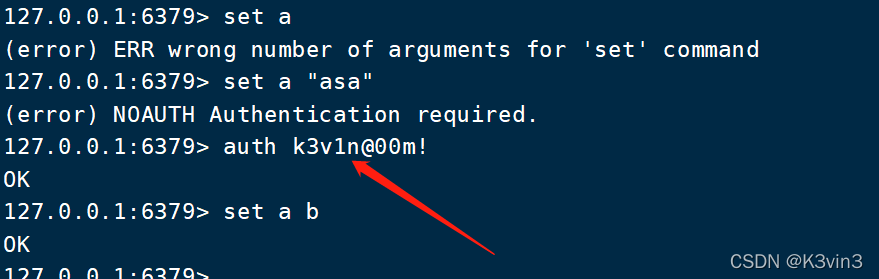

重启redis服务后进入redis客户端测试redis-clil

注意：Redis默认不是以守护进程的方式运行，可以通过该配置项修改，使用yes启用守护进程，设置为no

0x02 拉docker环境

为偷个懒，直接用docker搭建了

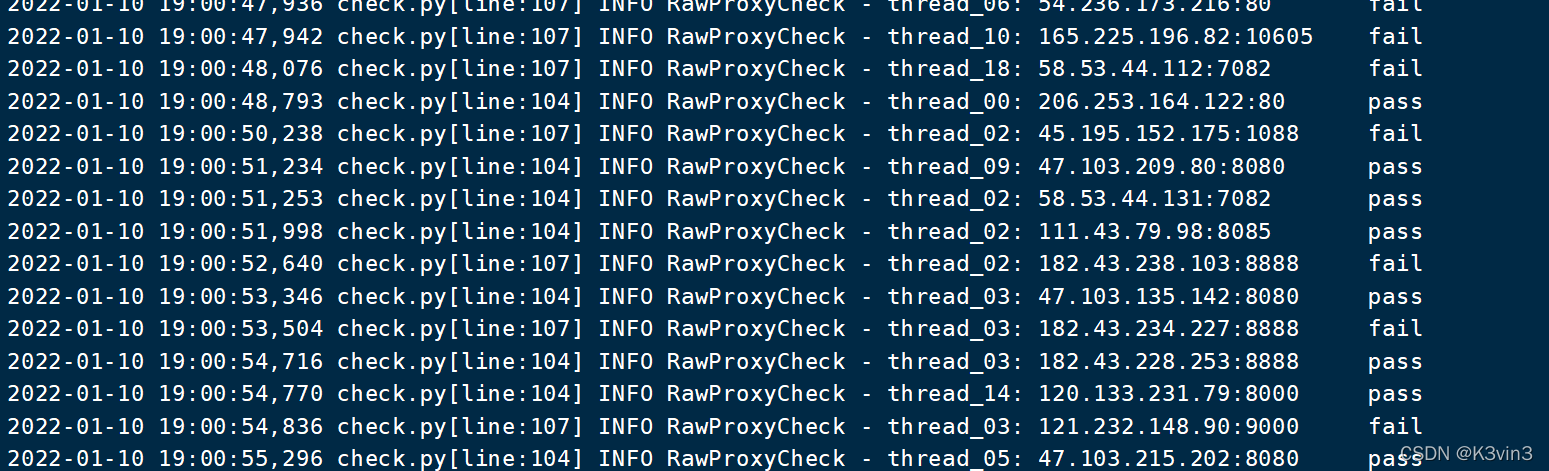

使用github开源ProxyPool项目进行免费的代理IP进行收集、进行可用性验证，将已经验证过代理链接信息保存在Redis数据库中，并且支持docker部署

github传送门：https://github.com/jhao104/proxy_pool

docker pull jhao104/proxy_pool

docker run --en vDB_CONN=redis://:redis数据库密码(不要设置密码，后续执行创建Proxifier配置文件python脚本，使用非认证操作)@ip:port/数据库序号（可以默认写0）-p 5010:5010 jhao104/proxy_pool:latest

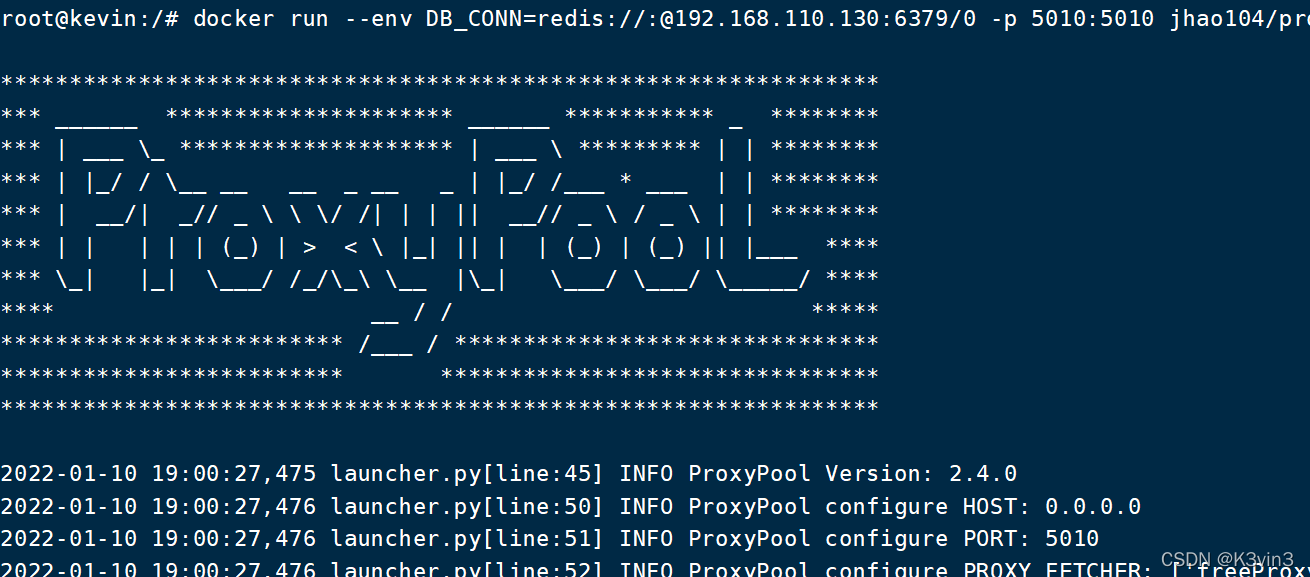

docker run --env DB_CONN=redis://:@your-ip:6379/0 -p 5010:5010 jhao104/proxy_pool:lates

0x03 连接RedisDesktopManager

百度网盘传送门：https://pan.baidu.com/s/1NVPOWSjqDEvBFVA1nkk1uQ
提取码：z7qr

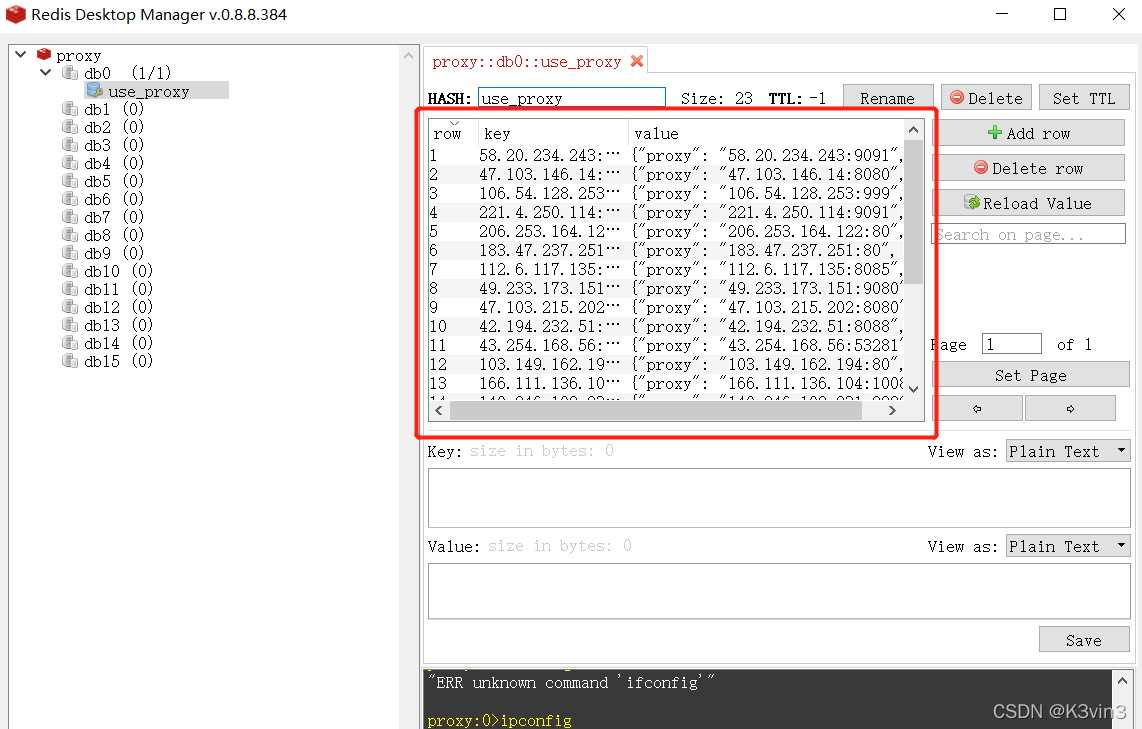

直接连接redis服务的地址

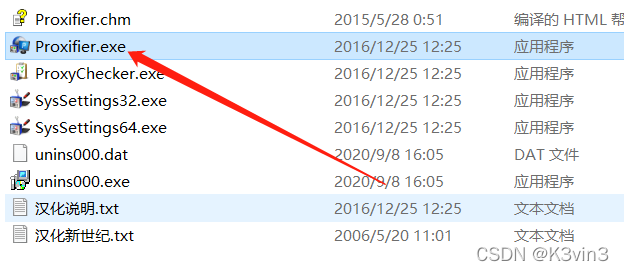

0x04 安装Proxifier

注意：这里Proxifier的版本不能太高，否则会报错，建议3.3.1

百度网盘传送门：https://pan.baidu.com/s/12U7cb4Mbd4pQzVLkaTJwtQ
提取码：hd2m

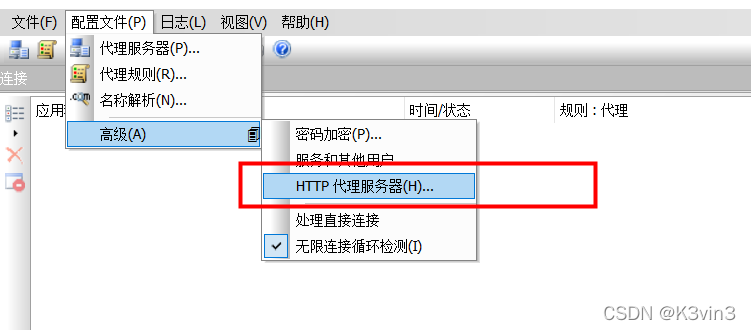

开启HTTP代理服务器设置，因为有一些代理ip是走HTTP协议的，而Proxifier默认只支持HTTPS协议

0x05 生成Proxifier配置文件

python3脚本如下

#!/usr/bin/python
# -*- coding:utf8 -*-

import redis
import json
from xml.etree import ElementTree

def RedisProxyGet():
    ConnectString = []
    pool = redis.ConnectionPool(host='你的redis服务地址', port=6379, db=0, decode_responses=True)
    use_proxy = redis.Redis(connection_pool=pool)
    key = use_proxy.hkeys('use_proxy')
    for temp in key:
        try:
            ConnectString.append(json.loads(use_proxy.hget('use_proxy',temp)))
        except json.JSONDecodeError: # JSON解析异常处理
            pass
    return ConnectString

def xmlOutputs(data):
    i = 101
    ProxyIDList = []
# ProxifierProfile根
    ProxifierProfile = ElementTree.Element("ProxifierProfile")
    ProxifierProfile.set("version", str(i))
    ProxifierProfile.set("platform", "Windows")
    ProxifierProfile.set("product_id", "0")
    ProxifierProfile.set("product_minver", "310")

# Options 节点
    Options = ElementTree.SubElement(ProxifierProfile, "Options")

    # Options.Resolve
    Resolve = ElementTree.SubElement(Options, "Resolve")
    # Options.Resolve.AutoModeDetection
    AutoModeDetection = ElementTree.SubElement(Resolve, "AutoModeDetection")
    AutoModeDetection.set("enabled", "false")

    # Options.Resolve.ViaProxy
    ViaProxy = ElementTree.SubElement(Resolve, "ViaProxy")
    ViaProxy.set("enabled", "false")

    # Options.Resolve.ViaProxy.TryLocalDnsFirst
    TryLocalDnsFirst = ElementTree.SubElement(ViaProxy, "TryLocalDnsFirst")
    TryLocalDnsFirst.set("enabled", "false")

    # Options.Resolve.ExclusionList
    ExclusionList = ElementTree.SubElement(Resolve, "ExclusionList")
    ExclusionList.text = "%ComputerName%; localhost; *.local"

    # Options.*
    Encryption = ElementTree.SubElement(Options, "Encryption")
    Encryption.set("mode", 'basic')
    Encryption = ElementTree.SubElement(Options, "HttpProxiesSupport")
    Encryption.set("enabled", 'true')
    Encryption = ElementTree.SubElement(Options, "HandleDirectConnections")
    Encryption.set("enabled", 'false')
    Encryption = ElementTree.SubElement(Options, "ConnectionLoopDetection")
    Encryption.set("enabled", 'true')
    Encryption = ElementTree.SubElement(Options, "ProcessServices")
    Encryption.set("enabled", 'false')
    Encryption = ElementTree.SubElement(Options, "ProcessOtherUsers")
    Encryption.set("enabled", 'false')

    # ProxyList
    ProxyList = ElementTree.SubElement(ProxifierProfile, "ProxyList")
    for temp in data:
        i += 1  # 从101开始增加
        # ProxyList.Proxy
        Proxy = ElementTree.SubElement(ProxyList, "Proxy")
        Proxy.set("id", str(i))

        if not temp['https']:
            Proxy.set("type", "HTTP")
        else:
            Proxy.set("type", "HTTPS")
            Proxy.text = str(i)
            ProxyIDList.append(i)

        # ProxyList.Proxy.Address
        Address = ElementTree.SubElement(Proxy, "Address")
        Address.text = temp['proxy'].split(":", 1)[0]

        # ProxyList.Proxy.Port
        Port = ElementTree.SubElement(Proxy, "Port")
        Port.text = temp['proxy'].split(":", 1)[1]

        # ProxyList.Proxy.Options
        Options = ElementTree.SubElement(Proxy, "Options")
        Options.text = "48"

    # RuleList
    ChainList = ElementTree.SubElement(ProxifierProfile, "ChainList")

    # RuleList.Chain
    Chain = ElementTree.SubElement(ChainList, "Chain")
    Chain.set("id", str(i))
    Chain.set("type", "simple")

    # RuleList.Chain.Name
    Name = ElementTree.SubElement(Chain, "Name")
    Name.text="AgentPool"

    # RuleList.Chain.Proxy
    for temp_id in ProxyIDList:
        Proxy = ElementTree.SubElement(Chain, "Proxy")
        Proxy.set("enabled", "true")
        Proxy.text=str(temp_id)
    # RuleList
    RuleList = ElementTree.SubElement(ProxifierProfile, "RuleList")

    # Rule
    Rule = ElementTree.SubElement(RuleList, "Rule")
    Rule.set("enabled", "true")
    Name = ElementTree.SubElement(Rule,"Name")
    Applications = ElementTree.SubElement(Rule,"Applications")
    Action = ElementTree.SubElement(Rule,"Action")

    Name.text="御剑后台扫描工具.exe [auto-created]"
    Applications.text="御剑后台扫描工具.exe"
    Action.set("type","Direct")

    # Rule
    Rule = ElementTree.SubElement(RuleList, "Rule")
    Rule.set("enabled", "true")
    Name = ElementTree.SubElement(Rule,"Name")
    Targets = ElementTree.SubElement(Rule,"Targets")
    Action = ElementTree.SubElement(Rule,"Action")

    Name.text="Localhost"
    Targets.text="localhost; 127.0.0.1; %ComputerName%"
    Action.set("type", "Direct")

    # Rule
    Rule = ElementTree.SubElement(RuleList, "Rule")
    Rule.set("enabled", "true")
    Name = ElementTree.SubElement(Rule, "Name")
    Action = ElementTree.SubElement(Rule, "Action")
    Name.text = "Default"
    Action.text = "102"
    Action.set("type", "Proxy")

    tree = ElementTree.ElementTree(ProxifierProfile)
    tree.write("ProxifierConf.ppx", encoding="UTF-8", xml_declaration=True)
if __name__ == '__main__':
    proxy_data = RedisProxyGet()
    xmlOutputs(proxy_data)
    print("ProxifierConf.ppx配置文件创建完成....")

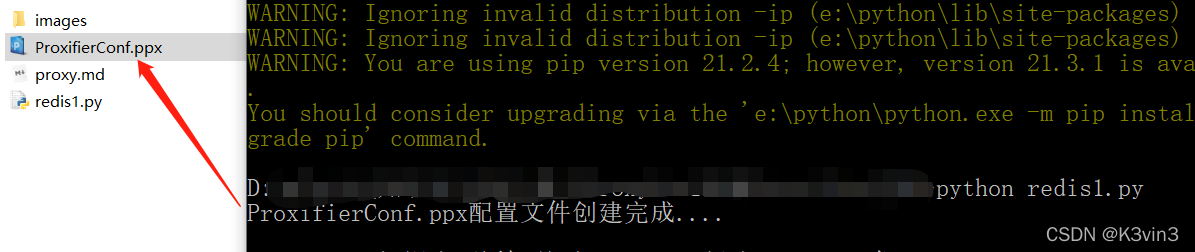

运行该脚本，生成ProxifierConf.ppx文件

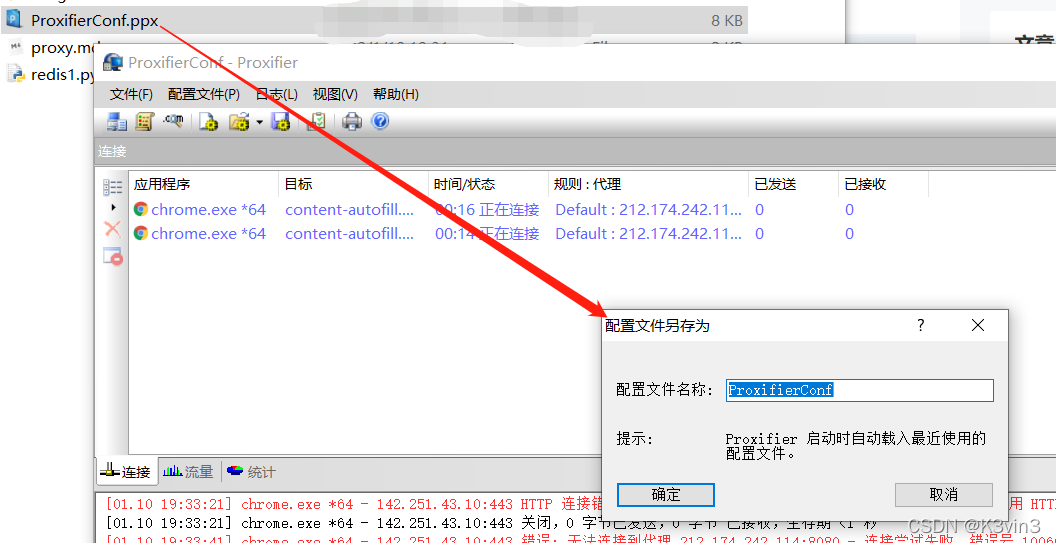

Proxifier配置文件导入（双击ProxifierConf.ppx导入）

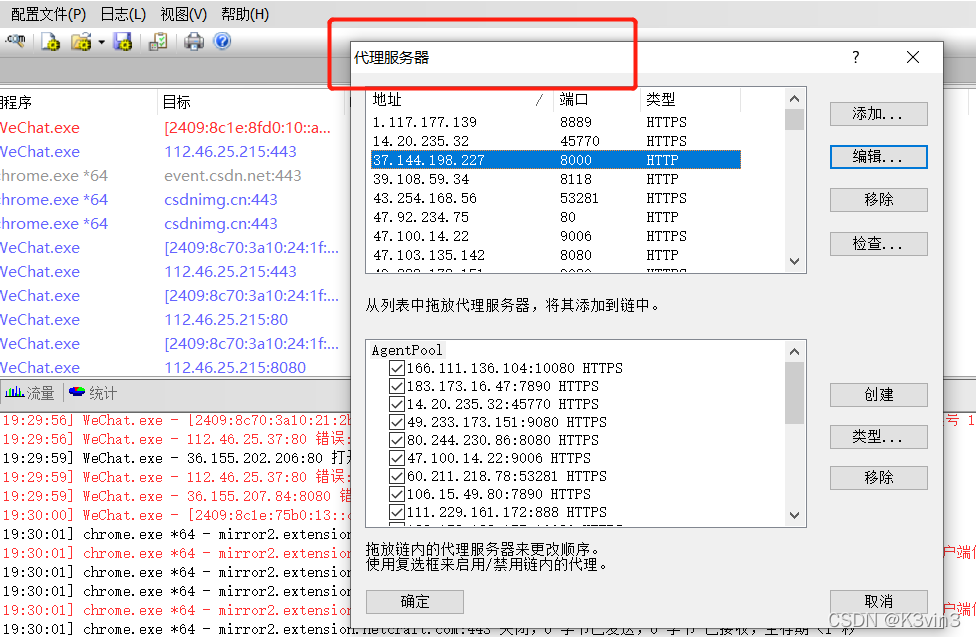

导入配置文件后可以看到代理服务器（代理池）中出现了很多代理地址

0x06

妈妈再也不用担心我被封IP啦
