实验要求

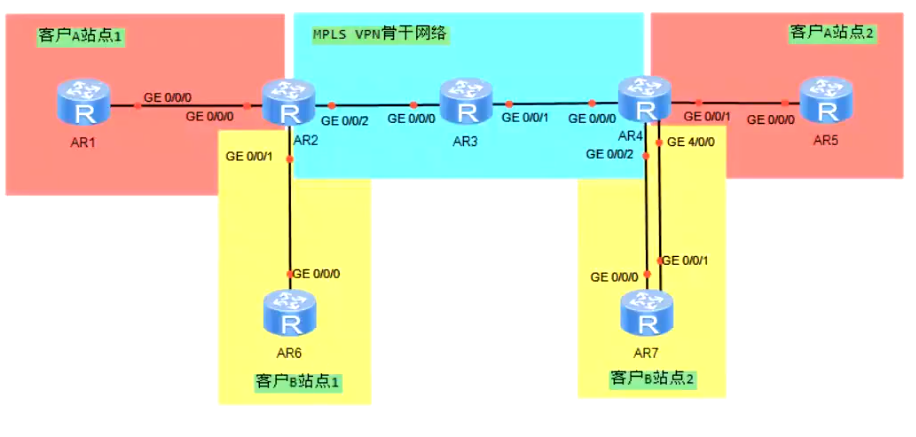

1、R1和R5是客户A两个站点的CE设备，R6和R7是客户B两个站点的CE设备。设备MPLS VPN骨干网络分别连接不同客户的不同站点。
2、R1和R5采用静态路由的方式传递私网路由；R6通过RIP将私网路由传递给PE设备；R7通过OSPF将私网路由传递给PE设备。
3、R1与R2私网之间使用静态路由；R4与R5私网之间使用静态路由；R2与R6私网之间使用RIP；R4与R7私网之间使用OSPF。
3、R7单独拉一根网线保证可以访问公网，R7可以访问R2、R3、R4环回。
实验思路
1、首先配置骨干链路的IP地址及环回接口，启动IGP协议OSPF和激活MPLS通道。
2、配置客户站点的IP地址及环回接口，并划分不同通道，配置相关的路由协议。
3、中间骨干链路启动MP-BGP协议使得路由信息可以传递。
4、在R7上配置缺省路由，使得R7可以访问R2、R3、R4环回。
实验步骤及配置
1、骨干链路IP地址及环回接口的配置
R2
[r2]int g0/0/2
[r2-GigabitEthernet0/0/2]ip a 23.0.0.1 24
[r2-GigabitEthernet0/0/2]int lo0
[r2-LoopBack0]ip a 2.2.2.2 24
R3
[r3]int g0/0/0
[r3-GigabitEthernet0/0/0]ip a 23.0.0.2 24
[r3-GigabitEthernet0/0/0]int g0/0/1
[r3-GigabitEthernet0/0/1]ip a 34.0.0.1 24
[r3-GigabitEthernet0/0/1]int lo0
[r3-LoopBack0]ip a 3.3.3.3 24
R4
[r4]int g0/0/0
[r4-GigabitEthernet0/0/0]ip a 34.0.0.2 24
[r4-GigabitEthernet0/0/0]int g4/0/0
[r4-GigabitEthernet4/0/0]ip a 47.0.0.2 24
[r4-GigabitEthernet4/0/0]int lo0
[r4-LoopBack0]ip a 4.4.4.4 24
R7
[r7]int g0/0/1
[r7-GigabitEthernet0/0/1]ip a 47.0.0.1 24
2、启动IGP协议OSPF
R2
[r2]ospf 1 router-id 2.2.2.2
[r2-ospf-1]a 0
[r2-ospf-1-area-0.0.0.0]network 23.0.0.0 0.0.0.255
R3? ?
[r3]ospf 1 router-id 3.3.3.3
[r3-ospf-1]a 0
[r3-ospf-1-area-0.0.0.0]network 23.0.0.0 0.0.0.255
[r3-ospf-1-area-0.0.0.0]network 34.0.0.0 0.0.0.255?
[r3-ospf-1-area-0.0.0.0]network 3.3.3.3 0.0.0.0
R4
[r4]ospf 1 router-id 4.4.4.4
[r4-ospf-1]a 0??
[r4-ospf-1-area-0.0.0.0]network 34.0.0.0 0.0.0.255
[r4-ospf-1-area-0.0.0.0]network 47.0.0.0 0.0.0.255
[r4-ospf-1-area-0.0.0.0]network 4.4.4.4 0.0.0.0
3、启动MPLS，搭建MPLS域
R2
[r2]mpls lsr-id 2.2.2.2
[r2]mpls?
Info: Mpls starting, please wait... OK!
[r2]mpls ldp?
[r2]int g0/0/2
[r2-GigabitEthernet0/0/2]mpls?
[r2-GigabitEthernet0/0/2]mpls ldp?
R3
[r3]mpls lsr-id 3.3.3.3? ?
[r3]mpls?
Info: Mpls starting, please wait... OK!
[r3]mpls ldp?
[r3]int g0/0/0??
[r3-GigabitEthernet0/0/0]mpls???
[r3-GigabitEthernet0/0/0]mpls ldp?
[r3]int g0/0/1??
[r3-GigabitEthernet0/0/1]mpls?
[r3-GigabitEthernet0/0/1]mpls ldp?
R4
[r4]mpls lsr-id 4.4.4.4?
[r4]mpls?
Info: Mpls starting, please wait... OK!??
[r4]mpls ldp?
[r4]int g0/0/0
[r4-GigabitEthernet0/0/0]mpls??
[r4-GigabitEthernet0/0/0]mpls ldp?
4、在R2、R4两个边界路由器上配置两个不同站点的通道
R2
[r2]ip vpn-instance a? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? 客户A流量的通道
[r2-vpn-instance-a]route-distinguisher 100:100?
[r2-vpn-instance-a-af-ipv4]vpn-target 100:1 both?
?IVT Assignment result:?
Info: VPN-Target assignment is successful.
?EVT Assignment result:?
Info: VPN-Target assignment is successful.
[r2]int g0/0/0?
[r2-GigabitEthernet0/0/0]ip binding vpn-instance a
Info: All IPv4 related configurations on this interface are removed!
Info: All IPv6 related configurations on this interface are removed!
??
[r2]ip vpn-instance b? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?客户B流量的通道
[r2-vpn-instance-b]route-distinguisher 200:200??
[r2-vpn-instance-b-af-ipv4]vpn-target 200:1 both?
?IVT Assignment result:?
Info: VPN-Target assignment is successful.
?EVT Assignment result:?
Info: VPN-Target assignment is successful.
[r2]int g0/0/1??
[r2-GigabitEthernet0/0/1]ip binding vpn-instance b
Info: All IPv4 related configurations on this interface are removed!
Info: All IPv6 related configurations on this interface are removed!
[r2]int g0/0/0
[r2-GigabitEthernet0/0/0]ip a 192.168.2.2 24
[r2-GigabitEthernet0/0/0]int g0/0/1
[r2-GigabitEthernet0/0/1]ip a 172.16.2.2 24?
R4
[r4]ip vpn-instance a????????????????????????????????????????????????????????客户A流量的通道
[r4-vpn-instance-a]route-distinguisher 100:100
[r4-vpn-instance-a-af-ipv4]vpn-target 100:1 both?
?IVT Assignment result:?
Info: VPN-Target assignment is successful.
?EVT Assignment result:?
Info: VPN-Target assignment is successful.
[r4]int g0/0/1
[r4-GigabitEthernet0/0/1]ip binding vpn-instance a
Info: All IPv4 related configurations on this interface are removed!
Info: All IPv6 related configurations on this interface are removed!
[r4]ip vpn-instance b????????????????????????????????????????????????????????客户B流量的通道
[r4-vpn-instance-b]route-distinguisher 200:200? ??
[r4-vpn-instance-b-af-ipv4]vpn-target 200:1 both?
?IVT Assignment result:?
Info: VPN-Target assignment is successful.
?EVT Assignment result:?
Info: VPN-Target assignment is successful.
[r4]int g0/0/2??
[r4-GigabitEthernet0/0/2]ip binding vpn-instance b
Info: All IPv4 related configurations on this interface are removed!
Info: All IPv6 related configurations on this interface are removed!
[r4]int g0/0/1
[r4-GigabitEthernet0/0/1]ip a 192.168.3.2 24
[r4]int g0/0/2
[r4-GigabitEthernet0/0/2]ip a 172.16.3.2 24
5、给私网设备配置IP地址及环回接口
R1
[r1]int g0/0/0
[r1-GigabitEthernet0/0/0]ip a 192.168.2.1 24
[r1-GigabitEthernet0/0/0]int lo0
[r1-LoopBack0]ip a 192.168.1.1 24
R6
[r6-GigabitEthernet0/0/0]ip a 172.16.2.1 24
[r6-GigabitEthernet0/0/0]int lo0
[r6-LoopBack0]ip a 172.16.1.1 24
R5
[r5-GigabitEthernet0/0/0]ip a 192.168.3.1 24
[r5-GigabitEthernet0/0/0]int lo0
[r5-LoopBack0]ip a 192.168.4.1 24?
R7
[r7-GigabitEthernet0/0/0]ip a 172.168.3.1 24
[r7-GigabitEthernet0/0/0]int lo0
[r7-LoopBack0]ip a 172.16.4.1 24
6、静态配置路由
R1
[r1]ip route-static 192.168.3.0 24 192.168.2.2
[r1]ip route-static 192.168.4.0 24 192.168.2.2
R2
[r2]ip route-static vpn-instance a 192.168.1.0 24 192.168.2.1
R5
[r5]ip route-static 192.168.1.0 24 192.168.3.2? ?
[r5]ip route-static 192.168.2.0 24 192.168.3.2
R4
[r4]ip route-static vpn-instance a 192.168.4.0 24 192.168.3.1
7、动态路由配置
R6
[r6]rip 1
[r6-rip-1]v 2
[r6-rip-1]network 172.16.0.0
R2
[r2]rip 1 vpn-instance b
[r2-rip-1]v 2? ?
[r2-rip-1]network 172.16.0.0
R7
[r7]ospf 1 router-id 7.7.7.7
[r7-ospf-1]a 0
[r7-ospf-1-area-0.0.0.0]network 172.16.0.0 0.0.255.255
R4
[r4]ospf 2 vpn-instance b router-id 4.4.4.4
[r4-ospf-2]a 0? ??
[r4-ospf-2-area-0.0.0.0]network 172.16.0.0 0.0.255.255
8、R2与R4建立BGP关系
R2
[r2]bgp 1
[r2-bgp]router-id 2.2.2.2
[r2-bgp]peer 4.4.4.4 as 1??
[r2-bgp]peer 4.4.4.4 connect-interface LoopBack 0??
[r2-bgp]ipv4-family vpnv4? ?
[r2-bgp-af-vpnv4]peer 4.4.4.4 enable?
R4
[r4]bgp 1?
[r4-bgp]router-id 4.4.4.4? ??
[r4-bgp]peer 2.2.2.2 as 1? ?
[r4-bgp]peer 2.2.2.2 connect-interface LoopBack 0
[r4-bgp]ipv4-family vpnv4
[r4-bgp-af-vpnv4]peer 2.2.2.2 enable?
9、发布路由
R2
[r2-bgp]ipv4-family vpn-instance a? ? ? ? ? ? ? ? ?将R1静态与直连重发布
[r2-bgp-a]import-route static?
[r2-bgp-a]import-route direct?
R4
[r4-bgp]ipv4-family vpn-instance a? ???????????????将R5静态与直连重发布
[r4-bgp-a]import-route static?
[r4-bgp-a]import-route direct?
R2
[r2-bgp]ipv4-family vpn-instance b? ? ? ? ? ? ? ?? 将RIP与BGP进行双向重发布
[r2-bgp-b]import-route rip 1
[r2]rip? ?
[r2-rip-1]import-route bgp?
R4
[r4-bgp]ipv4-family vpn-instance b? ? ? ? ? ? ? ???将BGP与OSPF进行双向重发布
[r4-bgp-b]import-route ospf 2
[r4]ospf 2
[r4-ospf-2]import-route bgp?
10、在R7上配置缺省路由
[r7]ip route-static 0.0.0.0 0 47.0.0.2
实验结果接验证

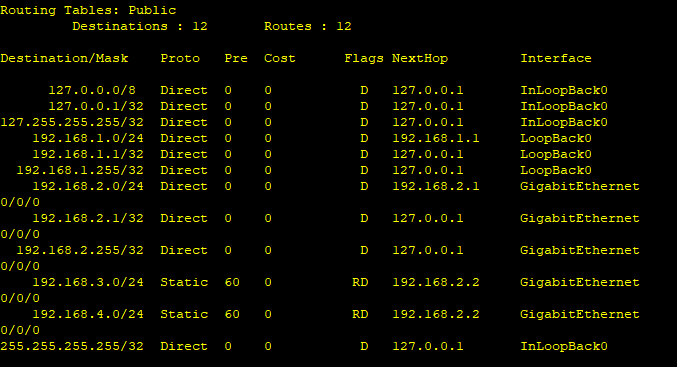

1、A站点R1的路由信息查看
2、B站点R6的路由信息查看?
?

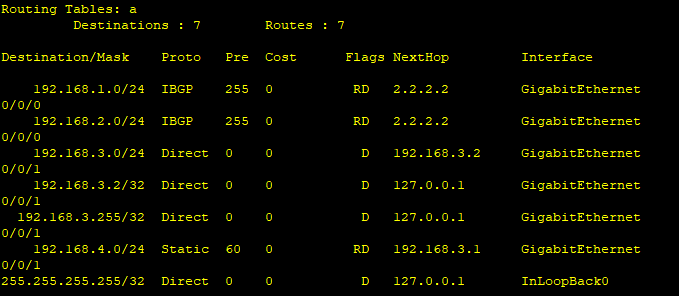

3、隧道A的路由信息
?

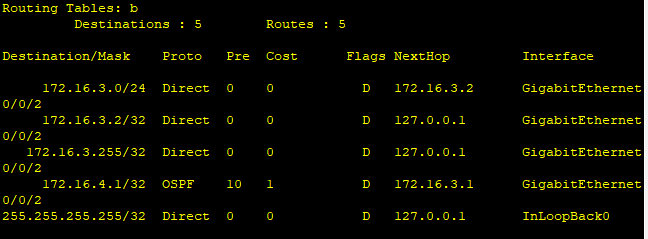

4、隧道B的路由信息
?

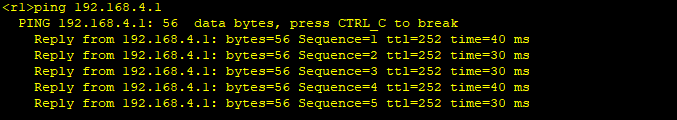

?5、R1pingR5的环回接口

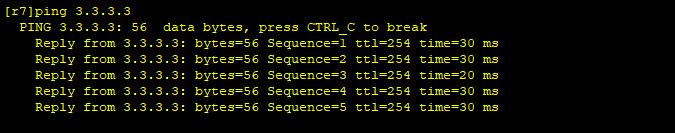

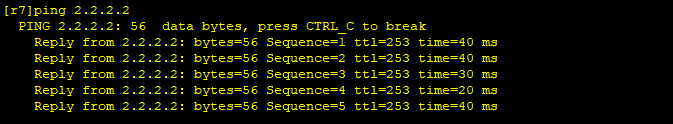

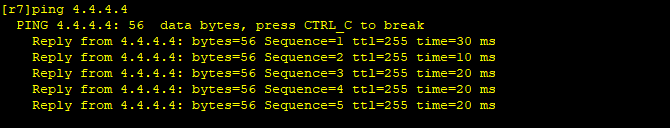

6、R7pingR2、R3、R4的环回接口
?
?
