[网络协议]是时候该写下Springboot基于Keytool的SSL双向认证代码示了

1.前言

HTTPS （全称：Hyper Text Transfer Protocol over SecureSocket Layer），是以安全为目标的 HTTP 通道，在HTTP的基础上通过传输加密和身份认证保证了传输过程的安全性 [1] 。HTTPS 在HTTP 的基础下加入SSL 层，HTTPS 的安全基础是 SSL，因此加密的详细内容就需要 SSL。 HTTPS 存在不同于 HTTP 的默认端口及一个加密/身份验证层（在 HTTP与 TCP 之间）。这个系统提供了身份验证与加密通讯方法。

JDK中keytool 常用命令:

-genkey      在用户主目录中创建一个默认文件".keystore",还会产生一个mykey的别名，mykey中包含用户的公钥、私钥和证书
(在没有指定生成位置的情况下,keystore会存在用户系统默认目录，如：对于window xp系统，会生成在系统的C:/Documents and Settings/UserName/文件名为“.keystore”)
-alias       产生别名
-keystore    指定密钥库的名称(产生的各类信息将不在.keystore文件中)
-keyalg      指定密钥的算法 (如 RSA  DSA（如果不指定默认采用DSA）)
-validity    指定创建的证书有效期多少天
-keysize     指定密钥长度
-storepass   指定密钥库的密码(获取keystore信息所需的密码)
-keypass     指定别名条目的密码(私钥的密码)
-dname       指定证书拥有者信息 例如：  "CN=名字与姓氏,OU=组织单位名称,O=组织名称,L=城市或区域名称,ST=州或省份名称,C=单位的两字母国家代码"
-list        显示密钥库中的证书信息      keytool -list -v -keystore 指定keystore -storepass 密码
-v           显示密钥库中的证书详细信息
-export      将别名指定的证书导出到文件  keytool -export -alias 需要导出的别名 -keystore 指定keystore -file 指定导出的证书位置及证书名称 -storepass 密码
-file        参数指定导出到文件的文件名
-delete      删除密钥库中某条目          keytool -delete -alias 指定需删除的别  -keystore 指定keystore  -storepass 密码
-printcert   查看导出的证书信息          keytool -printcert -file yushan.crt
-keypasswd   修改密钥库中指定条目口令    keytool -keypasswd -alias 需修改的别名 -keypass 旧密码 -new  新密码  -storepass keystore密码  -keystore sage
-storepasswd 修改keystore口令      keytool -storepasswd -keystore e:/yushan.keystore(需修改口令的keystore) -storepass 123456(原始密码) -new yushan(新密码)
-import      将已签名数字证书导入密钥库  keytool -import -alias 指定导入条目的别名 -keystore 指定keystore -file 需导入的证书

本文使用okhttp3访问SpringBoot创建的https接口。

2.SpringBoot配置文件

applicathon.properties

#端口
server.port=8443

#需要分别配置Key Store和Trust Store的文件、密码等信息，即使是同一个文件。
server.ssl.enabled=true
#server.ssl.key-store-type=PKCS12  #这里注释掉，不然会报找不到PCKS12的错误
server.ssl.key-store=classpath:starpulse_server.p12
server.ssl.key-password=xxxxx  #这是获取私钥的密码
server.ssl.key-store-password=xxxxx #这是获取秘钥库的密码多了个store（这点注意）
server.ssl.key-alias=starpulse_server

server.ssl.trust-store=classpath:starpulse_server.p12
server.ssl.trust-store-password=xxxxx
server.ssl.trust-store-provider=SUN
#server.ssl.trust-store-type=PKCS12  #这里注释掉，不然会报找不到PCKS12的错误
#server.ssl.client-auth有三个可配置的值：none、want和need。
#双向验证应该配置为need；
#none表示不验证客户端；
#want表示会验证，但不强制验证，即验证失败也可以成功建立连接
server.ssl.client-auth=need

3.代码逻辑

3.1 公共实体类&KeyTools工具类

KeyStoreCommand .java

public class KeyStoreCommand {

    private String alias;//产生别名
    private int keysize;//指定密钥长度
    private String keyalg; //指定密钥的算法 (如 RSA DSA（如果不指定默认采用DSA）)
    private String sigalg;// 签名算法名称
    private String destalias; //目标别名
    private String startdate;//证书有效期开始日期/时间
    private String commonname;//CN=名字与姓氏
    private String organizationalUnit;//OU=组织单位名称
    private String organization;//O=组织名称
    private String city;//L=城市或区域名称
    private String state;//ST=州或省份名称
    private String country;//C=单位的两字母国家代码
    private long validity; //指定创建的证书有效期多少天
    private String keystore;// 指定密钥库的名称
    private String storepass;// 指定密钥库的密码(获取keystore信息所需的密码)
    private String keypass;//指定别名条目的密码(私钥的密码)
    private String storetype;//密钥库类型
    private String filepath;// 参数指定导出到文件的证书文件名

Keytools.java类

//1.使用java代码生成密钥库
    public static KeyStore createKeyStoreFile(KeyStoreCommand entity,String serverAlias,Certificate serverCert) throws Exception {
        final String alias = entity.getAlias();//"home2";
        String keystore = entity.getKeystore();//"d:/keys/home2.p12";
        final int keySize = entity.getKeysize(); //1024;
        final String keyalg=entity.getKeyalg();//RSA
        final String sigalg=entity.getSigalg();//SHA256withRSA
        final String commonName = entity.getCommonname();//"db";
        final String organizationalUnit = entity.getOrganizationalUnit();//"com.home";
        final String organization = entity.getOrganization();//"easywith";
        final String city = entity.getCity();//"guiyang";
        final String state = entity.getState();//"guizhou"
        final String country = entity.getCountry();//"cn"
        final long validity = entity.getValidity();//3650
        final String keyPassword = entity.getKeypass();//"123456";
        final String storetype = entity.getStoretype();//PKCS12
        // keytool工具
        CertAndKeyGen keyGen = new CertAndKeyGen(keyalg, sigalg);

        // 通用信息
        X500Name x500Name = new X500Name(commonName, organizationalUnit, organization, city, state, country);
        //根据密钥长度生成公钥和私钥
        keyGen.generate(keySize);
        PrivateKey privateKey = keyGen.getPrivateKey();
        // 证书
        X509Certificate certificate = keyGen.getSelfCertificate(x500Name, new Date(), (long) validity * 24 * 60 * 60);
        KeyStore keyStore = KeyStore.getInstance(storetype);
        keyStore.load(null,null);
        keyStore.setKeyEntry(alias,privateKey,keyPassword.toCharArray(),new Certificate[]{certificate});

        System.out.println("Assigns the given trusted certificate to the given alias");
        if(StringUtils.isNotEmpty(serverAlias)){
            keyStore.setCertificateEntry(serverAlias,serverCert);
        }
        FileOutputStream outputStream = new FileOutputStream(keystore);
        keyStore.store(outputStream,keyPassword.toCharArray());
        outputStream.close();
        System.out.println("keyStore file created ...");
        return keyStore;
    }

3.2 构造实体对象

3.2.1 构造KeyStoreCommand实例对象

            HanyuPinyinOutputFormat format = new HanyuPinyinOutputFormat();
            //拼音小写
            format.setCaseType(HanyuPinyinCaseType.LOWERCASE);
            //不带声调
            format.setToneType(HanyuPinyinToneType.WITHOUT_TONE);
            //要转换中文格式
            String clientAlias = PinyinHelper.toHanYuPinyinString(tenant.getFullName(), format, "", true);
            //每次更新秘钥及证书文件版本递增（alias_0,alias_1....）
            clientAlias = clientAlias+"_"+tenant.getVersion();

            Long validity = ((tenant.getExpaireTime().getTime() - tenant.getCreateTime().getTime()) / 86400000L);
            log.info("受信任证书有效天数：{}(单位：天)",validity);
            String  CN = (tenant.getShortName()),
                    OU = (tenant.getFullName()),
                    O = (tenant.getShortName()),
                    L = (PinyinHelper.toHanYuPinyinString(tenant.getCity(), format, "", true)),
                    ST = (PinyinHelper.toHanYuPinyinString(tenant.getProvince(), format, "", true)),
                    C = ("CN");
            log.info("CN=(名字与姓氏):{}, OU=(组织单位名称):{}, O=(组织名称):{}," +
                    " L=(城市或区域名称):{}, ST=(州或省份名称):{}, C=(单位的两字母国家代码):{}",
                    CN,OU,O,L,ST,C);
            String keyStore = rootPath + clientAlias+".p12";
            String cerPath = rootPath + clientAlias+".cer";

            log.info("客户端秘钥库：{},受信任证书库：{}",keyStore,cerPath);

3.2.2 重点：核心操作(证书交换)双方受信任

总体步骤：

 1. 创建服务端keystore秘钥库
 2. 从服务端keystore秘钥库导出服务端证书
 3. 创建客户端keystore秘钥库
 4. 从客户端keystore秘钥库导出客户端证书
 5. 将服务端证书导入客户端keystore中
 6. 将客户端证书导入服务端keystore中

首先提前创建好服务端keystore并导出服务端证书（两种方式）
1.通过keytool命令行方式来创建

1.生成服务端keystore
keytool -genkeypair -alias server -keyalg RSA -sigalg SHA256withRSA -dname CN="xxxxx公司",OU="易xx" ,O="大数据组" ,L=Guiyang,ST=Guizhou,C=CN -validity 3650 -keypass 123456-storepass xxxxxx -storetype PKCS12 -keystore D:/keys/starpulse_server.p12
2.导出服务端证书
keytool -export -alias server -file D:/keys/starpulse_server.cer -keystore D:/keys/starpulse_server.p12 -storetype PKCS12 -storepass 123456

2.根据java代码来创建

  //1.使用java代码生成密钥库
    public static KeyStore createKeyStoreFile() throws Exception {
        //构造KeyStoreCommand实体对象
        final String alias = entity.getAlias();//"home2";
        String keystore = entity.getKeystore();//"d:/keys/home2.p12";
        final int keySize = entity.getKeysize(); //1024;
        final String keyalg=entity.getKeyalg();//RSA
        final String sigalg=entity.getSigalg();//SHA256withRSA
        final String commonName = entity.getCommonname();
        final String organizationalUnit = entity.getOrganizationalUnit();
        final String organization = entity.getOrganization();
        final String city = entity.getCity();
        final String state = entity.getState();//
        final String country = entity.getCountry();
        final long validity = entity.getValidity();
        final String keyPassword = entity.getKeypass();
        final String storetype = entity.getStoretype();//PKCS12

        // keytool工具
        CertAndKeyGen keyGen = new CertAndKeyGen(keyalg, sigalg);

        // 通用信息
        X500Name x500Name = new X500Name(commonName, organizationalUnit, organization, city, state, country);
        //根据密钥长度生成公钥和私钥
        keyGen.generate(keySize);
        PrivateKey privateKey = keyGen.getPrivateKey();
        // 证书
        X509Certificate certificate = keyGen.getSelfCertificate(x500Name, new Date(), (long) validity * 24 * 60 * 60);
        KeyStore keyStore = KeyStore.getInstance(storetype);
        keyStore.load(null,null);
        keyStore.setKeyEntry(alias,privateKey,keyPassword.toCharArray(),new Certificate[]{certificate});
        FileOutputStream outputStream = new FileOutputStream(keystore);
        keyStore.store(outputStream,keyPassword.toCharArray());
        outputStream.close();
        System.out.println("keyStore file created ...");
    }

 //导出证书 base64格式
    public static void exportCert(KeyStore keystore, String alias, String exportFile) throws Exception {
        Certificate cert = keystore.getCertificate(alias);
        BASE64Encoder encoder = new BASE64Encoder();
        String encoded = encoder.encode(cert.getEncoded());
        FileWriter fw = new FileWriter(exportFile);
        fw.write("-----BEGIN CERTIFICATE-----\r\n");    //非必须
        fw.write(encoded);
        fw.write("\r\n-----END CERTIFICATE-----");  //非必须
        fw.close();
    }

核心操作(证书交换)双方受信任

 //第一步：加载服务端秘钥库
            KeyStore serverKeystore = KeyStore.getInstance("PKCS12");
            serverKeystore.load(new FileInputStream(new File(serverStore)), password.toCharArray());
            Certificate serverCert = serverKeystore.getCertificate(serverAlias);

            //第二步：创建客户端秘钥库(详见keytools工具类)
            KeyStore clientKeystore = KeyTools.createKeyStoreFile(entity,serverAlias,serverCert);
            KeyTools.exportCert(clientKeystore, entity.getAlias(),entity.getFilepath());
            log.info("客户信任证书:{}制发完成",entity.getFilepath());

            Certificate clientCert = clientKeystore.getCertificate(entity.getAlias());
            log.info("根据alias导出证书客户指纹信任证书:{}",entity.getAlias());

            //第三步：导入客户端证书到服务端受信库（让服务端信任客户端）
            serverKeystore.setCertificateEntry(entity.getAlias(),clientCert);
            //第四步：将服务端秘钥保存到文件
            FileOutputStream outputStream = new FileOutputStream(serverStore);
            serverKeystore.store(outputStream,password.toCharArray());
            log.info("客户:{}信任证书,alias:{}制发完成",entity.getCommonname(),entity.getAlias());

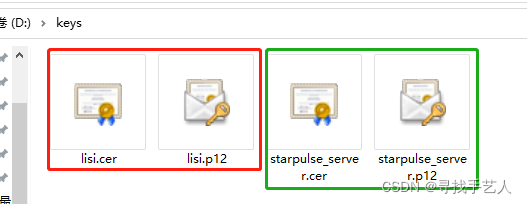

运行秘钥及证书结果如下

导出证书生成功能完成

4.示例代码使用okhttp3访问https接口

使用okhttp3访问SpringBoot创建的https接口
明天写吧，今天太累了。。。。
我回来了2022年3月19日15:02:51

代码调整了一上午，终于通了，期间一系列问题都排除了，把结果记录在这

这里是keytool生成服务端秘钥库的指令

1.生成服务端keystore
keytool -genkeypair -alias starpulse_server -keyalg RSA -sigalg SHA256withRSA -dname CN="xxxxx公司,OU=易 ,O=大数据组 ,L=Guiyang,ST=Guizhou,C=CN" -validity 3650 -keypass xxxxx  -storepass xxxxx  -storetype PKCS12 -keystore D:/keys/starpulse_server.p12
2.导出服务端证书
keytool -export -alias starpulse_server -file D:/keys/starpulse_server.cer -keystore D:/keys/starpulse_server.p12 -storetype PKCS12 -storepass xxxxx
3.查看证书指纹
keytool -list -keystore d:/keys/starpulse_server.p12 -storepass easywith2022

4.1 拷贝证书到resources目录下

本文使用okhttp3访问SpringBoot创建的https接口

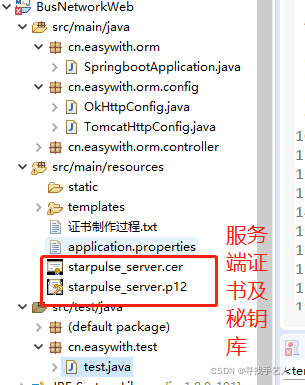

将生成的证书文件拷贝到项目工程resources目录下,与配置文件中路径一致 如下图所示：

4.2 监听到http的端口号后转向到的https的端口号

TomcatHttpConfig.java

package cn.easywith.orm.config;

import org.apache.catalina.Context;
import org.apache.catalina.connector.Connector;
import org.apache.tomcat.util.descriptor.web.SecurityCollection;
import org.apache.tomcat.util.descriptor.web.SecurityConstraint;
import org.springframework.boot.web.embedded.tomcat.TomcatServletWebServerFactory;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
public class TomcatHttpConfig {

	 /**
     * http重定向到https
     *
     * @return
     */
    @Bean
    public TomcatServletWebServerFactory servletContainer() {
        TomcatServletWebServerFactory tomcat = new TomcatServletWebServerFactory() {
            @Override
            protected void postProcessContext(Context context) {
                SecurityConstraint constraint = new SecurityConstraint();
                constraint.setUserConstraint("CONFIDENTIAL");
                SecurityCollection collection = new SecurityCollection();
                collection.addPattern("/*");
                constraint.addCollection(collection);
                context.addConstraint(constraint);
            }
        };
        tomcat.addAdditionalTomcatConnectors(httpConnector());
        return tomcat;
    }
    @Bean
    public Connector httpConnector() {
        Connector connector = new Connector("org.apache.coyote.http11.Http11NioProtocol");
        connector.setScheme("http");
        //Connector监听的http的端口号
        connector.setPort(80);
        connector.setSecure(false);
        //监听到http的端口号后转向到的https的端口号
        connector.setRedirectPort(443);
        return connector;
    }
}

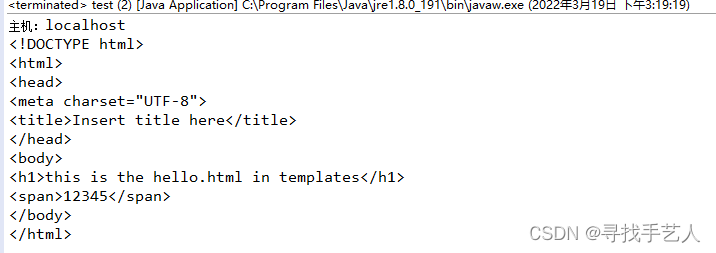

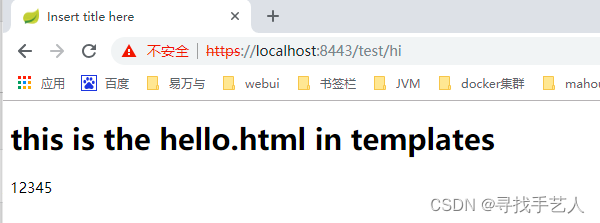

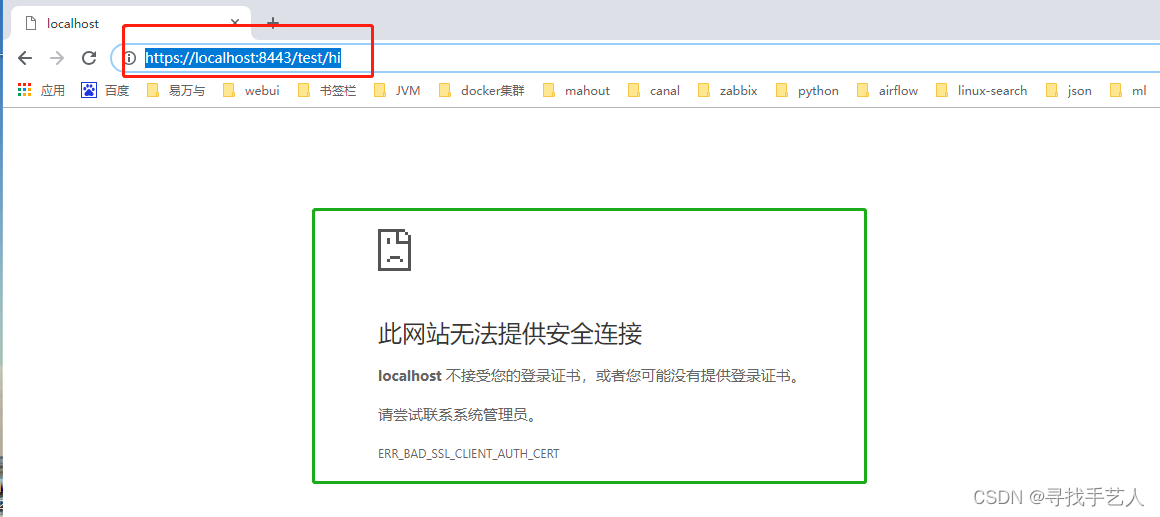

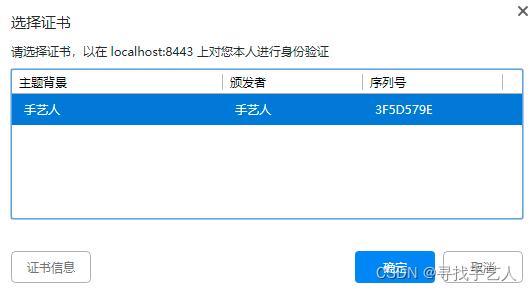

4.3 https双向认证代码测试类

编写测试API接口TestController.java

package cn.easywith.orm.controller;

import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.servlet.ModelAndView;

@RestController
@RequestMapping("/test/*")
public class TestController {

    @RequestMapping("sample")
    public Object getSample() {
        return "123346";
    }

    @RequestMapping("/hi")
    public ModelAndView sayHello() {
        ModelAndView modelAndView = new ModelAndView();
        modelAndView.setViewName("hello");
        modelAndView.addObject("key", 12345);
        //System.out.println("test");
        return modelAndView;
    }

}

package cn.easywith.test;

import okhttp3.ConnectionPool;
import okhttp3.OkHttpClient;
import okhttp3.Request;
import okhttp3.Response;

import javax.net.ssl.*;

import org.springframework.context.annotation.Bean;

import java.io.File;
import java.io.FileInputStream;
import java.io.InputStream;
import java.security.KeyStore;
import java.security.SecureRandom;
import java.security.cert.Certificate;
import java.security.cert.CertificateFactory;
import java.security.cert.X509Certificate;
import java.util.Arrays;
import java.util.concurrent.TimeUnit;

/**
 * https双向认证
 */
public class test {

	 //安全传输层协议
    private static final String PROTOCOL = "TLS";
    // JKS/PKCS12
    private static final String KEY_KEYSTORE_TYPE = "PKCS12";
    private static final String p12Path = "D:\\keys\\xunzhaoshouyiren_0.p12";
    private static final String cerPath = "D:\\keys\\starpulse_server.cer";
    private static final String appKey = "17a61a300fe641fbb982de7ec98278d4";



    private static KeyManager[] getKeyManagers() throws Exception {
        KeyManagerFactory keyManagerFactory = KeyManagerFactory.getInstance(KeyManagerFactory.getDefaultAlgorithm());
        KeyStore keyStore = KeyStore.getInstance(KEY_KEYSTORE_TYPE);
        //加载证书
        InputStream inputStream = new FileInputStream(new File(p12Path));
        keyStore.load(inputStream, appKey.toCharArray());
        keyManagerFactory.init(keyStore, appKey.toCharArray());
        KeyManager[] keyManagers = keyManagerFactory.getKeyManagers();
        return keyManagers;
    }


    //获取TrustManager
    private static TrustManager[] getTrustManagers() {
        TrustManager[] trustAllCerts = new TrustManager[]{
                new X509TrustManager() {
                    @Override
                    public void checkClientTrusted(X509Certificate[] chain, String authType) {
                    }

                    @Override
                    public void checkServerTrusted(X509Certificate[] chain, String authType) {
                    }

                    @Override
                    public X509Certificate[] getAcceptedIssuers() {
                        return new X509Certificate[]{};
                    }
                }
        };
        return trustAllCerts;
    }


    /**
     * <h5>功能:配置证书信任管理器类</h5>
     */
    public static X509TrustManager getX509TrustManager() {
        X509TrustManager trustManager = null;
        try {
            TrustManagerFactory trustManagerFactory = TrustManagerFactory.getInstance(TrustManagerFactory.getDefaultAlgorithm());
            KeyStore keyStore = KeyStore.getInstance(KEY_KEYSTORE_TYPE);
            //加载证书
            InputStream inputStream = new FileInputStream(new File(cerPath));
            CertificateFactory certificateFactory = CertificateFactory.getInstance("X.509");
            Certificate ca = certificateFactory.generateCertificate(inputStream);
            keyStore.load(null, null);
            //设置公钥
            keyStore.setCertificateEntry("starpulse_server", ca);
            trustManagerFactory.init(keyStore);
            TrustManager[] trustManagers = trustManagerFactory.getTrustManagers();
            if (trustManagers.length != 1 || !(trustManagers[0] instanceof X509TrustManager)) {
                throw new IllegalStateException("Unexpected default trust managers:" + Arrays.toString(trustManagers));
            }
            trustManager = (X509TrustManager) trustManagers[0];
        } catch (Exception e) {
            e.printStackTrace();
        }

        return trustManager;
    }


    private static SSLContext getSslContext(KeyManager[] keyManagers, TrustManager[] trustManagers) throws Exception {
        SSLContext sslContext = SSLContext.getInstance(PROTOCOL);
        sslContext.init(keyManagers, trustManagers, new SecureRandom());
        return sslContext;
    }

    public static SSLSocketFactory sslSocketFactory(){
        SSLSocketFactory socketFactory = null;
        try {
            KeyManager[] keyManagers = getKeyManagers();
            TrustManager[] trustManagers = getTrustManagers();
            SSLContext sslContext = getSslContext(keyManagers, trustManagers);
            socketFactory = sslContext.getSocketFactory();
        }catch (Exception e) {
			e.printStackTrace();
		}
        return socketFactory;
    }


    /**
     * Create a new connection pool with tuning parameters appropriate for a single-user application.
     * The tuning parameters in this pool are subject to change in future OkHttp releases. Currently
     */
    @Bean
    public static ConnectionPool pool() {
        return new ConnectionPool(200, 5, TimeUnit.MINUTES);
    }

    public static void main(String[] args) throws Exception {

        OkHttpClient client = new OkHttpClient.Builder()
                .sslSocketFactory(sslSocketFactory(), getX509TrustManager())
                .retryOnConnectionFailure(false)//是否开启缓存
                .connectionPool(pool())//连接池
                .connectTimeout(10L, TimeUnit.SECONDS)
                .readTimeout(10L, TimeUnit.SECONDS)
                .hostnameVerifier(new HostnameVerifier() {

					@Override
					public boolean verify(String hostname, SSLSession session) {
						System.out.println("主机："+hostname);
						return true;
					}
				})
                .build();
        Request request = new Request.Builder()
    			.url("https://localhost:8443/test/hi")
    			.header("User-Agent", "OkHttp Headers.java")
    			.build();

        Response response = client.newCall(request).execute();
        String result = response.body().string();
        //打印结果返回数据
        System.out.println(result);
    }

}

请求路径为普通http时：
http://localhost:8443/test/hi
会提示：主机和端口的这种组合需要TLS

请求路径为普通https时：
https://localhost:8443/test/hi
此时，请求正常返回

到此，使用okhttp3访问SpringBoot创建的https接口，全部结束了

5.浏览器登录效果展现

第一步：在浏览输入请求地址会发现无法访问
https://localhost:8443/test/hi
此网站无法提供安全连接
localhost 不接受您的登录证书，或者您可能没有提供登录证书。

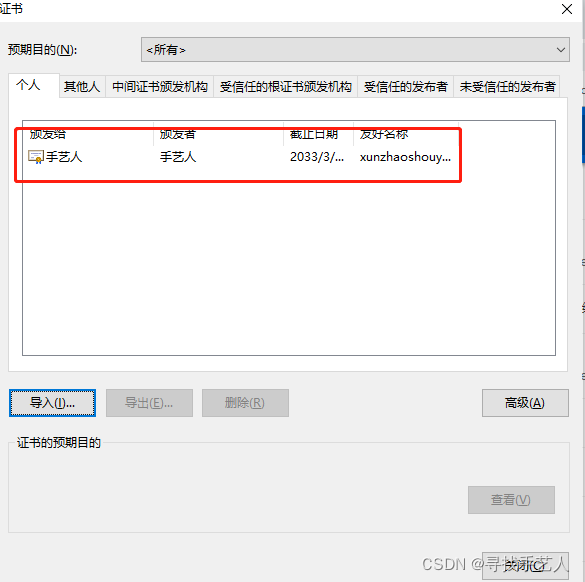

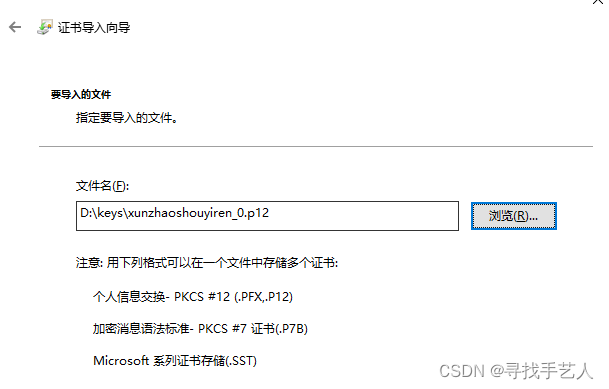

第二步：导入我们的证书

此服务器无法证实它就是 localhost - 它的安全证书没有指定主题备用名称。这可能是因为某项配置有误或某个攻击者拦截了您的连接。

发现可以正常访问了
