概括
web终端可以在浏览器上模拟xshell的功能，本文源代码在Github: How to create a simple web terminal
效果如下所示:
架构
现在的web终端基本都是基于xterm.js开发的。xterm是一个前端的终端组件。

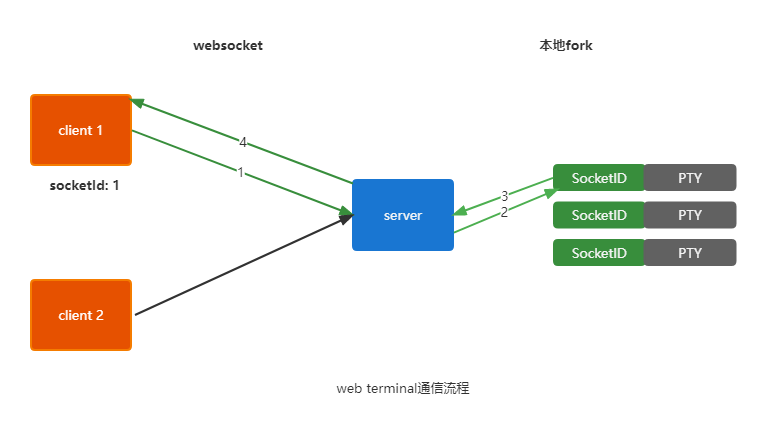

web终端的实现是客户端-服务器架构：
通信协议
- 客户端和服务器之间使用的是websocket协议
- 服务器通过本地fork一个bash或者powershell进程，充当传话筒角色
数据结构
服务器会维持一个，客户端的<socketId,pty>的Map, 用来记录客户端连接和终端进程的对应关系。
客户端
客户端主要使用xterm和socketIO这两个库，xterm是终端组件，socketIO是和服务器通信的组件。
客户端显示仅仅需要一个DOM元素
- index.html
<!DOCTYPE html>
<html>
<head>
<title>How to create web terminals</title>
<meta charset="UTF-8" />
<style>
/**设置满屏展示**/
#terminal-container{
position: absolute;
margin: 0;
padding: 0;
height: 100%;
width: 100%;
}
</style>
</head>
<body>
<!--终端关联的DOM元素-->
<div id="terminal-container"></div>
<script src="src/index.js"></script>
</body>
</html>
- index.js
import { TerminalUI } from "./TerminalUI";
import io from "socket.io-client";
// 连接服务端，并给终端设置关联的DOM元素。
// IMPORTANT: 服务端的监听地址
const serverAddress = "http://localhost:8080";
// 连接服务端并返回一个socket
function connectToSocket(serverAddress) {
return new Promise(res => {
const socket = io(serverAddress);
res(socket);
});
}
// 开启一个终端
function startTerminal(container, socket) {
// Create an xterm.js instance (TerminalUI class is a wrapper with some utils. Check that file for info.)
const terminal = new TerminalUI(socket);
// Attach created terminal to a DOM element.
terminal.attachTo(container);
// When terminal attached to DOM, start listening for input, output events.
// Check TerminalUI startListening() function for details.
terminal.startListening();
}
function start() {
// get DOM element as an terminal container
const container = document.getElementById("terminal-container");
// Connect to socket and when it is available, start terminal.
connectToSocket(serverAddress).then(socket => {
startTerminal(container, socket);
});
}
- TerminalUI.js
这个文件主要设置了xterm实例如何发送客户端输入和接收服务端输出。
// TerminalUI.js
import { Terminal } from "xterm";
import { FitAddon } from 'xterm-addon-fit';
import "xterm/css/xterm.css";
export class TerminalUI {
// xterm实例构造器，设置了背景和字体颜色
constructor(socket) {
this.terminal = new Terminal({
theme: {
background: "black",
foreground: "#F5F8FA"
},
});
// xterm实例一一对应一个socket连接
this.socket = socket;
}
/**
* Attach event listeners for terminal UI and socket.io client
*/
startListening() {
this.terminal.onData(data =>{
this.sendInput(data)
});
this.socket.on("output", data => {
// When there is data from PTY on server, print that on Terminal.
this.write(data);
});
}
/**
* Print something to terminal UI.
*/
write(text) {
this.terminal.write(text);
}
/**
* Utility function to print new line on terminal.
*/
prompt() {
this.terminal.write(`\r\n$ `);
}
/**
* Send whatever you type in Terminal UI to PTY process in server.
* @param {*} input Input to send to server
*/
sendInput(input) {
this.socket.emit("input", input);
}
/**
*
* @param {HTMLElement} container HTMLElement where xterm can attach terminal ui instance.
*/
attachTo(container) {
// 关联DOM元素并加载Fit组件（用于设置终端适应DOM元素大小，不然终端有固定尺寸很难看）
let fitAddon = new FitAddon();
this.terminal.loadAddon(fitAddon);
this.terminal.open(container);
fitAddon.fit()
// Default text to display on terminal.
this.terminal.write("Terminal Connected");
this.terminal.write("");
this.prompt();
}
clear() {
this.terminal.clear();
}
}
服务端
服务端会给每个客户端连接socket生成一个终端进程，终端进程一般情况下linux是bash, windows是powershell.
会有一个全局的Map保存socket和终端进程的映射关系。
- SocketService.js
// SocketService.js
// Manage Socket.IO server
const socketIO = require("socket.io");
const PTYService = require("./PTYService");
class SocketService {
constructor() {
// 全局的Map保存socket和终端进程的映射关系
this.SocketBook=new Map()
}
attachServer(server) {
if (!server) {
throw new Error("Server not found...");
}
const io = socketIO(server);
console.log("Created socket server. Waiting for client connection.");
// "connection" event happens when any client connects to this io instance.
// 每个socket都有一个唯一的socketID
io.on("connection", socket => {
console.log("Client connect to socket.", socket.id);
// Just logging when socket disconnects.
socket.on("disconnect", () => {
console.log("Disconnected Socket: ", socket.id);
this.SocketBook.delete(socket.id)
});
// Create a new pty service when client connects.
let pty = new PTYService(socket);
// 如何是容器终端，取消这行注释，使用kubectl exec 或者docker exec
//pty.write("kubectl exec -it cicd-dev-metric-service-b85cc4cdd-zpcrm /bin/bash \r")
// add <socket.id,pty> to map
this.SocketBook.set(socket.id,pty)
// Attach any event listeners which runs if any event is triggered from socket.io client
// For now, we are only adding "input" event, where client sends the strings you type on terminal UI.
// 每当客户端有输入事件到来，根据socket id 查找对应shell进程，并向shell进程写入客户端的输入字符
socket.on("input", input => {
//Runs this event function socket receives "input" events from socket.io client
let pty= this.SocketBook.get(socket.id)
pty.write(input);
});
});
}
}
module.exports = SocketService;
- PTYService.js
封装本地终端进程的相关操作，使用了node-pty库来fork终端进程。
// PTYService.js
const os = require("os");
const pty = require("node-pty");
class PTY {
constructor(socket) {
// Setting default terminals based on user os
this.shell = os.platform() === "win32" ? "powershell.exe" : "bash";
this.ptyProcess = null;
this.socket = socket;
// Initialize PTY process.
this.startPtyProcess();
}
/**
* Spawn an instance of pty with a selected shell.
*/
startPtyProcess() {
this.ptyProcess = pty.spawn(this.shell, [], {
name: "xterm-color",
cwd: process.env.HOME, // Which path should terminal start
env: process.env // Pass environment variables
});
// Add a "data" event listener.
this.ptyProcess.on("data", data => {
// Whenever terminal generates any data, send that output to socket.io client to display on UI
this.sendToClient(data);
});
}
/**
* Use this function to send in the input to Pseudo Terminal process.
* @param {*} data Input from user like command sent from terminal UI
*/
write(data) {
this.ptyProcess.write(data);
}
sendToClient(data) {
// Emit data to socket.io client in an event "output"
this.socket.emit("output", data);
}
}
module.exports = PTY;
总结
不足：
- xterm的样式很难调节，本文示例中，我一直想要让输入字符输入达到DOM元素的长度再换行，但是没有做到。
- 如何写一个容器的web终端的话，如何将会话一开始的kubectl exec等信息清除。
成果：
- 实现了一个web终端的基础功能。
- 多客户端同时可以连接
