[网络协议]Springboot实现Netty-websocket+rstp+ffmpeg+jsmpeg.js实现视频播放支持ws和http模式

思路

1、前端是无法直接播放rstp推流来的视频，所以需要用ffmpeg进行转码。
2、ffmpeg只能推送TCP或者HTTP协议还不支持ws协议。
大致流程图。

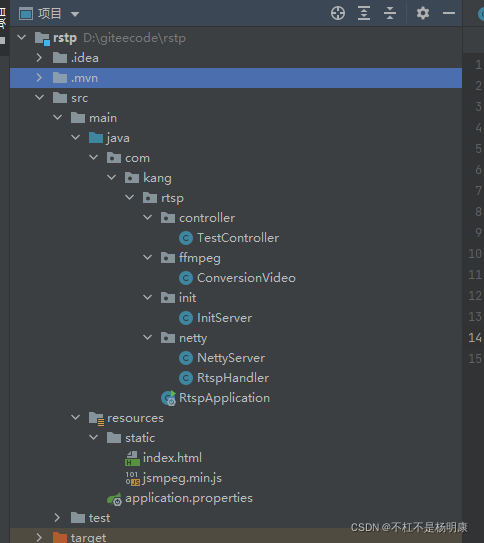

代码

效果图。

需要依赖Springboot + netty+ffmpeg-platform

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
<!--        工具类-->
        <dependency>
            <groupId>cn.hutool</groupId>
            <artifactId>hutool-all</artifactId>
            <version>5.3.3</version>
        </dependency>
        <!--        netty4.1.42-->
        <dependency>
            <groupId>io.netty</groupId>
            <artifactId>netty-all</artifactId>
            <version>4.1.42.Final</version>
        </dependency>
<!--ffmpeg流转换器-->
        <dependency>
            <groupId>org.bytedeco</groupId>
            <artifactId>ffmpeg-platform</artifactId>
            <version>4.3.1-1.5.4</version>
        </dependency>

netty部分代码
1、简简单单一个Server服务端。

package com.kang.rtsp.netty;

import io.netty.bootstrap.ServerBootstrap;
import io.netty.channel.*;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.SocketChannel;
import io.netty.channel.socket.nio.NioServerSocketChannel;
import io.netty.channel.unix.PreferredDirectByteBufAllocator;
import io.netty.handler.codec.http.HttpObjectAggregator;
import io.netty.handler.codec.http.HttpRequestDecoder;
import io.netty.handler.codec.http.HttpResponseEncoder;
import io.netty.handler.codec.http.cors.CorsConfig;
import io.netty.handler.codec.http.cors.CorsConfigBuilder;
import io.netty.handler.codec.http.cors.CorsHandler;
import io.netty.handler.logging.LogLevel;
import io.netty.handler.logging.LoggingHandler;
import io.netty.handler.stream.ChunkedWriteHandler;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Component;

/**
 * @program: netty-demo
 * @description: netty实现websocket任务
 * @author: mink
 * @create: 2022-02-23 09:16
 **/
@Component
@Slf4j
public class NettyServer {

    @Autowired
    private RtspHandler rtspHandler;

    @Value("${netty.port}")
    private Integer port;

    public void start() {
        NioEventLoopGroup bossGroup = new NioEventLoopGroup(1);
        NioEventLoopGroup workerGroup = new NioEventLoopGroup(200);
        try {
            ServerBootstrap bootstrap = new ServerBootstrap();
            bootstrap.group(bossGroup, workerGroup)
                    .channel(NioServerSocketChannel.class)
                    .handler(new LoggingHandler(LogLevel.INFO))
                    .childHandler(new ChannelInitializer<SocketChannel>() {
                        @Override
                        protected void initChannel(SocketChannel ch) throws Exception {
                            CorsConfig corsConfig = CorsConfigBuilder.forAnyOrigin().allowNullOrigin().allowCredentials().build();
                            ChannelPipeline pipeline = ch.pipeline();
                            pipeline.addLast(new HttpResponseEncoder())
                                    .addLast(new HttpRequestDecoder())
                                    .addLast(new ChunkedWriteHandler())
                            /**
                             * http数据再传输中是分段的 HttpObjectAggregator ，就是可以将多个段聚合
                             * 这就就是为什么，当浏览器发送大量数据时，就会发出多次http请求
                             */
                                    .addLast(new HttpObjectAggregator(64*1024))
                            /**
                             * 1. 对应websocket ，它的数据是以 帧(frame) 形式传递
                             * 2. 可以看到WebSocketFrame 下面有六个子类
                             * 3. 浏览器请求时 ws://localhost:7000/hello 表示请求的uri
                             * 4. WebSocketServerProtocolHandler 核心功能是将 http协议升级为 ws协议 , 保持长连接
                             * 5. 是通过一个 状态码 101
                             */
                               .addLast(new CorsHandler(corsConfig))
                               .addLast(rtspHandler);
                        }
                    })
            .option(ChannelOption.SO_BACKLOG,128)
            .childOption(ChannelOption.SO_KEEPALIVE,true)
            .option(ChannelOption.ALLOCATOR, PreferredDirectByteBufAllocator.DEFAULT)
            .childOption(ChannelOption.TCP_NODELAY, true).childOption(ChannelOption.SO_KEEPALIVE, true).childOption(ChannelOption.SO_RCVBUF, 128 * 1024).childOption(ChannelOption.SO_SNDBUF, 1024 * 1024).childOption(ChannelOption.WRITE_BUFFER_WATER_MARK, new WriteBufferWaterMark(1024 * 1024 / 2, 1024 * 1024));
            ChannelFuture sync = bootstrap.bind(port).sync();
            log.info("netty启动成功监听端口号{}",port);
            sync.channel().closeFuture().sync();
        } catch (InterruptedException e) {
            e.printStackTrace();
        } finally {
            bossGroup.shutdownGracefully();
            workerGroup.shutdownGracefully();
        }
    }
}

2、重点是rtspHandler的编写。因为要同时实现http协议和ws协议所以需要自己进行判断。
1、读取信息先判断是不是请求，如果是请求先判断后缀、后面可以扩展通过后缀参数来获取RTSP的链接参数。
2、判断是什么请求，如果是http请求就直接通过http进行播放，如果是ws就需要进行协议升级。
3、WebSocketServerHandshakerFactory(getWebSocketLocation(req), “null”, true, 5 * 1024 * 1024);
第二个参数很坑原本我填的null但是前端报错，说传的null不为null后端不给出回应，但是我看着就是null，我试着改成字符串就好了。
4、将通道交给WebServer保存起来netty的路就只能陪你走就到这了，后面直接把流数据往通道里面发就完事了。

package com.kang.rtsp.netty;


import com.kang.rtsp.controller.TestController;
import io.netty.buffer.Unpooled;
import io.netty.channel.ChannelFutureListener;
import io.netty.channel.ChannelHandler.Sharable;
import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.SimpleChannelInboundHandler;
import io.netty.handler.codec.http.*;
import io.netty.handler.codec.http.websocketx.*;
import io.netty.util.CharsetUtil;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;



/**
 * @program: netty-demo
 * @description:
 * @author: mink
 * @create: 2022-02-23 09:32
 **/
@Slf4j
@Component
@Sharable //不new，采用共享handler
public class RtspHandler extends SimpleChannelInboundHandler<Object> {

    @Autowired
    private TestController testController;

    private WebSocketServerHandshaker handshaker;

    @Override
    protected void channelRead0(ChannelHandlerContext ctx, Object msg) throws Exception {
        if (msg instanceof FullHttpRequest){
            FullHttpRequest req = (FullHttpRequest) msg;
            QueryStringDecoder decoder = new QueryStringDecoder(req.uri());
            if (!"/live".equals(decoder.path())) {
                System.err.println("uri有误");
                sendError(ctx, HttpResponseStatus.BAD_REQUEST);
                return;
            }
            if (!req.decoderResult().isSuccess() || (!"websocket".equals(req.headers().get("Upgrade")))){
                // http请求
                log.info("HTTP请求");
                sendFlvReqHeader(ctx);
             //   playServer.playForHttp(ctx,ClientType.HTTP);
            }else {
                // websocket握手，请求升级
                // 参数分别是ws地址，子协议，是否扩展，最大frame长度
                WebSocketServerHandshakerFactory factory = new WebSocketServerHandshakerFactory(getWebSocketLocation(req), "null", true, 5 * 1024 * 1024);
                handshaker = factory.newHandshaker(req);
                if (handshaker == null) {
                    WebSocketServerHandshakerFactory.sendUnsupportedVersionResponse(ctx.channel());
                } else {
                    handshaker.handshake(ctx.channel(), req);
                    // todo rstp->ppfmge->http->ws
                    testController.setWsClients(ctx);
                }
            }

        } else if (msg instanceof WebSocketFrame) {
            handleWebSocketRequest(ctx, (WebSocketFrame) msg);
        }
        System.err.println("发送消息走完");
    }

    private String getWebSocketLocation(FullHttpRequest request) {
        String location = request.headers().get(HttpHeaderNames.HOST) + request.uri();
        return "ws://" + location;
    }

    private void sendError(ChannelHandlerContext ctx, HttpResponseStatus status) {
        System.err.println("请求地址有错误");
        FullHttpResponse response = new DefaultFullHttpResponse(HttpVersion.HTTP_1_1, status,
                Unpooled.copiedBuffer("请求地址有误: " + status + "\r\n", CharsetUtil.UTF_8));
        response.headers().set(HttpHeaderNames.CONTENT_TYPE, "text/plain; charset=UTF-8");
        ctx.writeAndFlush(response).addListener(ChannelFutureListener.CLOSE);
    }

    /**
     * websocket处理
     *
     * @param ctx
     * @param frame
     */
    private void handleWebSocketRequest(ChannelHandlerContext ctx, WebSocketFrame frame) throws Exception {
        // 关闭
        if (frame instanceof CloseWebSocketFrame) {
            handshaker.close(ctx.channel(), (CloseWebSocketFrame) frame.retain());
            return;
        }
        // 握手PING/PONG
        if (frame instanceof PingWebSocketFrame) {
            ctx.write(new PongWebSocketFrame(frame.content().retain()));
            return;
        }
        // 文本
        if (frame instanceof TextWebSocketFrame) {
            frame.retain(1);
            ctx.channel().writeAndFlush(new TextWebSocketFrame(((TextWebSocketFrame) frame).text()));
            return;
        }
        if (frame instanceof BinaryWebSocketFrame) {
            return;
        }
    }

    /**
     * 发送req header，告知浏览器是flv格式
     * @param ctx
     */
    private void sendFlvReqHeader(ChannelHandlerContext ctx) {
        HttpResponse rsp = new DefaultHttpResponse(HttpVersion.HTTP_1_1, HttpResponseStatus.OK);
        rsp.headers().set(HttpHeaderNames.CONNECTION, HttpHeaderValues.CLOSE)
                .set(HttpHeaderNames.CONTENT_TYPE, "video/x-flv").set(HttpHeaderNames.ACCEPT_RANGES, "bytes")
                .set(HttpHeaderNames.PRAGMA, "no-cache").set(HttpHeaderNames.CACHE_CONTROL, "no-cache")
                .set(HttpHeaderNames.TRANSFER_ENCODING, HttpHeaderValues.CHUNKED).set(HttpHeaderNames.SERVER, "zhang");
        ctx.writeAndFlush(rsp);
    }

    @Override
    public void handlerAdded(ChannelHandlerContext ctx) throws Exception {
        log.info("web客户端被链接"+ctx.channel().id().asLongText());
    }

    @Override
    public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
        System.out.println("异常发生 " + cause.getMessage());
        ctx.close(); //关闭连接
    }

    @Override
    public void handlerRemoved(ChannelHandlerContext ctx) throws Exception {
        System.out.println("handlerRemoved 被调用" + ctx.channel().id().asLongText());
    }
}

系统启动初始化的一些方法

1、我们要优雅的启动netty服务器和提前初始化一下ffmpeg获取他的文件路径

package com.kang.rtsp.init;

import com.kang.rtsp.netty.NettyServer;
import lombok.extern.slf4j.Slf4j;
import org.bytedeco.javacpp.Loader;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.CommandLineRunner;
import org.springframework.stereotype.Component;

import javax.annotation.PostConstruct;

/**
 * @program: rtsp-netty-demo
 * @description: 开机自启
 * @author: mink
 * @create: 2022-02-25 11:11
 **/
@Slf4j
@Component
public class InitServer implements CommandLineRunner {

    @Autowired
    private NettyServer nettyServer;

    @Override
    public void run(String... args) throws Exception {
        log.info("启动netty服务器");
        nettyServer.start();
    }

    /**
     * 提前初始化，可避免推拉流启动耗时太久
     */
    @PostConstruct
    public void loadFFmpeg() {
        log.info("正在初始化资源，请稍等...");
        String ffmpeg = Loader.load(org.bytedeco.ffmpeg.ffmpeg.class);
        String path = ffmpeg.substring(0,ffmpeg.indexOf(".exe"));
        System.setProperty("ffmpeg",path);
        log.info(System.getProperty("ffmpeg"));
        log.info("初始化成功");
    }
}

ffmpge启动并初始化流数据

package com.kang.rtsp.ffmpeg;

import org.springframework.boot.ApplicationArguments;
import org.springframework.boot.ApplicationRunner;
import org.springframework.stereotype.Component;

import java.io.IOException;
import java.net.InetAddress;
import java.net.ServerSocket;

/**
 * 转换视频流
 * @author dell
 */
@Component
public class ConversionVideo implements ApplicationRunner {

    public Process process;

    public Integer pushVideoAsRTSP(String id, String fileName){
        int flag = -1;
        // ffmpeg位置，最好写在配置文件中
      //  String ffmpegPath = "D:\\tools\\ffmpeg-5.0-essentials_build\\bin\\";
        String ffmpegPath = System.getProperty("ffmpeg");
        try {
            // 视频切换时，先销毁进程，全局变量Process process，方便进程销毁重启，即切换推流视频
            if(process != null){
                process.destroy();
                System.out.println(">>>>>>>>>>推流视频切换<<<<<<<<<<");
            }
            // cmd命令拼接，注意命令中存在空格
            String command = ffmpegPath;
            // ffmpeg开头，-re代表按照帧率发送，在推流时必须有
         //   command += "ffmpeg ";
            // 指定要推送的视频
            command += " -i \"" + id + "\"";
            // 指定推送服务器，-f：指定格式
            command += " -q 0 -f mpegts -codec:v mpeg1video -s 800x600 " + fileName;
            System.out.println("ffmpeg推流命令：" + command);
            // 运行cmd命令，获取其进程
            process = Runtime.getRuntime().exec(command);
        }catch (Exception e){
            e.printStackTrace();
        }
        return flag;
    }

    @Override
    public void run(ApplicationArguments args) throws Exception {
        ConversionVideo conversionVideo = new ConversionVideo();
        conversionVideo.pushVideoAsRTSP("你的rtsp地址或者你的视频地址都可以搞", "http://127.0.0.1:8080/receive");
    }
}

1、看看控制层代码，netty调用setwsClients，把通道信息保存在controller中。然后receive获取ffmpge传过来的二进制流
2、调用sendVideo给socket通道发送消息。

package com.kang.rtsp.controller;

import io.netty.buffer.ByteBuf;
import io.netty.buffer.Unpooled;
import io.netty.channel.ChannelHandlerContext;
import io.netty.handler.codec.http.websocketx.BinaryWebSocketFrame;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;

import javax.servlet.ServletInputStream;
import javax.servlet.http.HttpServletRequest;
import java.util.Map;
import java.util.concurrent.ConcurrentHashMap;

/**
 * @program: rtsp
 * @description:
 * @author: mink
 * @create: 2022-04-01 11:14
 **/
@Controller
public class TestController {


    /**
     * ws客户端
     */
    private ConcurrentHashMap<String, ChannelHandlerContext> wsClients = new ConcurrentHashMap<>();

    @RequestMapping("/receive")
    @ResponseBody
    public String receive(HttpServletRequest request) {
        try {
            ServletInputStream inputStream = request.getInputStream();
            int len = -1;
            while ((len =inputStream.available()) !=-1) {
                byte[] data = new byte[len];
                inputStream.read(data);
                sendVideo(data);
            }
        } catch (Exception e) {
            e.printStackTrace();
        }
        System.out.println("over");
        return "1";
    }

    public void sendVideo(byte[] data) {
        // ws
        for (Map.Entry<String, ChannelHandlerContext> entry : wsClients.entrySet()) {
            try {
                if (entry.getValue().channel().isWritable()) {
                    entry.getValue().writeAndFlush(new BinaryWebSocketFrame(Unpooled.copiedBuffer(data)));
                } else {
                    wsClients.remove(entry.getKey());
                }
            } catch (java.lang.Exception e) {
                wsClients.remove(entry.getKey());
                e.printStackTrace();
            }
        }
    }

    public void setWsClients(ChannelHandlerContext ctx) {
        wsClients.put(ctx.channel().id().asLongText(),ctx);
    }
}

前端代码也给上

<!DOCTYPE html>
<html>
<head>
</head>
<body>
	<canvas id="video"></canvas>
	<script type="text/javascript" src="jsmpeg.min.js"></script>
	<script type="text/javascript">
		var canvas = document.getElementById('video');
		var url = 'ws://127.0.0.1:8866/live';
		var player = new JSMpeg.Player(url, {canvas: canvas});
	</script>
</body>
</html>

jsmpeg.min.js地址，自己随便下下得了。
https://gitcode.net/mirrors/phoboslab/jsmpeg/-/raw/master/jsmpeg.min.js?inline=false
