当BLE设备收到配对设备发来的更新特征值请求时会产生一个GATTC_WRITE_CMD_IND消息，这是GATT Task messages里的一种。
/// GATT Task messages
enum gattc_msg_id
{
/* Default event */
/// Command Complete event
GATTC_CMP_EVT = KE_FIRST_MSG(TASK_GATTC),
/* ATTRIBUTE CLIENT */
/// Server configuration request
GATTC_EXC_MTU_CMD,
/*Discover All Services */
/*Discover Services by Service UUID*/
/*Find Included Services*/
/*Discover Characteristics by UUID*/
/*Discover All Characteristics of a Service*/
/*Discover All Characteristic Descriptors*/
/// Discovery command
GATTC_DISC_CMD,
/* GATT -> HL: Events to Upper layer */
/*Discover All Services*/
/// Discovery services indication
GATTC_DISC_SVC_IND,
/*Find Included Services*/
/// Discover included services indication
GATTC_DISC_SVC_INCL_IND,
/*Discover All Characteristics of a Service*/
/// Discover characteristic indication
GATTC_DISC_CHAR_IND,
/*Discover All Characteristic Descriptors*/
/// Discovery characteristic descriptor indication
GATTC_DISC_CHAR_DESC_IND,
/*Read Value*/
/*Read Using UUID*/
/*Read Long Value*/
/*Read Multiple Values*/
/// Read command
GATTC_READ_CMD,
/// Read response
GATTC_READ_IND,
/*Write without response*/
/*Write without response with Authentication*/
/*Write Characteristic Value*/
/*Signed Write Characteristic Value*/
/*Write Long Characteristic Value*/
/*Characteristic Value Reliable Write*/
/*Write Characteristic Descriptors*/
/*Write Long Characteristic Descriptors*/
/*Characteristic Value Reliable Write*/
/// Write command request
GATTC_WRITE_CMD,
/* Cancel / Execute pending write operations */
/// Execute write characteristic request
GATTC_EXECUTE_WRITE_CMD,
/* Reception of an indication or notification from peer device. */
/// peer device triggers an event (indication or notification)
GATTC_EVENT_IND,
/// Registration to peer device events (Indication/Notification).
GATTC_REG_TO_PEER_EVT_CMD,
/* ATTRIBUTE SERVER */
/*Notify Characteristic*/
/*Indicate Characteristic*/
/// send an event to peer device
GATTC_SEND_EVT_CMD,
/* Indicate that write operation is requested. */
/// Write command indicated to upper layers.
GATTC_WRITE_CMD_IND,
/* Service Changed Characteristic Indication */
/**
* Send a Service Changed indication to a device
* (message structure is struct gattm_svc_changed_ind_req)
*/
GATTC_SEND_SVC_CHANGED_CMD,
/**
* Inform the application when sending of Service Changed indications has been
* enabled or disabled
*/
GATTC_SVC_CHANGED_CFG_IND,
/* Confirm write command execution. */
/// Write command confirmation from upper layers.
GATTC_WRITE_CMD_CFM,
/* Indicate that a read operation is requested. */
/// Read command indicated to upper layers.
GATTC_READ_CMD_IND,
};
GATTC_WRITE_CMD_IND消息会触发回调函数gattc_write_cmd_ind_handler()。该函数位于custs1_task.c文件。
/// Default State handlers definition
const struct ke_msg_handler custs1_connected[] =
{
{GATTC_WRITE_CMD_IND, (ke_msg_func_t)gattc_write_cmd_ind_handler},
{GATTC_CMP_EVT, (ke_msg_func_t)gattc_cmp_evt_handler},
{CUSTS1_VAL_NTF_REQ, (ke_msg_func_t)custs1_val_ntf_req_handler},
{CUSTS1_VAL_SET_REQ, (ke_msg_func_t)custs1_val_set_req_handler},
{CUSTS1_VAL_IND_REQ, (ke_msg_func_t)custs1_val_ind_req_handler},
};
gattc_write_cmd_ind_handler()把消息从GAP层传递给app_entry_point_handler(）APP接入点函数，该函数负责把消息再次传递给用户APP应用函数。
/**
****************************************************************************************
* @brief Handles reception of the @ref GATT_WRITE_CMD_IND message.
* @param[in] msgid Id of the message received (probably unused).
* @param[in] param Pointer to the parameters of the message.
* @param[in] dest_id ID of the receiving task instance (probably unused).
* @param[in] src_id ID of the sending task instance.
* @return If the message was consumed or not.
****************************************************************************************
*/
static int gattc_write_cmd_ind_handler(ke_msg_id_t const msgid,
struct gattc_write_cmd_ind const *param,
ke_task_id_t const dest_id,
ke_task_id_t const src_id)
{
uint16_t att_idx, value_hdl;
uint8_t status = PRF_ERR_OK;
uint8_t uuid[GATT_UUID_128_LEN];
uint8_t uuid_len;
att_size_t len;
uint8_t *value;
uint16_t perm;
if (KE_IDX_GET(src_id) == custs1_env.con_info.conidx)
{
att_idx = param->handle - custs1_env.shdl;//uint16_t handle：struct gattc_write_cmd_ind结构体成员；custs1_env.shdl：struct custs1_env_tagd结构体成员，服务启动句柄
//handle - custs1_env.shdl是求出索引值，后面用于判断是哪个特征
if( att_idx < custs1_env.max_nb_att )//判断handle是否合法
{
// Retrieve UUID 检索 UUID
attmdb_att_get_uuid(param->handle, &uuid_len, &(uuid[0]));
// In case of Client Characteristic Configuration, check validity and set value
//在客户端特征配置的情况下，检查有效性和设置值
if ((uint16_t)*(uint16_t *)&uuid[0] == ATT_DESC_CLIENT_CHAR_CFG)
{
// Find the handle of the Characteristic Value
value_hdl = get_value_handle( param->handle );
if ( !value_hdl ) ASSERT_ERR(0);
// Get permissions to identify if it is NTF or IND.
//获取权限以识别它是 NTF（通告） 还是 IND（指示）。
attmdb_att_get_permission(value_hdl, &perm);
status = check_client_char_cfg(PERM_IS_SET(perm, NTF, ENABLE), param);
if (status == PRF_ERR_OK)
{
// Set Client Characteristic Configuration value
//设置客户端特征配置值
status = attmdb_att_set_value(param->handle, param->length, (uint8_t*)&(param->value[0]));
}
}
else
{
// Call the application function to validate the value before it is written to database
//在将值写入数据库之前调用应用程序函数以验证值
uint8_t i = 0;
status = PRF_ERR_OK;
while( cust_prf_funcs[i].task_id != TASK_NONE )
{
if( cust_prf_funcs[i].task_id == dest_id)
{
if ( cust_prf_funcs[i].value_wr_validation_func != NULL)//如果用户定义了验证回调函数
{
status = cust_prf_funcs[i].value_wr_validation_func(att_idx, param->last, param->offset, param->length, (uint8_t *)¶m->value[0]);
break;
} else i++;
} else i++;
}
if (status == PRF_ERR_OK)//验证通过
{
if (param->offset == 0)//gattc_write_cmd_ind结构体下的成员，该结构体用于通知一个数据库修改操作已经被配对设备请求
//offset，offset at which the data has to be written，要修改的数组的偏移值
{
// Set value in the database 如果偏移值是0，把值全部写入数据库
//param->length: uint16_t length; Data length to be written, 将要写入的数据长度；
//(uint8_t *)¶m->value[0]: uint8_t value[__ARRAY_EMPTY], 将要写入属性数据库的数据;
status = attmdb_att_set_value(param->handle, param->length, (uint8_t *)¶m->value[0]);
}
else
{
// Update value in the database，如果偏移值不是0，则只更新部分数据
status = attmdb_att_update_value(param->handle, param->length, param->offset,
(uint8_t *)¶m->value[0]);
}
}
}
if( (param->last) && (status == PRF_ERR_OK) )//bool last，通知它是多准备写入请求的最后一个请求，意即本次数据全部写完
{
// Get the value size and data. Can not use param->value, it might be a long value
//获取值大小和数据。 不能使用 param->value，它可能是一个长值
if( attmdb_att_get_value(param->handle, &len, &value) != ATT_ERR_NO_ERROR )
{
ASSERT_ERR(0);
}
// Inform APP
//新建一个CUSTS1_VAL_WRITE_IND 消息的结构体，然后填充数据
struct custs1_val_write_ind *req_id = KE_MSG_ALLOC_DYN(CUSTS1_VAL_WRITE_IND,
custs1_env.con_info.appid, custs1_env.con_info.prf_id,
custs1_val_write_ind,
len);
memcpy(req_id->value, (uint8_t*)&value[0], len);
req_id->conhdl = gapc_get_conhdl(custs1_env.con_info.conidx);
req_id->handle = att_idx;
req_id->length = len;
ke_msg_send(req_id);//把消息发给APP，该消息内含数据长度和全部数据
}
}
else//Inexistent handle for sending a read/write characteristic request，不存在的handle用于发送读/写特征请求
{
status = PRF_ERR_INEXISTENT_HDL;
}
// Send Write Response only if client requests for RSP (ignored when 'Write Without Response' is used)
if (param->response == 1)
{
// Send Write Response
atts_write_rsp_send(custs1_env.con_info.conidx, param->handle, status);
}
}
return (KE_MSG_CONSUMED);
}
函数通过 if( (param->last) && (status == PRF_ERR_OK) )判断数据全部接收完后，调用attmdb_att_get_value(param->handle, &len, &value)获取数据和数据长度。

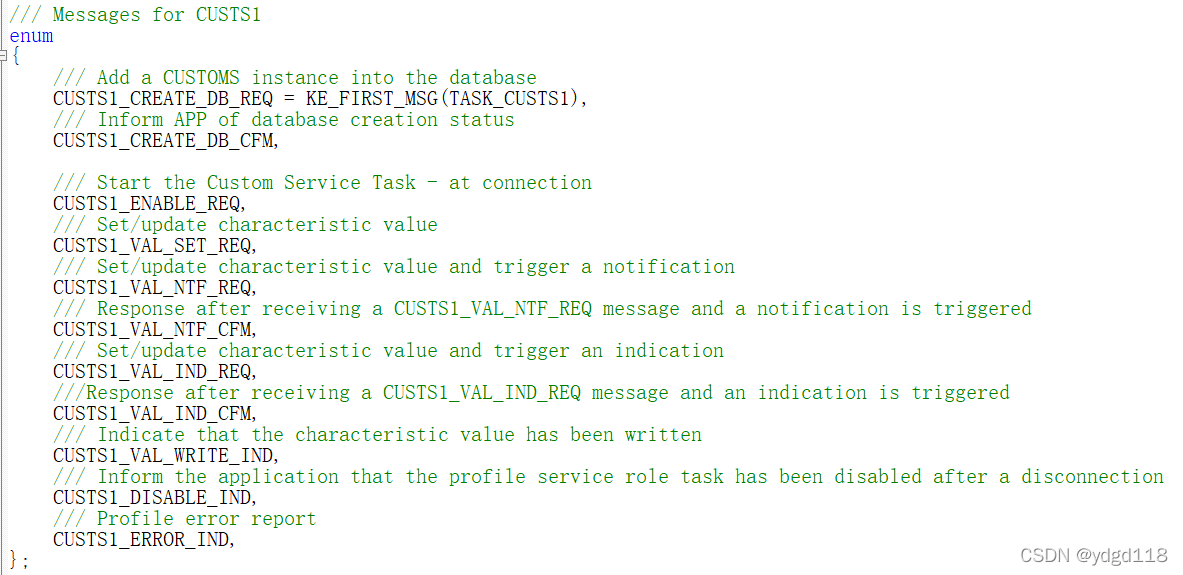

然后新建一个CUSTS1_VAL_WRITE_IND 消息的结构体，并填充刚才接收的数据，最后通过调用ke_msg_send()函数把这个消息发给用户应用APP处理，该消息内含数据长度和全部数据。这里 Inform APP，很重要，把消息从GAP层发给了用户应用APP处理。
收到并处理该消息的是app_entry_point_handler(）函数，该函数在sdk_app_api目录下的app_entry_point.c文件里。sdk_app_api目录的文件是负责连接底层SDK和用户APP的接口。
app_entry_point_handler(）是用户应用程序入口点处理函数。
/**
****************************************************************************************
* @brief Application entry point handler.
* @param[in] msgid Message Id
* @param[in] param Pointer to message
* @param[in] dest_id Destination task Id
* @param[in] src_id Source task Id
* @return Message status
****************************************************************************************
*/
int app_entry_point_handler(ke_msg_id_t const msgid,
void const *param,
ke_task_id_t const dest_id,
ke_task_id_t const src_id)
{
int i = 0;
enum ke_msg_status_tag process_msg_handling_result; 定义一个枚举类型，处理消息时返回的状态。Status returned by a task when handling a message
while (i < (sizeof(app_process_handlers) / sizeof(process_event_func_t)))//回调函数数组挨个轮询检查是否已经处理过
{
ASSERT_ERR(app_process_handlers[i]);
if (app_process_handlers[i](msgid, param, dest_id, src_id, &process_msg_handling_result) == PR_EVENT_HANDLED)//如果已经处理过则消息到此终止。
{
return (process_msg_handling_result);
}
i++;
}
//如果消息未处理过，则调用回调函数app_process_catch_rest_cb()，该函数在user_callback_config.h文件里定义为 = user_catch_rest_hndl()函数
//user cannot do anything else than consume the message
if (app_process_catch_rest_cb != NULL)
{
app_process_catch_rest_cb(msgid,param, dest_id, src_id);
}
return (KE_MSG_CONSUMED);
};
app_entry_point_handler(）函数里判断消息是否已经处理，如果处理了则退出终止消息传递流程。如果没有处理，则调用app_process_catch_rest_cb()回调函数进行处理。处理完毕后，return (KE_MSG_CONSUMED)，告知该消息已经处理完毕。
文件user_callback_config.h里定义了回调函数app_process_catch_rest_cb = user_catch_rest_hndl();
static const catch_rest_event_func_t app_process_catch_rest_cb = (catch_rest_event_func_t)user_catch_rest_hndl;
也就是说GAP层发来的消息通过app_entry_point_handler()接入点处理函数后调用了用户定义的回调函数user_catch_rest_hndl来处理。该函数简介里说明，是处理未被SDK内部机制处理的消息。下面看一下user_catch_rest_hndl这个回调函数都做了啥：
/**
****************************************************************************************
* @brief Handles the messages that are not handled by the SDK internal mechanisms.
* //处理未被SDK内部机制处理的消息
* @param[in] msgid Id of the message received.
* @param[in] param Pointer to the parameters of the message.
* @param[in] dest_id ID of the receiving task instance.
* @param[in] src_id ID of the sending task instance.
* @return void
****************************************************************************************
*/
void user_catch_rest_hndl(ke_msg_id_t const msgid,
void const *param,
ke_task_id_t const dest_id,
ke_task_id_t const src_id)
{
switch(msgid)
{
case CUSTS1_VAL_WRITE_IND:
{
struct custs1_val_write_ind const *msg_param = (struct custs1_val_write_ind const *)(param);
switch (msg_param->handle)
{
case CUST1_IDX_CONTROL_POINT_VAL:
user_custs1_ctrl_wr_ind_handler(msgid, msg_param, dest_id, src_id);
break;
case CUST1_IDX_LED_STATE_VAL:
user_custs1_led_wr_ind_handler(msgid, msg_param, dest_id, src_id);
break;
case CUST1_IDX_ADC_VAL_1_NTF_CFG:
user_custs1_adc_val_1_cfg_ind_handler(msgid, msg_param, dest_id, src_id);
break;
case CUST1_IDX_BUTTON_STATE_NTF_CFG:
user_custs1_button_cfg_ind_handler(msgid, msg_param, dest_id, src_id);
break;
case CUST1_IDX_INDICATEABLE_IND_CFG:
user_custs1_long_val_cfg_ind_handler(msgid, msg_param, dest_id, src_id);
break;
case CUST1_IDX_LONG_VALUE_NTF_CFG:
user_custs1_long_val_cfg_ind_handler(msgid, msg_param, dest_id, src_id);
break;
case CUST1_IDX_LONG_VALUE_VAL:
user_custs1_long_val_wr_ind_handler(msgid, msg_param, dest_id, src_id);
break;
default:
break;
}
} break;
case CUSTS1_VAL_NTF_CFM:
{
struct custs1_val_ntf_cfm const *msg_param = (struct custs1_val_ntf_cfm const *)(param);
switch (msg_param->handle)
{
case CUST1_IDX_ADC_VAL_1_VAL:
break;
case CUST1_IDX_BUTTON_STATE_VAL:
break;
case CUST1_IDX_LONG_VALUE_VAL:
break;
default:
break;
}
} break;
case CUSTS1_VAL_IND_CFM:
{
struct custs1_val_ind_cfm const *msg_param = (struct custs1_val_ind_cfm const *)(param);
switch (msg_param->handle)
{
case CUST1_IDX_INDICATEABLE_VAL:
break;
default:
break;
}
} break;
case GAPC_PARAM_UPDATED_IND:
{
// Cast the void pointer to the appropriate message structure
struct gapc_param_updated_ind const *msg_param = (struct gapc_param_updated_ind const *)(param);
// Check if updated Conn Params filled to preffered ones
if ((msg_param->con_interval >= user_connection_param_conf.intv_min) &&
(msg_param->con_interval <= user_connection_param_conf.intv_max) &&
(msg_param->con_latency == user_connection_param_conf.latency) &&
(msg_param->sup_to == user_connection_param_conf.time_out))
{
}
} break;
default:
break;
}
}
根据msgid，选择对应分支进行处理。现在是一个特征值改变的指示消息CUSTS1_VAL_WRITE_IND （Indicate that the characteristic value has been written）。
进入CUSTS1_VAL_WRITE_IND分支后，根据消息具体内容的handle选择对应的服务回调函数来处理。这里是user_custs1_led_wr_ind_handler()函数。
下面看一下这个回调函数user_custs1_led_wr_ind_handler()。
void user_custs1_led_wr_ind_handler(ke_msg_id_t const msgid,
struct custs1_val_write_ind const *param,
ke_task_id_t const dest_id,
ke_task_id_t const src_id)
{
uint8_t val = 0;
memcpy(&val, ¶m->value[0], param->length);
if (val == CUSTS1_LED_ON)
GPIO_SetActive(GPIO_LED_PORT, GPIO_LED_PIN);
else if (val == CUSTS1_LED_OFF)
GPIO_SetInactive(GPIO_LED_PORT, GPIO_LED_PIN);
}
/// Parameters of the @ref CUSTS1_VAL_WRITE_IND massage
struct custs1_val_write_ind
{
/// Connection handle
uint16_t conhdl;
/// Handle of the attribute that has to be written
uint16_t handle;
/// Data length to be written
uint16_t length;
/// Data to be written in attribute database
uint8_t value[__ARRAY_EMPTY];
};
把传递来的消息具体数据内容*param结构体里的元素uint8_t value[__ARRAY_EMPTY]复制到val变量里。当然这里应该是param->length = 1，也就是数组只有一个元素。
复制完毕后，根据这个值来决定GPIO口输出状态。这里是点亮或熄灭LED灯，当然也可以是去做其他事情。
以上是整个BLE设备收到其它配对设备比如手机等发来的消息后的处理流程。
