[系统运维]在ubuntu18.04上安装和使用k8s集群

一、配置虚拟机

1.官网下载VMware16

2.下载Ubuntu18.04桌面版，配置虚拟机。2核 3G 20G

3.配置root登录
https://blog.csdn.net/m0_46128839/article/details/116133371

二、安装docker

curl -fsSL https://mirrors.ustc.edu.cn/docker-ce/linux/ubuntu/gpg | sudo apt-key add -
add-apt-repository "deb https://mirrors.ustc.edu.cn/docker-ce/linux/ubuntu $(lsb_release -cs) stable"
apt update && apt install docker-ce
docker run hello-world

三、安装k8s

1.关闭虚拟内存

sudo swapoff -a #暂时关闭
nano /etc/fstab #永久关闭，注释掉swap那一行，推荐永久关闭

2.安装kubernetes

#使用root用户操作
apt-get update && apt-get install -y apt-transport-https
curl https://mirrors.aliyun.com/kubernetes/apt/doc/apt-key.gpg | apt-key add -
cat <<EOF >/etc/apt/sources.list.d/kubernetes.list
deb https://mirrors.aliyun.com/kubernetes/apt/ kubernetes-xenial main
EOF
apt-get update
apt-get install kubelet kubeadm kubectl kubernetes-cni

其中kubeadm用于初始化环境，kubectl用于操作kubelet。

3.设置开机启动

sudo systemctl enable kubelet && systemctl start kubelet

4.查看kubectl版本

root@ubuntu:/home/fanb#  kubectl version
Client Version: version.Info{Major:"1", Minor:"21", GitVersion:"v1.21.2", GitCommit:"092fbfbf53427de67cac1e9fa54aaa09a28371d7", GitTreeState:"clean", BuildDate:"2021-06-16T12:59:11Z", GoVersion:"go1.16.5", Compiler:"gc", Platform:"linux/amd64"}
The connection to the server localhost:8080 was refused - did you specify the right host or port?

四、配置k8s集群

1.克隆两台虚拟机

刚刚已经装好一台虚拟机的k8s，现在要配置2台额外的虚拟机，总共3台，形成k8s集群。

推荐的做法是直接使用vmware自带的克隆功能，这样可以免去重装的烦恼。

共3台机器，分别为 master, node1, node2.

master 192.168.139.131

node1 192.168.139.132

node2 192.168.139.133

2.配置虚拟网络

1）配置主节点

在master的/etc/hostname中配置主节点为master

在node1的/etc/hostname中配置主节点为node1

在node2的/etc/hostname中配置主节点为node

2）配置每台机器的/etc/netplan/50-cloud-init.yaml

把DHCP的IP改为固定IP：

network:
    ethernets:
        ens33:
            addresses: [192.168.139.131/24]
            dhcp4: false
            gateway4: 192.168.139.2
            nameservers:
                addresses: [192.168.139.2]
            optional: true
    version: 2

问题一

在这里发现虚拟机重启之后IP会变化，需要将其配置为静态。

解决方法：

• 点击“编辑” --> “虚拟网络编辑器” --> 选择 “vmnet8" --> 取消勾选 ”使用本地DHCP服务器将IP地址分配给虚拟机“


• 进入虚拟机 --> 右上角”有线连接“ --> ”有线设置“ -->设置图标


• 选择”IPV4“ --> 选择手动 --> 在地址栏，第一栏输入你想要的静态IP --> 第二栏是255.255.255.0, --> 第三栏是你的网关 --> dns也输入你的网关 --> 应用

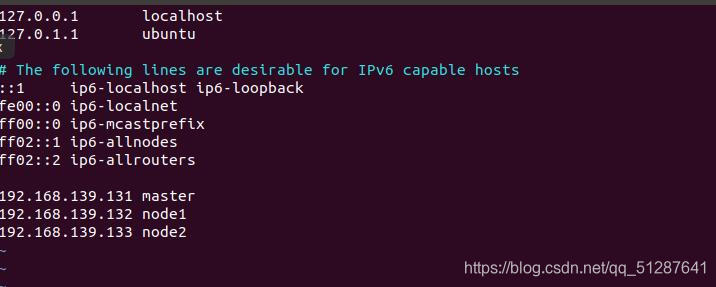

3）修改/etc/hosts

192.168.139.131 master
192.168.139.132 node1
192.168.139.133 node2

4）重启

重启机器后能互相ping表示配置成功：

root@node1:~# ping master
PING master (192.168.139.131) 56(84) bytes of data.
64 bytes from master (192.168.139.131): icmp_seq=1 ttl=64 time=0.434 ms
64 bytes from master (192.168.139.131): icmp_seq=2 ttl=64 time=0.587 ms

root@node1:~# ping node2
PING node2 (192.168.139.133) 56(84) bytes of data.
64 bytes from node2 (192.168.139.133): icmp_seq=1 ttl=64 time=0.917 ms
64 bytes from node2 (192.168.139.133): icmp_seq=2 ttl=64 time=0.551 ms

root@node2:~# ping master
PING master (192.168.139.131) 56(84) bytes of data.
64 bytes from master (192.168.139.131): icmp_seq=1 ttl=64 time=0.572 ms
64 bytes from master (192.168.139.131): icmp_seq=2 ttl=64 time=0.585 ms

root@master:~# ping node1
PING node1 (192.168.139.132) 56(84) bytes of data.
64 bytes from node1 (192.168.139.132): icmp_seq=1 ttl=64 time=0.259 ms
64 bytes from node1 (192.168.139.132): icmp_seq=2 ttl=64 time=0.636 ms

3.配置Master节点

1）使用kubeadm init进行初始化操作

#查看需要的镜像及其版本
root@master:/etc/docker# kubeadm config images list
k8s.gcr.io/kube-apiserver:v1.21.2
k8s.gcr.io/kube-controller-manager:v1.21.2
k8s.gcr.io/kube-scheduler:v1.21.2
k8s.gcr.io/kube-proxy:v1.21.2
k8s.gcr.io/pause:3.4.1
k8s.gcr.io/etcd:3.4.13-0
k8s.gcr.io/coredns/coredns:v1.8.0

root@master:/etc/docker# kubeadm init --image-repository=registry.aliyuncs.com/google_containers --pod-network-cidr=10.244.0.0/16 --kubernetes-version=v1.21.2
[init] Using Kubernetes version: v1.21.2
[preflight] Running pre-flight checks
[preflight] Pulling images required for setting up a Kubernetes cluster
[preflight] This might take a minute or two, depending on the speed of your internet connection
[preflight] You can also perform this action in beforehand using 'kubeadm config images pull'
error execution phase preflight: [preflight] Some fatal errors occurred:
	[ERROR ImagePull]: failed to pull image registry.aliyuncs.com/google_containers/coredns:v1.8.0: output: Error response from daemon: manifest for registry.aliyuncs.com/google_containers/coredns:v1.8.0 not found: manifest unknown: manifest unknown #ImagePull报错
, error: exit status 1
[preflight] If you know what you are doing, you can make a check non-fatal with `--ignore-preflight-errors=...`
To see the stack trace of this error execute with --v=5 or higher

问题二

解决方法：如果直接从k8s.gcr.io 拉取镜像的话，国内会被墙，所以可以从DockerHub的其它拥有所需版本的仓库拉取

编写脚本

root@master:/home# vim pull_k8s_images.sh

set -o errexit
set -o nounset
set -o pipefail

##这里定义版本，按照上面得到的列表自己改一下版本号

KUBE_VERSION=v1.21.2
KUBE_PAUSE_VERSION=3.4.1
ETCD_VERSION=3.4.13-0
DNS_VERSION=v1.8.0

##这是原始仓库名，最后需要改名成这个
GCR_URL=k8s.gcr.io

##这里就是写你要使用的仓库
DOCKERHUB_URL=gotok8s

##这里是镜像列表，新版本要把coredns改成coredns/coredns
images=(
kube-proxy:${KUBE_VERSION}
kube-scheduler:${KUBE_VERSION}
kube-controller-manager:${KUBE_VERSION}
kube-apiserver:${KUBE_VERSION}
pause:${KUBE_PAUSE_VERSION}
etcd:${ETCD_VERSION}
coredns/coredns:${DNS_VERSION}
)

##这里是拉取和改名的循环语句
for imageName in ${images[@]} ; do
  docker pull $DOCKERHUB_URL/$imageName
  docker tag $DOCKERHUB_URL/$imageName $GCR_URL/$imageName
  docker rmi $DOCKERHUB_URL/$imageName
done

授予执行权限

root@master:/home# chmod +x ./pull_k8s_images.sh

执行脚本

root@master:/home# ./pull_k8s_images.sh

查看镜像

发现没有k8s.gcr.io/coredns/coredns:v1.8.0

需要在dockerhub另外找一个有所需版本的仓库

https://hub.docker.com/r/coredns/coredns/tags?page=1&ordering=last_updated

这里只缺一个k8s.gcr.io/coredns/coredns:v1.8.0，所以就不写脚本，自己手动操作了

#拉取 coredns/coredns:1.8.0
root@master:/home# docker pull coredns/coredns:1.8.0
#重命名
root@master:/home# docker tag coredns/coredns:1.8.0 k8s.gcr.io/coredns/coredns:v1.8.0
#删除原来拉取的镜像
root@master:/home# docker rmi coredns/coredns:1.8.0

现在再查看镜像

现在再kubeadm init

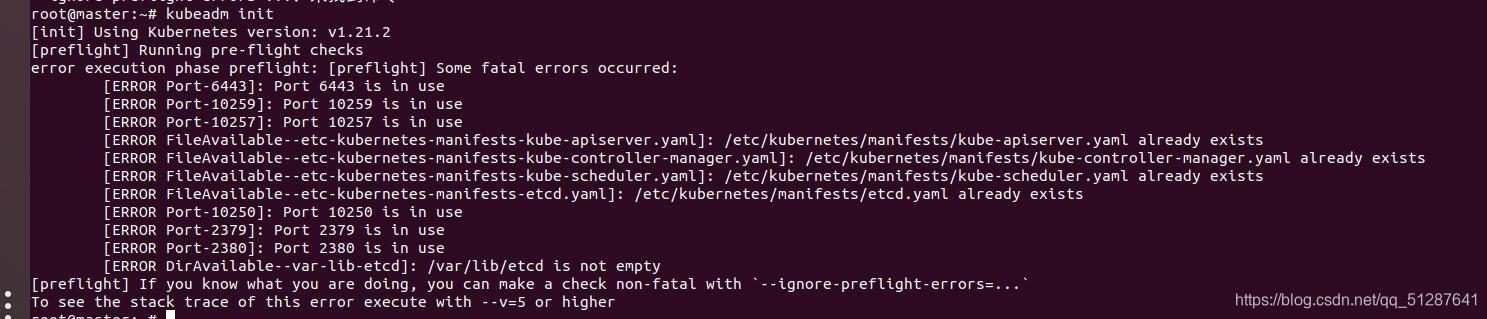

问题三

可以看到有三个类型的错误：[ERROR: Port XXX is in use] ，[ERROR: **.yaml already exists]， [ERROR : /var/lib/etcd is not empty]

解决方法：

• 对于第一类和第二类问题，使用 kubeadm reset 命令，一路yes通过就行。
• 第三个问题，先进入 /var/lib/etcd目录，再使用 rm -rf 命令，清空etcd库的文件。

现在再来使用 kubeadm init

Your Kubernetes control-plane has initialized successfully!

To start using your cluster, you need to run the following as a regular user:

  mkdir -p $HOME/.kube
  sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
  sudo chown $(id -u):$(id -g) $HOME/.kube/config

Alternatively, if you are the root user, you can run:

  export KUBECONFIG=/etc/kubernetes/admin.conf

You should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:
  https://kubernetes.io/docs/concepts/cluster-administration/addons/

Then you can join any number of worker nodes by running the following on each as root:

kubeadm join 192.168.139.131:6443 --token 4hani6.n42f6r1hima8id77 \
	--discovery-token-ca-cert-hash sha256:59ddaf8680ca87c33a1745f22a6e459862087519999a7e201ffef81f6433f1b7

成功！

2）启动k8s

非root用户执行：

 mkdir -p $HOME/.kube
  sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
  sudo chown $(id -u):$(id -g) $HOME/.kube/config

root用户执行（仅本次有效），这个文件包含了登陆kubectl的验证信息：

export KUBECONFIG=/etc/kubernetes/admin.conf

可以设置永久的环境变量，这样下次登陆，kubectl就能直接连上本机的server，而不用再设置一次环境变量：

vim /etc/profile

#文件末尾添加
export KUBECONFIG=/etc/kubernetes/admin.conf

启动kubelet 设置为开机自启动

root@master:/var/lib/etcd# systemctl enable kubelet

启动k8s服务程序

root@master:/var/lib/etcd# systemctl start kubelet

3）查看启动状态

root@master:/var/lib/etcd# kubectl get nodes
NAME     STATUS     ROLES                  AGE   VERSION
master   NotReady   control-plane,master   36m   v1.21.2
#现在只有一个master节点。

root@master:/var/lib/etcd# kubectl get cs
Warning: v1 ComponentStatus is deprecated in v1.19+
NAME                 STATUS      MESSAGE                                                                                       ERROR
controller-manager   Unhealthy   Get "http://127.0.0.1:10252/healthz": dial tcp 127.0.0.1:10252: connect: connection refused
scheduler            Unhealthy   Get "http://127.0.0.1:10251/healthz": dial tcp 127.0.0.1:10251: connect: connection refused
etcd-0               Healthy     {"health":"true"}

问题四

可以发现上面 kubectl get cs 后有两个unhealthy

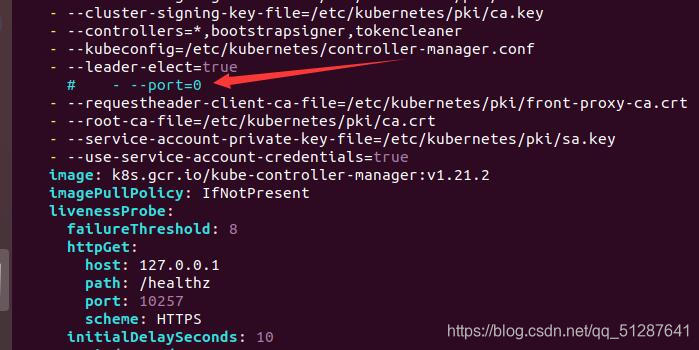

解决方法： 注释掉/etc/kubernetes/manifests下的kube-controller-manager.yaml和kube-scheduler.yaml的- --port=0。

root@master:/etc/kubernetes/manifests# vim kube-controller-manager.yaml
root@master:/etc/kubernetes/manifests# vim kube-scheduler.yaml

现在重新kubectl get cs，可以发现没有问题

root@master:/etc/kubernetes/manifests# kubectl get cs
Warning: v1 ComponentStatus is deprecated in v1.19+
NAME                 STATUS    MESSAGE             ERROR
scheduler            Healthy   ok
controller-manager   Healthy   ok
etcd-0               Healthy   {"health":"true"}

4.配置内部通信 flannel 网络

master和node都要配

1）下载kube-flannel.yml

• 由于直接下载会被墙，所以先在/etc/hosts文件添加一条199.232.68.133 raw.githubusercontent.com

• 然后通过wget下载

wget https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml

2）加载配置文件

root@master:/etc# kubectl apply -f kube-flannel.yml
Warning: policy/v1beta1 PodSecurityPolicy is deprecated in v1.21+, unavailable in v1.25+
podsecuritypolicy.policy/psp.flannel.unprivileged created
clusterrole.rbac.authorization.k8s.io/flannel created
clusterrolebinding.rbac.authorization.k8s.io/flannel created
serviceaccount/flannel created
configmap/kube-flannel-cfg created
daemonset.apps/kube-flannel-ds created

此时状态变为ready

root@master:/etc# kubectl get nodes
NAME     STATUS   ROLES                  AGE   VERSION
master   Ready    control-plane,master   24h   v1.21.2

5.配置 node节点

1）启动kubelet

root@node1:~# systemctl enable kubelet
root@node1:~# systemctl start kubelet

2）配置ssh

#三个虚拟机都安装ssh
apt-get install openssh-server

#配置密钥
##在master中执行 ssh-keygen -t rsa 一路回车
###将master中/root/.ssh/id_rsa.pub内容拷贝到node1和node2的/root/.ssh/authorized_keys中
root@master:~# cat /root/.ssh/id_rsa.pub
root@node2:~/.ssh# vim authorized_keys

3）拷贝配置文件

root@master:~# scp /etc/kubernetes/admin.conf root@node1:/home/fanb/
root@master:~# scp /etc/kubernetes/admin.conf root@node2:/home/fanb/

4）加入节点

root@node1:/home/fanb# kubeadm join 192.168.139.131:6443 --token 4hani6.n42f6r1hima8id77 --discovery-token-ca-cert-hash sha256:59ddaf8680ca87c33a1745f22a6e459862087519999a7e201ffef81f6433f1b7

root@node2:/home/fanb# kubeadm join 192.168.139.131:6443 --token 4hani6.n42f6r1hima8id77 --discovery-token-ca-cert-hash sha256:59ddaf8680ca87c33a1745f22a6e459862087519999a7e201ffef81f6433f1b7

5）在master中查看

root@master:~# kubectl get nodes
NAME     STATUS     ROLES                  AGE     VERSION
master   Ready      control-plane,master   3h50m   v1.21.2
node1    NotReady   <none>                 3h40m   v1.21.2
node2    NotReady   <none>                 93s     v1.21.2

问题五

发现为notready，通过 查看日志发现 node节点上可能缺少文件

root@node1:/home/fanb# journalctl -f -u kubelet
-- Logs begin at Fri 2021-07-09 23:05:52 PDT. --
Jul 14 03:28:27 node1 kubelet[15305]: I0714 03:28:27.380762   15305 cni.go:239] "Unable to update cni config" err="no networks found in /etc/cni/net.d"

需从master机器上拷贝文件过来

root@master:/etc/cni# scp -r /etc/cni root@node1:/etc

root@master:/etc/cni# scp -r /etc/cni root@node2:/etc

现在再查看，发现都为ready了

root@master:/etc/cni# kubectl get nodes
NAME     STATUS   ROLES                  AGE     VERSION
master   Ready    control-plane,master   5h16m   v1.21.2
node1    Ready    <none>                 5h6m    v1.21.2
node2    Ready    <none>                 87m     v1.21.2

到这里，k8s集群搭建完毕。
