[系统运维]SaltStack分布式架构

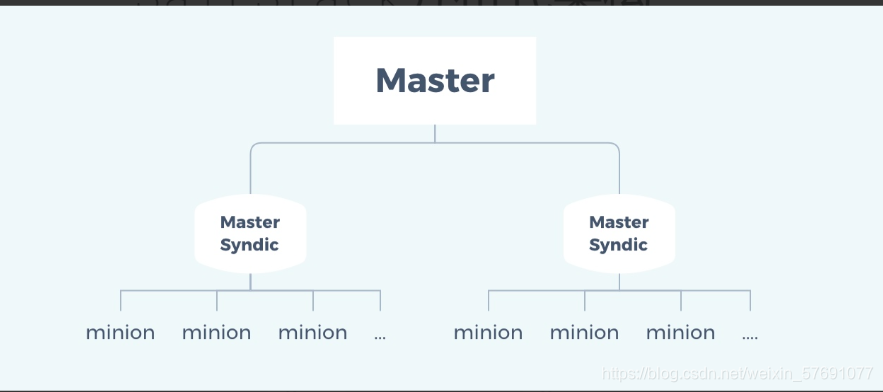

SaltStack分布式架构

salt-syndic的优劣势

优势：

• 可以通过syndic实现更复杂的salt架构
• 减轻master的负担

劣势：

• syndic的/srv目录下的salt和pillar目录内容要与最顶层的master下的一致，所以要进行数据同步，同步方案同salt-master高可用

• 最顶层的master不知道自己有几个syndic，它只知道自己有多少个minion，并不知道这些minion是由哪些syndic来管理的

salt-syndic部署

环境

关闭防火墙

[root@master ~]# systemctl stop firewalld.service
[root@master ~]# setenforce 0
#四个同

配置master

• 取消注释order_master

• 将order_master的值设为True

  [root@master ~]# vim /etc/salt/master
  # Set the order_masters setting to True if this master will command lower
  # masters' syndic interfaces.
  #order_masters: False    #在下面加一行另外写，或者取消注释改为True
  order_masters: True
  [root@master ~]# systemctl enable salt-master
  [root@master ~]# systemctl restart salt-master


  配置syndic

  修改syndic所在主机的master配置文件

  取消注释syndic_master

  将syndic_master的值设为master的IP

[root@syndic ~]# yum -y install salt-master salt-syndic   #如果装过了就不用了
[root@syndic ~]# vim /etc/salt/master
# If this master will be running a salt syndic daemon, syndic_master tells
# this master where to receive commands from.
#syndic_master: masterofmasters  #在下面加一行另外写，或者取消注释改为IP
syndic_master: 192.168.136.132
[root@syndic ~]# systemctl enable salt-master
[root@syndic ~]# systemctl enable salt-syndic
[root@syndic ~]# systemctl restart salt-master
[root@syndic ~]# systemctl restart salt-syndic

配置minion

[root@minion1 ~]# vim /etc/salt/minion
# resolved, then the minion will fail to start.
#master: salt
master: 192.168.136.133

[root@minion2 ~]# vim /etc/salt/minion
# resolved, then the minion will fail to start.
#master: salt
master: 192.168.136.133

[root@minion1 ~]# systemctl start salt-minion.service
[root@minion1 ~]# systemctl enable salt-minion.service

[root@minion2 ~]# systemctl start salt-minion.service
[root@minion2 ~]# systemctl enable salt-minion.service

在所有minion上做同样的操作

设置minion配置文件中的id参数

指向minion自身的ip地址或主机名

syndic上接受minion主机的key

[root@syndic ~]# salt-key -L
Accepted Keys:
Denied Keys:
Unaccepted Keys:
minion1
minion2
Rejected Keys:
[root@syndic ~]# salt-key -yA
The following keys are going to be accepted:
Unaccepted Keys:
minion1
minion2
Key for minion minion1 accepted.
Key for minion minion2 accepted.
[root@syndic ~]# salt-key -L
Accepted Keys:
minion1
minion2
Denied Keys:
Unaccepted Keys:
Rejected Keys:

master上接受syndic主机的key

[root@master ~]# salt-key -L
Accepted Keys:
Denied Keys:
Unaccepted Keys:
syndic
Rejected Keys:
[root@master ~]# salt-key -yA
The following keys are going to be accepted:
Unaccepted Keys:
syndic
Key for minion syndic accepted.
[root@master ~]# salt-key -L
Accepted Keys:
syndic
Denied Keys:
Unaccepted Keys:
Rejected Keys:

master上执行模块或状态检验有几个minion应答

[root@master ~]# salt '*' test.ping
minion2:
    True
minion1:
    True

[root@master ~]# salt '*' cmd.run 'date'
minion2:
    Thu Jul 22 07:01:28 EDT 2021
minion1:
    Thu Jul 22 07:01:28 EDT 2021

   True
minion1:
    True

[root@master ~]# salt '*' cmd.run 'date'
minion2:
    Thu Jul 22 07:01:28 EDT 2021
minion1:
    Thu Jul 22 07:01:28 EDT 2021
