问题:搭建邮件服务器,在foxmail上使用xiaoming@example.com给wuneng@ceshi.com用户发一封邮件,内容为biechile。 (域间互发邮件)
由题可知,需要三台服务器,两个邮件服务器,一个DNS服务器
一、先配置第一个邮件服务器(example.com)
1.安装相应的软件包
yum -y install postfix
yum -y install dovecot
yum -y install mailx
2.编辑主配置文件
vim /etc/postfix/main.cf
myhostname = mail.example.com
mydomain = example.com
myorigin = $mydomain
inet_interfaces = all
mydestination = $mydomain
mynetworks = 192.168.19.0/24
3.编辑dovecot的主配置文件
vim /etc/dovecot/dovecot.conf
protocols = imap pop3 lmtp
login_trusted_networks = 192.168.19.0/24
vim /etc/dovecot/conf.d/10-mail.conf
mail_location = mbox:~/mail:INBOX=/var/mail/%u
4.服务端开启sasl认证,安装sasl模块的软件包cyrus-sasl
yum install -y cyrus-sasl
vim /etc/postfix/main.cf
broken_sasl_auth_clients = yes
smtpd_sasl_auth_enable =yes
smtpd_sasl_security_options = noanonymous
smtpd_recipient_restrictions = permit_sasl_authenticated,permit_mynetworks,reject_unauth_destination
5.关闭防火墙和selinux并重启服务
systemctl restart dovecot
systemctl restart postfix
systemctl restart saslauthd
setenforce 0
systemctl stop firewalld
6.创建测试用户xiaoming
useradd xiaoming
echo 1 | passwd --stdin xiaoming
7.给相应的权限
chmod 600 /var/spool/mail/*
二、配置另一台邮件服务器(ceshi.com) 大致的配置过程和上面一致(认证只需要在一台服务器上认证即可)
yum -y install mailx
yum -y install postfix
yum -y install dovecot
vim /etc/postfix/main.cf
myhostname = mail.ceshi.com
mydomain = ceshi.com
myorigin = $mydomain
inet_interfaces = all
mydestination = $mydomain
mynetworks = 192.168.19.0/24
vim /etc/dovecot/dovecot.conf
protocols = imap pop3 lmtp
login_trusted_networks = 192.168.19.0/24
vim /etc/dovecot/conf.d/10-mail.conf
mail_location = mbox:~/mail:INBOX=/var/mail/%u
systemctl restart dovecot
systemctl stop firewalld
systemctl restart postfix
setenforce 0
useradd wuneng
echo 1 | passwd --stdin wuneng
chmod 600 /var/spool/mail/*
三、搭建dns **1.安装相应的软件包**
yum -y install bind
2.修改配置文件

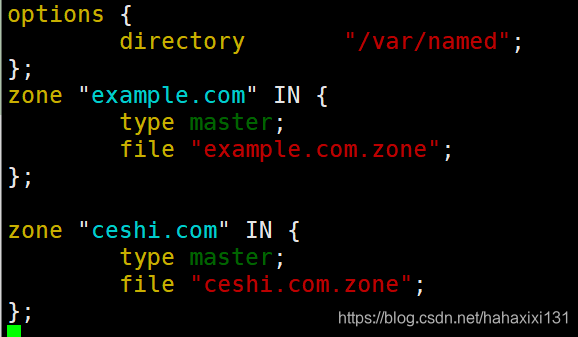

vim /etc/named.conf
options {
directory "/var/named";
};
zone "example.com" IN {
type master;
file "example.com.zone";
};
zone "ceshi.com" IN {
type master;
file "ceshi.com.zone";
};
编写子配置文件
cd /var/named
vim ceshi.com.zone
$TTL 1D
@ IN SOA @ admin.ceshi.com. (
0 ; serial
1D ; refresh
1H ; retry
1W ; expire
3H ) ; minimum
ceshi.com. NS ns.ceshi.com
IN MX 10 mail.ceshi.com.
ns A 192.168.19.130
mail A 192.168.19.10
vim example.com.zone
$TTL 1D
@ IN SOA @ admin.example.com. (
0 ; serial
1D ; refresh
1H ; retry
1W ; expire
3H ) ; minimum
example.com. NS example
IN MX 10 mail.example.com.
example A 192.168.19.130
mail A 192.168.19.20
3.重启服务,并修改其余两台邮件服务器的默认dns
systemctl restart named
echo 'nameserver 192.168.19.130' > /etc/resolv.conf
echo 'nameserver 192.168.19.130' > /etc/resolv.conf
4.测试dns
五、Foxmail测试情况

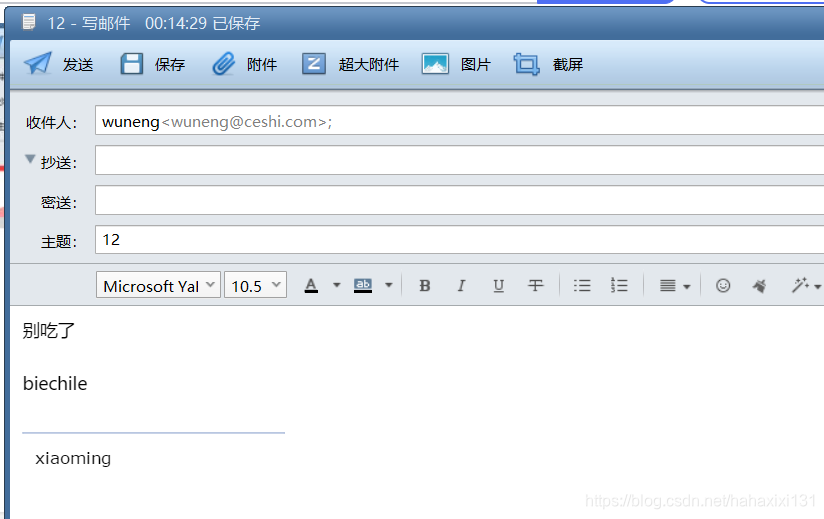

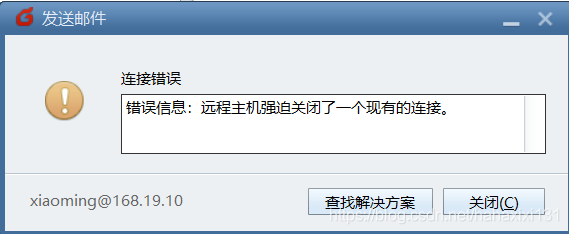

先添加刚刚创建的用户 写邮件 用xiaoming给wuneng写信 我们在发送的时候出现了一个错误,远程主机强迫关闭了一个现有的连接 出现这个错误的原因:cyrus-sasl的部分服务未开启 解决方案:将sasl的安装包都安装上 在认证的服务器上安装相应服务
yum install cyrus-sasl* -y
再次重新发送,问题解决,发送成功 在wuneng的账户中能看到xiaoming发的邮件
|
